Samsung Galaxy S II GT-I9100 User manual

GSM TELEPHONE
GT-i9100
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2011. 04. Rev.1.0
ⓒ

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in shield box during detailed tuning.
Take specially care of tuning or test because the specification of mobile phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool because performance of parts is damaged by
the influence of the magnetic force.
―Surely use astandard screwdriver when you disassemble this product.
―Use athicken twisted wire when you measure level because athicken twisted wire has low
resistance.
―Repair after separate test pack and set because of short danger (for example an overcurrent and
furious flames of parts etc) when you repair the board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering iron because the board of the PCB is small and weak in heat.
―Surely tune on/off while using AC power plug because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling the charger.
―Don't use the unauthorised materialsexcept for the replacement registered on SEC System.
Otherwise the engineer isn't charged with issues that you don't keep.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductorsmay be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
Protect you from ESD damage by static electricity.
―Remove electrical charges emitted by the human body before you touch semiconductorsor parts.
There are ways that you touch an earthed place or wear static electricity prevention string on wrist
to prevent these problems.
―Use aearthed soldering steel when you connect or disconnect ESD.
―Use asoldering removing tool equipped with static electricity isolation.O
therwise ESD will be
damaged by static electricity.
―Don't unpack product until you set up ESD in the product. Because most of the ESD is packed by
box and aluminum plate to have conductive power, it is prevented from static electricity.
―You must maintain electric contact between ESD and apart to be set up until ESD is connected
completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850 EGSM 900 DCS1800 PCS1900 WCDMA
2100
WCDMA
1900
WCDMA
900
WCMDA
850
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
1852~1907
1932~1987
880~915
925~960
824~849
869~894
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:
9612~9888
DL:
10562~1083
8
UL:
9262~9538
DL:
9662~9938
UL:
2712~2863
DL:
2937~3088
UL:
4132~4233
DL:
4357~4458
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/
Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
FrameLengt
h:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPS
K
QPSKHQPS
K
QPSKHQPS
K
QPSKHQPS
K
MS Power 33dBm~5dB
m
33dBm~5dB
m
30dBm~0dB
m
30dBm~0dB
m
24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
24dBm~
-50dBm
Power
Class
5pcl ~
19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•Android OS: Gingerbread
•HSPA+ 21Mbps /HSUPA 5.7Mbps
•8
MP AF with LED Flash
•4.27
WVGA Super AMOLED Plus (C-Type)
•A-GPS /BT v3.0 USB v2.0 /WiFi (802.11 a/b/g/n) /OTG
•Recording 1080p / Playback 1080p
•Sensors: Acceleration, Magnetic, Gyro, Light, Proximity
•Additional :
-1.2
GHz Dual Core CPU
-Application store /Precise Motion UI
-Seamless Sharing Experience.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

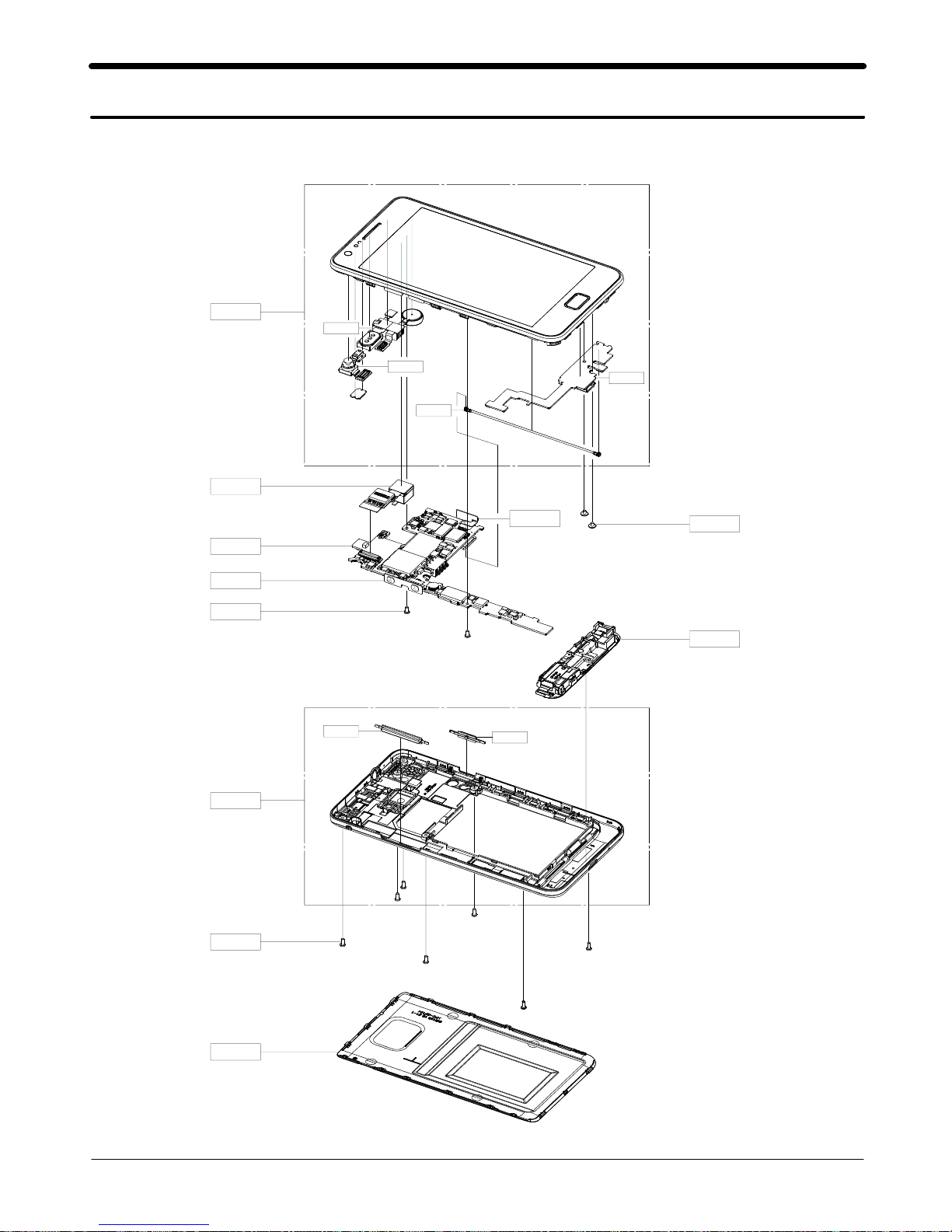

4-1. Cellular phone Exploded View
QRE01
QCR03
QBC00
QVK01
QCA01
QMP01
QCR12
QFR01
QCA02
QCR96
QSP01
QVK02
QME02
QCK01
QCB01
QAR01
QVO01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QCR12 SCREW-MACHINE 6001-001530
QCR03 SCREW-MACHINE 6001-001811
QCR96 SCREW-MACHINE 6001-002259
QVK02 KEY FPCB-POWER KEY(GT_9100) GH59-10916A
QSP01 MODULE-SPK+INT(GT_I9100) GH59-10917A
QVK01 KEY FPCB-VOLUME KEY(GT_9100) GH59-10921A
QMP01 A/S ASSY-PBA MAIN(COMM)GT_I9100 GH82-05732A
QCA01 ASSY CAMERA-MODULE,8M (GT_I9100) GH96-05139A
QBC00 ASSY COVER-BATT GH98-19595A
QFR01 MEA FRONT-OCTA LCD ASSY(OPEN) GH97-12175A
QCB01 CBF COAXIAL CABLE-75.5MM (GT_I9100) GH39-01475A
QAR01 MODULE-RCV+MOT+MIC+E/JACK FPCB(GT_I9100) GH59-10935A
QME02 ASSY ETC-SUB FPCB(GT_I9100) GH59-10949A
QCA02 CAMERA MODULE-GT-I9100_2M CAM GH59-10986A
QRE01 ASSY CASE-REAR GH98-19594A
QVO01 ASSY KEY-VOL GH98-19806A
QCK01 ASSY KEY-PWR GH98-19807A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0403-001688 D500 DIODE-ZENER
0404-001245 D501 DIODE-SCHOTTKY
0406-001446 ZD700,ZD701 DIODE-TVS
0407-001002 D502 DIODE-ARRAY
0505-002388 Q500 FET-SILICON
0601-003079 LED500 LED
0801-003024 U300 IC
0801-003031 U400 IC
0908-002766 UCP400 IC
1001-001481 U502 IC
1001-001635 U600 IC
1001-001699 U709 IC
1003-002100 U203 IC
1108-000424 UME300 IC
1201-003139 PAM200 IC
1201-003217 PAM100 IC
1202-001068 U706 IC
1202-001118 U603 IC
1203-004339 U704 IC
1203-004802 U707 IC
1203-004819 U609,U610,U611,U703 IC
1203-004819 U711,U720 IC
1203-005044 U702 IC
1203-005244 U710 IC
1203-005574 U701 IC
1203-005580 U206 IC
1203-006651 U718 IC
1203-006794 U503 IC
1203-006801 U104 IC
1203-006802 U103 IC
1203-006847 U303 IC
1203-006851 U501 IC
1203-006884 U504 IC
1204-003167 U601 IC
1204-003171 U202 IC
1204-003176 U205 IC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
1205-004174 U602 IC
1205-004195 U100 IC
1205-004213 UCP300 IC
1205-004233 U708 IC
1209-001997 U607 IC
1209-002041 U608 IC
1209-002045 U606 IC
1404-001221 TH300,TH400,TH401 THERMISTOR
1405-001183 VR600,VR602,VR603 VARISTOR
1405-001183 VR604,VR605,VR607 VARISTOR
2007-000143 R421,R422 R-CHIP
2007-007107 R322 R-CHIP
2007-007133 R529,R531 R-CHIP
2007-007137 R446 R-CHIP
2007-007312 R474,R475 R-CHIP
2007-007468 R527 R-CHIP
2007-007488 R525 R-CHIP
2007-007517 R425,R428,R472,R473 R-CHIP
2007-007741 R515,R516 R-CHIP
2007-007942 R625 R-CHIP
2007-008040 R603,R604 R-CHIP
2007-008045 R704 R-CHIP
2007-008048 R730,R731 R-CHIP
2007-008052 R312,R408,R409,R410 R-CHIP
2007-008052 R411,R464,R468,R469 R-CHIP
2007-008052 R517,R722 R-CHIP
2007-008055 R341,R429,R431,R432 R-CHIP
2007-008055 R434,R438,R456,R457 R-CHIP
2007-008055 R459,R460,R461,R501 R-CHIP
2007-008055 R528,R530,R546,R605,R619 R-CHIP
2007-008055 R711 R-CHIP
2007-008296 R524 R-CHIP
2007-008312 R348,R626 R-CHIP
2007-008391 R532 R-CHIP
2007-008403 R514 R-CHIP
2007-008419 R216,R308,R309,R423 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-008419 R424,R426,R427,R454 R-CHIP
2007-008419 R455,R466,R467,R477 R-CHIP
2007-008419 R478,R609,R611,R615 R-CHIP
2007-008419 R616 R-CHIP
2007-008420 R214,R215,R351,R479 R-CHIP
2007-008420 R480,R523,R600,R623 R-CHIP
2007-008420 R734,R735,R737 R-CHIP
2007-008465 R533 R-CHIP
2007-008483 R300,R301,R302,R303 R-CHIP
2007-008483 R305 R-CHIP
2007-008486 R710 R-CHIP
2007-008502 R526 R-CHIP
2007-008516 R203,R210,R211,R232 R-CHIP
2007-008516 R304,R323,R325,R404 R-CHIP
2007-008516 R405,R406,R448,R449 R-CHIP
2007-008516 R450,R463,R465,R508 R-CHIP
2007-008516 R509,R510,R511,R513 R-CHIP
2007-008516 R617,R618,R628,R702 R-CHIP
2007-008516 R715,R721,R725,R729 R-CHIP
2007-008516 R732 R-CHIP
2007-008531 R201,R420,R629,R630 R-CHIP
2007-008531 R703 R-CHIP
2007-008579 R208 R-CHIP
2007-008588 R337,R338,R339,R470 R-CHIP
2007-008588 R471 R-CHIP
2007-008800 R433,R440 R-CHIP
2007-009084 R602,R709,R712,R713 R-CHIP
2007-009111 R346,R633,R634 R-CHIP
2007-009155 R350 R-CHIP
2007-009157 R349,R402,R403,R441 R-CHIP
2007-009157 R481,R482 R-CHIP
2007-009158 R727,R728 R-CHIP
2007-009171 R313,R314,R315,R316 R-CHIP
2007-009171 R317,R318,R319,R320 R-CHIP
2007-009212 R622 R-CHIP
2007-009315 R344 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-009408 R414,R415,R701 R-CHIP
2007-009801 R101,R102 R-CHIP
2007-009964 R442,R444 R-CHIP
2007-009969 R624 R-CHIP
2007-010029 R418 R-CHIP
2007-010202 R204,R205,R206,R207 R-CHIP
2007-010233 R330 R-CHIP
2203-000233 C219 C-CERAMIC,CHIP
2203-000725 C557 C-CERAMIC,CHIP
2203-005138 C441,C447 C-CERAMIC,CHIP
2203-005281 C223 C-CERAMIC,CHIP
2203-005446 C201 C-CERAMIC,CHIP
2203-005682 C107,C124,C125,C126 C-CERAMIC,CHIP
2203-005682 C181,C346,C347,C348 C-CERAMIC,CHIP
2203-005682 L102 C-CERAMIC,CHIP
2203-005717 C102,C752,C758,C759 C-CERAMIC,CHIP
2203-005725 C439,C440 C-CERAMIC,CHIP
2203-005726 C100,C101,C129 C-CERAMIC,CHIP
2203-005729 C355,C520,C529,C613 C-CERAMIC,CHIP
2203-005729 C614,C639 C-CERAMIC,CHIP
2203-005731 C354 C-CERAMIC,CHIP
2203-005734 C637,C640 C-CERAMIC,CHIP
2203-005736 C220,C265 C-CERAMIC,CHIP
2203-005779 C217,C218 C-CERAMIC,CHIP
2203-005789 L106 C-CERAMIC,CHIP
2203-005806 C113 C-CERAMIC,CHIP
2203-006048 C448,C644 C-CERAMIC,CHIP
2203-006194 C121,C302,C305,C641 C-CERAMIC,CHIP
2203-006208 C531,C533,C534,C535 C-CERAMIC,CHIP
2203-006260 C162 C-CERAMIC,CHIP
2203-006305 C442 C-CERAMIC,CHIP
2203-006324 C567 C-CERAMIC,CHIP
2203-006348 C504,C566 C-CERAMIC,CHIP
2203-006379 C109 C-CERAMIC,CHIP
2203-006399 C656 C-CERAMIC,CHIP
2203-006423 C136,C137,C140,C141 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006423 C142,C144,C145,C146 C-CERAMIC,CHIP
2203-006423 C147,C148,C163,C215 C-CERAMIC,CHIP
2203-006423 C216,C300,C303,C306 C-CERAMIC,CHIP
2203-006423 C307,C313,C314,C326 C-CERAMIC,CHIP
2203-006423 C328,C329,C330,C331 C-CERAMIC,CHIP
2203-006423 C334,C335,C337,C338 C-CERAMIC,CHIP
2203-006423 C339,C342,C343,C344 C-CERAMIC,CHIP
2203-006423 C359,C405,C409,C412 C-CERAMIC,CHIP
2203-006423 C414,C416,C419,C424 C-CERAMIC,CHIP
2203-006423 C443,C445,C446,C540 C-CERAMIC,CHIP
2203-006423 C559,C607,C610,C643 C-CERAMIC,CHIP
2203-006423 C647,C715,C716,C727 C-CERAMIC,CHIP
2203-006423 C728,C731,C734,C737 C-CERAMIC,CHIP
2203-006423 C741 C-CERAMIC,CHIP
2203-006474 C351,C353 C-CERAMIC,CHIP
2203-006556 C760,C761 C-CERAMIC,CHIP
2203-006562 C135,C173,C211,C213 C-CERAMIC,CHIP
2203-006562 C254,C356,C357,C358 C-CERAMIC,CHIP
2203-006562 C501,C502,C516,C518 C-CERAMIC,CHIP
2203-006562 C713,C723,C746,C757 C-CERAMIC,CHIP
2203-006562 C764 C-CERAMIC,CHIP
2203-006611 C120 C-CERAMIC,CHIP
2203-006642 C404,C407 C-CERAMIC,CHIP
2203-006647 C143,C149,C150,C151 C-CERAMIC,CHIP
2203-006647 C166,C624,C626 C-CERAMIC,CHIP
2203-006648 C122,C621,C622 C-CERAMIC,CHIP
2203-006668 C410,C411,C611,C612 C-CERAMIC,CHIP
2203-006707 C127 C-CERAMIC,CHIP
2203-006815 C112,C114 C-CERAMIC,CHIP
2203-006824 C179,C180 C-CERAMIC,CHIP
2203-006839 C117,C138,C157,C158 C-CERAMIC,CHIP
2203-006839 C208,C253,C255,C517 C-CERAMIC,CHIP
2203-006839 C519,C562,C605,C655 C-CERAMIC,CHIP
2203-006839 C657,C659 C-CERAMIC,CHIP
2203-006841 C571 C-CERAMIC,CHIP
2203-006872 C139,C159,C160,C175 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006872 C202,C209,C210,C266 C-CERAMIC,CHIP
2203-006872 C301,C308,C542,C545 C-CERAMIC,CHIP
2203-006872 C547,C548,C551,C552 C-CERAMIC,CHIP
2203-006872 C553,C623,C704,C718 C-CERAMIC,CHIP
2203-006872 C719,C726,C730,C733 C-CERAMIC,CHIP
2203-006872 C736 C-CERAMIC,CHIP
2203-006890 C530,C645,C646 C-CERAMIC,CHIP
2203-006979 C103,C116,C214,C318 C-CERAMIC,CHIP
2203-006979 C558,C627,C630 C-CERAMIC,CHIP
2203-007133 C720,C753,C754 C-CERAMIC,CHIP
2203-007194 C241 C-CERAMIC,CHIP
2203-007210 C164,C176,C304,C310 C-CERAMIC,CHIP
2203-007210 C315,C319,C324,C327 C-CERAMIC,CHIP
2203-007210 C332,C336,C340,C341 C-CERAMIC,CHIP
2203-007210 C345,C360,C511,C632 C-CERAMIC,CHIP
2203-007210 C633 C-CERAMIC,CHIP
2203-007270 C155,C156,C262,C724 C-CERAMIC,CHIP
2203-007270 C725 C-CERAMIC,CHIP
2203-007271 C167,C408,C413,C415 C-CERAMIC,CHIP
2203-007271 C418,C430,C438,C601 C-CERAMIC,CHIP
2203-007271 C706,C707,C708,C717 C-CERAMIC,CHIP
2203-007279 C309,C320,C539 C-CERAMIC,CHIP
2203-007317 C172,C178,C417,C420 C-CERAMIC,CHIP
2203-007317 C425,C427,C435 C-CERAMIC,CHIP
2203-007391 C573,C642 C-CERAMIC,CHIP
2203-007393 C134,C169,C506,C507 C-CERAMIC,CHIP
2203-007393 C508,C509,C510,C521 C-CERAMIC,CHIP
2203-007393 C522,C523,C524,C525 C-CERAMIC,CHIP
2203-007393 C526,C527,C537,C701 C-CERAMIC,CHIP
2203-007393 C762 C-CERAMIC,CHIP
2203-007449 C174,C321,C322,C323 C-CERAMIC,CHIP
2203-007449 C325,C333,C349,C350 C-CERAMIC,CHIP
2203-007449 C400,C401,C402,C403 C-CERAMIC,CHIP
2203-007449 C406,C421,C422,C423 C-CERAMIC,CHIP
2203-007449 C426,C428,C429,C432 C-CERAMIC,CHIP
2203-007449 C433,C436,C437,C500 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-007449 C541,C543,C544,C546 C-CERAMIC,CHIP
2203-007449 C549,C550,C554,C555 C-CERAMIC,CHIP
2203-007449 C556,C572,C600,C602 C-CERAMIC,CHIP
2203-007449 C603,C604,C606,C608 C-CERAMIC,CHIP
2203-007449 C609,C615,C617,C618 C-CERAMIC,CHIP
2203-007449 C625,C628,C629,C631 C-CERAMIC,CHIP
2203-007449 C658,C660,C703,C705 C-CERAMIC,CHIP
2203-007449 C709,C710,C711,C712 C-CERAMIC,CHIP
2203-007449 C714,C739,C742,C744 C-CERAMIC,CHIP
2203-007449 C747,C748,C755,C756 C-CERAMIC,CHIP
2203-007449 C763,C765 C-CERAMIC,CHIP
2203-007701 C171,C311,C312,C431 C-CERAMIC,CHIP
2203-007701 C505,C532,C538 C-CERAMIC,CHIP
2203-007781 C564,C565 C-CERAMIC,CHIP
2203-007840 C206 C-CERAMIC,CHIP
2404-001496 TA600 C-TA,CHIP
2404-001506 TA501,TA502,TA503 C-TA,CHIP
2409-001127 C168 C-POLYMER,CHIP
2409-001166 BAT500 C-EDL
2703-000213 L201 INDUCTOR-SMD
2703-001231 L509 INDUCTOR-SMD
2703-001285 L606 INDUCTOR-SMD
2703-001750 C104 INDUCTOR-SMD
2703-002199 L206 INDUCTOR-SMD
2703-002313 C203 INDUCTOR-SMD
2703-002596 L120,L127 INDUCTOR-SMD
2703-002901 C132 INDUCTOR-SMD
2703-002907 L114 INDUCTOR-SMD
2703-002955 C118 INDUCTOR-SMD
2703-002958 C130,C133,L113 INDUCTOR-SMD
2703-002961 L200,L205 INDUCTOR-SMD
2703-003004 L207 INDUCTOR-SMD
2703-003476 L211 INDUCTOR-SMD
2703-003545 L202 INDUCTOR-SMD
2703-003686 L503 INDUCTOR-SMD
2703-003755 L119,L121,L122 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-8
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2703-003770 L703 INDUCTOR-SMD
2703-003869 L302,L303 INDUCTOR-SMD
2703-003892 L504 INDUCTOR-SMD
2703-003897 L704 INDUCTOR-SMD
2703-003909 L501,L502,L506 INDUCTOR-SMD
2703-003911 L118,L500,L508 INDUCTOR-SMD
2703-004000 L107 INDUCTOR-SMD
2703-004012 C128,L110 INDUCTOR-SMD
2703-004034 L103,L104 INDUCTOR-SMD
2703-004035 L109 INDUCTOR-SMD
2703-004038 C111 INDUCTOR-SMD
2703-004039 L117 INDUCTOR-SMD
2703-004052 L507 INDUCTOR-SMD
2801-004339 OSC300,OSC500 CRYSTAL-SMD
2801-004458 OSC400 CRYSTAL-SMD
2801-005051 OSC201 CRYSTAL-SMD
2809-001348 OSC200 OSCILLATOR-VCTCXO
2809-001369 OSC100 OSCILLATOR-VCTCXO
2901-001413 F700,F701,F702,F704 FILTER-EMI SMD
2901-001413 F707,F709 FILTER-EMI SMD
2901-001625 F706 FILTER-EMI SMD
2901-001647 F703,F705 FILTER-EMI SMD
2910-000125 F100 DUPLEXER-SAW
2911-000166 U101 DUPLEXER-SAW
3301-001729 L705,L706,L707,L708 BEAD-SMD
3301-001876 L209,L210 BEAD-SMD
3301-001885 L213 BEAD-SMD
3301-001912 L212 BEAD-SMD
3301-001929 L601 BEAD-SMD
3301-001956 L300,L301 BEAD-SMD
3301-002062 L116 BEAD-SMD
3301-002065 L204,L600,L607,L608 BEAD-SMD
3301-002065 L609,L614 BEAD-SMD
3301-002066 L700,L701,L702 BEAD-SMD
3301-002078 L602,L604 BEAD-SMD
3705-001448 ANT100 CONNECTOR-COAXIAL

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-9
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
3705-001731 RFS100 CONNECTOR-COAXIAL
3708-002162 HDC700 CONNECTOR-FPC
3709-001575 CD300 CONNECTOR-CARD EDGE
3709-001626 SIM300 CONNECTOR-CARD EDGE
3711-006483 HDC701 HEADER-BOARD TO BOARD
3711-006925 HDC704 HEADER-BOARD TO BOARD
3711-007173 HDC702 HEADER-BOARD TO BOARD
3711-007295 HDC703 HEADER-BOARD TO BOARD
3711-007806 BTC500 HEADER-BATTERY
3711-007810 HDC600 HEADER-BOARD TO BOARD
3712-001348 ANT200,ANT201 CONNECTOR-TERMINAL
4709-001987 MOD201 IC
GH62-00015A PORON202 PAD GAP-PCB GASKET
GH70-07467A SC100,SC101,SC102 ICT SHIELD-CAN CLIP
GH70-07467A SC103,SC104,SC105 ICT SHIELD-CAN CLIP
GH70-07467A SC107,SC109,SC110 ICT SHIELD-CAN CLIP
GH70-07467A SC111,SC112,SC113 ICT SHIELD-CAN CLIP
GH70-07467A SC114,SC115,SC116 ICT SHIELD-CAN CLIP
GH70-07467A SC117,SC118,SC119 ICT SHIELD-CAN CLIP
GH70-07467A SC120,SC121,SC122 ICT SHIELD-CAN CLIP
GH80-03320A R353 Solder Bridge PAD
GH80-03321A C651,R212,R310,R328 Solder Bridge PAD
GH80-03321A R329,R331,R719,R720 Solder Bridge PAD
GH80-03321A R741 Solder Bridge PAD
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-1
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requisite for S/W Downloading
Downloader Program (Odin3 v1.83.exe)
GT-I9100 Mobile Phone
Data Cable
JIG BOX (GH99-36900A)
•JIG Cable (GH39-01339A)
•Adapter (GH99-38251A)
•Serial Cable
Binary files
※Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)
Or PC to Phone Using Data Cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization

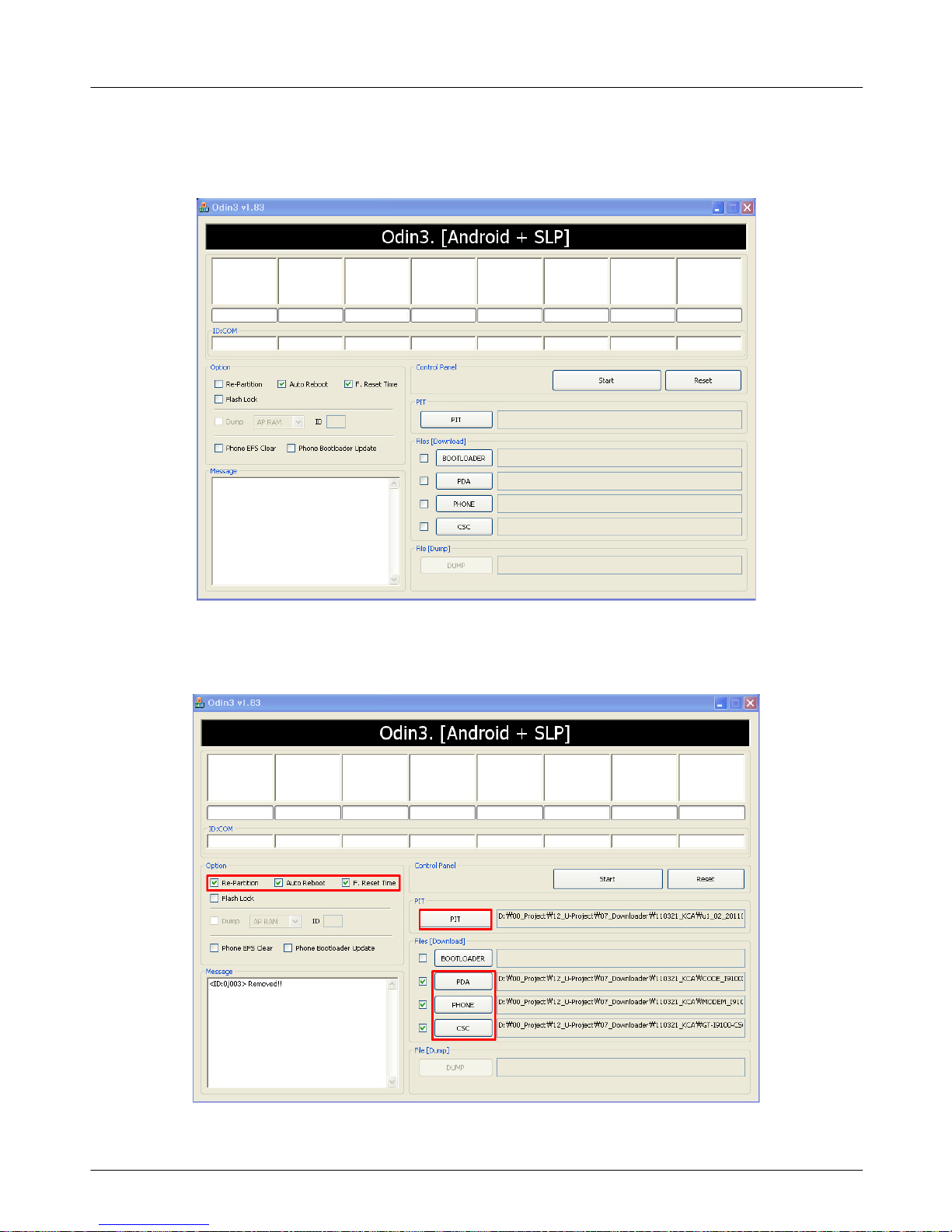

6-1-2. S/W Downloader Program
Load the binary download program by executing the
"Odin3 v1.83.exe" Run this file.
1.Option Selection
-Check Re-Partition, Auto Reboot and F. Reset Time, then select PIT, PDA,
PHONE and CSC Files.
