Samsung SGH-i907 Series User manual

GSM TELEPHONE
SGH-i900
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control

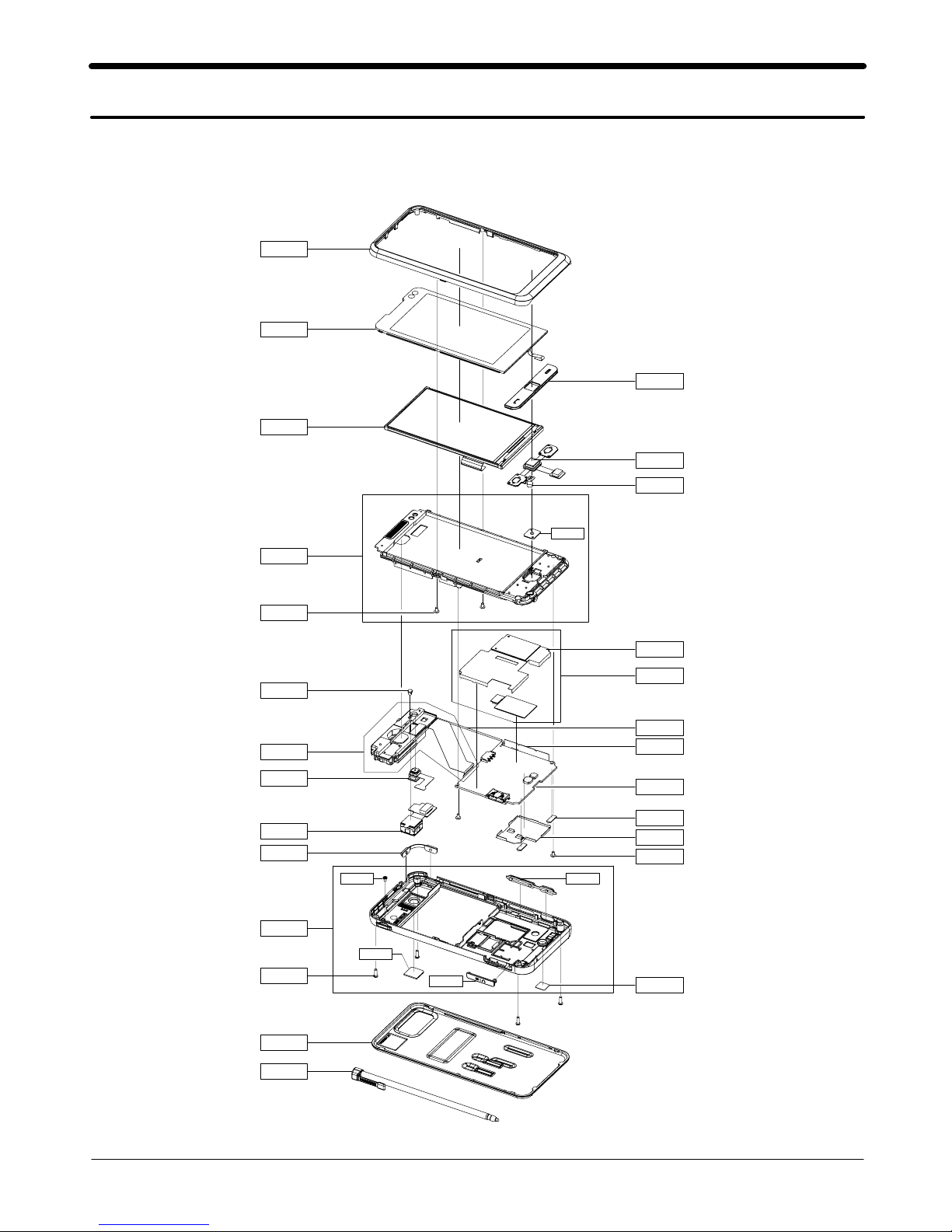

5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2008. 06. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA2100
Freq.
Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~1977
2112~2167
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~9888
DL:10562~108
38
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 190MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLength:
10ms
Slotlength:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dB
m
24dBm~-
50dBm
Power Class 5pcl ~ 19pcl 5pcl ~19
pcl 0pcl ~15 pcl 0pcl ~15 pcl 3(max+24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
―Homescreen
―PIM -Contacts,Calendar,Tasks,Voice Note
―Messaging -SMS, MMS, Email,VoiceRecorder within MMS
―Windows Live! Portal
―Windows Update
―Email Setup Wizard
―Internet Explorer
―Multimedia capability -5Mega Pixel, Camcorder,Windows Media Player
―Zoomer
―Dialer
―Video Telephony
―Accessary Applications -Alarms, Calculator,NotePad,Task Manager,Smart Converter,World
Clock,Stopwatch,Smart Search
―Active Sync
―Bluetooth
―Document Viewer
―File Manager,My Item
―Java
―Pod Casting,RSS Reader
―Games
―MTV
―Postcard
―Google Map
―TV OUT
―Auto Brightness Control
―Acceleration Sensor

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
There is 2set to download the binary image into your device.

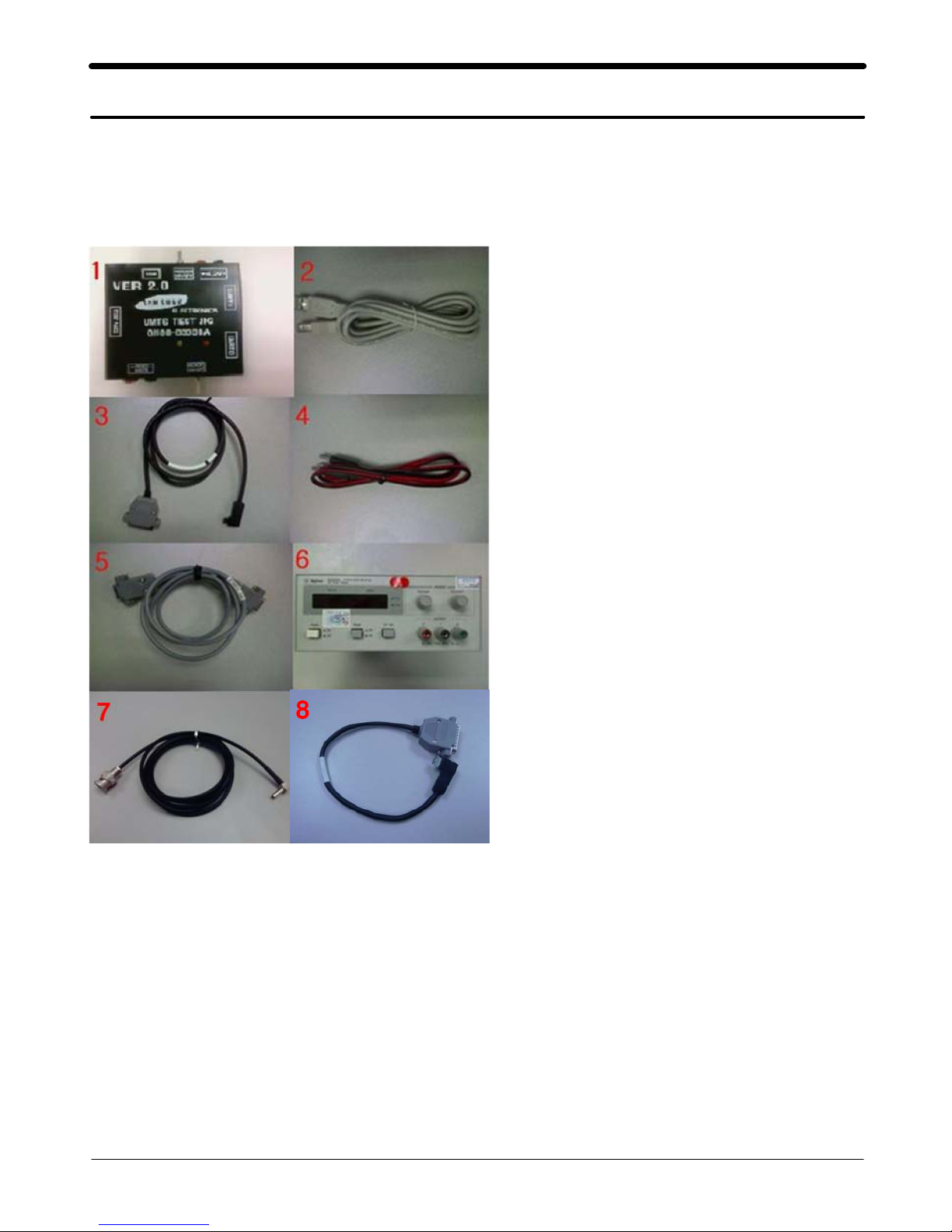

[First set]
1. JIG BOX (UMTS TEST JIG:GH80-03308A)
2. USB Cable :JIG to PC
3. Test Cable :JIG to SGH-i780 (GH39-00993A)
4. Power Cable :JIG to power supply
5. Serial Cable :SGH-i900 to PC
6. Power Supply
7. RF Cable (GH39-00599A): to Agilent 8960 or CMU200
8. Test Cable :JIG to SGH-i900 (GH39-00990A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization

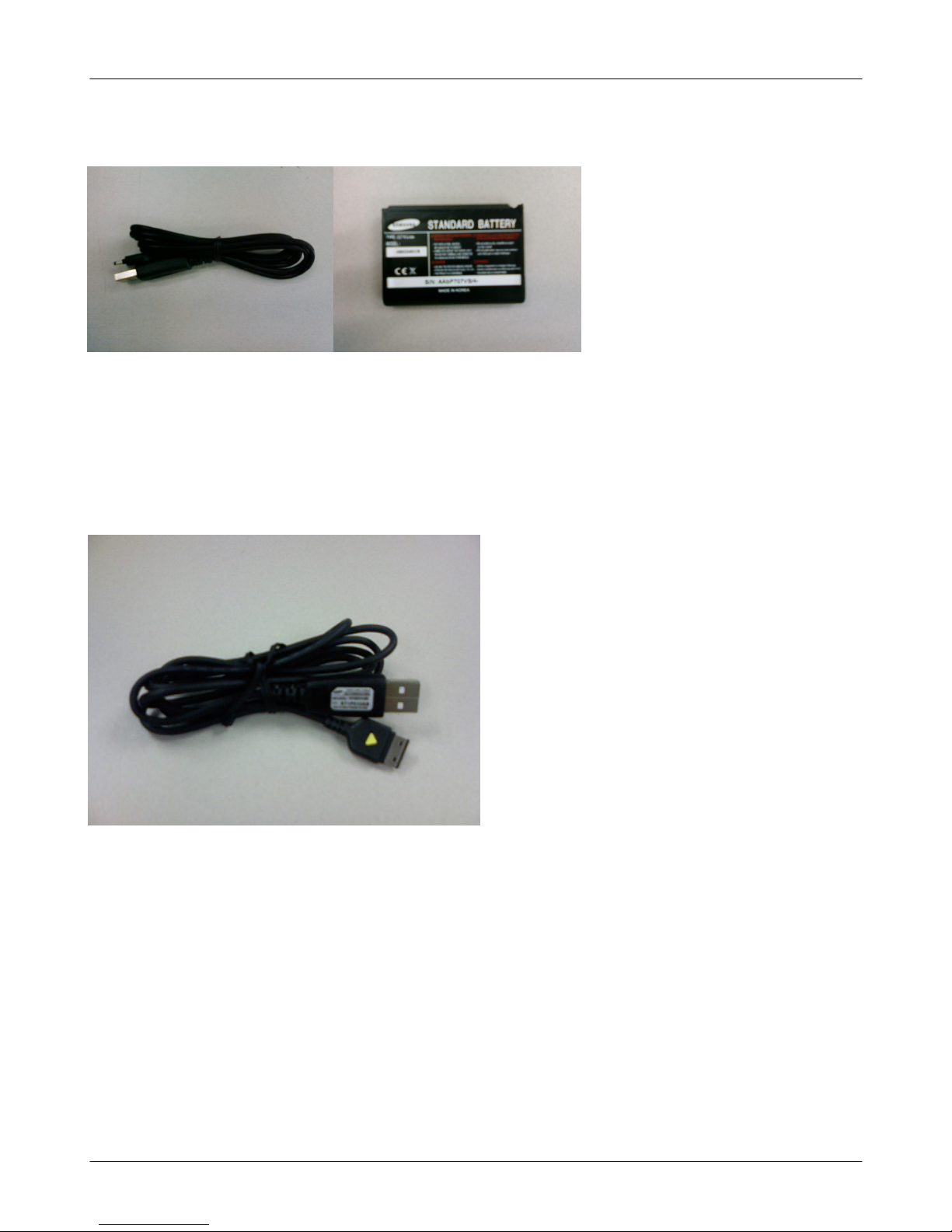

[Second set]
1. USB DATA Link Cable :GH39-00922A
2. Battery :GH43-03110A
4-2. Software Download
1-1. Equipment for Software Download
1-2. Pre-requisite for Download
▶Downloader Program
-[Image Version].exe
▶USB Driver
-PDA :Samsung MITs USB Sync [Samsung MITs USB Sync.zip]
-Phone :Samsung CDMA Modem [Samsung CDMA Modem.zip]
▶SGH-i900 Mobile Device
▶Driver Installation

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
2-1. Driver Installation (PDA)
▶Make sure that you install drivers.
▶If you installed the latest ActiveSync program, you don’t need to install the pda d
river. Please install the latest ActiveSync program.
2-2. Driver Installation (Phone)
When you download the phone image, you need the driver of Samsung CDMA Modem.
If you want to download the phone image, install the Samsung CDMA Modem driver.
)After you install the driver of Samsung CDMA Modem, please restart ahos
tcomputer.
3. Execute the Downloader Program. [Image Version.exe]
4. Turn off your device.

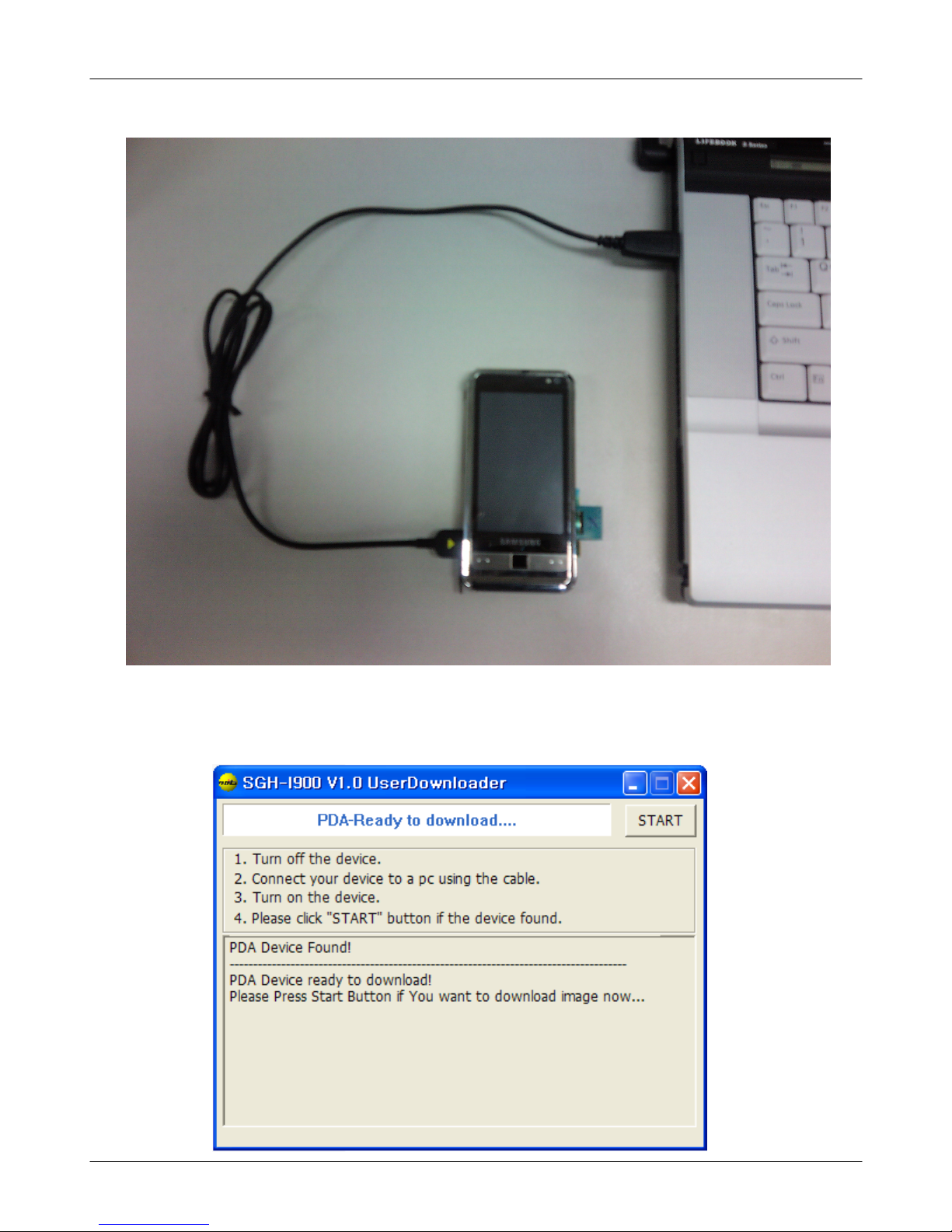

5. Connect your device to ahost computer by using USB DATA Link Ca

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
ble.
6. Turn on your device and wait until 'START' button is activated.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
)If ‘START’button is not activated, terminate the application and reconnect USB dat
alink cable and retry.
7. Please click “START”button.
8. When the download is finished, the phone is rebooted automatically.
)Download Procedure
[Downloading EBOOT ]
[Downloading PDA ]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
[Changing USB PATH]
[Downloading PHONE ]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization

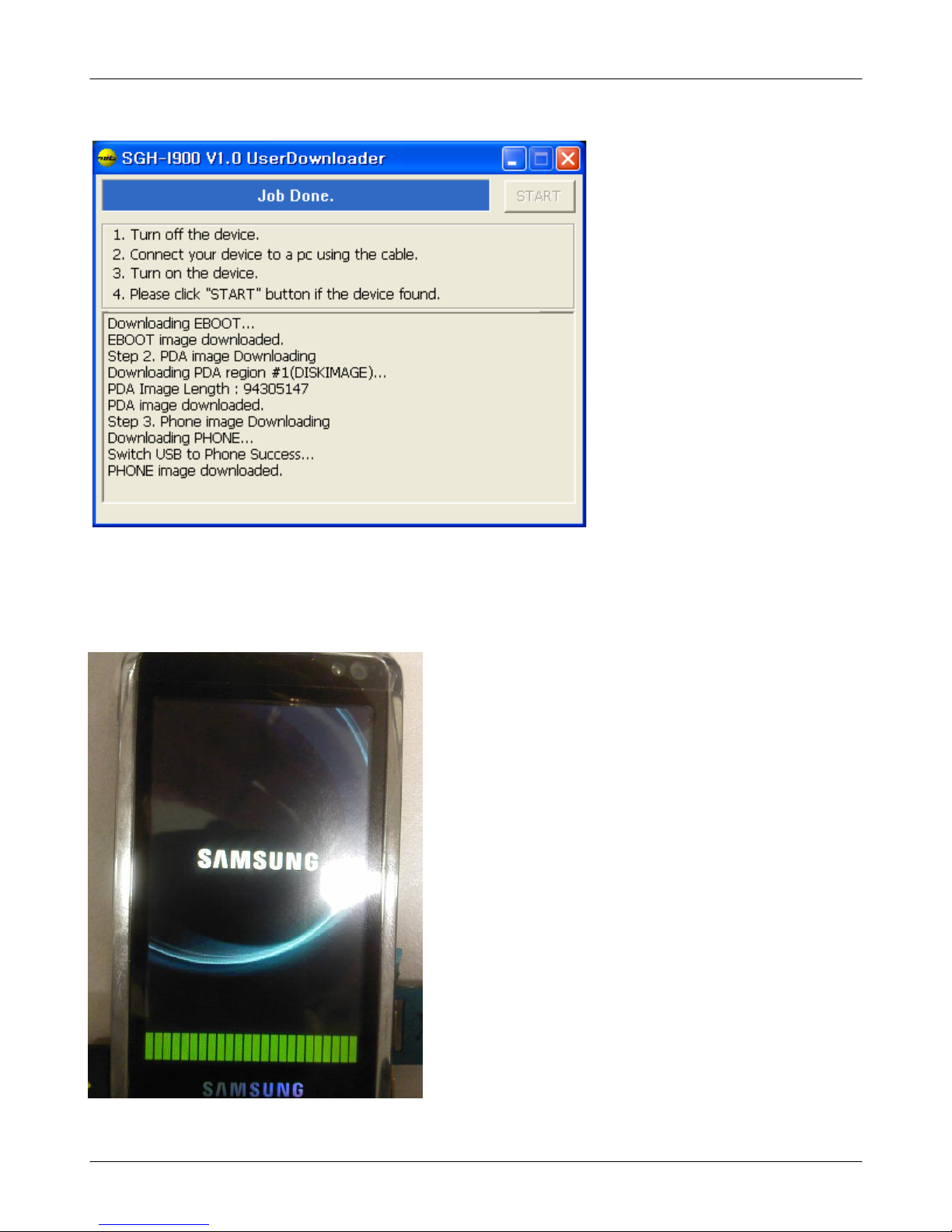

[Job Done ]
)The Display of your Device

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization

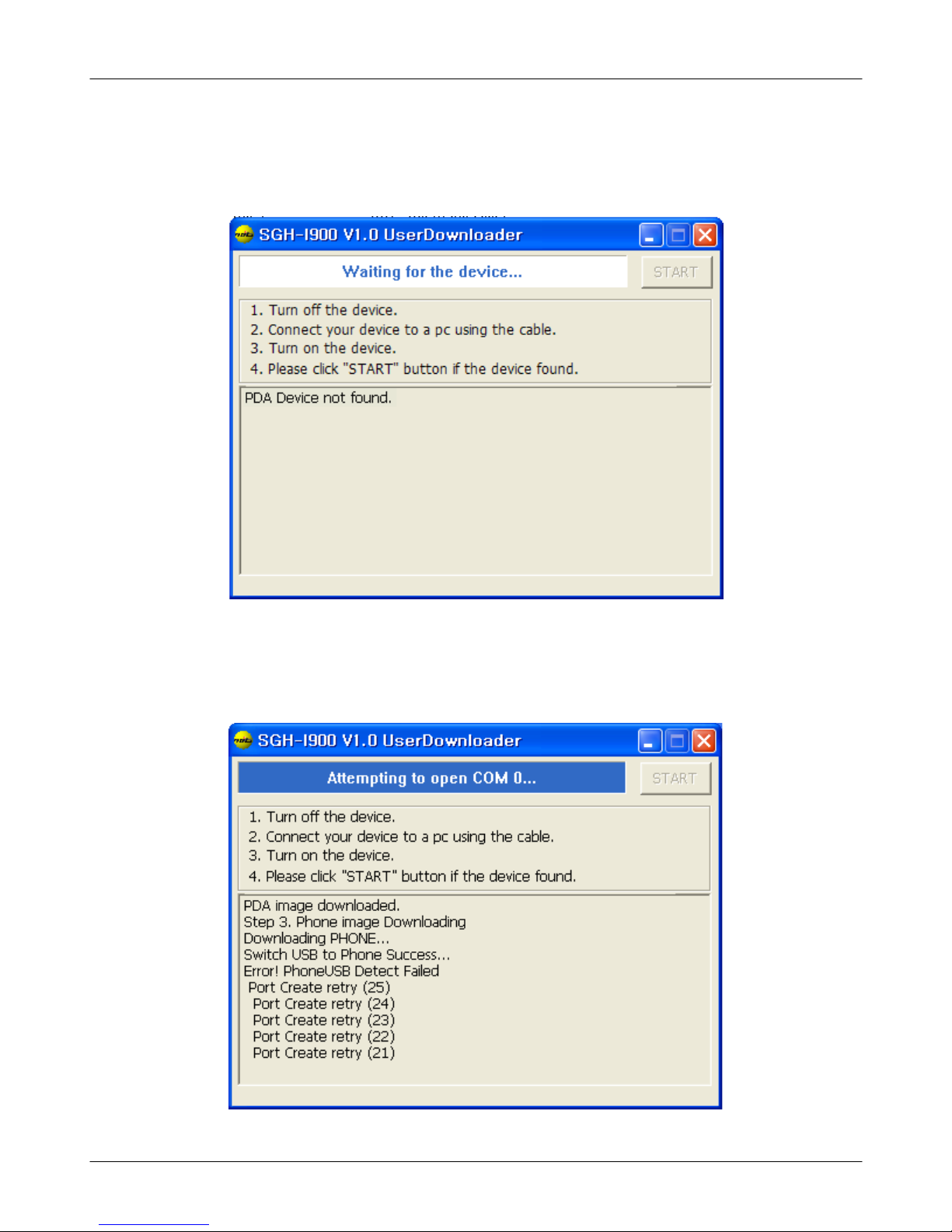

)Trouble Shooting
1. “PDA Device not found”message
)Make sure that your device is connected ahost computer by USB DATA Li
nk cable.
2. “Port Open Failed”message or application hang

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization
)After you install “phone USB driver (Samsung CDMA Modem)”at first time, you m
ay see “Port open failed…” message or application hang while downloading aphone
image. If so, terminate the application and then try the download again.
)If USB port is changed, at first time you may see “Port open failed…” message or
application hang. If so, terminate the application and then try the download again.
)If USB cable to the mobile device is not connected tightly, you may see “Port ope
nfailed…” message or application hang. If so, terminate the application and then try
the download again.
.
)If you always see “port open failed”message or application hang,
1. When failed application is activated, go to the device manager, remove the S
AMSUNG CDMA Modem and SAMSUNG USB Composite Device.
2. Rename C:\WINDOWS\system32\drivers\Modem.sys to other name. (ex. Mod
em-.sys)
3. Go to control panel->program add/remove, and then remove Samsung CDMA
ModemdriverorSamsungUSBdriver(MCCI)
4. Restart your PC.
5. Install attached SAMSUNG CDMA Modem_4.34
6. Try the download again.
3. “Write Failed”message
)If battery level is low, use charged battery and try again.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-10
This Document can not be used without Samsung's authorization
-Reference -
How to deal with the an error in the computer USB port of the computer.
Symptom: Device is not identified after connecting it.
Cause: The device is connected before the previous connection is complete. All devices should be
connected one by one. Otherwise, an error may occur in the computer USB port of the computer.
Solution:
Proceed with the following action in order only when the previous action does not work.
1) Unplug the USB port from the computer and plug it again.
2) Open the Device Manager and remove the USB hub and install it again.
3) Reboot the computer.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QFR01
QME03
QLC01
QBR01
QCA07
QCR71
QCW02
QCA01
QCA02
QCK02
QRE01
QCR09
QBA00
QST01
QKP01
QJK01
QMI01
QCB01
QMP02
QAN05
QSH01
QCR71
QRF01
QVK01
QSH02
QMP01
QRF03
QCW01
QCR47 QVO01
QKP06

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN05 ASSY RUBBER-INTENNA CONTACT GH98-08737A
QBA00 ASSY COVER-BATT GH98-09310A
QCA01 CAMERA MODULE-SGHI900 CIF GH59-05582A
QCA02 CAMERA MODULE-SGHI900 5M GH59-05583A
QCA07 KEY FPCB-SGHI900 CAMERA FPCB_C GH59-06056A
QCB01 CBF COAXIAL CABLE-SGHI900 MHF GH39-01069A
QCK02 PMO KEY-POWER FUNCTION GH72-47423A
QCR09 SCREW-MACHINE 6001-001670
QCR71 SCREW-MACHINE 6001-002095
QCR71 SCREW-MACHINE 6001-002095
QCW02 PMO DECO-WINDOW GH72-46895A
QFR01 NDC CASE-FRONT V2 GH71-08256A
QJK01 UNIT-SGHI900 OPTICAL JOYSTICK GH59-05596A
QKP01 ASSY KEYPAD-(XEF/XKA) GH98-07557A
QLC01 ELA UNIT-LCD UNIT ASSY(SGH_I90 GH96-03195A
QME03 UNIT-SGHI900 TOUCH WINDOW GH59-05586A
QMI01 MICROPHONE-ASSY-SGHI900 GH30-00473A
QMP01 PBA MAIN-SGHI900 GH92-04463A
QMP02 ASSY PBA MAIN-SGH_I900 16G GH92-04807A
QRF01 TAPE-RF SHEET GH74-37306A
QSH01 IPR SHIELD-CAN AGH70-03218A
QSH02 ASSY COVER-SHIELD CAN BGH98-09048A
QST01 ASSY ACCE-STYLUS PEN GH98-09044A
QVK01 KEY FPCB-SGHI900 VOLUME KEY GH59-05578A
QBR01 ASSY BRACKET GH98-07554A
QKP06 ASSY RUBBER-KEY DOM GH98-07631A
QRE01 ASSY CASE-REAR GH98-07553A
QCR47 SCREW-MACHINE 6001-001695
QCW01 ASSY COVER-CAMERA WINDOW GH98-07556A
QRF03 PMO COVER-EAR JACK V2 GH72-48359A
QVO01 ASSY KEY-CAM VOL GH98-08142A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
0403-001547 D301 DIODE-ZENER
0403-001547 D600 DIODE-ZENER
0406-001167 ZD403 DIODE-TVS
0406-001167 ZD404 DIODE-TVS
0406-001208 ZD402 DIODE-TVS
0406-001215 U502 DIODE-TVS
0406-001215 ZD400 DIODE-TVS
0406-001215 ZD401 DIODE-TVS
0406-001215 ZD405 DIODE-TVS
0406-001231 ZD500 DIODE-TVS
0406-001231 ZD501 DIODE-TVS
0406-001237 U208 DIODE-TVS
0406-001237 U308 DIODE-TVS
0406-001237 U312 DIODE-TVS
0406-001237 ZD406 DIODE-TVS
0406-001254 ZD300 DIODE-TVS
0406-001267 ZD201 DIODE-TVS
0407-001002 D300 DIODE-ARRAY
0407-001007 D302 DIODE-ARRAY
0501-002440 TR500 TR-SMALL SIGNAL
0501-002440 TR501 TR-SMALL SIGNAL
0501-002440 TR502 TR-SMALL SIGNAL
0504-000168 TR600 TR-DIGITAL
0801-002237 U205 IC-CMOS LOGIC
0801-002529 U206 IC-CMOS LOGIC
0801-002882 U311 IC-CMOS LOGIC
0801-003013 U207 IC-CMOS LOGIC
0801-003013 U503 IC-CMOS LOGIC
0801-003013 U504 IC-CMOS LOGIC
0801-003013 U515 IC-CMOS LOGIC
0801-003016 U201 IC-CMOS LOGIC
0801-003016 U516 IC-CMOS LOGIC
0801-003016 U602 IC-CMOS LOGIC
0801-003031 U204 IC-CMOS LOGIC
0801-003031 U600 IC-CMOS LOGIC
0801-003052 U203 IC-CMOS LOGIC
0801-003052 U307 IC-CMOS LOGIC
0801-003052 U608 IC-CMOS LOGIC
0801-003052 U609 IC-CMOS LOGIC
0801-003052 U610 IC-CMOS LOGIC
0902-002319 UCP600 IC-MICROPROCESSOR
1001-001231 U400 IC-ANALOG SWITCH
