Samsung Galaxy Sol 3 User manual

SAMSUNG
Samsung Galaxy Sol 3
User Guide

SI\MSUNG
GalaxySol 3
U S ER MANU A L


Table of contents
Special features
Hi Bixby
Direct Share
Media volume limiter
Multi window
Getting started
Front view
Back view
Set up your device
Assemble your device
Start using your device
1Learn about your device 16
2Navigation 17
2Home screen 19
2Customize your Home screen 20
2Status bar 26
3Notification panel 28
4Bixby 30
6Multi window 31
7Enter text 33
8Emergency mode 36
12 Apps 38
Use apps 39
iCKT_J336AZ_EN_UM_TN_RE1_052518_FINAL

Calculator
Calendar
Camera and video
Clock
Contacts
Email
Galaxy Apps
Gallery
Google Apps
Internet
Messages
My Files
Phone
Samsung Gear
Samsung Notes
44
46
49
54
58
66
69
70
74
76
80
83
85
96
97
Samsung+ 99
Cricket Apps 101
Additional apps 102
Settings 103
Access Settings 104
Search for Settings 104
Connections 105
Wi-Fi 106
Bluetooth 109
Data usage 111
Airplane mode 113
Mobile hotspot 113
Tethering 116
Mobile networks 116
Location 117
ii

Nearby device scanning
Connect to aprinter
Virtual Private Networks
Sounds and vibration
Sound mode
Vibrations
Volume
Ringtone
Notification sounds
Do not disturb
System sounds
Key-tap feedback
Sound quality and effects
Notifications
Manage notifications
119
119
120
122
123
123
124
125
125
125
126
126
127
128
129
Smart alert 129
Display 130
Screen off settings 131
Screen brightness 131
Font and screen zoom 132
Screen quality 132
One-handed mode 133
Device maintenance 134
Quick optimization 135
Battery 135
Storage 136
Memory 138
Language and input 138
Date and time 142
Report diagnostic information 143
iii

Reset
Factory data reset
Auto restart
Software update
Lock screen and security
Screen lock types
Clock and information
Google Play Protect
Find My Mobile
Security update
Install unknown apps
Secure Folder
App permission monitor
Secure startup
Encrypt SD card
143
144
146
147
148
149
150
150
150
151
151
152
152
153
153
Factory data reset password 154
Set up SIM card lock 154
View passwords 154
Security update service 155
Device administration 155
Credential storage 156
Knox active protection 156
Advanced security settings 157
Accounts 158
Samsung Cloud 159
Add an account 159
Backup and restore 161
Google settings 162
Accessibility 163
Vision 164
iv

173
Hearing 165 Legal 172
Dexterity and interaction
More accessibility settings
Accessibility services
Other settings
Help
Manage game features
Device assistance app
Dual messenger
About phone
Getting help
Videos
Smart Simulator
Tips and Tricks
Samsung Care
166
166
167
168
169
169
169
170
170
171
171
171
171
171
Legal information
v

Special features
Learn about your mobile device’s
special features.





Hi Bixby Multi window
Direct Share
Media volume limiter
Bixby responds to your voice commands and can help
you understand your settings and set up your Samsung
device.
Multitask by using two applications at the same time.
For more information, see “Multi window” on page 31.
For more information, see “Bixby” on page 30.
Share content with specific people directly. For more
information, see “Direct share” on page 65.
Limit the maximum output of the device’s volume. For
more information, see “Media volume limiter” on
page 124.
Special features 2

Getting started
Learn about your mobile device
hardware, assembly procedures,
and how to get started using
your new device.

Front view
Proximity sensor
Power key
Front camera
Volume keys
Recent apps Back
Home key
Devices and software are constantly evol ving — the illustrations you see here are for reference only.
Getting started 4











l lProximity sensor Volume keys
–Turns off the screen and disables touch
functionality during acall when the device is
in close proximity to the body.
–Adjust the volume for ringtones, media,
notifications, and system sounds. For more
information, see “Volume” on page 124.
–Turns the screen back on and enables touch
functionality during acall when the device is
outside aspecific range from the body.
–In the camera app, press avolume key to take
aphoto.
lPower key
–Press to turn the screen on or off.
–Press and hold to select apower control
option.
Getting started 5

cricket
Back view
Flash
Microphone
Rear camera
USB charger/Accessory port
Speaker
Headset jack
Devices and software are constantly evol ving — the illustrations you see here are for reference only.
Getting started 6

  
Set up your
device
Learn how to set up your
device for the first time.







Assemble your device
Install aSIM card and an optional memory card
(not included), and charge your device before using.

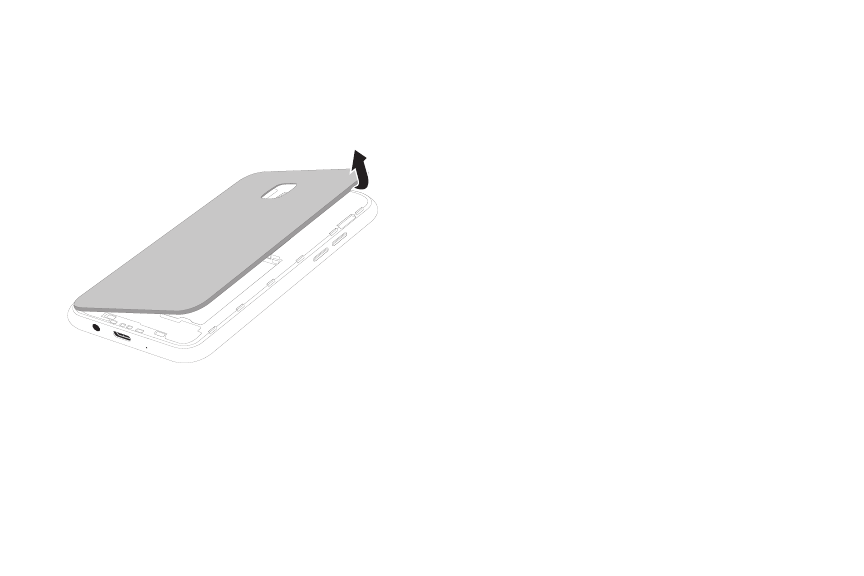

Remove the back cover
1. Remove the back cover.
2. Lift the cover up and to the left of the device.
Caution:Do not bend or twist the back cover
excessively. Using excessive force on the cover during
removal or installation of an internal component can
cause the material to break.
Install a SIM card and memory card
When you subscribe to acellular network, you are
provided with aSIM card. You may be able to use your
previous SIM card. Contact your service provider for
more details.
Warning:Small components such as SIM cards and
memory cards can pose achoking risk. Please be
careful when handling these cards to avoid damaging
them.
You can install an optional microSD™memory card
(not included) to add more memory space to your
device. Amemory card can be installed at any time. It
is not necessary to install it prior to using the device.
Set up your device 8



~;
~~~~~~~~,\)
- -
/l)
_..
1l,;
-
__
m
,----
.:
4,i,v
'-;o
--- -
__
)"
P /
//
--
~
-
el;
✓
/,//
8
---0'
/'
(<;
;
?-
"---
~,
_~-~
_
:;LL__-_.
__
-
___
c
~"I_
✓
/
. .
:_
-:?';
-------
/
_________
___
_,,,/

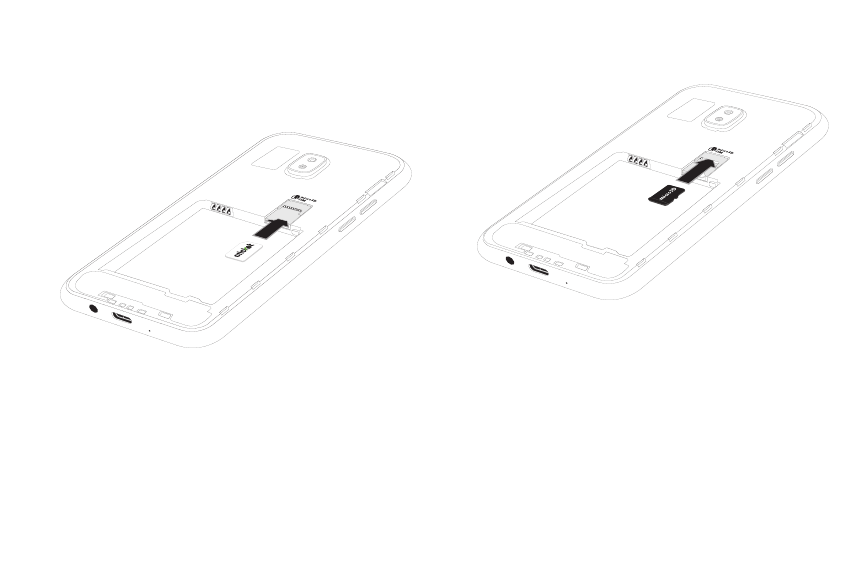

1. Carefully slide the SIM card into the SIM card
slot. Make sure that the card’s gold contacts face
down into the device and that the card is
positioned as shown.
2. Slide the memory card into the slot with the gold
contacts facing down.
Set up your device 9





Install the battery Replace the back cover
The back cover should be replaced before using the
device.
The battery is installed in the back of the device.
1. Insert the battery into the opening on the back
of the device, making sure the connectors align.
2. Gently press down to secure the battery. 1. Place the back cover onto the back of the device
and press down.
2. Press along the edge of the back cover until you
have asecure seal.
Set up your device 10







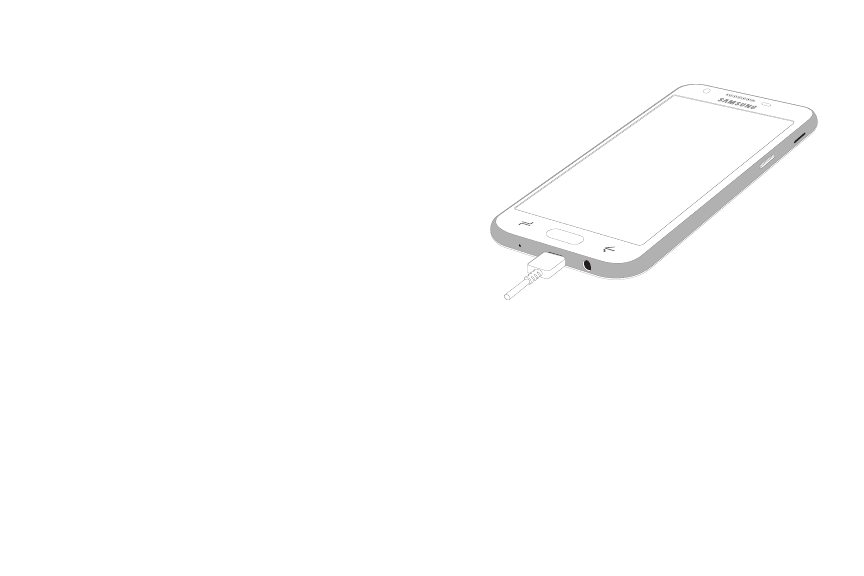

1. Insert the USB cable into the
USB charger/Accessory port.
Charge the battery
Your device is powered by arechargeable battery.
Acharger (charging head and USB cable) is included
with the device for charging the battery from any
standard outlet.
Note:You should dry the inside of the charging port
before inserting apower connector to charge your
device. If the charging port is not fully dry, your device
may operate abnormally. For example, it may charge
more slowly or overheat.
The battery comes partially charged. You can use the
device while charging.
Caution:Use only charging devices that are approved
by Samsung. Samsung accessories are designed for
your device to maximize battery life. Using other
accessories may void your warranty and may cause
damage.
2. Connect the USB cable to the charging head, and
then plug the charging head into astandard
outlet.
3. Unplug the charging head from the outlet and
remove the USB cable from the device when
charging is complete.
Set up your device 11




Start using your device
The instructions below explain how to turn your device
on or off.
To turn the device on:
uPress and hold the Power key until the device
turns on.
To turn the device off:
1. Press and hold the Power key.
2. Tap Power off,and confirm when prompted.
Use the Setup Wizard
The first time you turn your device on, the Setup Wizard
guides you through the basics of setting up your
device.
Follow the prompts to choose adefault language,
connect to aWi-Fi®network, set up accounts, choose
location services, learn about your device’s features,
and more.
Set up your device 12









+
Lock or unlock your device
Use your device’s screen lock features to secure your
device. By default, the device locks automatically
when the screen times out.
To lock the device:
uPress the Power key.
To unlock the device:
uPress the Power key, or press the Home key, and
then drag your finger across the screen.
The default Screen lock on your device is Swipe.
To choose asecure screen lock, see “Set asecure screen
lock” on page 149.
Add aGoogle account
Your new device uses your Google™account to fully
utilize its Android™features.
1. From aHome screen, swipe up to access Apps.
2. Tap Settings >Cloud and accounts >Accounts.
3. Tap Add account >Google.
Note:When you sign in to aGoogle account, Factory
Reset Protection (FRP) is activated. FRP requires your
Google account information when resetting to factory
settings. For more information, see “Factory reset
protection” on page 145.
Set up your device 13
