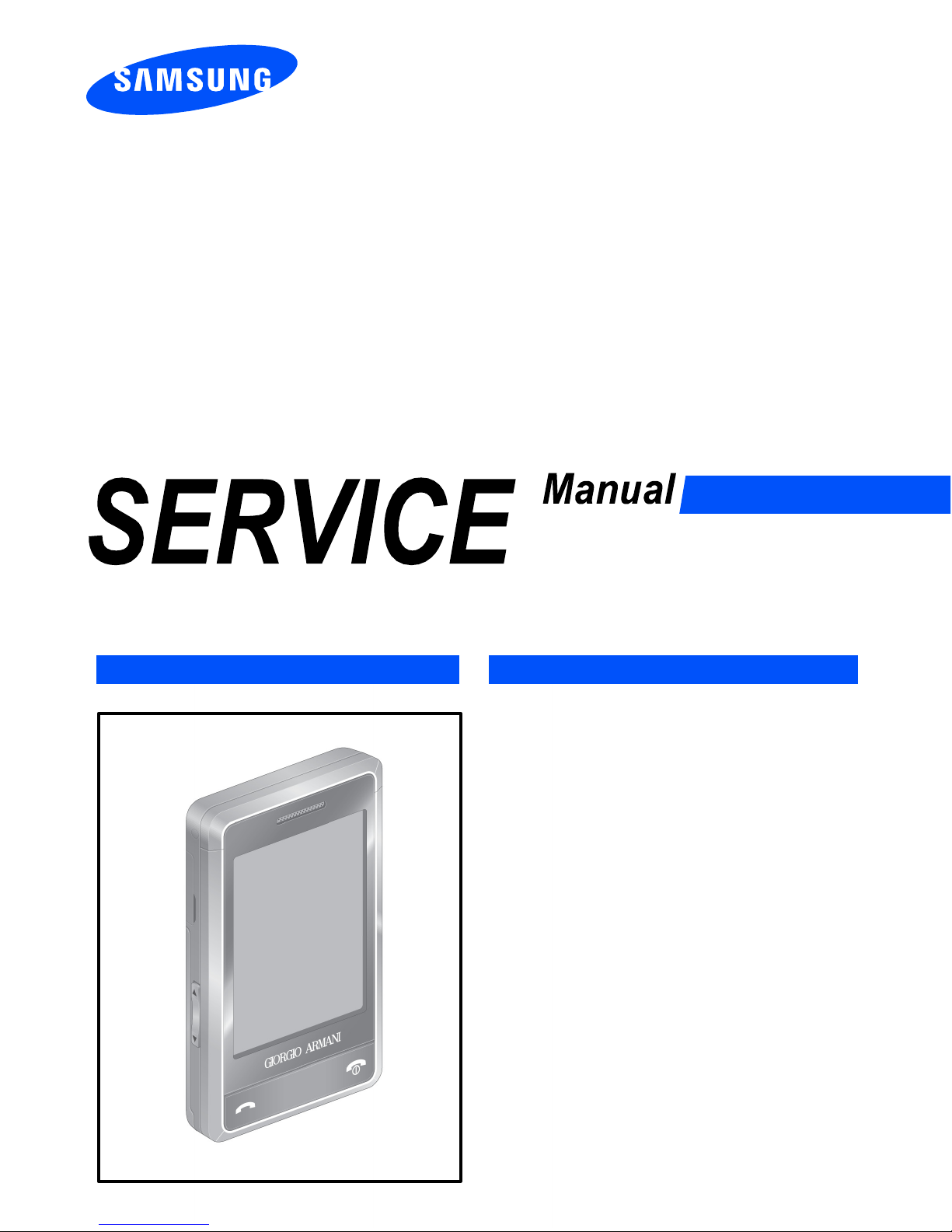

Samsung Giorgio Armani SGH-P520 User manual

GSM TELEPHONE
SGH-P520
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2007. 11. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
2-1. GSM/DCS1800/PCS1900 General Specification
EGSM 900
Phase 2
DCS1800
Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time Slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
Power Class 5 pcl ~19pcl 0pcl ~15pcl 0pcl ~15pcl
Sensitivity -102 dBm -100 dBm -100 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 2Km -

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
2-2. GSM TX power class
TX Power
control level EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9± 3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
①3MCamera
②2.6” QVGA262K Color TFTw/ Touch Screen
③Music Player &Ringtone (MP3/MIDI/AAC/ AAC+/WMA)
④Camcorder &Video Messaging (MPEG4/ H.263)
⑤Speaker Phone Function
⑥Picsel File Viewer
⑦Bluetooth /USB /SyncML DS(Outlook Exchangeable)
⑧Touch UI /GUI

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

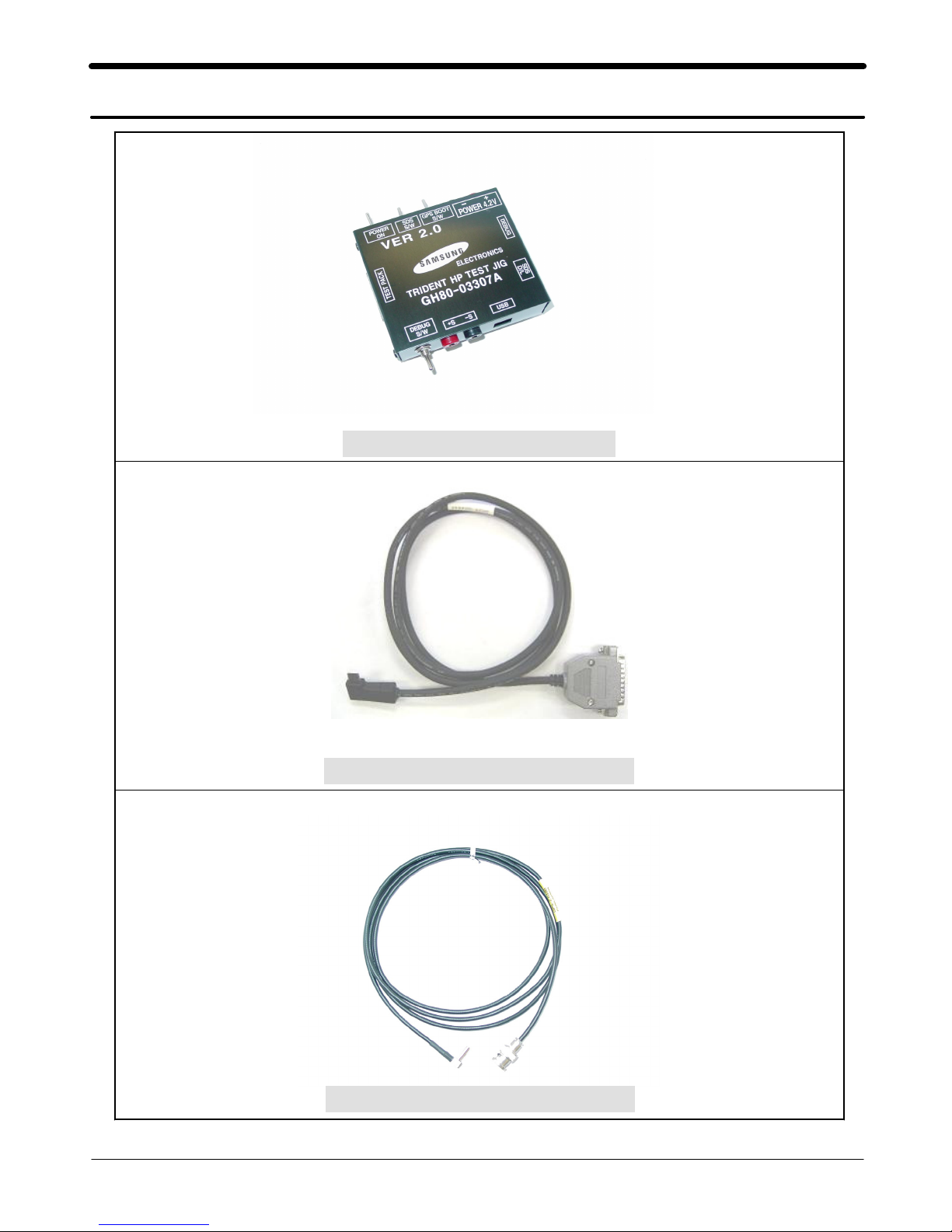

Test Jig (GH80-03307A)
RF Test Cable (GH39-00599A)
Test Cable (GH39-00895A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
•Three binary files for downloading P520.
–P520XXYY.s3 :Main source code binary.
4-2. Pre-requsite for Downloading
•Downloader Program(OptiFlash.exe)
•P520 Mobile Phone
•Data Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program

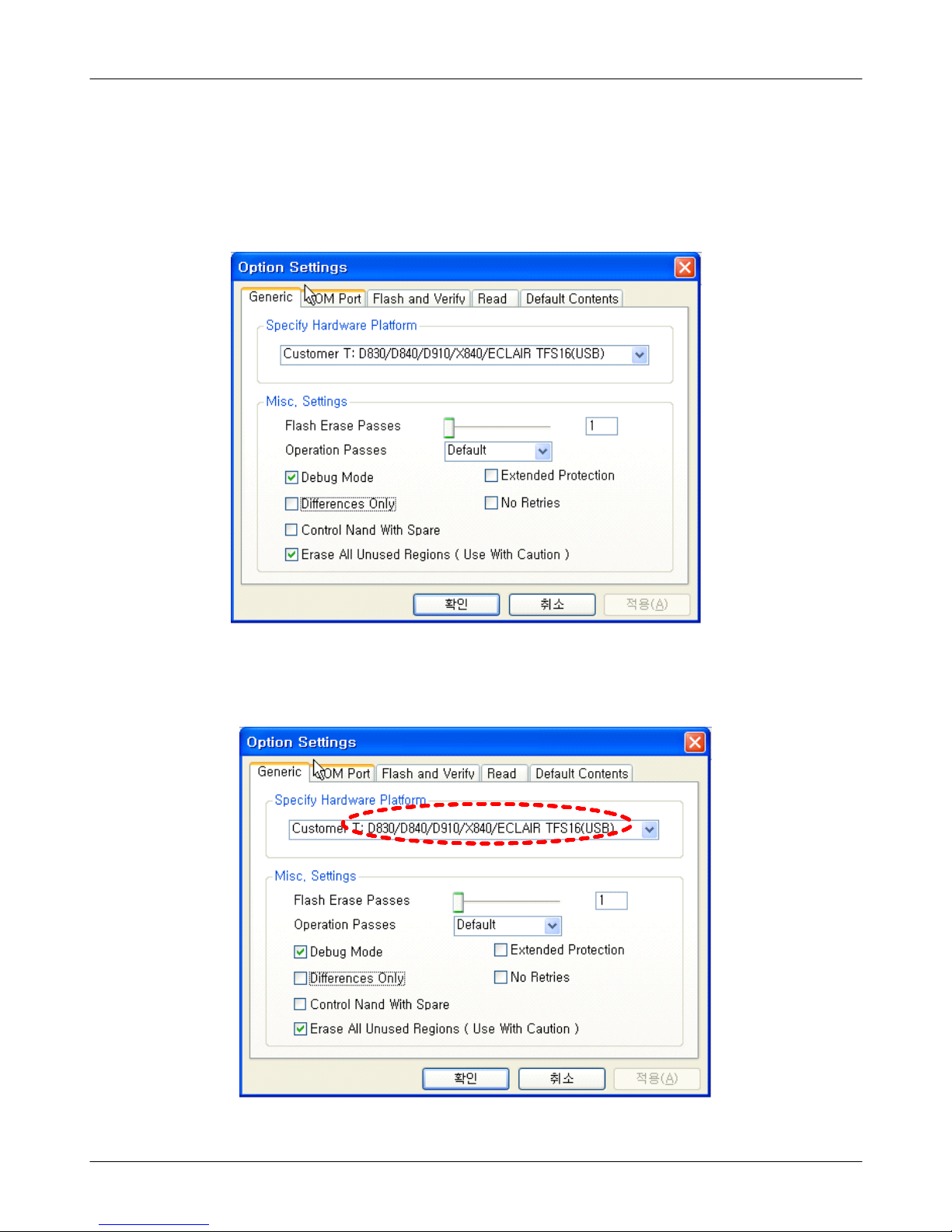

1. Load the binary download program by executing the “OptiFlash.exe”
2. Select the “Options”->“ Settings”->“ Generic”->“ Specify hardware platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

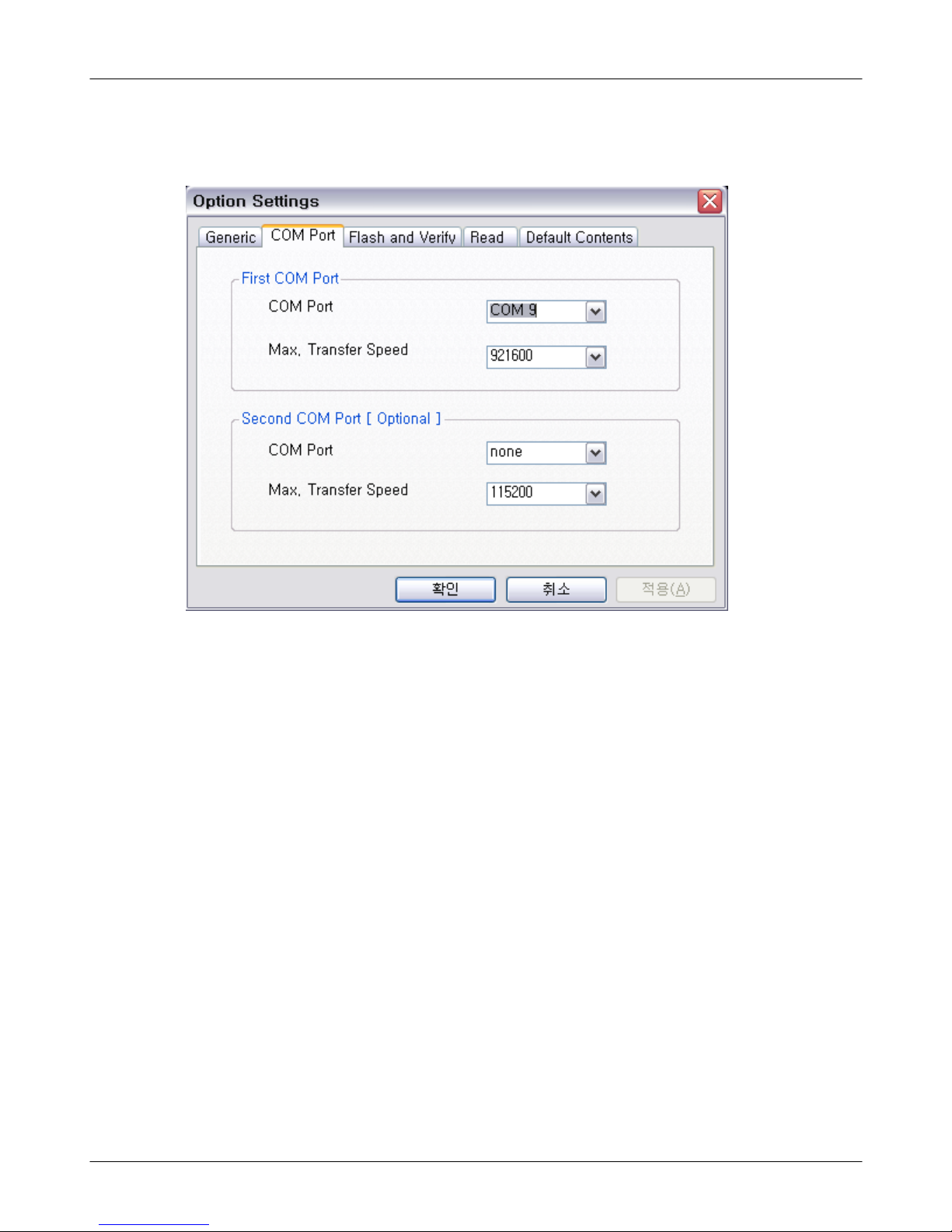

3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use aslower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

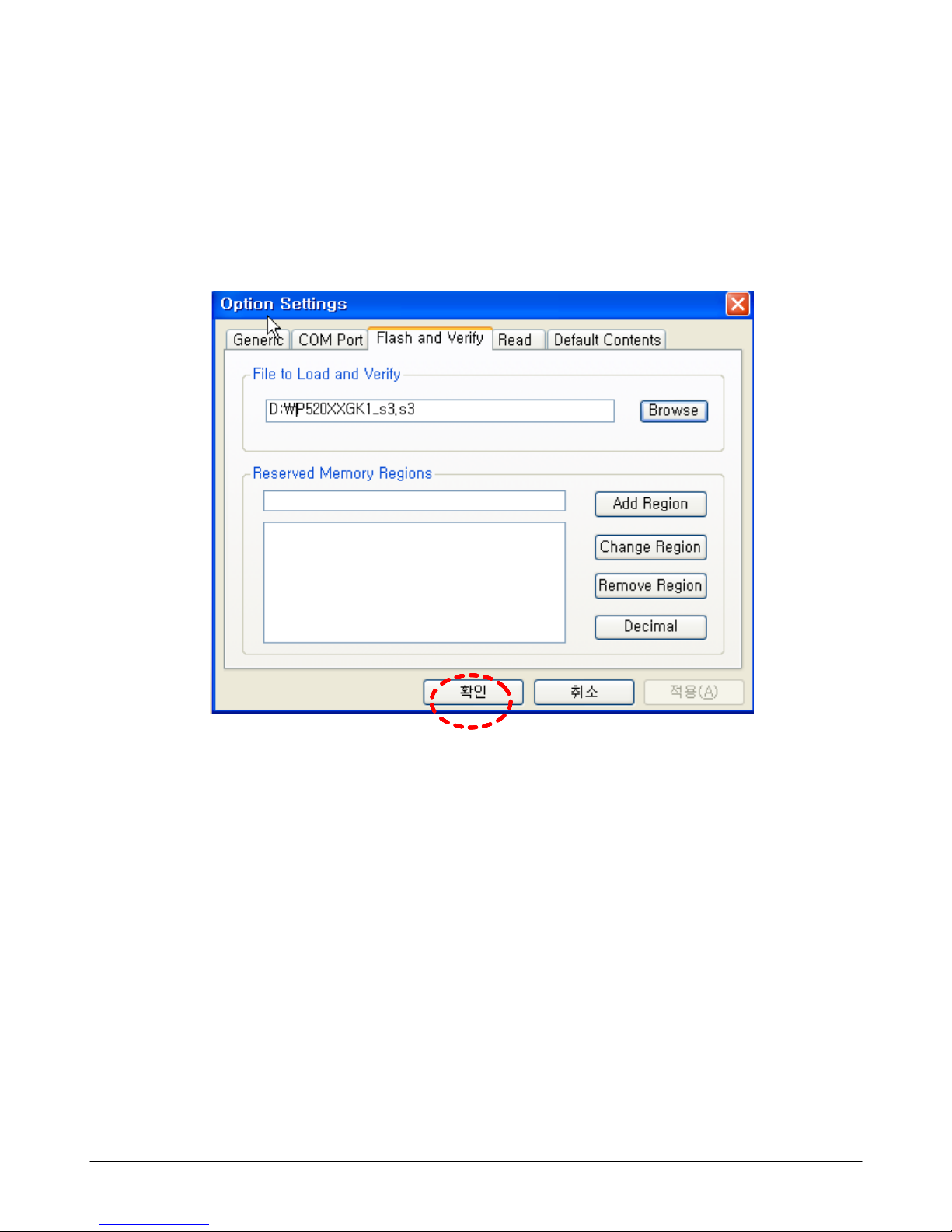

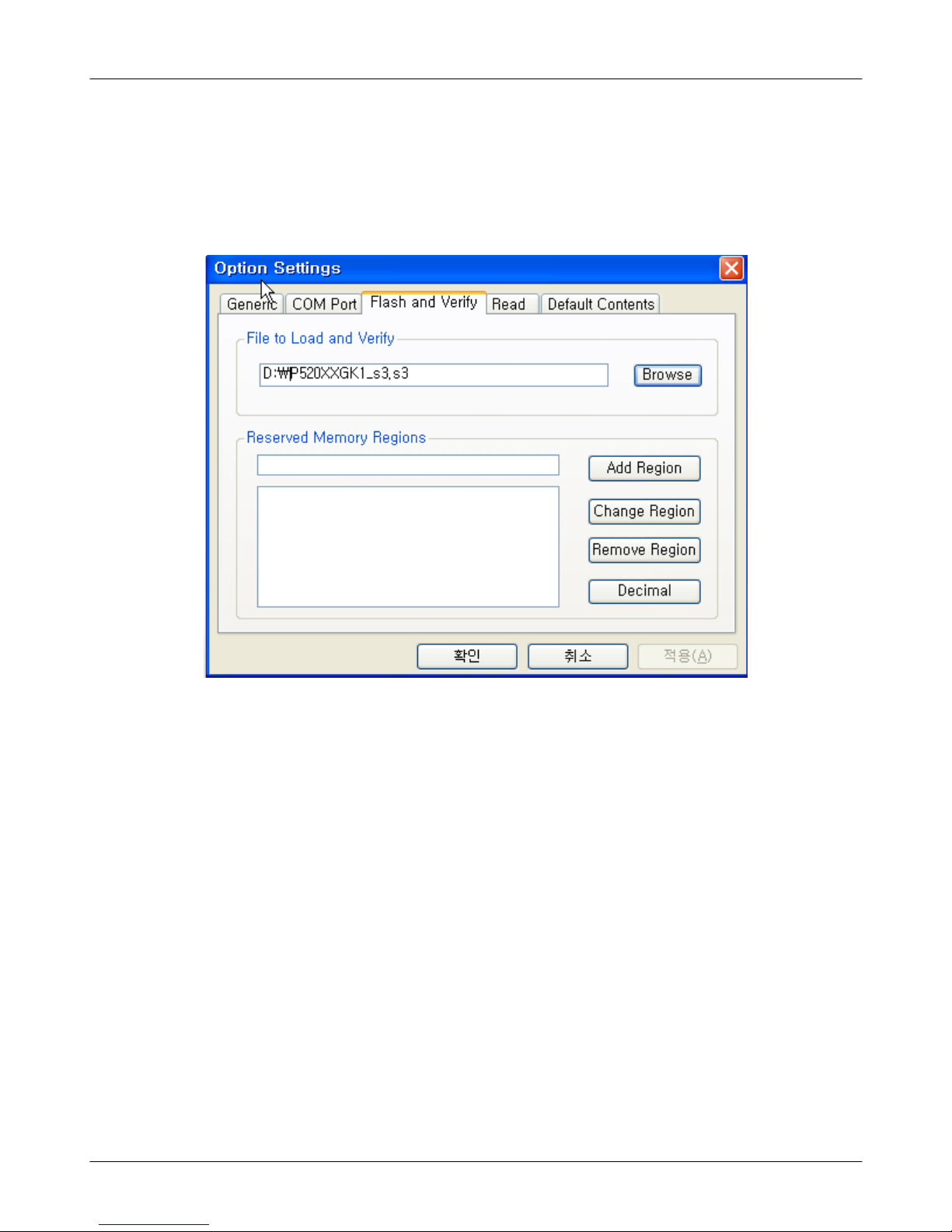

4. Select the“Flash&Verify”->“ Browse”
Set the directory path and choose the latest s/w binary, for example “
P520XXYY.s3”, for the downloader binary setting.
\
The reserved memory regions are included in optiflash program, platform.def.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK”button then press “Flash”.
(Before pressing ‘Flash’button, push the button ‘*’and ‘END’at the same time.Then
press ‘Flash’.)
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a“
All is well”message.
7. After finishing downloading, Certain memory resets should be done to guarantee the
normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

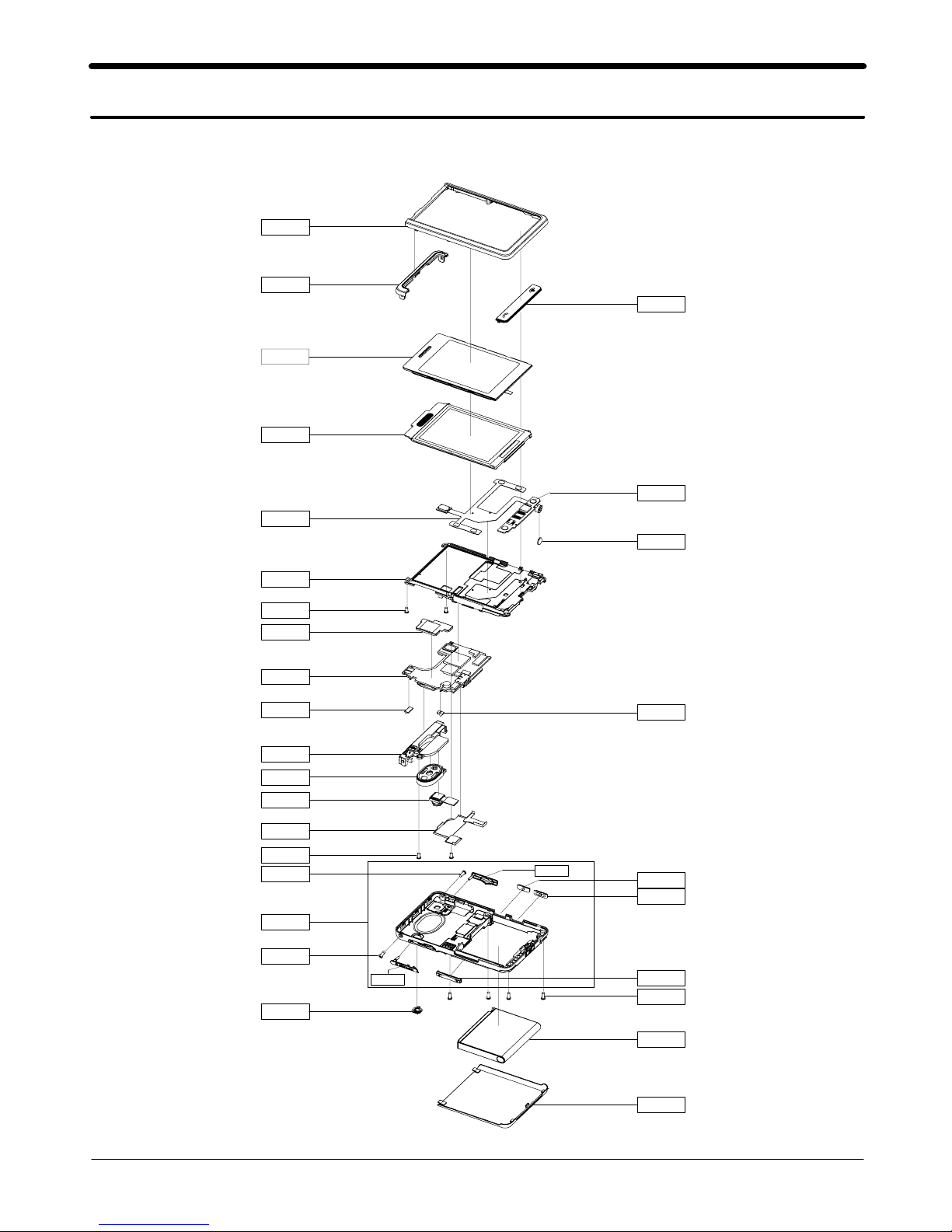

5-1. Cellular phone Exploded View
QME02
QFR01
QFR04
QLC01
QMC16
QBR01
QCR12
QSH01
QMP01
QAN05
QCR05
QAN02
QMO01
QCA01
QSH02
QCR06
QCR06
QRE01
QRF01
QKP02
QME03
QMI03
QBC12
QBA01
QCR10
QVO01
QBA00
QCK01
QCK02
QRF03
QSD01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHP520 GH42-01326A
QAN05 ASSY MEC-INTENNA CONTACT GH75-08168A
QBA00 ASSY COVER-BATTERY GH98-06920A
QBA01 BATTERY-880MAH,BLK,MAIN GH43-02253A
QBC12 ASSY RUBBER-BATTERY CONTACT GH98-06567A
QBR01 ASSY CASE-BRACKET SHIELD GH98-04114A
QCA01 CAMERA MODULE GH59-04357A
QCK01 ASSY KEY-CAMERA GH98-04118B
QCK02 PMO KEY-HOLD GH72-39597B
QCR05 SCREW-MACHINE 6001-001478
QCR06 SCREW-MACHINE 6001-001155
QCR10 SCREW-MACHINE 6001-001633
QCR10 SCREW-MACHINE 6001-001633
QCR12 SCREW-MACHINE 6001-001530
QFR01 ASSY CASE-FRONT GH98-04113B
QFR04 PMO DECO-FRONT GH72-38483B
QKP02 ASSY KEYPAD-SUB(XEN/ZN) GH98-04121B
QLC01 LCD-MODULE,P500 GH07-01120A
QMC16 KEY FPCB-CON TO CON FPCB,P520 GH59-04478A
QME02 ASSY ETC-LCD SUB PCB ASSY,P520 GH59-04490A
QME03 KEY FPCB-TOUCH SCREEN FPCB ASS GH59-04922A
QMI03 RMO RUBBER-MIC BOTTOM GH73-11313A
QMO01 MOTOR DC-SPK +MOTOR DC-SGHP52 GH31-00312A
QMP01 PBA MAIN-SGHP520 GH92-03568A
QRF01 PMO COVER-RF GH72-38485B
QSH01 IPR SHIELD-COVER GH70-02599A
QSH02 IPR SHIELD-REAR GH70-02659A
QVO01 PMO KEY-VOLUME GH72-39599B
QRE01 ASSY CASE-REAR GH98-04117B
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
QRF03 PMO COVER-EAR IF GH72-39596B
QSD01 PMO COVER-MICRO SD GH72-39598B

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization
Discription SEC CODE
IC-MEMORY CARD 1109-001363
BAG PE 6902-000297
BAG PP 6902-000913
CBF INTERFACE-DATA LINK CABLE, GH39-00859C
ADAPTOR-ATADS10EGE,D/BRN,EU GH44-01702C
S/W CD-SAMSUNG PC STUDIO 3.1,P GH46-00441A
S/W CD-SAMSUNG PC STUDIO 3.2,P GH46-00441B
EARPHONE-AAEP407LGE,S20P,D/BRN GH59-04735D
LABEL(R)-WATER SOAK GH68-09361A
LABEL(P)-OPEN MP3 GH68-11246A
MANUAL USERS-EU FRENCH GH68-16436A
LABEL(R)-MAIN(FRANCE) GH68-16784C
LABEL(P)-SEAL GH68-17023A
BOX(P)-UNIT MAIN(EU)-PREMIUM NGH69-06292A
TAPE-BRACKET MASKING GH74-32353A
SPONGE GH74-32426A
TAPE GH74-34545A
TAPE GH74-34546A
TAPE GASK GH74-34548A
SPONGE-FRONT DECO GH74-34549A
TAPE GASK GH74-35363A
TAPE-CAMERA CONN SIDE GH74-36377A
TAPE GH74-36378A
VINYL-BOHO MAIN WINDOW GH74-36527A
TAPE GH74-36639A
ASSY CASE-LEATHER GH98-05609B
ASSY ACCE-POUCH GH98-06983A
ASSY ACCE-PHONE POUCH GH98-06984A
ASSY ACCE-CLEANING CLOTH GH98-06985A
CBF SIGNAL-SCHB490,RF CABLE,BL GH39-00599A
CBF INTERFACE-S20P, TEST CABLE GH39-00892A
CBF INTERFACE-S20P, TEST CABLE GH39-00895A
INSTALL-TEST JIG BOX GH80-03307A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
0403-001547 ZD200 DIODE-ZENER SA
0403-001547 ZD300 DIODE-ZENER SA
0403-001547 ZD301 DIODE-ZENER SA
0403-001547 ZD400 DIODE-ZENER SA
0404-001172 ZD302 DIODE-SCHOTTKY SA
0406-001167 ZD500 DIODE-TVS SA
0406-001167 ZD501 DIODE-TVS SA
0406-001200 U602 DIODE-TVS SA
0406-001267 VR500 DIODE-TVS SA
0406-001267 VR501 DIODE-TVS SA
0505-002207 U502 FET-SILICON SA
0601-002015 LED302 LED SA
0801-002529 U300 IC-CMOS LOGIC SA
0801-002958 U601 IC-CMOS LOGIC SA
1001-001428 U401 IC-ANALOG MULTIPLEX SA
1001-001438 U200 IC-ANALOG SWITCH SA
1108-000140 UCP200 IC-MCP SA
1201-002304 U402 IC-AUDIO AMP SA
1201-002457 U100 IC-POWER AMP SA
1203-003432 U103 IC-POSI.FIXED REG. SA
1203-003432 U403 IC-POSI.FIXED REG. SA
1203-003432 U405 IC-POSI.FIXED REG. SA
1203-003523 U507 IC-POSI.FIXED REG. SA
1203-003754 U506 IC-POSI.FIXED REG. SA
1203-003789 U600 IC-POWER SUPERVISOR SA
1203-004089 U308 IC-DC/DC CONVERTER SA
1203-004119 UCP300 IC-POWER SUPERVISOR SA
1203-004172 U501 IC-DC/DC CONVERTER SA
1203-004518 U301 IC-BATTERY SA
1203-004548 U500 IC-DC/DC CONVERTER SA
1203-004596 U505 IC-MULTI REG. SA
1203-004654 U302 IC-DC/DC CONVERTER SA
1203-004813 U404 IC-POSI.FIXED REG. SA
1204-002138 U202 IC-MELODY SA
1205-002272 U201 IC-TRANSCEIVER SA
1205-003093 U101 IC-TRANSCEIVER SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
1205-003210 U504 IC-CODEC SA
1205-003234 U400 IC-CODEC SA
1205-003235 U102 IC-DATA COMM./GEN. SA
1404-001165 TH300 THERMISTOR-NTC SA
1405-001082 VR200 VARISTOR SA
1405-001082 VR400 VARISTOR SA
1405-001082 VR401 VARISTOR SA
1405-001082 VR600 VARISTOR SA
1405-001082 VR601 VARISTOR SA
1405-001082 VR602 VARISTOR SA
1405-001082 VR603 VARISTOR SA
1405-001082 VR604 VARISTOR SA
1405-001082 VR605 VARISTOR SA
1405-001108 VR502 VARISTOR SA
2007-000141 R412 R-CHIP SA
2007-000141 R420 R-CHIP SA
2007-001119 R410 R-CHIP SA
2007-001119 R411 R-CHIP SA
2007-001325 R215 R-CHIP SA
2007-003112 R407 R-CHIP SA
2007-003112 R408 R-CHIP SA
2007-007134 R400 R-CHIP SA
2007-007134 R402 R-CHIP SA
2007-007142 R415 R-CHIP SA
2007-007142 R416 R-CHIP SA
2007-007142 R417 R-CHIP SA
2007-007142 R421 R-CHIP SA
2007-007314 R305 R-CHIP SA
2007-007468 R414 R-CHIP SA
2007-007468 R418 R-CHIP SA
2007-007468 R419 R-CHIP SA
2007-007468 R422 R-CHIP SA
2007-007528 R413 R-CHIP SA
2007-007528 R423 R-CHIP SA
2007-008045 R102 R-CHIP SA
2007-008045 R200 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-008051 R512 R-CHIP SA
2007-008052 R310 R-CHIP SA
2007-008055 R206 R-CHIP SA
2007-008055 R210 R-CHIP SA
2007-008055 R211 R-CHIP SA
2007-008055 R216 R-CHIP SA
2007-008055 R301 R-CHIP SA
2007-008055 R302 R-CHIP SA
2007-008055 R317 R-CHIP SA
2007-008055 R518 R-CHIP SA
2007-008055 R530 R-CHIP SA
2007-008056 R100 R-CHIP SA
2007-008419 R520 R-CHIP SA
2007-008419 R521 R-CHIP SA
2007-008419 R522 R-CHIP SA
2007-008419 R524 R-CHIP SA
2007-008419 R527 R-CHIP SA
2007-008420 R203 R-CHIP SA
2007-008420 R204 R-CHIP SA
2007-008420 R403 R-CHIP SA
2007-008420 R404 R-CHIP SA
2007-008478 R202 R-CHIP SA
2007-008483 R107 R-CHIP SA
2007-008483 R108 R-CHIP SA
2007-008483 R201 R-CHIP SA
2007-008483 R205 R-CHIP SA
2007-008483 R303 R-CHIP SA
2007-008483 R315 R-CHIP SA
2007-008483 R406 R-CHIP SA
2007-008483 R409 R-CHIP SA
2007-008483 R424 R-CHIP SA
2007-008483 R506 R-CHIP SA
2007-008483 R515 R-CHIP SA
2007-008483 R609 R-CHIP SA
2007-008483 R610 R-CHIP SA
2007-008483 R611 R-CHIP SA
