Samsung GSM/DCSI1800 User manual

Dual Band GSM/DCS1800
SGH-2200
OWNER’S MANUAL

Printed in Korea
Code No.:GH68-00650A
English. 8/99. Rev.1.0

3
Contents
Safety Precautions . . . . . . . . . . . . . . . . . 7
Unpacking . . . . . . . . . . . . . . . . . . . . . . . 9
Your Phone. . . . . . . . . . . . . . . . . . . . . . 10
Phone Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Service Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Getting Started . . . . . . . . . . . . . . . . . . 15
Your First Call . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installing the SIM Card . . . . . . . . . . . . . . . . . . 16
Charging a Battery . . . . . . . . . . . . . . . . . . . . . . 19
Switching the Phone On/Off . . . . . . . . . . . . . . 21
Access Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Using the Earphone . . . . . . . . . . . . . . . . . . . . . .25
General Functions . . . . . . . . . . . . . . . . . 26
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . 28
Answering a Call . . . . . . . . . . . . . . . . . . . . . . . .29
Viewing Missed Calls . . . . . . . . . . . . . . . . . . . . 30
Selecting Functions and Options . . . . . . . 31
Example: Setting the Text Language . . . . . . . . 33
Phonebook . . . . . . . . . . . . . . . . . . . . . 35
Storing a Phone Number with a Name . . . . . 35
Speed Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Searching for and Dialling a Number
in the Phonebook . . . . . . . . . . . . . . . . . . . . . . . 38
Phonebook Options . . . . . . . . . . . . . . . . . . . . . 39

4
Contents (continued)
In-Call Options . . . . . . . . . . . . . . . . . . . 41
Switching the Microphone Off (Mute) . . . . . . 41
Searching for a Number in the Phonebook . . 42
Putting a Call on Hold . . . . . . . . . . . . . . . . . . . . 43
Answering a Second Call . . . . . . . . . . . . . . . . 44
Making a Multiparty Call . . . . . . . . . . . . . . . . . 45
Rejecting a Waiting Call . . . . . . . . . . . . . . . . . .47
Muting/Sending Key Tones . . . . . . . . . . . . . . . 47
Using the SMS Service . . . . . . . . . . . . . . . . . . 47
Using the Menus . . . . . . . . . . . . . . . . . 48
Using the Soft Keys . . . . . . . . . . . . . . . . . . . . . 48
Using the Index System . . . . . . . . . . . . . . . . . . 49
Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Quick Access . . . . . . . . . . . . . . . . . . . . 54
Connect to Voice Mail (Menu 1-1). . . . . . . . . . 54
Voice Mail Setup (Menu 1-2). . . . . . . . . . . . . . 54
Service Directory (Menu 1-3). . . . . . . . . . . . . . 54
Call Records . . . . . . . . . . . . . . . . . . . . . 55
Last Dialled Calls (Menu 2-1). . . . . . . . . . . . . . 55
Last Received Calls (Menu 2-2). . . . . . . . . . . . 55
Last Missed Calls (Menu 2-3). . . . . . . . . . . . . . 56
Delete Recent Calls (Menu 2-4). . . . . . . . . . . . 56
Call Cost and Duration (Menu 2-5). . . . . . . . . . 57
Short Messages . . . . . . . . . . . . . . . . . . 58
Read All Messages (Menu 3-1). . . . . . . . . . . .58
Create Message (Menu 3-2) . . . . . . . . . . . . . . . 59
Message Setup (Menu 3-3). . . . . . . . . . . . . . . 60
Broadcast (Menu 3-4). . . . . . . . . . . . . . . . . . . . 61

5
Contents (continued)
Sound Settings . . . . . . . . . . . . . . . . . . . 62
Ring Type(Menu 4-1). . . . . . . . . . . . . . . . . . . . 62
Ring Volume (Menu 4-2). . . . . . . . . . . . . . . . . . 62
Alert Type(Menu 4-3). . . . . . . . . . . . . . . . . . . . 62
Keytone Type(Menu 4-4). . . . . . . . . . . . . . . . . 63
Keytone Volume (Menu 4-5). . . . . . . . . . . . . . . 63
Message Alert (Menu 4-6). . . . . . . . . . . . . . . . 63
Warning Tone(Menu 4-7). . . . . . . . . . . . . . . . . 64
Minute Tone(Menu 4-8). . . . . . . . . . . . . . . . . . 64
Phone Settings . . . . . . . . . . . . . . . . . . . 65
Greeting Message (Menu 5-1). . . . . . . . . . . . . 65
Own Number (Menu 5-2). . . . . . . . . . . . . . . . . 66
Language List (Menu 5-3). . . . . . . . . . . . . . . . . 66
Any Key Answer (Menu 5-4). . . . . . . . . . . . . . . 67
Backlight Time(Menu 5-5). . . . . . . . . . . . . . . . 67
Auto Redial (Menu 5-6). . . . . . . . . . . . . . . . . . . 68
Auto Answer (Menu 5-7). . . . . . . . . . . . . . . . . . 68
Caller Number (Menu 5-8). . . . . . . . . . . . . . . . 69
Factory Reset (Menu 5-9) . . . . . . . . . . . . . . . . . 69
Clock Settings . . . . . . . . . . . . . . . . . . . 70
Alarms (Menu 6-1). . . . . . . . . . . . . . . . . . . . . . . 70
Time Setup (Menu 6-2). . . . . . . . . . . . . . . . . . . 71
Security Settings. . . . . . . . . . . . . . . . . . 73
PIN Access (Menu 7-1). . . . . . . . . . . . . . . . . . 73
Change Codes (Menu 7-2). . . . . . . . . . . . . . . . 74
Phone Lock (Menu 7-3). . . . . . . . . . . . . . . . . . . 74
Phonebook Lock (Menu 7-4). . . . . . . . . . . . . . .75
Fixed Dialling Number (Menu 7-5). . . . . . . . . . 75

6
Contents (continued)
Network Services . . . . . . . . . . . . . . . . . 76
Call Divert (Menu 8-1). . . . . . . . . . . . . . . . . . . 76
Call Barring (Menu 8-2). . . . . . . . . . . . . . . . . . . 78
Call Waiting (Menu 8-3). . . . . . . . . . . . . . . . . . 79
Caller Identity (Menu 8-4). . . . . . . . . . . . . . . . . 80
Closed User Group (CUG) (Menu 8-5). . . . . . . 81
Network Selection . . . . . . . . . . . . . . . . 82
Selection (Menu 9-1). . . . . . . . . . . . . . . . . . . . . 82
Preferred List (Menu 9-2). . . . . . . . . . . . . . . . . 83
User Define List (Menu 9-3). . . . . . . . . . . . . . . 84
Solving Problems . . . . . . . . . . . . . . . . . 85
Using the Batteries . . . . . . . . . . . . . . . . 88
Precautions When Using Batteries . . . . . . . . 88
Safety Information . . . . . . . . . . . . . . . . 90
Road Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Operating Environment . . . . . . . . . . . . . . . . . . 90
Care and Maintenance . . . . . . . . . . . . . . . . . . 92
Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . 93
Glossary of Terms . . . . . . . . . . . . . . . . . 94
Index. . . . . . . . . . . . . . . . . . . . . . . . . . 98

7
Safety Precautions
Read these simple guidelines. Failure to comply with
them may be dangerous or illegal.
For more detailed safety information, see Safety
Information on page 90.
Road safety comes first
Do not use a hand-held phone while driving; park the
vehicle first. Remember that in some countries, it is
illegal to use a hand-held phone while driving.
Switch off when refuelling
Do not use the phone at a refuelling point (service
station) or near fuels or chemicals.
Switch off in aircraft
Mobile phones can cause interference. Using them on
aircraft is both illegal and dangerous.
Respect special regulations
Follow anyspecial regulations in force in any area and
always switch offyour phone whenever it is forbidden
to use it, or when it may cause interference or danger
(in a hospital for example).
Interference
All mobile phones may be subject to radio
interference, which may affect their performance.

8
Safety Precautions
Qualified service
Only qualified service personnel must repair cellular
equipment. Use only approved accessories and
batteries.
Use sensibly
Use only in the normal position (held to the ear).
Avoid unnecessary contact with the antenna when
the phone is switched on.
Emergency calls
Ensure the phone is switched on and inservice.
Enter the emergency number (112 or another official
emergency number) and press . Giveyour location.
Do not end the call until given permission to do so. End
the call by closing the flip cover or pressing .
IMPORTANT! Use only SAMSUNG-approved
accessories. This phone is intended for use with a
SAMSUNG-approved:
• Travel adapter (TA12)
• Desktop charger (DTC33)
• Cigarette lighter adapter (CLA12)
The use of any other power accessory will invalidate
any approval or warranty applying to the phone, and
may be dangerous.
When you disconnect the power cord of any
accessory, grasp and pull the connector, not the cord.

9
Unpacking
In addition, you can obtain the following accessories
for your phone from your local SAMSUNG dealer:
• Desktop charger (DTC33)
• Cigarette lighter adapter (CLA12)
• Hands-free car kit (HFK220G)
• Slim, standard and long-life batteries (BTL631S,
BTL1030M, BTL1630L)
• Data kit (DC010G)
•Earphone (EP010G); depending on the country, may
be supplied in the standard package
Phone Travel Adapter
(TA12)
Standard Battery
(BTL1030M) Owner’s Manual
Your package contains the following items.

10
Your Phone
Phone Layout
The following illustration shows the main elements of
your phone.
Service light
Earpiece
Display
Cancel/
correction key
Soft key (right)
Microphone
Special function
keys
Earphone jack
Soft key (left)
Alphanumeric
keys
Flip cover
Dial key
Volume/menu
browse keys
Antenna
Battery
Power on/off
key

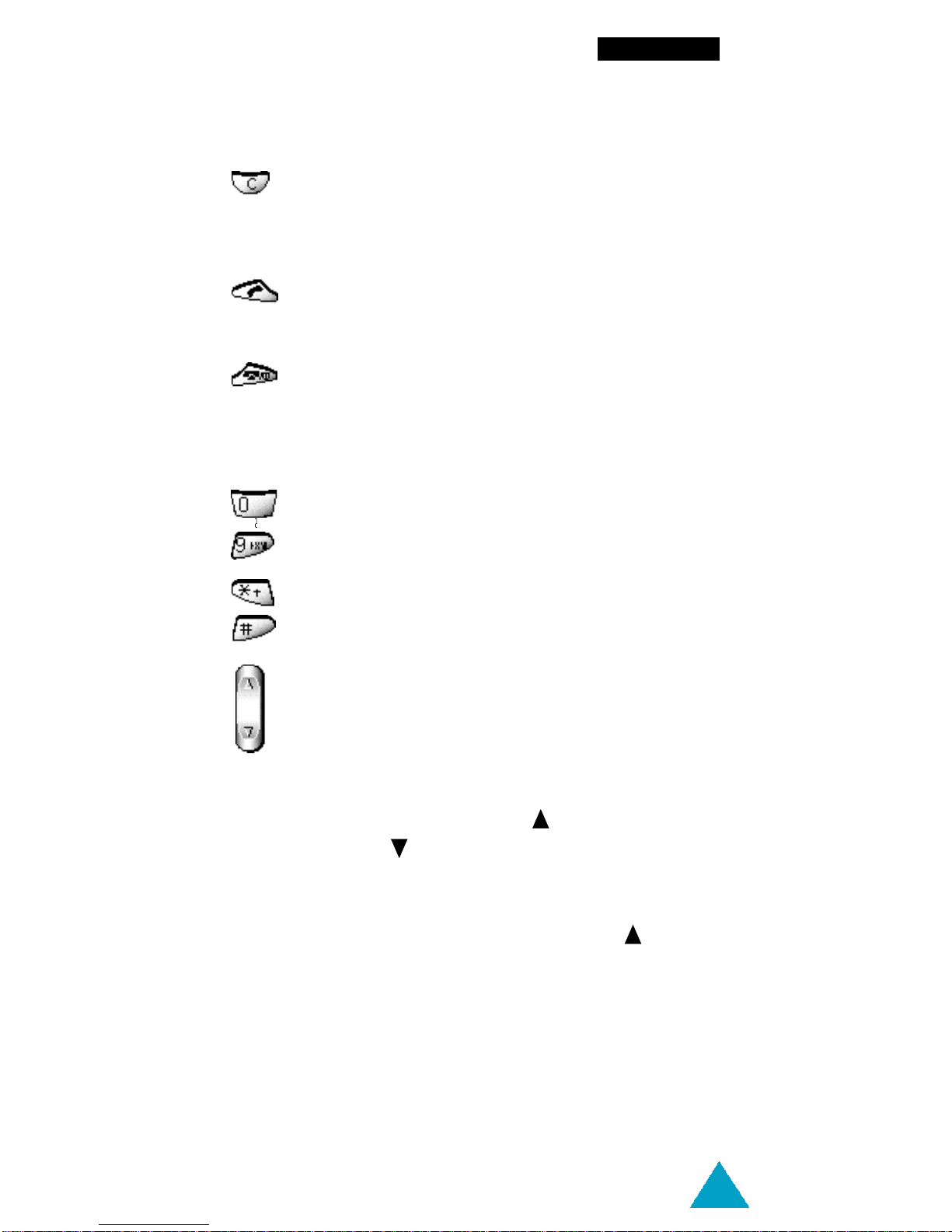

Key Description
Performthe functions indicatedby the text
abovethem(in thebottom line of the display).

Your Phone
Key Description
Deletes characters from the display.
In the menu facility, returns to the previous
menu level.
Makes or answers a call.
In idle mode, recalls the last number dialled.
Ends a call. Also switches the phone on
and off when pressed and held.
In the menu facility, returns to the idle
mode and cancels your input.
Enter numbers, letters and some special
characters.
Enter special dial characters.
(on the left side of the phone)
During a call, adjusts the earpiece volume.
In the menu facility, scrolls through the
menu options and phonebook memory.
In idle mode with the flip cover open, recalls
the last missed call list ( key) and received
call list ( key). Inthe edit mode, moves the
cursor in the display.
In idle mode with the flip cover closed,
activates the backlight. When the key is
held down, changes the silence mode.
When the Any Key Answer option is Off,
and an incoming call is received, sends a
busy tone to the caller.When it is set toOn,
answers the incoming call.
11

12
Your Phone
Display
Display Layout
The display comprises three areas.
Menu Phonebook
Text and
graphic area
Soft key
indications
Icons
Area Description
First line Displays various icons (see opposite).
Middle lines Display messages, instructions and
any information that you enter
(number to be dialled, for example).
Last line Shows the functions currently
assigned to the two soft keys.

13
Your Phone
Icons
Icon Description
Shows the received signal strength. The
greater the number of bars, the better the
signal strength.
Appears when a call is in progress.
Appears when a new short message has
been received.
If the message memory is full, the icon
flashes.
Appears when a new voice mail message
has been received.
Appears when you are out of your home
area and have registered with a different
network (when travelling in other countries,
for example).
Shows the level of your battery. The more
bars you see, the more power you have
left.

14
Your Phone
Backlight
The display and keypad are illuminated by a
backlight. When you press any key, the backlight
illuminates. It turns off if no key is pressed within a
given period of time, depending on the Backlight
Time option set in the Phone Settings menu. The
backlight remains on at all times when the phone is
connected to a car kit (optional).
To specify the length of time for which the backlight
is active, set the Backlight Time menu option (5-5);
see page 67 for further details.
Service Light
The service light is in the top left-hand corner of the
phone. It flashes when:
• Services are available on the phone
• Incoming calls are received
•Short messages are received (provided that the
Message Alert menu option (4-6) is set to Light;
see page 63 for further details)

15
Page 16
Page 19
Page 21
Page 21
Page 26
Page 26
Charge the phone
battery
Enter your PIN
Dial the phone
number required
When you have
finished, end the call
Switch the phone on
Insert the SIM card
(phone switched off
and battery removed)
Getting Started
Your First Call
The following diagram explains the main steps required
when making your first call andindicates the pages on
which you canfind more detailed instructions.

16
Getting Started
Installing the SIM Card
When you subscribeto acellular network, you are
provided with a plug-in SIM card loaded withyour
subscription details (PIN, optionalservices available
and so on).
Important! The plug-in SIM card and its contacts
can be easily damaged by scratches or
bending, so be careful when handling,
inserting orremoving the card.
Keepall SIM cards out of the reach of
small children.
1. If necessary, switch off the phone by holding down
the key until thedisplay turns off.

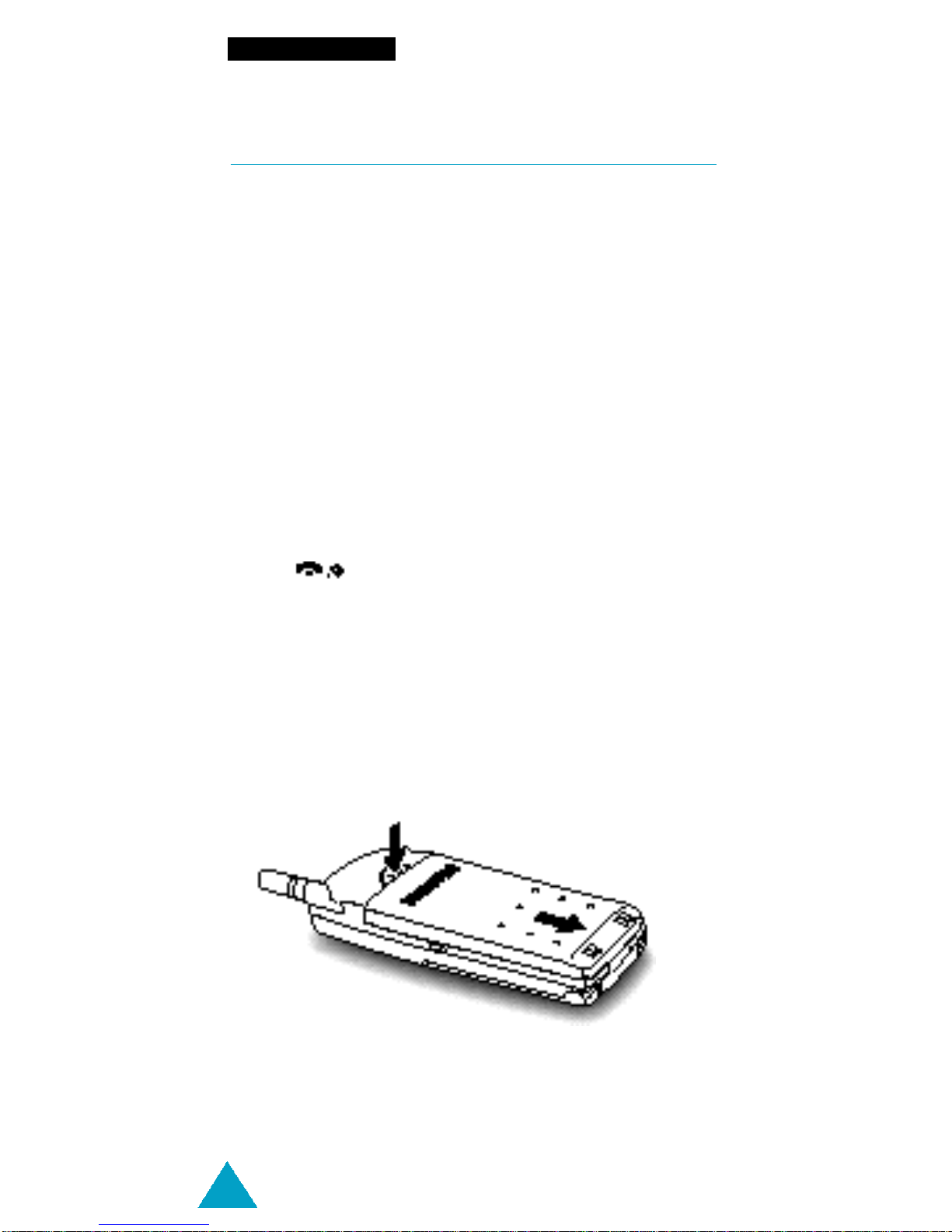

2. Remove the battery. To do so, push and hold down
the catch above the battery on the back of the
phone and slide the battery down the phone.
Then lift the battery away.

17
Getting Started

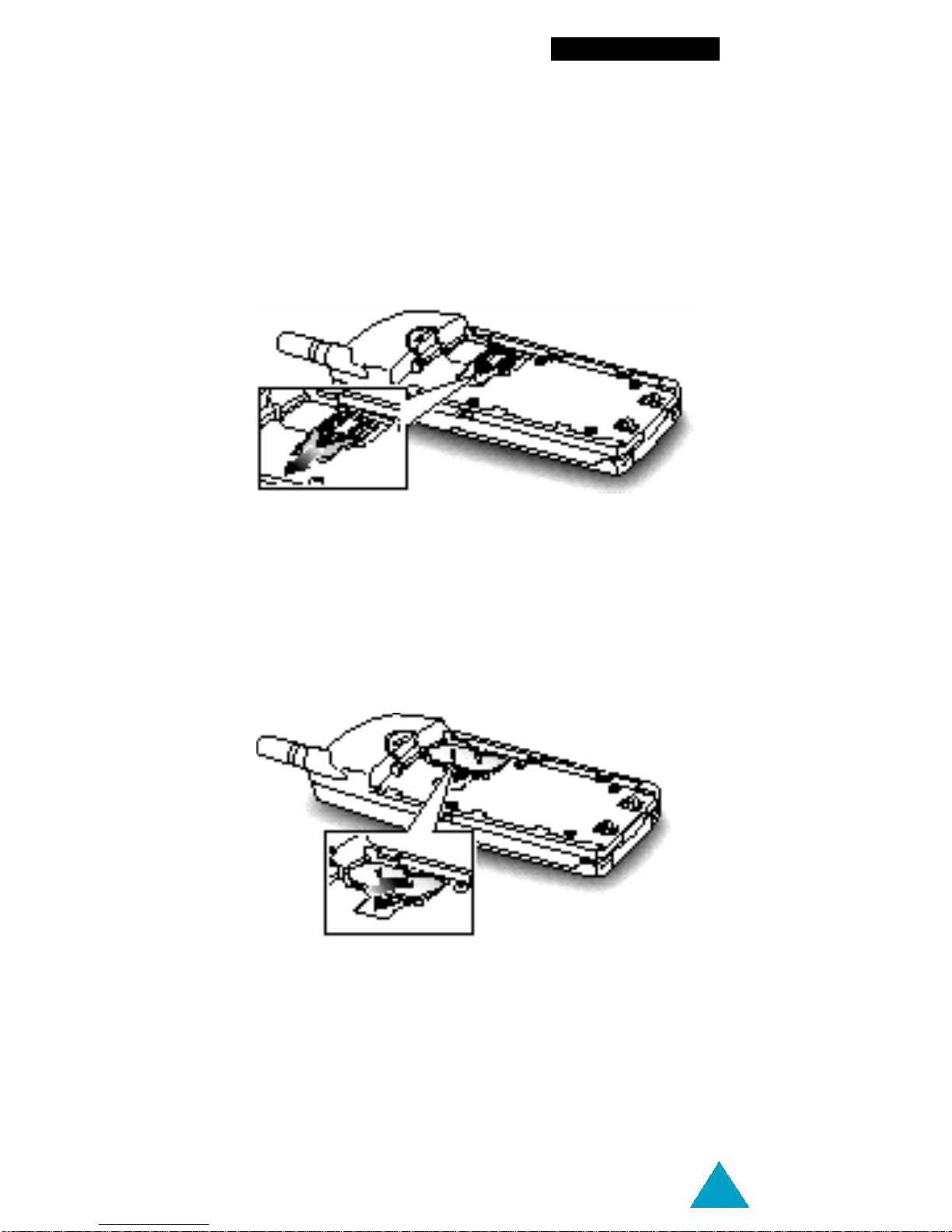

3. Slide the SIM card lock back and hold it in
position.
4. Insert the SIM card ensuring that the cut corner is
top left and the gold contacts of the card face into
the phone.

18
Getting Started

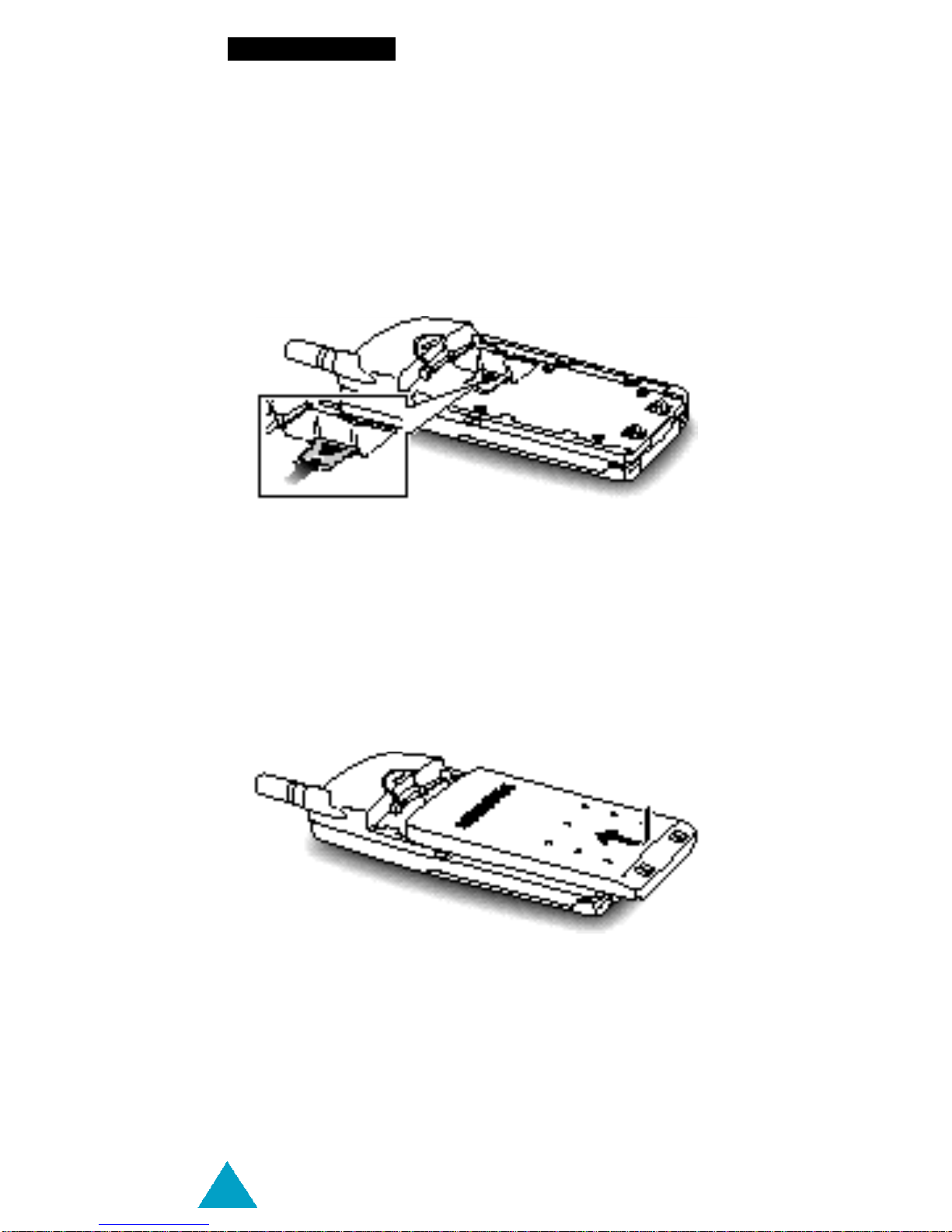

6. Place the battery back on the phone. Slide the
battery up until it locks into place.
5. Maintaining the SIM card in position, release the
SIM card lock to hold the SIM card in place.

19
Getting Started
Charging a Battery
Your phone is powered by a rechargeable Li-Ion
battery. A travel adapter is provided with your phone.
Use only approved batteries and chargers. Ask your
local SAMSUNG dealer for further details.
The phone can be used while the battery is charging.
Note:Youmust fully charge the battery before using
yourphone for the first time. A discharged
battery is fully recharged inapproximately
180minutes.
1. Connect the lead from the travel adapter to the
bottom of the phone. Check that the arrow on
the lead connector is facing towards the front of
the phone.
2. Connect the adapter to a standard AC wall outlet.
When the battery is charging, the battery icon
in the top right-hand corner of the display fills
repeatedly.

20
Getting Started

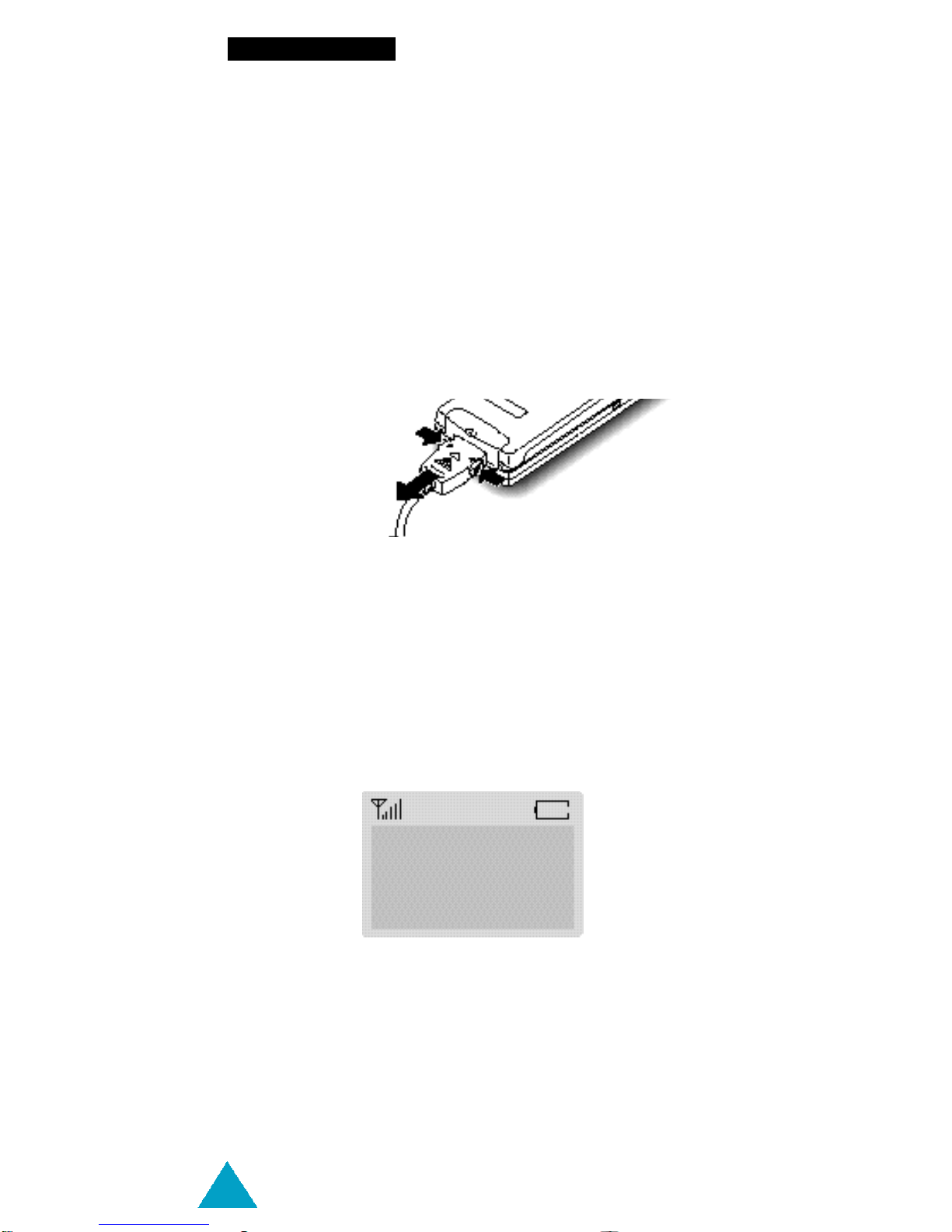

3. When charging is finished, disconnect the adapter
from the power outlet.
Disconnect the adapter from the phone by
pressing the grey tabs on either side of the
connector and pulling the connector out.
Low Battery Indicator
When the battery is weak and only a few minutes of
talk time remain, you will hear a warning tone and a
message will be repeated at regular intervals on the
display:
Low
Battery
When the battery becomes too weak for the phone
to operate, it switches off automatically.
