Samsung GT-B3310 User manual

GSM TELEPHONE
GT-B3310
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM850 EGSM900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
824-849
869-894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128-251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80 MHz
Mod. Bit rate
/BitPeriod
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692 us
Time Slot Period
/ Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9 us
4.615 ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5~19(class4) 5~19(class4) 0~15(class1) 0~15(class1)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMAMux8888
Cell Radius 35Km 35Km 2Km 2 Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level DCS1800 PCS1900
030±3
dBm 30±3 dBm
128±3
dBm 28±3 dBm
226±3
dBm 26±3 dBm
324±3
dBm 24±3 dBm
422±3
dBm 22±3 dBm
520±3
dBm 20±3 dBm
618±3
dBm 18±3 dBm
716±3
dBm 16±3 dBm
814±3
dBm 14±3 dBm
912±4
dBm 12±4 dBm
10 10±4 dBm 10±4 dBm
11 8±4dBm 8±4dBm
12 6±4 dBm 6±4 dBm
13 4±4 dBm 4±4 dBm
14 2±5 dBm 2±5 dBm
15 0±5 dBm 0±5 dBm
TX Power
control level GSM850 GSM900
533±2
dBm 33±2 dBm
631±2
dBm 31±2 dBm
729±2
dBm 29±2 dBm
827±2
dBm 27±2 dBm
925±2
dBm 25±2 dBm
10 23±2 dBm 23±2 dBm
11 21±2 dBm 21±2 dBm
12 19±2 dBm 19±2 dBm
13 17±2 dBm 17±2 dBm
14 15±2 dBm 15±2 dBm
15 13±2 dBm 13±2 dBm
16 11±3 dBm 11±3 dBm
17 9±3 dBm 9±3 dBm
18 7±3 dBm 7±3 dBm
19 5±3 dBm 5±3 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Quad Band (GSM850+EGSM900+DCS1800+PCS1900)
-GPRS Rx/Tx, EDGE Rx only
-FM Radio
-Bluetooth v2.0 +EDR
-CSTN 2.0" QVGA 262K Color LCD
-2MCMOS Camera
-MP3 Player

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments

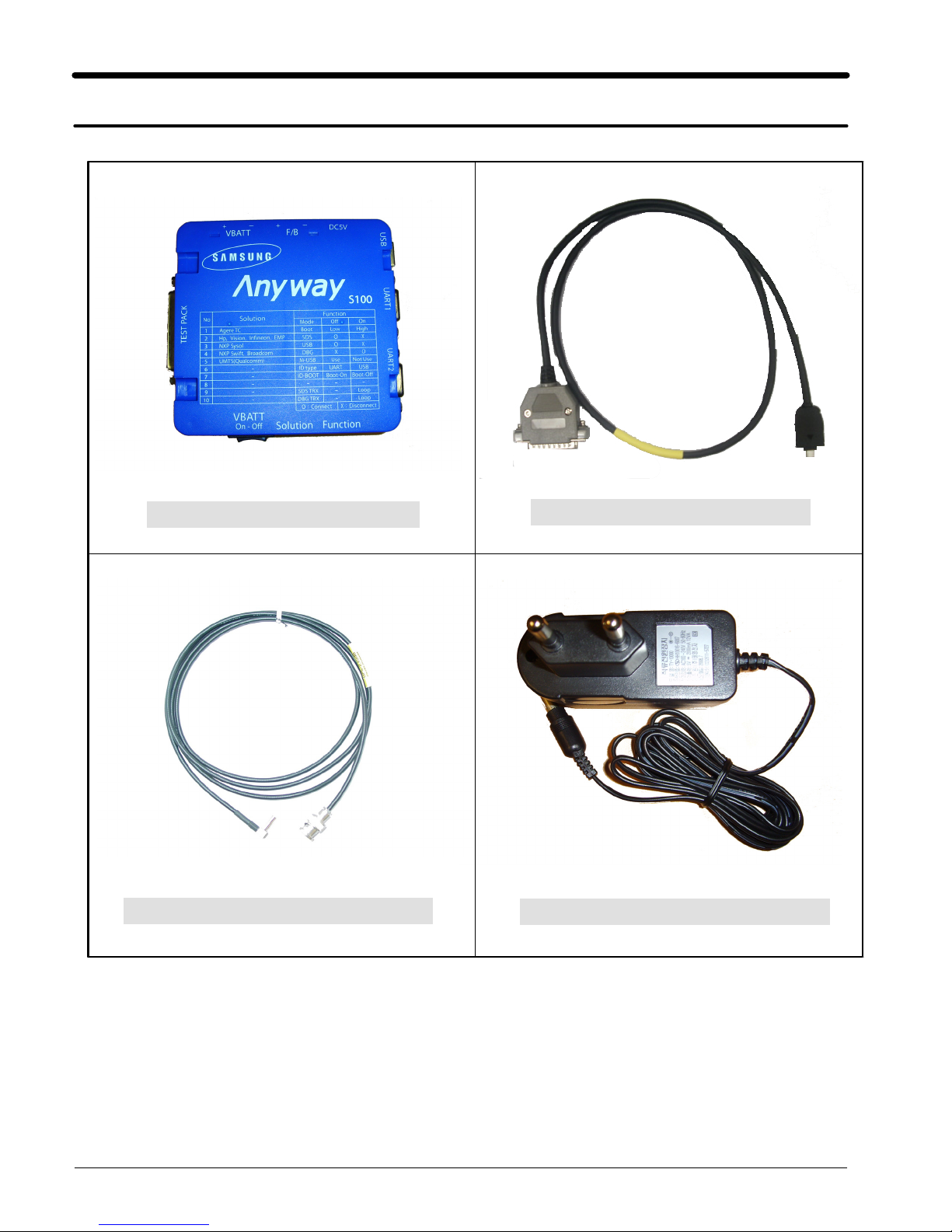

Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)
Test Cable (GH39-01290A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
•Downloader Program(Optiflash Version 4.17)
•GT-B3310 Mobile Phone
•Data Cable
•S3 file, CSC file
4-2-2. S/W Downloader Program
■To make USB connection between your PC and the Mobile phone.
Press and hold '*' key then connect the Data cable to Mobile phone.
(Both of PC and Mobile phone must be in Power off state)

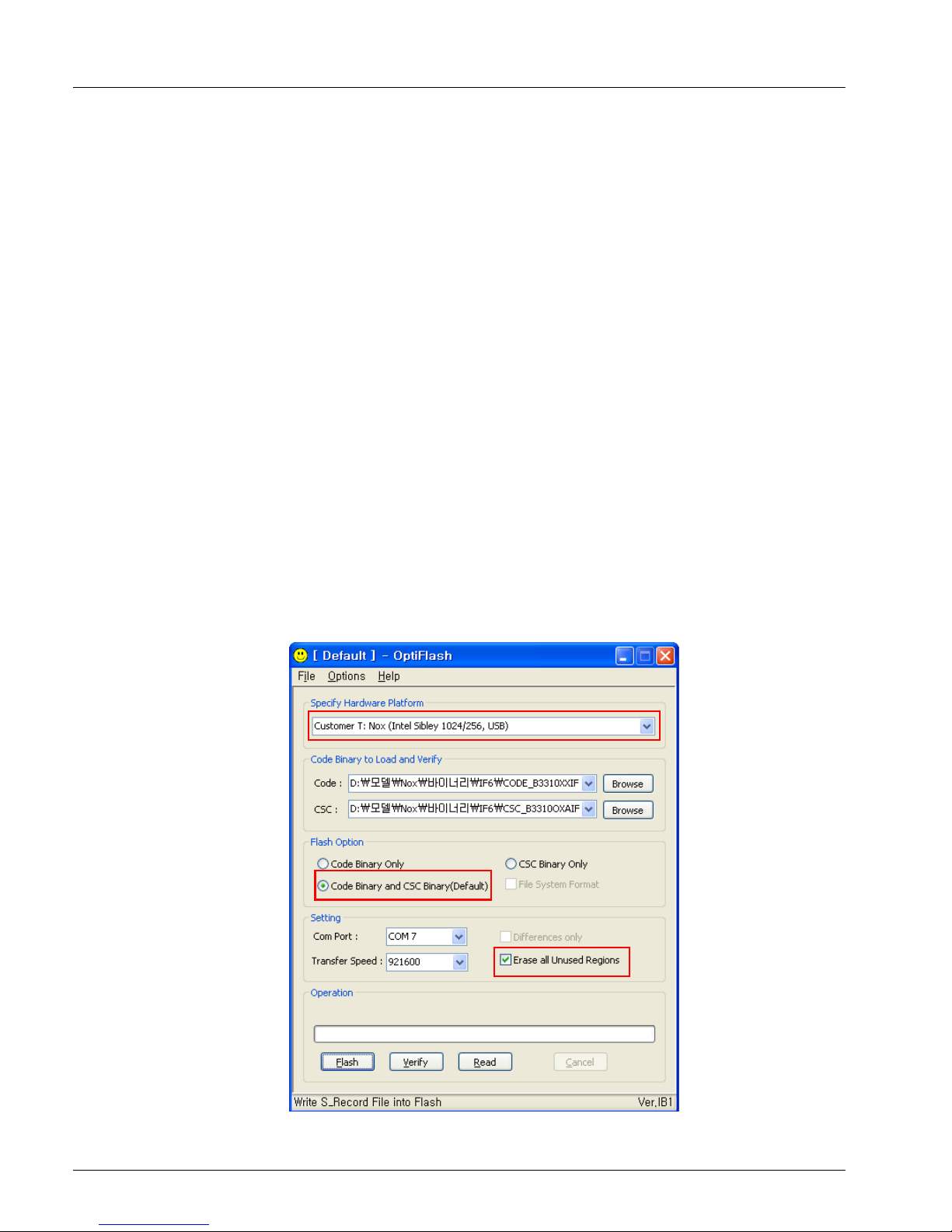

■Load the binary download program by executing the
"Optiflash.exe"
1.Select Customer T: Nox (Intel Sibley 1024/256, USB)
Check Code Binary and CSC Binary(Default) and Erase all Unused Regions.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

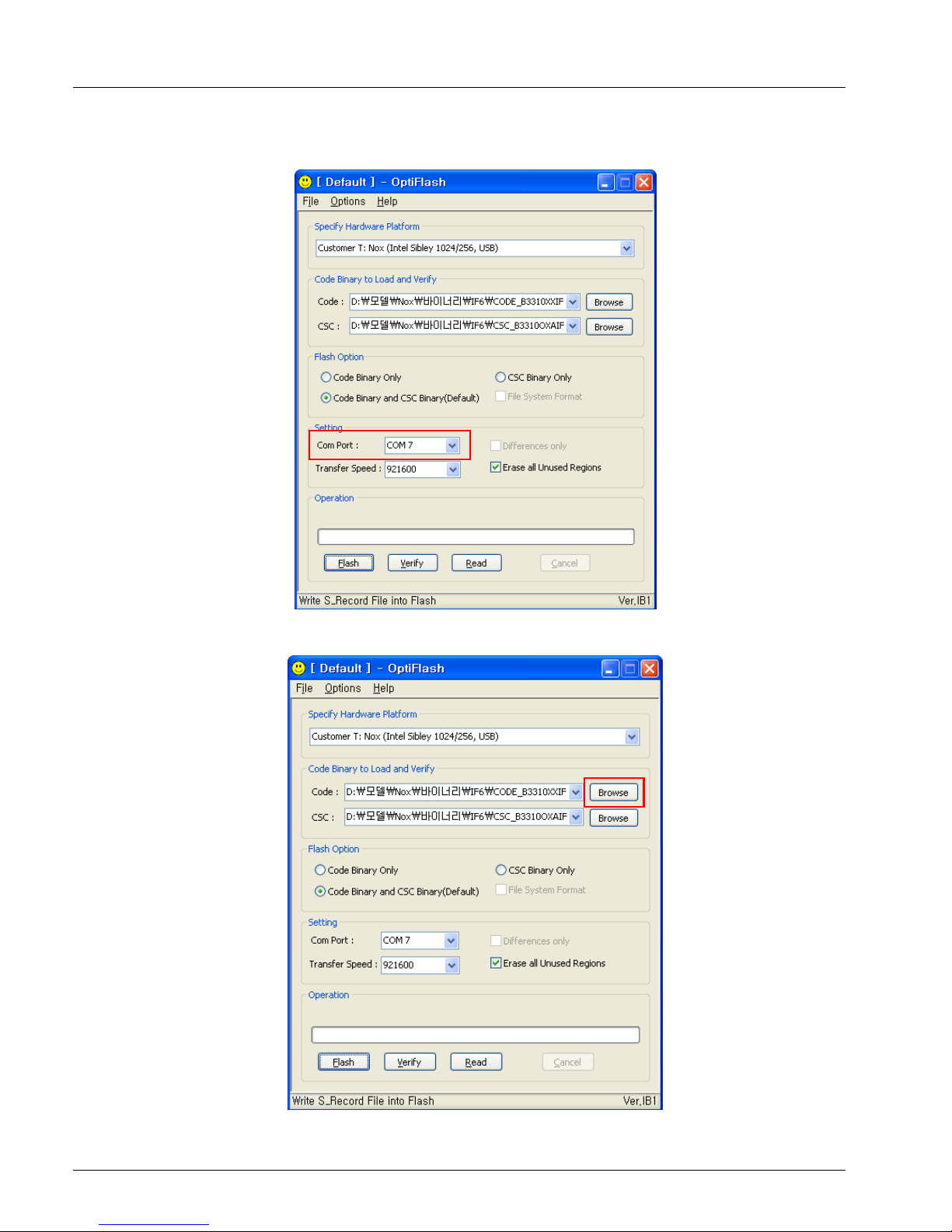

2.Select the COM port that the mobile phone is connected to..
3.Click Browse and Select S3 file.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

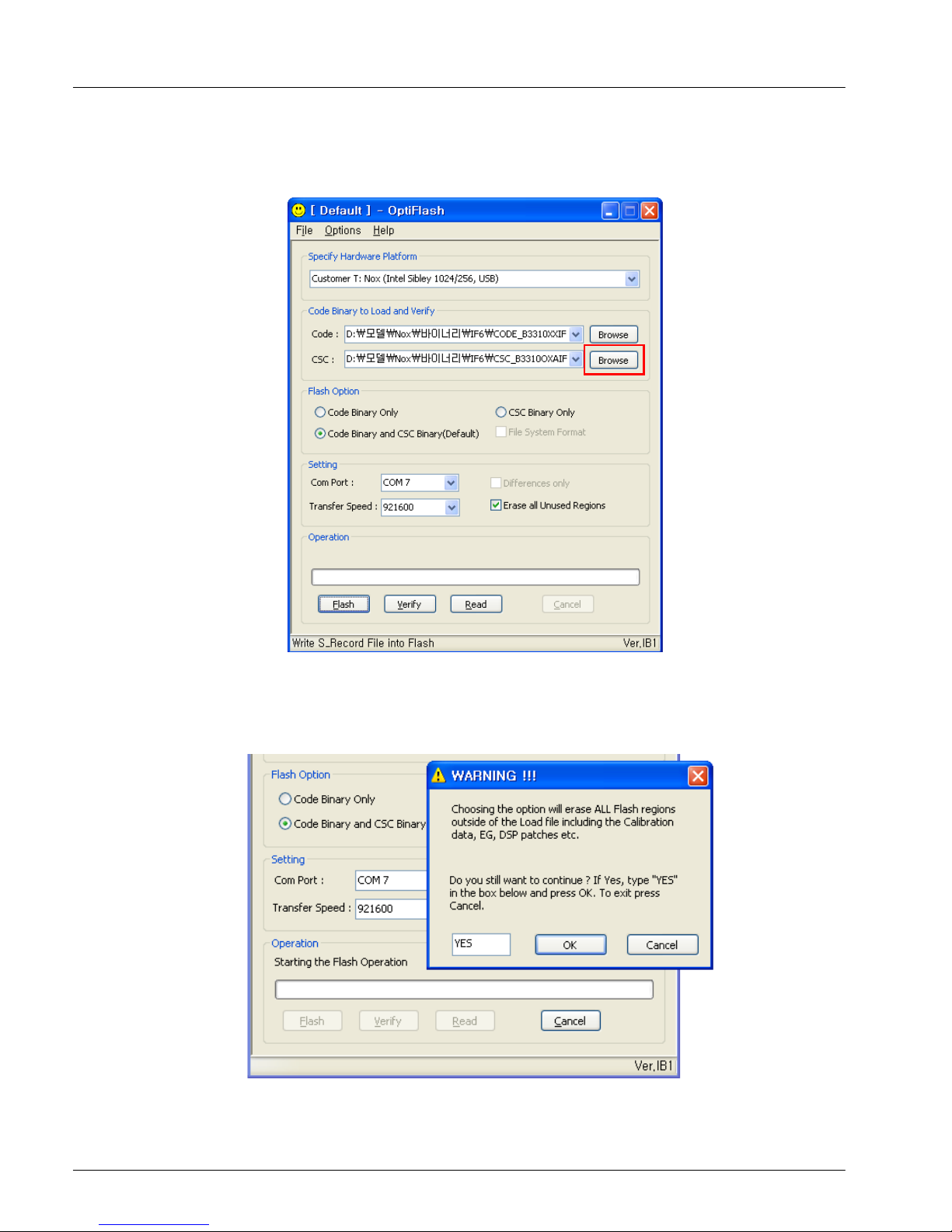

4.Click Browse and Select CSC file.
5.Click Flash and Type 'YES'in capital letters on the pop-up WARNING !!!

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
6.Click OK and the downloading process will be started.
7.Wait until the message 'All is well.'displayed
8.Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

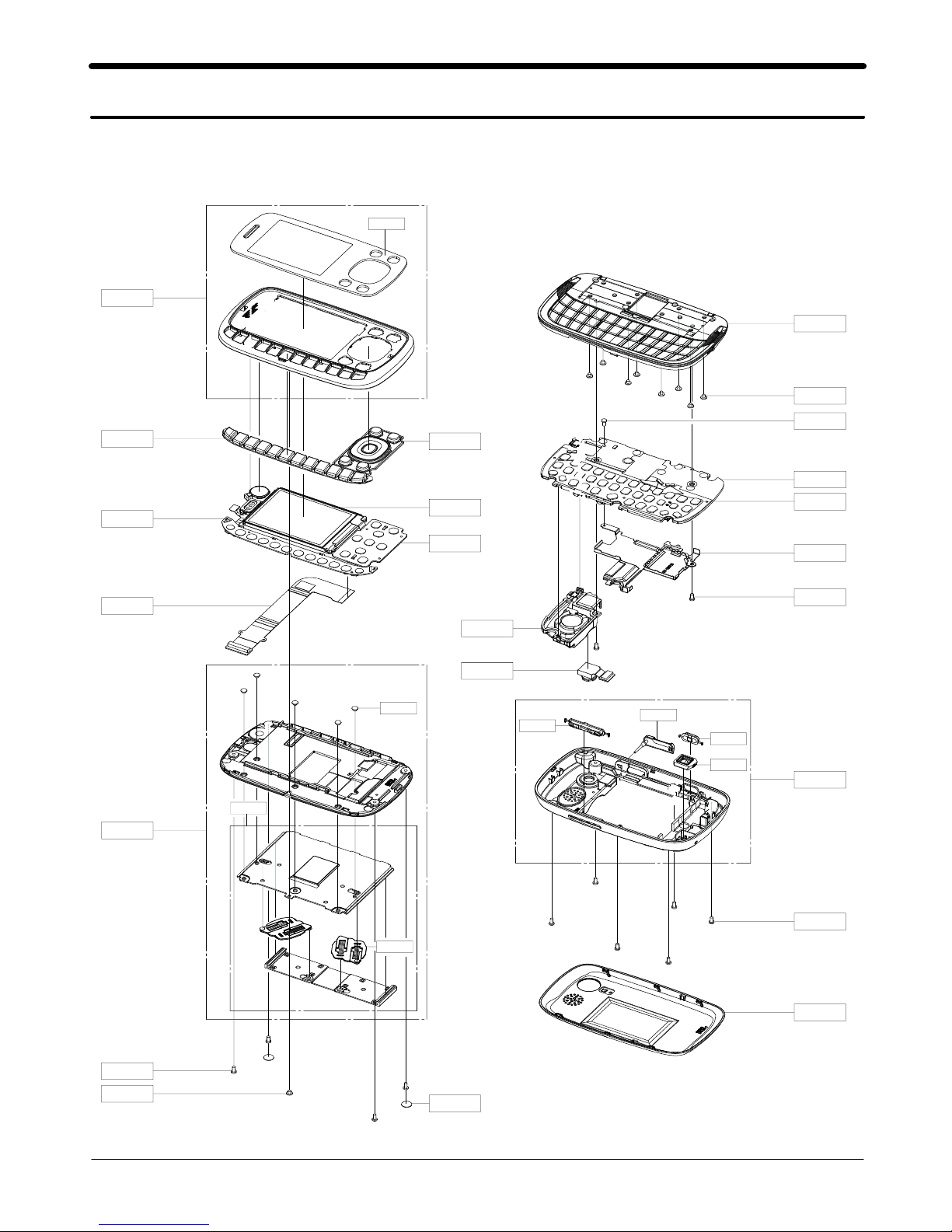

5-1. Cellular phone Exploded View
QFU01
QSP01
QCA01
QKP03
QME00
QME16
QCR03
QCR61
QFL01
QMI03
QHI02
QCK01
QCR93
QMW02
QVO01
QRE01
QFR01
QCR61
QCR03
QBA00
QCR03
QME01
QCR03
QSH01
QMP01
QKP01
QLC02
QSC01
QLC01
QRF06
QHI01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QBA00 ASSY COVER-BATT GH98-13409A
QCA01 ASSY CAMERA-GTB3310_2M GH96-03953A
QCR03 SCREW-MACHINE 6001-001811
QCR03 SCREW-MACHINE 6001-001811
QCR03 SCREW-MACHINE 6001-001811
QCR61 SCREW-MACHINE 6001-002008
QFR01 ASSY CASE-FRONT GH98-13407A
QKP01 ASSY KEY-NAVI GH98-13414A
QKP03 ASSY KEY-NUM GH98-13413A
QLC01 ELA MODULE-2.0" QVGA GT-B3310 TN ASSY GH96-03890A
QLC02 ASSY ETC-GTB3310_LCD SUB PBA GH59-07897A
QME01 DOME SHEET-GTB3310_QWERTY 35 KEY GH59-07899A
QME00 KEY FPCB-GTB3310_ KEY PBA GH59-07901A
QME16 ASSY ETC-GTB3310_CON TO CON GH59-07898A
QMP01 A/S ASSY-GTB3310 PBA MAIN (SVC) GH82-03928A
QSC01 TAPE-SCREW CAP GH74-44933A
QSH01 ASSY COVER-SHIELD CAN GH98-13411A
QSP01 MODULE-GTB3310_SPK GH59-07873A
QFU01 ASSY CASE-SLIDE UPPER GH98-13405A
QMW02 PMO WINDOW-MAIN(OPEN/ZB) GH72-54282A
QRE01 ASSY CASE-REAR GH98-13408A
QCK01 PMO KEY-CAMERA GH72-54271A
QVO01 PMO KEY-VOLUME GH72-54272A
QRF06 PMO COVER-USB GH72-54273A
QMI03 RMO RUBBER-MIC HOLDER GH73-13024A
QFL01 ASSY CASE-SLIDE LOWER GH98-13406A
QCR93 SCREW-MACHINE 6001-002263
QHI01 ASSY HINGE-SLIDE(GTB3310) GH98-13412A
QHI02 ASSY HINGE-ACTUATOR GH98-14153A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0403-001547 ZD301 DIODE-ZENER
0406-001241 ZD302 DIODE-TVS
0406-001254 ZD300,ZD605 DIODE-TVS
0406-001267 ZD200 DIODE-TVS
0406-001286 ZD500 DIODE-TVS
0406-001303 ZD400 DIODE-TVS
0406-001369 U201 DIODE-TVS
0505-001518 Q100 FET-SILICON
0505-002088 Q300 FET-SILICON
0601-002070 LED603 LED
0601-002268 LED600,LED601,LED602 LED
0801-003024 U204 IC
0801-003065 U301 IC
0801-003139 U302 IC
1001-001598 U203 IC
1009-001035 U200 IC
1201-002864 U400 IC
1201-002896 PAM100 IC
1203-004291 U600 IC
1203-005658 U300 IC
1204-003026 U401 IC
1205-003409 U202 IC
1205-003517 U100 IC
1205-003563 RFT100 IC
1205-003623 U500 IC
1108-000229 UCP200(UP) IC
1205-003660 UCP200 IC
1205-003661 UCD300 IC
1404-001165 TH300 THERMISTOR
2007-000138 R219,R220,R223,R224 R-CHIP
2007-000138 R225,R226,R227,R228 R-CHIP
2007-000138 R229,R231,R233,R309 R-CHIP
2007-000138 R310,R609 R-CHIP
2007-000139 R100,R205,R406 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-000140 R409 R-CHIP
2007-000141 R408,R413,R414,R600 R-CHIP
2007-000141 R601 R-CHIP
2007-000143 R230 R-CHIP
2007-000144 R307 R-CHIP
2007-000147 R209,R210 R-CHIP
2007-000148 R104,R303,R313 R-CHIP
2007-000153 R407 R-CHIP
2007-000157 R106,R213,R221,R314 R-CHIP
2007-000157 R607,R608,R615 R-CHIP
2007-000159 R312 R-CHIP
2007-000162 R201,R311,R315 R-CHIP
2007-000168 R306,R501,R502,R503 R-CHIP
2007-000170 R611 R-CHIP
2007-000172 R202,R203,R402,R403 R-CHIP
2007-000172 R410,R411,R604,R605 R-CHIP
2007-000172 R606,R614 R-CHIP
2007-000242 R214 R-CHIP
2007-000636 R305 R-CHIP
2007-000758 R215,R216 R-CHIP
2007-000775 R206,R301 R-CHIP
2007-001292 R217,R218 R-CHIP
2007-001333 R500 R-CHIP
2007-001339 R610 R-CHIP
2007-003015 R105,R200 R-CHIP
2007-007308 R302 R-CHIP
2007-007314 R304 R-CHIP
2007-007488 R612 R-CHIP
2007-007627 R300 R-CHIP
2007-007766 R405 R-CHIP
2007-008213 R316 R-CHIP
2203-000233 C122,C423 C-CERAMIC,CHIP
2203-000254 C127,C134,C201,C211 C-CERAMIC,CHIP
2203-000254 C217,C310,C324,C325 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-000254 C326,C335 C-CERAMIC,CHIP
2203-000278 C328,C329 C-CERAMIC,CHIP
2203-000386 C126,C424,C425,C427 C-CERAMIC,CHIP
2203-000386 C428 C-CERAMIC,CHIP
2203-000438 C311 C-CERAMIC,CHIP
2203-000627 C113 C-CERAMIC,CHIP
2203-000812 C110,C120,C121,C123 C-CERAMIC,CHIP
2203-000812 C124,C319,C320,C407 C-CERAMIC,CHIP
2203-000812 C416 C-CERAMIC,CHIP
2203-000940 C318 C-CERAMIC,CHIP
2203-000995 C219,C321 C-CERAMIC,CHIP
2203-001124 C314 C-CERAMIC,CHIP
2203-001153 C101,C102 C-CERAMIC,CHIP
2203-001259 C106 C-CERAMIC,CHIP
2203-002487 C103,C222 C-CERAMIC,CHIP
2203-002668 C118 C-CERAMIC,CHIP
2203-002709 C418 C-CERAMIC,CHIP
2203-005050 C132 C-CERAMIC,CHIP
2203-005234 C112 C-CERAMIC,CHIP
2203-005281 C133 C-CERAMIC,CHIP
2203-005288 C119 C-CERAMIC,CHIP
2203-005344 C227,C420 C-CERAMIC,CHIP
2203-005483 C402,C405,C413,C417 C-CERAMIC,CHIP
2203-005993 C406,C409 C-CERAMIC,CHIP
2203-006048 C100,C114,C200,C202 C-CERAMIC,CHIP
2203-006048 C204,C206,C207,C208 C-CERAMIC,CHIP
2203-006048 C210,C215,C216,C218 C-CERAMIC,CHIP
2203-006048 C225,C226,C300,C303 C-CERAMIC,CHIP
2203-006048 C304,C306,C309,C312 C-CERAMIC,CHIP
2203-006048 C315,C317,C336,C419 C-CERAMIC,CHIP
2203-006048 C421,C422,C426 C-CERAMIC,CHIP
2203-006201 C125,C129 C-CERAMIC,CHIP
2203-006257 C323 C-CERAMIC,CHIP
2203-006260 C111 C-CERAMIC,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-006399 C104,C116,C224,C322 C-CERAMIC,CHIP
2203-006399 C327,C330,C338,C339 C-CERAMIC,CHIP
2203-006399 C341,C342,C344,C403 C-CERAMIC,CHIP
2203-006399 C404,C408,C415,C601 C-CERAMIC,CHIP
2203-006399 C602,C608 C-CERAMIC,CHIP
2203-006474 C316 C-CERAMIC,CHIP
2203-006562 C221,C332,C334,C401 C-CERAMIC,CHIP
2203-006562 C410,C411,C412,C600 C-CERAMIC,CHIP
2203-006626 C223 C-CERAMIC,CHIP
2203-006824 C331,C337 C-CERAMIC,CHIP
2203-006841 C302,C308 C-CERAMIC,CHIP
2203-006872 C105,C128,C205,C305 C-CERAMIC,CHIP
2203-006872 C313,C340,C343,C345 C-CERAMIC,CHIP
2203-006872 C603,C604 C-CERAMIC,CHIP
2203-007133 C307 C-CERAMIC,CHIP
2203-007271 C301,C605 C-CERAMIC,CHIP
2203-007279 C115,C400 C-CERAMIC,CHIP
2404-001377 TA400 C-TA,CHIP
2404-001381 C333,TA201 C-TA,CHIP
2404-001474 TA200 C-TA,CHIP
2404-001496 TA300 C-TA,CHIP
2703-002198 L116 INDUCTOR-SMD
2703-002199 L114 INDUCTOR-SMD
2703-002203 L100,L104,L105 INDUCTOR-SMD
2703-002204 L102,L103,L109,L118 INDUCTOR-SMD
2703-002205 L108,L111,L113,L115 INDUCTOR-SMD
2703-002365 L101 INDUCTOR-SMD
2703-002367 L110,L112 INDUCTOR-SMD
2703-002369 L106,L107 INDUCTOR-SMD
2703-003297 L301 INDUCTOR-SMD
2703-003534 L201 INDUCTOR-SMD
2801-004339 OSC300 CRYSTAL-UNIT
2801-004683 OSC100 CRYSTAL-UNIT
2901-001408 F600,F601,F602 FILTER-EMI SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2904-001862 F100 FILTER-SAW
2904-001863 F101 FILTER-SAW
2909-001283 F102 FILTER-DUPLEXER
3003-001136 MIC400 MIC-CONDENSOR
3301-001342 F200,L600 CORE-FERRITE BEAD
3301-001659 L402,L403 CORE-FERRITE BEAD
3301-001729 L400,L401 CORE-FERRITE BEAD
3301-001812 L404,L405 CORE-FERRITE BEAD
3301-001879 L300 CORE-FERRITE BEAD
3301-001912 L200 CORE-FERRITE BEAD
3301-001938 L202 CORE-FERRITE BEAD
3404-001303 TAC600,TAC601,TAC602 SWITCH-TACT
3705-001503 RFS100 CONNECTOR-COAXIAL
3708-002015 CN400 CONNECTOR-FPC/FFC/PIC
3709-001394 CD300 CONNECTOR-CARD EDGE
3709-001447 SIM300 CONNECTOR-CARD EDGE
3711-006105 HEA600 CONNECTOR-HEADER
3711-006137 BTC300 CONNECTOR-HEADER
3711-006919 HEA601 CONNECTOR-HEADER
3722-002840 IFC200 JACK-PHONE
4202-001463 ANT102 ANTENNA-CHIP
4302-001130 BAT300 BATTERY
GH70-03349A SC101,SC102 IPR SHIELD-CAN CLIP
GH70-04828A SC103 SHIELD CAN CLIP
GH71-08731A ANT100,ANT101 NPR-CONTACT ANT
GH80-03320A R109,R110,R114 PB-SHORT
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

7. Block Diagrams
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
7-1

Block Diagrams
This Document can not be used without Samsung's authorization
SAMSUNG Proprietary-Contents may change without notice
7-2
