Samsung Wave GT-S8500 User manual

GSM TELEPHONE
GT-S8500
1. Safety Precautions
2. Specification
3. Product Function

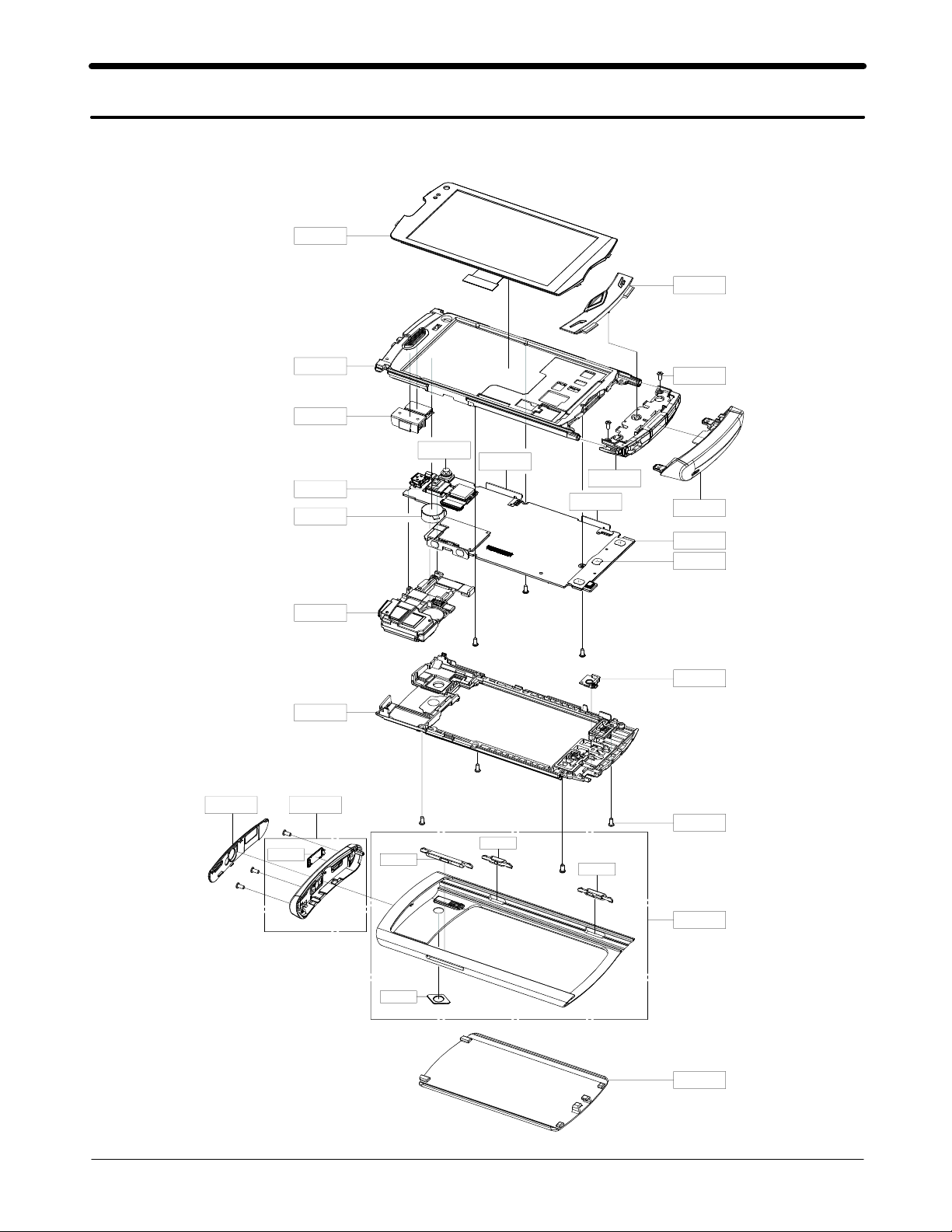

4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 04. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization

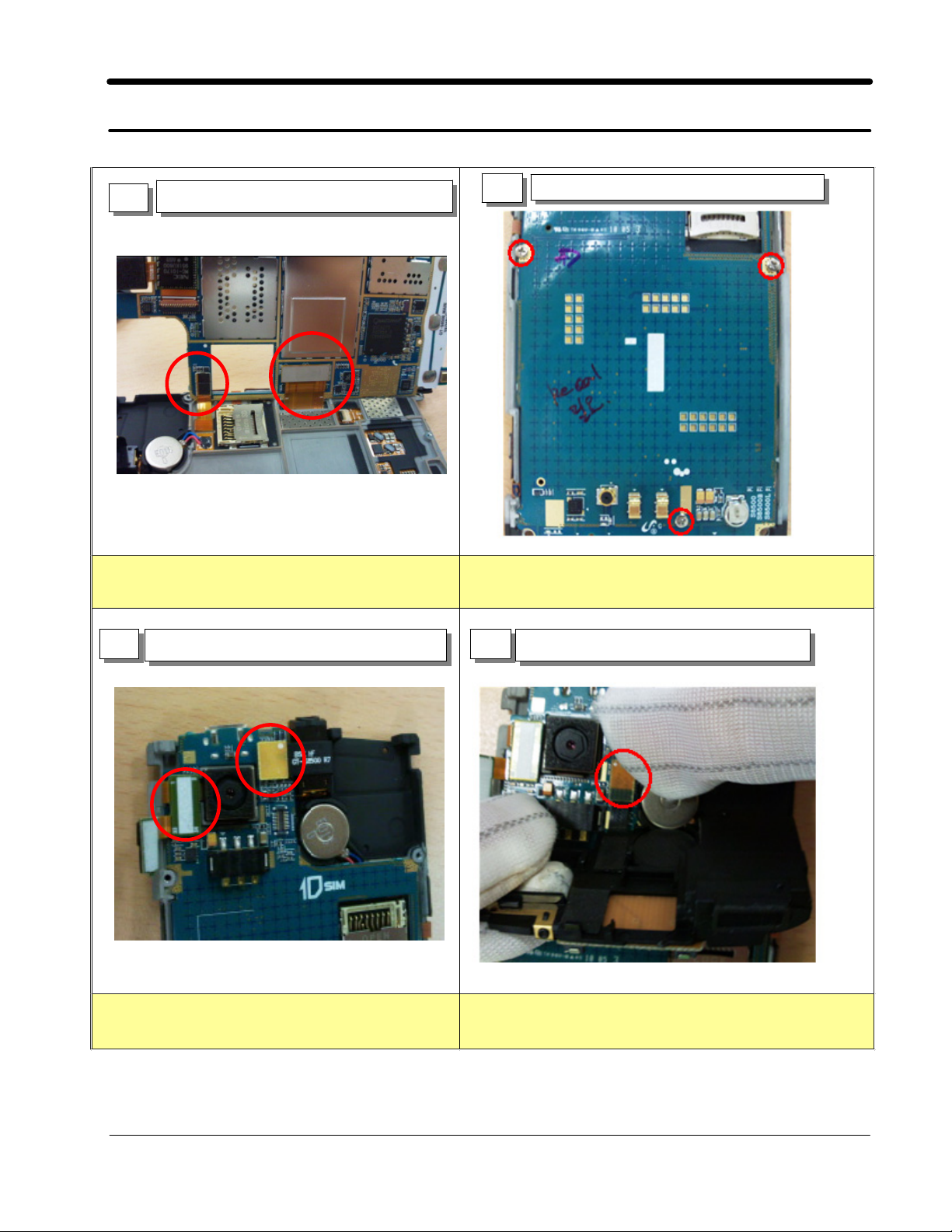

Assemble FPCB not to get loose Screw PBA 3-point after Land PBA
Assemble FPCB not to get loose Assemble FPCB not to get loose
7-1. Assembly
assemble CONN.
1Screw PBA
2
Assemble FPCB
3Assemble Camera FPCB 4



SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-2
7. Level 2Repair
  
Speaker module lands, pushing the left side first. Attach FPCB to outline
Land REAR on PBA and screw REAR 2-point Insert intenna
8Assemble intenna
Assemble FPCB
6
7Assemble REAR

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-3
7. Level 2Repair
Screw intenna 2-point Land the front key pad
   
Insert intenna's cover Screw intena cover 2-point
Assemble front key pad
10
9Screw intenna
Screw intenna cover
12

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-4
7. Level 2Repair

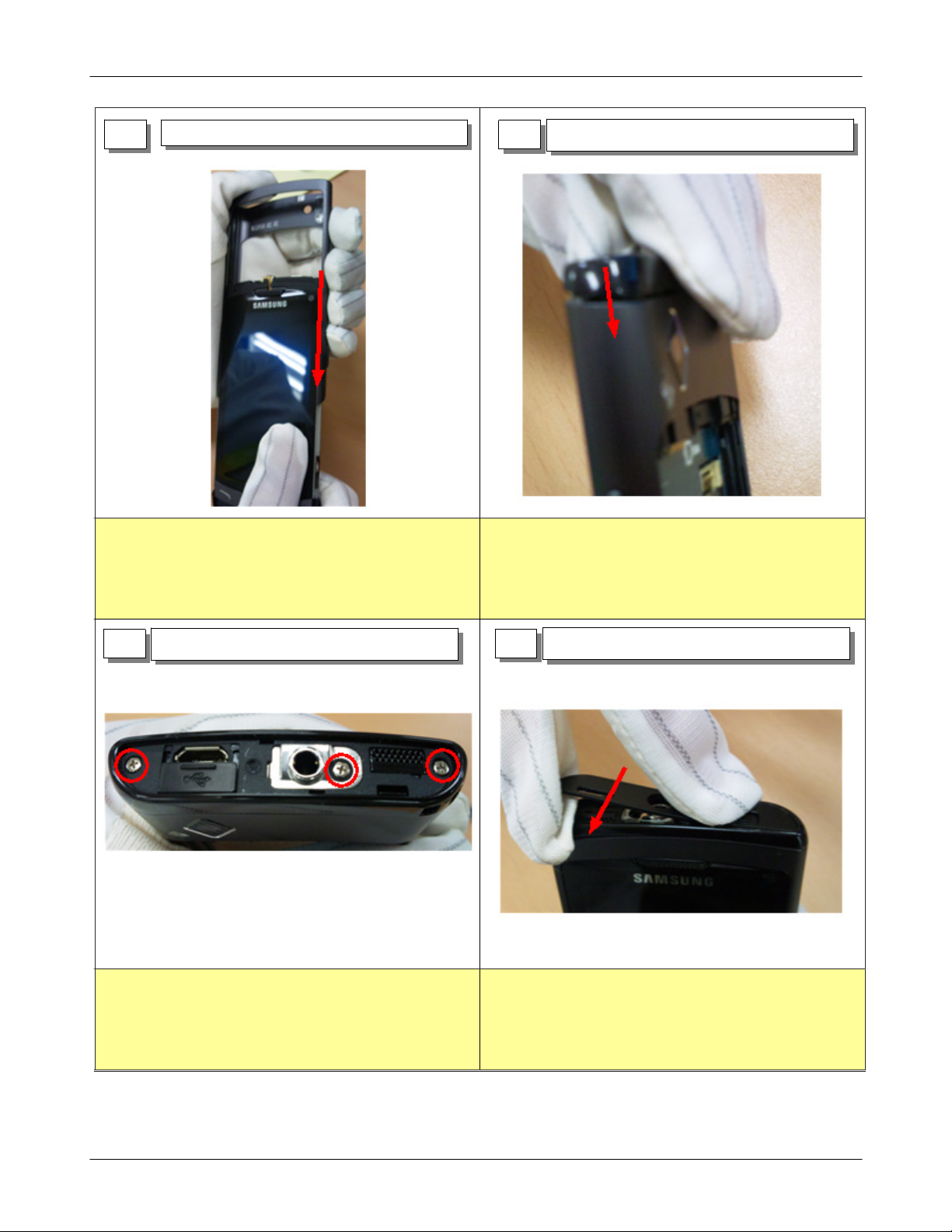

Slide Case body down Insert upper Deco into Case body
Screw upper Deco 3-point attach upper Deco cover
13 Slide Case body down
Screw upper Deco
15 Assemble upper Deco cover
16
Assemble upper Deco
14

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-5
7. Level 2Repair

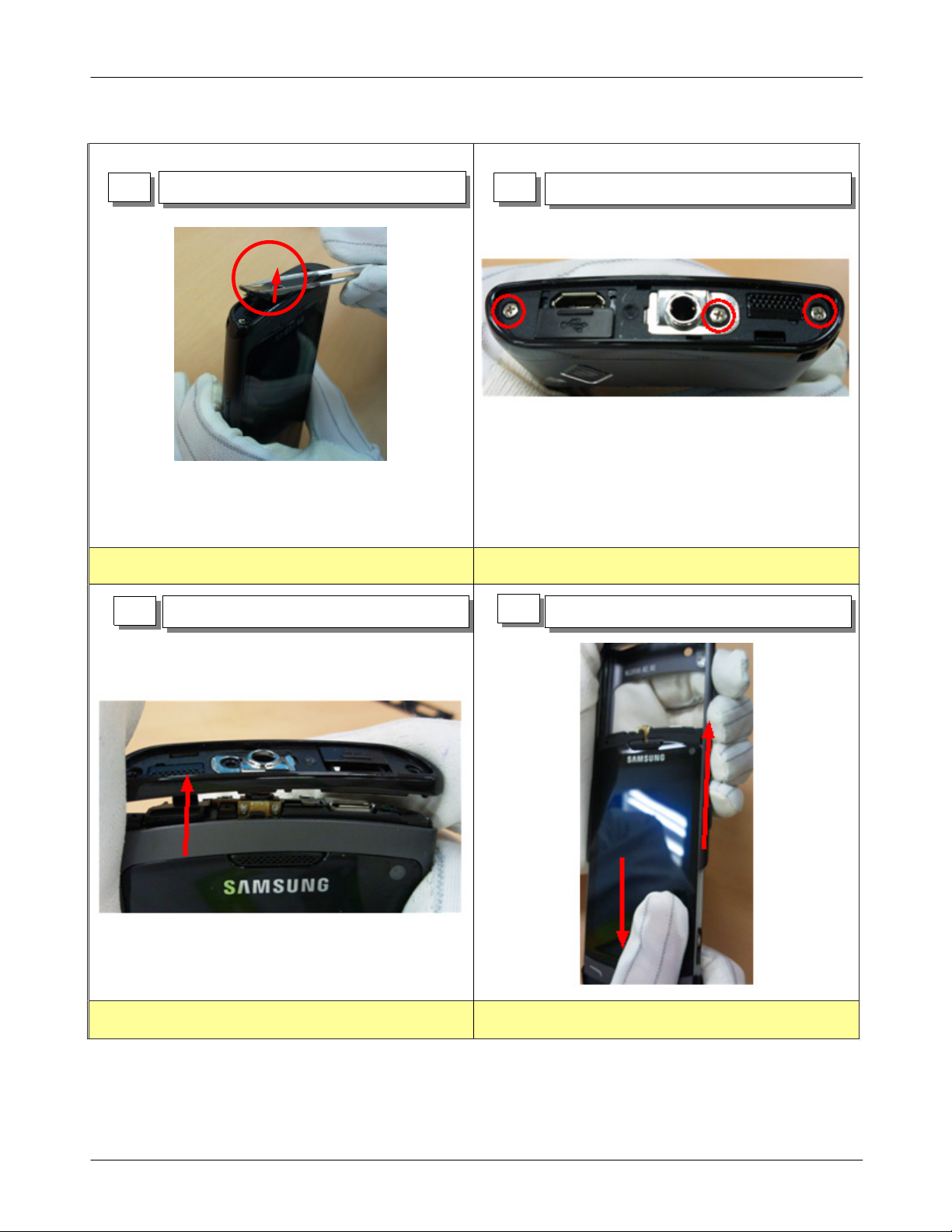

Detach upper Deco's cover with pincette Unscrew upper Deco 3-point
Pull upper Deco after hold it Slide the Case body up
7-2. Dissembly
Disassemble upper Deco
3Disassemble Case body
4
Disassemble upper Deco cover
1Unscrew upper Deco 2

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-6
7. Level 2Repair

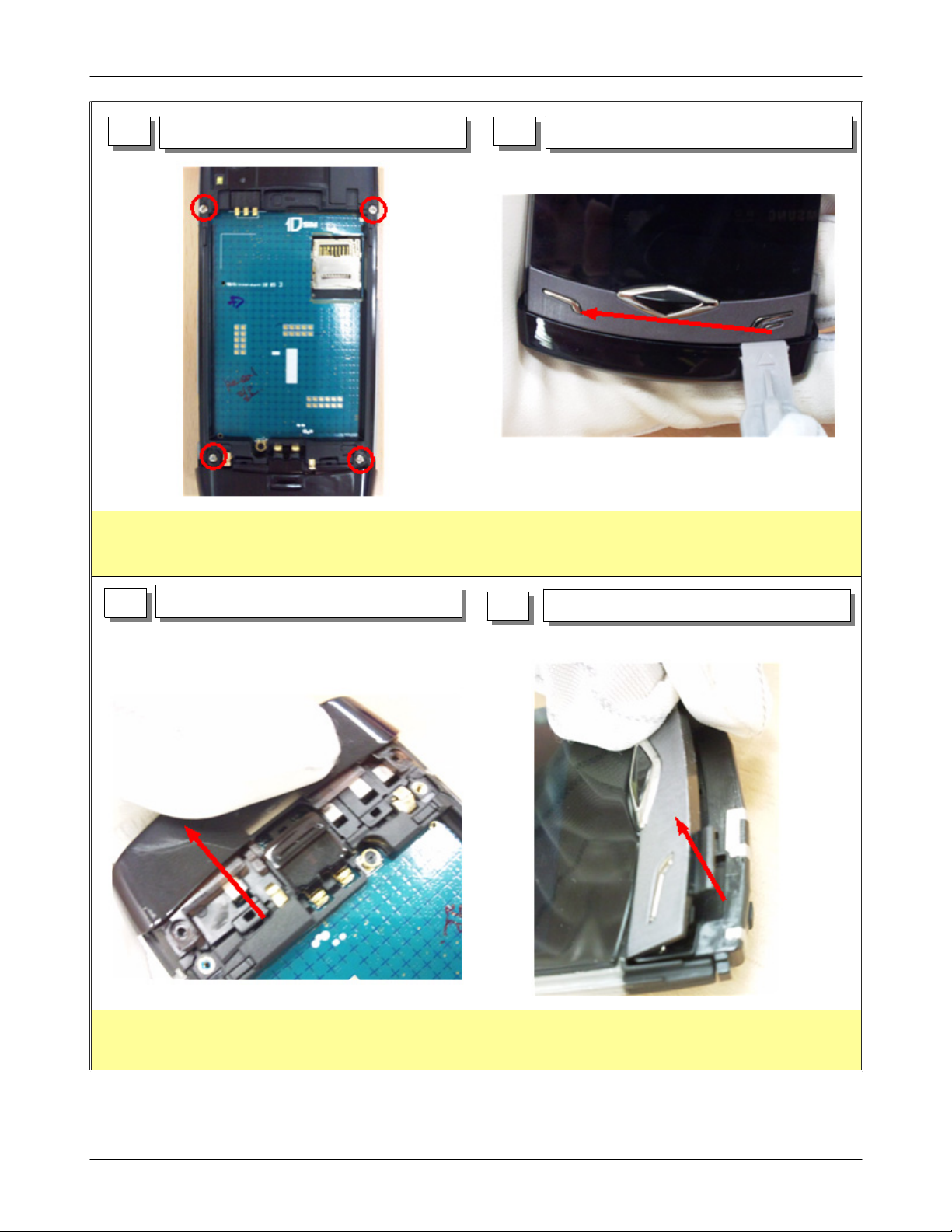

Unscrew REAR 4-point TO disassemble intenna's cover, widen the hook of the
intenna's cover with disassembling knife
  
Pull intenna's cover after hold it Hold up key pad
Unscrew REAR
5Disassemble intenna's cover
6
8Disassemble front key pad

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-7
7. Level 2Repair
  
Unscrew intenna 2-point Pull an intena after hold it
Hold the REAR up Detach FPCB with tweezers
Unscrew intenna
9
11 Disassemble FPAB
12
Disassemble the REAR

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-8
7. Level 2Repair
hold up the Camera cover right side Disassemble FPCB 2-point
Unscrew PBA 3-point Detach FPCB 2-point with tweezers
Disassemble Camera cover
13 Disassemble FPAB
14
Unscrew PBA
15 Detach FPCB
16

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-9
7. Level 2Repair
       

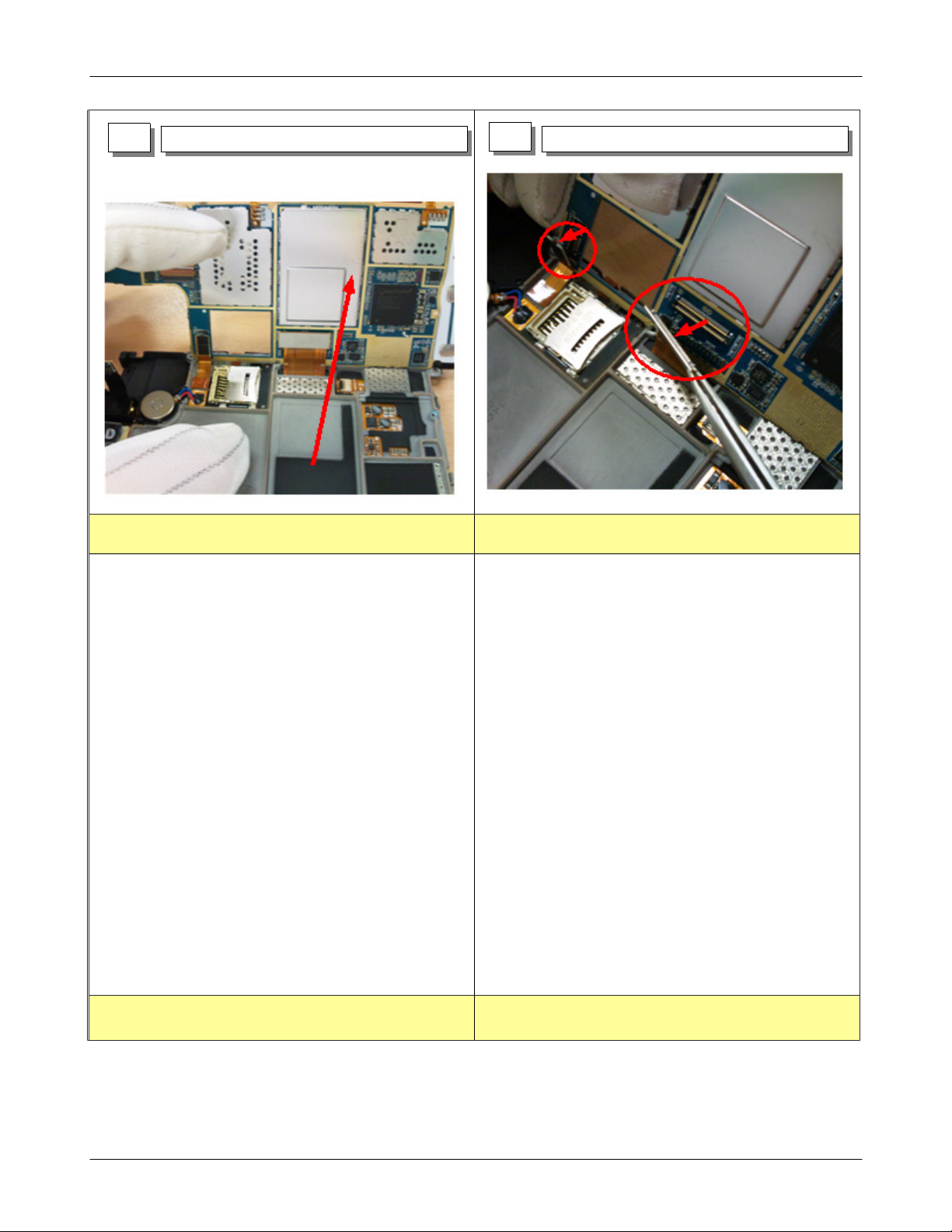

Disassemble PBA
18
Disassemble PBA
17

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
ZD402 0403-001688 DIODE-ZENER
D400, D401, ZD300 0406-001223 DIODE-TVS
ZD400 0406-001237 DIODE-TVS
V200, V201, ZD200, ZD201, ZD202, ZD203,
ZD204, ZD205, ZD206 0406-001267 DIODE-TVS
ZD601 0406-001322 DIODE-TVS
ZD401 0406-001375 DIODE-TVS
D600 0407-001002 DIODE-ARRAY
Q300 0504-000168 TR-DIGITAL
Q400 0504-001138 TR-DIGITAL
U105 0801-003013 IC-CMOS LOGIC
UCP500 0902-002559 IC-MICROPROCESSOR
U204 1001-001461 IC-ANALOG SWITCH
U200 1001-001488 IC-ANALOG SWITCH
U401 1001-001580 IC-ANALOG MULTIPLEX
U607 1003-002047 IC-MOTOR DRIVER
U201 1003-002102 IC-LEVEL DRIVER
U303 1003-002352 IC-LEVEL DRIVER
UME200 1107-001942 IC-FLASH MEMORY
U100 1201-002961 IC-POWER AMP
U101 1201-003009 IC-POWER AMP
U206 1202-001036 IC-VOLTAGE COMP.
U400 1203-004339 IC-MULTI REG.
U203 1203-004524 IC-MULTI REG.
U606 1203-004571 IC-MULTI REG.
U408 1203-004819 IC-POSI.FIXED REG.
U407 1203-005503 IC-DC/DC CONVERTER
U605 1203-005772 IC-VOL. DETECTOR
U602 1203-006186 IC-POWER SUPERVISOR
U601 1203-006372 IC-RESET
U102 1204-003026 IC-TUNER
U104 1205-003791 IC-RECEIVER
U205 1205-003943 IC-CODEC
U302 1205-003961 IC-MODEM
U604 1209-001817 IC-SENSOR
U609 1209-001872 IC-SENSOR

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
U301 1404-001165 THERMISTOR-NTC
U402, U403, U406, V405, V406, V407, V411 1405-001183 VARISTOR
V402, V403, V404, V408, V409 1405-001231 VARISTOR
R212 2007-000138 R-CHIP
R310 2007-000144 R-CHIP
R605, R610 2007-000148 R-CHIP
R425 2007-000152 R-CHIP
R609 2007-000162 R-CHIP
R309 2007-000932 R-CHIP
R228 2007-001119 R-CHIP
R521 2007-001319 R-CHIP
R424 2007-003006 R-CHIP
R570 2007-007009 R-CHIP
R323 2007-007156 R-CHIP
R611 2007-007334 R-CHIP
R209 2007-007573 R-CHIP
R114 2007-007741 R-CHIP
R431 2007-007875 R-CHIP
R411 2007-007943 R-CHIP
R103, R204, R207 2007-008044 R-CHIP
R102, R104, R200, R202, R203, R205, R304,
R311, R312, R328, R526, R527, R532,R604 2007-008045 R-CHIP
R303 2007-008049 R-CHIP
R234, R504,R602 2007-008052 R-CHIP
R121, R223, R428, R429, R539, R540, R542,
R543, R559 2007-008055 R-CHIP
R606, R607 2007-008057 R-CHIP
C101, C108 2007-008210 R-CHIP
R226, R227 2007-008211 R-CHIP
R105, R307, R308, R515, R516, R517, R518,
R519, R520, R550, R551, R552, R553, R554,
R555, R562, R563, R572, R573
2007-008419 R-CHIP
R229 2007-008478 R-CHIP
R315, R416, R417, R419, R420, R421 2007-008483 R-CHIP
R608 2007-008502 R-CHIP
R116, R117, R118, R119, R120, R230, R232,
R233, R300, R409, R430, R523, R524, R525,
R529, R533, R535, R536, R537, R571
2007-008516 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R107, R211, R213, R415 2007-008531 R-CHIP
R433 2007-008564 R-CHIP
C102, C103, C109, C110 2007-008582 R-CHIP
R432 2007-008588 R-CHIP
R321 2007-008766 R-CHIP
R108, R426, R427 2007-008774 R-CHIP
R111, R115, R423,R574, R575 2007-008806 R-CHIP
R201, R206 2007-009084 R-CHIP
R218, R219, R220, R221, R222 2007-009171 R-CHIP
R601, R603 2007-009314 R-CHIP
R100 2007-009408 R-CHIP
R113 2007-009801 R-CHIP
R556, R557 2007-009964 R-CHIP
R514 2007-010029 R-CHIP
C600 2203-000233 C-CER,CHIP
C241, C616, C638 2203-000386 C-CER,CHIP
C652 2203-000425 C-CER,CHIP
C647 2203-000725 C-CER,CHIP
C240 2203-001072 C-CER,CHIP
C119 2203-002677 C-CER,CHIP
C651 2203-002709 C-CER,CHIP
C526 2203-005138 C-CER,CHIP
C438 2203-005383 C-CER,CHIP
C107, C115, C133, C150, C152, C182, C184,
C186, C198, C246, C364, C427, C429, C431 2203-005682 C-CER,CHIP
C117, C118, C136, C137, C138, C139 2203-005719 C-CER,CHIP
C187 2203-005725 C-CER,CHIP
C153 2203-005729 C-CER,CHIP
C131, C206, C207 2203-005731 C-CER,CHIP
C200 2203-005732 C-CER,CHIP
C100, C159, C173, C183, C194, C196, C315,
C317, C318, C329 2203-005736 C-CER,CHIP
C147 2203-005777 C-CER,CHIP
C125, C167, C195 2203-005789 C-CER,CHIP
C143, C300,C527, C528 2203-005806 C-CER,CHIP
C160, C307, C308, C503 2203-006048 C-CER,CHIP
C185 2203-006120 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C154 2203-006123 C-CER,CHIP
C521, C522 2203-006133 C-CER,CHIP
C640 2203-006137 C-CER,CHIP
C176, C181, C303, C314 2203-006194 C-CER,CHIP
C178, C179, C618, C619, C620 2203-006208 C-CER,CHIP
C645 2203-006257 C-CER,CHIP
C227 2203-006260 C-CER,CHIP
C441, C601 2203-006348 C-CER,CHIP
C216, C218, C219, C220, C222,C223, C225,
C226, C228, C229, C332, C333, C409, C410,
C411, C412, C418, C500, C502, C508, C602,
C621, C622, C625, C627, C629, C631, C632,
C635, C646, C649
2203-006399 C-CER,CHIP
C120, C170, C171, C201, C202, C210, C214,
C221, C238, C239, C304, C305, C309, C311,
C313, C330, C331, C346, C347, C352, C363,
C406, C505, C509, C511, C514, C515, C518,
C520, C523, C641
2203-006423 C-CER,CHIP
C302 2203-006462 C-CER,CHIP
C433 2203-006466 C-CER,CHIP
C249 2203-006556 C-CER,CHIP
C174, C215, C614, C615, C653 2203-006562 C-CER,CHIP
L113 2203-006611 C-CER,CHIP
C162, C501, C513 2203-006642 C-CER,CHIP
C116,C171 2203-006648 C-CER,CHIP
C148, C149, C158 2203-006674 C-CER,CHIP
C342 2203-006693 C-CER,CHIP
C164, C175, C603 2203-006824 C-CER,CHIP
C617, C654 2203-006825 C-CER,CHIP
C237, C404, C407, C510, C512, C623, C624,
C626, C628, C630, C633, C634, C636, C650 2203-006838 C-CER,CHIP
C168, C169, C323, C325, C344, C345, C435,
C524, C613, C637 2203-006839 C-CER,CHIP
C236, C242, C310, C642, C643 2203-006841 C-CER,CHIP
C306 2203-006846 C-CER,CHIP
C230, C231, C233, C334, C335, C336, C337,
C338, C339, C340, C341, C343, C419, C425,
C439, C440
2203-006872 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C180 2203-006896 C-CER,CHIP
C644 2203-006979 C-CER,CHIP
C324 2203-006994 C-CER,CHIP
C360 2203-007147 C-CER,CHIP
C166 2203-007170 C-CER,CHIP
C104 2203-007194 C-CER,CHIP
C353, C354, C432 2203-007210 C-CER,CHIP
C105, C106, C161, C177, C320, C321, C348,
C349, C361, C362 2203-007270 C-CER,CHIP
C224, C434, C436, C517 2203-007271 C-CER,CHIP
C211, C212, C213, C217, C234, C235, C312,
C316, C319, C322, C327, C328, C350, C422,
C426, C504, C506, C507, C516, C648
2203-007317 C-CER,CHIP
C172, C193, C355, C356, C357, C367, C368 2203-007369 C-CER,CHIP
C413 2203-007393 C-CER,CHIP
TA600, TA601, TA602, TA603, TA604, TA605,
TA606 2404-001339 C-TA,CHIP
TA609 2404-001506 C-TA,CHIP
C369, C370, C437 2404-001516 C-TA,CHIP
TA200 2404-001596 C-TA,CHIP
L204 2703-000295 INDUCTOR-SMD
L101 2703-001178 INDUCTOR-SMD
L106 2703-001750 INDUCTOR-SMD
L604, L605 2703-002309 INDUCTOR-SMD
L117, L118 2703-002597 INDUCTOR-SMD
L100 2703-002710 INDUCTOR-SMD
L110 2703-002793 INDUCTOR-SMD
L109 2703-002794 INDUCTOR-SMD
L121 2703-002798 INDUCTOR-SMD
L122 2703-002858 INDUCTOR-SMD
L119, L303, L304 2703-002900 INDUCTOR-SMD
L111, L306 2703-002901 INDUCTOR-SMD
L104, L105 2703-002903 INDUCTOR-SMD
L108, L305 2703-002910 INDUCTOR-SMD
C141, C151, L114 2703-002917 INDUCTOR-SMD
C163 2703-002918 INDUCTOR-SMD
L102, L120 2703-002955 INDUCTOR-SMD

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-6
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C127, C130 2703-003005 INDUCTOR-SMD
L600, L601, L602 2703-003343 INDUCTOR-SMD
L403 2703-003347 INDUCTOR-SMD
L300, L301, L302 2703-003685 INDUCTOR-SMD
L603 2703-003686 INDUCTOR-SMD
L116 2703-003698 INDUCTOR-SMD
OSC600 2801-004339 CRYSTAL-SMD
OSC500 2801-004458 CRYSTAL-SMD
U304 2801-004902 CRYSTAL-SMD
OSC100 2804-001884 OSCILLATOR-CLOCK
U300 2809-001324 OSCILLATOR-VCTCXO
F400, F401, F402, F403, F404, F405 2901-001413 FILTER-EMI SMD
F406, F407, F408 2901-001470 FILTER-EMI SMD
F104 2904-001779 FILTER-SAW
F102 2904-001785 FILTER-SAW
F103 2904-001789 FILTER-SAW
F101 2910-000065 DUPLEXER-SAW
F100 2911-000147 DUPLEXER-FEM
MIC200 3003-001138 MIC MEMS
L400 3301-001729 BEAD-SMD
L205 3301-001756 BEAD-SMD
L307 3301-001879 BEAD-SMD
L200, L201, L202, L203 3301-001885 BEAD-SMD
L206, L207 3301-001917 BEAD-SMD
L123 3301-001970 BEAD-SMD
CN100 3705-001503 CONNECTOR-COAXIAL
HDC401 3708-002162 CONNECTOR-FPC/FFC/PIC
HDC200 3711-005550 HEADER-BOARD TO BOARD
HDC400 3711-006483 HEADER-BOARD TO BOARD
HDC403 3711-006865 HEADER-BOARD TO BOARD
HDC402, HDC404 3711-006923 HEADER-BOARD TO BOARD
BTC600 3711-007312 CONNECTOR-HEADER
IFC400 3722-002919 JACK-EAR PHONE
BAT600 4302-001180 BATTERY-LI(2ND)
U103 4709-001844 W-LAN MODULE
SC200, SC201, SC202, SC203, SC204, SC205,
SC206, SC207, SC208 GH70-03349A IPR SHIELD-CAN CLIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-7
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
CLIP100, CLIP101 GH70-03928A ICT-ANTENNA COTACT
SC101 GH70-06167A ICT BRACKET-SHIELD FRAME 1
SC100 GH70-06168A ICT BRACKET-SHIELD FRAME 2
ANT100, ANT101, ANT102, ANT104 GH71-08426A NPR CONTACT-ANTENNA
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QLC01
QLB01
QCA01
QCA02
QAR01
QSP01
QMO01
QBR04
QFR01
QBC00
QKP01
QCR03
QCR03
QME01
QMI03
QMP01
QCW01
QVO01
QRF06
QCK01
QCK02
QRE04
QAN02
QVK01
QFR04QDC01
QVK02

- This Document can not be used without Samsung's authorization -
5-2. Cellular phone Parts list : GT-S8500BAASFR
Design LOC Description SEC CODE
QAN02 INTENNA-MAIN (GT-S8500) GH42-02382A
QAR01 MODULE-RCV/EAR-JACK(GT-S8500) GH59-09052A
QBC00 NPR COVER-BATT GH71-09357A
QBR04 ASSY BRACKET-REAR GH98-16762A
QCA01 ASSY CAMERA-MODULE,GT-S8500(5M) GH96-04749A
QCA02 ASSY CAMERA-VGA MODULE(GT-S8500) GH96-04323A
QCK01 PMO KEY-CAMERA GH72-58321A
QCK02 PMO KEY-HOLD GH72-58457A
QCR03 SCREW-MACHINE 6001-001811
QCW01 ASSY DECO-WINDOW CAMERA GH98-16912A
QDC01 ASSY DECO-TOP GH98-16731A
QFR01 ASSY CASE-BODY GH98-16764A
QFR04 ASSY DECO-FRONT GH98-16729A
QKP01 ASSY KEYPAD-(EU/GRAY) GH98-16763A
QLC01 MEA-BRACKET GT_S8500 GH97-11216A
QME01 DOME SHEET-SUB 3 KEY(GT-S8500) GH59-08956A
QMI03 ASSY RUBBER-MIC GH98-16944A
QMO01 ASSY ETC-T-FLASH FPCB+MOT+V/K ASSY(GT-S8 GH59-08932A
QMP01 A/S ASSY-PBA MAIN,GT-8500,XEF(SVC) GH82-04739A
QRE04 ASSY DECO-REAR(SFR) GH98-17294A
QRF06 PMO COVER-USB GH72-58338A
QSP01 MODULE-SPEAKER+SIM SOCKET (GT-S8500) GH59-09040A
QVK01 KEY FPCB-HOLD KEY(GT-S8500) GH59-09143A
QVK02 KEY FPCB-CAMERA KEY(GT-S8500) GH59-08955A
QVO01 PMO KEY-VOLUME GH72-58336A
