Samsung GT-B5702 User manual

GSM TELEPHONE
GT-B5702
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
instructions
12. Schematic Diagram

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. Otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
2-1. GSM General Specification
GSM 850 EGSM 900 DCS1800 PCS1900 W-CDMA
900 W-CDMA 2100
Freq. Band[MHz]
Uplink/Downlink 824~849 869~894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990 882~913 927~958 1920~1980 2110~2170
ARFCN range 128~25 0~124 &
975~1023 512~885 512~810 UL:2712~2863 DL:2937~3088
UL:9612~9888
DL:10562~
10838
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz 45MHz 130MHz
Mod. Bit rate/
Bit Period 270.833kbps
3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 3.84Mcps 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Frame length:
10ms
Slot length :
0.667ms
Frame length:
10ms
Slot length :
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK QPSK HQPSK
MS Power 33dBm
~5dBm 33dBm ~5dBm 30dBm ~0dBm 30dBm ~0dBm 24dBm~- 50dBm 24dBm ~ - 50dBm
Power Class 4 (max
+33dBm)
4
(max
+33dBm)
1
(max
+30dBm)
1
(max
+30dBm)
3
(max +24dBm) 3 (max +24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm
TDMAMux8888
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
TX Power
control level GSM850
GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
－HSDPA /UMTS, EDGE, GPRS
－MP3 /40Poly Melody
－BT 2.0 + EDR
－Video Sharing /Streaming
－USB 2.0
－WAP2.0, JAVA, MPEG4
－MIDP 2.0 / CLDC 1.1
－Auto Time Setting,
－MMS /SMS
－Weight: 103g
－Camera: 3.0 Mega Pixel, CMOS
CIF CAMERA(Video Call)
－LCD :2.4"
TFT (LCD)
－Size: 111.9x59.7x12.6 mm
－GPRS/EDGE :c
lass 10
－Battery: 1480mAH
－Memory: 256MB DDR +256
MB ROM
－Band: GSM 850/900/1800/1900, FDDⅠ/Ⅷ
－BB: Qualcomm MSM7225
－RF: Qualcomm RTR6285
－WLAN 802.11 b/g
－A-GPS
－FM RADIO

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01339A)
Test Jig (GH99-36900A)
Adapter (GH99-38251A)
RF Test Cable (GH39-00985A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Pre-requisite for Download
•Download Program
-GT-B7320_7330_MultiDownloader_MCCI_v7.0.exe
•USB Driver
-[PDA]: The latest Microsoft ActiveSync program (Version 4.5 or higher)
-[
Phone]: Samsung CDMA Modem [SAMSUNG_MODEM_4.34.zip]
•GT-B7320 Mobile Device
•Binary files
•ActiveSync Setting
•Driver Installation.

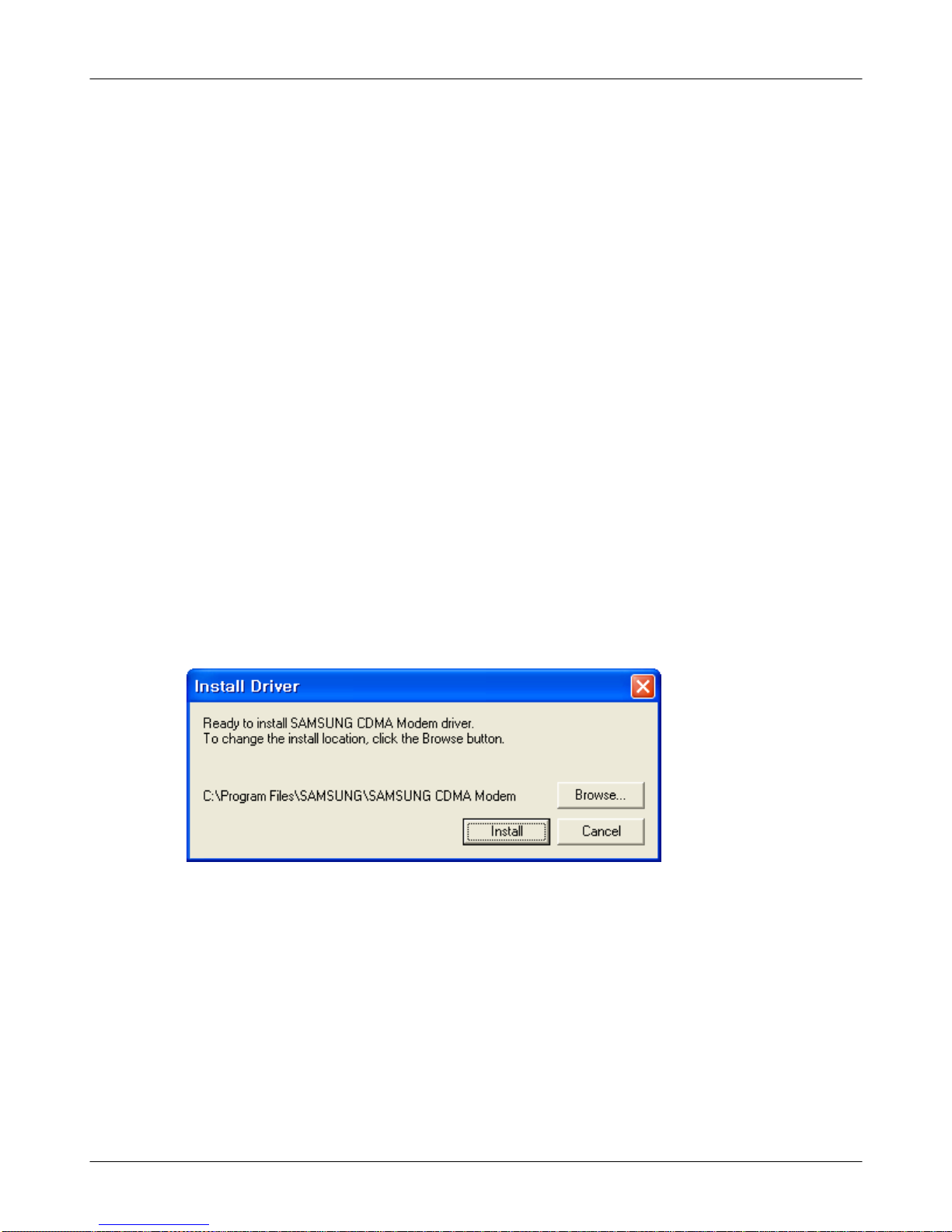

4-2-2. Driver Installation
•[
PDA]
-Make Sure that you install the latest ActiveSync program.
•[
Phone]
-Make sure that you install the driver for aphone.
-You have to install the driver of Samsung CDMA Modem of downloading aphone
-Restart your host PC after you install the phone driver.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Download Process
1) Execute the downloader
Execute the ‘GT-B7320_7330_MultiDownloader_MCCI_v7.0.exe’program
2) Load Image
Click the “EBOOT”, “PDA”or “Phone”button, and you can select the image type.
BOOT: eboot_UCXXX.eb0
PDA:flash_UCXXX.pda
Phone: phone_UCXXX.bin
(Notice :The buttons of PDA and Eboot will be activated
after phone image is added first)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3) Select the download mode
Check equally with part marked to red box.
(Notice :Don’t check the ‘EFS Clear’)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
4) Connect Device
First, power off the device.Second, press the ‘j’ Key and connect PC with device
using USB cable. (Don’t detach your finger from ‘j’ key) In that case the device will pow
er on and downloader recognize the device automatically.
The below picture shows that start button is activated and downloader is ready
to download image to device.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5) Download image
Click start button and Downloader start downloading image to device.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
6) Complete download
The download process is automatically executed.
(‘
phone image download’->‘ PDA image download’)
And you will be able to get the result same as below picture.
(Notice :After download process is completed, take care of the abnormal power off situ
ation(ex. mount/demount battery) within the first booting time. It may causes
malfunction
7) Confirm Download
-Reboot the device and confirm whether the device do normal operation.
-When completing download, downloader is automatically initialized and ready
for connecting next device.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-MAIN (GT-B7320) GH42-02141A
QBC01 ASSY CASE-BATT GH98-13802A
QCA01 ASSY CAMERA-SGH-I637(3M) GH96-03580A
QCA02 ASSY CAMERA-CIF MODULE(GT-B7320) GH96-03932A
QCB01 CBF COAXIAL CABLE-SGHI780 GH39-00984A
QCR101 SCREW-MACHINE 6001-002005
QCR50 SCREW-MACHINE 6001-001424
QCR91 SCREW-MACHINE 6001-002260
QKP01 ASSY KEYPAD-QWERTY GH98-13803A
QLC01 ASSY LCD-SGH-I637 GH96-03602A
QME00 ASSY MODULE-LCD BRACKET KEY PBA ASSY GH96-04016A
QMO01 MOTOR DC-SGH-I637 GH31-00468A
QMP01 A/S ASSY-PBA MAIN GT-B7320 GH82-03887A
QRF01 TAPE-RF SHEET GH74-44862A
QSP01 MODULE-SPK+RCV+INT (GT-B7320) GH59-08005A
QVO01 PMO KEY-SIDE GH72-54799A
QFR01 ASSY CASE-FRONT GH98-13800A
QMW01 PMO WINDOW-MAIN GH72-54802A
QRE01 ASSY CASE-REAR GH98-13801A
QCW01 PMO WINDOW-CAMERA GH72-51956A
QSD01 PMO COVER-MICRO USB GH72-54798A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. Main Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
0403-001547 ZD500 DIODE
0404-001245 D701 DIODE
0406-001167 ZD800 DIODE
0406-001167 ZD801 DIODE
0406-001167 ZD802 DIODE
0406-001167 ZD803 DIODE
0406-001223 ZD600 DIODE
0406-001223 ZD601 DIODE
0406-001223 ZD602 DIODE
0406-001223 ZD603 DIODE
0406-001223 ZD604 DIODE
0406-001223 ZD700 DIODE
0406-001223 ZD804 DIODE
0406-001223 ZD805 DIODE
0406-001223 ZD806 DIODE
0406-001223 ZD807 DIODE
0406-001231 D501 DIODE
0406-001369 ZD701 DIODE
0406-001375 ZD605 DIODE
0406-001375 ZD606 DIODE
0406-001375 ZD704 DIODE
0406-001375 ZD705 DIODE
0406-001375 ZD707 DIODE
0407-001002 D500 DIODE
0407-001002 D600 DIODE
0504-000168 TR500 TR-DIGITAL
0504-001138 TR701 TR-DIGITAL
0801-002529 U302 IC
0801-002749 U304 IC
0801-003200 U401 IC
0801-003265 U400 IC
1001-001336 U702 IC
1001-001488 U503 IC
1001-001580 U712 IC
1108-000248 UME400 IC
1201-002733 U600 IC
1201-002830 PAM100 IC
1201-002832 U502 IC
1201-002860 PAM202 IC
1201-002907 U300 IC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
1201-002926 PAM200 IC
1203-004776 U701 IC
1203-004776 U710 IC
1203-004798 U700 IC
1203-004802 U301 IC
1203-004925 U709 IC
1203-005092 U500 IC
1203-005244 U704 IC
1203-005263 U705 IC
1203-005554 U501 IC
1203-005689 U504 IC
1203-005916 U707 IC
1204-002746 U303 IC
1205-003297 U100 IC
1205-003790 UCP400 IC
2007-000137 R442 R-CHIP
2007-000138 R309 R-CHIP
2007-000138 R426 R-CHIP
2007-000138 R429 R-CHIP
2007-000138 R511 R-CHIP
2007-000138 R700 R-CHIP
2007-000138 R711 R-CHIP
2007-000140 R107 R-CHIP
2007-000140 R108 R-CHIP
2007-000140 R109 R-CHIP
2007-000140 R110 R-CHIP
2007-000141 R100 R-CHIP
2007-000141 R412 R-CHIP
2007-000141 R413 R-CHIP
2007-000147 R407 R-CHIP
2007-000148 R301 R-CHIP
2007-000148 R302 R-CHIP
2007-000148 R306 R-CHIP
2007-000148 R421 R-CHIP
2007-000148 R422 R-CHIP
2007-000148 R428 R-CHIP
2007-000148 R437 R-CHIP
2007-000148 R734 R-CHIP
2007-000149 R515 R-CHIP
2007-000157 R304 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2007-000161 R305 R-CHIP
2007-000162 R400 R-CHIP
2007-000162 R416 R-CHIP
2007-000162 R430 R-CHIP
2007-000162 R512 R-CHIP
2007-000162 R513 R-CHIP
2007-000162 R520 R-CHIP
2007-000162 R737 R-CHIP
2007-000165 R510 R-CHIP
2007-000172 R113 R-CHIP
2007-000172 R300 R-CHIP
2007-000172 R719 R-CHIP
2007-000172 R720 R-CHIP
2007-000172 R721 R-CHIP
2007-000172 R722 R-CHIP
2007-000174 R704 R-CHIP
2007-000242 R724 R-CHIP
2007-001119 R709 R-CHIP
2007-001217 R703 R-CHIP
2007-001285 R115 R-CHIP
2007-001291 R605 R-CHIP
2007-001291 R610 R-CHIP
2007-001292 R443 R-CHIP
2007-001298 R101 R-CHIP
2007-001298 R200 R-CHIP
2007-001298 R505 R-CHIP
2007-001305 R105 R-CHIP
2007-001305 R106 R-CHIP
2007-001317 R514 R-CHIP
2007-003004 R201 R-CHIP
2007-003004 R205 R-CHIP
2007-003015 R112 R-CHIP
2007-007008 R702 R-CHIP
2007-007013 R436 R-CHIP
2007-007014 R500 R-CHIP
2007-007014 R504 R-CHIP
2007-007142 R509 R-CHIP
2007-007309 R111 R-CHIP
2007-007310 R517 R-CHIP
2007-007318 R116 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2007-007468 R506 R-CHIP
2007-007698 R507 R-CHIP
2007-007943 R735 R-CHIP
2007-008045 R114 R-CHIP
2007-008045 R307 R-CHIP
2007-008047 R103 R-CHIP
2007-008047 R104 R-CHIP
2007-008055 R501 R-CHIP
2007-008055 R503 R-CHIP
2007-008263 R516 R-CHIP
2007-008516 R308 R-CHIP
2007-008766 R425 R-CHIP
2007-008774 R731 R-CHIP
2007-008774 R732 R-CHIP
2007-008774 R733 R-CHIP
2007-009201 R102 R-CHIP
2007-009805 R204 R-CHIP
2203-000233 C201 C-CERAMIC
2203-000233 C231 C-CERAMIC
2203-000233 C233 C-CERAMIC
2203-000233 C315 C-CERAMIC
2203-000254 C127 C-CERAMIC
2203-000254 C145 C-CERAMIC
2203-000254 C313 C-CERAMIC
2203-000254 C314 C-CERAMIC
2203-000386 C617 C-CERAMIC
2203-000386 C623 C-CERAMIC
2203-000425 C701 C-CERAMIC
2203-000425 C703 C-CERAMIC
2203-000425 C706 C-CERAMIC
2203-000425 C728 C-CERAMIC
2203-000438 C129 C-CERAMIC
2203-000438 C150 C-CERAMIC
2203-000438 C209 C-CERAMIC
2203-000438 C222 C-CERAMIC
2203-000438 C518 C-CERAMIC
2203-000438 C520 C-CERAMIC
2203-000438 C725 C-CERAMIC
2203-000489 C428 C-CERAMIC
2203-000654 C161 C-CERAMIC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-5
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription
2203-000654 C162 C-CERAMIC
2203-000654 C163 C-CERAMIC
2203-000654 C164 C-CERAMIC
2203-000679 C525 C-CERAMIC
2203-000679 L106 C-CERAMIC
2203-000812 C104 C-CERAMIC
2203-000812 C106 C-CERAMIC
2203-000812 C108 C-CERAMIC
2203-000812 C147 C-CERAMIC
2203-000812 C224 C-CERAMIC
2203-000812 C234 C-CERAMIC
2203-000812 C308 C-CERAMIC
2203-000812 C309 C-CERAMIC
2203-000812 C424 C-CERAMIC
2203-000812 C530 C-CERAMIC
2203-000812 C531 C-CERAMIC
2203-000812 C609 C-CERAMIC
2203-000812 C616 C-CERAMIC
2203-000812 C621 C-CERAMIC
2203-000854 C100 C-CERAMIC
2203-000995 C426 C-CERAMIC
2203-001385 C225 C-CERAMIC
2203-001405 C611 C-CERAMIC
2203-001405 C612 C-CERAMIC
2203-002668 C109 C-CERAMIC
2203-002709 C603 C-CERAMIC
2203-003054 C707 C-CERAMIC
2203-003054 C708 C-CERAMIC
2203-005053 C110 C-CERAMIC
2203-005053 C111 C-CERAMIC
2203-005053 C203 C-CERAMIC
2203-005053 C230 C-CERAMIC
2203-005234 C103 C-CERAMIC
2203-005281 C146 C-CERAMIC
2203-005281 C152 C-CERAMIC
2203-005281 C310 C-CERAMIC
2203-005281 L203 C-CERAMIC
2203-005395 C112 C-CERAMIC
2203-005395 C113 C-CERAMIC
2203-005444 C232 C-CERAMIC
