Samsung GT-C3510 User manual

GSM TELEPHONE
GT-C3510
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2009. 12. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
11. Disassembly and Assembly Instructions
11-1
This Document can not be used without Samsung's authorization

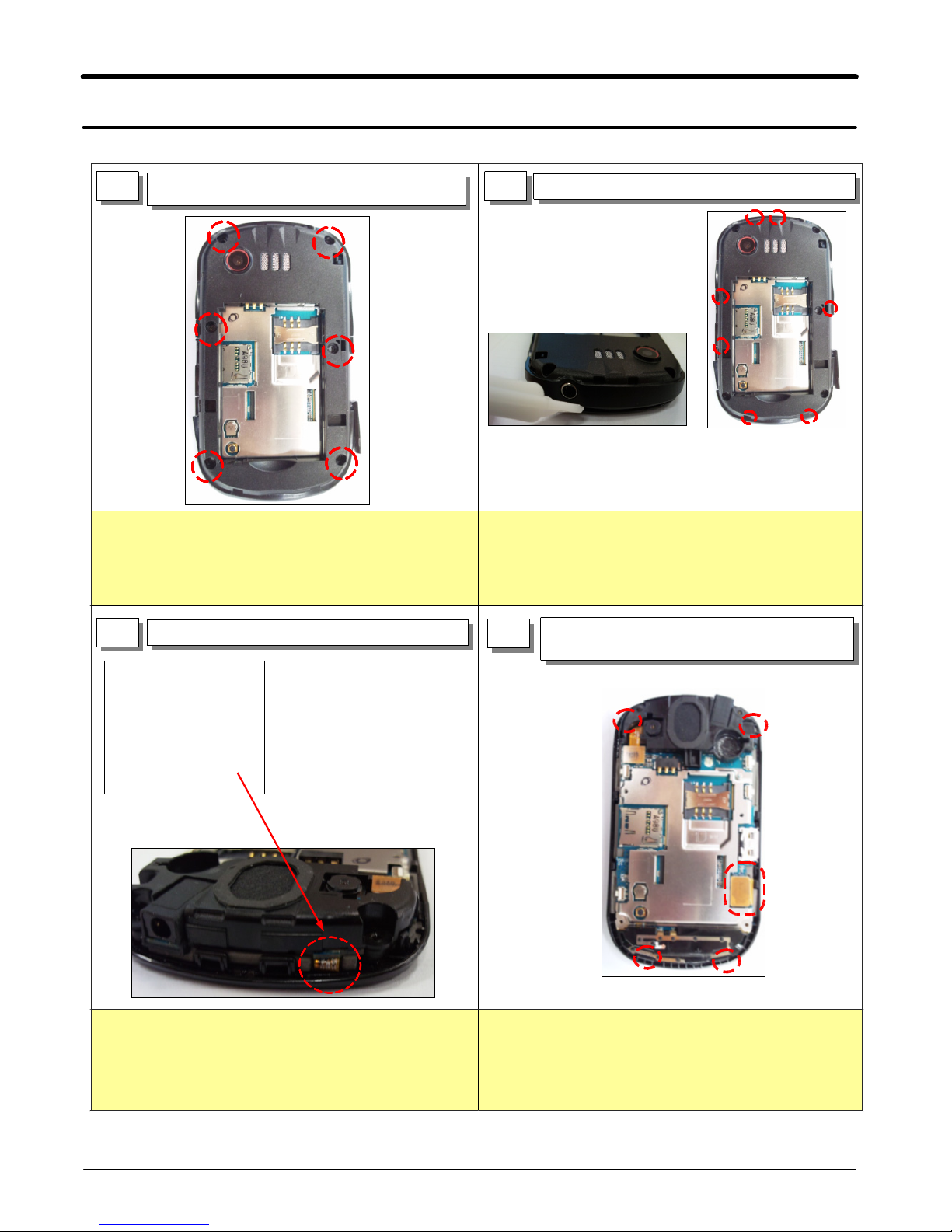

11-1. Disassembly

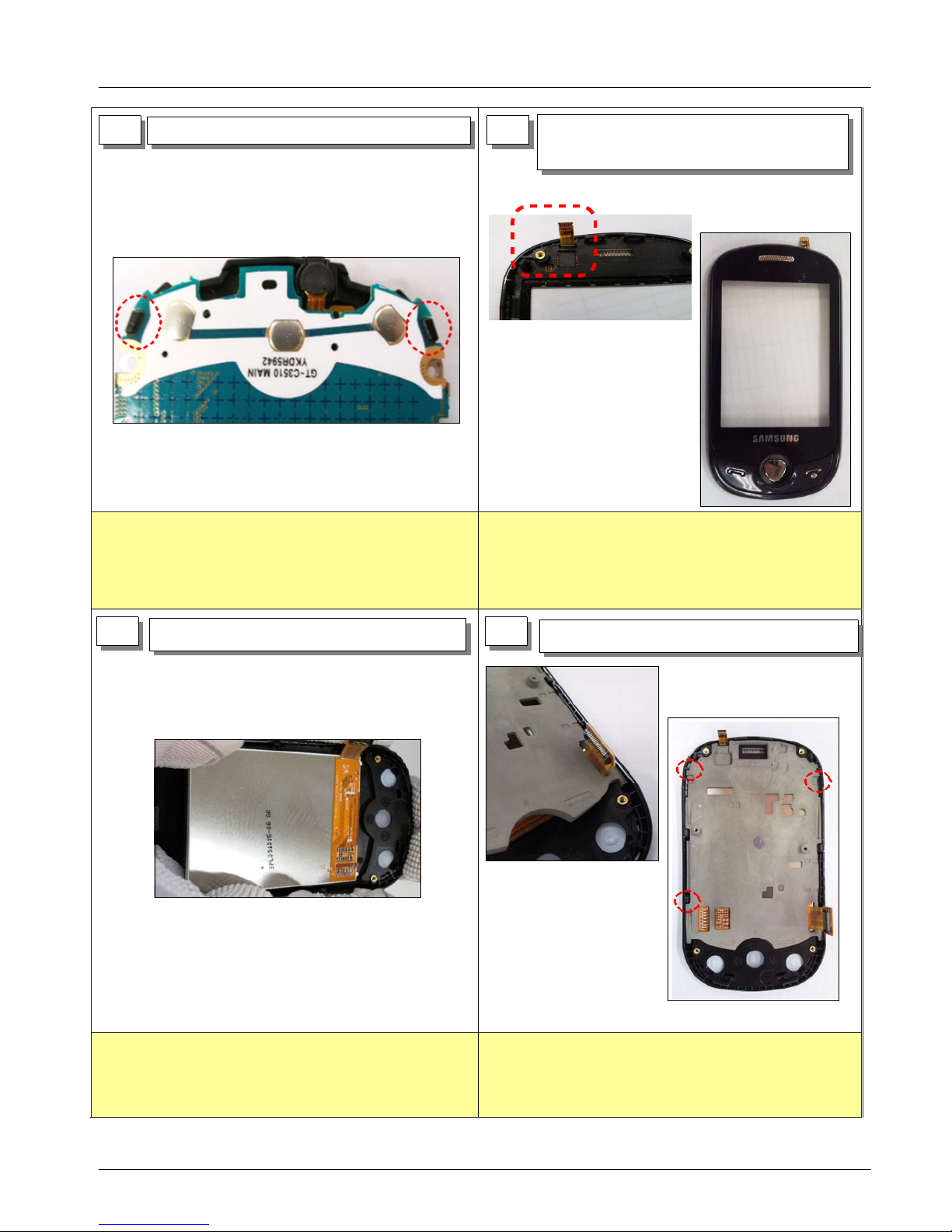

※Caution
1) Be careful not to make scratch and molding
damage.
※Caution
1) Be careful not to make scratch and molding
damage.
※Caution
1) Be careful not to make damage to INTENNA
※Caution
1) Be careful not to make scratch and molding
damage.
1) Unscrew the 6points.
1
1) Perform TSP FPCB visual check
2
34
1) Separate the rear case.
1) Separate the LCD connectors, then
unhook at the 4points.
After
disassembling the
rear case, check
the TSP FPCB
damage.
Be careful not to damage the SMD material.
Don't use DISASSEMBLE JIG deeply.

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
11-2
This Document can not be used without Samsung's authorization
※Caution
1) Be careful not to make scratch and molding
damage.
※Caution
1) Be careful not to make scratch and molding
damage.
2) Be careful not to damage the PBA.
※Caution
1) Be careful not to damage LCD FPCB. ※Caution
5 6
78
1) After lifting PBA upward,
disassemble TSP FPCB under the board.
1) Separate PBA and the front Assembly.
1) Separate bracket hooks on 3points
2) Separate LCD connector from the bracket.
1) Lift LCD top and separate it from the
front case.

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
11-3
This Document can not be used without Samsung's authorization

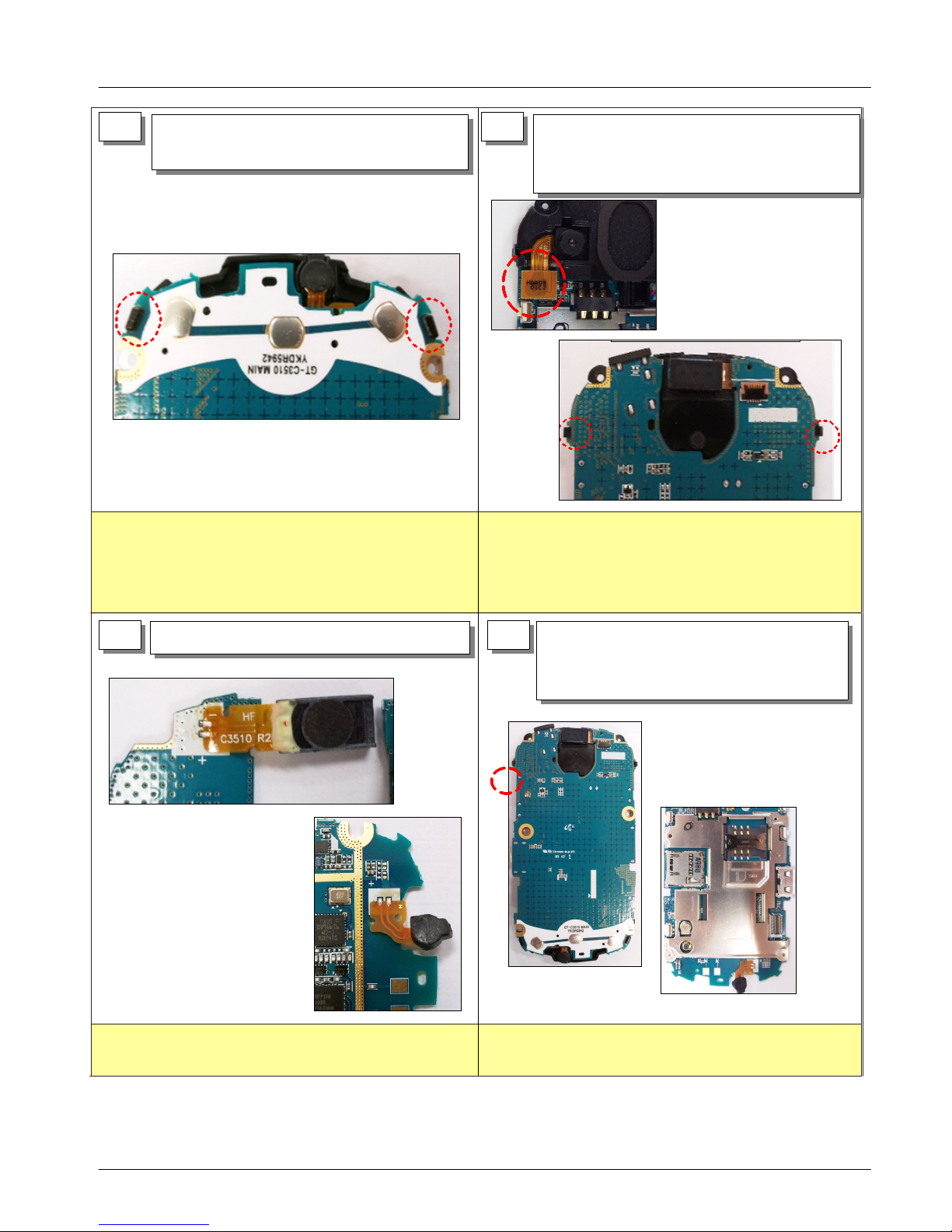

※Caution
1) Be careful not to make intenna hook damage.
※Caution
1) Be careful not to make SPK Hook damage.
※Caution
1) Be careful not to damage FPCB. ※Caution
910
11 12
1) Disassemble intenna's left/right hooks
on 2points.
1) Separate camera connector.
2) Disassemble SPK Carrier's left/right hooks
on 2points and remove solder.
1) Remove RCV/MIC solder. 1) Remove screw at 1point
2) Separate the motor/shield can from the
PBA.

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
11-4
This Document can not be used without Samsung's authorization

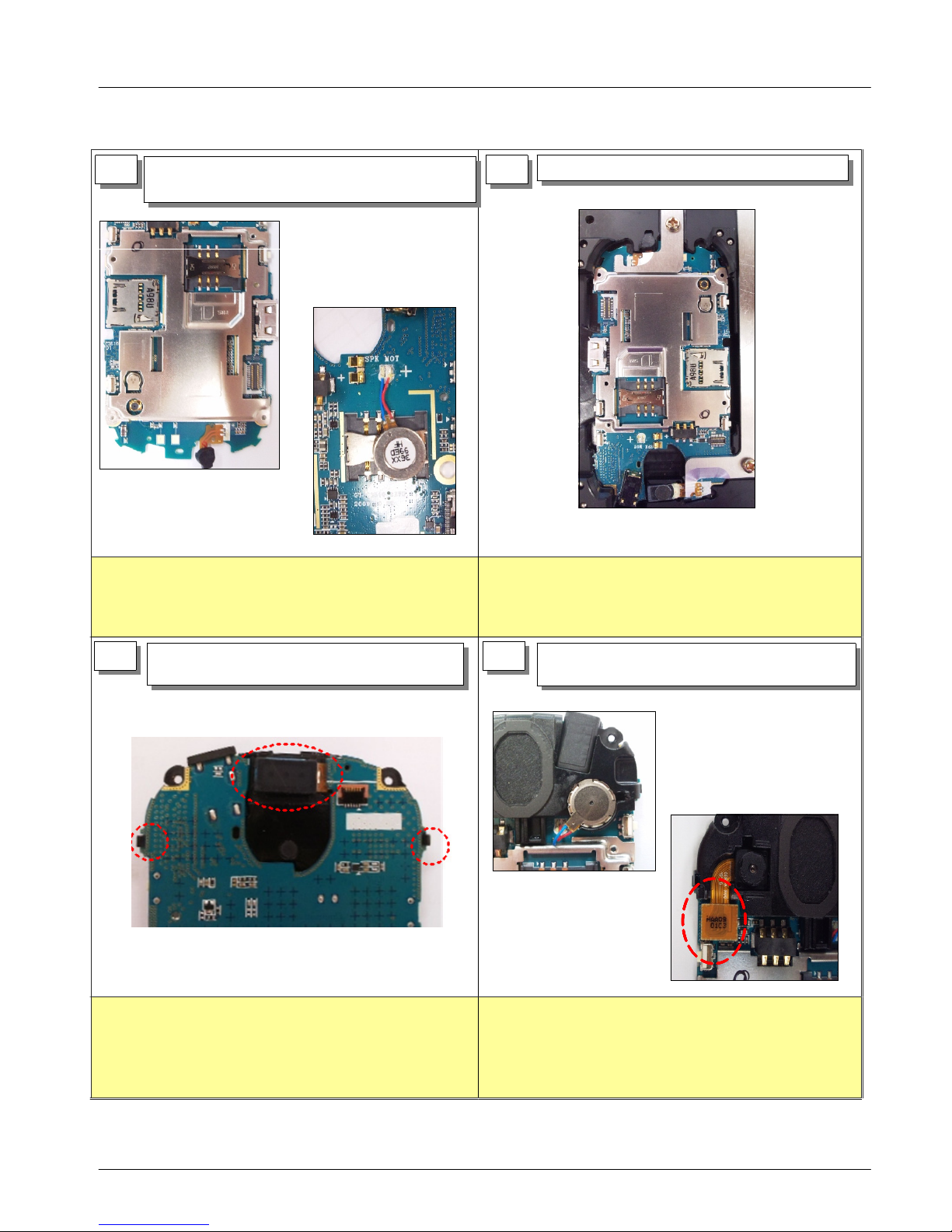

※Caution
1) Be careful not to damage the FPCB.
※Caution
1) Be careful not to damage the receiver FPCB
&SPK WIRE.
※Caution
1) Confirm receiver's location
2) Be careful not to make SPK Hook damage.
※Caution
1) Be careful not to damage PBA.
11-2. Assembly
1 2
3 4
1) Assemble the shield can and screw at 1point
2) Solder the motor
1) Solder the receiver and Mic.
1) Solder and assemble the speaker module
and PBA.
1) Assemble the camera carrier.
2) Assemble the motor.

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
11-5
This Document can not be used without Samsung's authorization
※Caution
1) Be careful not to make Intenna hook damage.
※Caution
1) Be careful not to damage the motor wire .
※Caution
1) Be careful not to damage LCD.
※Caution
1) Be careful not to damage to LCD connector.
5 6
7 8
1) Assemble the Intenna to PBA 1) Attach the TSP.
2) Assemble the keypad
1) Attach and assemble the LCD 1) Assemble the bracket.

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
11-6
This Document can not be used without Samsung's authorization
※Caution
1) Be careful not to damage TSP FPCB.
※Caution
1) Be careful not to make scratch and molding
damage.
2)Be careful not to damage TSP FPCB.
※Caution
1)Be careful not to make scratch and molding
damage.
※Caution
1)Be careful not to make scratch and molding
damage.
910
11 12
1) Assemble TSP FPCB to PBA connector. 1) Locate and make sure of assembly hooks
after placing PBA on the top.
2) Assemble LCD connector
1) Confirm assembly hooks after assembling
the rear case.
1) Screw at 6points

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC DESCRIPTION
0403-001547 ZD301 DIODE-ZENER
0406-001286 ZD405 DIODE-TVS
0406-001286 ZD406 DIODE-TVS
0406-001293 ZD400 DIODE-TVS
0406-001293 ZD402 DIODE-TVS
0406-001293 ZD500 DIODE-TVS
0406-001293 ZD501 DIODE-TVS
0406-001293 ZD502 DIODE-TVS
0406-001293 ZD503 DIODE-TVS
0406-001329 D400 DIODE-TVS
0406-001361 ZD300 DIODE-TVS
0505-001325 Q400 FET-SILICON
1003-002047 U400 IC-MOTOR DRIVER
1108-000297 UME200 IC-MCP
1201-002933 PAM100 IC-POWER AMP
1203-005728 U302 IC-POWER SUPERVISOR
1203-005770 U300 IC-MULTI REG
1203-006077 U301 IC-BACKLIGHT DRIVER
1205-003310 U103 IC-TRANSCEIVER
1205-003874 UCP200 IC-MODEM
1205-003883 U100 IC-BLUETOOTH
1404-001221 VR200 THERMISTOR-NTC
2007-000140 R207 R-CHIP
2007-000141 R303 R-CHIP
2007-000141 R401 R-CHIP
2007-000141 R409 R-CHIP
2007-000141 R416 R-CHIP
2007-000141 R420 R-CHIP
2007-000143 R309 R-CHIP
2007-000143 R402 R-CHIP
2007-000143 R417 R-CHIP
2007-000148 R104 R-CHIP
2007-000148 R105 R-CHIP
2007-000148 R315 R-CHIP
2007-000149 R206 R-CHIP
2007-000149 R314 R-CHIP
2007-000152 R318 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE DESIGN LOC DESCRIPTION
2007-000152 R319 R-CHIP
2007-000152 R427 R-CHIP
2007-000157 R107 R-CHIP
2007-000157 R108 R-CHIP
2007-000157 R313 R-CHIP
2007-000159 R310 R-CHIP
2007-000159 R311 R-CHIP
2007-000159 R312 R-CHIP
2007-000159 R316 R-CHIP
2007-000160 R100 R-CHIP
2007-000160 R200 R-CHIP
2007-000165 R425 R-CHIP
2007-000166 R317 R-CHIP
2007-000170 R407 R-CHIP
2007-000170 R415 R-CHIP
2007-000170 R426 R-CHIP
2007-000173 R320 R-CHIP
2007-000566 R201 R-CHIP
2007-001292 R300 R-CHIP
2007-001292 R301 R-CHIP
2007-001319 R202 R-CHIP
2007-001319 R203 R-CHIP
2007-001319 R204 R-CHIP
2007-001319 U401 R-CHIP
2007-001333 R304 R-CHIP
2007-001333 R306 R-CHIP
2007-001333 R429 R-CHIP
2007-001333 R440 R-CHIP
2007-001339 R307 R-CHIP
2007-002970 R102 R-CHIP
2007-002970 R103 R-CHIP
2007-007573 R302 R-CHIP
2007-007875 R308 R-CHIP
2007-008354 R305 R-CHIP
2203-000233 C106 C-CER,CHIP
2203-000233 C400 C-CER,CHIP
2203-000233 C509 C-CER,CHIP
