Samsung GT-E2330B User manual

GSM TELEPHONE
GT-E2330B/E2330B_L Common
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair
7. Level 2Repair
8. Level 3Repair
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
2-1
This Document can not be used without Samsung's authorization
GSM 850 EGSM 900
Phase 2
DCS1800
Phase 1
PCS 1900
Freq. Band(MHZ)
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95 MHz 80 MHz
Mod. Bit rate/
Bit Period
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
270.833 kbps
3.692 us
Time slot
Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm ~5 dBm 33 dBm ~5 dBm 30dBm~0dBm 30dBm~0dBm
Power Class Class 4Class 4Class 1Class 1
Sensitivity -102 dBm -102 dBm -102 dBm -102 dBm
TDMA Mux 8888
Cell Radius 35Km 35 Km 2Km -
2-1. GSM850&900/DCS1800/PCS1900 General Specification

SAMSUNG Proprietary-Contents may change without notice
Specification
2-2
This Document can not be used without Samsung's authorization
TX POWER
LEVEL CONTOL
GSM850
/GSM900
TX POWER
LEVEL CONTOL DCS 1800 TX POWER LEVEL CONTOL PCS 1900
533±2
dBm 030±2 dBm 030±2 dBm
631±3
dBm 128±3 dBm 128±3 dBm
729±3
dBm 226±3 dBm 226±3 dBm
827±3
dBm 324±3 dBm 324±3 dBm
925±3
dBm 422±3 dBm 422±3 dBm
10 23±3 dBm 520±3
dBm 520±3 dBm
11 21±3 dBm 618±3
dBm 618±3 dBm
12 19±3 dBm 716±3
dBm 716±3 dBm
13 17±3 dBm 814±3
dBm 814±3 dBm
14 15±3 dBm 912±3
dBm 912±3 dBm
15 13±3 dBm 10 10±4 dBm 10 10±4 dBm
16 11±5 dBm 11 8±4 dBm 11 8±4 dBm
17 9±5 dBm 12 6±4 dBm 12 6±4 dBm
18 7±5 dBm 13 4±4 dBm 13 4±4 dBm
19 5±5 dBm 14 2±5 dBm 14 2±5 dBm
15 0±5 dBm 15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-GSM Quad Band 850/900/1800/1900
-2.0”QQVGA TFT LCD
-VGA Camera
-3.5фEarjack, Micro SD Support
-MP3 Player, BGM, Music Library
-Phonebook 500EA ,SMS 500EA
-Mobile SNS Link (Native Appls. :Facebook, Twitter )
-FM_Radio
-BT

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization

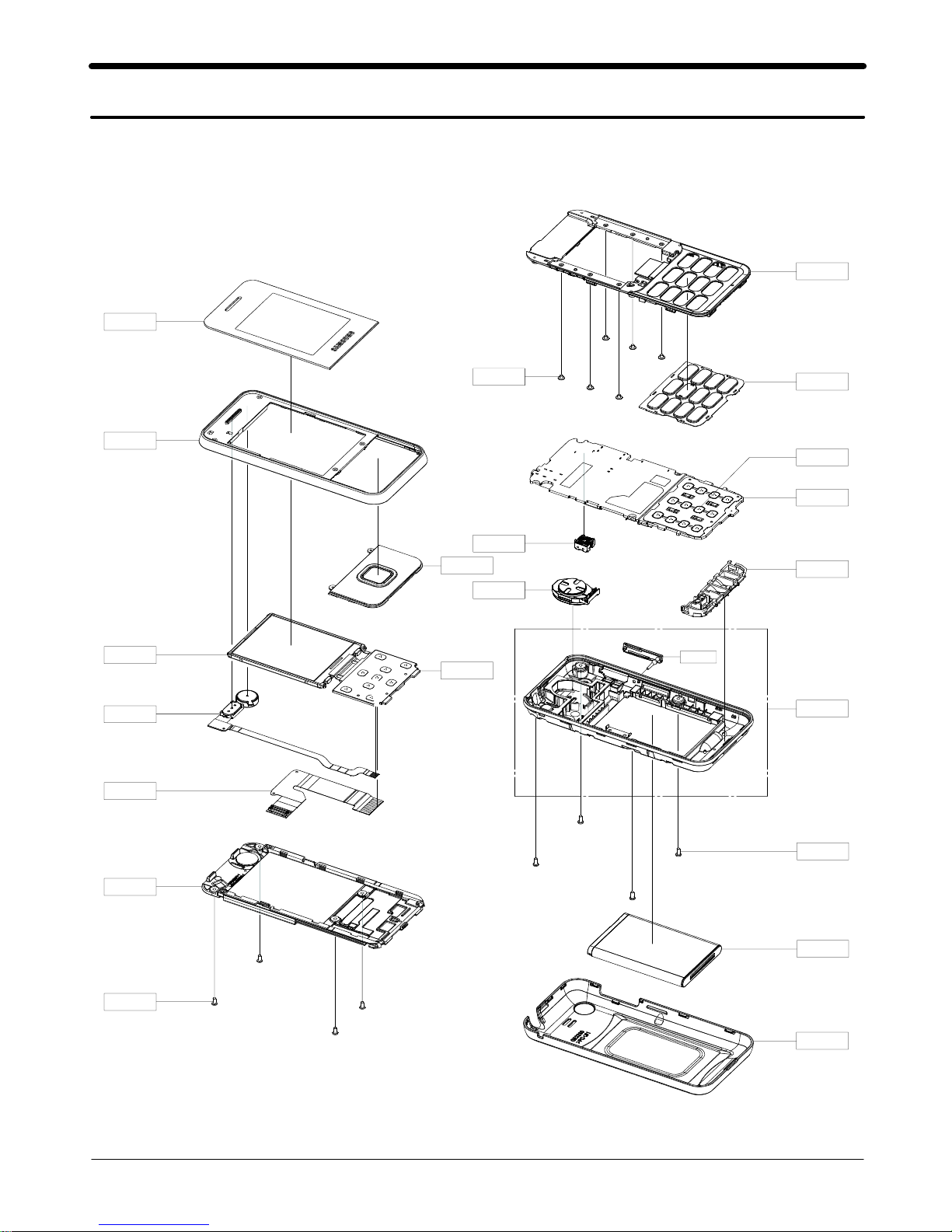

4-1. Cellular phone Exploded View
QMW01
QFU01
QCR93
QCA01
QSP01
QLC01
QAR01
QPC01
QFL01
QCR12
QIF01
QRE01
QBA01
QCR03
QBC00
QKP02
QME03
QFR01
QKP01
QME01
QMP01
QAN02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
4-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QSP01 SPEAKER 3001-002670
QCR12 SCREW-MACHINE 6001-001530
QCR03 SCREW-MACHINE 6001-001811
QCR93 SCREW-MACHINE 6001-002263
QAN02 INTENNA-MAIN(GT_E2330) GH42-02810A
QBA01 INNER BATTERY PACK-800MAH,BLK,UNI,MAIN GH43-03241A
QCA01 CAMERA MODULE-GT-E2120 GH59-07682A
QAR01 MODULE-RCV+MOT(GT_E2330) GH59-10515A
QPC01 ASSY ETC-SLIDE FPCB GH59-10632A
QME01 DOME SHEET-GT_E2330 GH59-10646A
QME03 KEY FPCB-KEY PBA(GT_E2330) GH59-10652A
QKP01 RMO KEY-KEYPAD MAIN CIS GH73-14916A
QMP01 A/S ASSY-PBA MAIN(COMM)GT_E2330B;GT-E233 GH82-05595A
QLC01 ASSY LCD-2.01" QQVGA STD SLIDE LCM AUO GH96-04908A
QFU01 ASSY CASE-SLIDE UPPER GH98-19142A
QFR01 ASSY CASE-SLIDE FRONT GH98-19143A
QMW01 ASSY CASE-MAIN WINDOW GH98-19145A
QKP02 ASSY KEYPAD-SUB GH98-19146A
QFL01 ASSY CASE-SLIDE LOWER GH98-19147A
QBC00 ASSY COVER-BATTERY GH98-19201A
QRE01 ASSY CASE-SLIDE REAR GH98-19144A
QIF01 PMO COVER-IF GH72-62589A
4-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D500 0403-001688 DIODE-ZENER
ZD503 0406-001167 DIODE-TVS
ZD400,ZD500,ZD504 0406-001286 DIODE-TVS
ZD506 0406-001286 DIODE-TVS
V500 0406-001390 DIODE-TVS
Q300 0501-002606 TR-SMALL SIGNAL
Q302 0501-002663 TR-SMALL SIGNAL
Q301 0502-001322 TR-POWER
U300 0504-001151 TR-DIGITAL
LED500,LED501,LED502 0601-002846 LED ;SMD
LED503 0601-002846 LED ;SMD
U303 1009-001052 IC-HALL EFFECT S/W
U200 1108-000378 IC-MCP
U102 1201-002944 IC-RF AMP
PAM100 1201-002985 IC-POWER AMP
U408 1202-001068 IC-VOLTAGE COMP
U302 1203-005848 IC-MULTI REG.
U304 1203-005851 IC-MULTI REG.
U301 1203-006340 IC-VOL. DETECTOR
U100 1205-003517 IC_BT
UCP200 1205-004156 IC-MODEM
TH200 1404-001165 THERMISTOR-NTC ;
V501,V502,ZD401 1405-001298 VARISTOR
ZD402,ZD505 1405-001298 VARISTOR
R412,R520 2007-000138 R-CHIP
R307,R505,R506,R518 2007-000140 R-CHIP
R528 2007-000140 R-CHIP
R210,R211 2007-000141 R-CHIP
R313,R510,R519 2007-000143 R-CHIP
R201,R204,R208,R304 2007-000148 R-CHIP
R512,R513,R514,R515 2007-000148 R-CHIP
R516 2007-000148 R-CHIP
R305 2007-000154 R-CHIP
R311,R312,R511 2007-000157 R-CHIP
R116,R206,R207,R413 2007-000162 R-CHIP
R411 2007-000170 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R529,R530 2007-000172 R-CHIP
R409,R410 2007-000174 R-CHIP
R309,R401,R403 2007-000242 R-CHIP
R308 2007-000831 R-CHIP
R302 2007-000932 R-CHIP
R113,R400 2007-001119 R-CHIP
R109 2007-001156 R-CHIP
R110 2007-001307 R-CHIP
R217 2007-002965 R-CHIP
R521,R522,R523,R524 2007-003010 R-CHIP
R108 2007-003015 R-CHIP
R300 2007-007001 R-CHIP
R205 2007-007142 R-CHIP
R414 2007-007156 R-CHIP
R417 2007-007981 R-CHIP
R102,R105,R117,R118 2007-008045 R-CHIP
R507,R508,R509 2007-008045 R-CHIP
R103 2007-008419 R-CHIP
R306 2007-008780 R-CHIP
C417,C418,C424,C425 2203-000138 C-CER
C120,C132 2203-000233 C-CER
C112,C131,C506 2203-000254 C-CER
C105 2203-000278 C-CER
C114,C400,C411,C415 2203-000386 C-CER
C416,C420 2203-000386 C-CER
C422,C423 2203-000425 C-CER
C127,C207,C210 2203-000438 C-CER
C225,C226 2203-000550 C-CER
C202 2203-000585 C-CER
C421 2203-000679 C-CER
C410,C515,C516,C517 2203-000812 C-CER
C518 2203-000812 C-CER
C501,C520,C521,C522 2203-000854 C-CER
C523 2203-000854 C-CER
C305 2203-000995 C-CER
C138,C514 2203-001072 C-CER

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C403 2203-001153 C-CER
C119,C125,C227 2203-002443 C-CER
C218,C232 2203-002487 C-CER
C106,C228 2203-002668 C-CER
C139 2203-002677 C-CER
C113,C216 2203-002709 C-CER
C100 2203-003054 C-CER
C140 2203-005050 C-CER
C101 2203-005057 C-CER
C108 2203-005234 C-CER
C130 2203-005281 C-CER
C300 2203-005344 C-CER
C224 2203-005480 C-CER
C135,C136,C201,C217 2203-005481 C-CER
C134 2203-005552 C-CER
C109 2203-005682 C-CER
C203,C204,C205,C209 2203-006048 C-CER
C220,C222,C229,C230 2203-006048 C-CER
C235,C301,C406,C412 2203-006048 C-CER
C507,C525 2203-006048 C-CER
C237 2203-006123 C-CER
C200 2203-006190 C-CER
C208,C212 2203-006257 C-CER
C211,C233,C234 2203-006260 C-CER
C214,C215 2203-006324 C-CER
C122,C221,C223,C236 2203-006399 C-CER
C303,C304,C503,C504 2203-006399 C-CER
C213,C302,C307,C510 2203-006562 C-CER
C513,C526 2203-006562 C-CER
C103 2203-006681 C-CER
C111,C115 2203-006872 C-CER
C404 2203-006890 C-CER
C206 2203-007133 C-CER
C231,C505 2203-007269 C-CER
C306,C308 2203-007271 C-CER
C104,C512 2203-007279 C-CER

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C409 2203-007317 C-CER
C121 2203-007753 C-CER
C123 2203-007755 C-CER
L118 2703-000213 INDUCTOR-SMD
L109,L111 2703-001723 INDUCTOR-SMD
L125 2703-001724 INDUCTOR-SMD
L123,L124 2703-001734 INDUCTOR-SMD
C133,L121,L122 2703-001749 INDUCTOR-SMD
L100,L105,L126 2703-002203 INDUCTOR-SMD
L101,L120 2703-002204 INDUCTOR-SMD
L114,L115 2703-002208 INDUCTOR-SMD
L110,L116 2703-002369 INDUCTOR-SMD
L407 2703-003781 INDUCTOR-SMD
L201 2703-003869 INDUCTOR-SMD
OSC200 2801-004551 CRYSTAL-SMD
OSC201 2801-004931 CRYSTAL-SMD
F501,F502 2901-001423 FILTER-EMI SMD ;
F500 2901-001434 FILTER-EMI SMD ;
F100 2904-001987 FILTER-SAW
MIC400 3003-001138 MIC MEMS
L300 3301-001342 BEAD-SMD ;
L506 3301-001729 BEAD-SMD ;
L500 3301-001789 BEAD-SMD ;
L402,L403,L404,L405 3301-001812 BEAD-SMD ;
L406,L408 3301-001812 BEAD-SMD ;
L200 3301-002000 BEAD-SMD ;
L400,L401 3301-002065 BEAD-SMD ;
RFS100 3705-001731 CONNECTOR-COAXIA
CD500 3709-001575 CONNECTOR-CARD EDGE
SIM500 3709-001645 CONNECTOR-CARD EDGE
IFC500 3710-002683 SOCKET-INTERFACE
SOC500 3710-002815 CONNECTOR-SOCKET ;
HDC500 3711-006865 HEADER-BOARD TO BOARD
BTC500 3711-007437 HEADER-BATTERY ;
EAR400 3722-003223 JACK-EAR PHONE
F101 4709-001615 FILTER-SAW

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
SC400,SC401,SC402 GH70-03951A ICT SHIELD-SHIELD CAN CLIP
SC403,SC404,SC405 GH70-03951A ICT SHIELD-SHIELD CAN CLIP
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
6. Level 1Repair
6-
This Document can not be used without Samsung's authorization
6-1. S/W Download
6-1-1. Pre-requsite for S/W Downloading
•Downloader Program (Flash tool_E2)
•GT-E2330B Mobile Phone
•Data Cable
•JIG BOX (GH99-36900A)
•RF Test Cable (GH39-00985A)
•JIG Cable (GH38-01315A)
•Adapter (GH99-38251A)
•Serial Cable
•Binary files
※Settings
Connect to ANYWAY JIG BOX
&JIG CABLE (Phone to JIG)
Or PC to Phone Using Data Cable

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-2
This Document can not be used without Samsung's authorization
6-1-2. S/W Downloader Program
1Execute Downloader Program :(
FlashTool_E2.exe)
Then, you can see below picture.and Click [...]Box

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-3
This Document can not be used without Samsung's authorization
2. Find binary Folder then Select binary File

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-4
This Document can not be used without Samsung's authorization
3.then, you can see below picture

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-5
This Document can not be used without Samsung's authorization

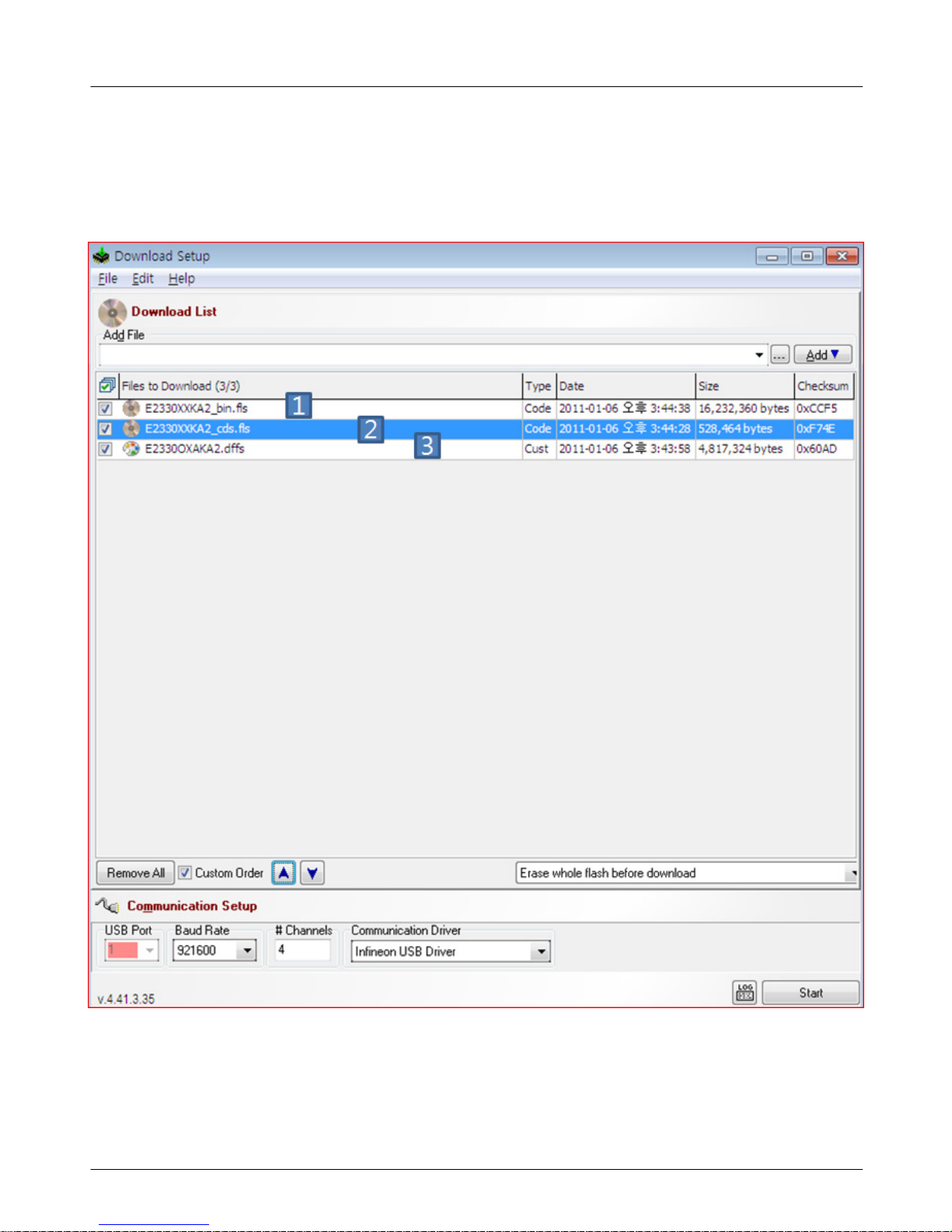

4You Arrange next one by one
1.XXXX_BIN.fis
2.XXXX_CDS.fis
3.xxxx_XXX.diffs
then Clik Start

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-6
This Document can not be used without Samsung's authorization
5. Click start

SAMSUNG Proprietary-Contents may change without notice
Level 1Repair
6-7
This Document can not be used without Samsung's authorization
6If you See below picture stop button
Connect Micro USB to GT-E2330_SET and Quickly Insert Battery
You should not have forgotten that First Connect and Phone Then insert Battery
