1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool, because performance of parts is damaged by the
influence of magnetic force.
●Surely use astandard screwdriver when you disassemble this product, otherwise screw will be worn
away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM850
Phase 1
EGSM
900
Phase 2
DCS1800
Phase 1 PCS1900 WCDMA2100 WCDMA1900 WCDMA900
Freq.
Band[MHz]
Uplink/Dow
nlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
1922~197
7
2112~216
7
1852~1907
1932~1987
882~912
927~957
ARFCN
range 128~251 0~124 &
975~1023 512~885 512~810
UL:9612~
9888DL:10
562~1083
8
UL:9262~9
538DL:966
2~9938
UL:2712~2
863DL:293
7~3088
Tx/Rx
spacing 45MHz 45MHz 95MHz 80MHz 190MHz 80MHz 45MHz
Mod. Bit
rate/
Bit Period
270.833kb
ps
3.692us
270.833k
bps
3.692us
270.833kb
ps
3.692us
270.833kbp
s
3.692us
3.84Mcps 3.84Mcps 3.84Mcps
Time Slot
Period/Fra
me Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
FrameLen
gth:
10ms
Slotlength
:
0.667ms
FrameLen
gth:
10ms
Slotlength
:
0.667ms
FrameLen
gth:
10ms
Slotlength
:
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSKHQP
SK
QPSKHQP
SK
QPSKHQP
SK
MS Power 33dBm~5d
Bm
33dBm~5
dBm
30dBm~0d
Bm
30dBm~0d
Bm
24dBm~-
50dBm
24dBm~-
50dBm
24dBm~-
50dBm
Power
Class
5pcl ~
19pcl
5pcl ~
19pcl 0pcl ~15
pcl 0pcl ~15 pcl 3(max+24dB
m)
3(max+24dB
m)
3(max+24dB
m)
Sensitivity -102dBm -102dBm -100dBm -100dBm -106.7dBm -106.7dBm -106.7dBm
TDMA Mux 8 8 8 8 888
Cell
Radius 35Km 35Km 2Km 2Km 2Km 2Km 2Km

Specification
2-2
2-2. GSM Tx Power Class
TX Power
control
level
GSM850
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
EGSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control
level
DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Microsoft Windows Mobile 6.1 PPC
-HSDPA 7.2Mbps /HSUPA 5.76Mbps
-5
MP AF Camera /dual Power LED
-3.7"WVGA 16M AMOLED
-SD (480p) Camcording /Playback
-WMA,WMV,MP3,AAC,AAC+,DivX,XviD
-Accelerometer (3 Axis),Geo Magnetic (3 Axis),Luminance,Proximity Sensor
-Advanced R-Touch,Touchwiz 2.0
-TV Out /DNIE /DNSe /Mic Noise Canceller
-Wi-Fi
-BT2.0
-USB2.0 High Speed

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments

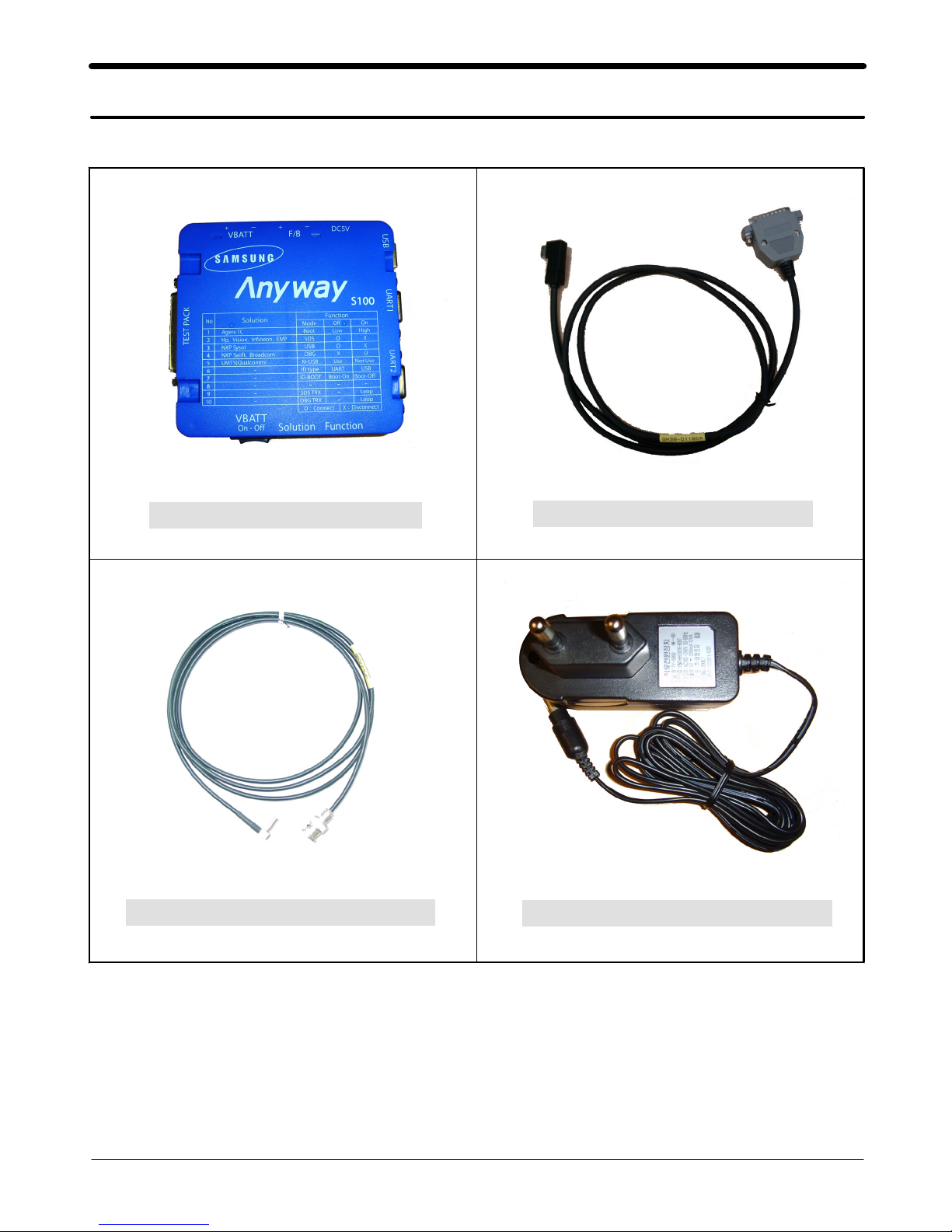

Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)
Test Cable (GH39-01290A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Download
1-1. Equipment for Software Download
1-2. Pre-requisite for Download
▶Downloader Program
-OCTANS Downloader v1.71
▶USB Driver
-PDA :Samsung MITs USB Sync [Samsung MITs USB Sync.zip]
-Phone :Samsung CDMA Modem [Samsung CDMA Modem.zip]
▶Driver Installation
2-1. Driver Installation (PDA)
▶Make sure that you install drivers.
▶If you installed the latest ActiveSync program, you don’t need to install the pda driver. Please
install the latest ActiveSync program.
2-2. Driver Installation (Phone)
When you download the phone image, you need the driver of Samsung CDMA Modem.
If you want to download the phone image, install the Samsung CDMA Modem driver.
FAfter you install the driver of Samsung CDMA Modem, please restart ahost computer.
3. Execute the Downloader Program. [OCTANS Downloader v1.71]
4. Check the EBoot,PDA,MultiCSC,MoviNand,Phone.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
5. Click the detect.

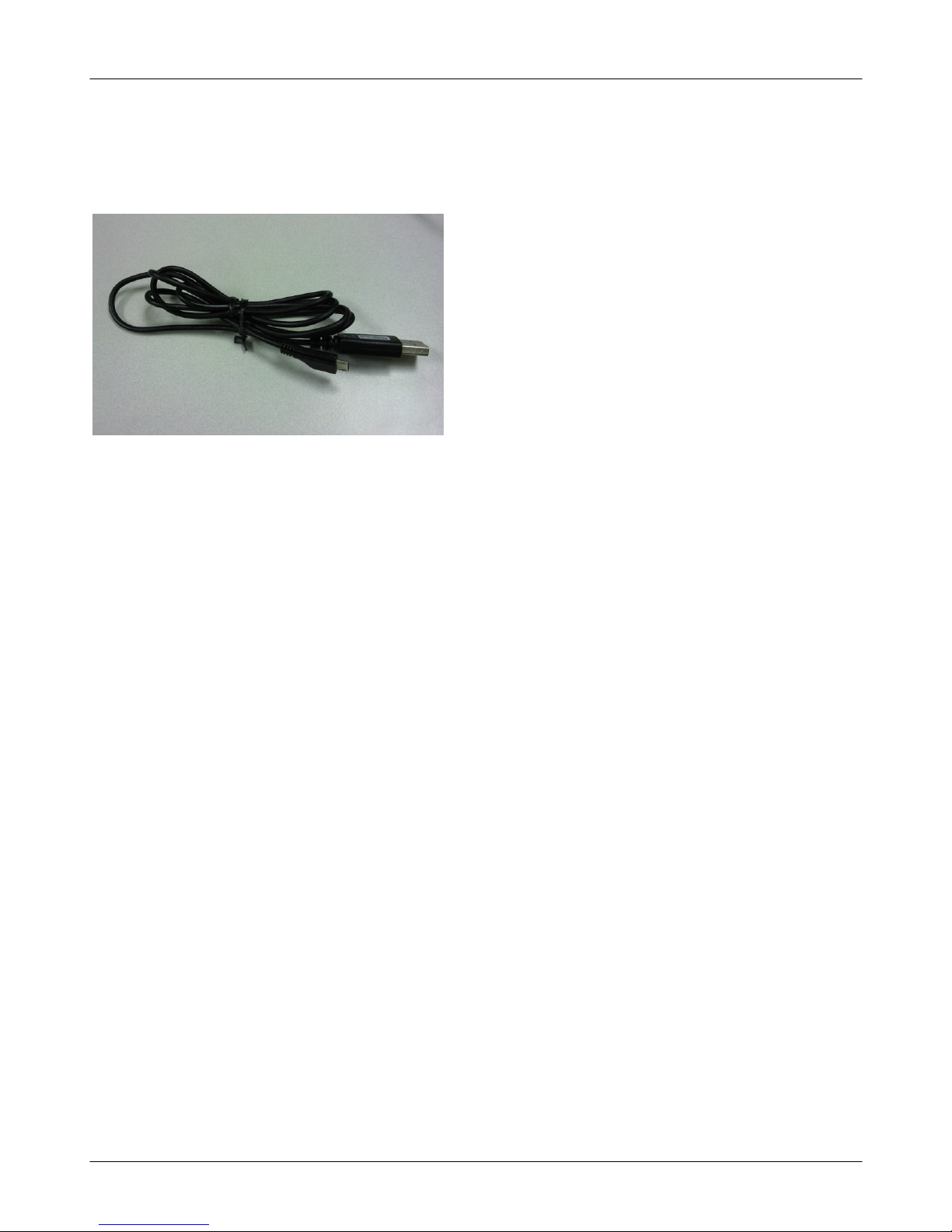

6. Connect your device to ahost computer by using USB DATA Link Cable.
7. Wait until 'START' button is activated.
FIf ‘START’button is not activated, terminate the application and reconnect USB data link cable a
nd retry.
8. Please click “START”button.
9. When the download is finished, the phone is rebooted automatically.
FDownload Procedure

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

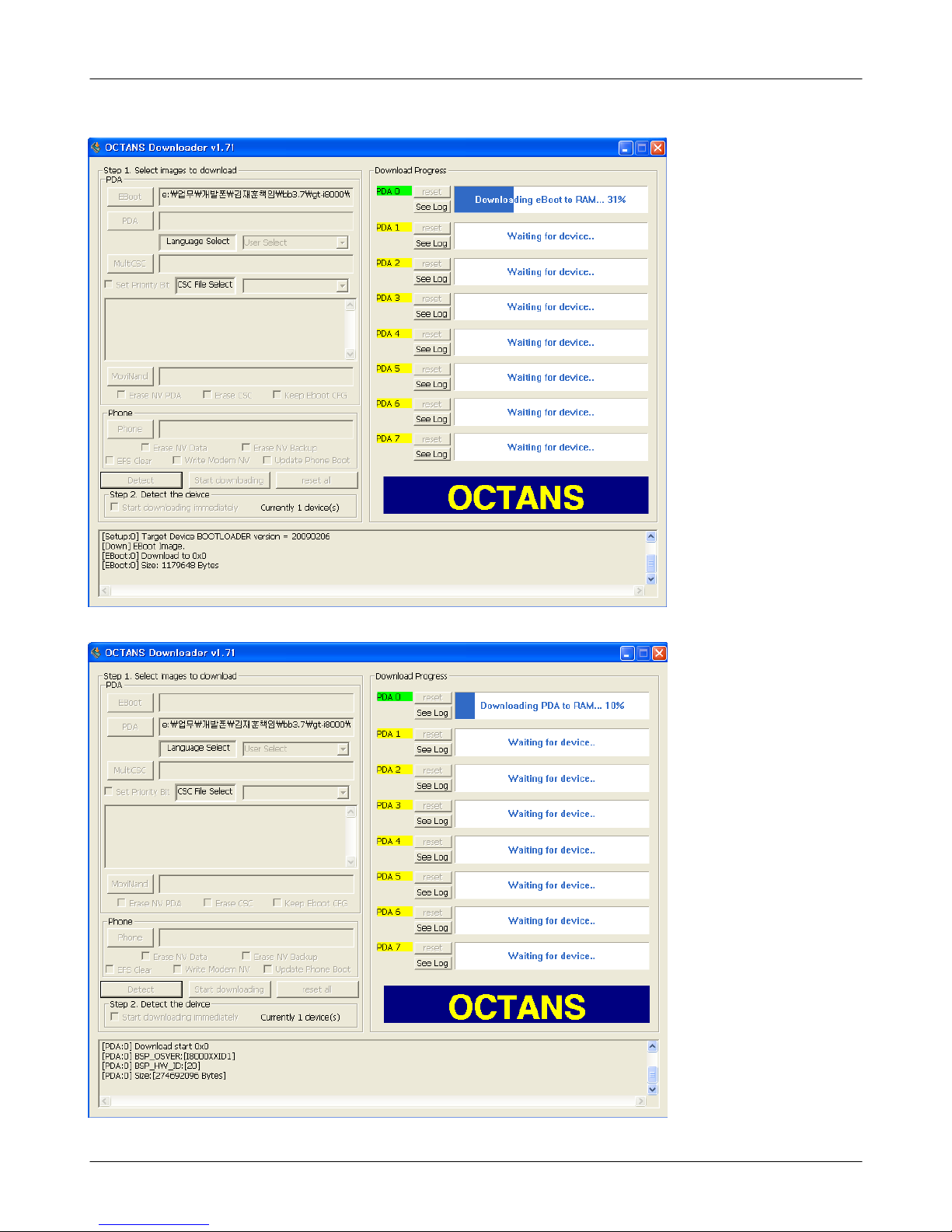

[Downloading EBOOT ]
[Downloading PDA ]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
[Downloading PHONE ]
[Job Done ]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

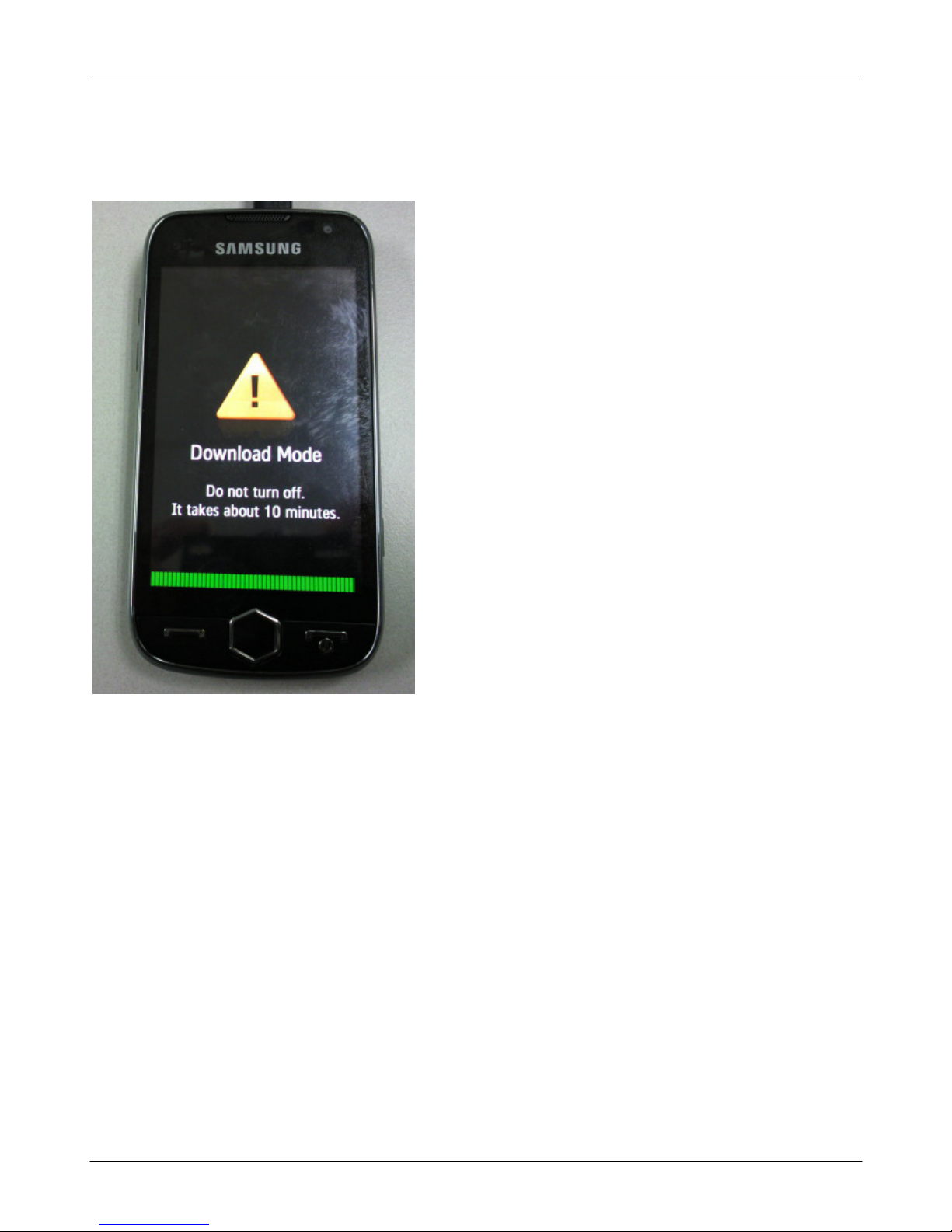

FThe Display of your Device

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
FTrouble Shooting
1. “PDA Device not found”message
FMake sure that your device is connected ahost computer by USB DATA Link cable.
2. “Port Open Failed”message or application hang
FAfter you install “phone USB driver (Samsung CDMA Modem)”at first time, you may see “Port
open failed…” message or application hang while downloading aphone image. If so, terminate th
eapplication and then try the download again.
FIf USB port is changed, at first time you may see “Port open failed…” message or application
hang. If so, terminate the application and then try the download again.
FIf USB cable to the mobile device is not connected tightly, you may see “Port open failed…” m
essage or application hang. If so, terminate the application and then try the download again..
FIf you always see “port open failed”message or application hang,
1. When failed application is activated, go to the device manager, remove the SAMSUNG CD
MA Modem and SAMSUNG USB Composite Device.
2. Rename C:\WINDOWS\system32\drivers\Modem.sys to other name. (ex. Modem-.sys)
3. Go to control panel->program add/remove, and then remove Samsung CDMA Modem drive
ror Samsung USB driver(MCCI)
4. Restart your PC.
5. Install attached SAMSUNG CDMA Modem_4.34
6. Try the download again.
3. “Write Failed”message
FIf battery level is low, use charged battery and try again.
-Reference -
How to deal with the an error in the computer USB port of the computer.
Symptom: Device is not identified after connecting it.
Cause: The device is connected before the previous connection is complete. All devices should be
connected one by one. Otherwise, an error may occur in the computer USB port of the computer.
Solution:
Proceed with the following action in order only when the previous action does not work.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
1) Unplug the USB port from the computer and plug it again.

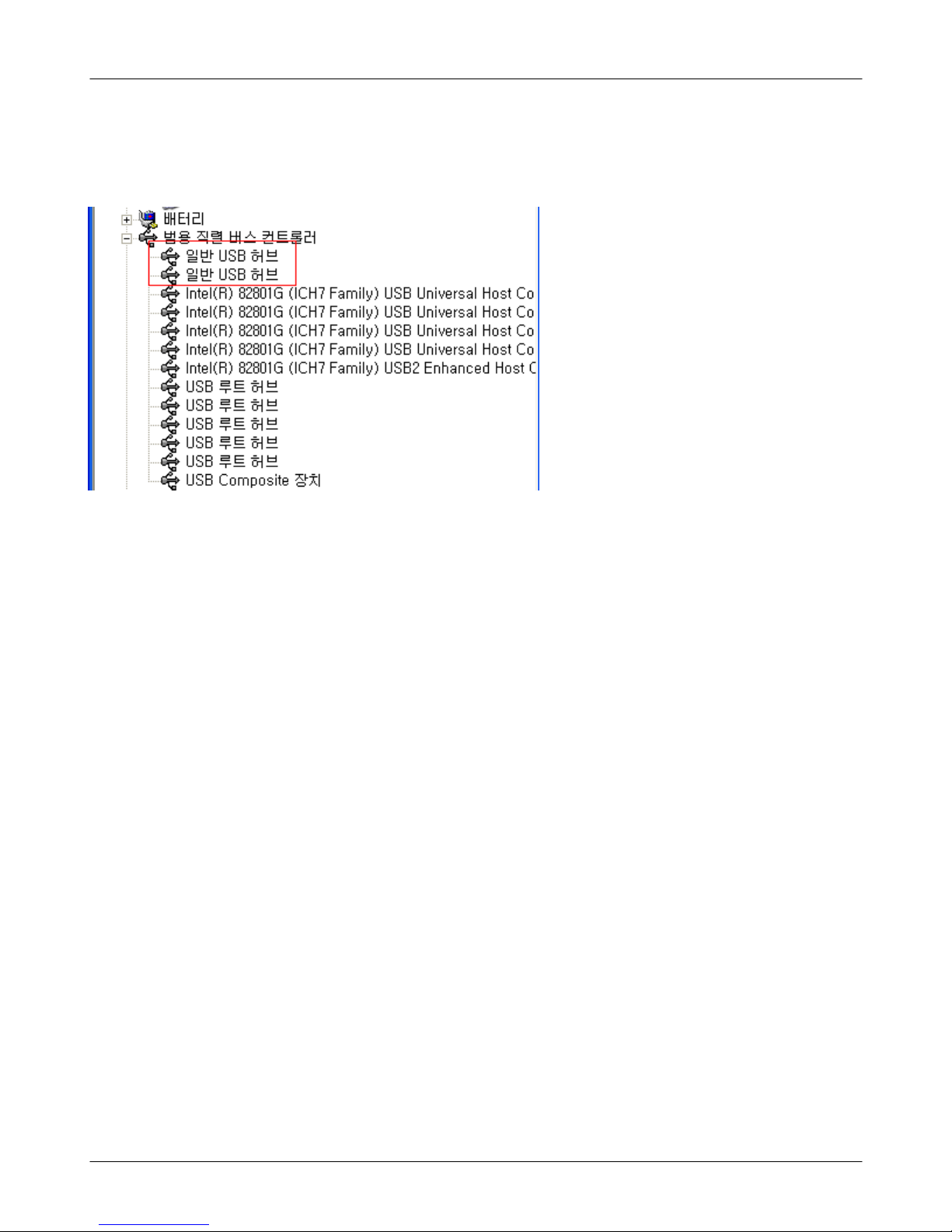

2) Open the Device Manager and remove the USB hub and install it again.
3) Reboot the computer.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

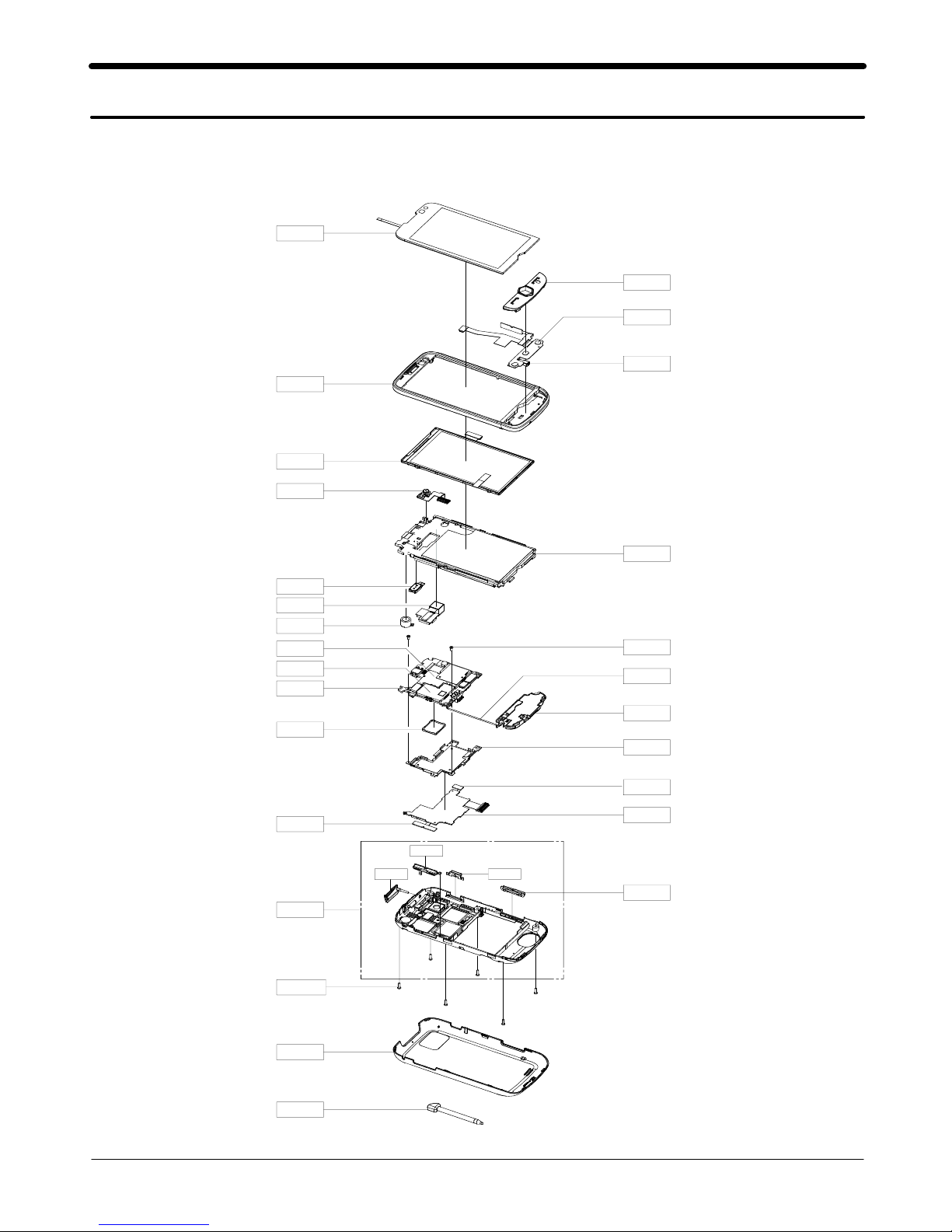

5-1. Cellular phone Exploded View
QME03
QFR01
QLC01
QCA02
QAU01
QMO01
QCA01
QMP01
QVK03
QRE01
QCR101
QBC00
QST01
QSH02
QSH01
QBR01
QKP01
QMI03
QVK02
QCB01
QCR72
QLB01
QSP02
QMP02
QME01
QBR02
QCK01
QVO03
QVO01
QIF01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAU01 AUDIO-RECEIVER 3009-001370
QBC00 ASSY COVER-BATT GH98-13956A
QBR01 ASSY BRACKET-SHIELD CAN FRONT GH98-13957A
QBR02 ASSY BRACKET-SHIELD CAN REAR GH98-13958A
QCA01 CAMERA MODULE-5M (GT-I8000) GH59-07146A
QCA02 ASSY CAMERA-VGA GT-I8000 GH96-03788A
QCB01 COAXIAL CABLE-60MM(GT-I8000) GH39-01359A
QCK01 ASSY KEY-CAM GH98-12194A
QCR101 SCREW-MACHINE 6001-002005
QCR72 SCREW-MACHINE 6001-002051
QFR01 ASSY CASE-FRONT GH98-12191B
QKP01 ASSY KEYPAD-(EU/BLACK) GH98-12201A
QLB01 ASSY BRACKET-LCD GH98-12195A
QLC01 ASSY LCD-3.7" WVGA GT-I8000 AMOLED ASSY GH96-03807A
QME01 KEY FPCB-FPC(H/K) ASS'Y (GT-I8000) GH59-07489A
QME03 TOUCH/PANEL-GT-I8000,2GB(BLK) GH59-08115A
QMI03 ASSY COVER-MIC HOLDER 2GH98-14486A
QMO01 MOTOR LINEAR VIBRATION-LINEAR MOTOR GH31-00483A
QMP01 A/S ASSY-PBA MAIN,GT-I8000,TUR,TURK(SVC GH82-04074A
QMP02 A/S ASSY-PBASUB,GT-I8000E,2G,COMM(SVC) GH82-04075A
QSH01 ICT SHIELD-A GH70-04893A
QSH02 ICT SHIELD-B GH70-04894A
QSP02 MODULE-SPK+INTENNA (GT-I8000) GH59-07325A
QST01 ASSY STYLUS PEN-RELOADED GH98-12411A
QVK02 KEY FPCB-SUB KEY FPCB ASS'Y GH59-07234A
QVK03 KEY FPCB-2KEY FPCB ASS'Y (GT-I8000) GH59-07490A
QRE01 ASSY CASE-REAR GH98-12192A
QIF01 PMO COVER-IF GH72-52875A
QVO03 PMO KEY-HOLD GH72-54059A
QVO01 ASSY KEY-VOL GH98-12193A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
RES-Z0603 C312,C333,C353 RES-Z0603-SHORT-P
RES-Z0603 R10048,R10146,R10153 RES-Z0603-SHORT-P
RES-Z0603 R10163,R10279,R10281 RES-Z0603-SHORT-P
RES-Z0603 R10282,R10290,R1201 RES-Z0603-SHORT-P
RES-Z0603 R207,R221,R222,R505 RES-Z0603-SHORT-P
RES-Z0603 R506,R556,R600,R739 RES-Z0603-SHORT-P
RES-Z0603 R843,R962,R963,R976 RES-Z0603-SHORT-P
RES-Z1005 R10278,R220,R431 RES-Z1005-SHORT-P
0401-001144 D902 DIODE-SWITCHING
0403-001547 ZD601 DIODE-ZENER
0404-001172 R548 DIODE-SCHOTTKY
0406-001231 ZD10000,ZD10001 DIODE-TVS
0406-001231 ZD10002,ZD10003 DIODE-TVS
0406-001231 ZD801,ZD802 DIODE-TVS
0406-001254 ZD10004,ZD10005 DIODE-TVS
0406-001254 ZD600,ZD901 DIODE-TVS
0406-001305 F1200,F1201,F700 DIODE-TVS
0406-001329 ZD400,ZD701 DIODE-TVS
0504-001138 TR900 TR-DIGITAL
0505-002088 TR10000,U504 FET-SILICON
0801-003016 U502 IC
0801-003022 U302 IC
0801-003130 U10014 IC
0801-003200 U506 IC
0801-003265 U501 IC
0801-003271 U10007 IC
0902-002440 UCP10000 IC
1001-001410 U700 IC
1001-001481 U10003 IC
1001-001488 U703 IC
1001-001580 U905 IC
1001-001581 U911 IC
1003-002185 U10000,U10002,U503 IC
1201-002147 U910 IC
1201-002740 PAM200 IC
1201-002774 U406 IC
1201-002864 U704 IC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
1201-002888 PAM301 IC
1201-002889 PAM303 IC
1201-002890 PAM300 IC
1202-001079 U705,U706 IC
1203-002832 U603 IC
1203-004458 U1201 IC
1203-004571 U1200 IC
1203-004806 U701 IC
1203-004819 U602 IC
1203-004925 U1202,U405 IC
1203-005244 U404 IC
1203-005434 U601 IC
1203-005503 U800 IC
1203-005667 U903 IC
1203-005690 U802 IC
1203-005772 U10010 IC
1203-005783 U902 IC
1204-003026 U400 IC
1205-003297 U205 IC
1205-003467 U505 IC
1205-003488 U702 IC
1205-003582 UCP500 IC
1209-001823 U1203 IC
1404-001221 TH10000 THERMISTOR
2007-000166 R606 R-CHIP
2007-000170 R981 R-CHIP
2007-001119 R716 R-CHIP
2007-001285 R205,R208 R-CHIP
2007-001306 R978,R979 R-CHIP
2007-003014 R602,R734 R-CHIP
2007-007107 R10114,R10147,R558 R-CHIP
2007-007137 R938 R-CHIP
2007-007142 R926 R-CHIP
2007-007193 R719,R720 R-CHIP
2007-007306 R379 R-CHIP
2007-007313 R710 R-CHIP
2007-007316 R933 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-007318 R206 R-CHIP
2007-007480 R604 R-CHIP
2007-007529 R557 R-CHIP
2007-007698 R601 R-CHIP
2007-007741 R709 R-CHIP
2007-007875 R807 R-CHIP
2007-007942 R10144,R423 R-CHIP
2007-007943 U908 R-CHIP
2007-008045 R10149,R10150,R10151 R-CHIP
2007-008045 R10152,R10164,R10165 R-CHIP
2007-008045 R10167,R10168,R10300 R-CHIP
2007-008045 R10301,R302,R306 R-CHIP
2007-008045 R509,R559,R560,R561 R-CHIP
2007-008045 R562,R722,R736,R737 R-CHIP
2007-008045 R738,R955 R-CHIP
2007-008047 R210,R211 R-CHIP
2007-008049 R507 R-CHIP
2007-008052 R10091,R10092,R10124 R-CHIP
2007-008052 R10125,R10128,R10129 R-CHIP
2007-008052 R10138,R10139,R10145 R-CHIP
2007-008052 R605,R607,R704 R-CHIP
2007-008055 R10030,R10042,R10043 R-CHIP
2007-008055 R10044,R10045,R10049 R-CHIP
2007-008055 R10052,R10059,R10060 R-CHIP
2007-008055 R10061,R10076,R10088 R-CHIP
2007-008055 R10089,R10140,R10142 R-CHIP
2007-008055 R1202,R405,R406,R419 R-CHIP
2007-008055 R518,R553,R611,R810 R-CHIP
2007-008055 R811,R906,R908,R924 R-CHIP
2007-008055 R943 R-CHIP
2007-008056 R1109,R1110 R-CHIP
2007-008057 R959 R-CHIP
2007-008167 R608 R-CHIP
2007-008419 R200,R201,R202,R203 R-CHIP
2007-008419 R430 R-CHIP
2007-008420 R544 R-CHIP
2007-008516 R500,R502,R503,R504 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2007-008516 R612,R939,R941,R952 R-CHIP
2007-008531 U10011,U10012 R-CHIP
2007-008549 R732 R-CHIP
2007-008579 R213,R214 R-CHIP
2007-008588 R215 R-CHIP
2007-008686 R975 R-CHIP
2007-008766 R552 R-CHIP
2007-008798 R10126,R10127 R-CHIP
2007-008806 R1112,R307,R554,R555 R-CHIP
2007-009084 R10070,R529,R727 R-CHIP
2007-009084 R729,R730 R-CHIP
2007-009115 R212,R513 R-CHIP
2007-009155 R610 R-CHIP
2007-009157 R10143,R304 R-CHIP
2007-009158 R603 R-CHIP
2007-009165 R300,R301,R303,R305 R-CHIP
2007-009201 R209 R-CHIP
2007-009233 R735 R-CHIP
2007-009402 R717 R-CHIP
2007-009420 R204 R-CHIP
2007-009805 R840 R-CHIP
2007-009954 U600 R-CHIP
2007-009964 R10131 R-CHIP
2007-010030 R10122 R-CHIP
2203-000233 C249,C442,C446,C605 C-CERAMIC,CHIP
2203-000233 C623,C750 C-CERAMIC,CHIP
2203-000254 C933 C-CERAMIC,CHIP
2203-000359 C609 C-CERAMIC,CHIP
2203-000386 C10029,C10030 C-CERAMIC,CHIP
2203-000696 C417 C-CERAMIC,CHIP
2203-000812 C200,C441 C-CERAMIC,CHIP
2203-000995 C543 C-CERAMIC,CHIP
2203-001153 C1220 C-CERAMIC,CHIP
2203-002668 C266,C274 C-CERAMIC,CHIP
2203-002709 C1217,C1218 C-CERAMIC,CHIP
2203-005053 C253 C-CERAMIC,CHIP
2203-005138 C10035 C-CERAMIC,CHIP
