Samsung SGH-B500 User manual

GSM TELEPHONE
SGH-B500
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
12. Schematic Diagram

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2007. 11. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM 900
Phase 1
EGSM 900
Phase 2
DCS1800
Phase 1
Freq. Band[MHz]
Uplink/Downlink
890~915
935~960
880~915
925~960
1710~1785
1805~1880
ARFCN range 1~124 0~124 &
975~1023 512~885
Tx/Rx spacing 45 MHz 45 MHz 95 MHz
Mod. Bit rate/
Bit Period
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
Time Slot Period/Frame
Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation 0.3 GMSK 0.3 GMSK 0.3 GMSK
MS Power 33 dBm~13 dBm 33 dBm~5 dBm 30 dBm~0 dBm
Power Class 5 pcl ~15pcl 5pcl ~19pcl 0pcl ~15pcl
Sensitivity -102 dBm -102 dBm -100 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 35 Km 2 Km

Specification
2-2
2-2. GSM TX power class
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-SDN (Service Dialling Numbers)
-Music player
-SOS message
-FM radio

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
ㆍThree binary files for downloading B500
-B500XXYY.s3 :Main source code binary
4-2. Pre-requsite for Downloading
ㆍDownloader Program(OptiFlash.exe)
ㆍB500 Mobile Phone
ㆍData Cable
ㆍBinary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program

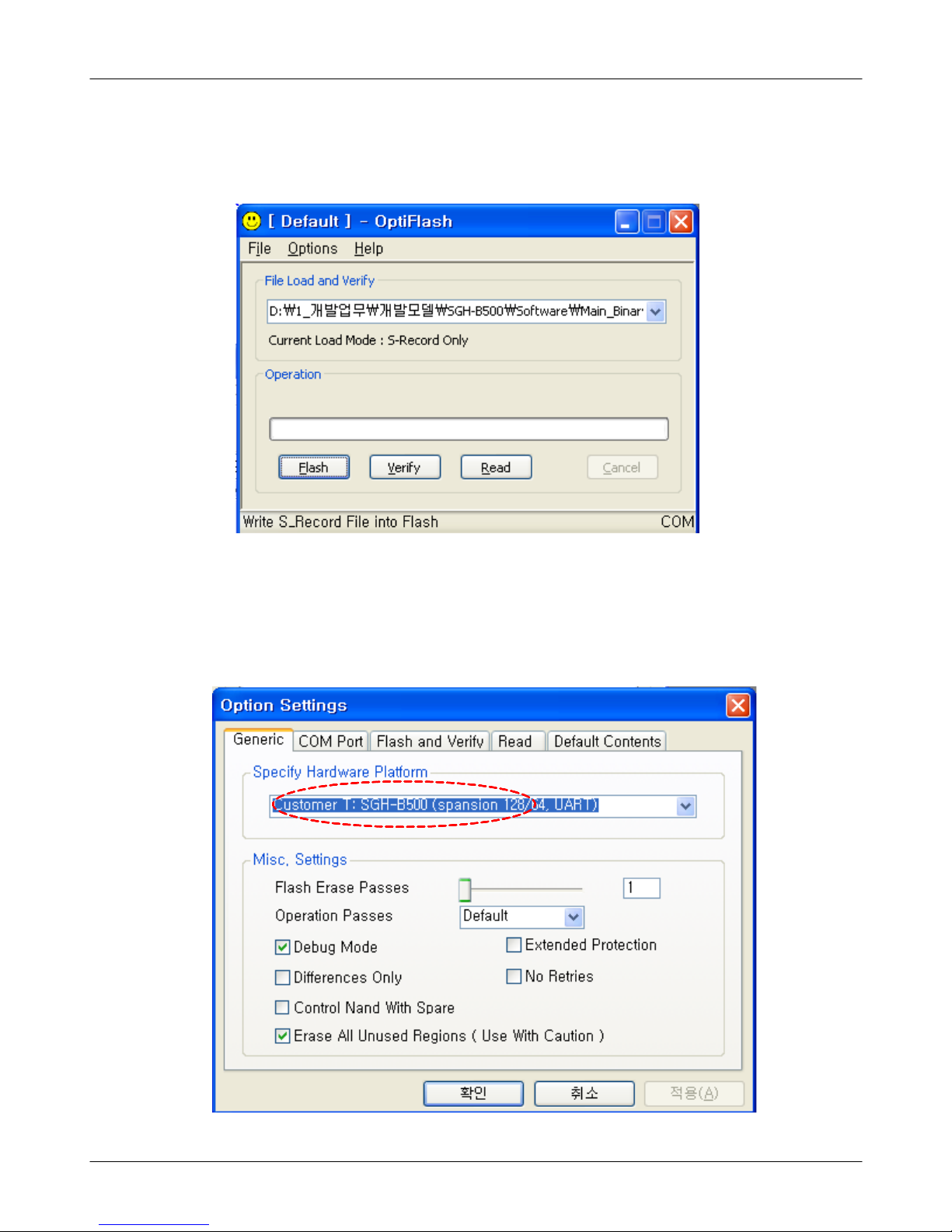

1. Load the binary download program by executing the "Optiflash.exe"
2. Select the "Options" →"Settings" →"Generic" →"Specify hardware
platform".
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
3.Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the maximum
transfer speed OptiFlash will use to communicate with the phone. However,
OptiFlash will use aslower speed if either the PC's or the phone's serial
hardware is incapable of handling the selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

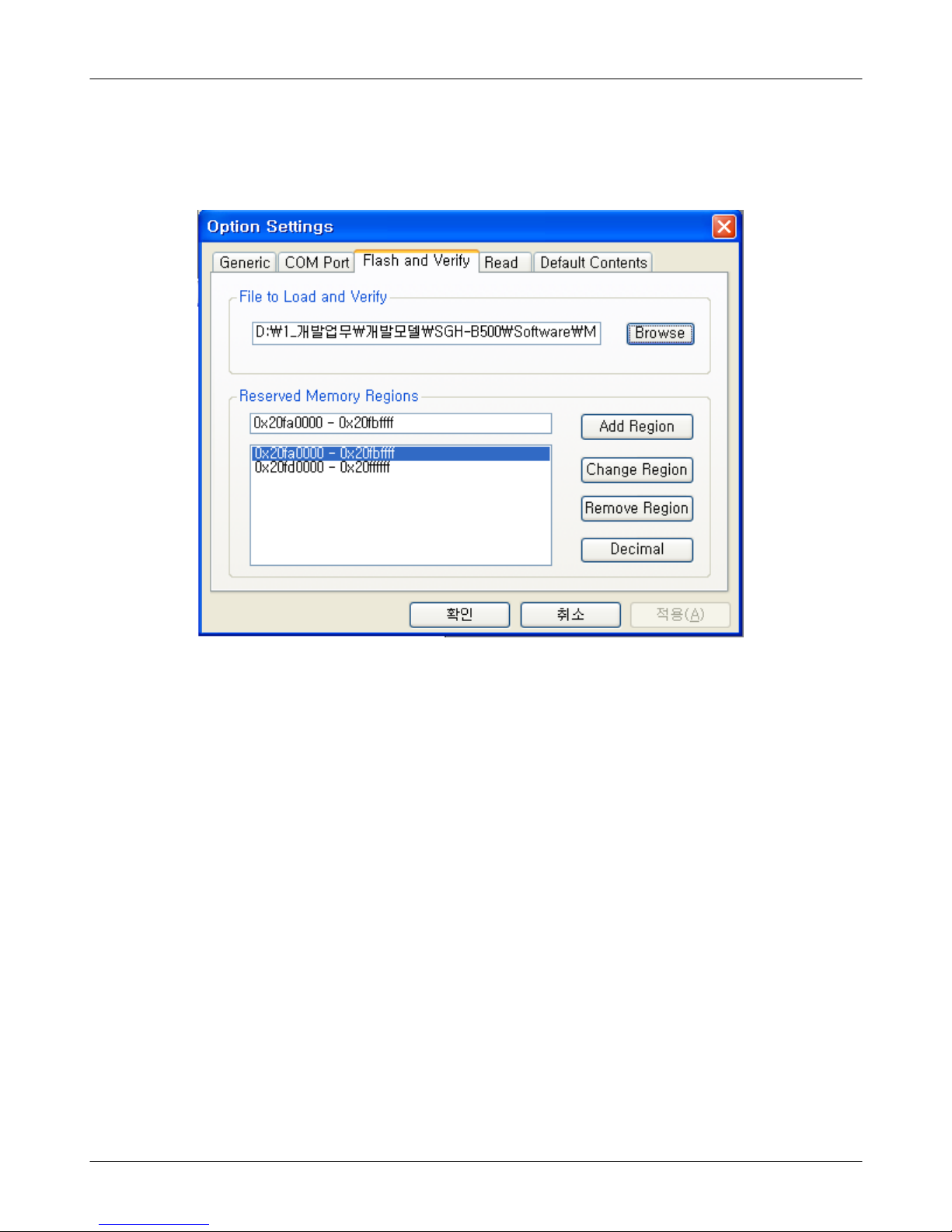

4. Select the "Flash&Verify" →"Browse"
Set the directory path and choose the lastet s/w binary, for example
"B500XXYY.s3", for the downloader binary setting.
Make sure that not to change the reserved memory regions.
In case of B500 the reserved regions are :
-0x20
fa0000 - 0x20fbffff
0x20fd0000 - 0x20ffffff

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

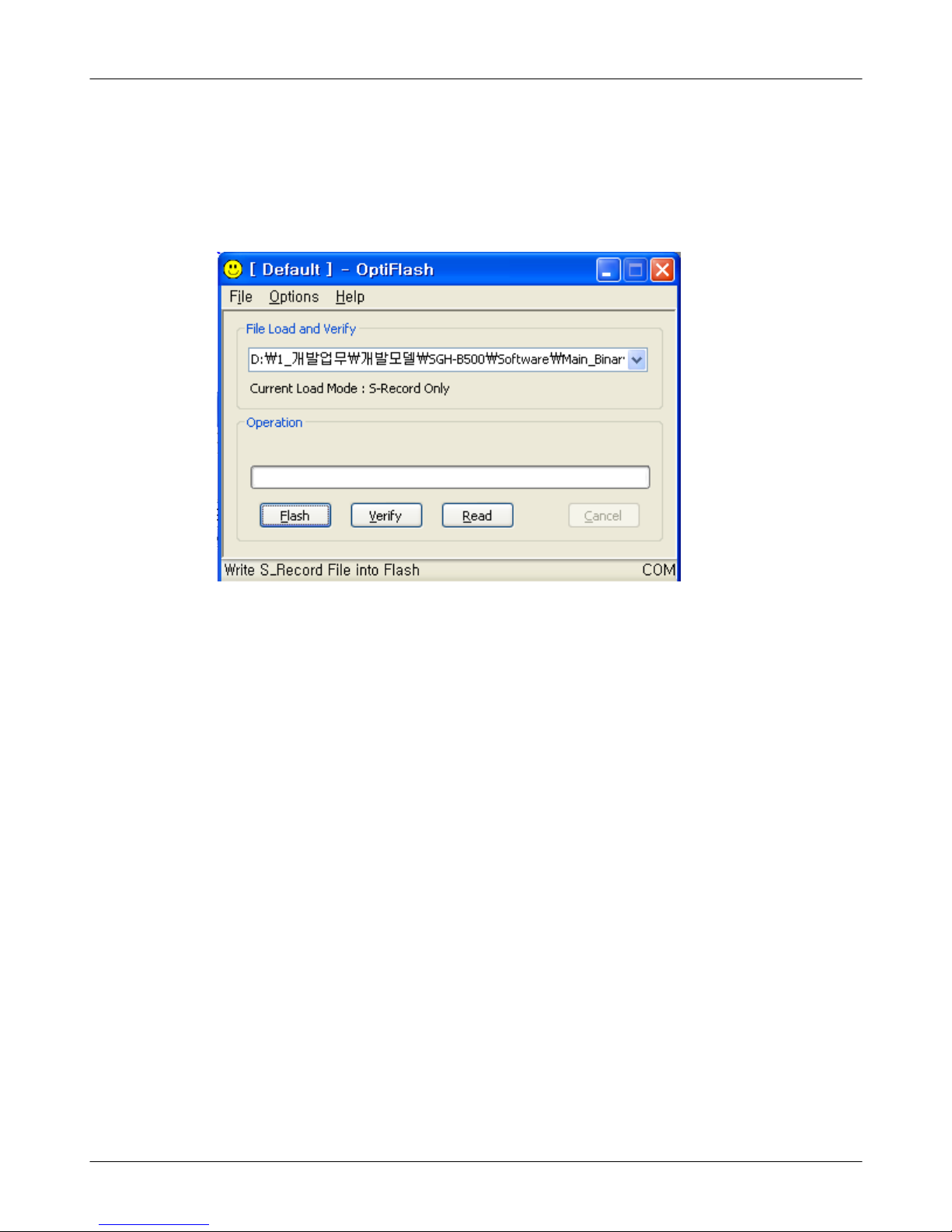

5. Click "OK"button then press "Flash".
(Before pressing 'Flash' button, push the button '*'and 'END' at the same
time. Then press 'Flash'.)
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a"
All is well" message.
7. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

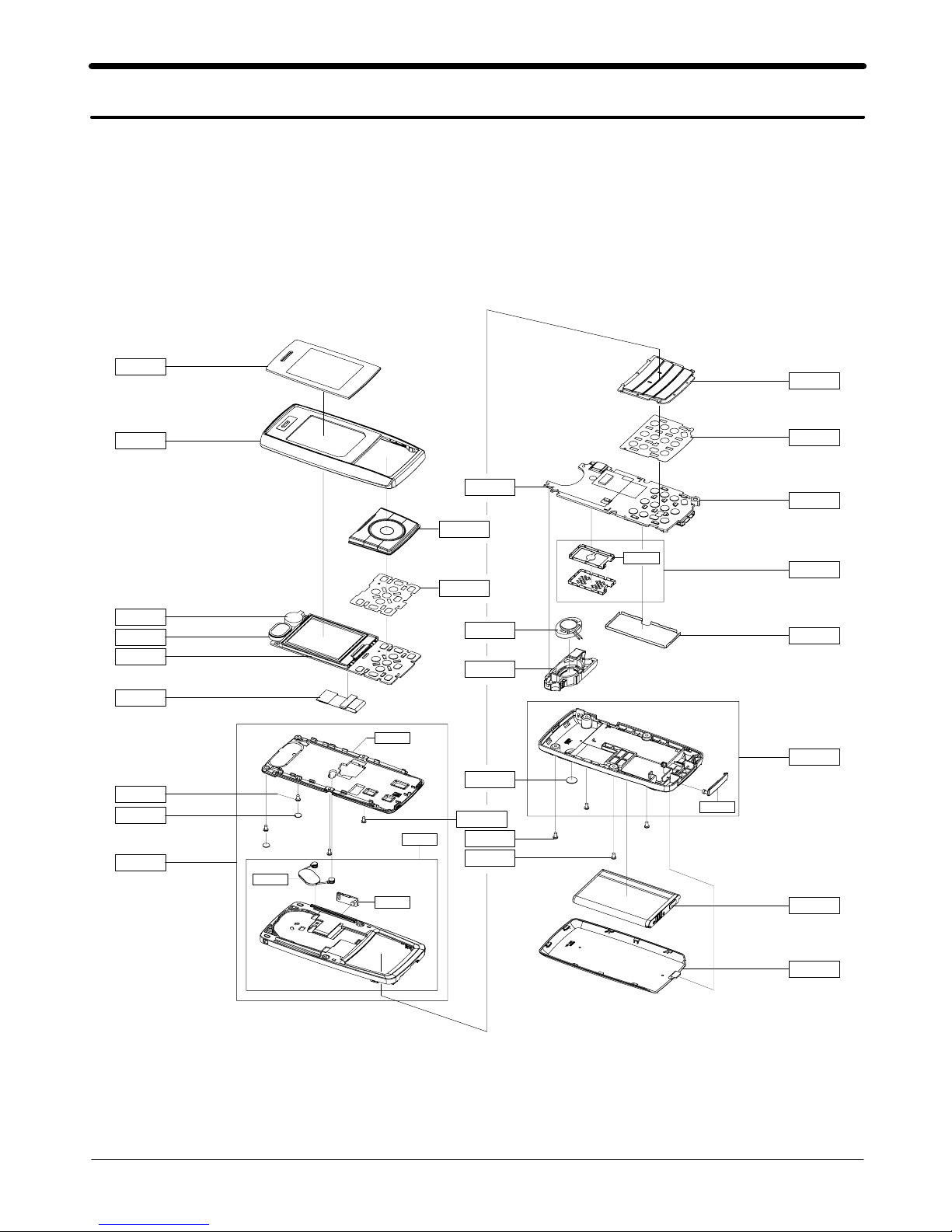

5-1. Cellular phone Exploded View
QMW02
QFU01
QMP01
QSP01
QRF01
QCR06
QCR06
QAN01
QAR01
QLC01
QPC01
QSC01
QCR06
QFL01
QMO01
QKP01
QME01
QMI01
QSH01
QSH03
QRE01
QBA01
QCR58
QBA00
QKP02
QME02
QSH02
QIF01
QRF03
QFR01
QFL02
QHI01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Dicription SEC CODE
QAN01 INTENNA-SGH-B500 GH42-01298A
QAR01 AUDIO-RECEIVER 3009-001298
QBA00 PMO COVER-BATTERY GH72-43676A
QBA01 INNER BATTERY PACK-800MAH,MAIN GH43-02589A
QCR06 SCREW-MACHINE 6001-001155
QCR06 SCREW-MACHINE 6001-001155
QCR06 SCREW-MACHINE 6001-001155
QCR58 SCREW-MACHINE 6001-001870
QFU01 ASSY CASE-UPPER GH98-05926A
QKP01 ASSY KEYPAD-MAIN(XEF/HBA) GH98-06175A
QKP02 ASSY KEYPAD-SUB(XEF/BLU) GH98-07192A
QLC01 ELA UNIT-SGH_B500 LCD HOT BAR GH96-02882A
QME01 UNIT-DOME SHEET (F/K) GH59-04766A
QME02 UNIT-DOME SHEET (N/K) GH59-04765A
QMI01 MICROPHONE-ASSY-SGH-B500 GH30-00432A
QMO01 MOTOR DC-SGHE490 GH31-00280A
QMP01 PBA MAIN-SGH-B500 GH92-03882A
QMW02 PMO WINDOW-MAIN GH72-43813A
QPC01 MEA-SLIDE FPCB KIT GH97-08411A
QRF01 TAPE-RF SHEET GH74-35472A
QSC01 TAPE-SCREW CAP GH74-34348A
QSH03 ASSY COVER-SHIELD BASE BAND GH98-06904A
QSP01 SPEAKER 3001-002253
QSH01 IPR SHIELD-COVER RF GH70-02830A
QSH02 NPR SHIELD-FRAME RF GH71-07784A
QFL01 ASSY CASE-LOWER+FRONT GH98-05925A
QFR01 ASSY CASE-FRONT GH98-06993A
QRF03 PMO COVER-EAR JACK GH72-43677A
QHI01 ASSY HINGE-MODULE GH98-05927A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
QFL02 ASSY CASE-LOWER GH98-06994A
QRE01 ASSY CASE-REAR GH98-05923A
QIF01 PMO COVER-IF GH72-43675A

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization
Dicription SEC CODE
BAG PE 6902-000297
ADAPTOR-EU 220V TYPE(BLK) GH44-01334A
EARPHONE-EARPHONE,10P,BLK(EU) GH59-04003A
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(P)-IMEI GH68-01335D
LABEL(R)-WATER SOAK GH68-09361A
LABEL(R)-MAIN(EU) GH68-16382A
MANUAL USERS-EU ITALIAN GH68-16790A
BOX(P)-UNIT MAIN(EU) GH69-06051A
TAPE INSU-FPCB CONN GH74-35379A
TAPE GASK-SUB PCB GH74-35485A
TAPE GASK GH74-35486A
TAPE-FPCB BACK GH74-35890A
VINYL-BOHO SLIDE GH74-36497A
VINYL-BOHO LCD GH74-36898A
VINYL-BOHO REAR GH74-36899A

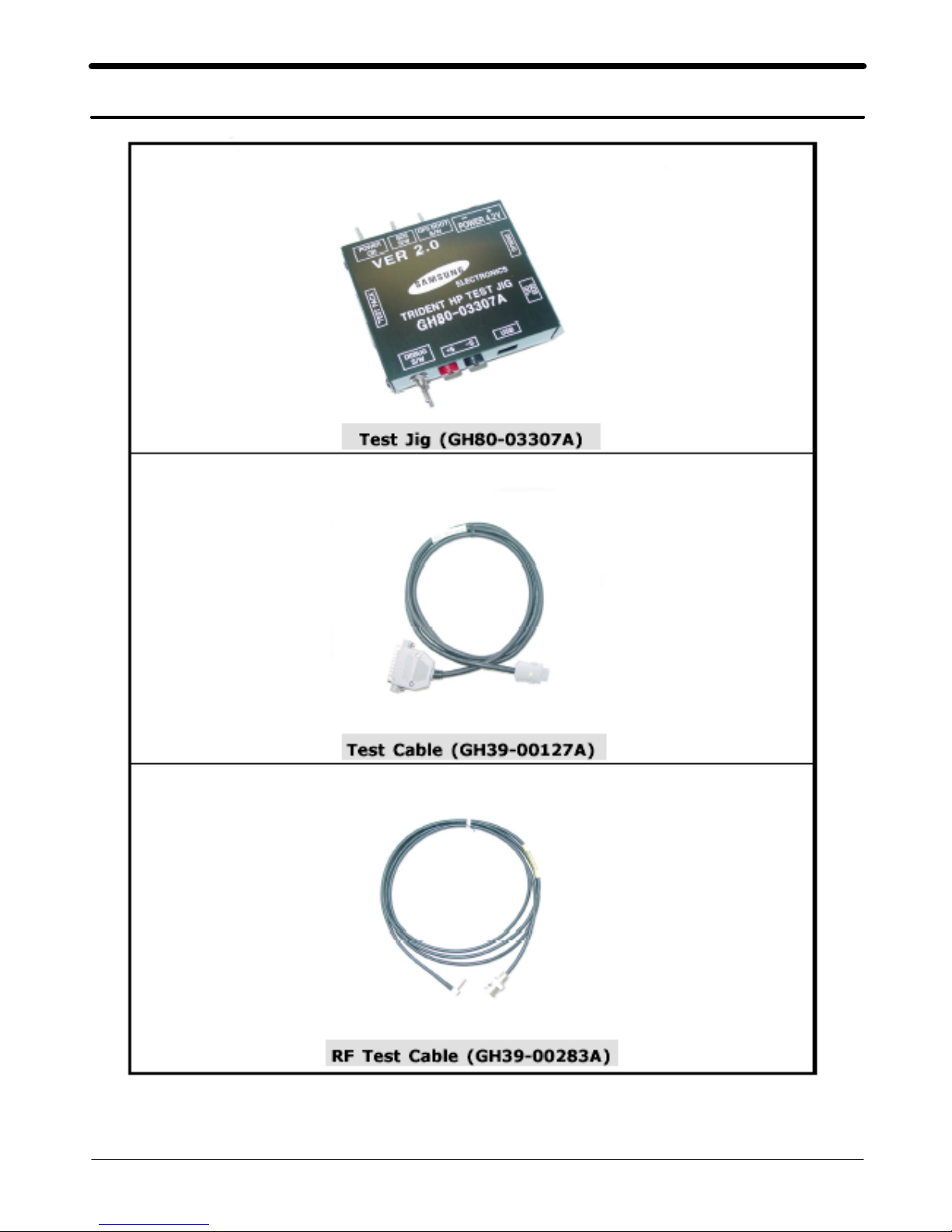

CBF SIGNAL-SGHV200TEST GH39-00257B
CBF SIGNAL-SGHV200TEST GH39-00257D
CBF SIGNAL-SPHA560 RF CABLE GH39-00397A
INSTALL-TEST JIG BOX GH80-03312A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription SATAUS
0403-001547 ZD504 DIODE-ZENER SA
0406-001194 ZD500 DIODE-TVS SA
0406-001194 ZD501 DIODE-TVS SA
0406-001194 ZD502 DIODE-TVS SA
0406-001219 ZD503 DIODE-TVS SA
0406-001254 ZD505 DIODE-TVS SA
0406-001254 ZD600 DIODE-TVS SA
0406-001256 U500 DIODE-TVS SA
0406-001267 ZD400 DIODE-TVS SA
0406-001267 ZD401 DIODE-TVS SA
0601-002053 LED600 LED SA
0601-002053 LED601 LED SA
0601-002053 LED602 LED SA
0601-002053 LED603 LED SA
0601-002053 LED604 LED SA
0601-002053 LED605 LED SA
0601-002053 LED606 LED SA
0601-002053 LED607 LED SA
0601-002053 LED609 LED SA
0601-002053 LED610 LED SA
0801-002529 U301 IC-CMOS LOGIC SA
1009-001024 U201 IC-HALL EFFECT S/W SA
1108-000142 UME200 IC-MCP SA
1201-002356 U401 IC-AUDIO AMP SA
1201-002490 PAM100 IC-POWER AMP SA
1203-003663 U300 IC-BATTERY SA
1203-004886 UCD300 IC-POWER SUPERVISOR SA
1204-002700 U400 IC-TUNER SA
1205-003098 RFT100 IC-TRANSCEIVER SA
1205-003318 UCP200 IC-DATA COMM./GEN. SA
1404-001165 TH300 THERMISTOR-NTC SA
1405-001082 VR400 VARISTOR SA
1405-001082 VR401 VARISTOR SA
1405-001082 VR600 VARISTOR SA
1405-001082 VR601 VARISTOR SA
1405-001082 VR602 VARISTOR SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription SATAUS
1405-001082 VR603 VARISTOR SA
1405-001082 VR610 VARISTOR SA
1405-001082 VR613 VARISTOR SA
1405-001082 VR614 VARISTOR SA
1405-001183 VR609 VARISTOR SA
1405-001183 VR611 VARISTOR SA
1405-001183 VR612 VARISTOR SA
2007-000139 R226 R-CHIP SA
2007-000140 R518 R-CHIP SA
2007-000143 R203 R-CHIP SA
2007-000143 R210 R-CHIP SA
2007-000144 R308 R-CHIP SA
2007-000147 R206 R-CHIP SA
2007-000147 R209 R-CHIP SA
2007-000148 R100 R-CHIP SA
2007-000148 R204 R-CHIP SA
2007-000153 R402 R-CHIP SA
2007-000153 R409 R-CHIP SA
2007-000155 R305 R-CHIP SA
2007-000157 R306 R-CHIP SA
2007-000159 R307 R-CHIP SA
2007-000162 R201 R-CHIP SA
2007-000162 R202 R-CHIP SA
2007-000162 R225 R-CHIP SA
2007-000162 R300 R-CHIP SA
2007-000162 R310 R-CHIP SA
2007-000162 R403 R-CHIP SA
2007-000162 R404 R-CHIP SA
2007-000162 R500 R-CHIP SA
2007-000162 R501 R-CHIP SA
2007-000162 R502 R-CHIP SA
2007-000162 R503 R-CHIP SA
2007-000162 R504 R-CHIP SA
2007-000162 R510 R-CHIP SA
2007-000162 R524 R-CHIP SA
2007-000171 R102 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription SATAUS
2007-000171 R211 R-CHIP SA
2007-000171 R314 R-CHIP SA
2007-000171 R315 R-CHIP SA
2007-000171 R412 R-CHIP SA
2007-000171 R414 R-CHIP SA
2007-000171 R415 R-CHIP SA
2007-000171 R416 R-CHIP SA
2007-000171 R417 R-CHIP SA
2007-000172 R612 R-CHIP SA
2007-000172 R613 R-CHIP SA
2007-000172 R614 R-CHIP SA
2007-000172 R615 R-CHIP SA
2007-000172 R616 R-CHIP SA
2007-000172 R617 R-CHIP SA
2007-000172 R618 R-CHIP SA
2007-000172 R619 R-CHIP SA
2007-000172 R621 R-CHIP SA
2007-000172 R622 R-CHIP SA
2007-000174 R114 R-CHIP SA
2007-001119 R408 R-CHIP SA
2007-001244 R309 R-CHIP SA
2007-001292 R521 R-CHIP SA
2007-001292 R522 R-CHIP SA
2007-001292 R523 R-CHIP SA
2007-003015 R200 R-CHIP SA
2007-007306 R401 R-CHIP SA
2007-007308 R301 R-CHIP SA
2007-007314 R302 R-CHIP SA
2007-007480 R304 R-CHIP SA
2007-007528 R400 R-CHIP SA
2007-007528 R405 R-CHIP SA
2007-007528 R407 R-CHIP SA
2007-007528 R413 R-CHIP SA
2007-007741 R101 R-CHIP SA
2007-008043 R107 R-CHIP SA
2007-008045 R600 R-CHIP SA
