Samsung GT-I8320 User manual

GSM TELEPHONE
GT-i8320
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM 850 EGSM 900 DCS 1800 PCS 1900 WCDMA 900 WCDMA 2100
Freq.
Band[MHz]
Uplink/
Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
882.4~912.6
927.4~975.6
1920~1980
2110~2170
ARFCN range 128~251 0~124 &
975~1023 512~885 512~810 UL:2712~2863 DL:2937~3088
UL:9612~9888
DL:10562~10838
Tx/Rx
spacing 45 MHz 45MHz 90MHz 80MHz 45MH 190MHz
Mod. Bit
rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
3.84Mcps
(chip rate)
3.84Mcps
(chip rate)
Time Slot
Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Frame length :
10ms
Slot length :
0.667ms
Frame length :
10ms
Slot length :
0.667ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HPSK
QPSK
HPSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm~-50dBm 24dBm~-50dBm
Power Class 4
(max +33dBm)
4
(max +33dBm)
1
(max +30dBm)
1
(max +30dBm)
3
(max +24dBm)
3
(max +24dBm)
Sensitivity -102dBm -102dBm -100dBm -100dBm -104.7dBm -106.7dBm
TDMA Mux 88 8 8 - -
Cell Radius 35Km 35Km 2Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level PCS1900
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level
GSM850
GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3
dBm
128±3
dBm
226±3
dBm
324±3
dBm
422±3
dBm
520±3
dBm
618±3
dBm
716±3
dBm
814±3
dBm
912±4
dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
•HSUPA 5.76Mbps /HSDPA 7.2MBps /Quad(850/900/1800/1900) , UMTS (2100/900)
•Bluetooth v2.0 +EDR
•Wi-Fi (802.11 b/g)
•USB v2.0 HS compatible
•5M
CMOS (AF, Power LED) +CIF
-Face Detection, Smile Detection, Eye Blink Detection, Panorama Shot, Mosaic Shot
•FM Radio Receiver
•A-GPS, stand alone
•DivX Codec
•Accelerometer /proximity /ambient light sensor
•Instant Messaging capability
•Featured applications provide alarms, calendar, calculator, record audio, converter, timer, stopwatch,
and world time.
•File viewer
•Multimedia Message Service (MMS)
•Multimedia capability (with included Media player)
•Speakerphone capability
•WEB/WAP browser (HTMS, xHTML, WML)
•Movinand 16GB +microSD card
•3.5"
AMOLED

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

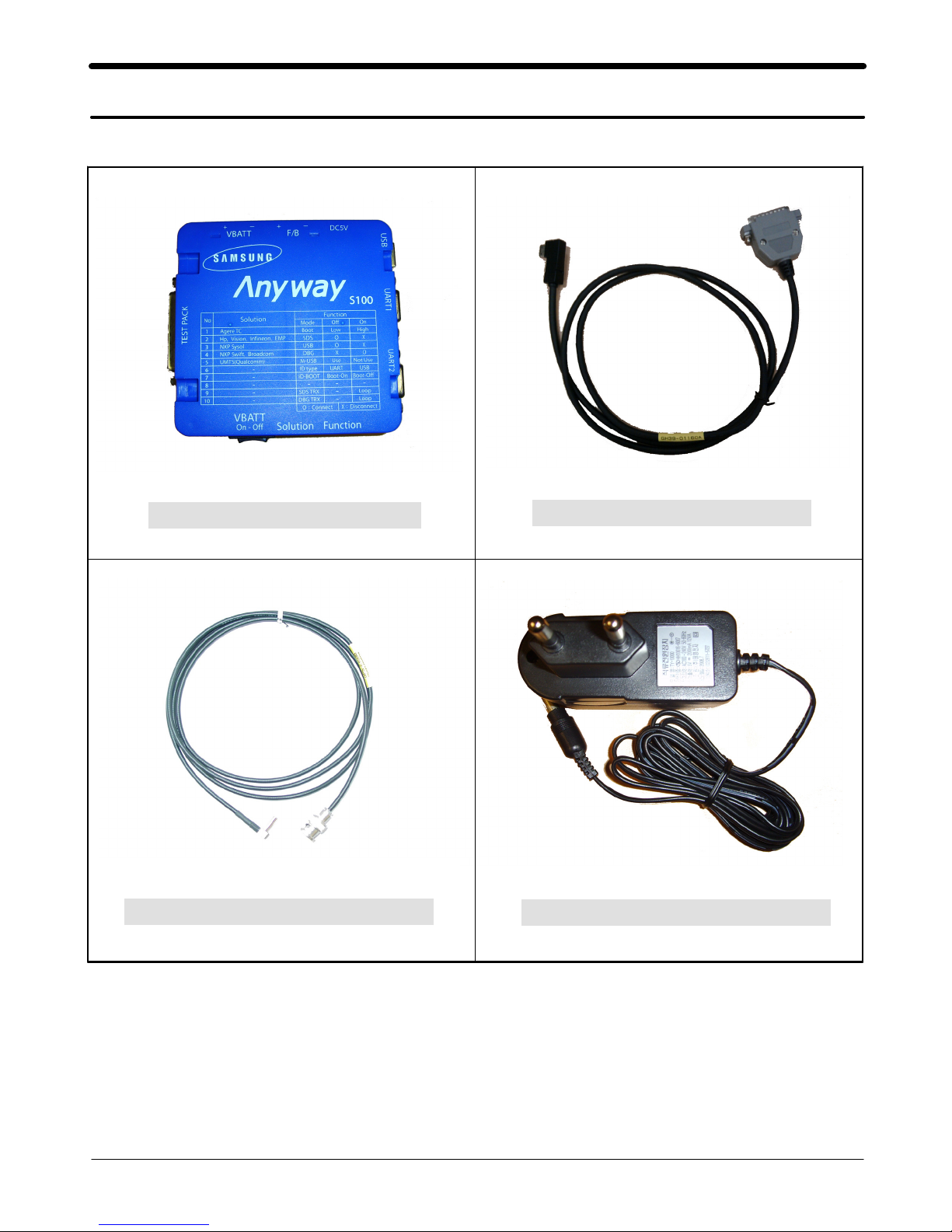

4-1. Software Adjustments
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)
Test Cable (GH39-01290A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Download
4-2-1. Download S/W &USB Driver
▶Downloader Program
-LComm3Multi_[version].exe (ex. LComm3Multi_090828.exe)
▶USB Driver
-PDA and Phone :SAMSUNG Mobile USB DRIVER(4.40.7.0) v1.6
▶GT-i8320 (Protector) Target Device
4-2-2. Driver Installation (PDA and Phone)
▶Make sure that you have installed SAMSUNG Mobile USB Driver in the host PC. If any SAMSUNG
Mobile USB Driver is already installed, the GT-i8320 S/W binary image can be downloaded to the target
device, using the provided USB downloader. But if any error is encountered in installing the SAMSUNG
Mobile USB Driver, you should uninstall the SAMSUNG Mobile USB Driver, re-start the host PC, and fin
ally install again the SAMSUNG Mobile USB Driver.
4-2-3. Execute the Downloader Program [LComm3Multi_[version].exe]

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-4. Turn off the device. And then, press the Volume Down key, the Camera key and
the PWR key simultaneously to turn on your device in download mode. (PWR key
should be pressed slightly later than the other keys)

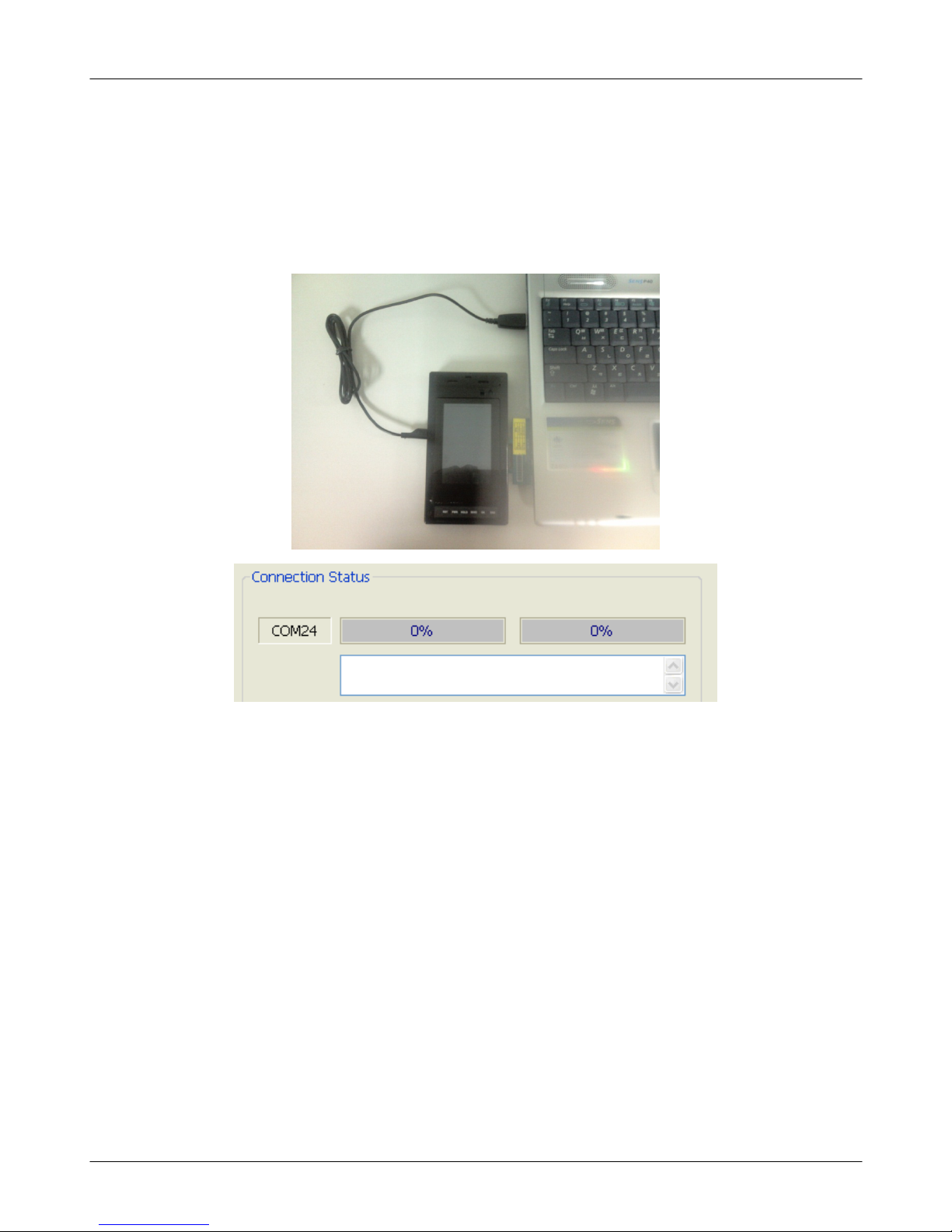

4-2-5. Connect your device to the host PC by using Micro USB DATA Link Cable.
▶if the device is connected to the host PC successfully, the detected port name, e.g. “COM24”, should
appear as in the above screenshot.
4-2-6. Download
A. Binaries
(1) PDA Base Binary: Base binary to operate the device including PDA bootloader, kernel, platform, a
pplication, and all programs for PDA.
(2) PDA CSC Binary: CSC binary including all regional settings for every country.
(3) Phone Binary: Phone modem binary.
B. Binary Download sequence.
-The PDA Base binary and the Phone binary can be downloaded simultaneously or separately. The
PDA CSC binary and the Phone binary can also be downloaded at the same time.
-The order in which the PDA Base binary and the Phone binary are downloaded makes no differen
ce to the target device. The device should be able to operate regardless of the download order of the b
inaries.
-However, the PDA CSC binary should be downloaded after the PDA Base binary is downloa
ded. Otherwise, the regional settings accompanied by the PDA CSC binary have no impact on the targe

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
tdevice.

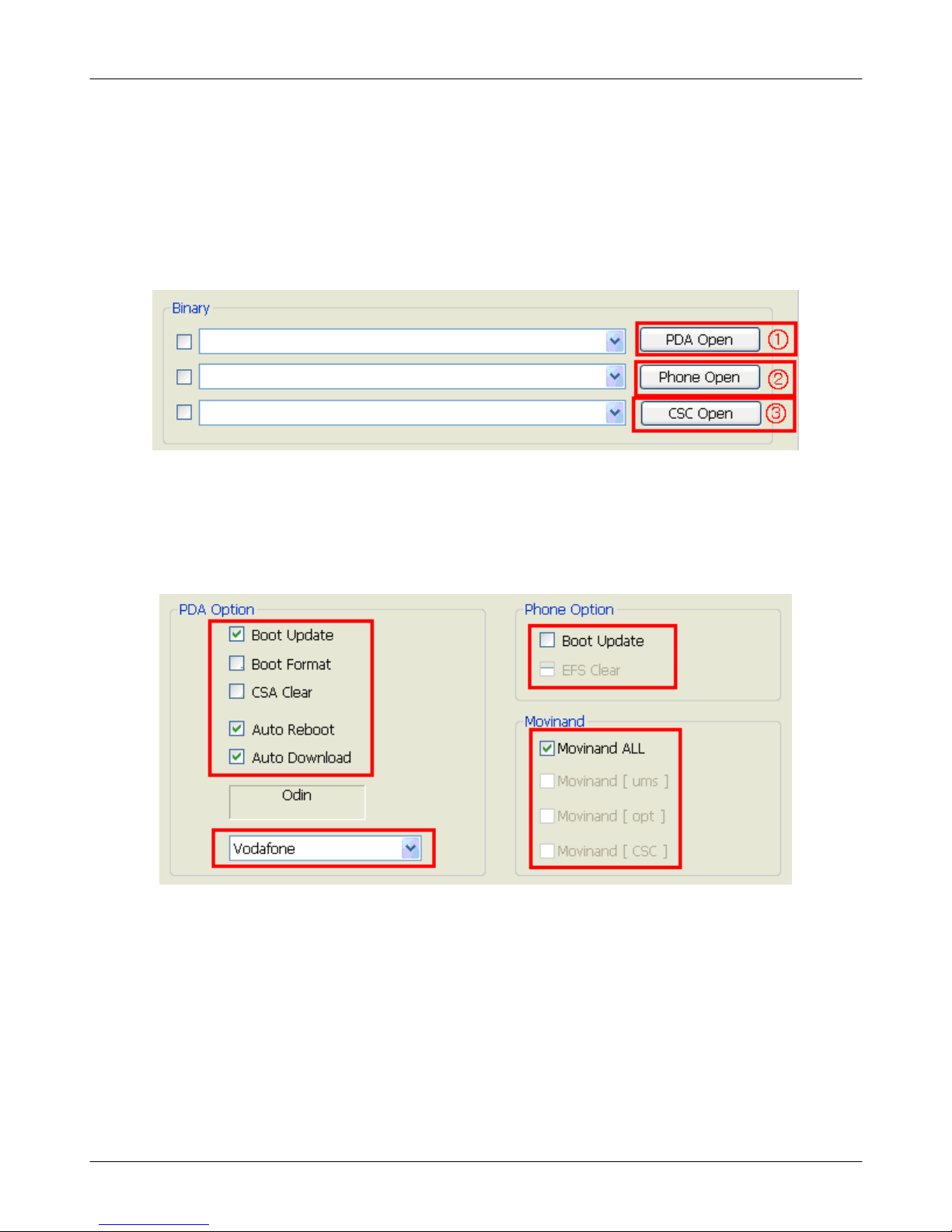

C. Open Binary File
①Open the PDA Base Binary.
②Open the Phone Binary.
③Open the PDA CSC Binary.
※It is possible to download each binary one-by-one.
D. Download Options
▶PDA Option
-Boot Update: Update the Bootloader. It should be enable when the PDA Base binary is downloaded.
-Boot Format: Format the partition of the target’s disk. When there is an explicit notice in the Release
Note, Boot Format option should be enabled. If you don’t have any notice for the PDA Base Binary,
you have to disable Boot Format in PDA Option.
-CSA Clear: Option for adeveloper. It should be disabled.
-Auto Reboot: Automatically reboot the target after download. It should be enabled for stability.
-Auto Download: When the target connects to the host PC by micro-USB after the Start button is click
ed, automatically download the binary. It should be enabled.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
▶Region Select
-Chose the country. It is used when the PDA CSC binary is downloaded.
▶Phone Option
-Boot Update: Update the Modem Bootloader. When there is an explicit notice in the Release N
ote on Phone Boot Update, Boot Update on Phone Option should be enabled. If you don’t have any n
otice for the Phone Binary, you have to disable Boot Update in Phone Option.
▶Movinand
-Movinand ALL: Option for adeveloper. It should be enabled.
E. Option setting according to the Binaries.
▶Below table shows the options that should be selected according to the binaries.
Downloa
dBinary
PDA Option Phone
Option Movinand
Boot
Update
Boot
Format
CSA
Clear
Auto
Reboot
Auto
Download
Region
Select
Boot
Update
Movinand
ALL
PDA only Enable Disable(2) Disable Enable Enable Don’t Care Disable Enable
Phone only Disable Disable Disable Enable Enable Don’t Care Disable(1) Enable
CSC only Disable Disable Disable Enable Enable Select Disable Enable
PDA, Phone Enable Disable(2) Disable Enable Enable Don’t Care Disable(1) Enable
PDA, CSC Enable Disable(2) Disable Enable Enable Select Disable Enable
Phone, CSC Disable Disable Disable Enable Enable Select Disable(1) Enable
PDA, Phone,
CSC Enable Disable(2) Disable Enable Enable Select Disable(1) Enable
(1), (2) When there is an explicit notice in the Release Note, those options should be enabled. Be c
areful of setting download options. Wrong download setting can damage the device.

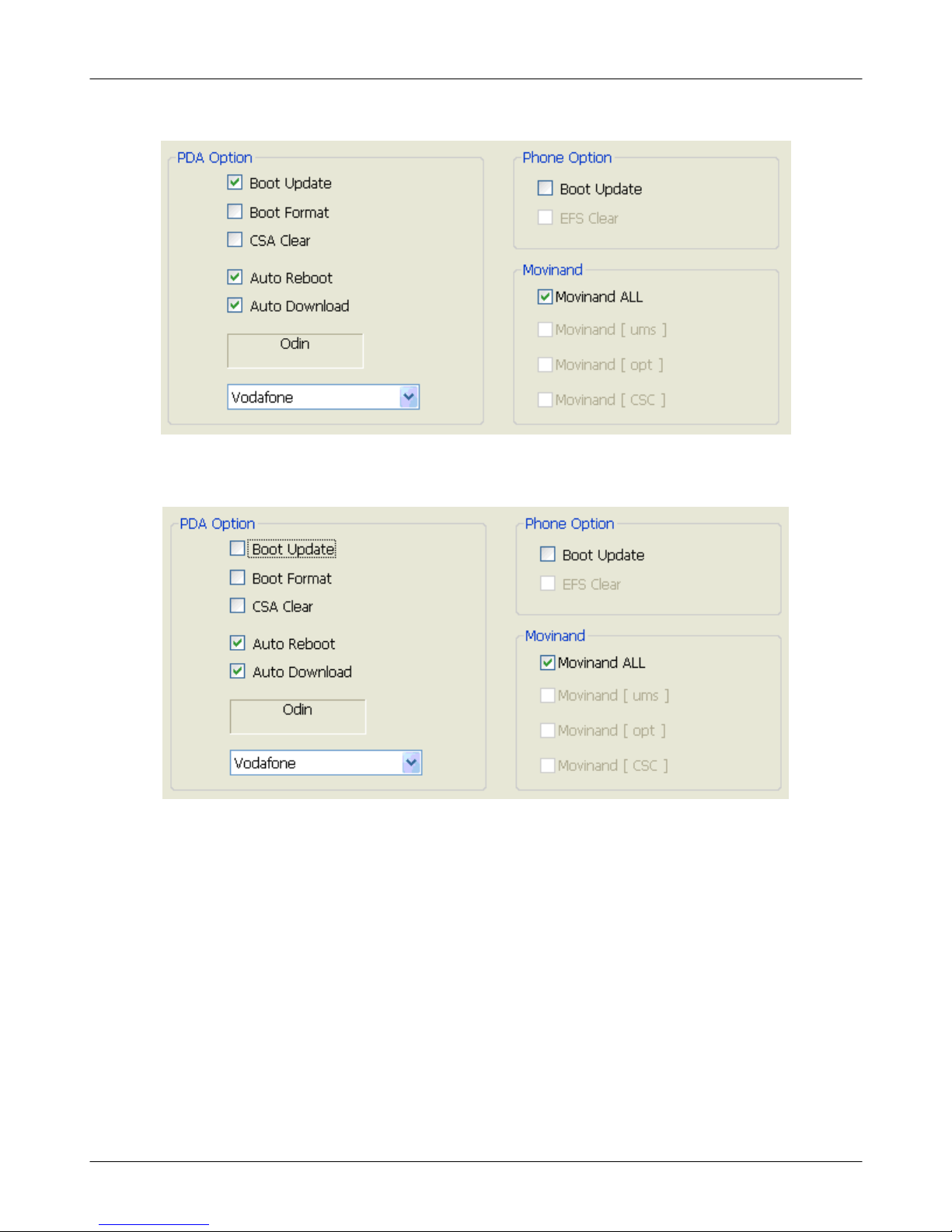

F. Download examples
▶Only the PDA Base Binary is downloaded. Or the PDA Base Binary and the Phone Binary are downl
oaded.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
▶Only the Phone binary is downloaded.
▶Only the PDA CSC Binary is downloaded. Or the Phone Binary and the PDA CSC Binary are downlo
aded.

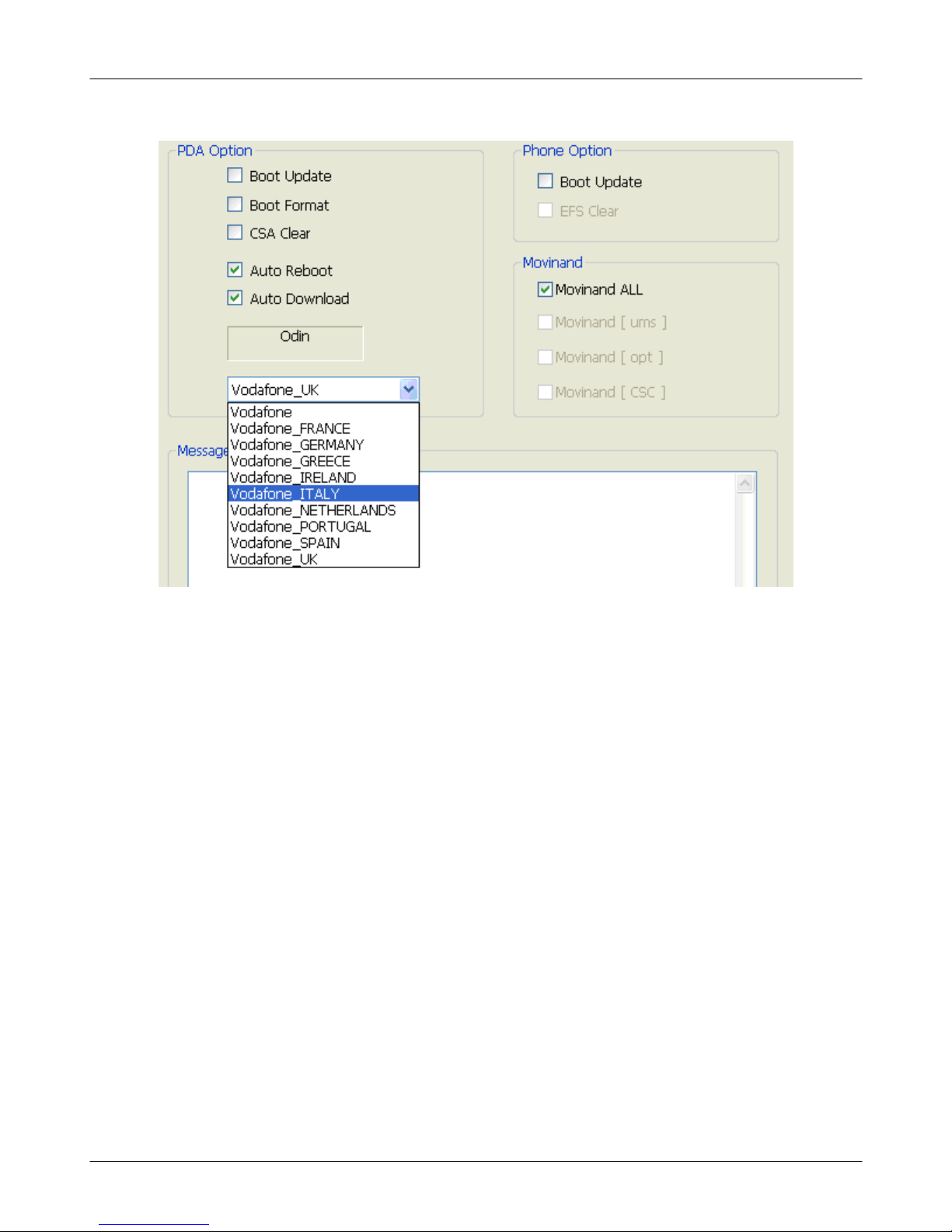

-Chose the country.
-If you want to change regional setting, only the PDA CSC Binary download is required without the
PDA Base Binary and Phone Binary download.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization

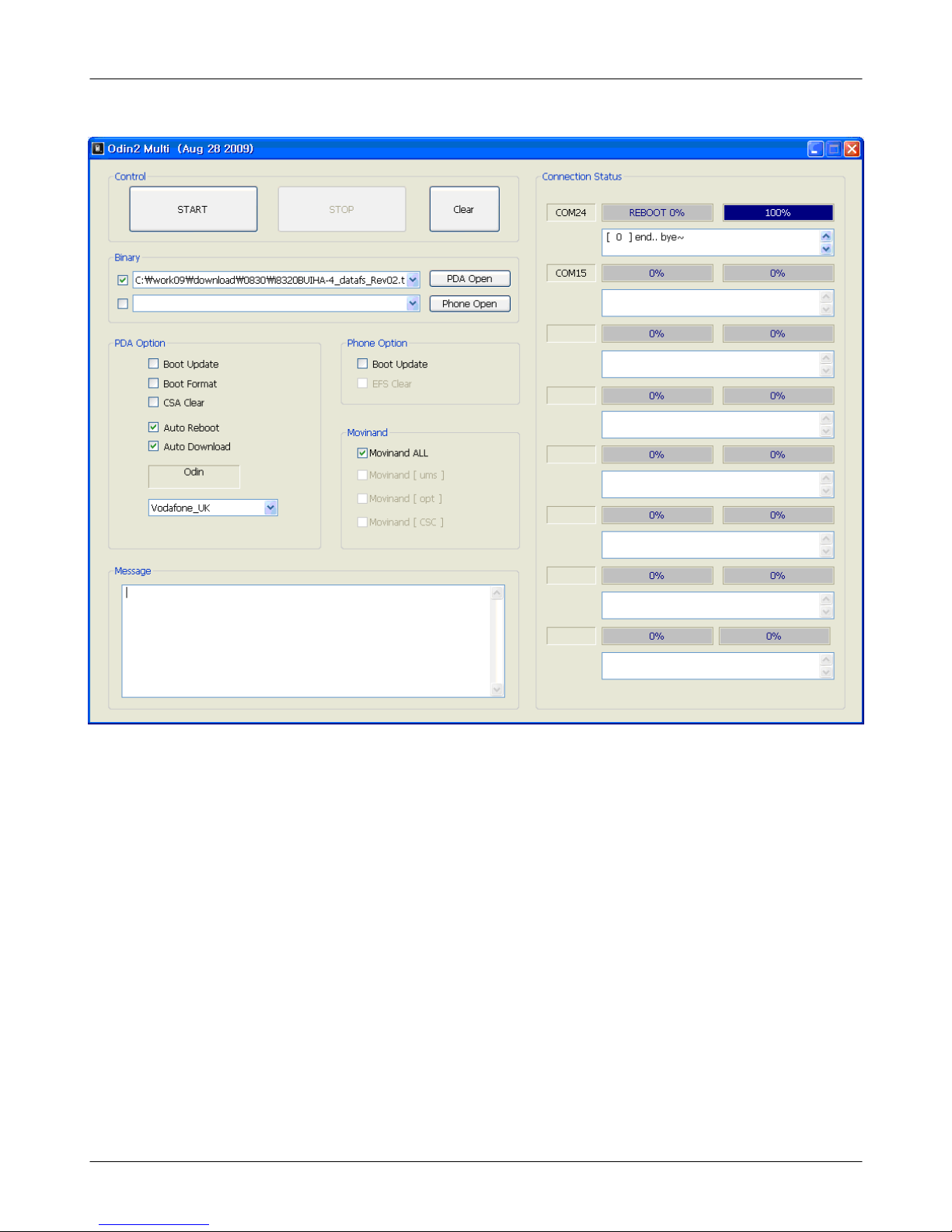

▶The PDA Base Binary, the PDA CSC Binary, and the Phone Binary are downloaded. Or the PDA Ba
se Binary and the PDA CSC Binary are downloaded.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
G. Click on the START Button on the downloader program.
▶If the Boot Format option is enabled, the downloader formats the partitions. While the downloader s
hows “FORMAT!!”message like above, be careful NOT to turn off the device during the period! If
for any reason the device gets turned off while “FORMAT!!”message shows, the device may get
damaged.
▶PDA Base Binary download (Screenshot #1: OneNAND download in progress)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-9
This Document can not be used without Samsung's authorization
▶PDA Base Binary download (Screenshot #2: MoviNAND download in progress)
▶Phone Binary download. While the downloader shows “Phone Update”message like above, be c
areful NOT to turn off the device during the period! If for any reason the device gets turned off
while “Phone Update”message shows, the device’s modem may get damaged.
▶PDA CSC Binary download
▶Download complete.
4-2-7. Downloading binaries to multiple devices
-. Connect multiple devices using USB hub follow the steps 4-2-4, 4-2-5
-. Maximum of 8devices can be connected and binaries can be downloaded simultaneously

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-10
This Document can not be used without Samsung's authorization
4-3. Trouble Shooting
4-3-1. “Port Open Failed”message or application hang

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-11
This Document can not be used without Samsung's authorization
FAfter you install “SAMSUNG Mobile USB Driver”, you may see the message “Port open failed…”
or the USB Downloader program hang while downloading abinary. If so, terminate the Downloade
rprogram and retry the download.
FIf USB port is changed, you may also see the message “Port open failed…” or the USB Downl
oader program hang. If so, terminate the Downloader program and retry the download.
FIf USB cable to the target device is not connected tightly, you may see the message “Port ope
nfailed…” or the USB Downloader hang. If so, terminate the Downloader program and then retry
the download.
FIf you always see “port open failed”message or the USB Downloader program hang,
1. Uninstall the “SAMSUNG Mobile USB DRIVER”
2. Restart your PC.
3. Install the “SAMSUNG Mobile USB DRIVER”.
4. Try the download again.
4-3-2. “Write Failed”message
FIf battery level is low, use charged battery and try again.
4-3-3. Downloading doesn’t start
FIf the USB port is not detected &downloading doesn’t start and displays the following screen, r
etry again and when the device is started, keep the PWR key pressed until the USB port is detect
ed &downloading begins.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QME00
QSH01
QCR54
QAN02
QCR03
QBC00
QVK02
QKP02
QCR03
QRE01
QFR01
QRF06
QME03
QLC01
QLB01
QCA01
QMO01
QCA02
QSK01
QSP01
QMP01
QCW01
QME01
QCK03
QCK01
QVO01
QMI03
QCK02

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-GT_I8320 MAIN GH42-02219A
QBC00 ASSY COVER-BATT GH98-14338A
QCA01 ASSY CAMERA-GT_I8320 5M GH96-04077A
QCA02 ASSY CAMERA-GT_I8320 VGA GH96-04039A
QCR03 SCREW-MACHINE 6001-001811
QCR54 SCREW-MACHINE 6001-001645
QKP02 ASSY KEYPAD-SUB GH98-14340A
QLB01 ASSY BRACKET-LCD GH98-14342A
QLC01 ASSY LCD-3.5" WVGA GT_I8320 AMOLED GH96-04021A
QME03 TOUCH/PANEL-GT_I8320 GH59-08398A
QMO01 MOTOR LINEAR VIBRATION-GTS8000 GH31-00475A
QMP01 A/S ASSY-GT_I8320 PBA MAIN GH82-04168A
QRF06 PMO COVER-USB GH72-55748A
QSH01 ASSY COVER-SHILED CAN GH98-14341A
QSK01 MODULE-SIM SOCKET+EARJACK(I8320) GH59-08296A
QSP01 MODULE-GT_I8320 SPK+RCV GH59-08275A
QVK02 KEY FPCB-GT_I8320 CAM KEY GH59-08135A
QME00 ASSY MODULE-GT_I8320 3DOME+MIC+BRAKET WGH96-04176B
QME01 KEY FPCB-3 DOME+MIC WHT(GT-I8320) GH59-08032B
QMI03 RMO RUBBER-MIC HOLDER GH73-13284A
QRE01 ASSY CASE-BAR REAR GH98-14337A
QCW01 PCT WINDOW-5G CAM GH72-55758A
QFR01 ASSY CASE-FRONT INTOPS GH98-15337A
QCK02 PMO KEY-POWER GH72-55750A
QCK03 PMO KEY-HOT GH72-55751A
QCK01 PMO KEY-CAMERA GH72-55752A
QVO01 PMO KEY-VOLUME GH72-55817A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC code Design Location Discription
0403-001547 D500 DIODE-ZENER
0404-001172 D501,D503,D700,D701 DIODE-SCHOTTKY
0406-001208 ZD900 DIODE-TVS
0406-001267 ZD600,ZD700,ZD701 DIODE-TVS
0406-001267 ZD702,ZD800,ZD801 DIODE-TVS
0406-001267 ZD802,ZD901,ZD902 DIODE-TVS
0406-001322 ZD703,ZD704,ZD803 DIODE-TVS
0406-001322 ZD804,ZD805 DIODE-TVS
0406-001369 D702 DIODE-TVS
0407-001007 D502 DIODE-ARRAY
0504-001113 Q501 TR-DIGITAL
0504-001140 TR700 TR-DIGITAL
0505-001165 Q500 FET-SILICON
0801-002345 U202 IC
0801-003016 U400,U505 IC
0801-003052 U401 IC
0801-003079 U504 IC
0801-003200 U403 IC
0801-003265 U402 IC
0902-002434 UCP1000 IC
1001-001461 U702 IC
1001-001488 U705 IC
1001-001585 U708 IC
1001-001593 U703 IC
1003-002047 U700 IC
1003-002276 U901 IC
1107-001889 UME1000 IC-FLASH MEMORY
1108-000260 UME400 MEMORY
1201-002733 U602 IC
1201-002830 U200 IC
1201-002889 PAM200 IC
1201-002890 PAM201 IC
1201-002971 U300 IC
1202-001068 U802 IC
1202-001088 U709 IC
1203-004319 U701 IC
1203-004607 U704 IC
