Samsung GT-E1310B User manual

GSM TELEPHONE
GT-E1310B
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning. Take specially care of tuning or test, because
specipicty of cellular phone is sensitive for surrounding interference(RF noise).
―Be careful to use akind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use astandard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an overcurrent
and furious flames of parts etc) when you repair board in condition of connecting Test Pack and
tuning on.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because arepair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM 900 DCS1800
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
ARFCN range 0~124 & 975~1023 512~885
Tx/Rx spacing 45MHz 95MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
Modulation 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 30dBm~0dBm
Power Class 4
(max +33dBm)
1
(max +30dBm)
Sensitivity -102dBm -100dBm
TDMA Mux 8 8
Cell Radius 35Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level GSM900
533±2
dBm
631±2
dBm
729±2
dBm
827±2
dBm
925±2
dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
•GSM/GPRS Function Support
•ARM926EJ-S Core
•S20 Pin TA
•No Java
•Dual Band(900/1800MHz)
•40
Poly Ringtone (Midi,AMR,MP3)
•Non Camera
•Phonebook 500 entry
•BT Support

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

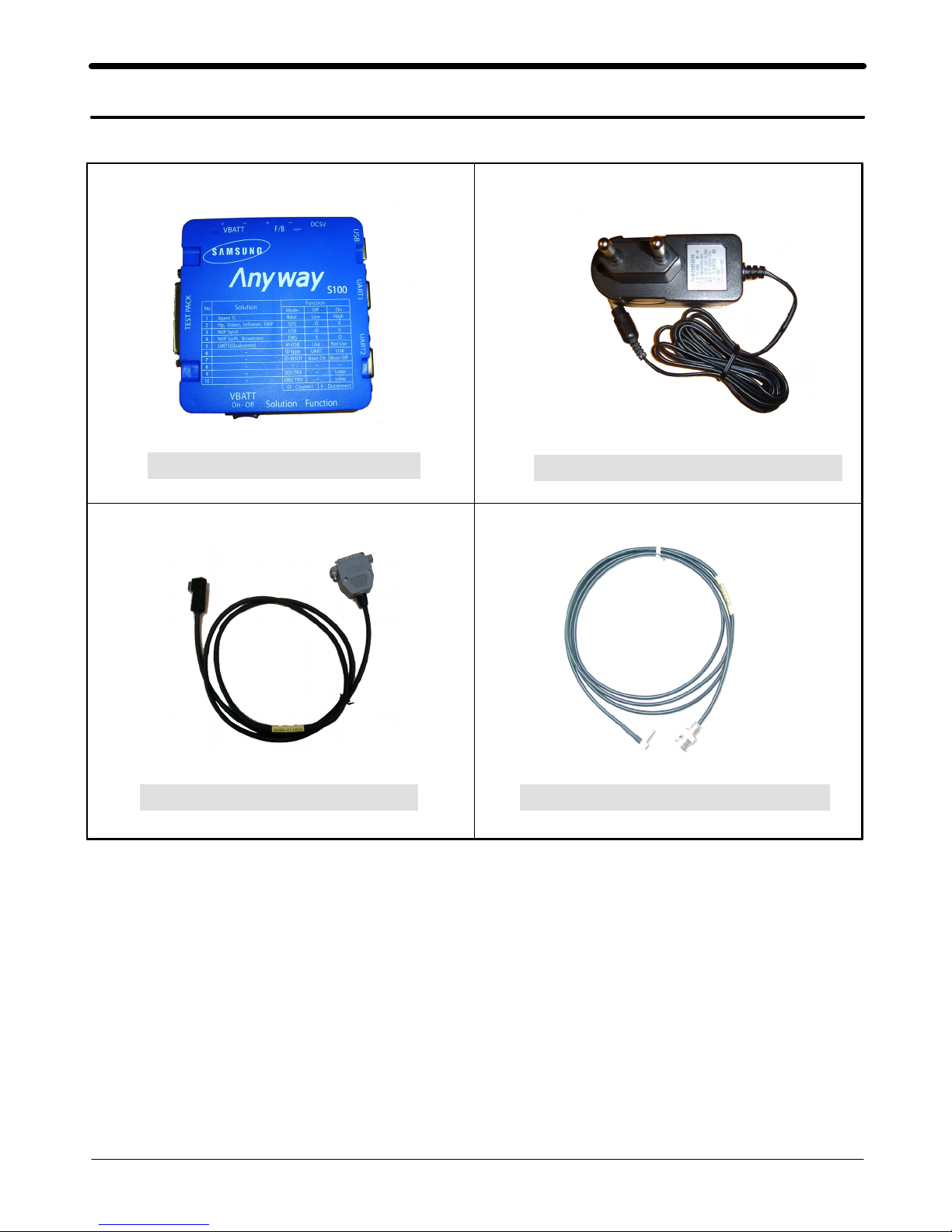

Test Jig (GH99-36900A)
4-1. Software Adjustments
Test Cable (GH39-01160A) RF Test Cable (GH39-00985A)
RF Test Cable (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
•2binary files for downloading E1310B
-E1310BXAIB2.cla
-E1310BXAIB2.tfs
4-2-2. Pre-requsite for Downloading
•Downloader Program(Gaia Downloader for SEC v04)
•GT-E1310B Mobile Phone
•JIG BOX
•Test Cable
•Serial Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1. Load the binary download program by executing the “Gaia Downloader for SEC v04”.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
2. Select the Port, Baud Rate and Mode.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
3. Select the binary fileswhat you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
4. Press the "Start" button and connect the Handset

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization
5P
ress the "Download" button.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization

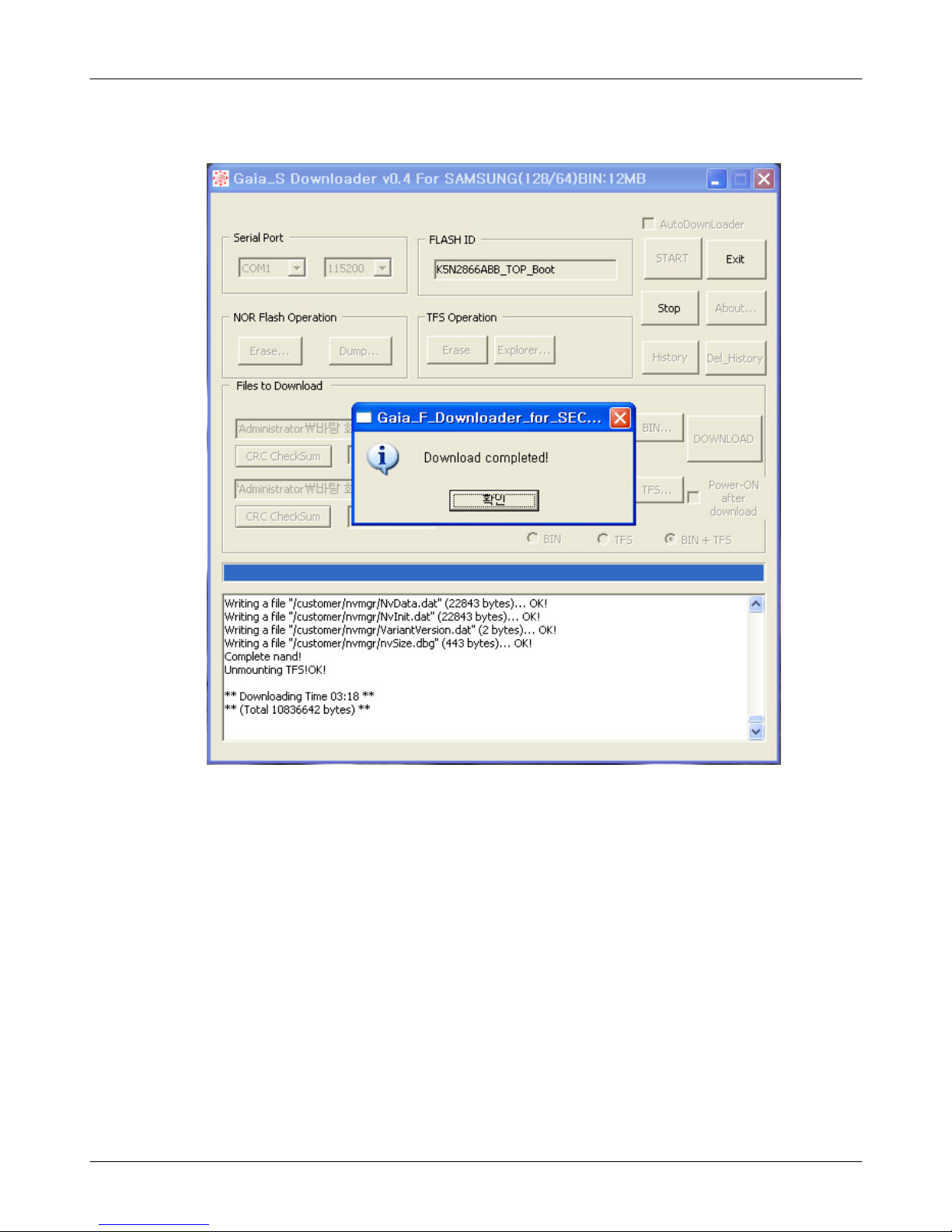

6. When downloading is complete, automatically the small window was showed up.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

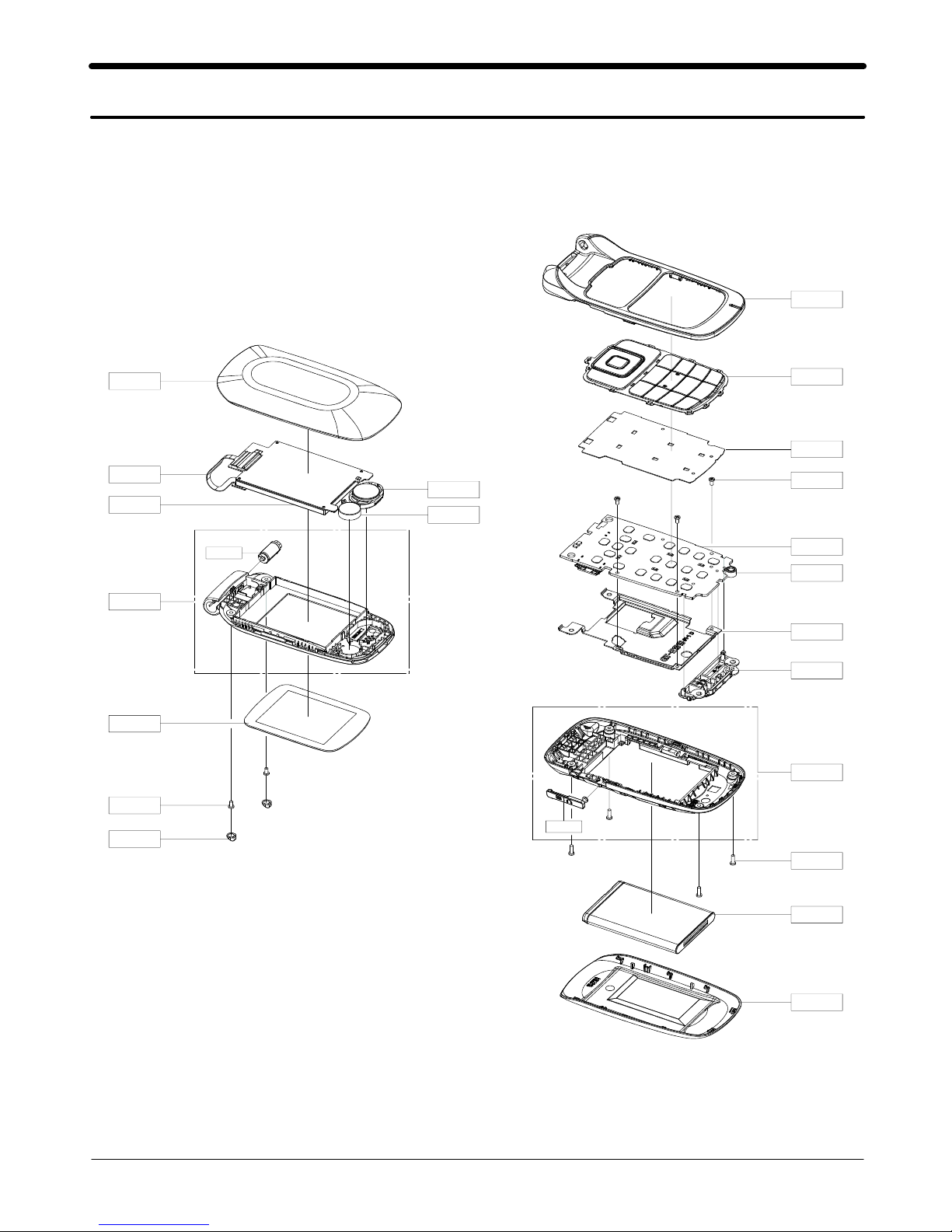

5-1. Cellular phone Exploded View
QFL01
QCR72
QSC01
QMW01
QPC01
QLC01
QFU01
QIF01
QHI01
QRE01
QMP01
QFR01
QKP01
QME01
QMI01
QSH01
QAN02
QCR60
QBA01
QBA00
QCR72
QMO01
QSP01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-GTE1310S GH42-01867A
QBA00 PMO COVER-BATT GH72-51346A
QBA01 INNER BATTERY PACK-800MAH,BLK,UNI,MAIN GH43-03241A
QCR60 SCREW-MACHINE 6001-002005
QCR72 SCREW-MACHINE 6001-002051
QFR01 ASSY CASE-FRONT(VODA) GH98-12415A
QFU01 ASSY CASE-FOLDER UPPER GH98-11165A
QKP01 ASSY KEYPAD-(BLACK/OPEN) GH98-11207A
QMW01 PMO WINDOW-MAIN GH72-53167A
QLC01 ELA ETC-GTE1310S LCD HOT BAR SVC GH96-03745A
QME01 DOME SHEET-GT-E1310S GH59-06739A
QMI01 MICROPHONE-ASSY-SGH-T109 GH30-00513A
QMO01 MOTOR DC-SGHS342I GH31-00119A
QMP01 ASSY PBA MAIN-GT_E1310B GH92-05525A
QPC01 UNIT-GTE1310 CON TO CON FPCB GH59-06731A
QSC01 PMO COVER-SCREW CAP LGH72-51347A
QSH01 IPR COVER-SHIELD GH70-04574A
QSP01 SPEAKER 3001-002482
QFL01 ASSY CASE-FOLDER LOWER GH98-11166A
QHI01 ASSY HINGE GH98-03190A
QRE01 ASSY CASE-REAR GH98-11168A
QIF01 PMO COVER-IF GH72-51345A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
0401-001141 D201,D202 1SS400G
0403-001547 ZD200 TDZ5.6
0406-001267 ZD300 RCLAMP0521P
0406-001288 D300,D301 PESD5V0S1UL
0406-001306 ZD301,ZD302 CM1219-05SE
0601-002591 LED400,LED401,LED402 WH104-LC
0601-002591 LED403,LED404,LED405 WH104-LC
1001-001546 U301STG5223QTR
1009-001037 U303 BU52031NVX
1108-000217 U202 K5N6433ABM-AD11
1201-002731 PAM100 SKY77534-11
1203-005498 U203 SUS6160MNTBG
1203-005512 U401 MIC5365-3.3YMT
1205-003322 U103E-STLC2500DTR
1205-003662 U201 PNX4902ET
1404-001221 TH200 NCP15WB473J04RC
1405-001082 VR301 VC040205X150R
2007-000138 R111,R308,R309,R315 RC1005J101CS
2007-000139 R303 RC1005J221CS
2007-000141 R300,R301,R304,R306 RC1005J222CS
2007-000143 R203,R204 RC1005J472CS
2007-000148 R201,R209 RC1005J103CS
2007-000157 R402 RC1005J473CS
2007-000162 R213 RC1005J104CS
2007-000171 R101 WR0402X000JT
2007-000172 R211,R305,R310,R320 RC1005J100CS
2007-000172 R321,R403 RC1005J100CS
2007-000173 R311,R316 RC1005J220CS
2007-001288 R108 MCR01MZP5J180
2007-001301 R210 MCR01MZP5J680
2007-001333 R214 MCR01MZP5J183
2007-007698 R207 RK73H1ETP5101F
2007-008500 R205 SR73H2BTDR100F
2203-000233 C228 GRP1555C1H101J
2203-000330 C320,C321 GRP1555C1H120J
2203-000386 C301,C304,C309 GRP1555C1H150J

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2203-000425 C117 GRP1555C1H180J
2203-000438 C200,C217 GRP155R71H102K
2203-000679 C308,C312,C313 GRP1555C1H270J
2203-000696 C130 GRP1555C1H2R0C
2203-000812 C110,C227,C402,C403 GRP1555C1H330J
2203-000812 C404,C405,C406,C407 GRP1555C1H330J
2203-000812 C408,C409,C414,C415 GRP1555C1H330J
2203-000812 C416,C417,C418,C419 GRP1555C1H330J
2203-000995 C107,C323 GRP1555C1H470J
2203-001072 C224,C225 GRP1555C1H560JD01E
2203-001153 C218,C219,C220,C221 GRP1555C1H680J
2203-002443 C131 GRP155R71H331KD01E
2203-002668 C105 C1005CG1H0R5BT
2203-002709 C201,C202,C203,C204 C1005Y5V1C104ZT
2203-002709 C212,C213,C226 C1005Y5V1C104ZT
2203-005057 C114 GRP1555C1H8R2CZ01E
2203-005281 C111,C112,C113,C115 GRP1555C1H1R5BZ01E
2203-005446 C100 GRP1555C1H2R7BZ01E
2203-006048 C232,C303,C306,C307 GRM155R71A104K
2203-006048 C311,C319 GRM155R71A104K
2203-006137 C223 CL05B223KONC
2203-006208 C206,C207 CM105X5R475M06AT
2203-006260 C120,C121,C123,C126 GRM155R61A224KE19E
2203-006260 C127,C128,C129 GRM155R61A224KE19E
2203-006348 C216,C325 CV105X5R105K25AT
2203-006399 C118,C205,C208,C209 GRM155R60J105KE19D
2203-006399 C210,C211,C400,C401 GRM155R60J105KE19D
2203-006399 C421 GRM155R60J105KE19D
2203-006562 C119,C314,C420 CV05X5R105K10AH
2203-006841 C222 CV05X5R105K16AH
2404-001377 TA201 F980J226MMA
2404-001381 TA100,TA200,TA202 F981A106MMA
2404-001414 TA300 TLJR336M006R3000
2703-001734 L102 LL1005-FH6N8J
2703-001990 L103 LL1005-FH22NJ
2703-002201 L301,L302 CIH05T33NJNC

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Description
2703-002203 L104 CIH05T15NJNC
2703-002269 L100 CIH05T56NJNC
2703-002365 L108 CIH05T1N2SNC
2703-003297 L201 CIG22L4R7MNE
2703-003476 L300 LQG15HSR27J02D
2801-003856 OSC200 MC-146(32.768KHz,20ppm)
2801-004805 OSC201 SQ3D02600C2LJA
2903-001394 F101 DEA202450BT-7112B1
2904-001792 F100 B9308
3301-001158 L202 BLM18PG300SN1D
3301-001812 L305 BLM15HD102SN1
3301-001885 L304,L306,L307,L309 BLM15HD182SN1D
3301-001885 L310 BLM15HD182SN1D
3301-001912 L303 BLM15BA220SN1D
3705-001503 RFS101 KMS-560
3709-001447 SIM200 5000-6P-1.9S
3710-002683 IFC300 HY20-AB0310
3711-005793 HDC400 14-5602-034-000-829
3711-006228 BTC200 2005-03-261A
4202-001463 ANT103 ODBTP3015
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

SAMSUNG Proprietary-Contents may change without notice
7. Block Diagrams
7-1
This Document can not be used without Samsung's authorization
7-1. RF Solution Block Diagram
e
l
u
d
o
M
x
T
M
S
A
L
A
U
D
)
S
C
D
,
M
S
G
(
A
N
L
A
N
L
A
N
L
A
N
L
D
I
GIT
A
L
F
I
L
T
E
R
RFR
X
Y
C
N
E
U
Q
E
R
F
+
O
C
V
R
E
Z
I
S
E
H
T
N
Y
S
T
E
D
O
X
C
D
0
9
/
0
D
S
P
A
G
P
A
G
P
I
C
D
A
Q
C
D
A
A
G
P
A
G
P
F
I
-
w
o
L
T
U
O
X
C
F
A
Q
I
l
a
t
s
y
r
C
a
n
n
e
t
n
A
x
T
M
S
G
E
x
T
S
C
D
