Samsung GT-S5200 User manual

GSM TELEPHONE
GT-S5200
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Disassembly and Assembly
Instructions
8. Block Diagrams
9. PCB Diagrams
10. Chart of Troubleshooting
11. Reference data
GSM TELEPHONE CONTENTS

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
GSM850 EGSM900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink 824-849 869-894 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 128-251 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80 MHz
Mod. Bit rate
/BitPeriod 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692 us
Time Slot Period
/ Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9 us 4.615 ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5~19(class4) 5~19(class4) 0~15(class1) 0~15(class1)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMAMux8888
Cell Radius 35Km 35Km 2Km 2 Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level DCS1800 PCS1900
030±3
dBm 30±3 dBm
128±3
dBm 28±3 dBm
226±3
dBm 26±3 dBm
324±3
dBm 24±3 dBm
422±3
dBm 22±3 dBm
520±3
dBm 20±3 dBm
618±3
dBm 18±3 dBm
716±3
dBm 16±3 dBm
814±3
dBm 14±3 dBm
912±4
dBm 12±4 dBm
10 10±4 dBm 10±4 dBm
11 8±4dBm 8±4dBm
12 6±4 dBm 6±4 dBm
13 4±4 dBm 4±4 dBm
14 2±5 dBm 2±5 dBm
15 0±5 dBm 0±5 dBm
TX Power
control level GSM850 GSM900
533±2
dBm 33±2 dBm
631±2
dBm 31±2 dBm
729±2
dBm 29±2 dBm
827±2
dBm 27±2 dBm
925±2
dBm 25±2 dBm
10 23±2 dBm 23±2 dBm
11 21±2 dBm 21±2 dBm
12 19±2 dBm 19±2 dBm
13 17±2 dBm 17±2 dBm
14 15±2 dBm 15±2 dBm
15 13±2 dBm 13±2 dBm
16 11±3 dBm 11±3 dBm
17 9±3 dBm 9±3 dBm
18 7±3 dBm 7±3 dBm
19 5±3 dBm 5±3 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Operation Instruction and Installation
3-1
This Document can not be used without Samsung's authorization
Main Function
-Quad Band (GSM850+EGSM900+DCS1800+PCS1900)
-GPRS Rx/Tx, EDGE Rx/Tx
-FM Radio
-Bluetooth v2.1
-TFT LCD 2.2" QVGA 262K Color
-3MAF Camera
-Music Player(MP3, AAC, AAC+, eAAC+)
-MicroSD

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Test Cable (GH39-01160A)
Test Jig (GH99-36900A)
RF Test Cable (GH39-00985A) Adapter (GH99-38251A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1 Downloading Binary Files
•2binary files for downloading GT-S5200C
-S5200XIID3_CLA
-S5200XIID3_TFS
4-2-2. Pre-request for Downloading
•Downloader Program(OneNAND Downloader V1.2 Lite for PNX6517)
•GT-S5200C Mobile Phone
•JIG Box
•Test Cable
•Serial Cable
•Binary file, TFS file

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1.Load the binary download program by executing the OneNAND Downloader V1.6
Lite for PNX6517

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
2.Select the Port, Baud Rate and Mode

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

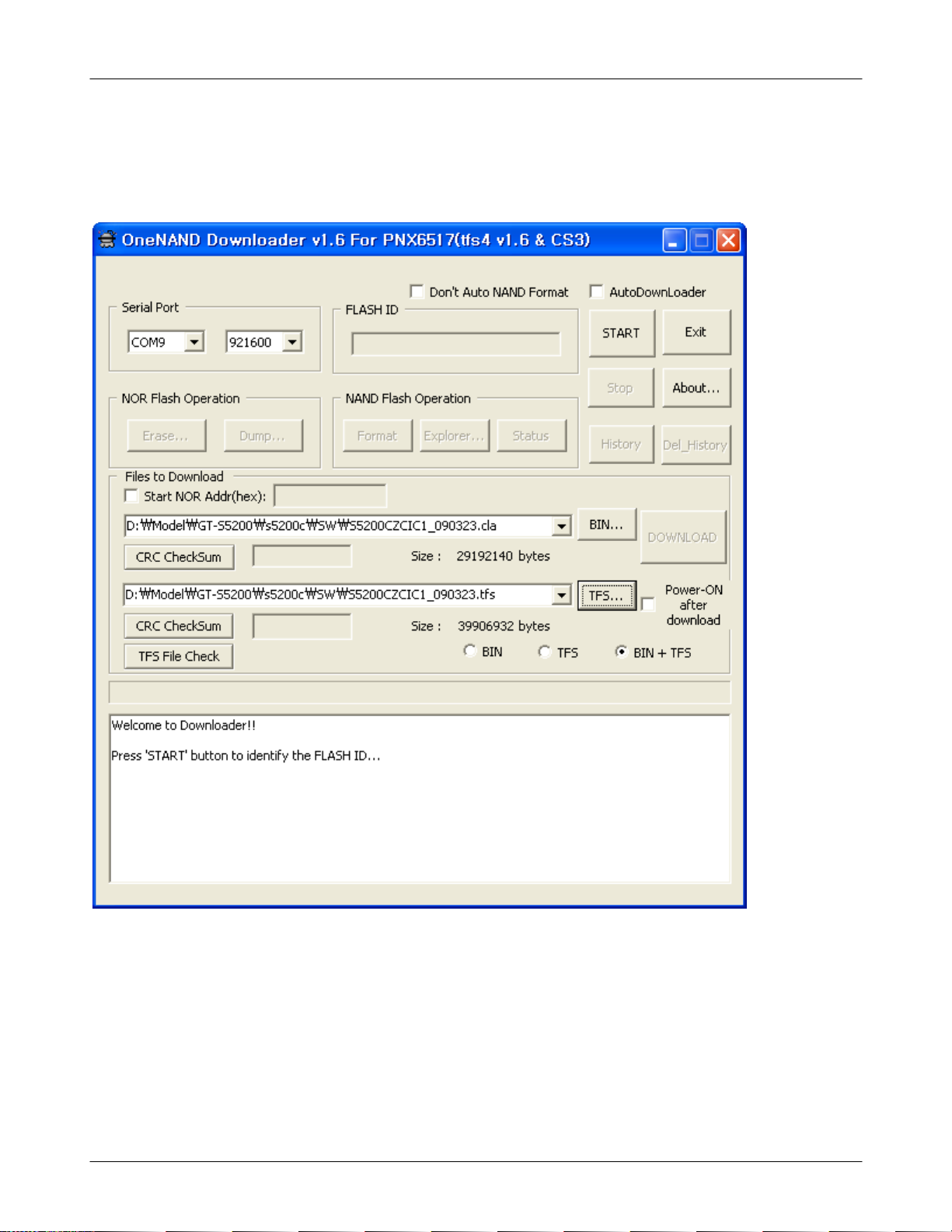

3.Select the file(s) what you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

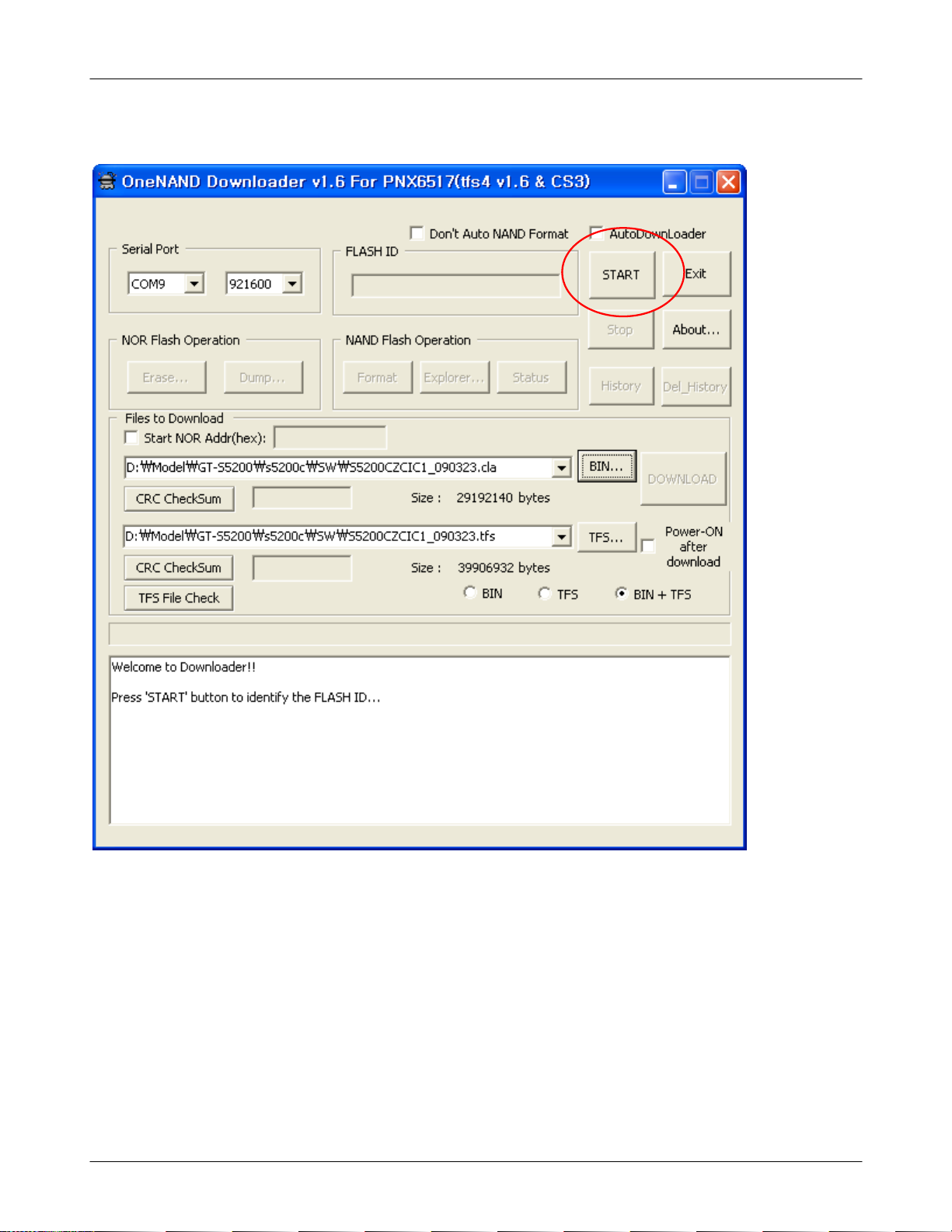

4.Press the "Start" button and connect the Handset

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-7
This Document can not be used without Samsung's authorization

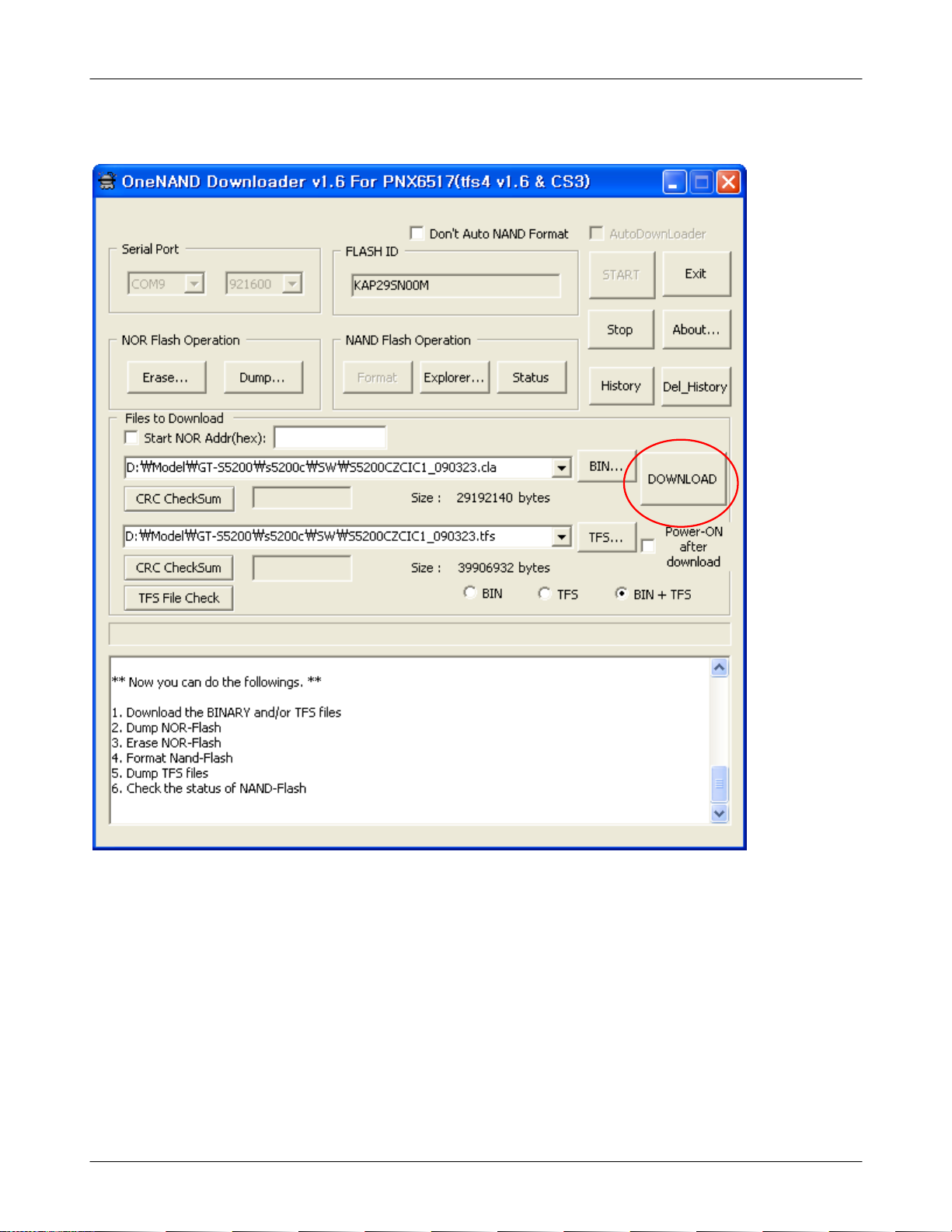

5.Press the "Download" button.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-8
This Document can not be used without Samsung's authorization
6.When downloading is complete, automatically the small window was showed up.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

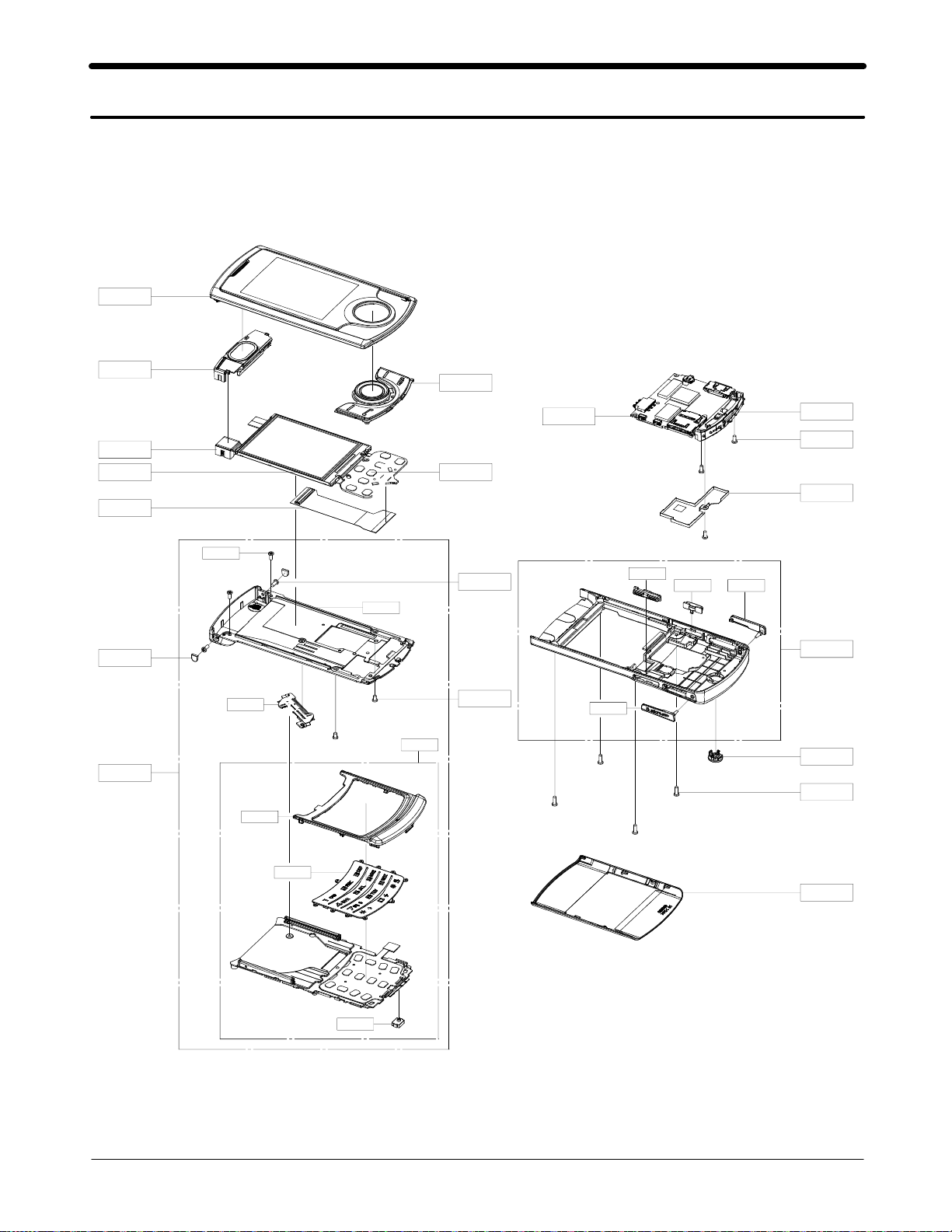

5-1. Cellular phone Exploded View
QFL00
QFU01
QSP01
QMP01
QCA01
QLC01
QPC01
QSC01 QRE01
QAN02
QSH01
QCR05
QRF01
QCR60
QBA00
QKP02
QME02
QCR47
QCR03
QFL01
QHI01
QCR03
QFR04
QKP01
QMI03
QSD01
QFR01
QVO01 QCK01 QIF01

Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QCR03 SCREW-MACHINE 6001-001811
QCR05 SCREW-MACHINE 6001-001478
QCR47 SCREW-MACHINE 6001-001695
QCR60 SCREW-MACHINE 6001-002005
QFU01 ASSY CASE-UPPER GH98-12457A
QKP02 ASSY KEYPAD-SUB(OPEN/BLU) GH98-12464A
QLC01 LCD-2.2'' QVGA GH07-01436A
QME02 DOME SHEET-GT-S5200 SUB 9KEY GH59-07099A
QMP01 A/S ASSY-PBA MAIN,GT_S5200,CIT,EU(SVC) GH82-03780A
QPC01 ASSY ETC-SLIDE FPCB(GT-S5200) GH59-07060A
QRF01 PMO COVER-RF GH72-53104A
QSC01 TAPE-SCREW CAP GH74-44383A
QSH01 ICT SHIELD-CAN GH70-04940A
QSP01 MODULE-SPK/MOT MODULE(GT-S5200) GH59-07093A
QRE01 ASSY CASE-REAR GH98-12456A
QIF01 PMO COVER-IF GH72-53106A
QSD01 PMO COVER-SD GH72-53107A
QCK01 PMO KEY-CAMERA GH72-53112A
QVO01 PMO KEY-VOLUME GH72-53113A
QFL00 ASSY CASE-SLIDE GH98-12460A
QHI01 ASSY HINGE-ACTUATOR GH98-12122A
QFL01 ASSY CASE-LOWER GH98-12461A
QFR01 ASSY CASE-FRONT GH98-12459A
QMI03 ASSY RUBBER-MIC HOLDER GH98-13556A
QFR04 ASSY CASE-FRONT BUSH GH98-13691A
QKP01 ASSY KEYPAD-MAIN(OPEN/BLU) GH98-12463A
QCR03 SCREW-MACHINE 6001-001811
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOD Discription
0202-001602 R100 SOLDER-CREAM
0202-001602 R300 SOLDER-CREAM
0202-001602 R313 SOLDER-CREAM
0202-001602 R400 SOLDER-CREAM
0202-001602 R408 SOLDER-CREAM
0403-001749 ZD500 DIODE-ZENER
0403-001749 ZD502 DIODE-ZENER
0406-001286 ZD400 DIODE-TVS
0406-001286 ZD501 DIODE-TVS
0406-001288 ZD200 DIODE-TVS
0406-001288 ZD201 DIODE-TVS
0406-001288 ZD404 DIODE-TVS
0406-001288 ZD405 DIODE-TVS
0406-001288 ZD503 DIODE-TVS
0406-001288 ZD504 DIODE-TVS
0406-001288 ZD505 DIODE-TVS
0406-001305 F401 DIODE-TVS
0406-001361 ZD402 DIODE-TVS
1009-001035 U302 IC-HALL EFFECT S/W
1108-000268 UME200 IC-MCP
1201-002773 PAM100 IC-POWER AMP
1203-004857 U500 IC-DC/DC CONVERTER
1203-005512 U301 IC-POSI.FIXED REG
1203-005728 U300 IC-POWER SUPERVISOR
1204-003020 U400 IC-DEMODULATOR
1205-003517 U101 IC-BLUETOOTH
1205-003653 UCP200 IC-MODEM
1205-003696 U100 IC-TRANSCEIVER
1404-001221 VR500 THERMISTOR-NTC
2007-000140 R207 R-CHIP
2007-000141 R309 R-CHIP
2007-000143 R401 R-CHIP
2007-000143 R409 R-CHIP
2007-000148 R310 R-CHIP
2007-000148 R500 R-CHIP
2007-000149 R206 R-CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOD Discription
2007-000152 R501 R-CHIP
2007-000157 R402 R-CHIP
2007-000157 R403 R-CHIP
2007-000157 R404 R-CHIP
2007-000157 R405 R-CHIP
2007-000157 R406 R-CHIP
2007-000160 R107 R-CHIP
2007-000162 R502 R-CHIP
2007-000162 R503 R-CHIP
2007-000166 R413 R-CHIP
2007-000170 R414 R-CHIP
2007-000170 R415 R-CHIP
2007-000172 R103 R-CHIP
2007-000172 R311 R-CHIP
2007-000172 R312 R-CHIP
2007-000242 R416 R-CHIP
2007-000242 R420 R-CHIP
2007-000758 R504 R-CHIP
2007-001292 R307 R-CHIP
2007-001292 R308 R-CHIP
2007-001319 R201 R-CHIP
2007-001319 R202 R-CHIP
2007-001333 R317 R-CHIP
2007-001333 R318 R-CHIP
2007-001333 R411 R-CHIP
2007-002796 R417 R-CHIP
2007-003015 R105 R-CHIP
2007-007573 R303 R-CHIP
2007-007589 R505 R-CHIP
2007-007875 R316 R-CHIP
2007-007981 R315 R-CHIP
2007-008354 C504 R-CHIP
2007-008354 R304 R-CHIP
2203-000233 C106 C-CER,CHIP
2203-000233 C418 C-CER,CHIP
2203-000254 C135 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOD Discription
2203-000278 C411 C-CER,CHIP
2203-000311 C336 C-CER,CHIP
2203-000311 C413 C-CER,CHIP
2203-000386 C127 C-CER,CHIP
2203-000438 C130 C-CER,CHIP
2203-000438 C401 C-CER,CHIP
2203-000438 C402 C-CER,CHIP
2203-000466 C101 C-CER,CHIP
2203-000627 C134 C-CER,CHIP
2203-000627 C328 C-CER,CHIP
2203-000627 C331 C-CER,CHIP
2203-000812 C114 C-CER,CHIP
2203-000995 C137 C-CER,CHIP
2203-000995 C316 C-CER,CHIP
2203-000995 C342 C-CER,CHIP
2203-000995 C407 C-CER,CHIP
2203-000995 C414 C-CER,CHIP
2203-001221 C124 C-CER,CHIP
2203-005050 C107 C-CER,CHIP
2203-005050 C108 C-CER,CHIP
2203-005050 C117 C-CER,CHIP
2203-005050 C118 C-CER,CHIP
2203-005052 C112 C-CER,CHIP
2203-005053 C146 C-CER,CHIP
2203-005057 C416 C-CER,CHIP
2203-005281 C139 C-CER,CHIP
2203-005281 C140 C-CER,CHIP
2203-005395 C122 C-CER,CHIP
2203-005444 C136 C-CER,CHIP
2203-005481 C409 C-CER,CHIP
2203-005481 C412 C-CER,CHIP
2203-005482 C207 C-CER,CHIP
2203-005482 C211 C-CER,CHIP
2203-005482 C312 C-CER,CHIP
2203-005483 C217 C-CER,CHIP
2203-005552 C110 C-CER,CHIP

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
SEC CODE Design LOD Discription
2203-005552 C113 C-CER,CHIP
2203-005552 C119 C-CER,CHIP
2203-005552 C120 C-CER,CHIP
2203-006048 C138 C-CER,CHIP
2203-006048 C203 C-CER,CHIP
2203-006048 C205 C-CER,CHIP
2203-006048 C210 C-CER,CHIP
2203-006048 C213 C-CER,CHIP
2203-006048 C220 C-CER,CHIP
2203-006048 C315 C-CER,CHIP
2203-006048 C324 C-CER,CHIP
2203-006048 C329 C-CER,CHIP
2203-006048 C341 C-CER,CHIP
2203-006048 C343 C-CER,CHIP
2203-006048 C404 C-CER,CHIP
2203-006048 C408 C-CER,CHIP
2203-006048 C410 C-CER,CHIP
2203-006048 C415 C-CER,CHIP
2203-006048 C501 C-CER,CHIP
2203-006137 C123 C-CER,CHIP
2203-006137 C144 C-CER,CHIP
2203-006201 C301 C-CER,CHIP
2203-006208 C332 C-CER,CHIP
2203-006208 C333 C-CER,CHIP
2203-006208 C334 C-CER,CHIP
2203-006208 C335 C-CER,CHIP
2203-006257 C405 C-CER,CHIP
2203-006257 C406 C-CER,CHIP
2203-006260 C317 C-CER,CHIP
2203-006260 C318 C-CER,CHIP
2203-006260 C321 C-CER,CHIP
2203-006260 C322 C-CER,CHIP
2203-006324 C502 C-CER,CHIP
2203-006348 C337 C-CER,CHIP
2203-006399 C129 C-CER,CHIP
2203-006399 C132 C-CER,CHIP
