Samsung GT-S5330 User manual

GSM ٛٛٛٛٛٛٛٛ
GT-S5330(S5333/S5330L Common)
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1Repair

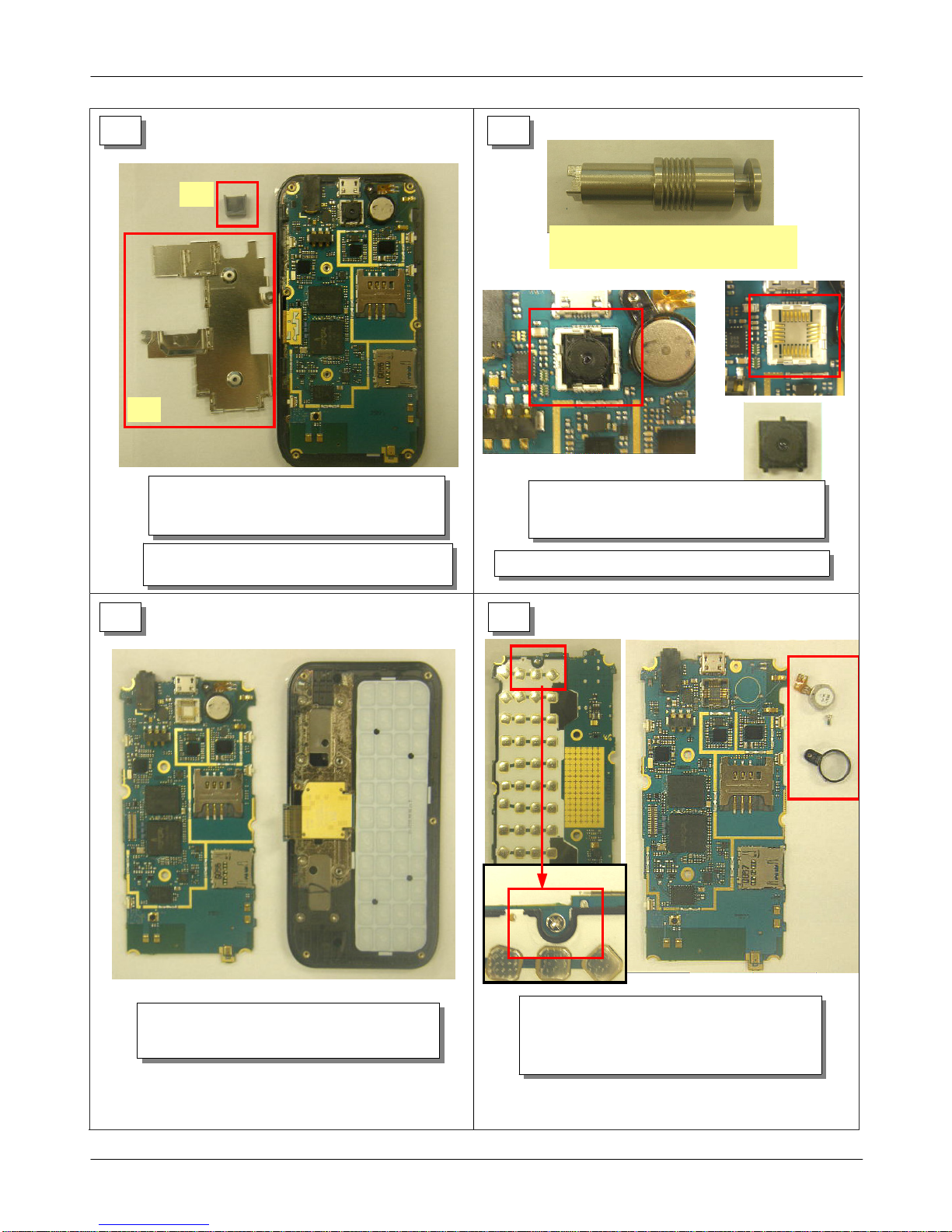

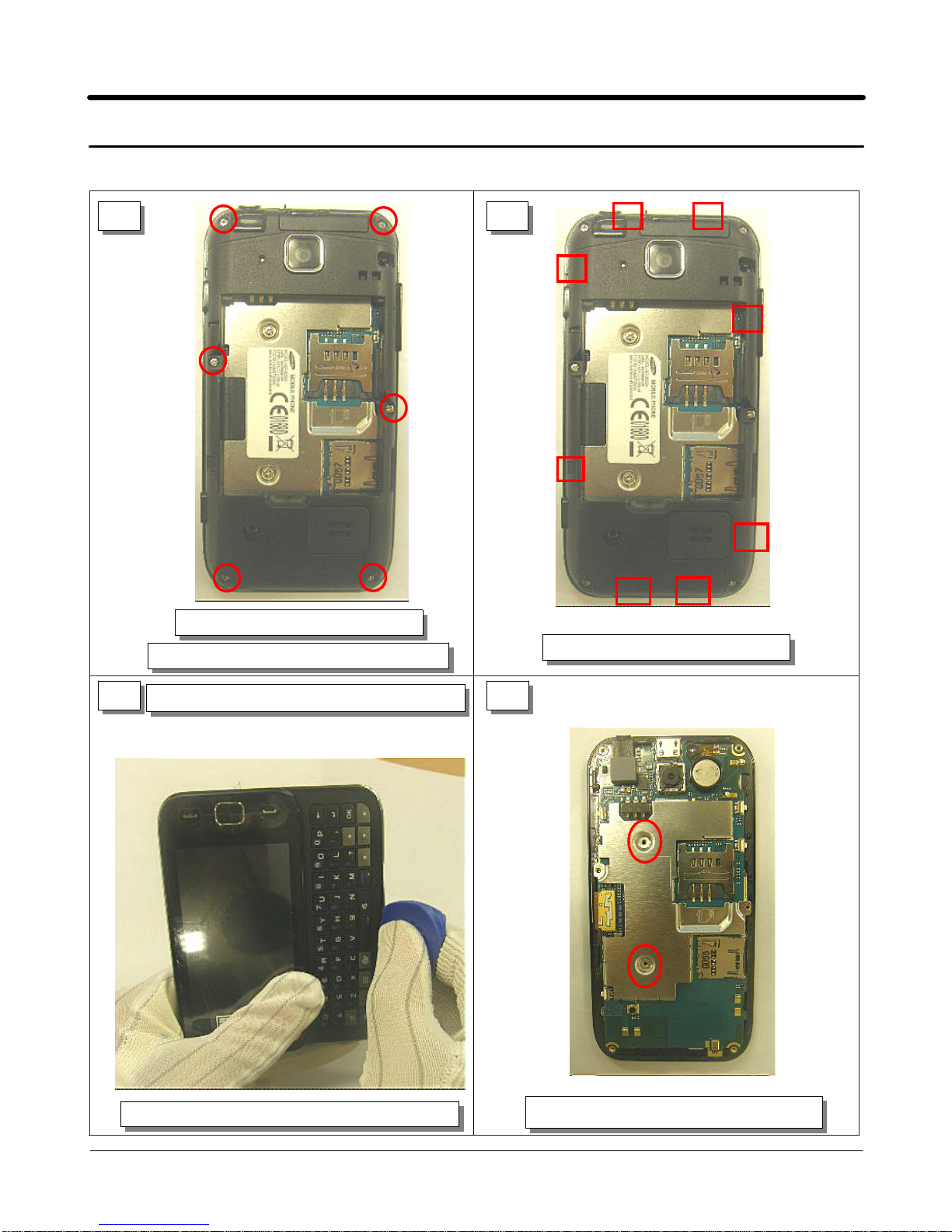

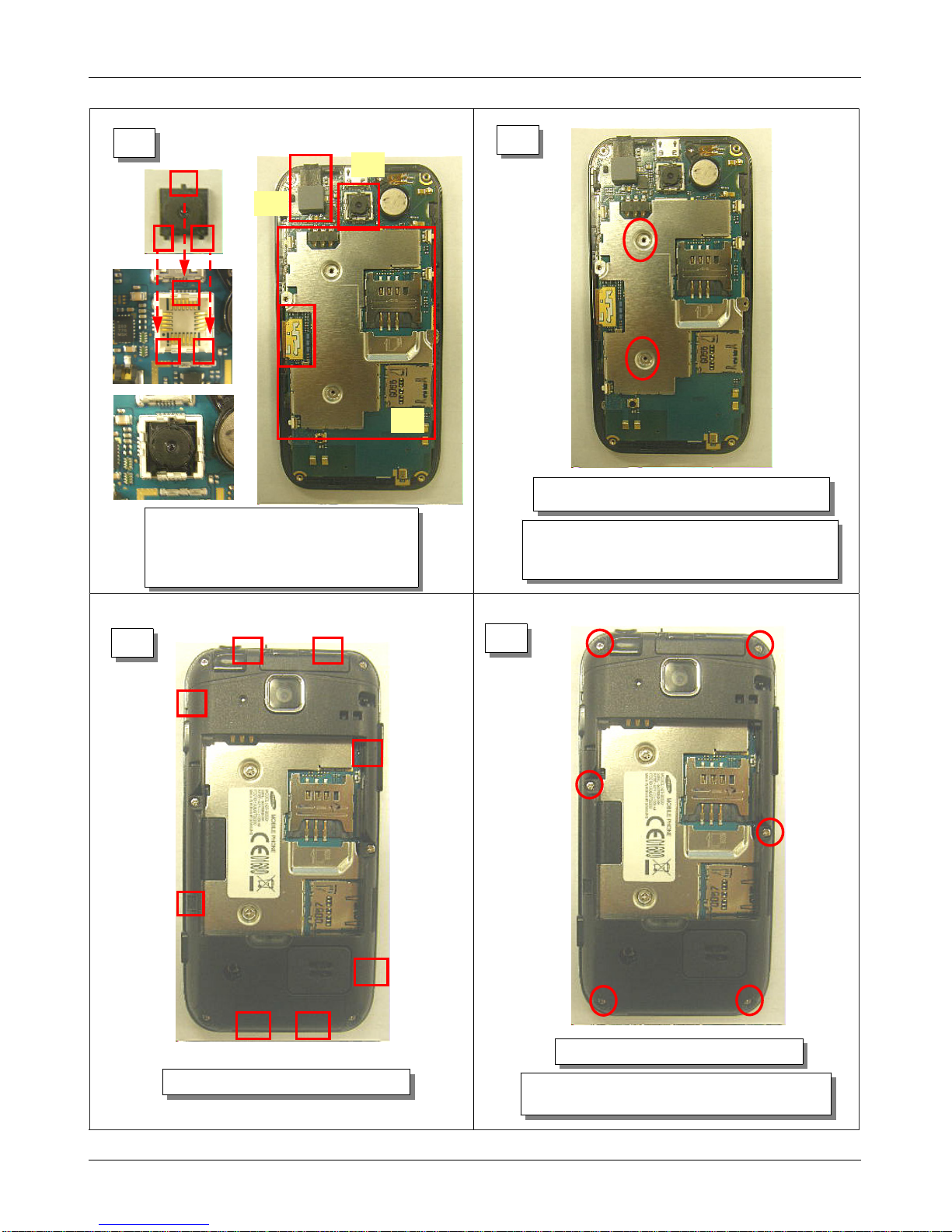

7. Disassembly and Assembly
Instructions
8. Chart of Troubleshooting
9. Reference data
Notice :
All functionality, features, specifications and other
product information provided in this document inclu
ding, but not limited to, the benefits, design, pricing,
components, performance, availability, and capabiliti
-es of the product are subject to change without
notice or obligation. Samsung reserves the right to
make changes to this document and the product
described herein, at anytime, without obligation on
Samsung to provide notification of such change.
GSM TELEPHONE CONTENTS

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2010. 09. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
4. Exploded View and Parts List
4-1
This Document can not be used without Samsung's authorization
4-1. Cellular phone Exploded View
QFU01
QCR03
QCA01
QMO01
QBR06
QAR01
QLC01
QPC01
QFL01
QCR12
QME03
QCK02
QRE01
QCR72
QBC00
QKP02
QME02
QFR01
QCR97
QKP01
QMP01
QSP01
QCR72
QME01
QVO01
QCK01
QRF06
QMI03

SAMSUNG Proprietary-Contents may change without notice
5. MAIN Electrical Parts List
5-1
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
D601 0403-001688 USFZ5.6V-RTK/H
D200,D500 0404-001172 RB520S-30
ZD102,ZD103 0404-001504 JDH2S01FS
ZD402,ZD403,ZD404 0406-001231 DF2S5.6FS(TPL3)
ZD406,ZD600,ZD602 0406-001231 DF2S5.6FS(TPL3)
ZD603 0406-001231 DF2S5.6FS(TPL3)
ZD400,ZD500,ZD604 0406-001286 PESD5V0L5UV
D401 0407-001002 DAN222TL
LED600,LED601,LED602 0601-002233 SSC-SWTS1007-J3E
LED603 0601-002233 SSC-SWTS1007-J3E
U600 0801-002970 TC7SH08FS
U200 0801-003130 NC7SV17L6X
U603 1001-001585 SC900776EDR2
U100 1001-001607 XM2400SN-AL0901
U402 1001-001655 NX3L1T5157GM
U104,U105 1001-001664 FSA2466UMX
U504 1009-001036 HED59XXU12
UME200 1108-000353 KAT007029M-BRTT
PAM100 1201-002943 SKY77528-32
U500 1203-006331 KTD259BEHD-TR
U604 1203-006456 STM6522AAAADG6F
U300 1203-006468 MAX8990EWG+TC31
U605 1205-003623 STMPE1601TBR
U103 1205-003866 BCM2075B0KUBG
U101 1205-003868 BCM4319SKUBG
UCP200 1205-004046 BCM21334C3IFBG
U404 1209-001817 BMA023
VR200 1404-001221 NCP15WB473J04RC
D400 1405-001291 LXES15AAA1-017
L406,R128,R129,R620 2007-000138 RC1005J101CS
R127,R213 2007-000139 RC1005J221CS
R133 2007-000140 RC1005J102CS
R203,R204,R217,R218 2007-000141 RC1005J222CS
R406,R407 2007-000141 RC1005J222CS
R200,R500,R600,R601 2007-000143 RC1005J472CS
R604,R605 2007-000143 RC1005J472CS
R209,R210,R212,R219 2007-000144 RC1005J512CS
L402,R308,R606,R607 2007-000148 RC1005J103CS

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
R619 2007-000156 RC1005J303CS
R118,R124,R125,R126 2007-000162 RC1005J104CS
R206,R214,R225,R226 2007-000162 RC1005J104CS
R227,R228,R229,R611 2007-000162 RC1005J104CS
R612 2007-000162 RC1005J104CS
R307 2007-000170 RC1005J105CS
R502 2007-000172 RC1005J100CS
R410 2007-000242 RC1005J152CS
R301,R302 2007-001288 MCR01MZP5J180
R221 2007-001311 RC1005J271CS
R401 2007-001341 RC1005J684CS
R409 2007-002796 MCR01MZP5J511
R614,R615,R616,R617 2007-002965 RK73K1ETP150J
R100,R101 2007-003018 RMC16S-430J-TP
R116,R123 2007-007132 RC1005F153CS
L201,R413,R414 2007-007193 TSR16GJ5R1V
R215 2007-007312 MCR01MZP5F2002
R216 2007-007315 MCR01MZP5F3901
R201,R202 2007-007981 ERJ2RKF1803X
R205 2007-008401 RC1005F754CS
R207 2007-008517 RC1005F2403CS
C172,C233,C617 2203-000233 GRP1555C1H101J
C155,C224,C232 2203-000254 GRP155R71C103K
C112,C130,C163,C167 2203-000278 GRP1555C1H100D
C170,C178 2203-000278 GRP1555C1H100D
C185,L139,L140 2203-000311 GRP1555C1H121JD01E
C221 2203-000425 GRP1555C1H180J
C160,C169 2203-000438 GRP155R71H102K
C303,C305 2203-000550 GRP1555C1H200JZ01E
C403,C415 2203-000679 GRP1555C1H270J
C106 2203-000696 GRP1555C1H2R0C
C512,C513 2203-000812 GRP1555C1H330J
C201 2203-000854 GRP1555C1H390J
C207,C218,C230 2203-000995 GRP1555C1H470J
C103 2203-001072 GRP1555C1H560JD01E
C225,C401,C402 2203-001101 GRP155R71E682KA01E
C183 2203-001221 GRP155R71H821KD01E
C400,C404 2203-002443 GRP155R71H331KD01E

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-3
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C604 2203-002487 CL05B472KA5NNNC
C157,C184,C318,C413 2203-002709 C1005Y5V1C104ZT
C504,C505,C601 2203-002709 C1005Y5V1C104ZT
C150,C177 2203-005450 GRP1555C1H5R6BZ01E
C182 2203-005552 GRP1555C1H2R2BZ01E
C122,C123,C127,C164 2203-006048 GRM155R71A104K
C165,C175,C176,C203 2203-006048 GRM155R71A104K
C210,C212,C213,C214 2203-006048 GRM155R71A104K
C215,C219,C220,C315 2203-006048 GRM155R71A104K
C317,C609,C616 2203-006048 GRM155R71A104K
C603 2203-006141 GRM188R61C105K
C228 2203-006208 CM105X5R475M06AT
C135,C136,C158,C235 2203-006260 GRM155R61A224KE19E
C310,C311 2203-006260 GRM155R61A224KE19E
C606,C610 2203-006361 GRM21BR61A106K
C145,C147,C200,C202 2203-006399 GRM155R60J105KE19D
C204,C209,C211,C304 2203-006399 GRM155R60J105KE19D
C316,C319,C321,C324 2203-006399 GRM155R60J105KE19D
C325,C326,C327,C328 2203-006399 GRM155R60J105KE19D
C329,C336,C339,C342 2203-006399 GRM155R60J105KE19D
C345,C346,C405,C503 2203-006399 GRM155R60J105KE19D
C509,C510,C511,C614 2203-006399 GRM155R60J105KE19D
C500 2203-006466 GRM188F51E474ZA01D
C133,C302,C330,C408 2203-006562 CV05X5R105K10AH
C410,C411,C412,C416 2203-006562 CV05X5R105K10AH
C417,C605 2203-006562 CV05X5R105K10AH
C216,C217,C227,C229 2203-006681 GRM155F51E104ZA01D
C419 2203-006681 GRM155F51E104ZA01D
C502 2203-006824 CV105X5R475K10AT
C234,C314,C602 2203-006841 CV05X5R105K16AH
R613 2203-006844 CV05X5R474K10AH
C121,C126,C128,C129 2203-006872 GRM155R60J225ME15D
C131,C132,C153,C156 2203-006872 GRM155R60J225ME15D
C168,C181,C205,C206 2203-006872 GRM155R60J225ME15D
C208,C222,C223,C226 2203-006872 GRM155R60J225ME15D
C322,C323,C331,C332 2203-006872 GRM155R60J225ME15D
C333,C334 2203-006872 GRM155R60J225ME15D
C312,C313,C335 2203-006890 CV105X5R106M06AT

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-4
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
C159 2203-007133 CL21A106KOCLRNC
TA400 2203-007269 CL21A226MPCLRNC
C166 2203-007271 CL05A225KP5NSNC
C300,C501 2203-007279 CV105X5R106M10AT
C134 2203-007317 CV05X5R475M06AH
C124,C125,C142,C143 2203-007393 CL05A475KP5NRNC
C301 2404-001506 TCTP1A476M8R-D
L131,L135 2703-001409 LL1005-FH12NK
L127 2703-001734 LL1005-FH6N8J
L115,L136 2703-002170 CIH05T6N8JNC
L107,L110 2703-002176 CIH05T2N7SNC
L108,L109 2703-002198 CIH05T10NJNC
L113,L114 2703-002200 CIH05T18NJNC
L103,L105 2703-002203 CIH05T15NJNC
L117,L118 2703-002204 CIH05T22NJNC
L132,L134 2703-002205 CIH05T3N9KNC
L101,L106 2703-002208 CIH05T2N2SNC
L116,L137 2703-002268 CIH05T8N2JNC
L413 2703-002309 CIH05T82NJNC
L102 2703-002314 CIH05T47NJNC
L403,L404 2703-002551 LQW15AN33NH00D
L300,L301 2703-003260 CIG21W2R2MNE
L500 2703-003485 CIG22L100MNE
L138 2703-003698 LQM2HPN3R3MG0L
L405 2703-003878 CIG10WR27MNC
OSC300 2801-004551 CM315-32768-DZFT-K1S
OSC200 2801-004954 SQ2D02600B2JBG
OSC100 2809-001363 TG-5010LH
F503,F504 2901-001470 ICVE10184E070R100FR
F500,F501,F502 2901-001639 ADF-10S-03Q-100-040F
F103 2904-001929 SFDG75BQ102
F100 2904-001953 B9507
F101 2904-001966 B9503
F104 2909-001324 TBF-1608-245-R7
MIC400 3003-001136 SPU0410HR5H
L125 3301-001438 BLM15BB750SN1D
L120,L121 3301-001534 BLM15AG121SN1D
L122,L200,L202 3301-001659 BLM15AG601SN1

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
5-5
This Document can not be used without Samsung's authorization
Design LOC SEC CODE Description
L600 3301-001789 BLM15EG121SN1D
L503 3301-001938 BLM15HB221SN1D
L400,L401,L411,L412 3301-002065 MMZ1005A182ET
L501,L502,L504 3301-002065 MMZ1005A182ET
L407,L409 3301-002078 BLM15AX102SN1D
TAC600,TAC601,TAC602 3404-001303 LS12K2-T
TAC603 3404-001303 LS12K2-T
RFS100 3705-001731 KMS-560-002-BEF
SIM300 3709-001488 5000-6P-1.5S
CD300 3709-001575 SCHA4B0301
SLC500 3710-003306 3D1201087-ST32-7H
BTC600 3711-006808 KQ03SB1-3R
HEA500 3711-006843 14-5802-044-002-829
ANT102,ANT105 3712-001326 HM01-AR0145
IFC600 3722-003115 KQ20AX-7P-4D
EAR400 3722-003133 IJAN4-77
SC100,SC101,SC102 GH70-04132A ONBOARD-CLIP-8
SC103,SC105,SC106 GH70-04132A ONBOARD-CLIP-8
SC107 GH70-04132A ONBOARD-CLIP-8
ANT100,ANT101,ANT103 GH71-08731A HJ-ICT-05
ANT104,SPK400,SPK401 GH71-08731A HJ-ICT-05
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's
part list.

- This Document can not be used without Samsung's authorization -
5-2. Cellular phone Parts list : GT-S5330HKAPRT
Design LOC Description SEC CODE
QAR01 ASSY ETC-RCV ASSY (GT-S5330) GH59-09693A
QBC00 ASSY COVER-BATTERY GH98-16993A
QBR06 PMO BRACKET-MOTOR GH72-59919A
QCA01 CAMERA MODULE-GT-S5330 3M GH59-09906A
QCK01 PMO KEY-CAMERA GH72-59571A
QCK02 PMO KEY-POWER GH72-59572A
QCR03 SCREW-MACHINE 6001-001811
QCR12 SCREW-MACHINE 6001-001530
QCR72 SCREW-MACHINE 6001-002051
QCR97 SCREW-MACHINE 6001-002262
QFL01 ASSY CASE-SLIDE LOWER GH98-16999A
QFR01 ASSY CASE-FRONT GH98-16997A
QFU01 ASSY CASE-SLIDE UPPER GH98-17002A
QKP01 ASSY KEYPAD-MAIN(QWERTY) EURO+POUND GH98-16995A
QKP02 ASSY KEYPAD-SUB GH98-16996A
QLC01 ASSY LCD-3.2" WQVGA GT-S5330 ASSY GH96-04763A
QME01 DOME SHEET-GT-S5330 GH59-09831A
QME02 KEY FPCB-SUB KEY PBA(GT-S5330) GH59-09743A
QME03 TOUCH/PANEL-EU BLACK (GT-S5330) GH59-09674A
QMI03 RMO RUBBER-MIC TOP HOLDER (GRAY) GH73-14127A
QMO01 MOTOR DC-GT-S5330 GH31-00509A
QMP01 A/S ASSY-PBA MAIN (COMM) GH82-05210A
QPC01 ASSY ETC-SLIDE FPCB GH59-09744A
QRE01 ASSY CASE-REAR GH98-16998A
QRF06 PMO COVER-USB GH72-59569A
QSP01 MODULE-SPK/INTENNA(GT-S5330) GH59-09870A
QVO01 PMO KEY-VOLUME V2 GH72-61950A

- This Document can not be used without Samsung's authorization -
5-2. Cellular phone Parts list : GT-S5330HKACHN
Design LOC Description SEC CODE
QAR01 ASSY ETC-RCV ASSY (GT-S5330) GH59-09693A
QBC00 ASSY COVER-BATTERY GH98-16993A
QBR06 PMO BRACKET-MOTOR GH72-59919A
QCA01 CAMERA MODULE-GT-S5330 3M GH59-09906A
QCK01 PMO KEY-CAMERA GH72-59571A
QCK02 PMO KEY-POWER GH72-59572A
QCR03 SCREW-MACHINE 6001-001811
QCR12 SCREW-MACHINE 6001-001530
QCR72 SCREW-MACHINE 6001-002051
QCR97 SCREW-MACHINE 6001-002262
QFL01 ASSY CASE-SLIDE LOWER GH98-16999A
QFR01 ASSY CASE-FRONT GH98-16997A
QFU01 ASSY CASE-SLIDE UPPER GH98-17002A
QKP01 ASSY KEYPAD-MAIN(QWERTY) CHINA GH98-17861A
QKP02 ASSY KEYPAD-SUB GH98-16996A
QLC01 ASSY LCD-3.2" WQVGA GT-S5330 ASSY GH96-04763A
QME01 DOME SHEET-GT-S5330 GH59-09831A
QME02 KEY FPCB-SUB KEY PBA(GT-S5330) GH59-09743A
QMI03 RMO RUBBER-MIC TOP HOLDER (GRAY) GH73-14127A
QMO01 MOTOR DC-GT-S5330 GH31-00509A
QMP01 A/S ASSY-PBA MAIN (CHNA) GH82-05243A
QPC01 ASSY ETC-SLIDE FPCB GH59-09744A
QRE01 ASSY CASE-REAR GH98-16998A
QRF06 PMO COVER-USB GH72-59569A
QSP01 MODULE-SPK/INTENNA(GT-S5330) GH59-09870A
QVO01 PMO KEY-VOLUME V2 GH72-61950A

SAMSUNG Proprietary-Contents may change without notice
7. Level 2Repair
7-1
This Document can not be used without Samsung's authorization
7-1. Dissambly
2
Release screws at 6point.
DO NOT MAKE SCRATCH ON REAR.
1
Disjoint HOOK 8POINT at REAR
3 4
Release screws at 2point.
Disjoint using decomposition tool at rear side.
DO NOT MAKE SCRATCH ON REAR.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-2
7. Level 2Repair
5 6
7 8
Disassemble aPBA from Front ass'y
(Refer to the picture)
Release screws at 1point.
Disassemble amotor &bracket from PBA
(Refer to the picture)
1
2
Camera decomposition tool
IMK Code : 2318420200
1) Separate 3.5mm rubber at PBA
2) Separate Shield can
Do Not touch the IC and Don't damage
ON PBA.
1) Separate Camera at PBA
Use adecomposition tool
Be careful not to damage camera and socket

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-3
7. Level 2Repair
910
11
1) Separate Slide FPCB connector from
Front Ass'y at slide down status
(Refer to the picture.)
12
Be careful not to damage slide FPCB
Disassemble akeypad from Front ass'y
(Refer to the picture)
Disassemble aLower from Front ass'y
(Refer to the picture)
1
2
Be careful not to damage slide FPCB
Release screws at 5point.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-4
7. Level 2Repair
14
15
1) Disassemble aReceiver ass'y
2) Disassemble aslide FPCB
3) Disassemble asub key pba &keypad
(Refer to the picture.)
Disassembled UPPER and LCD.
(Refer to the picture.) Disassembled UPPER and TSP.
(Refer to the picture.)
1) Disassemble aReceiver ass'y
2) Disassemble aslide FPCB
3) Disassemble asub key pba &keypad
(Refer to the picture)
Be careful to damage LCD.
Be careful to damage TSP &FPCB.
Be careful to damage FPCB.
16
13
1
2
3

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-5
7. Level 2Repair
7-2. Assembly
12
Insert TSP FPCB through the UPPER's hole
carefully when assembing FRONT and TSP.
check the rubber at upper
(Refer to the picture.)
Be careful not to tear aTSP FPCB.
1
23
Be careful to damage LCD.
Assembled UPPER and LCD.
4
3
1) Assemble aReceiver ass'y, slide FPCB,
sub key pba &keypad, TSP FPCB
(Refer to the picture.)
Be careful to damage FPCB and
prevent reverse insertion Slide FPCB
1) Assemble aReceiver ass'y
2) Assemble aslide FPCB
3) Assemble asub key pba &keypad
4) Assemble aTSP FPCB
(Refer to the picture.)
Be careful to damage FPCB.

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-6
7. Level 2Repair
7
6
8
Assemble UPPER and Lower+Front.
Be careful to damage FPCB.
Assemble keypad and Front ass'y
1) Screw up one screw at PBA
2) Assemble abracket &motor at PBA
(Refer to the picture)
5
1
2
3
Screw up 5screw at Front ass'y

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
7-7
7. Level 2Repair
9
1) Assemble arubber at PBA
2) Assemble acamera at PBA
3) Assemble ashield can at PBA
10
11
1) Screw up 2screw at PBA
Do Not touch the IC and Don't damage
ON PBA.
Torque Spec. :1.0~1.2kgf*cm
Drive screws at 6point.
1
2
3
DO NOT MAKE SCRATCH ON REAR.
Torque Spec. :1.0~1.2kgf*cm
12
Joint HOOK 8POINT at REAR

SAMSUNG Proprietary-Contents may change without notice
8. Level 3Repair
8-1
This Document can not be used without Samsung's authorization
8-1. Block Diagram
TUOL/TUOR_MF
margaiDkcolB0335-TG
enohpraE
KPS
UMP
CIMP+PVO+CIMP( )
GWE0998XAM CIBSUORCIM
(SSCC990000777766EEDDRR22)
DCLniaM
)CIHGILKCAB
B892DTK
GBFI43312MCB
niaM
CIM
raE
CIM
SPG+MF+TB
)GBUK0B5702MCB(
KCOLBFR
)EGDElluF(82577YKS
7059B
YROMEM
RDDG2/G4DNAN
yrettaB
HAM
0
0
2
1
TABpukcaB
bsuorciM/AT
SUB
R_KPSRAE
L_KPSRAE
P_KPS
N_KPS
N/P_PMA
L/R_RAE
QRI_UMP/K23/C2I
atadtib61
RW/DR/SC/SR_DCL
-/+DEL
P_CIM
P_CIM
DNG__
P_CIM_RAE
N_CIM_RAE
NOC_NE/NE_XT
BH/BL_AP
YEK
HSALF-T
GATJ
MIS
DAOLNWOD
NE_LB_DCL
3.0veRWH72.60.0102
P/N_BSU
zHM62
3322KKHHzz
TUOL_MF
TUOR_MF
SUBV
CILLAH
21UXX95DEH
PILF
ROTOM
AREMAC
"5/1ISLM3
CII
TESER/KLC/KNYS
A
TAD_Y
CAJRAEIP5.3
TNA_MF
)058/009/SCD/SCP(XR
rossecorP9MRA
aidemitluMdetargetnI
reviecsnartFRnoitarbilac-fleS
IFIW
)9134MCB(
DUOL
CIM
VCR
P_VCR
N_VCR
P_CIMDUOL
P_CIMDUOL
DNG_

320AMB
zHM62
ADS/LCS_CCA(C2I
TNI_CCA
GGPPIIOOEExxppaannddeerr
RBT1061EPMTS
TNI_YEK/)ADS/LCS(C2I
RREESSEETTIICC
2256PMTS
HS7CT
SF80
YEKEMULOV
PU
TESER_YEK
TESER_BB
TESER_UMP
V0.3_BIV
TRAU
WS
WS
ATRAU
IPS
BTRAU
TUOL/TUOR_MF
SPG
WS
TRAU
TB
IFIW

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-2
This Document can not be used without Samsung's authorization
8-2. PCB Diagrams
8-2-1. Top

SAMSUNG Proprietary-Contents may change without notice
Level 3Repair
8-3
This Document can not be used without Samsung's authorization

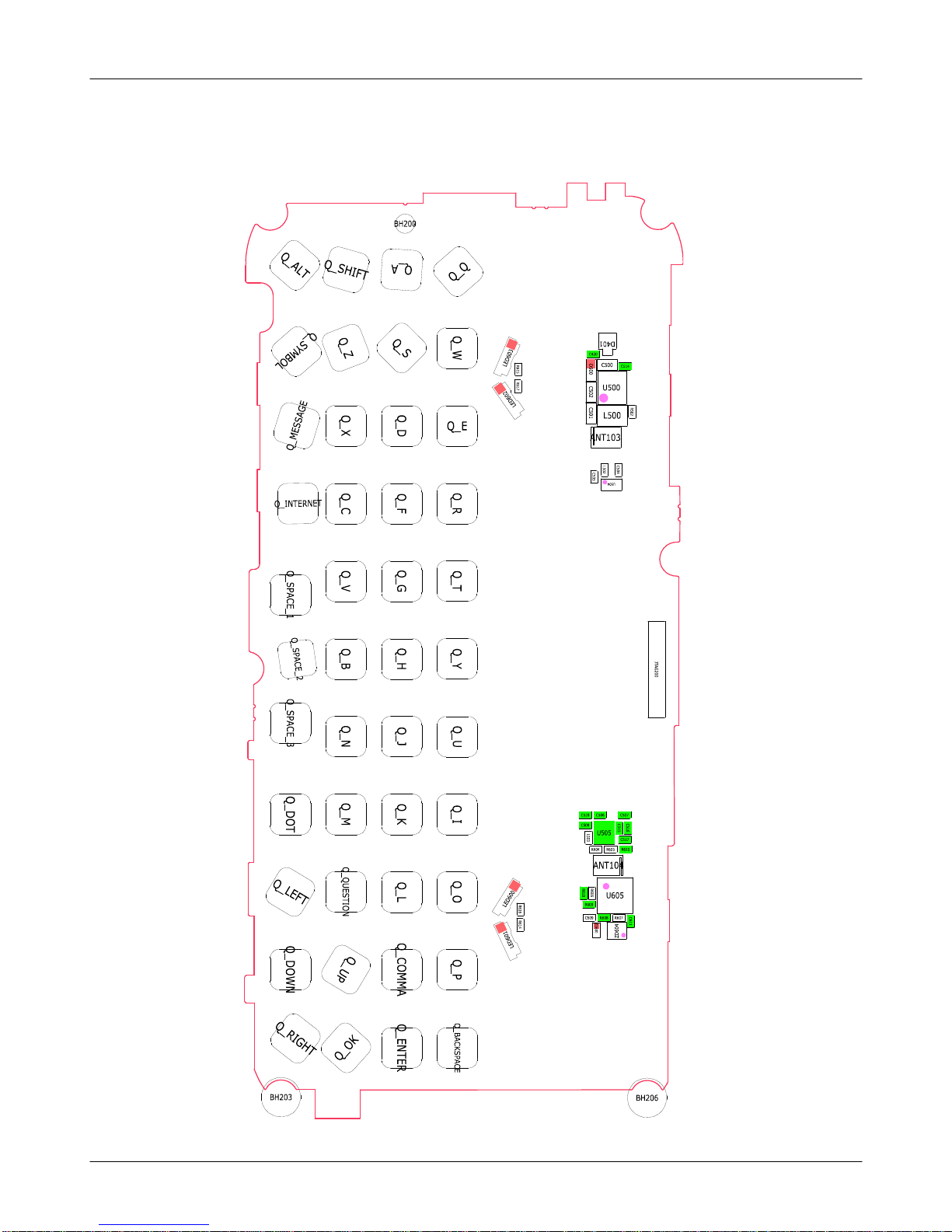

8-2-1. Bottom
