Using this manual
2
Using this manual
Thank you for purchasing this Samsung mobile device.
This device will provide you with high quality mobile
communication and entertainment based on Samsung’s
exceptional technology and high standards.
This user manual has been specially designed to guide you
through the functions and features of your device.
Read me rst
Please read all safety precautions and this manual•
carefully before using your device to ensure safe and
proper use.
The descriptions in this manual are based on the default
•
settings of your device.
Images and screenshots used in this user manual may
•
dier in appearance from the actual product.
Content in this user manual may dier from the product,
•
or from software provided by service providers or
carriers, and is subject to change without prior notice.
Refer to www.samsungmobile.com for the latest version
of the user manual.
Available features and additional services may vary by
•
device, software, or service provider.
Formatting and delivery of this user manual is based on
•
Bada operating systems and may vary depending on the
user’s operating system.
Applications and their functions may vary by country,
•
region, or hardware specications. Samsung is not
liable for performance issues caused by third-party
applications.

Using this manual 3
Instructional icons
Before you start, familiarise yourself with the icons you will
see in this manual:
Warning—situations that could cause injury to
yourself or others
Caution—situations that could cause damage to
your device or other equipment
Note—notes, usage tips, or additional
information
Samsung is not liable for performance issues or
•
incompatibilities caused by user editing of registry
settings.
You may upgrade your mobile device’s software by
•
accessing www.samsungmobile.com.
Sound sources, wallpapers, and images provided in this
•
device are licenced for limited use between Samsung
and their respective owners. Extracting and using
these materials for commercial or other purposes is an
infringement of copyright laws. Samsung is not liable for
such copyright infringement by the user.
Please keep this manual for future reference.
•

Using this manual
4
Copyright
Copyright © 2010 Samsung Electronics
This user manual is protected under international
copyright laws.
No part of this user manual may be reproduced,
distributed, translated, or transmitted in any form or by any
means, electronic or mechanical, including photocopying,
recording, or storing in any information storage and
retrieval system, without the prior written permission of
Samsung Electronics.
Trademarks
SAMSUNG and the SAMSUNG logo are registered•
trademarks of Samsung Electronics.
Bluetooth
• ®is a registered trademark of the Bluetooth
SIG, Inc. worldwide.
►Refer to—pages with related information; for
example: ►p.12 (represents“see page 12”)
→
Followed by—the order of options or menus
you must select to perform a step; for example:
In Menu mode, select Messages
→
Compose
(represents Messages, followed by Compose)
[ ] Square brackets—device keys; for example:
[] (represents the End key)

Using this manual 5
Oracle and Java are registered trademarks of Oracle and/•
or its aliates. Other names may be trademarks of their
respective owners.
Windows Media Player
• ®is a registered trademark of
Microsoft Corporation.
Wi-Fi
• ®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
registered trademarks of the Wi-Fi Alliance.
• and are trademarks of SRS Labs, Inc. CS
Headphone and WOW HD technologies are incorporated
under licence from SRS Labs, Inc.
All other trademarks and copyrights are the property of
•
their respective owners.

Contents
6
Contents
Assembling ............................................. 9
Unpack .................................................................. 9
Install the SIM or USIM card and battery ...... 9
Charge the battery ........................................... 11
Insert a memory card (optional) ................... 13
Use the leather case ......................................... 15
Attach a hand strap (optional) ...................... 16
Getting started ..................................... 17
Turn your device on and o ........................... 17
Get to know your device ................................. 18
Use the touch screen ........................................ 21
Lock or unlock the touch screen and keys . . 23
Access menus .................................................... 23
Launch and manage applications ................ 25
Use widgets ........................................................ 25
Customise your device .................................... 26
Enter text ............................................................ 31
Communication ................................... 34
Calling .................................................................. 34
Logs ...................................................................... 40
Messages ............................................................ 41
Email .................................................................... 46

Contents 7
Voice recorder .................................................... 74
Web ........................................................ 76
Internet ............................................................... 76
Samsung Apps .................................................. 80
YouTube .............................................................. 81
Community websites ....................................... 81
Connectivity ......................................... 82
Bluetooth ............................................................ 82
Wi-Fi ..................................................................... 85
Mobile AP ........................................................... 87
GPS ....................................................................... 88
PC connections .................................................. 90
Social Hub ........................................................... 50
IM .......................................................................... 50
Entertainment ...................................... 51
Camera ................................................................ 51
Video player ....................................................... 59
Music .................................................................... 61
FM radio .............................................................. 64
Games .................................................................. 67
Personal information .......................... 69
Contacts .............................................................. 69
Calendar .............................................................. 72
Task ...................................................................... 73
Memo ................................................................... 74

Contents
8
Date and time ................................................. 104
Menu and widgets ......................................... 104
Applications .................................................... 105
Security ............................................................ 111
Memory ............................................................ 112
Reset ................................................................. 112
About phone ................................................... 113
Software update ............................................ 113
SIM applications ............................................. 113
Troubleshooting ................................ 114
Safety precautions ............................. 119
Index .................................................... 128
Tools ....................................................... 93
Clock .................................................................... 93
Calculator ............................................................ 94
My accounts ....................................................... 95
My les ................................................................ 96
Search ............................................................... 100
Settings ................................................ 101
Access the Settings menu ............................ 101
Flight mode ..................................................... 101
Connectivity .................................................... 101
Sound proles ................................................ 102
Display and light ............................................ 103
General ............................................................. 103

Assembling 9
Assembling
Unpack
Check your product box for the following items:
Mobile device
•
Battery•
Travel adapter (charger)•
Leather case•
User manual•
Use only Samsung-approved software. Pirated or
illegal software may cause damage or malfunctions
that are not covered by your manufacturer's
warranty.
The items supplied with your device may vary•
depending on the software and accessories
available in your region or oered by your service
provider.
You can obtain additional accessories from your
•
local Samsung dealer.
The supplied accessories perform best for your
•
device.
Accessories other than the supplied ones may not
•
be compatible with your device.
Install the SIM or USIM card and
battery
When you subscribe to a cellular service, you will receive
a Subscriber Identity Module (SIM) card, with subscription
details, such as your personal identication number (PIN)
and optional services. To use UMTS or HSDPA services,
you can purchase a Universal Subscriber Identity Module
(USIM) card.

Assembling
10
Place the SIM or USIM card into the device with•
the gold-coloured contacts facing down.
If you do not insert a SIM or USIM card, you can
•
only use your device’s non-network services and
some menus.
Insert the battery.
4
Replace the back cover.
5
To install the SIM or USIM card and battery,
If the device is on, press and hold [
1
], and select Ye s
to turn it o.

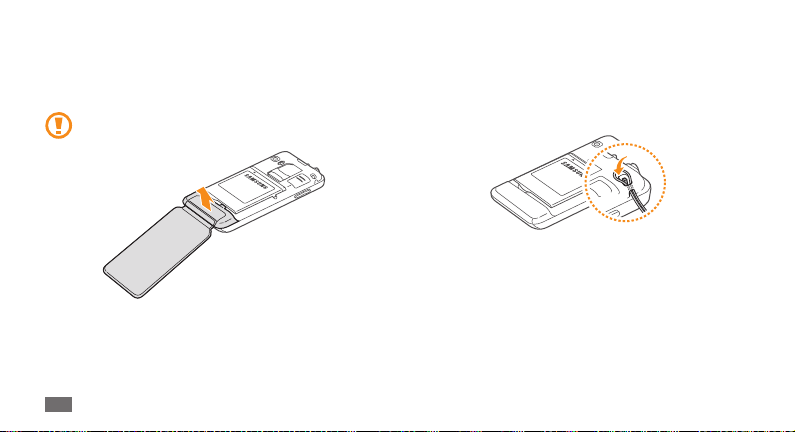

Remove the back cover.
2

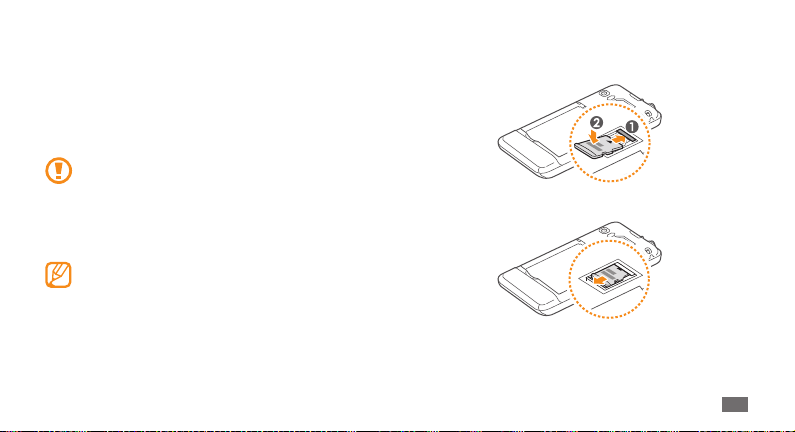

Insert the SIM or USIM card.
3

Assembling 11
›
Charge with the travel adapter
Open the cover to the multifunction jack on the top of
1
the device.
Plug the small end of the travel adapter into the
2
multifunction jack.
Improperly connecting the travel adapter can cause
serious damage to the device. Any damage caused
by misuse is not covered by the warranty.
Charge the battery
Before using the device for the rst time, you must charge
the battery.
You can charge the device with the provided travel adapter
or by connecting the device to a PC with a PC data cable.
Use only Samsung-approved chargers and cables.
Unauthorised chargers or cables can cause batteries
to explode or damage your device.
When your battery is low, the device will emit a
warning tone and display a low battery message.
The battery icon will also be empty and blinking.
If the battery level becomes too low, the device will
automatically power o. Recharge your battery to
continue using your device.

Assembling
12
›
Charge with the PC data cable
Before charging, ensure that your PC is turned on.
Open the cover to the multifunction jack on the top of
1
the device.
Plug one end (micro-USB) of the PC data cable into the
2
multifunction jack.
Plug the other end of the PC data cable into a USB port
3
on a PC.
Depending on the type of PC data cable you are
using, it may take some time before charging
begins.
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the PC data cable from the
device and then from the PC.
Plug the large end of the travel adapter into a power
3
outlet.
You can use the device while it is charging, but it•
may take longer to fully charge the battery.
While the device is charging, the touch screen may
•
not function due to an unstable power supply. If
this happens, unplug the travel adapter from the
device.
While charging, the device may heat up. This
•
is normal and should not aect your device’s
lifespan or performance.
If your device is not charging properly, bring your
•
device and the charger to a Samsung Service
Centre.
When the battery is fully charged (the battery icon is
4
no longer moving), unplug the travel adapter from the
device and then from the power outlet.
Do not remove the battery before removing the
travel adapter. Doing this may cause damage to the
device.

Assembling 13
Remove the back cover and battery.
1
Insert a memory card.
2
Lock the memory card in place.
3
Replace the battery and back cover.
4
Insert a memory card (optional)
To store additional multimedia les, you must insert
a memory card. Your device accepts microSD™or
microSDHC™memory cards with maximum capacities
of 16 GB (depending on memory card manufacturer and
type).
Samsung uses approved industry standards for
memory cards, but some brands may not be fully
compatible with your device. Using an incompatible
memory card may damage your device or the
memory card and can corrupt data stored on the
card.
Your device supports only the FAT le structure for•
memory cards. If you insert a card formatted with
a dierent le structure, your device will ask you to
reformat the memory card.
Frequent writing and erasing of data will shorten
•
the lifespan of memory cards.

Assembling
14
›
Format the memory card
Formatting your memory card on a PC may cause
incompatibilities with your device. Format the memory
card only on the device.
In Menu mode, select Settings
→
Memory
→
Memory
card details
→
Format
→
Yes.
Before formatting the memory card, remember to
make backup copies of all important data stored on
your device. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
›
Remove the memory card
Ensure that the device is not currently using the
1
memory card.
Remove the back cover and battery.
2
Remove the memory card.
3
Replace the battery and back cover.
4
Do not remove a memory card while the device is
transferring or accessing information, as this could
result in loss of data or damage to the memory card
or device.

Assembling 15
Attach the supplied leather case and press the case
2
anchor down until it clicks.
Replace the back cover.
3
Use the leather case
You can replace the lower case with the supplied leather
case to protect your device's touch screen.
To attach the leather case,
Remove the back cover, and then remove the lower
1
cover.

Assembling
16
Attach a hand strap (optional)
Remove the back cover.
1
Slide a hand strap through the hand strap hole and
2
hook it over the small projection.
Replace the back cover.
3
To remove the leather case,
Remove the back cover.
1
Pull the case anchor as shown below.
2
Do not pull the leather case by holding the ap part
of the case, as this could damage the case.
Replace the lower cover and the back cover.
3

Getting started 17
Getting started
Turn your device on and o
To turn on your device,
Press and hold [
1
].
Enter your PIN and select
2
Done (if necessary).
Select a language you want and select
3
Next
.
Select keyboard languages and select
4
Next.
Select your home time zone and select
5
Next
.
Set the time and date and select
6
Save
.
To turn o your device, press and hold [ ] and select Ye s .
Follow all posted warnings and directions from•
ocial personnel when in areas where the use of
wireless devices is restricted, such as aeroplanes
and hospitals.
To use your device's non-network services only,
•
switch to the ight mode. In Menu mode, select
Settings
→
Flight mode.

Getting started
18
Get to know your device
›
Device layout
Power/Lock key
Multifunction jack
Camera key
Internal antenna
Back cover
Flashbulb
Headset jack
(3.5 mm)
Earpiece
Touch screen
End key
Menu key
Volume key
Dial key
Mouthpiece
Speaker
Camera lens
Lower cover

Getting started 19
Key Function
Volume Adjust the device’s volume.
Camera
In Idle mode, turn on the camera;
In Camera mode, take a photo or
record a video.
›
Idle screen
When the device is in Idle mode, you will see the idle
screen. From the idle screen, you can view your device’s
status and access applications.
The idle screen has some default panels, and you can add
new panels to the idle screen. ►p. 27
Scroll left or right to a panel of the idle screen. You can
also select a dot on the top of the screen to move to the
corresponding panel of the idle screen directly.
›
Keys
Key Function
Power/
Lock
Turn the device on or o (press
and hold); Lock or unlock the
touch screen and keys.
Dial
Make or answer a call; In Idle
mode, retrieve logs of your calls
and messages.
Menu
Access Menu mode; Launch the
task manager to view all active
applications (press and hold);
In Idle mode or while using an
application, access Search (press
twice).
End End a call; In Menu mode, return
to Idle mode.

Getting started
20
Icon Denition
Call missed
Synchronised with a web server
Bluetooth activated
Bluetooth hands-free car kit or headset
connected
Voice call in progress
Video call in progress
SOS message feature activated
Call diverting activated
Synchronising with PC
No SIM or USIM card
Memory card inserted
›
Indicator icons
Icons shown on the display may vary depending on
your region or service provider.
Icon Denition
No signal
Signal strength
Flight mode activated
Network searching
GPRS network connected
EDGE network connected
UMTS network connected
HSDPA network connected
WLAN connected
