Owners Manual
Operating Instructions:Before operating phone,please read this
manual thoroughly.Keep it for future reference.
1910 OM-PRINT 11/19/56 12:11 AM Page C

1910 OM-PRINT 11/19/56 12:11 AM Page D

i
Chapter 1: Getting Started 1
Unpacking Your Consumer Package 2
Phone–Basic Description 3
Battery Installation 7
Installing the Standard Battery 7
Battery Charge Indicator 8
Charging Your Battery 9
Rapid Desktop Charger with Conditioner 9
Using the Conditioner Cycle 10
Using the Phone–Basic Funcitons 11
Menu Structure 11
Placing a Call 13
Recieving a Call 13
Ending a Call 13
Correcting a Misdialed Number 13
Redialing a Number 13
Call Waiting 14
Disabling Call Waiting 14
Call Forwarding 15
Three–Way Calling 15
Chapter 2: Using Your Phone 17
The Internal Phone Book 18
Storing a Phone Number 18
Storing Numbers Shortcuts 19
Confidential Numbers 19
Entering Names 20
Correcting Mistakes 20
Recalling Stored Numbers 20
Erasing Phone Numbers 21
Table of Contents
1910 OM-PRINT 11/19/56 12:11 AM Page i

ii
Dialing from the Internal Phone Book 22
Prepending Stored Phone Numbers 23
Caller ID 24
Memory Locations 25
One–Touch Dialing 25
Two–Touch Dialing 25
Customizing Your Phone’s Features 26
Setting Ringer Type 26
Setting Ringer Volume 26
Setting Key Tone Volume 27
Setting Message Ring Frequency 27
Setting Up Your Greeting 27
Obtaining Numeric Characters 28
Setting Up Audible Alerts 28
Set Up 28
Backlighting 29
Displaying Your Phone Number 29
Chapter 3: Advanced Features 31
Call Logs & Tracking Calls 32
Checking Airtime 33
Last Call Airtime 33
Total Airtime 33
Erase Total Airtime 33
Entering & Storing a Hard Pause 34
Using the Hard Pause 35
Phone Security 35
Lock Code 36
Locking the Phone 36
Restricting Your Phone Book 36
Restricting Incoming/Outgoing Calls 37
Changing the Lock Code 38
Table of Contents
1910 OM-PRINT 11/19/56 12:11 AM Page ii

iii
Storing Emergency Phone Numbers 38
Entering Emergency Numbers 38
Dialing When the Phone is Locked 39
Voice Mail 40
Chapter 4: Special PCS Functions 41
Defining In Use Menu 42
KeyGuard 42
Ring Tone Mute 43
Any Key Answer Features 43
True Alpha Search and Sort 43
Shortcut Keys/Menu Navigation 44
Optional PCS Phone Accessories 45
Phone Specifications 48
Appendix 49
Battery Care and Maintenance 50
Caring for Your Batteries 50
Disposal of Your Batteries 51
Recycling Nickel Metal Hydride Batteries 51
Troubleshooting 52
Common Questions 53
Important Saftey Instructions 56
Glossary of Terms 59
Index 63
Table of Contents
1910 OM-PRINT 11/19/56 12:11 AM Page iii

List of Tables
Table 1: Key Functions 4
Table 2: Icon Functions 6
Table 3: Battery Specifications 8
Table 4: In Use Menu 11
Table 5: Menu Structure 12
Table 6: Dialing Shortcuts 25
Table 7: Specifications 48
Table 8: Storage Temperatures 50
iv
1910 OM-PRINT 11/19/56 12:11 AM Page iv

v
Introduction
Using Your PCS Phone
The Samsung PCS phone is based on the latest CDMA digital
technology.It is used the same way as other wireless portable
phones.You will notice the sound and tone quality is clearer.
The Samsung CDMA PCS Phone
Congratulations on the purchase of your new Samsung CDMA PCS
Phone which uses the latest CDMA technology.
The PCS phone is easy to use. Among its features and functions are:
• Large Five-Line LCD
• Three-Line,12-Character, Alphanumeric Display
• Two Icon Lines
•99 Alphanumeric Memory Locations
• Caller ID
• Last Nine Numbers Redial
• Short Message Service (SMS)
• Call Restriction
• Power Save Mode
1910 OM-PRINT 11/19/56 12:11 AM Page v

1910 OM-PRINT 11/19/56 12:11 AM Page vi

1
Getting Started
Unpacking Your Consumer Package
Phone–Basic Description
Battery Installation
Charging Your Battery
Using the Phone–Basic Functions
1
1910 OM-PRINT 11/19/56 12:11 AM Page 1

2
Unpacking Your Consumer Package
Upon unpacking your Samsung PCS phone, you should find the
following components:
• PCS Phone
• Standard NiMH Battery
• Rapid Desktop Charger
• Owner’s Manual
Getting Started
1910 OM-PRINT 11/19/56 12:11 AM Page 2

3

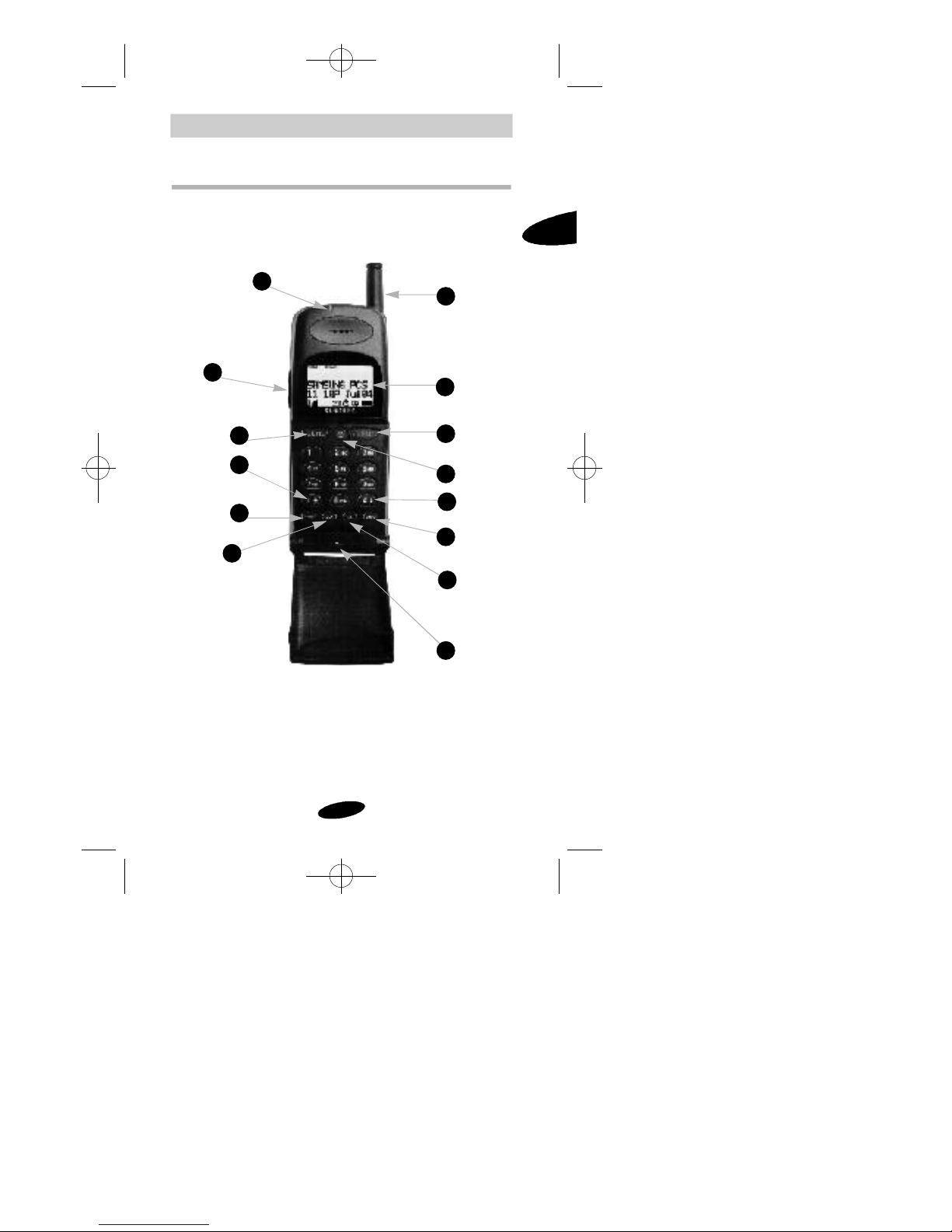

Phone – Basic Description
The Samsung PCS phone has a number of function keys and
controls that activate all features available on the phone. The
indicators and controls are described in this section.
Getting Started
1
3
4
5
2
113
10
11
9
8
7
1.Red Light
2.Volume Control
3.Send key
4.Scrolling keys
5.Power key
6.Clear key
7.Microphone
8.Store key
9.Menu key
10.Message key
11.End key
12.LCD
13. Antenna
(not actual size)
12
6
4
1910 OM-PRINT 11/19/56 12:11 AM Page 3

4
Getting Started
1910 OM-PRINT 11/19/56 12:11 AM Page 4

5
Figure 1: LCD Display (example only)
The display icons described match the displayed icons on the LCD
display when you first power up the phone.
Getting Started
1
signal
strength paging, text or
voicemail
phone
lock ringer off battery
strength
1910 OM-PRINT 11/19/56 12:11 AM Page 5

6
Getting Started
Table 2: Icon Functions
Image Icon Name Description/Function
Signal Measures your current real-
time signal strength. The more
bars there are, the stronger the
signal.
SVC Service Indicates that you are inside a
service area and can make a
call with your phone.
NOSVC No
Service Indicates that you are outside a
service area and cannot make a
call with your phone.
IN USE In Use Indicates that a call is in
progress.
ROAM Roaming Indicates the phone is outside
of its home service area.
Battery Indicates the level of your
battery charge. The more bars
you see, the more power you
have left. When the charge is
low, the icon blinks and an
alert tone sounds.
Message Flashes when you have a page,
text message or voicemail
message.
Lock Displayed when the phone is
locked. You must enter your
four-digit lock code to unlock
the phone.
Ringer Ringer off
Banner A personalized 12 character
greeting available on the
display that announces the
label at power up and in
standby mode.
1910 OM-PRINT 11/19/56 12:11 AM Page 6

7
Battery Installation
Your new PCS Phone comes with a rechargeable battery that is
partially charged so you can use it immediately after you activate
with your PCS carrier. The phone and the battery are not initially
attached. To use the phone battery the first time,install the battery
according to the instructions below. Use the phone until the
battery icon in the display window flashes or until the phone turns
itself off.
Installing the Standard Battery
1. Hold the battery,with the label facing down,making sure the
metal contacts at the base of the battery line up with the metal
contacts on the base of the phone.
2. Place the battery on the back of the phone with the top of the
battery about a quarter of an inch from the latch.
3. Gently slide the battery toward the top of the phone until it
snaps into place.
Getting Started
1
1910 OM-PRINT 11/19/56 12:11 AM Page 7

8
Battery Charge Indicator
The display icon (in the lower right corner of the phone’s
display window) tells you the status of the battery’s charge.As the
battery charge level goes down,sections of the battery icon
disappear.When the battery charge level is extremely low,the
battery icon will blink and a tone will sound.
When the battery is completely discharged,a tone will sound and
the phone will turn off automatically.Watch the indicator to be
sure the battery charge is at an acceptable level.
If your battery seems to be losing its charge rapidly,it may need to
be conditioned.This is done by using the Conditioner feature of
the Samsung Rapid Desktop Charger.(See “Using the Conditioner
Cycle”on page 10.)
Getting Started
PostScript Picture
(Microsoft Word - tablesv)
1910 OM-PRINT 11/19/56 12:12 AM Page 8

9
Charging Your Battery

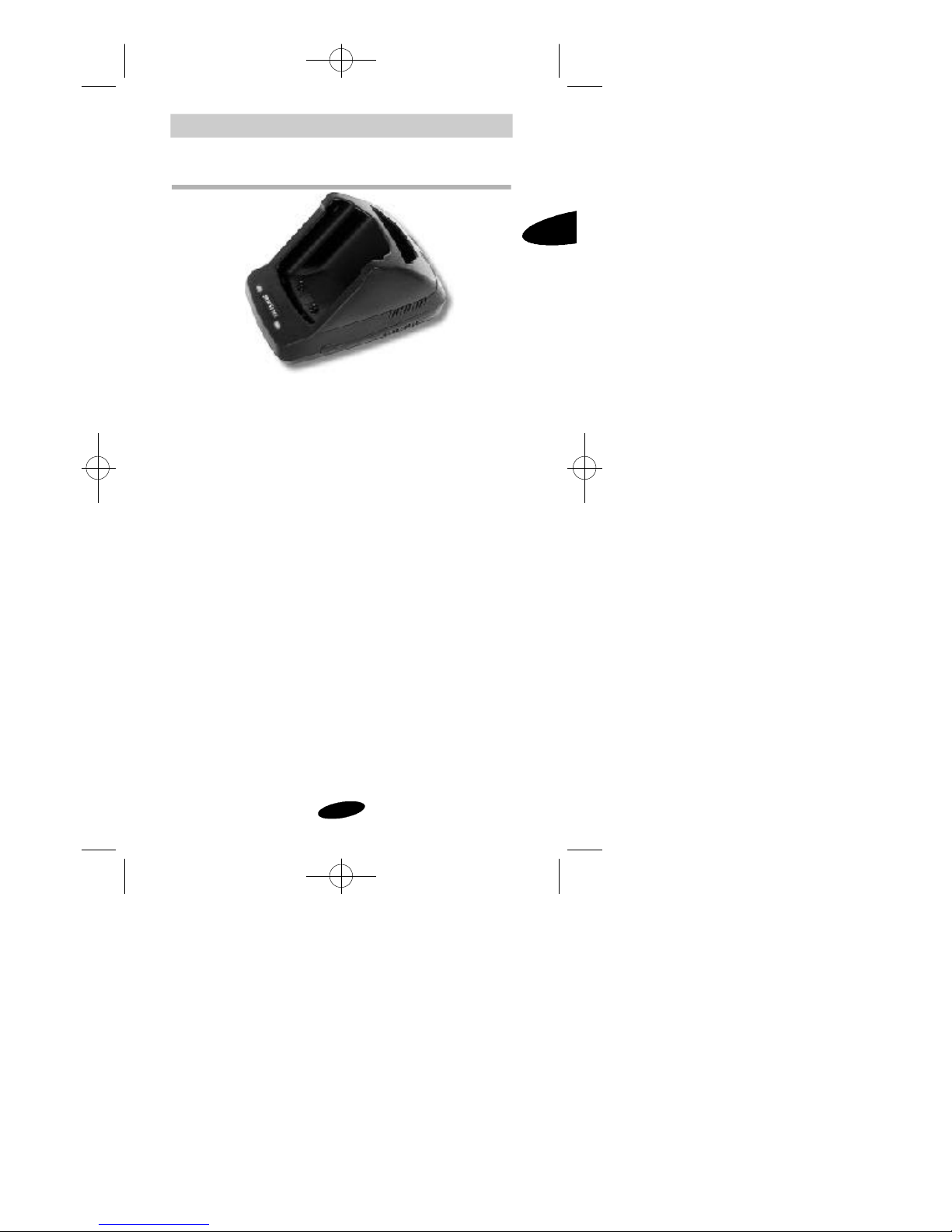

Rapid Desktop Charger with Conditioner
1. Insert the battery (with the phone attached) into the
front compartment.
2. Insert a second (or spare) battery into the back
compartment,if you wish to charge the two batteries
sequentially. The battery in the front compartment will
charge first.
The Front Compartment is used for charging a battery with the
phone attached.
The Back Compartment is used for charging an unattached
battery and/or conditioning the battery.
A Red Light on the charger means the battery is being charged. A
green light means the battery is at least 90% charged.
If the standard battery is completely discharged,it will fully
recharge in approximately two hours.(The extended battery takes
up to three hours to fully recharge.)
If you leave the power on your phone turned ON while it is in the
charger,it will take longer to recharge the battery.It will not harm
the battery to remain in the charger once it is fully charged.
Getting Started
1
1910 OM-PRINT 11/19/56 12:12 AM Page 9

10
Using the Conditioner Cycle
1. Insert the battery into the back compartment of the Rapid
Desktop Charger.
2. Within the first five seconds after inserting the battery,press the
Conditioner button on the side of the charger for one full
second to begin the conditioning cycle.
3. The LED will change from a solid red to a blinking amber light.
This indicates that the battery is discharging.
4. After the battery is completely discharged,the LED will change
to a solid red,indicating that the discharge cycle is complete and
the battery is being charged.
5. The charger will rapidly charge the battery until it is 90%
charged.The LED will turn green.The charger will then begin to
trickle charge the battery until it is completely charged.
6. After the discharge-charge cycle is complete,the battery has
been conditioned.
Note:Use only the Samsung-approved Rapid Desktop Charger and
AC Adapter with the Samsung PCS phone.Using the wrong
charger could damage the battery.
Getting Started
1910 OM-PRINT 11/19/56 12:12 AM Page 10
