Samsung SGH-F210 User manual

GSM TELEPHONE
SGH-F210
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2007. 09. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast &Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use akind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use astandard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use athicken twisted wire when you measure level.
Athicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because arepair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or acircuit board.

2. Specification
2-1
2-1. GSM General Specification
E-GSM DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 975~1023
0~124 512~885 512~810
Tx/Rx spacing 45MHz 95MHz 80MHz
Mod. Bit
rate/
Bit Period
GPRS 270.833Kbps
3.692us
270.833Kbps
3.692us
270.833Kbps
3.692us
EDGE 812.5Kbps
3.692us
812.5Kbps
3.692us
812.5Kbps
3.692us
Time Slot Period/Frame
Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation
GPRS 0.3GMSK 0.3GMSK 0.3GMSK
EDGE 8PSK 8PSK 8PSK
MS Power
GPRS 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
EDGE 26dbm~0dBm 26dBm~0dBm 26dBm~0dBm
Power Level
GPRS 5~19(class4) 0~15(class1) 0~15(class1)
EDGE 8~19(class E2) 2~15(class E2) 2~15(class E2)
Sensitivity -102dBm -100dBm -102dBm
TDMAMux888
Cell Radius 35Km 2Km 2Km
Operating Temperature -20℃~45
℃-20℃~45 ℃-20℃~45 ℃
Supply Voltage 3.7V 3.7V 3.7V
Size and Weight Dimention :87.7(
H) × 30.9(W) × 20.4(D) mm
Weight : 81.2g (with standard battery and IF cover)

Speclflcation
2-2
2-2. GSM Tx Power Class
TX Power
control level GSM900
5 33±2 dBm
6 31±2 dBm
7 29±2 dBm
8 27±2 dBm
9 25±2 dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3 dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
0 30±3 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Camera and camcorder
-Synchronisation with Windows Media Player
-Music player
-FM radio
-Java
-Offline mode
-Bluetooth
-Web browser
-Multimedia Message Service(MMS)

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

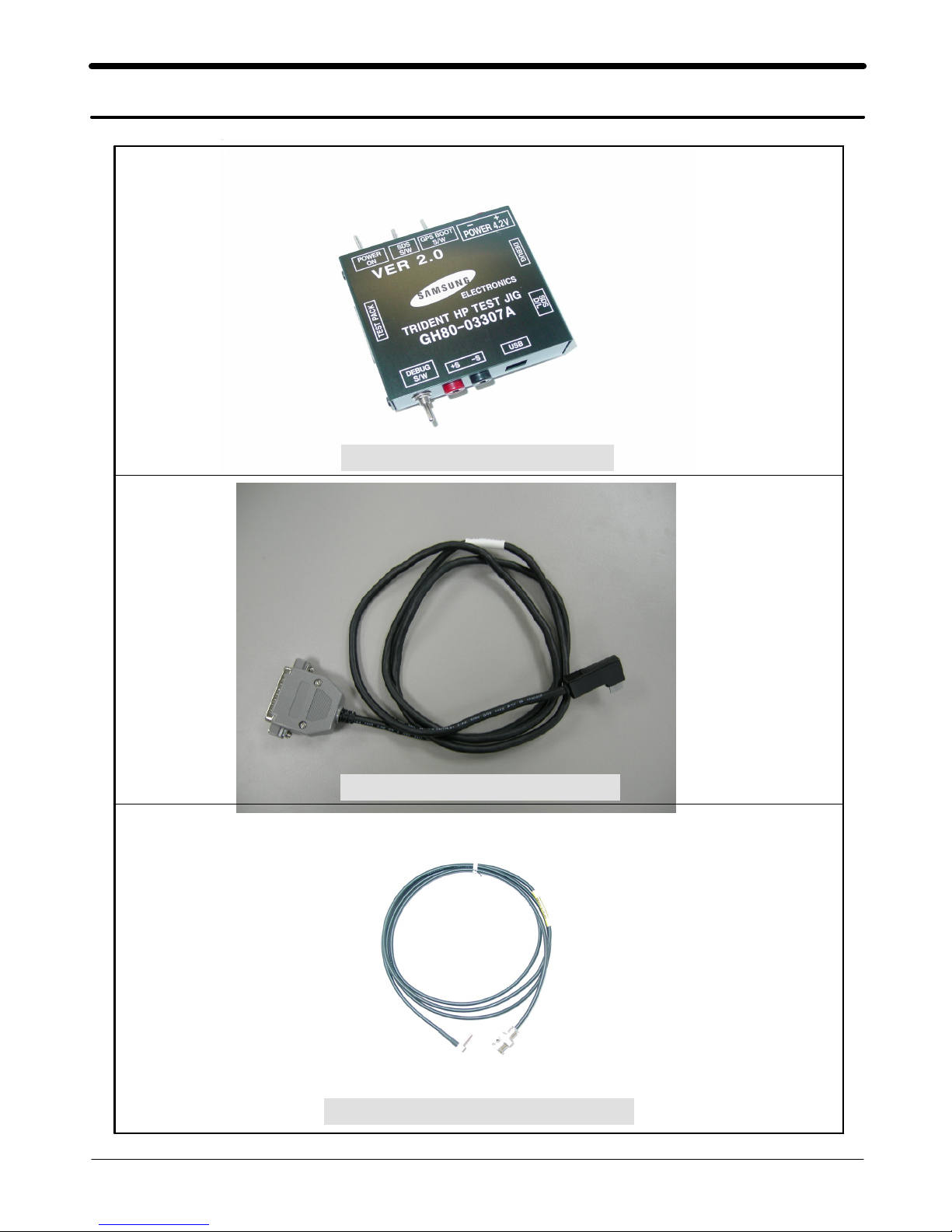

Test Jig (GH80-03307A)
Test Cable (GH39-00501A)
RF Test Cable (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
Software Downloading
4-1. Downloading Binary Files
•Three binary files for downloading F210
–F210XXYY.s3 :Main source code binary.
4-2. Pre-requsite for Downloading
•Downloader Program(OptiFlash.exe)
•F210 Mobile Phone
•Data Cable
•Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-3. S/W Downloader Program

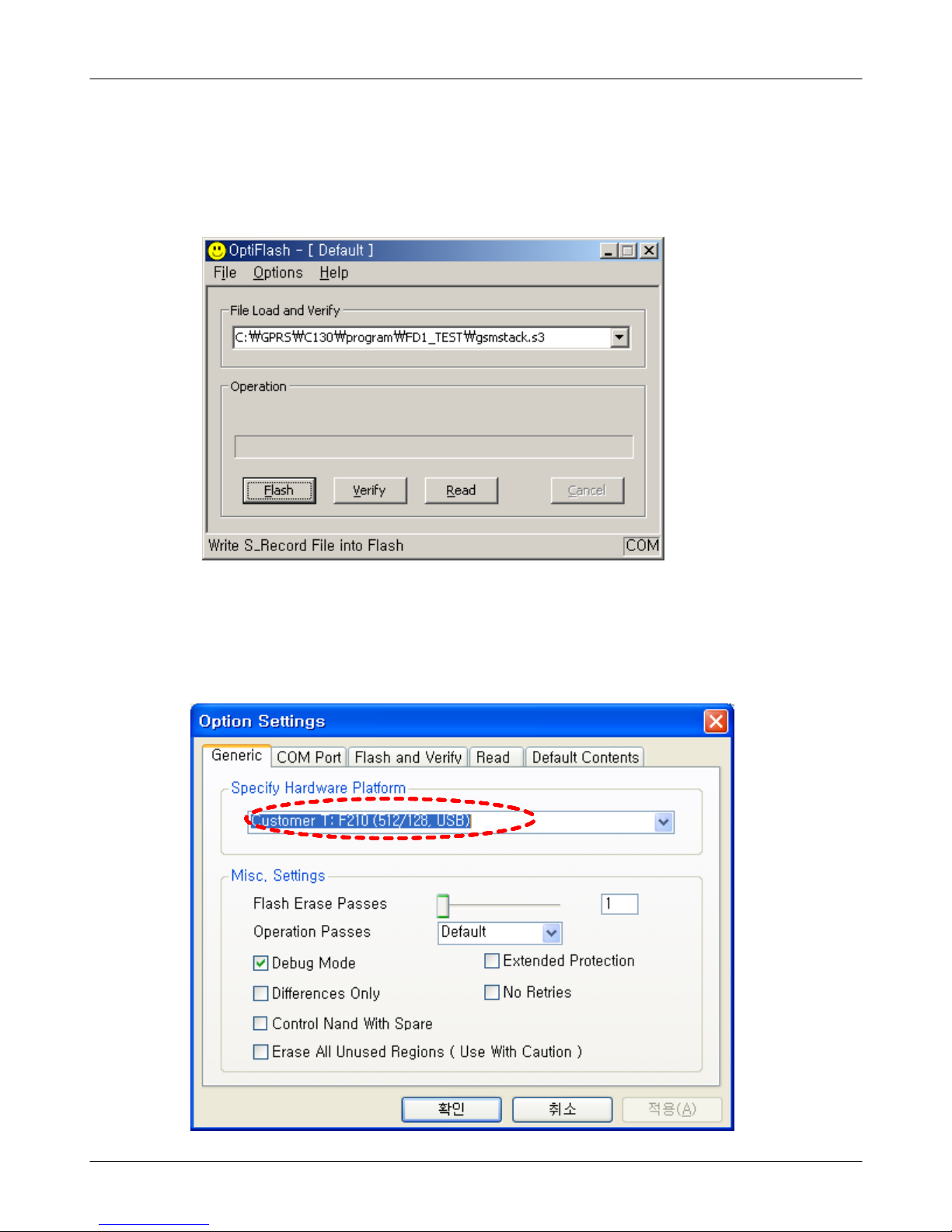

1. Load the binary download program by executing the “OptiFlash.exe”
2. Select the “Options”->“
Settings”->“ Generic”->“ Specify hardware
platform”.
Choose hardware platform for the downloader file setting.
Set the everything else as the default values which are shown below

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

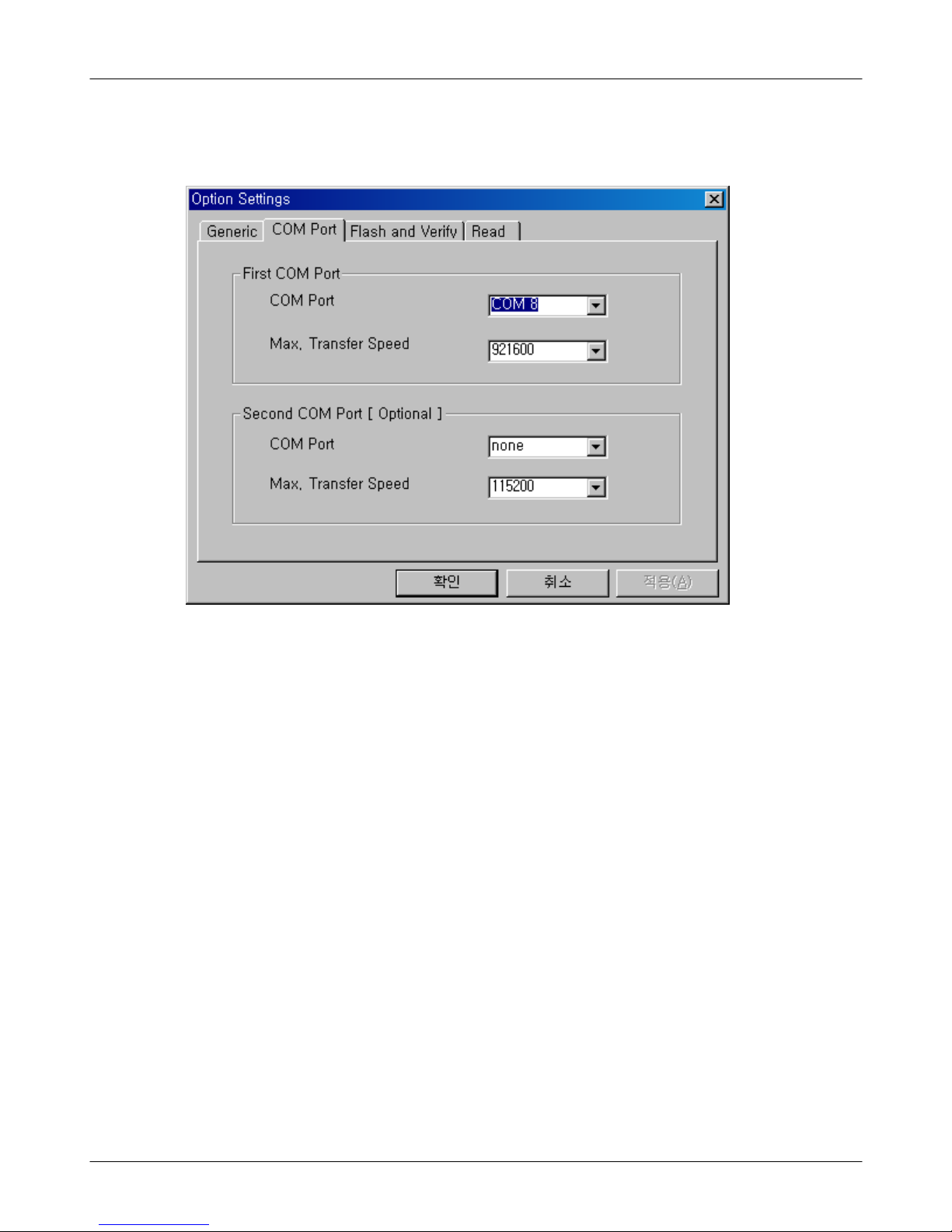

3. Select the COM port when the download cable is connected
Up to twelve ports are supported. Additionally you can select the
maximum transfer speed OptiFlash will use to communicate with
the phone. However, OptiFlash will use aslower speed if either the
PC’s or the phone’s serial hardware is incapable of handling the
selected speed

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization

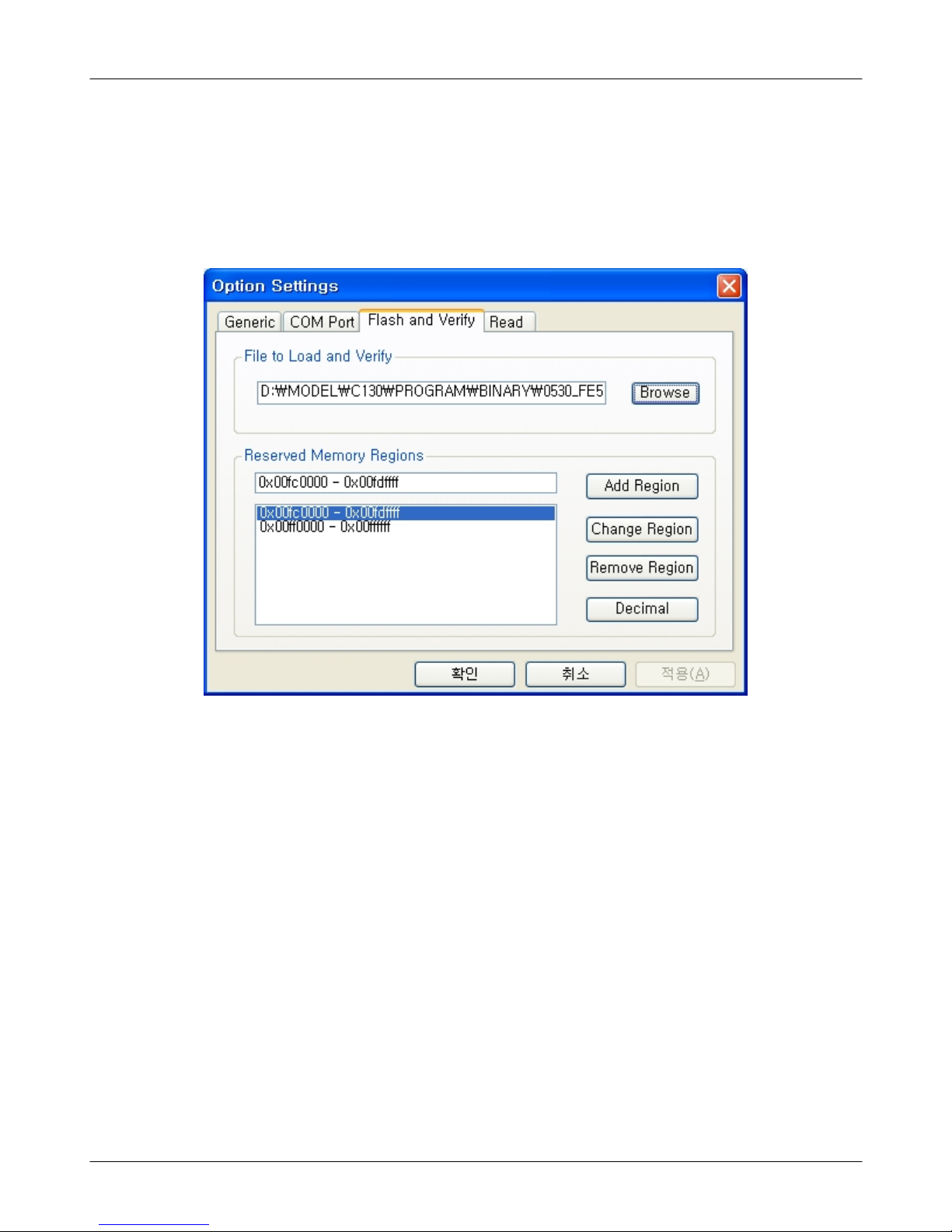

4. Select the“Flash&Verify”->“
Browse”
Set the directory path and choose the latest s/w binary, for example
“XC30XXYY.s3”, for the downloader binary setting.
Make sure that not to change the reserved memory
regions.
In case of F200 the reserved regions are :
-0x21fe0000 -0
x21ffffff

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization
5. Click “OK”button then press “Flash”.
(Before pressing ‘Flash’button, push the button ‘*’and ‘END’at the same
time.Then press ‘Flash’.)
Downloader will upload the binary file as below for the downloading.
6. When downloading is finished successfully, there is a“
All is well”
message.
7. After finishing downloading, Certain memory resets should be done to
guarantee the normal performance.
8. Confirm the downloaded version name and etc. :
*#1234#
Full Reset :
*2767*3855#

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization
5-1. Cellular phone Exploded View
QMW01
QFU01
QME02
QDC02
QSH09
QLC02
QME16
QSP01
QMO01
QFL01
QCR05
QSC03
QSC02
QSC01
QDC01
QVO01
QKP01
QME01
QCK01
QFR01
QMP01
QCH02
QCR10
QCA01
QAN02
QBL01
QRF01
QRE02
QLC01
QCR08
QBA00
QIF01
QCR05
QHI01
QCR05

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGH-F210 GH42-01304A
QBA00 BATTERY-750MAH,ME/BLU,ENG,M GH43-02922A
QBL01 PMO LOCKER-BATT GH72-39899D
QCA01 CAMERA MODULE GH59-04536A
QCH02 PMO-CAMERA HOUSING GH72-39898A
QCK01 PMO-KEY HOLD GH72-39902A
QCR05 SCREW-MACHINE 6001-001478
QCR05 SCREW-MACHINE 6001-001478
QCR08 SCREW-MACHINE 6001-001611
QCR10 SCREW-MACHINE 6001-001633
QDC02 ASSY DECO-WHEEL KEY GH98-05629A
QFR01 ASSY CASE-FRONT GH98-04982A
QFU01 ASSY CASE-SWING UPPER GH98-04981A
QKP01 ASSY KEYPAD-MAIN(XEN/RK) GH98-04985D
QLC01 LCD-MAIN GH07-00828A
QLC02 ELA UNIT-SGHF210 LCD MODULE,SV GH96-02842A
QME01 KEY FPCB-SGHF210 KEY FPCB GH59-04569A
QME02 KEY FPCB-WHEEL KEY,F210 GH59-04534A
QME16 FPC-CON TO CON,F210 GH41-01769A
QMO01 MOTOR DC-SGHF210 GH31-00355A
QMP01 PBA MAIN-SGHF210 GH92-03715A
QMW01 PMO COVER-MAINWINDOW GH72-42026A
QRE02 ASSY CASE-REAR GH98-04986D
QRF01 TAPE-SHEET RF GH74-32459D
QSC01 TAPE-SHEET SCREW CAP TOP GH74-32454A
QSC02 TAPE-SHEET SCREW CAP MID GH74-32455A
QSC03 TAPE-SHEET SCREW CAP BOT LGH74-32456A
QSH09 ASSY CASE-NAVIKEY SHIELD GH98-04983A
QSP01 SPEAKER 3001-002175
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
QVO01 ASSY KEY-VOLUME GH98-06568A
QFL01 ASSY CASE-SWING LOWER GH98-04984A
QCR05 SCREW-MACHINE 6001-001478
QHI01 ASSY HINGE-FRONT GH98-05464A
QDC01 ASSY COVER-DECO GH98-06539A
QIF01 PMO COVER-IF GH72-42718D

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
CBF INTERFACE-MIC CABLE,BLK,S2 GH39-00727A
CBF INTERFACE-DATA LINK CABLE( GH39-00859B
ADAPTOR-ATADS10EBE,BLK,EU GH44-01702A
S/W CD-SAMSUNG PC STUDIO 3.1,F GH46-00439A
EARPHONE-STEREO HEADSET,S20P,M GH59-02977A
LABEL(P)-UNIT SEAL GH68-00518B
LABEL(R)-WATER SOAK GH68-09361A
LABEL(R)-MAIN(EU) GH68-15849A
MANUAL USERS-EU GERMAN GH68-15984A
BOX(P)-UNIT MAIN(EU) GH69-05817A
CUSHION-CASE(EU) GH69-05819A
TAPE INSU GH74-18904A
MPR-TAPE LCD BTM MASKING GH74-22777A
MPR-TAPE MASKING LCD GH74-23786A
MPR-TAPE MASKING SM LCD GH74-24546A
SPONGE GH74-31970A
TAPE GASK GH74-33225A
VINYL-BOHO WINDOW GH74-33878A

SAMSUNG Proprietary-Contents may change without notice
6. MAIN Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
0403-001547 D507 DIODE-ZENER SA
0403-001547 D601 DIODE-ZENER SA
0404-001172 D701 DIODE-SCHOTTKY SA
0406-001150 V601 DIODE-TVS SA
0406-001150 VR604 DIODE-TVS SA
0406-001150 VR605 DIODE-TVS SA
0406-001150 VR607 DIODE-TVS SA
0406-001201 ZD604 DIODE-TVS SA
0406-001208 ZD603 DIODE-TVS SA
0406-001208 ZD605 DIODE-TVS SA
0406-001241 D505 DIODE-TVS SA
0406-001254 C610 DIODE-TVS SA
0406-001254 D503 DIODE-TVS SA
0406-001254 D504 DIODE-TVS SA
0406-001254 V402 DIODE-TVS SA
0406-001254 V403 DIODE-TVS SA
0406-001267 ZD401 DIODE-TVS SA
0406-001267 ZD501 DIODE-TVS SA
0406-001267 ZD502 DIODE-TVS SA
0801-002995 U302 IC-CMOS LOGIC SA
0801-003121 U706 IC-CMOS LOGIC SA
1001-001401 U202 IC-ANALOG SWITCH SA
1001-001428 U401 IC-ANALOG MULTIPLEX SA
1001-001428 U402 IC-ANALOG MULTIPLEX SA
1009-001035 U601 IC-HALL EFFECT S/W SA
1107-001703 UME202 IC-FLASH MEMORY SA
1108-000046 UME201 IC-MCP SA
1201-002457 U101 IC-POWER AMP SA
1203-003563 U712 IC-POSI.FIXED REG. SA
1203-004119 CPU301 IC-POWER SUPERVISOR SA
1203-004135 U707 IC-POSI.FIXED REG. SA
1203-004164 U701 IC-DC/DC CONVERTER SA
1203-004172 U705 IC-DC/DC CONVERTER SA
1203-004291 U708 IC-MULTI REG. SA
1203-004377 U702 IC-MULTI REG. SA
1203-004377 U704 IC-MULTI REG. SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
1203-004416 U709 IC-DC/DC CONVERTER SA
1203-004518 U301 IC-BATTERY SA
1204-002746 U403 IC-TUNER SA
1205-002272 U203 IC-TRANSCEIVER SA
1205-002942 U103 IC-TRANSCEIVER SA
1205-003093 U102 IC-TRANSCEIVER SA
1205-003227 UCD401 IC-CODEC SA
1404-001165 TH301 THERMISTOR-NTC SA
1405-001082 V401 VARISTOR SA
1405-001082 V501 VARISTOR SA
1405-001108 VR608 VARISTOR SA
1405-001108 ZD601 VARISTOR SA
1405-001108 ZD602 VARISTOR SA
2007-000138 R534 R-CHIP SA
2007-000139 R224 R-CHIP SA
2007-000139 R225 R-CHIP SA
2007-000148 R201 R-CHIP SA
2007-000148 R202 R-CHIP SA
2007-000148 R214 R-CHIP SA
2007-000148 R231 R-CHIP SA
2007-000148 R714 R-CHIP SA
2007-000148 R716 R-CHIP SA
2007-000157 R222 R-CHIP SA
2007-000157 R423 R-CHIP SA
2007-000157 R624 R-CHIP SA
2007-000157 U711 R-CHIP SA
2007-000161 R322 R-CHIP SA
2007-000162 R315 R-CHIP SA
2007-000162 R320 R-CHIP SA
2007-000162 R321 R-CHIP SA
2007-000170 R119 R-CHIP SA
2007-000170 R514 R-CHIP SA
2007-000171 F601 R-CHIP SA
2007-000171 L105 R-CHIP SA
2007-000171 L402 R-CHIP SA
2007-000171 R101 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
SEC CODE Design LOC Discription STATUS
2007-000171 R305 R-CHIP SA
2007-000171 R426 R-CHIP SA
2007-000171 R427 R-CHIP SA
2007-000171 R701 R-CHIP SA
2007-000171 R706 R-CHIP SA
2007-000171 R713 R-CHIP SA
2007-000171 R720 R-CHIP SA
2007-000172 R708 R-CHIP SA
2007-001290 R226 R-CHIP SA
2007-001290 R227 R-CHIP SA
2007-001290 R515 R-CHIP SA
2007-001313 R410 R-CHIP SA
2007-007132 R304 R-CHIP SA
2007-007136 R309 R-CHIP SA
2007-007142 R404 R-CHIP SA
2007-007142 R406 R-CHIP SA
2007-007142 R414 R-CHIP SA
2007-007142 R416 R-CHIP SA
2007-007308 R308 R-CHIP SA
2007-007313 R303 R-CHIP SA
2007-007314 R310 R-CHIP SA
2007-007528 R223 R-CHIP SA
2007-007528 R409 R-CHIP SA
2007-007528 R412 R-CHIP SA
2007-007528 R413 R-CHIP SA
2007-007588 R408 R-CHIP SA
2007-007590 R401 R-CHIP SA
2007-007590 R407 R-CHIP SA
2007-007590 R415 R-CHIP SA
2007-007590 R417 R-CHIP SA
2007-007698 R707 R-CHIP SA
2007-007798 R418 R-CHIP SA
2007-007798 R419 R-CHIP SA
2007-008044 R606 R-CHIP SA
2007-008044 R614 R-CHIP SA
2007-008044 R615 R-CHIP SA
