Samsung SGH-J210 User manual

GSM TELEPHONE
SGH-J210
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts List
6. Main Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data
11. Disassembly and Assembly
Instructions

This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
Samsung Electronics Co.,Ltd.
2007. 11. Rev.1.0
ⓒ
Country Web Site
North America service.samsungportal.com
Latin America latin.samsungportal.com
CIS cis.samsungportal.com
Europe europe.samsungportal.com
China china.samsungportal.com
Asia asia.samsungportal.com
Mideast & Africa mea.samsungportal.com
GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specificity of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of magnetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembling charger.
●Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum
plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is connected
completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM900
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900
Freq.
Band[MHz]
Uplink/Downlink
890~915
935~960 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 19pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km -

Speclflcation
2-2
TX Power
control level GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1900
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM Tx Power Class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
- Simple and modern bar design
- Music oriented function with loud speaker
- 2 Mega-pixel Camera
- Extended Memory (MicroSD slot)
- Bluetooth v2.0 / USB v2.0
- FM radio (FM radio recording 기능:MP3format지원)
- WAP 2.0 / Java MIDP 2.0
- Speaker Phone Function
- MP3, AAC+, MP4, 3GPP Decoding (Offline mode)
- Video recording & Messaging
- Mobile Tracker, My Menu, Living world

SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
Jig Cable (GH80-00836A)1.5M
(GH80-00834A)0.4M
RF CABLE (GH39-00397A)
Power Supply Cable
Serial Cable(CSA LL64151-A)
Test Jig (GH80-03306A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Pre-requsite for Downloading
• Downloader Program(OneNAND Downloder V1.4 Lite For PNX5230.exe)
• J210 Mobile Phone
• Data Cable
• Binary file, TFS file
4-2-2. S/W Downloader Program
■Load the binary download program by executing the
“OneNAND Downloder V1.4 Lite For PNX5230.exe”
1. Select the connected serial port and therateofspeed
2. Select the check box, the mode you want to download.
- if the binary file wanted, check only 'BIN'
- if the tfs file wanted, check only 'TFS'
- if all the files wanted, check 'BIN+TFS'
1
2

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
3. Select the file(s) what you want to download

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

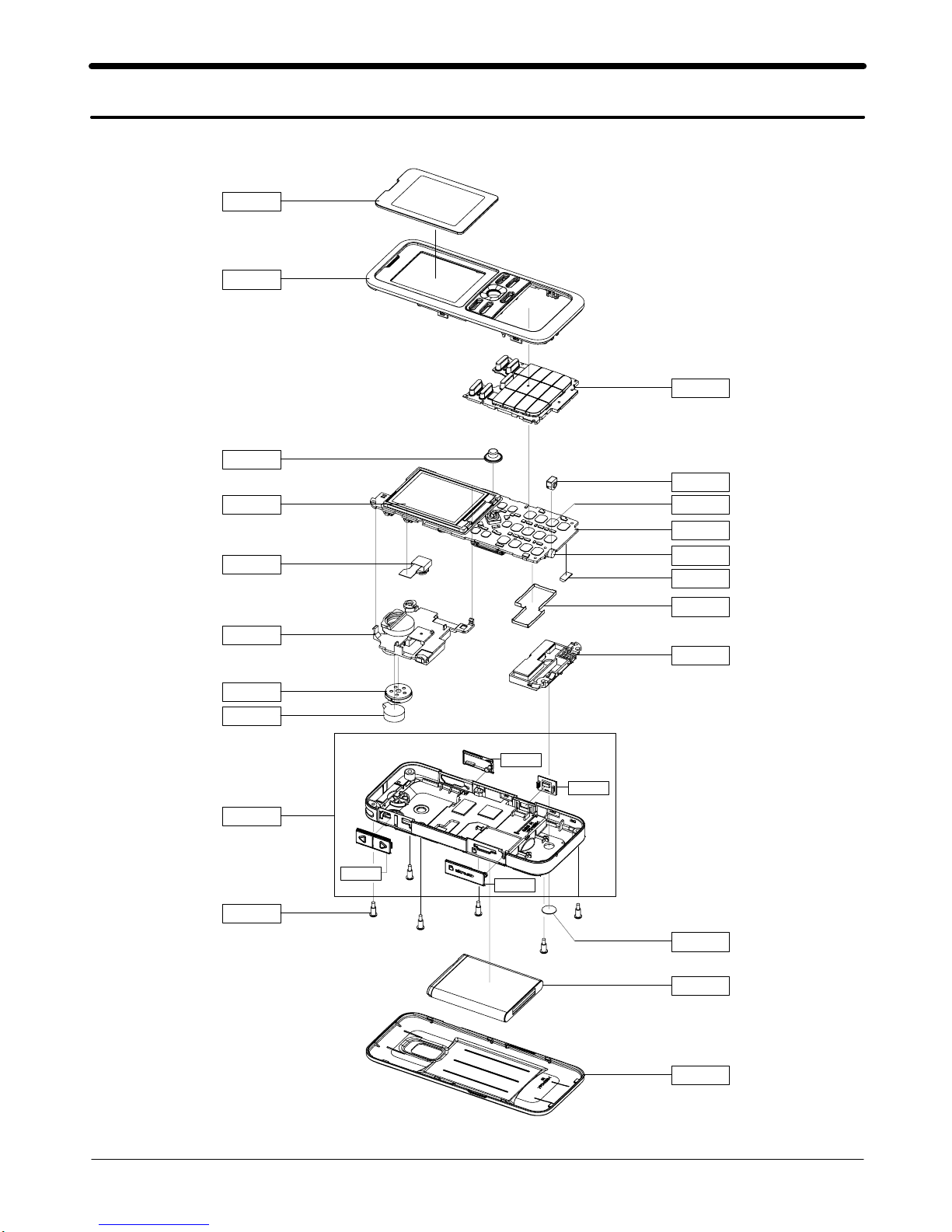

5-1. Cellular phone Exploded View
QMW02
QFR01
QJK01
QLC01
QCA01
QBR04
QMO01
QRE01
QCR76
QSP01
QKP01
QMI03
QMI01
QAN05
QSH01
QAN02
QRF01
QBA01
QBA00
QME01
QMP01
QCK01
QSD01
QIF01
QVO01

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Description SEC CODE
QAN02 INTENNA-SGHJ210 GH42-01379A
QAN05 ASSY MEC-INTENNA CONTACT GH75-08168A
QBA00 ASSY CASE-BATTERY GH98-07028A
QBA01 INNER BATTERY PACK-880MAH , BL GH43-02772A
QBR04 ASSY BRACKET-SPEAKER GH98-06810A
QCA01 CAMERA MODULE-SGHJ210 GH59-05040A
QCR76 SCREW-SPECIAL 6009-001525
QFR01 ASSY CASE-FRONT GH98-06289A
QJK01 PMO KEY-JOY STIC GH72-42275A
QKP01 ASSY KEYPAD-(SER/BLK) GH98-06829A
QLC01 LCD-SGHJ200 GH07-01146A
QME01 KEY FPCB-M/DOME SHEET 17KEY GH59-05041A
QMI01 MICROPHONE-ASSY-SGHJ210 GH30-00451A
QMI03 RMO RUBBER-MIC GH73-10752A
QMO01 MOTOR DC-SPHV5100 GH31-00122A
QMP01 PBA MAIN-SGHJ210 GH92-04158A
QMW02 PCT WINDOW-MAIN GH72-44338A
QRF01 TAPE-RF SHEET GH74-35297A
QSH01 ASSY COVER-SHIELD CAN GH98-07087A
QSP01 MICRO SPEAKER 3001-002221
QRE01 ASSY CASE-REAR GH98-06290A
QCK01 PMO KEY-CAMERA GH72-44801A
QIF01 PMO COVER-IF V2 GH72-43256A
QSD01 PMO COVER-SD V2 GH72-43257A
QVO01 PMO KEY-VOLUME GH72-42305A
5-2. Cellular phone Parts List

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Description SEC CODE
SCREW-TAPPING 6002-001409
SCREW-TAPPING 6002-001409
BAG PE 6902-000634
CBF INTERFACE-DLC APCBS10BBE(S GH39-00922A
ADAPTOR-ATADS10EBE,BLK,EU GH44-01702A
S/W CD-SGHJ210 PC LINK CD GH46-00534A
EARPHONE-AAEP405QBE,S20P,EU GH59-05296A
LABEL(P)-UNIT SEAL GH68-00518B
MANUAL-SFC GH68-04336A
LABEL(R)-WATER SOAK GH68-09361A
MANUAL USERS-EU RUSSIAN GH68-16587A
LABEL(R)-MAIN(SER) GH68-16962A
CUSHION-CASE(EU) GH69-05857A
BOX-UNIT(SER) GH69-06255A
VINYL-BOHO FRONT GH74-34505A
TAPE-CAMERA INSU GH74-34508A
TAPE-PCB1 GH74-34509A
TAPE-SIM GH74-35114A
SPONGE-NAVI GH74-35179A
VINYL-BOHO WINDOW GH74-36154A
SPONGE GH74-36725A
CBF SIGNAL-SPHA560 RF CABLE GH39-00397A
0.4M CBF INTERFACE-SGHT409 TEST CAB GH39-00834A
1.5M CBF INTERFACE-SGHT409 TEST CAB GH39-00836A
INSTALL-TEST JIG BOX GH80-03306A

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-4
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
6. Main Electrical Parts List
6-1
This Document can not be used without Samsung's authorization
SEC Code Design LOC Description STATUS
0406-001203 ZD500 DIODE-TVS SA
0406-001223 U702 DIODE-TVS SA
0406-001223 ZD400 DIODE-TVS SA
0406-001267 ZD507 DIODE-TVS SA
0406-001267 ZD508 DIODE-TVS SA
0406-001279 ZD503 DIODE-TVS SA
0406-001279 ZD505 DIODE-TVS SA
0406-001279 ZD700 DIODE-TVS SA
0406-001279 ZD701 DIODE-TVS SA
0406-001279 ZD702 DIODE-TVS SA
0406-001279 ZD703 DIODE-TVS SA
0406-001279 ZD704 DIODE-TVS SA
0406-001279 ZD705 DIODE-TVS SA
0406-001279 ZD706 DIODE-TVS SA
0406-001279 ZD707 DIODE-TVS SA
0406-001279 ZD708 DIODE-TVS SA
0406-001279 ZD709 DIODE-TVS SA
0406-001279 ZD710 DIODE-TVS SA
0406-001279 ZD719 DIODE-TVS SA
0406-001279 ZD720 DIODE-TVS SA
0406-001279 ZD721 DIODE-TVS SA
0406-001279 ZD722 DIODE-TVS SA
0406-001279 ZD723 DIODE-TVS SA
0406-001279 ZD724 DIODE-TVS SA
0406-001286 ZD502 DIODE-TVS SA
0406-001286 ZD504 DIODE-TVS SA
0406-001288 ZD501 DIODE-TVS SA
0406-001288 ZD506 DIODE-TVS SA
0406-001288 ZD509 DIODE-TVS SA
0406-001288 ZD711 DIODE-TVS SA
0406-001288 ZD712 DIODE-TVS SA
0406-001288 ZD713 DIODE-TVS SA
0406-001288 ZD714 DIODE-TVS SA
0407-001002 D700 DIODE-ARRAY SA
0505-002207 TR400 FET-SILICON SA
0601-002265 LED700 LED SA
0601-002265 LED701 LED SA
0601-002265 LED702 LED SA
0601-002265 LED703 LED SA
0601-002265 LED704 LED SA
0601-002265 LED705 LED SA
0601-002265 LED706 LED SA
0601-002265 LED707 LED SA
0601-002265 LED708 LED SA
0601-002265 LED709 LED SA
0601-002265 LED710 LED SA
0601-002265 LED711 LED SA
0601-002265 LED712 LED SA
0601-002265 LED713 LED SA
0601-002265 LED714 LED SA
0601-002265 LED715 LED SA
0801-003012 U100 IC-CMOS LOGIC SA
0801-003022 U300 IC-CMOS LOGIC SA
0801-003130 U503 IC-CMOS LOGIC SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-2
This Document can not be used without Samsung's authorization
0902-002142 U301 IC-MICROPROCESSOR SA
1001-001401 U501 IC-ANALOG SWITCH SA
1001-001410 U601 IC-ANALOG SWITCH SA
1001-001410 U605 IC-ANALOG SWITCH SA
1108-000102 UME300 IC-MCP SA
1201-002492 U600 IC-AUDIO AMP SA
1201-002576 U102 IC-POWER AMP SA
1203-003708 U604 IC-DC/DC CONVERTER SA
1203-003737 U400 IC-POSI.FIXED REG. SA
1203-003737 U401 IC-POSI.FIXED REG. SA
1203-003737 U402 IC-POSI.FIXED REG. SA
1203-003737 U405 IC-POSI.FIXED REG. SA
1203-003737 U602 IC-POSI.FIXED REG. SA
1203-003787 U406 IC-POSI.FIXED REG. SA
1203-004291 U403 IC-MULTI REG. SA
1203-004382 U404 IC-POWER SUPERVISOR SA
1205-003082 UCP200 IC-COMM. CONTROLLER SA
1205-003214 U603 IC-CODEC SA
1205-003216 U101 IC-TRANSCEIVER SA
1205-003283 U104 IC-TRANSCEIVER SA
1404-001221 VR200 THERMISTOR-NTC SA
2007-000138 R526 R-CHIP SA
2007-000138 R603 R-CHIP SA
2007-000138 R608 R-CHIP SA
2007-000140 R108 R-CHIP SA
2007-000140 R211 R-CHIP SA
2007-000140 R320 R-CHIP SA
2007-000141 R318 R-CHIP SA
2007-000141 R319 R-CHIP SA
2007-000141 R407 R-CHIP SA
2007-000143 R110 R-CHIP SA
2007-000143 R312 R-CHIP SA
2007-000143 R321 R-CHIP SA
2007-000148 R200 R-CHIP SA
2007-000148 R201 R-CHIP SA
2007-000148 R202 R-CHIP SA
2007-000148 R203 R-CHIP SA
2007-000148 R213 R-CHIP SA
2007-000148 R221 R-CHIP SA
2007-000148 R305 R-CHIP SA
2007-000148 R307 R-CHIP SA
2007-000148 R311 R-CHIP SA
2007-000148 R322 R-CHIP SA
2007-000148 R501 R-CHIP SA
2007-000148 R502 R-CHIP SA
2007-000148 R509 R-CHIP SA
2007-000148 R510 R-CHIP SA
2007-000148 R516 R-CHIP SA
2007-000148 R610 R-CHIP SA
2007-000157 R300 R-CHIP SA
2007-000157 R301 R-CHIP SA
2007-000157 R302 R-CHIP SA
2007-000157 R304 R-CHIP SA
2007-000157 R306 R-CHIP SA
2007-000157 R308 R-CHIP SA
2007-000157 R314 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-3
This Document can not be used without Samsung's authorization
2007-000157 R507 R-CHIP SA
2007-000157 R605 R-CHIP SA
2007-000157 R606 R-CHIP SA
2007-000159 R517 R-CHIP SA
2007-000159 R518 R-CHIP SA
2007-000159 R519 R-CHIP SA
2007-000159 R520 R-CHIP SA
2007-000159 R521 R-CHIP SA
2007-000159 R522 R-CHIP SA
2007-000162 R103 R-CHIP SA
2007-000162 R212 R-CHIP SA
2007-000162 R303 R-CHIP SA
2007-000162 R315 R-CHIP SA
2007-000162 R408 R-CHIP SA
2007-000162 R410 R-CHIP SA
2007-000162 R411 R-CHIP SA
2007-000162 R414 R-CHIP SA
2007-000166 R523 R-CHIP SA
2007-000170 R503 R-CHIP SA
2007-000170 R504 R-CHIP SA
2007-000171 R104 R-CHIP SA
2007-000171 R105 R-CHIP SA
2007-000171 R106 R-CHIP SA
2007-000171 R206 R-CHIP SA
2007-000171 R207 R-CHIP SA
2007-000171 R208 R-CHIP SA
2007-000171 R313 R-CHIP SA
2007-000171 R409 R-CHIP SA
2007-000171 R413 R-CHIP SA
2007-000171 R417 R-CHIP SA
2007-000172 R602 R-CHIP SA
2007-000172 R604 R-CHIP SA
2007-000758 R217 R-CHIP SA
2007-000758 R218 R-CHIP SA
2007-000758 R412 R-CHIP SA
2007-001292 R600 R-CHIP SA
2007-001292 R601 R-CHIP SA
2007-001298 R700 R-CHIP SA
2007-001298 R701 R-CHIP SA
2007-001298 R702 R-CHIP SA
2007-001298 R703 R-CHIP SA
2007-001298 R704 R-CHIP SA
2007-001298 R705 R-CHIP SA
2007-001298 R706 R-CHIP SA
2007-001298 R707 R-CHIP SA
2007-001298 R708 R-CHIP SA
2007-001298 R709 R-CHIP SA
2007-001298 R710 R-CHIP SA
2007-001298 R711 R-CHIP SA
2007-001298 R712 R-CHIP SA
2007-001298 R713 R-CHIP SA
2007-001298 R714 R-CHIP SA
2007-001298 R715 R-CHIP SA
2007-001319 R215 R-CHIP SA
2007-001319 R216 R-CHIP SA
2007-001333 R401 R-CHIP SA

SAMSUNG Proprietary-Contents may change without notice
Main Electrical Parts List
6-4
This Document can not be used without Samsung's authorization
2007-001333 R402 R-CHIP SA
2007-001333 R525 R-CHIP SA
2007-001333 R607 R-CHIP SA
2007-001339 R508 R-CHIP SA
2007-002796 R220 R-CHIP SA
2007-002796 R506 R-CHIP SA
2007-002796 R612 R-CHIP SA
2007-007001 R209 R-CHIP SA
2007-007001 R310 R-CHIP SA
2007-007107 R204 R-CHIP SA
2007-007107 R316 R-CHIP SA
2007-007107 R317 R-CHIP SA
2007-007142 R109 R-CHIP SA
2007-007142 R511 R-CHIP SA
2007-007311 R406 R-CHIP SA
2007-007312 R513 R-CHIP SA
2007-007334 R512 R-CHIP SA
2007-007489 R101 R-CHIP SA
2007-007528 R500 R-CHIP SA
2007-007528 R505 R-CHIP SA
2007-007528 R609 R-CHIP SA
2007-007528 R611 R-CHIP SA
2007-007573 R210 R-CHIP SA
2007-007573 R400 R-CHIP SA
2007-008117 R309 R-CHIP SA
2007-008354 R403 R-CHIP SA
2203-000138 C128 C-CER,CHIP SA
2203-000138 C129 C-CER,CHIP SA
2203-000138 C130 C-CER,CHIP SA
2203-000233 C132 C-CER,CHIP SA
2203-000233 C136 C-CER,CHIP SA
2203-000233 C138 C-CER,CHIP SA
2203-000233 C417 C-CER,CHIP SA
2203-000254 C140 C-CER,CHIP SA
2203-000254 C211 C-CER,CHIP SA
2203-000254 C305 C-CER,CHIP SA
2203-000254 C308 C-CER,CHIP SA
2203-000254 C311 C-CER,CHIP SA
2203-000254 C313 C-CER,CHIP SA
2203-000254 C515 C-CER,CHIP SA
2203-000254 C519 C-CER,CHIP SA
2203-000278 C106 C-CER,CHIP SA
2203-000278 C111 C-CER,CHIP SA
2203-000278 C121 C-CER,CHIP SA
2203-000278 C131 C-CER,CHIP SA
2203-000311 C518 C-CER,CHIP SA
2203-000330 C126 C-CER,CHIP SA
2203-000330 C507 C-CER,CHIP SA
2203-000386 C634 C-CER,CHIP SA
2203-000425 C419 C-CER,CHIP SA
2203-000425 C422 C-CER,CHIP SA
2203-000438 C100 C-CER,CHIP SA
2203-000438 C107 C-CER,CHIP SA
2203-000438 C139 C-CER,CHIP SA
2203-000628 C217 C-CER,CHIP SA
2203-000628 C218 C-CER,CHIP SA
