Samsung SGH-S501I User manual

GSM TELEPHONE
SGH-S501i
GSM TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View and Parts list
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

Contents
1. Safety Precautions
1-1. Repair Precaution ...........................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...........................1-2
2. Specification
2-1. GSM General Specification ..............................................................2-1
2-2. GSM TX power Level ......................................................................2-2
3. Product Function
4. Array course control
4-1. Downloading Binary Files .............................................................4-2
4-2. Pre-requsite for Downloading .......................................................4-2
4-3. S/W Downloader Program ............................................................4-3
5. Exploded View and Parts list
5-1. Cellular phone Exploded View ......................................................5-1
5-2. Cellular phone Parts list ..............................................................5-2
5-3. Disassembly ...............................................................................5-4
5-4. Assembly ...................................................................................5-6
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams

Contents
9. Flow Chart of Troubleshooting
9-1. Baseband ................................................................................9-1
9-1-1. Power ON ..........................................................................9-1
9-1-2. Initial ................................................................................9-4
9-1-3. SIM Part .............................................................................9-6
9-1-4. Microphone Part .................................................................9-7
9-1-5. Speaker Part_1(MP3, SPEAKER PHONE) ................................9-8
9-1-6. Speaker Part_2(RECEIVER) ................................................9-10
9-1-7. Charging Part ...................................................................9-11
9-2. RF .........................................................................................9-13
9-2-1. EGSM RX .........................................................................9-13
9-2-2. DCS RX ...........................................................................9-15
9-2-3. PCS RX ............................................................................9-16
9-2-4. EGSM TX .........................................................................9-17
9-2-5. DCS TX ...........................................................................9-18
9-2-6. PCS TX ............................................................................9-19
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
●Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test,
because specipicty of cellular phone is sensitive for surrounding interference(RF noise).
●Be careful to use a kind of magnetic object or tool,
because performance of parts is damaged by the influence of manetic force.
●Surely use a standard screwdriver when you disassemble this product,
otherwise screw will be worn away.
●Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
●Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of
connecting Test Pack and tuning on.
●Take specially care of soldering, because Land of PCB is small and weak in heat.
●Surely tune on/off while using AC power plug, because a repair of battery charger is
dangerous when tuning ON/OFF PBA and Connector after disassembing charger.
●Don't use as you pleases after change other material than replacement registered on SEC
System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easilly by static electricity. Such parts are called by
ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
●Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity
prevention string on wrist.
●Use earthed soldering steel when you connect or disconnect ESD.
●Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by
static electricity.
●Don't unpack until you set up ESD on product. Because most of ESD are packed by box
and aluminum plate to have conductive power,they are prevented from static electricity.
●You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

2. Specification
2-1
2-1. GSM General Specification
GSM 900 DCS1800 PCS1900
Freq. Band[MHz]
Uplink/Downlink
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 0~124
&975~1023 512~885 512~810
Tx/Rx spacing 45 MHz 95 MHz 80 MHz
Mod. Bit
rate/
Bit Period
GPRS 270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
270.833 Kbps
3.692 us
EDGE 812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
812.5 Kbps
3.692 us
Time Slot
Period/Frame Period
576.9 us
4.615 ms
576.9 us
4.615 ms
576.9 us
4.615 ms
Modulation
GPRS 0.3 GMSK 0.3 GMSK 0.3 GMSK
EDGE 8PSK 8PSK 8PSK
MS Power
GPRS 33 dBm~5 dBm 30 dBm~0 dBm 30 dBm~0 dBm
EDGE 27~5 dBm 26~0 dBm 26~0 dBm
Power
Level
GPRS 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl
EDGE 8~19(class E2) 2~15(class E2) 2~15(class E2)
Sensitivity -102 dBm -100 dBm -102 dBm
TDMA Mux 8 8 8
Cell Radius 35 Km 2 Km 2 Km

Specification
2-2
2-2. GMSK TX power Level
TX Power
control
level
GSM900
5 33±2 dBm
6 31±3 dBm
7 29±3 dBm
8 27±3 dBm
9 25±3 dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
0 30±2 dBm
1 28±3 dBm
2 26±3 dBm
3 24±3 dBm
4 22±3 dBm
5 20±3 dBm
6 18±3 dBm
7 16±3 dBm
8 14±3 dBm
9 12±4 dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

Specification
2-3
2-3. EDGE TX Power Level
TX Power
control
level
GSM850
827±3dBm
925±3dBm
10 23±3 dBm
11 21±3 dBm
12 19±3 dBm
13 17±3 dBm
14 15±3 dBm
15 13±3 dBm
16 11±5 dBm
17 9±5 dBm
18 7±5 dBm
19 5±5 dBm
TX Power
control
level
DCS1800
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4 dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control
level
PCS1900
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4d Bm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
-Camera and camcorder
-Image editor
-Music player
-File viewer
-Bluetooth
-Photo printing
-i-mode browser
-Get personal with photo/vIDEO caller ID
-Name card
-Multimedia Message Service (i-MMS)
-Email (i-mail)
-Java
-Voice recorder

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization

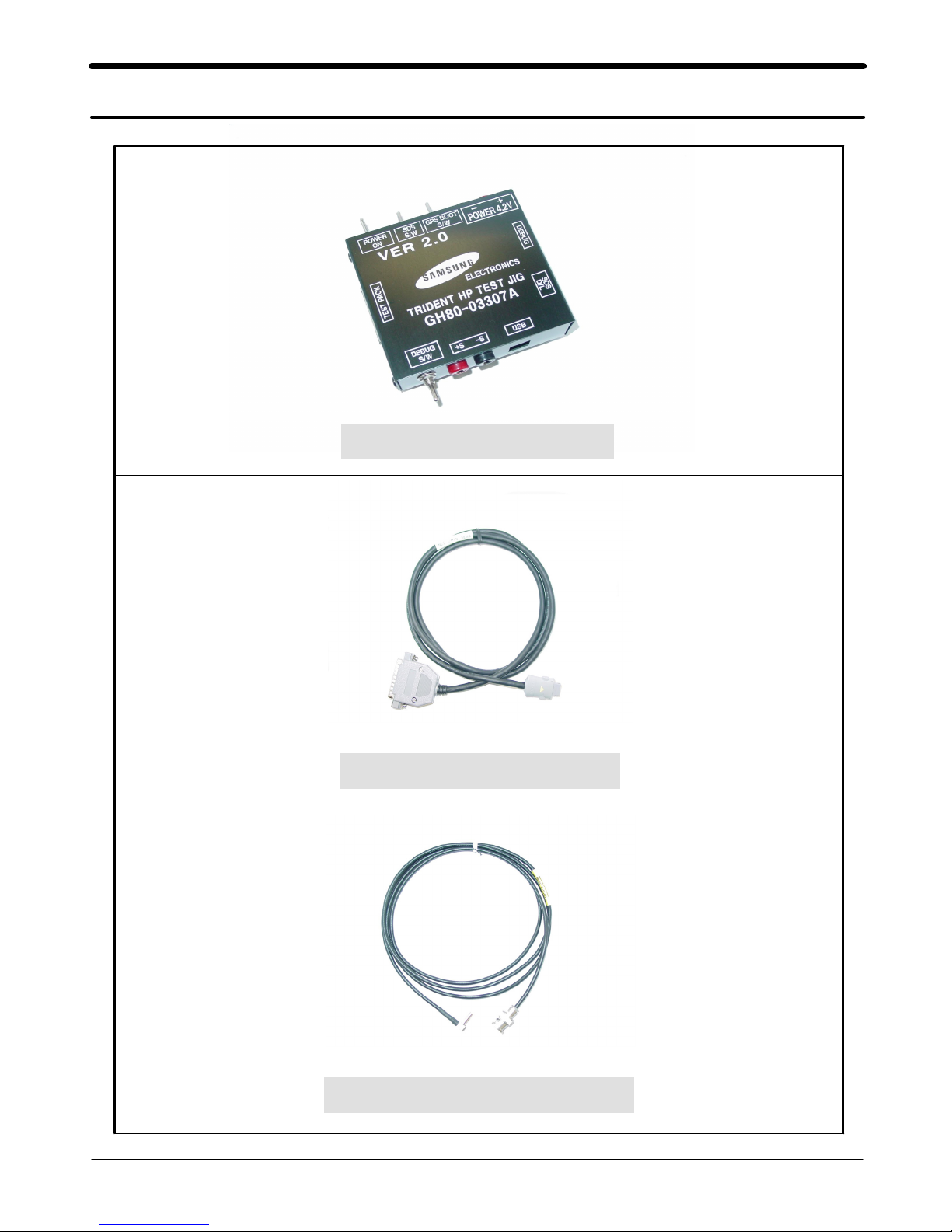

Test Jig (GH80-03307A)
Test Cable (GH39-00369A)
RF Test Cable (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-1. Pre-requsite for Downloading
1) Two binary files for S501i
S501iALL_XXXX.bin - main binary file
S501i_PRELOAD_YYYY_0xZZZZZZZ.bin - preload file
* X is version. it's not fixed
* Y is date. it's not fixed
* Z is download address. it's not fixed
2) Download program for SCH-S501i
SCH-S501i download program( USB DownLoader & UpLoader-XL29.exe )
3) Mobile phone ( SCH-S501i )
4) USB Data cable for SCH-S501i
4-2. Download binary files
1) Run download program

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization

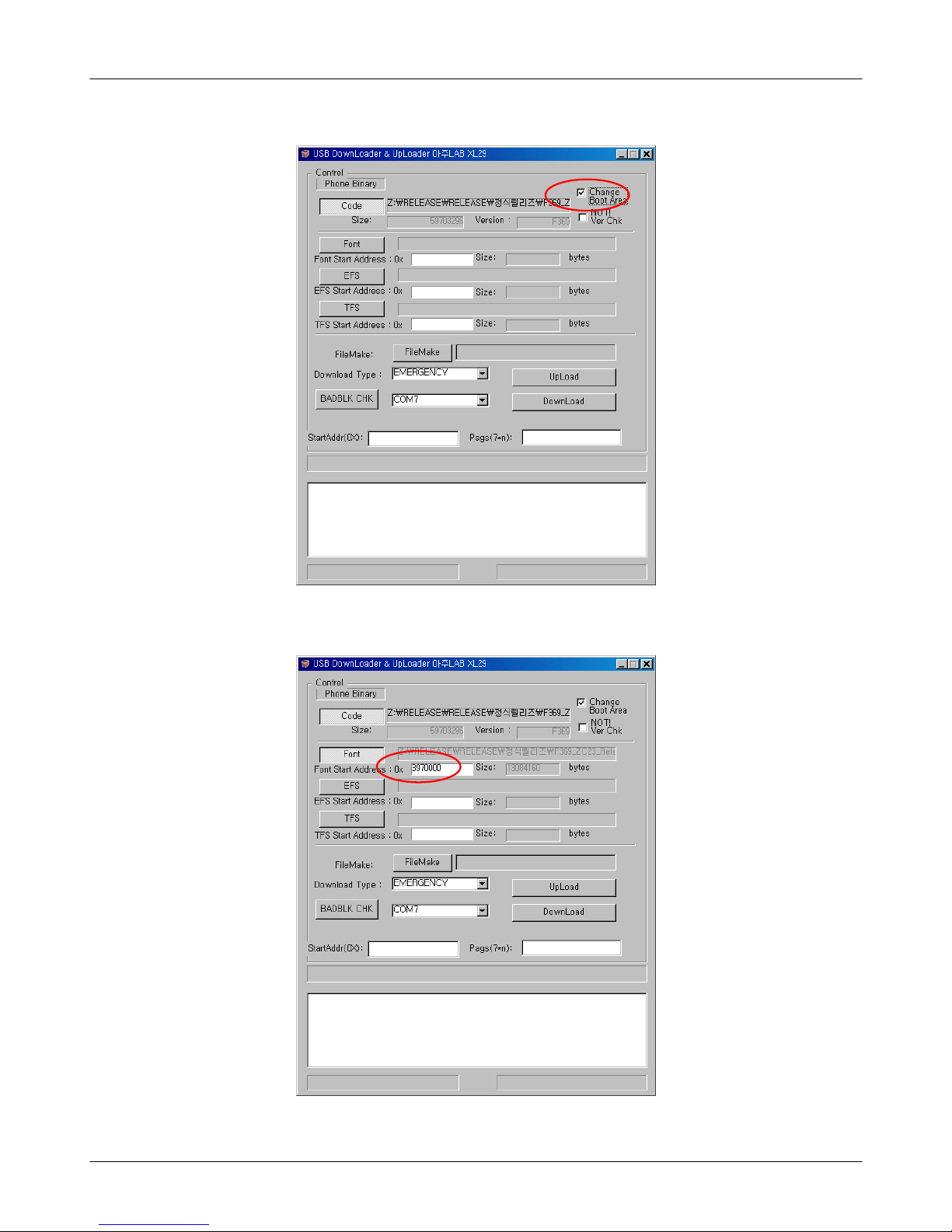

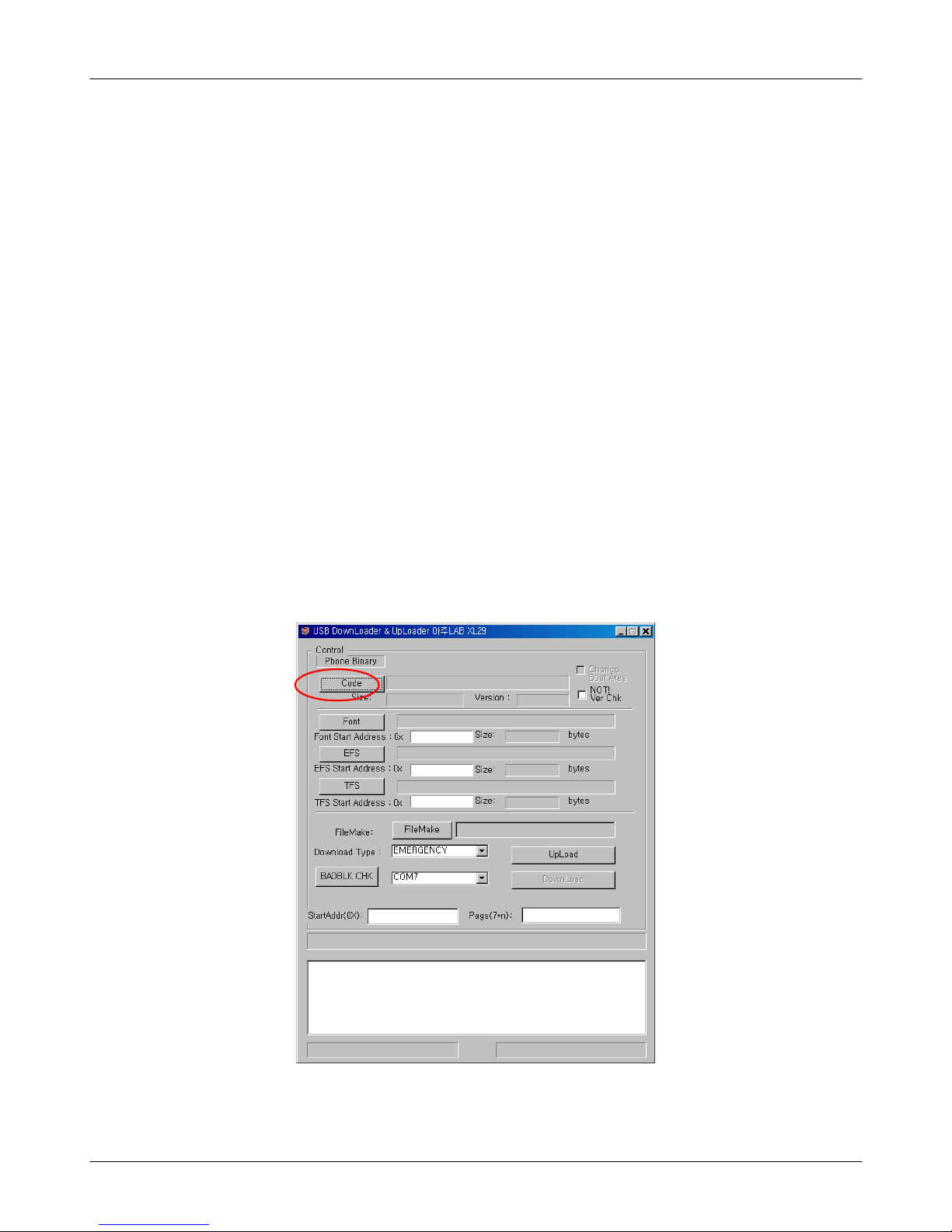

2) Press Code button, and pick binary file and check “Change Boot Area”
3) Press Font button, and pick preload file and enter download address

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization

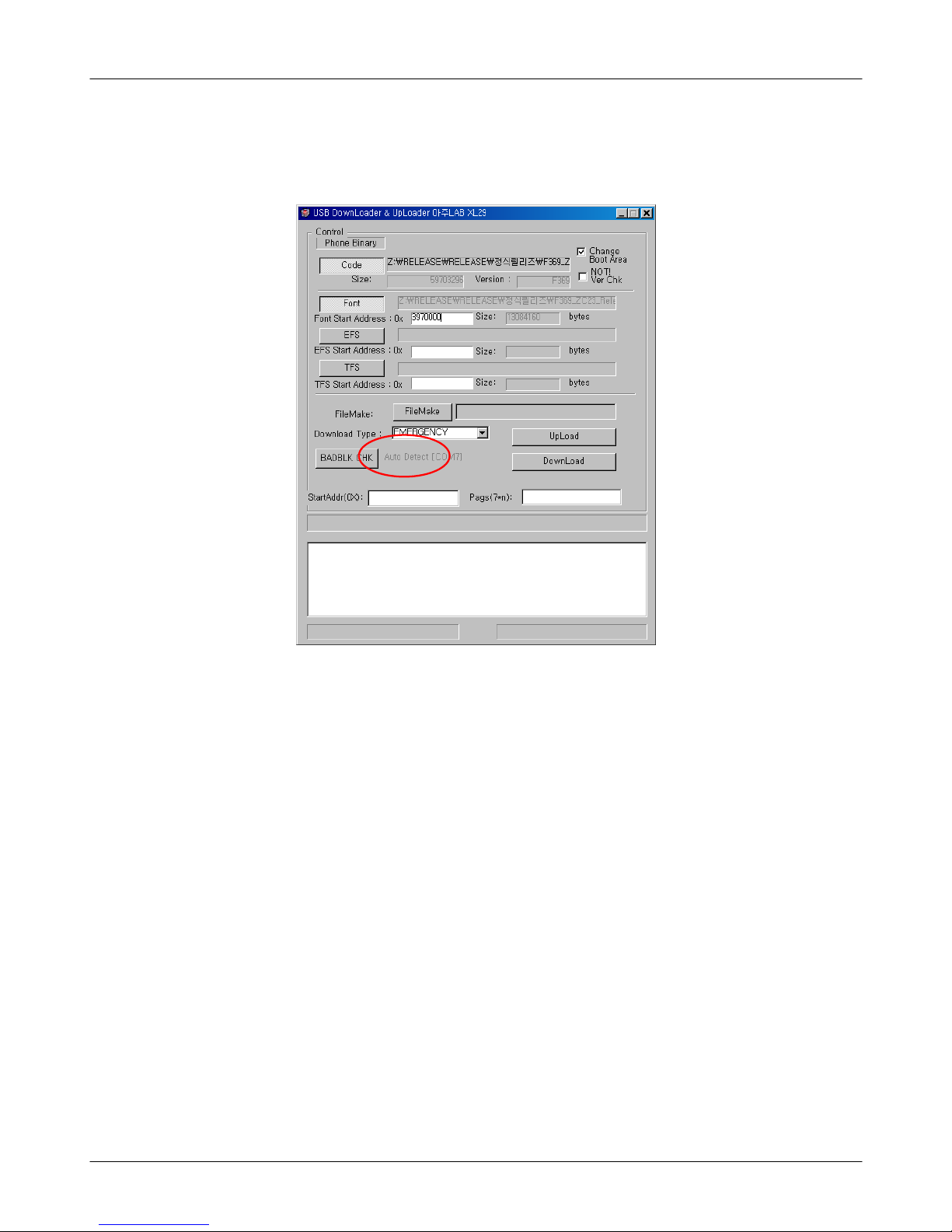

4) Set Phone to download mode and connect cable
Phone - Power off and Power on while press Key #9
Then detected com port at download program

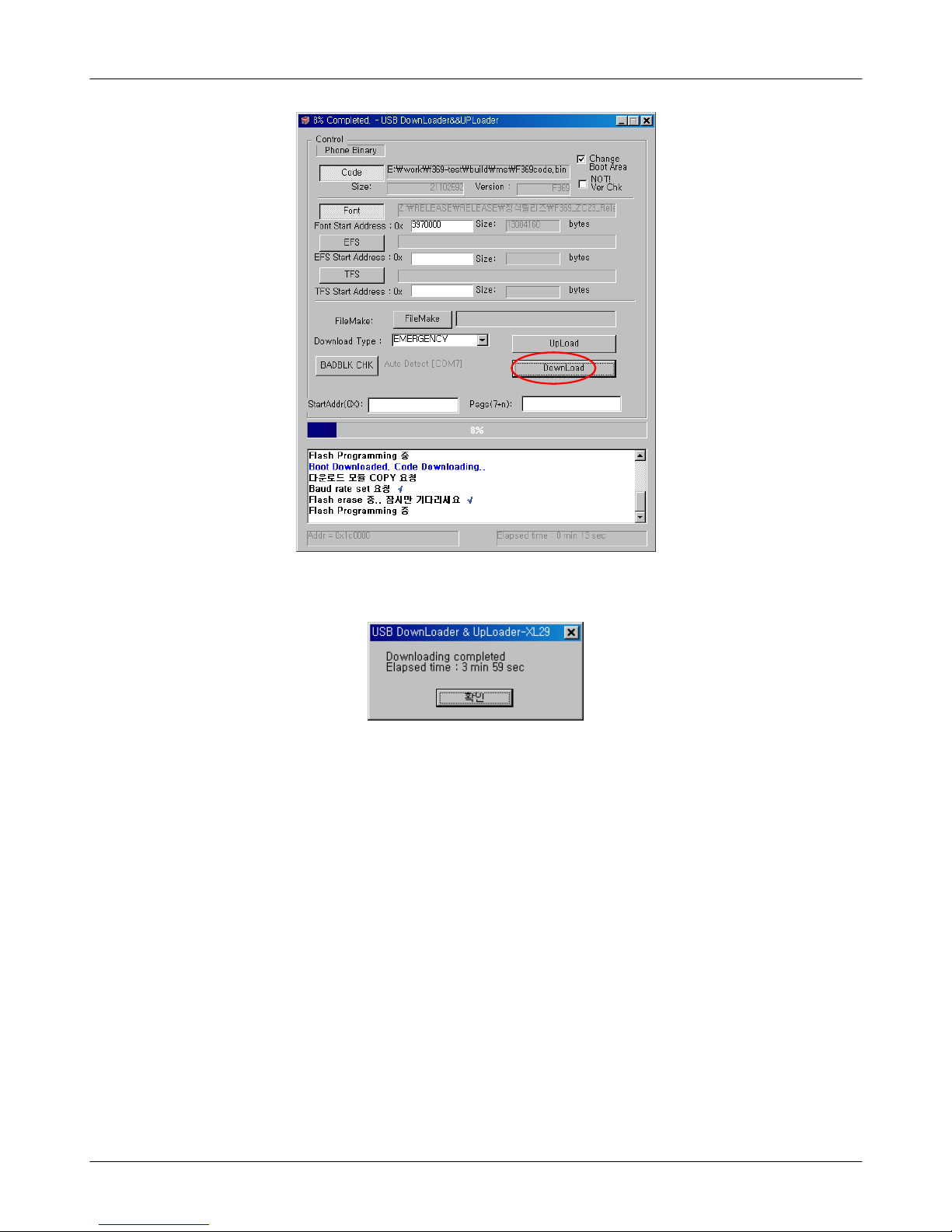

5) Press download button. then binary download start

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
6) If you can see this window, download finished succesfully.
7) Phone is rebuild automatically, and then you can use Phone.

SAMSUNG Proprietary-Contents may change without notice
5. Exploded View and Parts List
5-1
This Document can not be used without Samsung's authorization

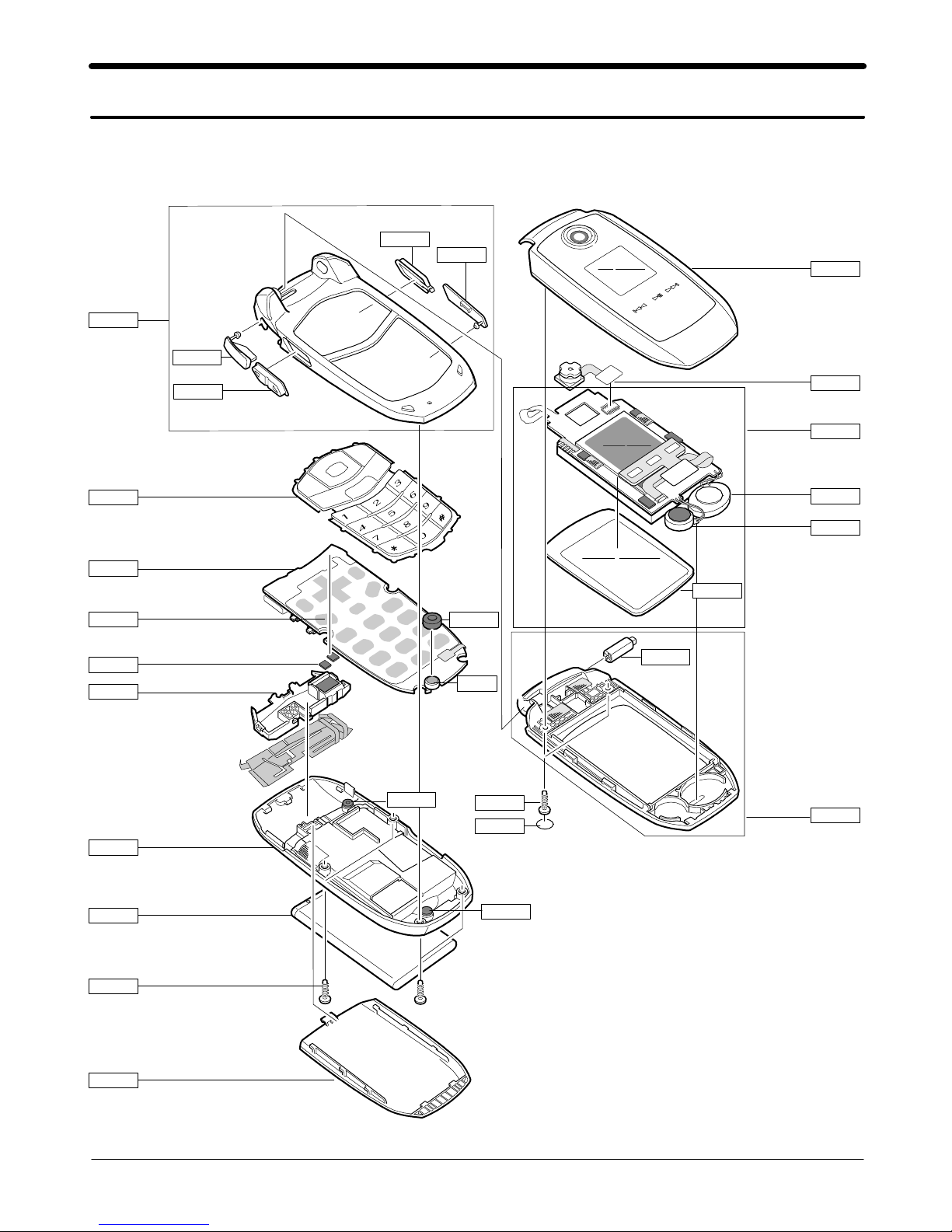

5-1. Cellular phone Exploded View
QMP01
QFR01
QIF01
QVO01
QKP01
QAN02
QRE01
QBA01
QCR04
QBA00
QME01
QSD01
QCK01
QFU01
QLC01
QSP01
QMO01
QHI01
QMW01
QFL01
QSC01
QCR20
QCA01
QMI03
QMI01
QRF01
QMI04
QAN11

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-2
This Document can not be used without Samsung's authorization
Design LOC Discription SEC CODE
QAN02 INTENNA-SGHS501I GH42-00913A
QAN11 ASSY-CUSHION-CUSHION RUBBER IN GH98-01077A
QBA00 PMO-COVER BATTERY GH72-32317A
QBA01 INNER BATTERY PACK-800MAH,BLK, GH43-02483A
QCA01 UNIT-CAMERA MODULE,S501I GH59-03379A
QCR04 SCREW-MACHINE 6001-001479
QCR20 SCREW-MACHINE 6001-001429
QFU01 MEA-FOLDER UPPER KIT(BLACK) GH97-06374A
QKP01 ASSY KEYPAD-MAIN(XEF/ZK) GH98-01446A
QME01 UNIT-EL DOME SHEET GH59-03361A
QMI01 MICROPHONE-ASSY-5.25MM GH30-00177C
QMI03 RMO-MIC HOLDER GH73-06697A
QMO01 MOTOR DC-SGHZ130 GH31-00154C
QMP01 PBA MAIN-SGH-S501I GH92-02776A
QRF01 RMO-RUBBER RF COVER GH73-07802A
QSC01 MPR-TAPE SCREW CAP L GH74-25582A
QSP01 SPEAKER 3001-002016
QRE01 ASSY CASE-REAR GH98-01456A
QMI04 RMO-RUBBER MIC GH73-07682A
QFR01 ASSY CASE-FRONT GH98-01384A
QCK01 ASSY KEY-CAMERA GH98-01441A
QIF01 PMO-COVER IF GH72-32311A
QSD01 PMO-COVER MICRO SD GH72-32312A
QVO01 ASSY KEY-VOLUME GH98-01444A
QFL01 ASSY CASE-FOLDER LOWER GH98-01455A
QHI01 ASSY MEC-HINGE GH75-09605A
QLC01 ELA UNIT-SGHS501I LCD MODULE GH96-02216A
QMW01 ASSY COVER-MAIN WINDOW GH98-01445A
5-2. Cellular phone Parts list

SAMSUNG Proprietary-Contents may change without notice
Exploded View and Parts List
5-3
This Document can not be used without Samsung's authorization
Discription SEC CODE
BAG PE 6902-000297
LCD-SGHS501I,SUB LCD GH07-00955A
CBF INTERFACE-DATA LINK CABLE GH39-00444A
ADAPTOR-SGHD800 TA(EU) GH44-01060A
UNIT-EARPHONE(BLK) GH59-02499A
UNIT-LED BACK LIGHT GH59-03343A
UNIT-LCD IF PBA GH59-03384A
UNIT-LCD MAIN PBA GH59-03385A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-BOG MP3 GH68-11247A
MANUAL USERS-EU FRENCH GH68-11482A
LABEL(R)-MAIN(FRANCE) GH68-11915A
CUSHION-CASE TA2 GH69-04289A
BOX(P)-UNIT MAIN(EU) GH69-04292A
IPR-EAR PIECE GH70-01701A
PMO-FRONT DAMPER GH72-34430A
RMO-RUBBERLCD CUSHION 1 GH73-07971A
RMO-RUBBERLCD CUSHION 2 GH73-07972A
MPR-REMOVE TAPE LCD GH74-13804A
MPR-BOHO VINYL LCD CONN GH74-15350A
MPR-TAPE LED GH74-17926A
MPR-TAPE REMOVE LCD GH74-18286A
MPR-VINYL BOHO MAIN WINDOW GH74-22341A
MPR-TAPE GPS CON GH74-23090A
MPR-TAPE FRONT DAMPER GH74-25186A
MPR-TAPE GASKET LCD CONNECTOR GH74-25196A
MPR-TAPE GOLD KEY PCB DOWN GH74-25198A
MPR-TAPE GASKET LCD PCB ESD GH74-25199A
MPR-TAPE GASKET LCD PCB RAD GH74-25200A
MPR-TAPE EL SHEET CONNECTOR GH74-25201A
MPR-TAPE LCD PCB ESD GH74-25202A
MPR-TAPE TOUCH KEY GH74-25203A
MPR-VINYL BOHO DUAL WINDOW GH74-25578A
MPR-VINYL BOHO MAIN WINDOW GH74-25581A
MPR-SPONGE LCD PRESS GH74-25912A
MPR-TAPE,700X550XT135,NPF-TEG1 GH74-26426A
MPR-TAPE GH74-26821A
MPR-TAPE FRONT HOLE GH74-26851A
MPR-VINYL BOHODUAL WINDOW 3 GH74-26907A
ASSY DECO-CAMERA GH98-02153A

SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly instructions
5-4
This Document can not be used without Samsung's authorization

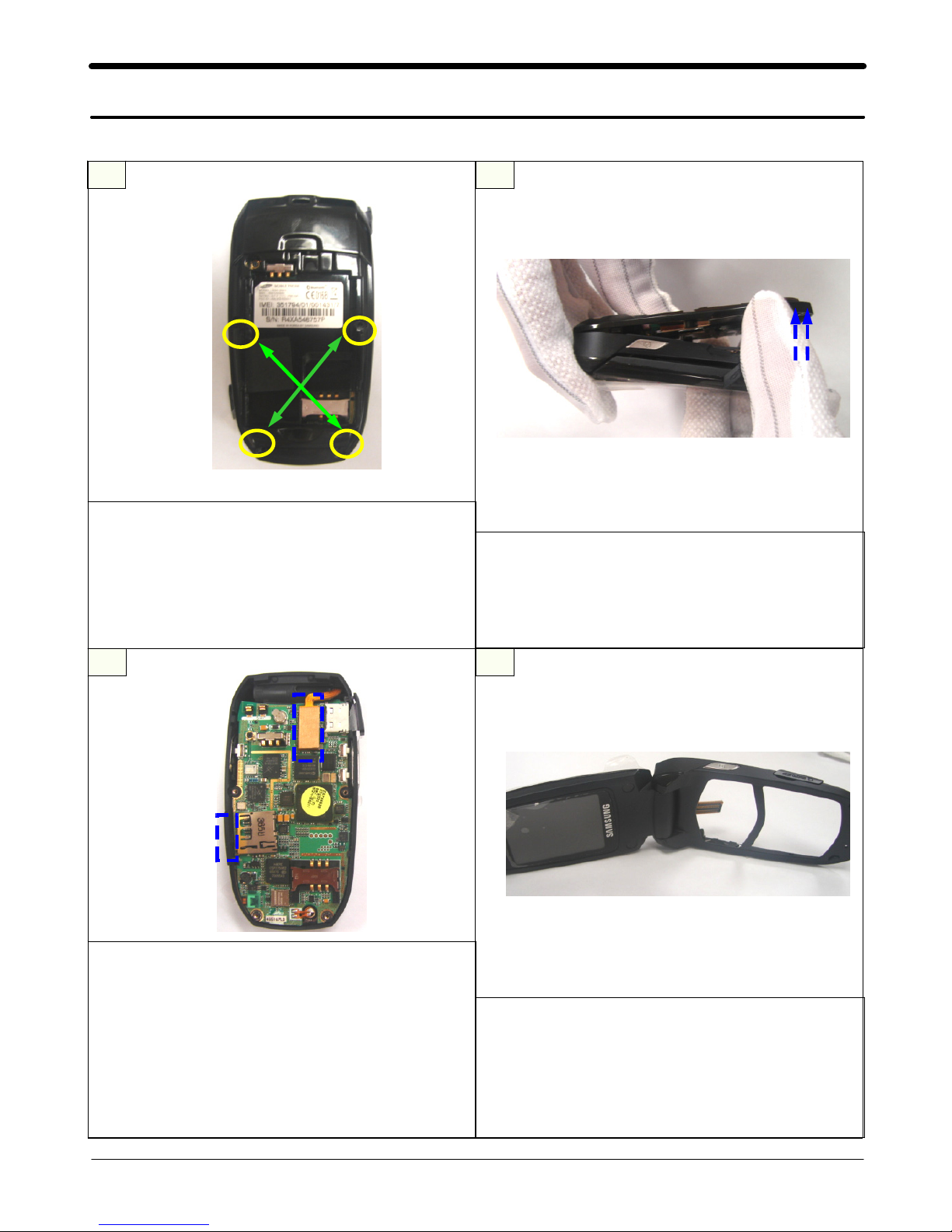

5-3. Disassembly
1
43
2
1) Disassemble the LCD CONNECTOR
2) Disassemble the PBA from the FRONT
ASS'Y
3) Remove the FRONT PROTECTION TAPE
4) Disassemble the Keypad.
※caution
1) When PBA is separated from LCD
Connector, Be careful not to damage!
2) Be careful not to damage LCD FPCB!
1) Push the hinge between Folder Upper and
lower, And Disassemble Front from Folder.
※caution
1) Be careful not to make scratch and
molding damage!
2) Be careful not to damage LCD FPCB!
1) Unscrew the REAR at the four points.
2) Uncover the MEMORY CARD COVER
3) Uncover the EAR COVER
※caution
1) Be careful not to make scratch and
molding damage!
1) Disassemble the Rear from the bottom side
to the upper side.
※caution
1) Be careful not to make scratch and
molding damage!

SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly instructions
5-5
This Document can not be used without Samsung's authorization

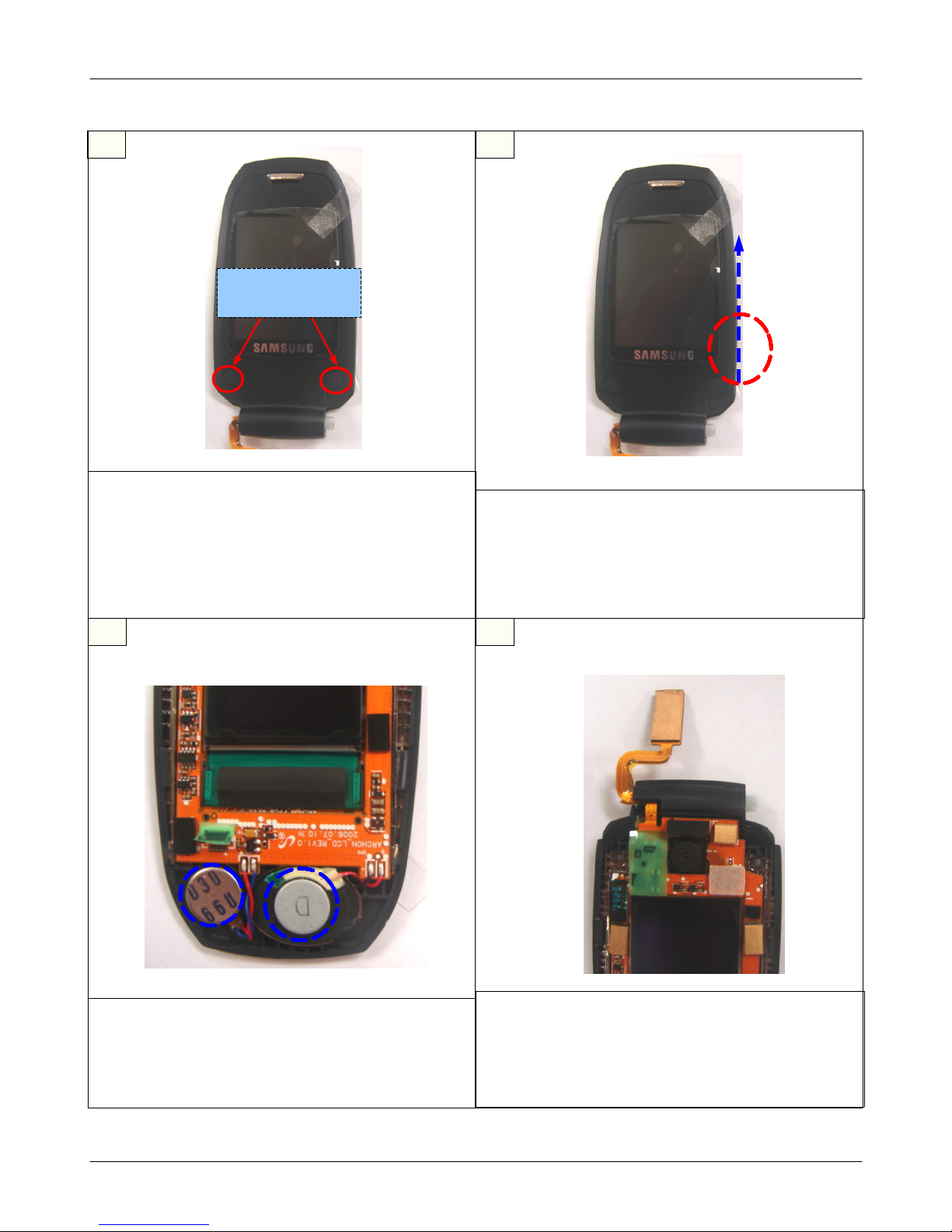

5
87
6
1) Disassemble the MOTOR and the SPEAKER
from FOLDER LOWER by using a pincette.
※caution
1) Be careful not to make scratch and
molding damage!
1)DisassembletheCameramoduleandthe
LCD FPCB when LCD module is disjointed.
※caution
1) Be careful not to damage the LCD FPCB
and the Camera module.
1) Remove screw caps.
2) Unscrew the FOLDER Upper.
※caution
1) Be careful not to make scratch and
molding damage!
2) Be careful not to damage LCD FPCB!
1) By using an assembly stick, Disassemble
FolderUpperfromFolderlower
(Right and Left are the same process)
※caution
1) Be careful not to make scratch and
molding damage!
SCREW CAP
POINTS

SAMSUNG Proprietary-Contents may change without notice
Disassembly and Assembly instructions
5-6
This Document can not be used without Samsung's authorization
5-4. Assembly
1
43
2
1)Insert FPCB into FOLDER LOWER.
※caution
1) When inserted FPCB, Arrange Wires clearly
as above picture is shown.
1) Connect MP3 key FPCB to LCD
※caution
1) Be careful not to make scratch and
molding damage!
2) Be careful not to damage MP3 KEY FPCB
1) Connect Camera module to LCD.
※caution
1) Be careful not to make scratch and
molding damage!
1) Insert FPCB into FOLDER LOWER.
2) Insert Camera module[Pushing right
direction as the above picture is shown]
when the Connector is fixed.
※caution
1) Be careful not to make scratch and
molding damage!
2) Be careful not to damage LCD FPCB!
Pushing Direction
Arrange Wires clearly on
SPEAKERandMOTOR!
The Connector must be
fixed.
