Samsung SGH T509 User manual

UVFC4_1.0_SGt509_031606_F8
SGH-t509
PORTABLE Tri-Band
TELEPHONE
User Guide
Please read this manual before operating your
phone, and keep it for future reference.

Intellectual Property
All Intellectual Property, as defined below, owned by or which is
otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to,
accessories, parts, or software relating there to (the “Phone
System”),isproprietarytoSamsungandprotectedunderfederal
laws, state laws, and international treaty provisions. Intellectual
Property includes, but is not limited to, inventions (patentable or
unpatentable), patents, trade secrets, copyrights, software,
computer programs, and related documentation and other
works of authorship. You may not infringe or otherwise violate
the rights secured by the Intellectual Property. Moreover, you
agree that you will not (and will not attempt to) modify, prepare
derivative works of, reverse engineer, decompile, disassemble,
or otherwise attempt to create source code from the software. No
title to or ownership in the Intellectual Property is transferred to
you. All applicable rights of the Intellectual Property shall
remain with SAMSUNG and its suppliers.
Samsung Telecommunications America (STA),
Inc.
Headquarters: Customer Care Center:
1301 E. Lookout Drive 1000 Klein St.
Richardson, TX 75082 Plano, TX 75074
Toll Free Tel: [phone].HELP (4357)
Internet Address: http://www.samsungusa.com
©2006 Samsung Telecommunications America, Inc. is a
registered trademark of Samsung Electronics America, Inc. and
its related entities.

Printed in Korea.
GH68-09128A
Openwave® is a registered Trademark of Openwave, Inc.
RSA® is a registered Trademark RSA Security, Inc.
Disclaimer of Warranties; Exclusion of Liability
EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY
CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH
THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS
IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT
TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE
MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR
ANY PARTICULAR PURPOSE OR USE; THE DESIGN,
CONDITION OR QUALITY OF THE PRODUCT; THE
PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP
OF THE PRODUCT OR THE COMPONENTS CONTAINED
THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE
REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR
CONTRACT PERTAINING THERETO. NOTHING
CONTAINED IN THE INSTRUCTION MANUAL SHALL BE
CONSTRUED TO CREATE AN EXPRESS OR IMPLIED
WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT
TO THE PRODUCT. IN ADDITION,SAMSUNG SHALL NOT BE
LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING
FROM THE PURCHASE OR USE OF THE PRODUCT OR
ARISING FROM THE BREACH OF THE EXPRESS WARRANTY,
INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR
BENEFITS.

Table of Contents 1
Table of Contents
Table of Contents
Section 1: Getting Started . . . . . . . . . . . . . . . . . . 5
Activating Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Switching the Phone On or Off . . . . . . . . . . . . . . . . . . . . . . 9
Setting Up Your Voice Mail . . . . . . . . . . . . . . . . . . . . . . . 10
Section 2: Understanding Your Phone . . . . . . . 13
Features of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . 14

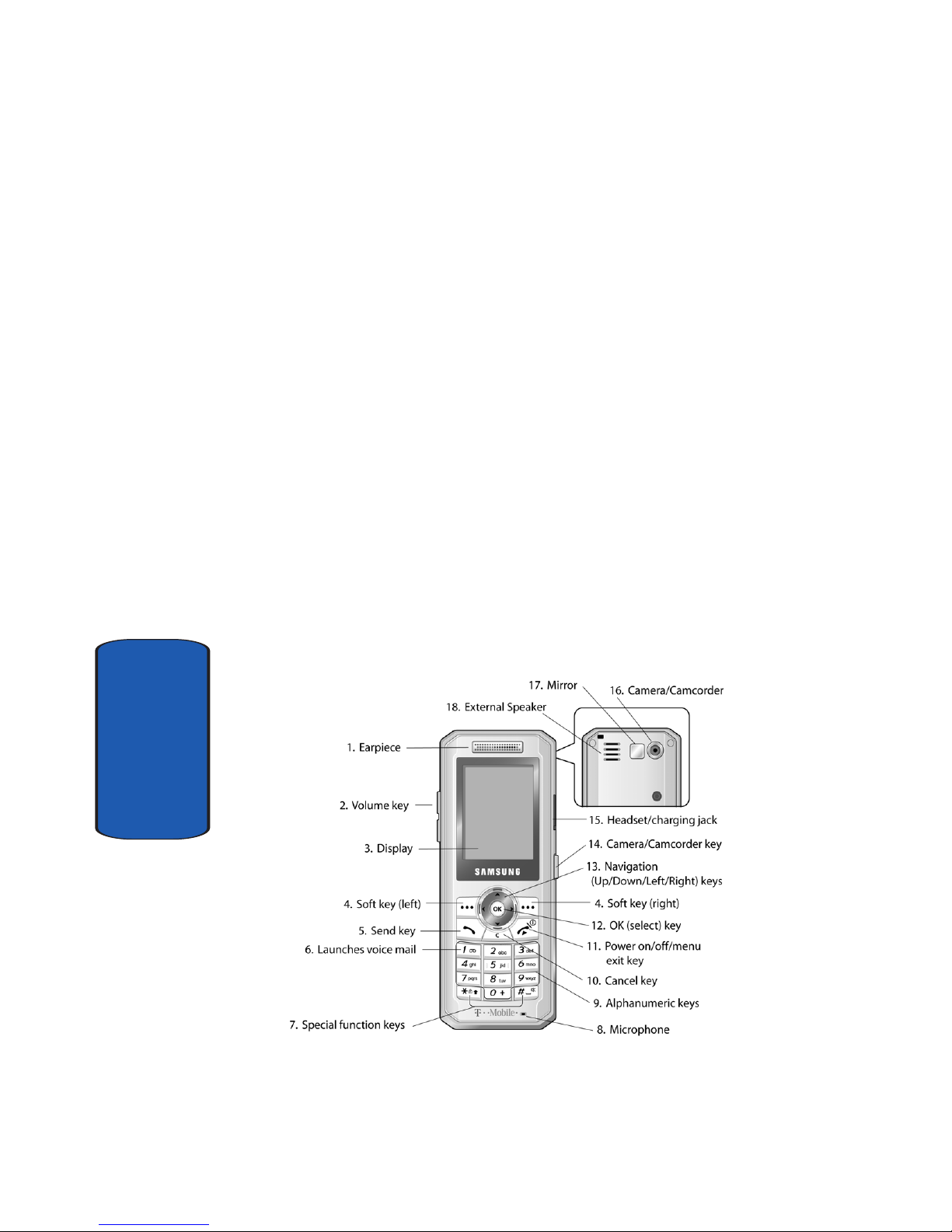

View of Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Display Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Get More Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Section 3: Call Functions . . . . . . . . . . . . . . . . . . 21
Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Adjusting the Call Volume . . . . . . . . . . . . . . . . . . . . . . . . 24
Answering a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Call Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Silent Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Selecting Functions and Options . . . . . . . . . . . . . . . . . . . 29
Section 4: Menu Navigation . . . . . . . . . . . . . . . 37
Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Menu Outline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Section 5: Entering Text . . . . . . . . . . . . . . . . . . 45
Changing the Text Input Mode . . . . . . . . . . . . . . . . . . . . . 46
Using ABC Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Using T9 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Using Number Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Using Symbol Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Section 6: Understanding Your Phonebook . . . 53
Storing a Number in the Phone’s Memory . . . . . . . . . . . . 54
Storing a Number in the SIM Card . . . . . . . . . . . . . . . . . . 55

Table of Contents
2
Finding a Phonebook Entry . . . . . . . . . . . . . . . . . . . . . . . .58
Dialing a Number from Phonebook . . . . . . . . . . . . . . . . . .60
Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60
Editing a Caller Group . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Dialing a Number from the SIM Card . . . . . . . . . . . . . . . .63
Copying all SIM Phonebook Entries . . . . . . . . . . . . . . . . . .63
Deleting all of the Phonebook Entries . . . . . . . . . . . . . . . .65
My Name Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Finding My Own Phone Number . . . . . . . . . . . . . . . . . . . .66
FDN List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Section 7: Messages . . . . . . . . . . . . . . . . . . . . . .71
Voice Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Text Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Picture Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Sentbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Outbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Drafts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90
Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Voice Mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Delete All . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Broadcast Messages (SIM Dependent) . . . . . . . . . . . . . . .95
Instant Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Memory Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Section 8: Changing Your Settings . . . . . . . . . .99
Time & Date Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .100
Phone Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105
Network Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Table of Contents 3
Table of Contents
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Memory Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Reset Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Section 9: Fun & Apps . . . . . . . . . . . . . . . . . . . 121
File Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Organizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Section 10: Camera and Camcorder . . . . . . . . 143
Using the Camera and Camcorder . . . . . . . . . . . . . . . . . 144
Take and Send . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Record Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
My Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
My Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
My Album . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
My Journal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Section 11: t-zones . . . . . . . . . . . . . . . . . . . . . 157
t-zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Section 12: Health and Safety Information . . . 163
Health and Safety Information . . . . . . . . . . . . . . . . . . . . 164
UL Certified Travel Adapter . . . . . . . . . . . . . . . . . . . . . . 166
Consumer Information on Wireless Phones . . . . . . . . . . 167
Road Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . 179
Using Your Phone Near Other Electronic Devices . . . . . . 179
Potentially Explosive Environments . . . . . . . . . . . . . . . . 181
Emergency Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
FCC Notice and Cautions . . . . . . . . . . . . . . . . . . . . . . . . 183
Other Important Safety Information . . . . . . . . . . . . . . . . 183
Product Performance . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Availability of Various Features/Ring Tones . . . . . . . . . . 186
Battery Standby and Talk Time . . . . . . . . . . . . . . . . . . . 186

Table of Contents
4
Battery Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .186
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . .188
Section 13: Warranty Information . . . . . . . . . .191
Standard Limited Warranty . . . . . . . . . . . . . . . . . . . . . . .192
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .199

Section 1: Getting Started 5
Section 1
Section 1: Getting Started
Topics Covered
• Activating Your Phone
• Switching the Phone On or Off
• Setting Up Your Voicemail
This section explains how to start using your phone by
activating your service and setting up your voice mail.

6
Section 1
Activating Your Phone
When you subscribe to a cellular network, you are
provided with a plug-in SIM card loaded with your
subscription details, such as your PIN, any optional
services available, and many others.
Installing the SIM Card
Important! The plug-in SIM card and its contacts can be easily damaged
by scratching or bending, so be careful when handling, inserting, or
removing the card.
Keep all SIM cards out of reach of small children.
If necessary, switch off the phone by holding down the
key until the power-off image displays.
1. Remove the battery cover. To do so, slide the battery
cover in the direction of the arrow.
2. Lift the battery cover away.

Section 1: Getting Started 7
Activating Your Phone
Section 1

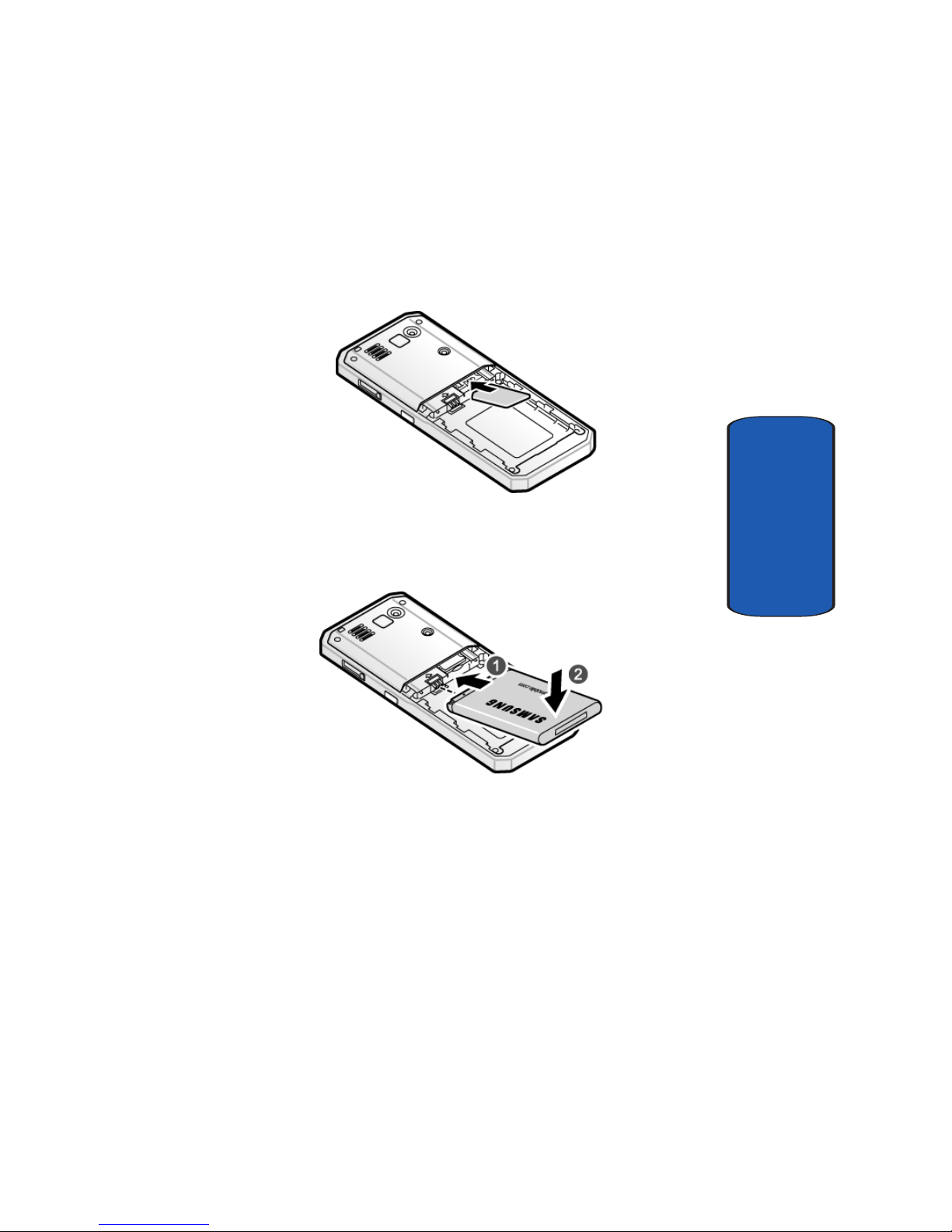

3. Slide the SIM card into the SIM card socket so that the
card locks into place. Make sure the gold contacts of the
card face into the phone.
4. Place the battery so that the tabs on the end align with
the slots at the bottom of the phone (1). Press the
battery down until it clicks into place (2).
5. Replace the battery cover.
6. Make sure that the battery is properly installed before
switching on the phone.
Charging a Battery
Your phone is powered by a rechargeable Li-ion battery.
A travel adapter comes with your phone for charging the
battery. Use only approved batteries and chargers. Ask
your local Samsung dealer for further details.

8
Section 1
You can use the phone while the battery is charging, but
doing so will require additional charging time.
Note: You must fully charge the battery before using your phone for the
first time. A discharged battery recharges fully in approximately 200
minutes.
1. With the battery installed, plug the connector of the
travel adapter into the jack on the side of the phone.
2. Plug the adapter into a standard AC wall outlet.
3. When charging is finished, unplug the adapter from the
power outlet and disconnect it from the phone.

Section 1: Getting Started 9
Switching the Phone On or Off
Section 1
Note: You must unplug the adapter before you remove the battery from the
phone during charging; otherwise, the phone could be damaged.
Low Battery Indicator
When the battery is weak and only a few minutes of talk
time remain, a warning tone sounds and the “Warning
Low Battery” message repeats at regular intervals on the
display. When this happens, your phone turns off the
backlight to conserve the remaining battery power.
When the battery level becomes too low, the phone
automatically turns off.
Switching the Phone On or Off
1. Press and hold the key until the phone switches on.
2. If the phone asks you to enter the phone password,
enter the password and press the OK soft key or the
key. The password is preset to “00000000” at the
factory. For further details, see "Change password" on
page 116.
3. If the phone asks for a PIN, enter the PIN and press the
OK soft key or the key. For further details, see "PIN
check" on page 115.
The phone searches for your network and after finding it,
the name of your service provider appears on the lower
half of your display. Now, you can make or receive calls.
Note: The display language is preset to English at the factory. To change
the language, use the Language menu. For further details, see "Language"
on page 101.

10
Section 1
4. When you wish to switch off the phone, press and hold
the key until the power-off image displays.
Setting Up Your Voice Mail
For new users, follow the instructions below to set up
voicemail:
1. In Idle mode, press and hold the key on the keypad.
You may be prompted to enter a password.
2. Follow the tutorial to create a password, a greeting, and
your name.
Note: These steps may be different depending on your network.
Accessing Your Voice Mail
You can accessyour Voice Mail by pressing the key on
the keypad or by going to the menu. To access Voice Mail
using the menu:
1. In Idle mode, press the Menu soft key to access Menu
mode.
2. Highlight Messages and press the Select soft key or the
key.
3. Highlight Voice mail and press the Select soft key or the
key.
4. Highlight Call voice mail and press the Select soft key
or the key. Your phone dials the specified voice mail
number.
5. When connected, follow the voice prompts from the
voice mail center.

Section 1: Getting Started 11
Setting Up Your Voice Mail
Section 1
Changing the Voice Mail Number
Your SIM card gives you the default servicenumber of the
voice mail center. However, should you need to change
the number, use the following procedures:
1. In Idle mode, press the Menu soft key to access the
Menu mode.
2. Highlight Messages and press the Select soft key or the
key.
3. Highlight Voice mail and press the Select soft key or
the key.
4. Highlight Voice server number and press the Select
soft key or the key. Highlight Voice mail and press
the Options soft key.
5. Highlight Edit and press the Select soft key or the
key. Or, you may highlight Delete to delete the number.
6. Edit the name if desired, and then press the Down
Navigation key to edit the number.
7. Press the Options soft key, highlight the Save option,
and press the Select soft key or the key.
8. Press the key to return to Idle mode.

12
Section 1

Section 2: Understanding Your Phone 13
Section 2
Section 2: Understanding Your Phone
Topics Covered
• Features of Your Phone
• View of Your Phone
•Keys
• Display Layout
•GetMoreHelp
This section outlines some key features of your phone. It
also displays the screen and the icons that are displayed
when the phone is in use.

14
Section 2
Features of Your Phone
Your phone is lightweight, easy-to-use and offers many
significantfeatures.Thefollowinglistoutlinesafewofthe
features included in your phone.
• VGA Camera and Camcorder
• Bluetooth® Wireless Technology
• User friendly, menu driven access to features and options
• Instant Messaging capability
• Multimedia capability
• Fun & Apps feature provides file manager, games, camera,
alarms, calendar, calculator, world time, unit conversion, timer,
and stopwatch.
View of Your Phone
The following illustrations show the main elements of
your phone:

Section 2: Understanding Your Phone 15
Keys
Section 2
Keys
The following list correlates to the illustrations.
1. Used to listen to audio from your phone.
2. During a call, if you press the volume key, you can mute
the ring tone.
If you press and hold the volume key, you can reject the
call.
3. The display shows the received signal strength, the
phone battery level, the date and time.
4. Performs the functions indicated by the screen text on
the bottom line of the display.
5. Makes or answers a call.
In Idle mode, recalls the last number dialed or received
when held down.
6. In Idle mode, accesses voice mail when held down.
7. In Idle mode, if you press and hold the * key, you can
lock the keypad. In Idle mode, if you press and hold the
# key, you can turn on the Silent Mode.
8. The microphone used during phone calls and voice note
recordings.
9. Enters numbers, letters, and some special characters.
10. Deletes characters from the display.
In Menu mode, returns you to the previous menu level.

16
Section 2
11. Ends a call. Also switches the phone on and off when
held down.
In Menu mode, cancels your input and returns the phone
to Idle mode.
12. In Menu mode, selects the highlighted menu options.
13. In Menu mode, scrolls through the menus and
Phonebook.
In Idle mode:
䢇Down key: allows you to access your Contact list directly.
䢇Up key: allows you to access the Camera or Camcorder
feature directly.
䢇Left key: allows you to access Text messaging directly.
䢇Right key: allows you to access Voice notes directly.
When entering text, moves the cursor to the left or right,
depending on which side you press.
14. Used to take pictures when pressed. Launches the
camera/camcorder with a press.
15. The headset/charging jack is used for the hands-free
headset and for charging your phone.
16. The built-in digital camera/camcorder has video capture
capabilities.
17. Mirror can be used for adjustment when taking a picture
of yourself.
18. External speaker used for Speakerphone.
