Samsung SGH-Z720 User manual

UMTS TELEPHONE
SGH-Z720
UMTS TELEPHONE CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Array course control
5. Exploded View/Disassembly
and Assembly Instructions
6. MAIN Electrical Parts List
7. Block Diagrams
8. PCB Diagrams
9. Flow Chart of Troubleshooting
10. Reference data

CONTENTS
1. Safety Precautions
1-1. Repair Precaution ......................................................................................................1-1
1-2. ESD(Electrostatically Sensitive Devices) Precaution ...............................................1-2
2. Specification
2-1. GSM General Specification .......................................................................................2-1
2-2. GSM Tx Power Class ...............................................................................................2-2
3. Product Function
4. Array course control
4-1. Software Adjustments..................................................................................................4-1
4-2. Software Downloading.................................................................................................4-2
5. Exploded View and Parts List
5-1. Cellular phone Exploded View ..................................................................................5-1
5-2. Cellular phone Parts list ............................................................................................5-2
5-3. Disassembly and Assembly Instructions....................................................................5-4
6. MAIN Electrical Parts List
7. Block Diagrams
7-1. RF Solution Block Diagram........................................................................................7-1
7-2. Logic Block Diagram...................................................................................................7-2
8. PCB Diagrams

CONTENTS
9. Flow Chart of Troubleshooting
9-1. Power On..................................................................................................................9-1
9-2. Initial ..........................................................................................................................9-3
9-3. Charging Part ...........................................................................................................9-4
9-4. Sim Part....................................................................................................................9-6
9-5. Microphone Part-Phone MIC ...................................................................................9-8
9-6. Microphone Part-Earphone MIC.............................................................................9-10
9-7. Earphone Part.........................................................................................................9-12
9-8. Speak Part..............................................................................................................9-14
9-9. Key Data Input.......................................................................................................9-16
9-10. LCD Part...............................................................................................................9-17
9-11. Camera Part..........................................................................................................9-19
9-12. LCD Back Light.....................................................................................................9-21
9-13. Key Back Light.....................................................................................................9-23
9-14. GSM Receiver.......................................................................................................9-25
9-15. GSm Transmitter...................................................................................................9-27
9-16. DCS Receiver.......................................................................................................9-29
9-17. DCS Transmitter...................................................................................................9-31
9-18. PCS Receiver ......................................................................................................9-33
9-19. PCS Transmitter...................................................................................................9-35
9-20. WCDMA Receiver.................................................................................................9-37
9-21. WCDMA Transmitter.............................................................................................9-39
10. Reference data

SAMSUNG Proprietary-Contents may change without notice
1. Safety Precautions
1-1
This Document can not be used without Samsung's authorization
1-1. Repair Precaution
―Repair in Shield Box, during detailed tuning.
Take specially care of tuning or test, because the specification of cellular phone is sensitive for
surrounding interference(RF noise).
―Be careful to use a kind of magnetic object or tool, because performance of parts is damaged by
the influence of magnetic force.
―Surely use a standard screwdriver when you disassemble this product, otherwise screw will be
worn away.
―Use a thicken twisted wire when you measure level.
A thicken twisted wire has low resistance, therefore error of measurement is few.
―Repair after separate Test Pack and Set because for short danger (for example an
overcurrent and furious flames of parts etc) when you repair board in condition of connecting Test
Packandtuningon.
―Take specially care of soldering, because Land of PCB is small and weak in heat.
―Surely tune on/off while using AC power plug, because a repair of battery charger is dangerous
when tuning ON/OFF PBA and Connector after disassembling charger.
―Don't use as you pleases after change other material than replacement registered on SEC System.
Otherwise engineer in charge isn't charged with problem that you don't keep this rules.

SAMSUNG Proprietary-Contents may change without notice
Safety Precautions
1-2
This Document can not be used without Samsung's authorization
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Several semiconductor may be damaged easily by static electricity. Such parts are called by ESD
(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.
You can prevent from ESD damage by static electricity.
―Remove static electricity remained your body before you touch semiconductor or parts with
semiconductor. There are ways that you touch an earthed place or wear static electricity prevention
string on wrist.
―Use earthed soldering steel when you connect or disconnect ESD.
―Use soldering removing tool to break static electricity. , otherwise ESD will be damaged by static
electricity.
―Don't unpack until you set up ESD on product. Because most of ESD are packed by box and
aluminum plate to have conductive power,they are prevented from static electricity.
―You must maintain electric contact between ESD and place due to be set up until ESD is
connected completely to the proper place or a circuit board.

SAMSUNG Proprietary-Contents may change without notice
2. Specification
This Document can not be used without Samsung's authorization
2-1
EGSM900 DCS1800 PCS1900 W-CDMA
Freq.
Band[MHz]
Uplink/Downlink
890~915
935~960 1710~1785 1805~1880 1850~1910 1930~1990 1920~1980 2110~2170
ARFCN range 0~124 &
975~1023 512~885 512~810 UL:9612~9888 DL:10562~10838
Tx/Rx spacing 45MHz 95MHz 80MHz 190MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 3.84Mcps
Time Slot
Period/Frame
Period
576.9us
4.615ms 576.9us 4.615ms 576.9us 4.615ms Frame length : 10ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK QPSK
HQPSK
MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm 24dBm ~ - 50dBm
Power Class 4
(max +33dBm) 1 (max +30dBm) 1 (max +30dBm) 3 (max +24dBm)
Sensitivity -102dBm -100dBm -100dBm -106.7dBm
TDMA Mux 8 8 8
Cell Radius 35Km 2Km 2Km 2Km
2-1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Specification
2-2
TX Power
control level GSM900
533±2dBm
631±2dBm
729±2dBm
827±2dBm
925±2dBm
10 23±2 dBm
11 21±2 dBm
12 19±2 dBm
13 17±2 dBm
14 15±2 dBm
15 13±2 dBm
16 11±3 dBm
17 9±3dBm
18 7±3 dBm
19 5±3 dBm
TX Power
control level DCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
TX Power
control level PCS1800
030±3dBm
128±3dBm
226±3dBm
324±3dBm
422±3dBm
520±3dBm
618±3dBm
716±3dBm
814±3dBm
912±4dBm
10 10±4 dBm
11 8±4dBm
12 6±4 dBm
13 4±4 dBm
14 2±5 dBm
15 0±5 dBm
2-2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
3. Product Function
3-1
This Document can not be used without Samsung's authorization
Main Function
―Built-in Digital Cameras( CMOS 3 Mega with Auto Focus, CMOS VGA )
―2.1" LCD ( QVGA 262K TFT )
―Video Telephony / Streaming
―Bluetooth V2.0 Wireless Technology
―USB 1.1
―MP3 player
―Downloadable Game via JAVA
―Sending Photo & Video by MMS or E-Mail
―Supporting 64 Polyphonic Ring Tone
―WAP 2.0 Browser ( Including xHTML/WCSS MP, w/HTTP )
―External Memory Card Socket( T-flash )
―GSM 900MHz & DCS1800MHz & 1900MHz & WCDMA 2100MHz
―GPRS Class 10
―EGPRS Class E2

SAMSUNG Proprietary-Contents may change without notice
Product Function
3-2
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
4. Array course control
4-1
This Document can not be used without Samsung's authorization
4-1. Software Adjustments
1. JIG: Download, Trace, Calibration, etc
2. RF test cable: RF test
3. Test cable: JIG to phone
4. TA (Travel Adaptor)
5. Data Link Cable : USB cable
6. Serial cable: PC to JIG
1
65
2
4
3
2
GH80-03308A GH39-00397A
GH39-00444A
GH44-01361A
GH39-00478A

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-2
This Document can not be used without Samsung's authorization
4-2. Software Downloading
4-2-1. Downloading Binary Files
• Four binary files for downloading Z720.
– amss.bin : Modem binary for communication function
& Mocha binary for user interface and various application
– Rsrc_Z720_○○○.rc1: Files need for each application
– Rsrc2_Z720(Low).rc2 : Power on/off animation
– FactoryFS_Z720_○○○.ffs : Default file system to be put into in initial production
4-2-2. Pre-requsite for Downloading
• Downloader Program( FastMultiLoader V3.28.exe )
• SGH-Z720 Mobile Phone
• USB Data Link Cable
• Binary files

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-3
This Document can not be used without Samsung's authorization
4-2-3. S/W Downloader Program
1. Boot the Z720 by pressing ‘Power ON key’ + ‘Number 9 key’ at the same time-
If you do properly, you can see the following message on LCD “DOWNLOAD”
2. Load the binary download program by executing the “FastMultiLoader V3.28.exe”. And
then Check the 6275.
3. Select the check box what you want to download.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-4
This Document can not be used without Samsung's authorization
4. Select the binary file what you want to download
5. Now press the button ‘Port Search’
.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-5
This Document can not be used without Samsung's authorization
6. Now press the button ‘Download’
7. When downloading is complete, UE reboot automatically.
- If there is difference in FactoryFs.bin, UE will format file system
automatically.

SAMSUNG Proprietary-Contents may change without notice
Array course control
4-6
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
5-1
        
5. Exploded View/Disassembly&Assembly Instructions
5-1. Cellular Phone Exploded View
QMW01
QFR01
QIF01
QSD01
QVO01
QCK02
QBR03
QCR17
QBR01
QMP01
QCR04
QBA01
QFU01
QKP02
QME03
QFL01
QHI01
QCR17
QSC06
QCR04
QSC05
QME02
QCA01
QLC01
QKP01
QME01
QAN02
QMI01
QCR05
QCK01
QRE01
QSC13
QSC14
QRE05
QBA00

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-2
        
5-2. Cellular Phone Parts list
Design LOC Description SEC CODE
QAN02 INTENNA-SGH Z720 GH42-00963A
QBA00 ASSY COVER-BATTERY(XEC) GH98-03330A
QBA01 INNER BATTERY PACK-900MAH, BLA GH43-02544A
QBR01 ASSY BRACKET-MAIN KEY GH98-01733A
QBR03 ICT-BRACKET VOL KEY GH70-01550A
QCA01 UNIT-CAMERA GH59-03414A
QCK02 PMO-SWITCH KEY GH72-33032A
QCK01 PMO-CAMERA KEY GH72-33031A
QCR04 SCREW-MACHINE 6001-001479
QCR04 SCREW-MACHINE 6001-001479
QCR05 SCREW-MACHINE 6001-001478
QCR17 SCREW-MACHINE 6001-001460
QFL01 ASSY CASE-SLIDE LOWER GH98-01730A
QFU01 ASSY CASE-SLIDE UPPER GH98-01729A
QHI01 ASSY ACCE-PUSH ROD GH98-01237A
QKP01 ASSY KEYPAD-MAIN(EU/BLK) GH98-02672A
QKP02 ASSY KEYPAD-SUB(EU/BLK) GH98-02671A
QLC01 LCD-MAINSGH Z720 GH07-00963A
QME01 UNIT-KEY FPCB GH59-03394A
QME02 UNIT-MODULE SPEAKER GH59-03789A
QME03 MEA-SLIDE FPCB KIT GH97-06865A
QMI01 MICROPHONE-ASSY-SGHE340 GH30-00199A
QMP01 PBA MAIN-SGH Z720 GH92-03107A
QMW01 ASSY COVER-MAIN WINDOW(XEC) GH98-03250A
QRE01 ASSY CASE-REAR GH98-01732A
QRE05 PMO-DECO REAR GH72-33041A
QSC05 RMO-RUBBER SCREW LOWER L GH73-07948A
QSC06 RMO-RUBBER SCREW LOWER R GH73-07949A
QSC13 RMO-RUBBER SCREW REAR L GH73-07940A
QSC14 RMO-RUBBER SCREW REAR R GH73-07947A
QVO01 PMO-VOLUME KEY GH72-33030A
QFR01 ASSY CASE-FRONT GH98-01731A
QSD01 PMO-COVER MSD GH72-33038A
QIF01 PMO-COVER IF GH72-33039A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-3
        
Description SEC CODE
BAG PE 6902-000634
CBF INTERFACE-DATA LINK CABLE GH39-00444A
ADAPTOR-SGHE690,BLK,EU,A_TYPE GH44-01361A
S/W CD-PC STUDIO GH46-00290A
UNIT-EARPHONE(BLK) GH59-02541A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(P)-WATER SOAK GH68-02026A
LABEL(R)-MAIN(EU) GH68-12699A
MANUAL USERS-EU SPANISH GH68-13029A
BOX-UNIT(XEC) GH69-04521B
CUSHION-CASE(EU) GH69-04522A
ICT-BRACKET VOL KEY GH70-01550A
RMO-RUBBERMIC HOLDER GH73-08696A
MPR-VINYL BOHO MAIN WINDOW V2 GH74-26156A
MPR-INSU TAPE GH74-27529A
MPR-TAPE GH74-27536A
MPR-TAPE GH74-27537A
MPR-ELEC TAPE LCD CONN BOT GH74-27539A
MPR-TAPE WIN MAIN GH74-27546A
MPR-INSU TAPE GH74-27610A
MPR-VINYL BOHO UPPER GH74-27635A
MPR-SPONGE LCD GH74-28793A
MPR-TAPE LCD ACRYL GH74-28801A
MPR-GASK TAPE GH74-29409A
AS-IC-MCP UMTS GH81-05910A
AS-DOME SHEET SVC GH81-05987A

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-4
        
 
      
  
        
    
      
   
       

  
    
    
  
   





 

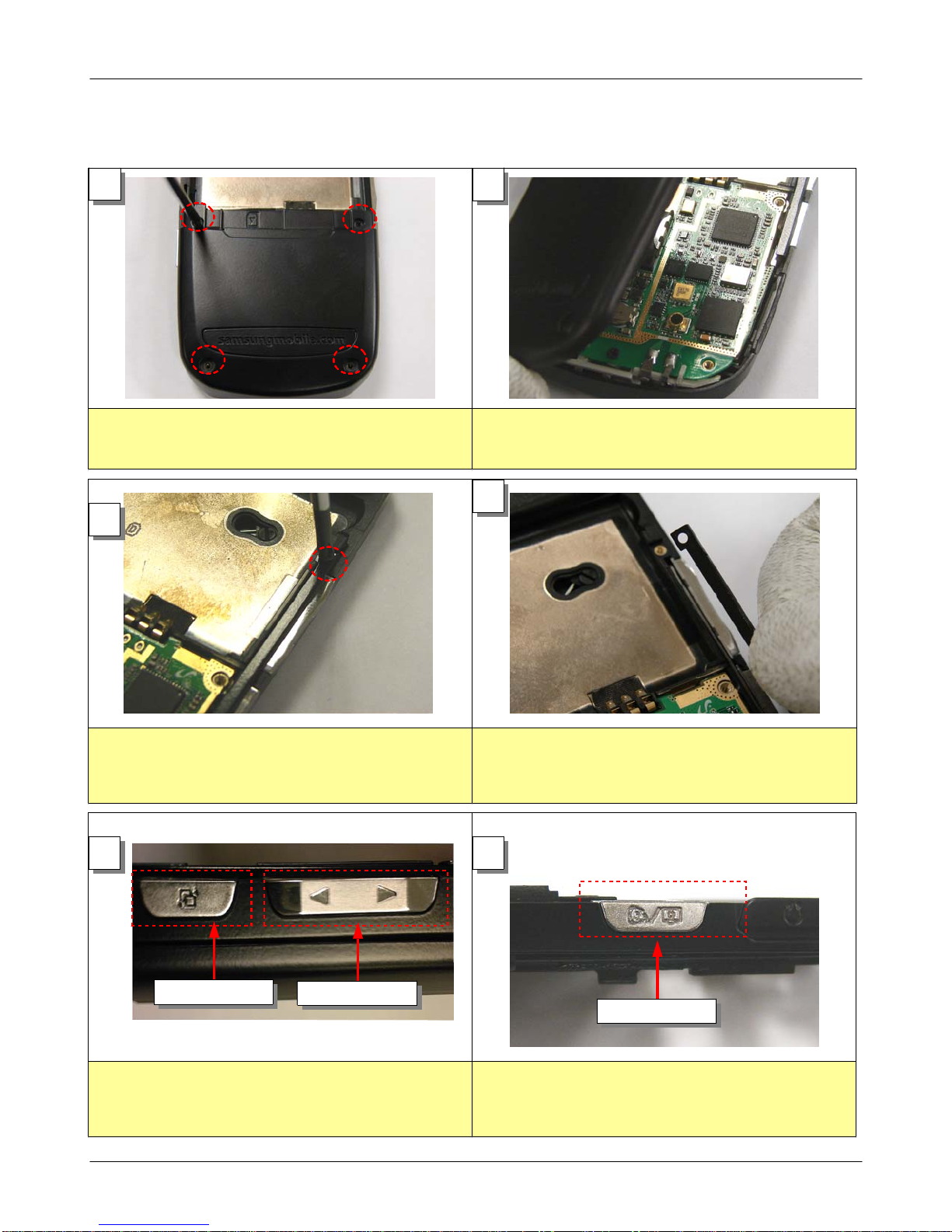

5-3. Disassembly and Assembly Instructions
Disassembly
 
 

SAMSUNG Proprietary-Contents may change without notice
Exploded View/Disassembly&Assembly Instructions
5-5
        
  
      
        
 
  
        
 
         
  
   
        
   
        
 
   
    
  
      
        
    
  
     


 
     
  
