Samsung SM-A307FN User manual

SM-A307FN/G/GT/GN
Common
Mobile Device
CONTENTS
1. Safety Precautions
2. Specification
3. Product Function

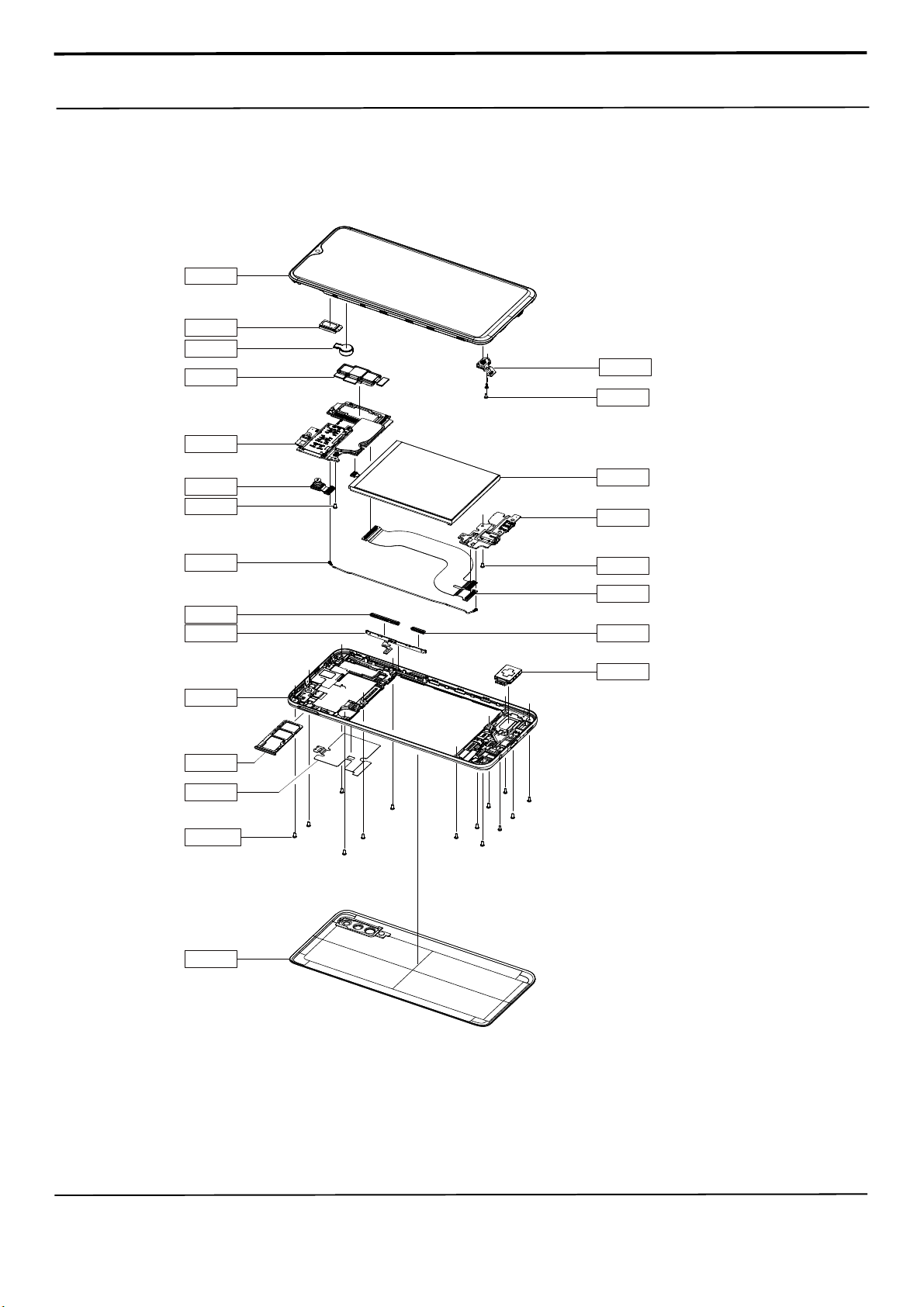

4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1 Repair
7. Level 2 Repair
8. Level 3 Repair
9. Reference Abbreviation
4.
2
Notice: All functionality, features, specifications,
and other product information provided in this
document, including but not limited to, benefits,
design, pricing, components, performance,
availability, and capabiliti-es of the product are
subject to change without notice. Samsung
reserves the right to alter this doc-ument or the
product described herein at anytime, without
obligation to provide notification of such
changes.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of the low margin
of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use a soldering iron with a power rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replacement parts
may not function properly.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can
be easily damaged by it. We recommend protecting these components with conductive anti-static bags
when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly
connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-1. GSM General Specification
Item
GSM 850
EGSM 900
DCS1800
PCS1900
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range
128~251
0~124 & 975~1023
512~885
512~810
Tx/Rx spacing
45MHz
45MHz
95MHz
80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation
GSM/
EGPRS
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
MS Power
33dBm~5dBm
33dBm~5dBm
30dBm~0dBm
30dBm~0dBm
Power Class
4(GMSK)
E2(8PSK)
4(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
Sensitivity
-102dBm
-102dBm
-100dBm
-100dBm
TDMA Mux
8
8
8
8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-2. GSM Tx Power Class
TX Power
Control level
GSM850
TX Power
Control level
EGSM900
TX Power
Control level
DCS1800
TX Power
Control level
PCS1900
5
33±2 dBm
5
33±2 dBm
0
30±3 dBm
0
30±3 dBm
6
31±2 dBm
6
31±2 dBm
1
28±3 dBm
1
28±3 dBm
7
29±2 dBm
7
29±2 dBm
2
26±3 dBm
2
26±3 dBm
8
27±2 dBm
8
27±2 dBm
3
24±3 dBm
3
24±3 dBm
9
25±2 dBm
9
25±2 dBm
4
22±3 dBm
4
22±3 dBm
10
23±2 dBm
10
23±2 dBm
5
20±3 dBm
5
20±3 dBm
11
21±2 dBm
11
21±2 dBm
6
18±3 dBm
6
18±3 dBm
12
19±2 dBm
12
19±2 dBm
7
16±3 dBm
7
16±3 dBm
13
17±2 dBm
13
17±2 dBm
8
14±3 dBm
8
14±3 dBm
14
15±2 dBm
14
15±2 dBm
9
12±4 dBm
9
12±4 dBm
15
13±2 dBm
15
13±2 dBm
10
10±4 dBm
10
10±4 dBm
16
11±3 dBm
16
11±3 dBm
11
8±4 dBm
11
8±4 dBm
17
9±3 dBm
17
9±3 dBm
12
6±4 dBm
12
6±4 dBm
18
7±3 dBm
18
7±3 dBm
13
4±4 dBm
13
4±4 dBm
19
5±3 dBm
19
5±3 dBm
14
2±5 dBm
14
2±5 dBm
-
-
-
-
15
0±5 dBm
15
0±5 dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-3-1. WCDMA General Specification [SM-A307FN]
Item
WCDMA2100(B1)
WCDMA1900(B2)
WCDMA850(B5)
WCDMA900(B8)
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
824~849
869~894
880~915
925~960
ARFCN range
UL：9612~9888
DL：10562~10838
UL：9262~9538
DL：9662~9938
UL：4132~4233
DL：4357~4458
UL：2712~2868
DL：2937~3088
Tx/Rx spacing
190MHz
80MHz
45MHz
45MHz
Mod. Bit rate/
Bit Period
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
Time Slot Period/
Frame Period
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
Modulation
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
MS Power
(dBm)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
Power Class
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
Sensitivity
-106dBm
-104dBm
-104dBm
-103dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-3-2. WCDMA General Specification [SM-A307G/GT/ GN]
Item
WCDMA2100(B1)
WCDMA1900(B2)
WCDMA AWS(B4)
WCDMA850(B5)
WCDMA900(B8)
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
1710~1755
2110~2155
824~849
869~894
880~915
925~960
ARFCN range
UL：9612~9888
DL：10562~10838
UL：9262~9538
DL：9662~9938
UL：1312~1513
DL：1537~1738
UL：4132~4233
DL：4357~4458
UL：2712~2868
DL：2937~3088
Tx/Rx spacing
190MHz
80MHz
400MHz
45MHz
45MHz
Mod. Bit rate/
Bit Period
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
42.2Mbps(DL)
5.42Mbps(UL)
Time Slot Period/
Frame Period
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
Modulation
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
MS Power
(dBm)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
25.7 ~ -49(↓)
Power Class
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
3(max+24dBm)
Sensitivity
-106dBm
-104dBm
-106dBm
-104dBm
-103dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-4-1. LTE General Specification [SM-A307FN]
Item
LTE Band1
LTE Band3
LTE Band5
LTE Band7
LTE Band8
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1710~1785
1805~1880
824~849
869~894
2500~2570
2620~2690
880~915
925~960
ARFCN range
UL:18000~18599
DL:0~599
UL:19200~19949
DL:1200~1949
UL:20400~20649
DL:2400~2649
UL:20750~21449
DL:2750~3449
UL:21450-21799
DL:3450-3799
Tx/Rx spacing
(MHz)
190
95
45
120
45
Channel Bandwidth
(MHz)
5/10/15/20
1.4/3/5/10/15/20
1.4/3/5/10
5/10/15/20
1.4/3/5/10
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity(QPSK,
BW 10MHz) (dBm)
-96.3
-93.3
-94.3
-94.3
-93.3
Item
LTE Band20
LTE Band38
LTE Band40
LTE Band41
Freq. Band[MHz]
Uplink/Downlink
832~862
791~821
2570~2620
2300~2400
2496~2690
ARFCN range
UL:24150~24449
DL:6150~6449
UL/DL:37750 ~ 38249
UL/DL:38650 ~ 39649
UL/DL:39650 ~ 41589
Tx/Rx spacing (MHz)
-41
0
0
0
Channel Bandwidth
(MHz)
5/10/15/20
5/10/15/20
5/10/15/20
5/10/15/20
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity(QPSK, BW
10MHz) (dBm)
-93.3
-96.3
-96.3
-94.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
2-4-3. LTE General Specification [SM-A307G/GT/ GN]
Item
LTE Band1
LTE Band2
LTE Band3
LTE Band4
LTE Band5
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
1710~1785
1805~1880
1710~1755
2110~2155
824~849
869~894
ARFCN range
UL:18000~18599
DL:0~599
UL:18600~19199
DL:600~1199
UL:19200~19949
DL:1200~1949
UL:19950~20399
DL:1950~2399
UL:20400~20649
DL:2400~2649
Tx/Rx spacing
(MHz)
190
80
95
400
45
Channel Bandwidth
(MHz)
5/10/15/20
1.4/3/5/10/15/20
1.4/3/5/10/15/20
1.4/3/5/10/15/20
1.4/3/5/10
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz) (dBm)
-96.3
-94.3
-93.3
-96.3
-94.3
Item
LTE Band7
LTE Band8
LTE Band12
LTE Band13
LTE Band17
Freq. Band[MHz]
Uplink/Downlink
2500~2570
2620~2690
880~915
925~960
699~716
729~746
777~787
746~756
704~716
734~746
ARFCN range
UL:20750~21449
DL:2750~3449
UL:21450-21799
DL:3450-3799
UL:23010~23179
DL:5010~5179
UL:23180~23279
DL:5180~5279
UL:23730~23849
DL:5730~5849
Tx/Rx spacing
(MHz)
120
45
30
-31
30
Channel Bandwidth
(MHz)
5/10/15/20
1.4/3/5/10
1.4/3/5/10
1.4/3/5/10
5/10
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity(QPSK,
BW 10MHz)(dBm)
-94.3
-93.3
-93.3
-93.3
-93.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
2. Specification
Item
LTE Band28
LTE Band38
LTE Band40
LTE Band41
LTE Band66
Freq. Band[MHz]
Uplink/Downlink
703~748
758~803
2570~2620
2300~2400
2496~2690
1710~1780
2110~2200
ARFCN range
UL:27210~27659
DL:9210~9659
UL/DL:37750 ~
38249
UL/DL:38650 ~
39649
UL/DL:39650 ~
41589
UL:131972~132671
DL:66436~67335
Tx/Rx spacing (MHz)
55
0
0
0
400
Channel Bandwidth
(MHz)
3/5/10/15/20
5/10/15/20
5/10/15/20
5/10/15/20
1.4/3/5/10/15/20
Modulation
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz) (dBm)
-94.8
-96.3
-96.3
-94.3
-95.8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
3. Product Function
Main Function
Item
Description
OS
Android P OS V9.0
SM-A307FN
RF
GSM850 / GSM900 / DCS1800 / PCS1900
WCDMA: B1/ B2/ B5/ B8
LTE: (FDD) B1/ B3/ B5/ B7/ B8/ B20
(TDD) B38/ B40/ B41
SM-A307G/GT/GN
RF
GSM850 / GSM900 / DCS1800 / PCS1900
WCDMA: B1/ B2/ B4/ B5/ B8
LTE: (FDD) B1/ B2/ B3/ B4/ B5/ B7/ B8/ B12/ B13/ B17/ B28 / B66
(TDD) B38/ B40/ B41
Battery
4,000mAh(Typ) 3,900mAh(Min)
Base Band
6.38" HD+ Octa core (1.8GHz / 1.6Ghz)
Other RF
GPS, Glonass, Beidou, Galileo, BT5.0, USB 2.0, WIFI 802.11 a/b/g/n/ac 2.4G+5GHz,
FM Radio, NFC(SM-A307FN/GN)
Camera
Rear : 25MP+8MP+5MP, Front : 16.0MP
LCD
6,4”On-Cell Touch AMOLED, 2340 x 1080 (FHD+)
SM-A307FN(CIS/MEA)
/G
RAM
3GB
ROM
32GB
SM-A307FN(SWA/MEA)
/GT/GN
RAM
4GB
ROM
64GB
Sensor
Accelerometer, Fingerprint Sensor, Gyro Sensor, Gemagnetic Sensor
Hall Sensor, Light Sensor, Proximity Sensor
Accessory
Charger: 9V/1.67A and 5V/2.0A AFC charging
Data cable: 3.0pi, 0.8m(USB-C)
Ear phone: 3.5pi, 4pin

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any contentor datafrom this document without Samsung’s written authorization is strictly prohibited.
4. Exploded View and Parts List
4-1. Cellular phone Exploded View
QFR01
QAR01
QMO01
QCA01
QMP01
QCA02
QCR89
QCB01
QVO01
QME05
QRE01
QSM01
QCR152
QAN01
QBC01
QSP01
QCK01
QME01
QCR48
QIF01
QBA01
QCR89
QKP01
※SVC REPAIR TAPE
QRT01

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
[SM-A307FN]
Parts Code
Design Loc
Description
0401-001110
D5001
DIODE
0404-001250
D5000
DIODE
0406-001561
ZD5002,ZD5003,ZD6000
DIODE
0406-001561
ZD6001,ZD6005
DIODE
0406-001592
ZD5004,ZD6013
DIODE
0406-001808
D6000
DIODE
0406-001809
ZD6021,ZD6022
DIODE
0406-001829
ZD1000,ZD5001
DIODE
0505-003618
Q5000
DIODE
0601-003768
LED5000
LED
1001-001970
U1004
IC
1001-002042
U1002,U2003
IC
1001-002063
U1003
IC
1001-002065
U3002
IC
1003-002802
U2004
IC
1009-001076
C3075
IC
1105-002915
UCP400UP
MEMORY
1107-002639
UME5000
MEMORY
1201-003869
U3007
IC
1201-004029
U1007
IC
1201-004209
U1005
IC
1201-004237
PAM1000
IC
1201-004245
U6000
IC
1203-008249
U3011,U5007
IC
1203-008322
U7001
IC
1203-008693
U2001
IC
1203-008865
U7006
IC
1203-008867
U3000,U3013,U7003
IC
1203-008872
U3015,U7002,U7004
IC
1203-008989
U7000
IC
1203-009211
U5002
IC
1203-009213
U5003
IC
1203-009220
U7007
IC
1203-009221
U7005
IC
1203-009320
U6002
IC
1205-005767
U2002
IC
1205-005860
U3003
IC

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
1205-006074
UCP400
IC
1205-006178
U3004
IC
1209-002413
U3014
IC
1209-002450
U3012
IC
1209-002555
U1008
IC
1209-002628
U3009
IC
1209-002629
U3016
IC
1404-001724
TH1000,TH4000,VR5000
THERMISTOR
1405-001429
V7000
THERMISTOR
2007-003015
R6034,R6035
R-CHIP
2007-007190
R6003,R6004
R-CHIP
2007-007317
R4231
R-CHIP
2007-007741
R2001,R2002,R3003
R-CHIP
2007-007741
R4012,R4015,R4016
R-CHIP
2007-007741
R4027,R4031,R5001
R-CHIP
2007-007741
R5027,R6002
R-CHIP
2007-007798
R6025
R-CHIP
2007-007942
R5111
R-CHIP
2007-007946
R5112
R-CHIP
2007-008419
R4041,R5011,R5023
R-CHIP
2007-008483
R5020,R5021,R5022
R-CHIP
2007-008483
R5024,R5025
R-CHIP
2007-008531
L7003,R5010,R5015
R-CHIP
2007-008531
R7000,R7001
R-CHIP
2007-008587
R1011
R-CHIP
2007-008588
R1004,R4006,R4008
R-CHIP
2007-008588
R4011,R4017,R4018
R-CHIP
2007-008588
R4020,R4021,R4022
R-CHIP
2007-008588
R4023,R4024,R4026
R-CHIP
2007-008588
R4030,R4032,R4033
R-CHIP
2007-008588
R4034,R4035,R4036
R-CHIP
2007-008588
R4037,R4107,R4108
R-CHIP
2007-008588
R4228,R6028
R-CHIP
2007-008800
R6012
R-CHIP
2007-009111
R3005,R5029
R-CHIP
2007-009157
R1007,R4001,R4002
R-CHIP
2007-009157
R4003,R4010,R4047
R-CHIP
2007-009157
R5009,R5105,R6000
R-CHIP
2007-009157
R6009,R6020
R-CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2007-009171
R5008,R5028
R-CHIP
2007-009212
R6006
R-CHIP
2007-009352
R5019,R6001
R-CHIP
2007-009408
R6007
R-CHIP
2007-009410
R6015,R6038
R-CHIP
2007-009766
R3000
R-CHIP
2007-009793
R6014
R-CHIP
2007-009801
R5007
R-CHIP
2007-009805
C1091,R1000,R1001
R-CHIP
2007-009805
R1002,R1003,R2000
R-CHIP
2007-009920
R4004,R4005,R4007
R-CHIP
2007-009920
R4009
R-CHIP
2007-009969
R3001,R3002,R6008
R-CHIP
2007-010685
R5000
R-CHIP
2007-011043
R4019,R4200,R4201
R-CHIP
2007-011043
R4202,R4203
R-CHIP
2007-011532
R6010
R-CHIP
2007-011648
L1081,L1082,R2003
R-CHIP
2007-011648
R6016
R-CHIP
2007-012068
R5002
R-CHIP
2203-000233
C3038
C-CER,CHIP
2203-000489
C5173,C5174
C-CER,CHIP
2203-001072
C3108
C-CER,CHIP
2203-001239
C3034,C3041
C-CER,CHIP
2203-005344
C5178
C-CER,CHIP
2203-005682
C1015,C1017,C1021
C-CER,CHIP
2203-005682
C1022,C1060,C5117
C-CER,CHIP
2203-005682
C5123,C5165,C7300
C-CER,CHIP
2203-005682
L2011
C-CER,CHIP
2203-005725
C1063,C3033,C7004
C-CER,CHIP
2203-005725
C7299
C-CER,CHIP
2203-005729
C6000,C6004,C6010
C-CER,CHIP
2203-005729
C6015,C6018,C6019
C-CER,CHIP
2203-005731
C2049,C6045,C6049
C-CER,CHIP
2203-005732
C5049,C6016,C6017
C-CER,CHIP
2203-005732
C6022,C6028
C-CER,CHIP
2203-005734
C3057,L2000
C-CER,CHIP
2203-005736
C1000,C1009,C1010
C-CER,CHIP
2203-005736
C1014,C1018,C1020
C-CER,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-005736
C1048,C1052,C1080
C-CER,CHIP
2203-005736
C1083,C1084,C1085
C-CER,CHIP
2203-005736
C1137,C1138,C1140
C-CER,CHIP
2203-005736
C1154,C1155,C2040
C-CER,CHIP
2203-005736
C2043,C2047,C2062
C-CER,CHIP
2203-005736
C2071,C2075,C3003
C-CER,CHIP
2203-005736
C3014,C3029,C6058
C-CER,CHIP
2203-005736
L1044,L3007
C-CER,CHIP
2203-005740
C2010
C-CER,CHIP
2203-005777
C1061,C1077,C1081
C-CER,CHIP
2203-005777
C1120,C1143,L2030
C-CER,CHIP
2203-005789
C1056,C1062,C1065
C-CER,CHIP
2203-005789
C1117,C1126,C1142
C-CER,CHIP
2203-005789
C1147,C2004,C2069
C-CER,CHIP
2203-005789
L1010,L1041,L1055
C-CER,CHIP
2203-005789
L1077
C-CER,CHIP
2203-005806
C1011,C2000
C-CER,CHIP
2203-006121
C6014
C-CER,CHIP
2203-006187
C1087,C5137
C-CER,CHIP
2203-006194
C5176
C-CER,CHIP
2203-006305
C1054,C3025
C-CER,CHIP
2203-006318
C1116
C-CER,CHIP
2203-006379
C6042
C-CER,CHIP
2203-006400
C2045,C3035,C3037
C-CER,CHIP
2203-006400
C3039,C3105,C4013
C-CER,CHIP
2203-006400
C6027
C-CER,CHIP
2203-006410
L1059
C-CER,CHIP
2203-006423
C2033,C3066,C3078
C-CER,CHIP
2203-006423
C3098,C3099,C4005
C-CER,CHIP
2203-006423
C4012,C5120,C5141
C-CER,CHIP
2203-006423
C5160,C5172,C5175
C-CER,CHIP
2203-006423
C6048,C7298
C-CER,CHIP
2203-006556
C1053,C1068,C1074
C-CER,CHIP
2203-006556
C1099,C1139,C5045
C-CER,CHIP
2203-006604
C1093,C3062,C5138
C-CER,CHIP
2203-006604
L1036
C-CER,CHIP
2203-006648
C6021
C-CER,CHIP
2203-006665
L1053
C-CER,CHIP
2203-006668
C4064
C-CER,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-006674
C1024,C2063,L1037
C-CER,CHIP
2203-006839
C1012,C1131,C2001
C-CER,CHIP
2203-006839
C4035,C5092,C5095
C-CER,CHIP
2203-006839
C5135
C-CER,CHIP
2203-006846
C4204,C4205,C4206
C-CER,CHIP
2203-006846
C4207
C-CER,CHIP
2203-006896
C1026
C-CER,CHIP
2203-006979
C2022,C2025,C2027
C-CER,CHIP
2203-006979
C2028,C2032,C2035
C-CER,CHIP
2203-006979
C2036,C2038,C2048
C-CER,CHIP
2203-006979
C2050
C-CER,CHIP
2203-007194
C2006,C3067,C7007
C-CER,CHIP
2203-007210
C4022,C4025,C4050
C-CER,CHIP
2203-007210
C4051,C4068,C4087
C-CER,CHIP
2203-007210
C5125,C5126
C-CER,CHIP
2203-007235
C5036,C5038
C-CER,CHIP
2203-007271
C5083,C5097
C-CER,CHIP
2203-007279
C7147
C-CER,CHIP
2203-007317
C3100,C4039,C4078
C-CER,CHIP
2203-007317
C7000,C7006,C7018
C-CER,CHIP
2203-007317
C7031,C7033,C7035
C-CER,CHIP
2203-007317
C7296
C-CER,CHIP
2203-007391
C2030
C-CER,CHIP
2203-007392
C5070
C-CER,CHIP
2203-007393
C1007,C1075,C2012
C-CER,CHIP
2203-007393
C3028,C3101,C3106
C-CER,CHIP
2203-007393
C3107,C4011,C4023
C-CER,CHIP
2203-007393
C4024,C4074,C5032
C-CER,CHIP
2203-007393
C5037,C5040,C5043
C-CER,CHIP
2203-007393
C5048,C5051,C5054
C-CER,CHIP
2203-007393
C5065,C5066,C5071
C-CER,CHIP
2203-007393
C5076,C5084,C5087
C-CER,CHIP
2203-007393
C5096,C5118,C5124
C-CER,CHIP
2203-007393
C5127,C5136,C5168
C-CER,CHIP
2203-007393
C5169,C5170,C5171
C-CER,CHIP
2203-007450
C6003
C-CER,CHIP
2203-007456
C5086,C6032
C-CER,CHIP
2203-007474
C2024,C2029,C2031
C-CER,CHIP
2203-007474
C2039,C4047,C4049
C-CER,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-007474
C4069,C5056,C7027
C-CER,CHIP
2203-007474
C7028
C-CER,CHIP
2203-007796
C2011,C2023,C2026
C-CER,CHIP
2203-007796
C2034,C2037,C3000
C-CER,CHIP
2203-007796
C3002,C3008,C3013
C-CER,CHIP
2203-007796
C3018,C3022,C3031
C-CER,CHIP
2203-007796
C3046,C3084,C3093
C-CER,CHIP
2203-007796
C3094,C3096,C3097
C-CER,CHIP
2203-007796
C3102,C4002,C4006
C-CER,CHIP
2203-007796
C4007,C4008,C4009
C-CER,CHIP
2203-007796
C4010,C4014,C4015
C-CER,CHIP
2203-007796
C4018,C4019,C4020
C-CER,CHIP
2203-007796
C4021,C4026,C4029
C-CER,CHIP
2203-007796
C4030,C4033,C4034
C-CER,CHIP
2203-007796
C4037,C4038,C4044
C-CER,CHIP
2203-007796
C4045,C4052,C4053
C-CER,CHIP
2203-007796
C4054,C4055,C4056
C-CER,CHIP
2203-007796
C4062,C4063,C4065
C-CER,CHIP
2203-007796
C4066,C4067,C4070
C-CER,CHIP
2203-007796
C4071,C4072,C4073
C-CER,CHIP
2203-007796
C4075,C4076,C4077
C-CER,CHIP
2203-007796
C4079,C4080,C4081
C-CER,CHIP
2203-007796
C4082,C4083,C4088
C-CER,CHIP
2203-007796
C4089,C4090,C4091
C-CER,CHIP
2203-007796
C4092,C4093,C4094
C-CER,CHIP
2203-007796
C5008,C5009,C5013
C-CER,CHIP
2203-007796
C5015,C5016,C5017
C-CER,CHIP
2203-007796
C5018,C5019,C5020
C-CER,CHIP
2203-007796
C5024,C5025,C5026
C-CER,CHIP
2203-007796
C5030,C5073,C5085
C-CER,CHIP
2203-007796
C5093,C5101,C5102
C-CER,CHIP
2203-007796
C5104,C5107,C5108
C-CER,CHIP
2203-007796
C5110,C5128,C5134
C-CER,CHIP
2203-007796
C5166,C6002,C6020
C-CER,CHIP
2203-007796
C6023,C6024,C7001
C-CER,CHIP
2203-007796
C7005,C7011,C7013
C-CER,CHIP
2203-007796
C7015,C7020,C7022
C-CER,CHIP
2203-007796
C7037,C7038,C7039
C-CER,CHIP
2203-007796
C7287,C7293,C7294
C-CER,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-007796
C7295,C7297,U4001
C-CER,CHIP
2203-008158
C5079
C-CER,CHIP
2203-008242
C2058,C3005,C3016
C-CER,CHIP
2203-008242
C4001,C4003,C4004
C-CER,CHIP
2203-008242
C4017,C4043,C5000
C-CER,CHIP
2203-008242
C5002,C5004,C5007
C-CER,CHIP
2203-008242
C5011,C5012,C5021
C-CER,CHIP
2203-008242
C5022,C5023,C5027
C-CER,CHIP
2203-008242
C6005
C-CER,CHIP
2203-008394
C3058,L1003
C-CER,CHIP
2203-008654
C6031
C-CER,CHIP
2203-008860
C2057,C3006,C3092
C-CER,CHIP
2203-008860
C3095,C3103,C3104
C-CER,CHIP
2203-008860
C5028,C5100,C5121
C-CER,CHIP
2203-008860
C5133,C6006,C6008
C-CER,CHIP
2203-008860
C6012,C6013,C7016
C-CER,CHIP
2203-008860
C7032,C7040,C7041
C-CER,CHIP
2203-008860
C7042
C-CER,CHIP
2203-008876
C1013,C1069,C1071
C-CER,CHIP
2203-008876
C1098,C1105,C3011
C-CER,CHIP
2203-008876
C5075,C5098,C5119
C-CER,CHIP
2203-008876
C6009,C6025,C6029
C-CER,CHIP
2203-008876
C7034
C-CER,CHIP
2203-009167
C3036,C3040
C-CER,CHIP
2203-009328
C4060,C4061,C4086
C-CER,CHIP
2203-009328
C5039,C5041,C5042
C-CER,CHIP
2203-009328
C5047,C5052,C5060
C-CER,CHIP
2203-009328
C5063,C5074
C-CER,CHIP
2203-009537
C5003
C-CER,CHIP
2203-009618
C5069,C5077,C6001
C-CER,CHIP
2203-009618
C7029
C-CER,CHIP
2203-009733
C2009,C5035,C5044
C-CER,CHIP
2203-009733
C5050,C5055,C5059
C-CER,CHIP
2203-009733
C5072,C5081,C5091
C-CER,CHIP
2203-009733
C5152,C6007,C6030
C-CER,CHIP
2203-009733
C7002,C7012,C7021
C-CER,CHIP
2203-009733
C7023,C7024,C7025
C-CER,CHIP
2203-009733
C7043,C7044,C7045
C-CER,CHIP
2203-009733
C7046,C7047,C7048
C-CER,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
5. MAIN Electrical Parts List
2203-009733
C7049,C7050,C7051
C-CER,CHIP
2203-009733
C7054,C7055,C7056
C-CER,CHIP
2203-009733
C7060,C7061,C7062
C-CER,CHIP
2203-010075
C2053
C-CER,CHIP
2203-010085
C5058
C-CER,CHIP
2703-002649
C1057,L1033
INDUCTOR-SMD
2703-002842
C1055,C1094,C1124
INDUCTOR-SMD
2703-002842
L1061,L2009,L2010
INDUCTOR-SMD
2703-002842
L2012,L2032
INDUCTOR-SMD
2703-002900
C1038
INDUCTOR-SMD
2703-002901
C1078,C1104,L1011
INDUCTOR-SMD
2703-002901
L1060,L3027
INDUCTOR-SMD
2703-002903
C1040,C1127,L1009
INDUCTOR-SMD
2703-002903
L3004,L3010,L3013
INDUCTOR-SMD
2703-002903
L5014,L5015
INDUCTOR-SMD
2703-002955
C1064,C1111
INDUCTOR-SMD
2703-002958
C1066
INDUCTOR-SMD
2703-002999
L2031
INDUCTOR-SMD
2703-003476
L3000
INDUCTOR-SMD
2703-003771
C1034,C3059,L1021
INDUCTOR-SMD
2703-003970
C1095,C1119,L3014
INDUCTOR-SMD
2703-004000
C1004
INDUCTOR-SMD
2703-004012
C2068,C3027,C3061
INDUCTOR-SMD
2703-004012
L1007,L1070,L1072
INDUCTOR-SMD
2703-004013
C1005,C1051,L1004
INDUCTOR-SMD
2703-004013
L1068,L3015
INDUCTOR-SMD
2703-004014
C1059,C2002,C3056
INDUCTOR-SMD
2703-004014
L1002,L1028,L2013
INDUCTOR-SMD
2703-004014
L2041,L3001,L3005
INDUCTOR-SMD
2703-004032
C2003,C2015,C2018
INDUCTOR-SMD
2703-004032
L1054,L2007
INDUCTOR-SMD
2703-004033
C1125,L1029,L1062
INDUCTOR-SMD
2703-004034
C1100,L1073
INDUCTOR-SMD
2703-004035
C1114,C2007,C2013
INDUCTOR-SMD
2703-004035
C2016,L1025,L1032
INDUCTOR-SMD
2703-004035
L1052,L1057,L2042
INDUCTOR-SMD
2703-004036
C1118,C2065,L1017
INDUCTOR-SMD
2703-004036
L2029
INDUCTOR-SMD
2703-004037
C2014,L1039,L2002
INDUCTOR-SMD
