Samsung SM-M307F User manual

SM-M307F/FN
Common
Mobile Device CONTENTS
1. Safety Precautions
2. Specification
3. Product Function
4. Exploded View and Parts list
5. MAIN Electrical Parts List
6. Level 1 Repair
7. Level 2 Repair
8. Level 3 Repair
9. Reference Abbreviation
4.
2
Notice: All functionality, features, specifications,
and other product information provided in this
document, including but not limited to, benefits,
design, pricing, components, performance,
availability, and capabiliti-es of the product are
subject to change without notice. Samsung
reserves the right to alter this doc-ument or the
product described herein at anytime, without
obligation to provide notification of such
changes.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-1. Repair Precaution
Before attempting any repair or detailed tuning, shield the device from RF noise or static
electricity discharges.
Use only demagnetized tools that are specifically designed for small electronic repairs,
as most electronic parts are sensitive to electromagnetic forces.
Use only high quality screwdrivers when servicing products. Low quality screwdrivers can
easily damage the heads of screws.
Use only conductor wire of the properly gauge and insulation for low resistance, because of the low margin
of error of most testing equipment.
We recommend 22-gauge twisted copper wire.
Hand-soldering is not recommended, because printed circuit boards (PCBs) can be easily
damaged, even with relatively low heat. Never use a soldering iron with a power rating of
more than 100 watts and use only lead-free solder with a melting point below 250°C (482°F).
Prior to disassembling the battery charger for repair, ensure that the AC power is disconnected.
Always use the replacement parts that are registered in the SEC system. Third-party replacement parts
may not function properly.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
1. Safety Precautions
1-2. ESD(Electrostatically Sensitive Devices) Precaution
Many semiconductors and ESDs in electronic devices are particularly sensitive to static discharge and can
be easily damaged by it. We recommend protecting these components with conductive anti-static bags
when you store or transport them.
Always use an anti-static strap or wristband and remove electrostatic buildup or dissipate
static electricity from your body before repairing ESDs.
Ensure that soldering irons have AC adapter with ground wires and that the ground wires are properly
connected.
Use only desoldering tools with plastic tips to prevent static discharge.
Properly shield the work environment from accidental electrostatic discharge before opening
packages containing ESDs.
The potential for static electricity discharge may be increased in low humidity environments,
such as air-conditioned rooms. Increase the airflow to the working area to decrease the
chance of accidental static electricity discharges.

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
2. Specification
2-1. GSM General Specification
Item
GSM 850
EGSM 900
DCS1800
PCS1900
Freq. Band[MHz]
Uplink/Downlink
824~849
869~894
880~915
925~960
1710~1785
1805~1880
1850~1910
1930~1990
ARFCN range 128~251 0~124 & 975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
270.833kbps
3.692us
Time Slot Period/
Frame Period
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
576.9us
4.615ms
Modulation GSM/
EGPRS
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
GMSK/
8PSK
MS Power 33dBm~5dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 4(GMSK)
E2(8PSK)
4(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
1(GMSK)
E2(8PSK)
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
2. Specification
2-2. GSM Tx Power Class
TX Power
control level
GSM850
TX Power
control level
EGSM900
TX Power
control level
DCS1800
TX Power
control level
PCS1900
5 33±2 dBm 5 33±2 dBm
0
30±3 dBm
0
30±3 dBm
6 31±2 dBm 6 31±2 dBm 1 28±3 dBm 1 28±3 dBm
7 29±2 dBm 7 29±2 dBm 2 26±3 dBm 2 26±3 dBm
8 27±2 dBm 8 27±2 dBm 3 24±3 dBm 3 24±3 dBm
9 25±2 dBm 9 25±2 dBm 4 22±3 dBm 4 22±3 dBm
10 23±2 dBm 10 23±2 dBm 5 20±3 dBm 5 20±3 dBm
1 1 21±2 dBm 1 1 21±2 dBm 6 18±3 dBm 6 18±3 dBm
12 19±2 dBm 12 19±2 dBm 7 16±3 dBm 7 16±3 dBm
13 17±2 dBm 13 17±2 dBm 8 14±3 dBm 8 14±3 dBm
14 15±2 dBm 14 15±2 dBm 9 12±4 dBm 9 12±4 dBm
15 13±2 dBm 15 13±2 dBm 10 10±4 dBm 10 10±4 dBm
16 11±3 dBm 16 11±3 dBm 1 1 8±4 dBm 1 1 8±4 dBm
17 9±3 dBm 17 9±3 dBm 12 6±4 dBm 12 6±4 dBm
18 7±3 dBm 18 7±3 dBm 13 4±4 dBm 13 4±4 dBm
19 5±3 dBm 19 5±3 dBm 14 2±5 dBm 14 2±5 dBm
- - - - 15 0±5 dBm 15 0±5 dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
2. Specification
2-3. WCDMA General Specification
Item
WCDMA2100(B1)
WCDMA1900(B2)
WCDMA850(B5)
WCDMA900(B8)
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1850~1910
1930~1990
824~849
869~894
880~915
925~960
ARFCN range
UL：9612~9888
DL：10562~10838
UL：9262~9538
DL：9662~9938
UL：4132~4233
DL：4357~4458
UL：2712~2868
DL：2937~3088
Tx/Rx spacing 190MHz 80MHz 45MHz 45MHz
Mod. Bit rate/
Bit Period
42.2Mbps(DL)
5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL) 42.2Mbps(DL) 5.42Mbps(UL)
Time Slot Period/
Frame Period
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
WCDMA
10ms/0.667ms
HSPA
2ms/0.667ms
Modulation QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
QPSK
16QAM
64QAM
MS Power
(dBm) 25.7 ~ -49(↓) 25.7 ~ -49(↓) 25.7 ~ -49(↓) 25.7 ~ -49(↓)
Power Class 3(max+24dBm) 3(max+24dBm) 3(max+24dBm) 3(max+24dBm)
Sensitivity -106dBm -104dBm -104dBm -103dBm

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
2. Specification
2-4. L T E General Specification
Item
LTE Band1
LTE Band3
LTE Band5
LTE Band7
LTE Band8
Freq. Band[MHz]
Uplink/Downlink
1920~1980
2110~2170
1710~1785
1805~1880
824~849
869~894
2500~2570
2620~2690
880~915
925~960
ARFCN range UL:18000~18599
DL:0~599
UL:19200~19949
DL:1200~1949
UL:20400~20649
DL:2400~2649
UL:20750~21449
DL:2750~3449
UL:21450-21799
DL:3450-3799
Tx/Rx spacing
(MHz) 190 95 45 120 45
Channel Bandwidth
(MHz) 5/10/15/20 1.4/3/5/10/15/20 1.4/3/5/10 5/10/15/20 1.4/3/5/10
Modulation QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓)
Sensitivity (QPSK,
BW 10MHz) (dBm) -96.3 -93.3 -94.3 -94.3 -93.3
Item
LTE Band20
LTE Band28
LTE Band38
LTE Band40
LTE Band41
Freq. Band[MHz]
Uplink/Downlink
832~862
791~821
703~748
758~803 2570~2620 2300~2400 2496~2690
ARFCN range UL:24150~24449
DL:6150~6449
UL:27210~27659
DL:9210~9659
UL/DL:37750 ~
38249
UL/DL:38650 ~
39649
UL/DL:39650 ~
41589
Tx/Rx spacing (MHz) -41 55
0
0
0
Channel Bandwidth
(MHz) 5/10/15/20 3/5/10/15/20 5/10/15/20 5/10/15/20 5/10/15/20
Modulation QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
QPSK,16/64QAM
256QAM(DL only)
MS Power (dBm) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓) 25.7~-39(↓)
Sensitivity(QPSK,
BW 10MHz) (dBm) -93.3 -94.8 -96.3 -96.3 -94.3

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of anycontentordatafrom thisdocument without Samsung’swritten authorization isstrictlyprohibited.
3. Product Function
Main Function
Item
Description
OS Android P OS V9.0
RF
GSM850 / GSM900 / DCS1800 / PCS1900
WCDMA: B1/ B2/ B5/ B8
LTE: B1/B3/B5/B7/B8/B20/B38/B40/B41
Battery 6000mAh
Base Band 2.3Ghz Quad + 1.7GHz Quad
Other RF GPS, Glonass, Beidou, Galileo / BT5.0 / USB 2.0 / WIFI 802.11 a/b/g/n/ac / NFC(SM-M307FN Only)
Camera Triple Camera ( 48MP(F2.0) + 5MP(F2.2) + 8MP(F2.2)) with LED Flash / Front Camera 16MP(F2.0)
LCD 6.4", FHD+, 2400x1080
RAM 4GB / 6GB
Storage 64GB / 128GB
Sensor Accelerometer, Fingerprint Sensor, Gyro Sensor, Geomagnetic Sensor, Proximity Sensor, Grip
sensor
Accessory
Charger: 9V/1.67A and 5V/2.0A AFC charging
Data cable: 3.0pi, 0.8m(USB-C)
Ear phone: 3.5pi, 4pin

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
4. Exploded View and Parts List

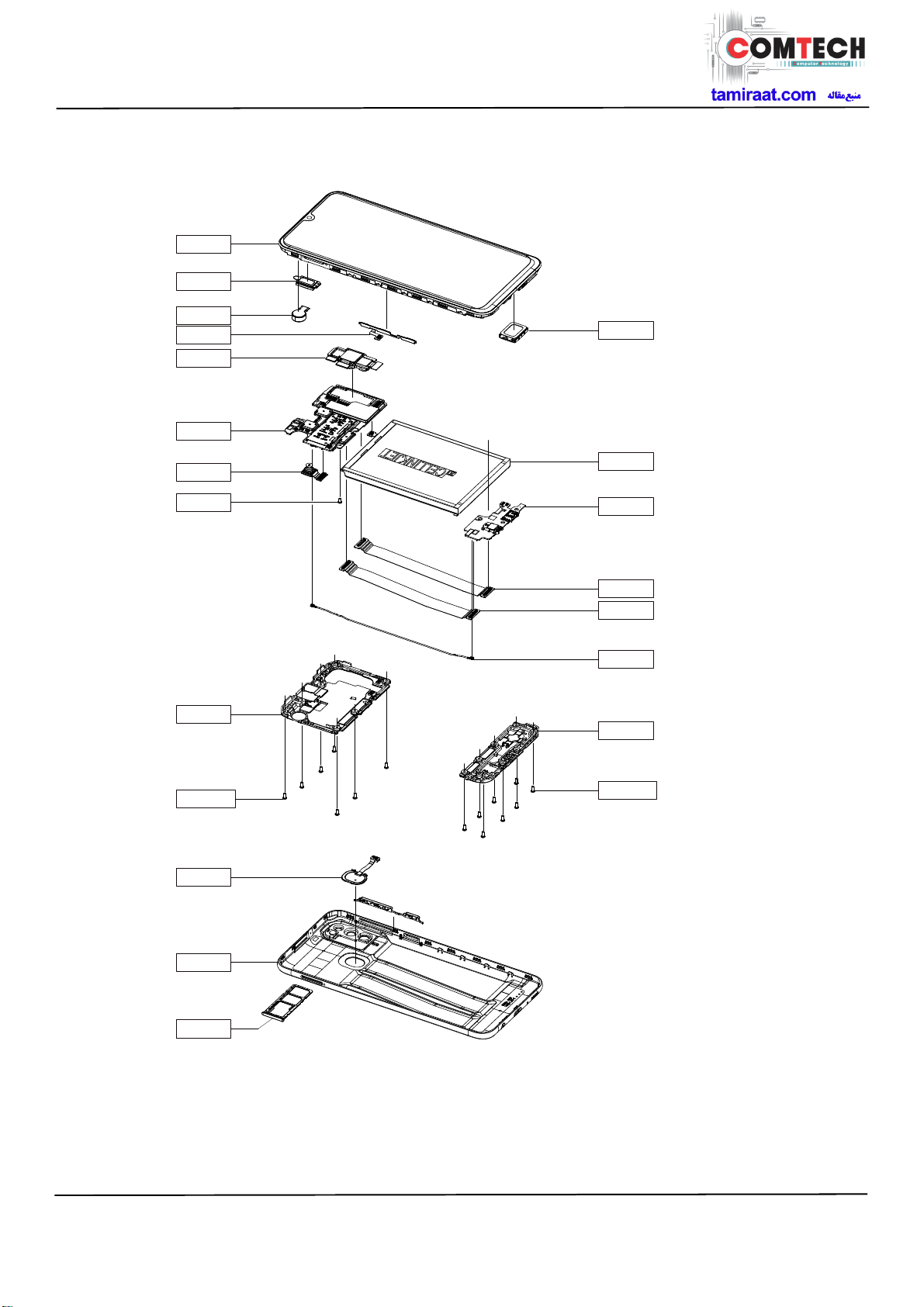

4-1. Cellular phone Exploded View
QFR01
QAR01
QMO01
QME03
QCA02
QMP01
QCA01
QCR12
QAN02
QCR205
QKP01
QRE01
QSM01
QCR205
QAN01
QCB01
QME02
QME01
QIF01
QBA01
QSP01
※SVC REPAIR TAPE
QRT01

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
Parts Code
Design LOC
Description
ZD5013 0401-001110 DIODE-SWITCHING
D5000 0404-001250 DIODE-SCHOTTKY
ZD6005,ZD6015 0406-001561 DIODE-TVS
ZD5012 0406-001592 DIODE-TVS
ZD5001 0406-001728 DIODE-TVS
ZD6013,ZD6014 0406-001781 DIODE-TVS
D5001 0406-001808 DIODE-TVS
ZD6011,ZD6012 0406-001809 DIODE-TVS
ZD1001 0406-001829 DIODE-TVS
LED5000 0601-003768 LED
U2006 1001-001911 IC
U2001 1001-001969 IC
U3004 1001-002065 IC
U3001 1001-002077 IC
U2020 1003-002802 IC
UCP400UP 1105-003012 IC
UME5000 1107-002536 IC
U3005 1201-003869 IC
U1001 1201-004029 IC
PAM1000 1201-004109 IC
PAM1001 1201-004209 IC
U1000,U1015 1201-004219 IC
U6001 1201-004240 IC
U3014 1203-008249 IC
U5006 1203-008251 IC
U7002 1203-008326 IC
U2000 1203-008693 IC
U5007 1203-008719 IC
U5003 1203-008729 IC
U3013,U7000 1203-008865 IC
U3000,U3003,U7003 1203-008867 IC
U7004 1203-008926 IC
U5001 1203-009113 IC
U7001 1203-009220 IC
U5000 1203-009224 IC
U5002 1203-009233 IC
U7038 1203-009245 IC
U6012 1205-005750 IC

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
U2016 1205-005806 IC
U3015 1205-006087 IC
U3002 1205-006088 IC
UCP400 1205-006177 IC
U3018 1209-002513 IC
U3012 1209-002627 IC
U3016 1209-002629 IC
TH4000,TH4001,TH5000 1404-001724 THERMISTOR
TH1000 1404-001734 THERMISTOR
VR7000 1405-001458 VARISTOR
R5002 2007-000172 R-CHIP
R6024,R6026 2007-003015 R-CHIP
R6022,R6023 2007-007190 R-CHIP
R4002 2007-007310 R-CHIP
R3011,R3012 2007-007317 R-CHIP
R1005,R3002,R4009 2007-007741 R-CHIP
R6003 2007-007741 R-CHIP
R6034 2007-007798 R-CHIP
R5014 2007-007942 R-CHIP
R5006 2007-007946 R-CHIP
R5001 2007-008043 R-CHIP
R7011 2007-008052 R-CHIP
R3000,R3013 2007-008053 R-CHIP
R5024 2007-008055 R-CHIP
R1002,R1003 2007-008056 R-CHIP
R1004,R4008 2007-008419 R-CHIP
R5009,R5011 2007-008483 R-CHIP
R5003,R5004,R5005 2007-008486 R-CHIP
R5008,R5012 2007-008486 R-CHIP
R5020,R5022,R5023 2007-008516 R-CHIP
R5028,R5029 2007-008516 R-CHIP
R6006,R7000,R7001 2007-008531 R-CHIP
R7034 2007-008531 R-CHIP
R6018,R6028 2007-008579 R-CHIP
R4004,R4005,R4006 2007-008588 R-CHIP
R4007,R4011,R4012 2007-008588 R-CHIP
R4013,R4014,R4018 2007-008588 R-CHIP
R4019,R4022,R4027 2007-008588 R-CHIP
R4028,R4029,R4031 2007-008588 R-CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
R4033,R4040,R4041 2007-008588 R-CHIP
R4042,R4043,R4044 2007-008588 R-CHIP
R4045,R4049,R4050 2007-008588 R-CHIP
R4051,R4052,R4053 2007-008588 R-CHIP
R4054,R4055,R4056 2007-008588 R-CHIP
R4057,R4058,R6017 2007-008588 R-CHIP
R1001 2007-008785 R-CHIP
R3001 2007-009111 R-CHIP
R5007 2007-009155 R-CHIP
R4020,R4021,R5052 2007-009157 R-CHIP
R7003 2007-009157 R-CHIP
R5021,R6009 2007-009212 R-CHIP
R6000 2007-009314 R-CHIP
R5010 2007-009315 R-CHIP
R4024,R4026,R4034 2007-009352 R-CHIP
R4036 2007-009352 R-CHIP
R1006 2007-009361 R-CHIP
R6010 2007-009408 R-CHIP
R6002,R6015 2007-009410 R-CHIP
R1000,R2001 2007-009805 R-CHIP
R6020 2007-009838 R-CHIP
R6011 2007-009969 R-CHIP
R6016 2007-010031 R-CHIP
R4000 2007-011043 R-CHIP
R4030,R4032,R4038 2007-011546 R-CHIP
R4039 2007-011546 R-CHIP
R6035 2007-011648 R-CHIP
C3054 2203-000386
C-CERAMIC,CHIP
C5094 2203-000812
C-CERAMIC,CHIP
C3024,C3058 2203-001153
C-CERAMIC,CHIP
C3053 2203-001239
C-CERAMIC,CHIP
C5071 2203-005344
C-CERAMIC,CHIP
C1000,C1051,C1096 2203-005682
C-CERAMIC,CHIP
C5125,C5126,C7035 2203-005682
C-CERAMIC,CHIP
C7057,C7104 2203-005682
C-CERAMIC,CHIP
C3016,C3019,C3020 2203-005725
C-CERAMIC,CHIP
C3037,C7003,C7007 2203-005725
C-CERAMIC,CHIP
L1031 2203-005725
C-CERAMIC,CHIP
C6027,C6047 2203-005726
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
C3030,C3052,C5096 2203-005729
C-CERAMIC,CHIP
C6000,C6004,C6010 2203-005729
C-CERAMIC,CHIP
C6016,L3003 2203-005729
C-CERAMIC,CHIP
C2100,C3025 2203-005731
C-CERAMIC,CHIP
C5108,C6008,C6009 2203-005732
C-CERAMIC,CHIP
C6037 2203-005732
C-CERAMIC,CHIP
C1005 2203-005734
C-CERAMIC,CHIP
C1003,C1004,C1024 2203-005736
C-CERAMIC,CHIP
C1044,C1045,C1076 2203-005736
C-CERAMIC,CHIP
C1097,C1098,C1099 2203-005736
C-CERAMIC,CHIP
C1102,C1107,C2000 2203-005736
C-CERAMIC,CHIP
C2001,C2003,C2004 2203-005736
C-CERAMIC,CHIP
C2005,C2008,C2010 2203-005736
C-CERAMIC,CHIP
C2011,C2018,C2039 2203-005736
C-CERAMIC,CHIP
C2040,C2072,C2101 2203-005736
C-CERAMIC,CHIP
C3008,C3040,C3050 2203-005736
C-CERAMIC,CHIP
C3087,L2012,L2021 2203-005736
C-CERAMIC,CHIP
C1064,L1066,L2004 2203-005777
C-CERAMIC,CHIP
C1049,C1050,C1053 2203-005789
C-CERAMIC,CHIP
C1110,L1029,L2001 2203-005789
C-CERAMIC,CHIP
L2008,L2011 2203-005789
C-CERAMIC,CHIP
C1046,C1047,L1005 2203-005792
C-CERAMIC,CHIP
C1040,C1067,C2013 2203-005806
C-CERAMIC,CHIP
C6012 2203-006121
C-CERAMIC,CHIP
C2088 2203-006123
C-CERAMIC,CHIP
L1026,L3009 2203-006187
C-CERAMIC,CHIP
C1095,C6061 2203-006194
C-CERAMIC,CHIP
C1075,L1014 2203-006318
C-CERAMIC,CHIP
C1002,C1022,C2050 2203-006400
C-CERAMIC,CHIP
C3021,C3048,C3059 2203-006400
C-CERAMIC,CHIP
C3078,C4011,C4012 2203-006400
C-CERAMIC,CHIP
C4024,C4025,C5075 2203-006400
C-CERAMIC,CHIP
C5080,C5101,C6030 2203-006400
C-CERAMIC,CHIP
C1074,C3023 2203-006410
C-CERAMIC,CHIP
C2036,C3018,C3029 2203-006423
C-CERAMIC,CHIP
C3034,C6013,C6019 2203-006423
C-CERAMIC,CHIP
C6021,C6022,C6051 2203-006423
C-CERAMIC,CHIP
C6089,C6091,C7029 2203-006423
C-CERAMIC,CHIP
C1036,C1037,C1056 2203-006556
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
C1061,C1069,C1112 2203-006556
C-CERAMIC,CHIP
C5107 2203-006556
C-CERAMIC,CHIP
C2098,C5115,C5135 2203-006562
C-CERAMIC,CHIP
C7080 2203-006562
C-CERAMIC,CHIP
L1060 2203-006604
C-CERAMIC,CHIP
C1015,L1028 2203-006665
C-CERAMIC,CHIP
C4003 2203-006668
C-CERAMIC,CHIP
C2014,C4007,C4010 2203-006839
C-CERAMIC,CHIP
C4034,C5076,C5077 2203-006839
C-CERAMIC,CHIP
C5078,C6045 2203-006839
C-CERAMIC,CHIP
C2095,C5006,C5013 2203-006872
C-CERAMIC,CHIP
C5026,C5027,C5028 2203-006872
C-CERAMIC,CHIP
C5029,C5032,C5043 2203-006872
C-CERAMIC,CHIP
C5048,C5090 2203-006872
C-CERAMIC,CHIP
C2020,C2024,C2026 2203-006979
C-CERAMIC,CHIP
C2028,C2030,C2032 2203-006979
C-CERAMIC,CHIP
C2034,C2037,C2053 2203-006979
C-CERAMIC,CHIP
C1114,C7105,L2065 2203-007194
C-CERAMIC,CHIP
C4023,C4096,C5136 2203-007210
C-CERAMIC,CHIP
C5137 2203-007210
C-CERAMIC,CHIP
C1038,C1058,C5023 2203-007271
C-CERAMIC,CHIP
C5024,C5046,C5069 2203-007271
C-CERAMIC,CHIP
C5130,C7027 2203-007271
C-CERAMIC,CHIP
C3015,C3062,C5008 2203-007317
C-CERAMIC,CHIP
C5036,C5040,C5041 2203-007317
C-CERAMIC,CHIP
C5042,C5065,C5073 2203-007317
C-CERAMIC,CHIP
C5088,C5100,C6018 2203-007317
C-CERAMIC,CHIP
C7002,C7010,C7023 2203-007317
C-CERAMIC,CHIP
C7024,C7028,C7034 2203-007317
C-CERAMIC,CHIP
C2035,C7040 2203-007391
C-CERAMIC,CHIP
C2017,C2042,C2097 2203-007393
C-CERAMIC,CHIP
C3035,C3036,C4029 2203-007393
C-CERAMIC,CHIP
C4044,C4051,C4059 2203-007393
C-CERAMIC,CHIP
C4067,C4074,C5079 2203-007393
C-CERAMIC,CHIP
C5081,C5093,C5097 2203-007393
C-CERAMIC,CHIP
C6025,C6039,C6082 2203-007393
C-CERAMIC,CHIP
C6083,C6084,C6085 2203-007393
C-CERAMIC,CHIP
C6086,C6087,C6092 2203-007393
C-CERAMIC,CHIP
C7025 2203-007393
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
C5095 2203-007425
C-CERAMIC,CHIP
C5106 2203-007456
C-CERAMIC,CHIP
C3033 2203-007544
C-CERAMIC,CHIP
C4084,C5001,C5054 2203-007781
C-CERAMIC,CHIP
C5058,C5060,C5062 2203-007781
C-CERAMIC,CHIP
C5064,C5067 2203-007781
C-CERAMIC,CHIP
C2021,C2025,C2027 2203-007796
C-CERAMIC,CHIP
C2031,C3002,C3004 2203-007796
C-CERAMIC,CHIP
C3017,C3026,C3032 2203-007796
C-CERAMIC,CHIP
C3038,C3057,C3060 2203-007796
C-CERAMIC,CHIP
C3081,C3082,C4002 2203-007796
C-CERAMIC,CHIP
C4004,C4006,C4008 2203-007796
C-CERAMIC,CHIP
C4013,C4014,C4017 2203-007796
C-CERAMIC,CHIP
C4019,C4020,C4021 2203-007796
C-CERAMIC,CHIP
C4022,C4026,C4027 2203-007796
C-CERAMIC,CHIP
C4030,C4031,C4032 2203-007796
C-CERAMIC,CHIP
C4036,C4040,C4041 2203-007796
C-CERAMIC,CHIP
C4042,C4043,C4045 2203-007796
C-CERAMIC,CHIP
C4047,C4048,C4049 2203-007796
C-CERAMIC,CHIP
C4050,C4053,C4054 2203-007796
C-CERAMIC,CHIP
C4055,C4056,C4057 2203-007796
C-CERAMIC,CHIP
C4058,C4060,C4061 2203-007796
C-CERAMIC,CHIP
C4062,C4064,C4065 2203-007796
C-CERAMIC,CHIP
C4066,C4069,C4070 2203-007796
C-CERAMIC,CHIP
C4071,C4073,C4079 2203-007796
C-CERAMIC,CHIP
C4080,C4083,C4085 2203-007796
C-CERAMIC,CHIP
C4086,C4090,C4091 2203-007796
C-CERAMIC,CHIP
C4093,C4094,C4095 2203-007796
C-CERAMIC,CHIP
C4097,C4099,C4100 2203-007796
C-CERAMIC,CHIP
C4101,C4102,C5014 2203-007796
C-CERAMIC,CHIP
C5015,C5022,C5031 2203-007796
C-CERAMIC,CHIP
C5047,C5049,C5082 2203-007796
C-CERAMIC,CHIP
C5104,C5109,C5110 2203-007796
C-CERAMIC,CHIP
C5116,C5128,C6001 2203-007796
C-CERAMIC,CHIP
C6020,C6040,C6041 2203-007796
C-CERAMIC,CHIP
C6042,C6043,C7001 2203-007796
C-CERAMIC,CHIP
C7004,C7005,C7006 2203-007796
C-CERAMIC,CHIP
C7008,C7009,C7018 2203-007796
C-CERAMIC,CHIP
C7021,C7022,C7048 2203-007796
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
C7049,C7076,C7077 2203-007796
C-CERAMIC,CHIP
C7082 2203-007796
C-CERAMIC,CHIP
C1021,C1028,C1057 2203-008097
C-CERAMIC,CHIP
C1062,C1106,C5017 2203-008097
C-CERAMIC,CHIP
C5034,C5087 2203-008097
C-CERAMIC,CHIP
C3000,C3001,C3005 2203-008242
C-CERAMIC,CHIP
C3006,C3007,C3009 2203-008242
C-CERAMIC,CHIP
C4000,C4038,C4039 2203-008242
C-CERAMIC,CHIP
C4072,C4078,C5050 2203-008242
C-CERAMIC,CHIP
C5113,C5139 2203-008242
C-CERAMIC,CHIP
C6029 2203-008243
C-CERAMIC,CHIP
C5003,C5004,C5052 2203-008312
C-CERAMIC,CHIP
C5056 2203-008312
C-CERAMIC,CHIP
C2048,C2049,C2051 2203-008403
C-CERAMIC,CHIP
C2052 2203-008403
C-CERAMIC,CHIP
C5114 2203-008572
C-CERAMIC,CHIP
C5105 2203-008654
C-CERAMIC,CHIP
C1068,C3012,C3042 2203-008860
C-CERAMIC,CHIP
C3055,C3080,C3095 2203-008860
C-CERAMIC,CHIP
C5012,C5033,C5099 2203-008860
C-CERAMIC,CHIP
C5127,C6002,C6035 2203-008860
C-CERAMIC,CHIP
C6081,C7016,C7050 2203-008860
C-CERAMIC,CHIP
C7051,C7052,C7078 2203-008860
C-CERAMIC,CHIP
C7079 2203-008860
C-CERAMIC,CHIP
C1039,C4001,C4016 2203-008876
C-CERAMIC,CHIP
C4063,C5019,C5025 2203-008876
C-CERAMIC,CHIP
C5030,C5035,C5092 2203-008876
C-CERAMIC,CHIP
C5103,C5111,C5138 2203-008876
C-CERAMIC,CHIP
C6052,C7081 2203-008876
C-CERAMIC,CHIP
C4077,C4087,C4088 2203-009064
C-CERAMIC,CHIP
C3013,C3014 2203-009167
C-CERAMIC,CHIP
C2023,C5009 2203-009537
C-CERAMIC,CHIP
C6005,C6006,C7053 2203-009618
C-CERAMIC,CHIP
C1063,C2022,C2029 2203-009733
C-CERAMIC,CHIP
C2033,C2038,C4037 2203-009733
C-CERAMIC,CHIP
C4046,C4052,C4068 2203-009733
C-CERAMIC,CHIP
C4081,C4082,C4092 2203-009733
C-CERAMIC,CHIP
C5000,C5002,C5005 2203-009733
C-CERAMIC,CHIP
C5051,C5053,C5055 2203-009733
C-CERAMIC,CHIP

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
C5057,C5059,C5061 2203-009733
C-CERAMIC,CHIP
C5063,C5066,C5068 2203-009733
C-CERAMIC,CHIP
C5070,C5072,C5074 2203-009733
C-CERAMIC,CHIP
C5084,C5085,C5089 2203-009733
C-CERAMIC,CHIP
C5129,C5141,C5144 2203-009733
C-CERAMIC,CHIP
C6003,C6015,C6046 2203-009733
C-CERAMIC,CHIP
C6088,C6090,C7000 2203-009733
C-CERAMIC,CHIP
C7012,C7013,C7014 2203-009733
C-CERAMIC,CHIP
C7015,C7019,C7020 2203-009733
C-CERAMIC,CHIP
C7032,C7036,C7037 2203-009733
C-CERAMIC,CHIP
C7038,C7039,C7042 2203-009733
C-CERAMIC,CHIP
C7058,C7068,C7069 2203-009733
C-CERAMIC,CHIP
C7070,C7071,C7072 2203-009733
C-CERAMIC,CHIP
C7075,C7086,C7089 2203-009733
C-CERAMIC,CHIP
C7090,C7106 2203-009733
C-CERAMIC,CHIP
C4075,C4076 2203-009735
C-CERAMIC,CHIP
C5091 2203-009736
C-CERAMIC,CHIP
C3039,C3046 2203-009858
C-CERAMIC,CHIP
C5142,C5143 2203-010066
C-CERAMIC,CHIP
L5011,L5014 2703-002309 INDUCTOR-SMD
L1056,L2066 2703-002649 INDUCTOR-SMD
C1043,L1050,L2003 2703-002901 INDUCTOR-SMD
C3077,L3005 2703-002903 INDUCTOR-SMD
L2030 2703-002907 INDUCTOR-SMD
C1018,C2006 2703-002955 INDUCTOR-SMD
L1052 2703-002958 INDUCTOR-SMD
L2048,L3008 2703-002999 INDUCTOR-SMD
C2015 2703-003004 INDUCTOR-SMD
L3006 2703-003476 INDUCTOR-SMD
L1045,L1073,L2013 2703-004012 INDUCTOR-SMD
C3027,L1011,L1032 2703-004013 INDUCTOR-SMD
L1038,L2027 2703-004013 INDUCTOR-SMD
C1066,L1036,L2005 2703-004014 INDUCTOR-SMD
L3017 2703-004014 INDUCTOR-SMD
L1081,L3001,L3018 2703-004018 INDUCTOR-SMD
C1014,C1085,C2091 2703-004032 INDUCTOR-SMD
L1000,L2029 2703-004032 INDUCTOR-SMD
L1082,L2007 2703-004033 INDUCTOR-SMD
L1041,L1047,L3034 2703-004034 INDUCTOR-SMD

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
L2037 2703-004036 INDUCTOR-SMD
L2034 2703-004037 INDUCTOR-SMD
L1006,L3013 2703-004038 INDUCTOR-SMD
C1035,C2044,L1027 2703-004286 INDUCTOR-SMD
L1033,L1040,L1043 2703-004286 INDUCTOR-SMD
L2010,L3002 2703-004286 INDUCTOR-SMD
L2036,L2040 2703-004287 INDUCTOR-SMD
L2031 2703-004288 INDUCTOR-SMD
C1008,C1109,L1007 2703-004289 INDUCTOR-SMD
L1009,L1044 2703-004289 INDUCTOR-SMD
L1002 2703-004299 INDUCTOR-SMD
L2002 2703-004302 INDUCTOR-SMD
C1006,L2016 2703-004317 INDUCTOR-SMD
C1108,L1034,L1035 2703-004328 INDUCTOR-SMD
L1018,L1023 2703-004362 INDUCTOR-SMD
C3031 2703-004363 INDUCTOR-SMD
C1017,C1065,C1070 2703-004366 INDUCTOR-SMD
L2006,L3014 2703-004703 INDUCTOR-SMD
L1016,L1022,L1030 2703-004764 INDUCTOR-SMD
L3007 2703-004764 INDUCTOR-SMD
L1004 2703-004853 INDUCTOR-SMD
L1069,L3016 2703-004862 INDUCTOR-SMD
C1012,L3026 2703-004911 INDUCTOR-SMD
L2020,L5020 2703-004947 INDUCTOR-SMD
C1032,C1033,L1003 2703-005058 INDUCTOR-SMD
L1053 2703-005058 INDUCTOR-SMD
L7009 2703-005061 INDUCTOR-SMD
L5000,L5007,L5008 2703-005067 INDUCTOR-SMD
L5009,L5010 2703-005067 INDUCTOR-SMD
L5012 2703-005136 INDUCTOR-SMD
L5001,L5004,L5005 2703-005201 INDUCTOR-SMD
L5006 2703-005201 INDUCTOR-SMD
L5002 2703-005226 INDUCTOR-SMD
C3028 2703-005295 INDUCTOR-SMD
L7005 2703-005418 INDUCTOR-SMD
L7006 2703-005419 INDUCTOR-SMD
L6000 2703-005505 INDUCTOR-SMD
L5003 2703-005509 INDUCTOR-SMD
L3011,L3028 2703-005555 INDUCTOR-SMD

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
OSC5000 2801-005393 CRYSTAL-UNIT
OSC2000 2805-001113 OSCILLATOR
F1009 2904-002241 FILTER-SAW
F2001 2904-002257 FILTER-SAW
F1000 2904-002260 FILTER-SAW
F1003 2904-002285 FILTER-SAW
F2004 2904-002349 FILTER-SAW
F3001,F3002 2904-002355 FILTER-SAW
F3000 2904-002381 FILTER-SAW
F1001 2904-002397 FILTER-SAW
F1002 2910-000390 FILTER
U2012 2911-000435 FILTER
U1002 2911-000461 FILTER
MIC6000 3003-001237 MIC-CONDENSOR
L1025 3301-001895 C O R E -FERRITE BEAD
L2053,L2054 3301-002122 C O R E -FERRITE BEAD
L7000,L7001,L7002 3301-002223 C O R E -FERRITE BEAD
L7003,L7010 3301-002223 C O R E -FERRITE BEAD
L6013 3301-002228 C O R E -FERRITE BEAD
L6002,L6005,L6007 3301-002235 C O R E -FERRITE BEAD
L6011,L6012,L6014 3301-002235 C O R E -FERRITE BEAD
L6015 3301-002235 C O R E -FERRITE BEAD
L2000 3301-002236 C O R E -FERRITE BEAD
L2049 3301-002237 C O R E -FERRITE BEAD
C3003,L2015,L2017 3301-002238 C O R E -FERRITE BEAD
L2022,L2023,L2028 3301-002238 C O R E -FERRITE BEAD
L3012,L3015,L5015 3301-002238 C O R E -FERRITE BEAD
L5016,L6001,L6003 3301-002238 C O R E -FERRITE BEAD
L2038 3301-002242 C O R E -FERRITE BEAD
L6004,L6006 3301-002243 C O R E -FERRITE BEAD
L2009,L2014,L2024 3301-002312 C O R E -FERRITE BEAD
L2026,L7004,L7007 3301-002312 C O R E -FERRITE BEAD
L7008 3301-002312 C O R E -FERRITE BEAD
L5013 3301-002331 C O R E -FERRITE BEAD
RFS1000 3705-001937 CONNECTOR-COAXIAL
SIM604UP 3709-001932 CONNECTOR-CARD EDGE
SIM603 3709-001933 CONNECTOR-CARD EDGE
SIM601,SIM602 3709-001934 CONNECTOR-CARD EDGE
SOC7004 3710-003193 CONNECTOR-SOCKET

Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission,orinfringementofanycontentordatafromthisdocumentwithoutSamsung’swritten authorizationis strictlyprohibited.
5. MAIN Electrical Parts List
HDC7002 3710-003871 CONNECTOR-SOCKET
HDC7001 3710-003874 CONNECTOR-SOCKET
SOC5001,SOC5002 3710-004008 CONNECTOR-SOCKET
HDC7000 3710-004027 CONNECTOR-SOCKET
SOC5000 3710-004109 CONNECTOR-SOCKET
HEA6000 3710-004344 CONNECTOR-SOCKET
HEA7003 3711-008931 CONNECTOR-HEADER
ANT2013,ANT2015 3712-001621 CONNECTOR
ANT6000,ANT6001 3712-001621 CONNECTOR
ANT2000,ANT2002 3712-001626 CONNECTOR
ANT3001,ANT3002 3712-001626 CONNECTOR
ANT3003 3712-001626 CONNECTOR
ANT5000,ANT5001 3712-001633 CONNECTOR
F3004 4709-002284 RF-MODULE
F3003 4709-002351 RF-MODULE
F1006 4709-002412 RF-MODULE
CLIP1000 GH60-00010A CONNECTOR
GA7000 GH62-00042A GASCKET
SC6005 GH63-16791A SHIELDCAN
SC6000 GH63-16834A SHIELDCAN
SC6001 GH63-16835A SHIELDCAN
SC6002 GH63-16836A SHIELDCAN
SC6004 GH63-17765A SHIELDCAN
SC6006 GH63-17766A SHIELDCAN
SC6003 GH63-17817A SHIELDCAN
SC6004SP GH02-19593A TAPE ABSORBER-SHIELDCAN NANOTIM
SC6006SP GH02-19595A TAPE CONDUCTIVE-SHIELD CAN PMIC
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
