Samsung MIM-B16 User manual

INSTALLATION
MANUAL
MIM-B16
DB98-32320A(1)E
PIM
(Pulse Input Module)
MIM-B16_PIM_IM_E 32320-1.indd 33 2010-05-20 ｿﾀﾈﾄ 7:19:08

E-2
Safety Precautions
Read carefully this installation manual before
installation and check if the PIM is installed correctly
after installation.
 Do not attempt to install or repair this PIM by yourself.
This PIM contains no user-serviceable parts.
Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for
disconnection and installation of the PIM.
Ensure that the wall is strong enough to support the
weight of the PIM.
Must install the PIM with rated power supply.
The PIM must be installed according to
the national electrical rules by an installation specialist.
If you wish to uninstall the PIM, consult an authorized
installation center.
WARNING
CAUTION  Do not use inflammable gases near the PIM.
Do not install the PIM in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
Avoid locations where acid/alkali solution or special
spray is used.
Choose a location that is dry and sunny, but not exposed
to direct sunlight. Suitable temperature is between
0°C(32°F) and 39°C(102.2°F).
 Do not spill water into the PIM.
Do not apply tensile strength to the cable to avoid cable
damage.
Do not press the buttons with a sharp object.
Do not connect the power cable to the control terminal.
If the PIM is installed in a hospital or other special places,
it should not affect other electronic devices.
This installation manual describes how to install the PIM. For installation of other
optional accessories, refer to the appropriate installation manual.
MIM-B16_PIM_IM_E 32320-1.indd 2 2010-05-20 ｿﾀﾈﾄ 7:18:42

E-3
Contents
 SAFETY PRECAUTIONS ..................................................................... 2
 ACCESSORIES ..................................................................................... 4
 VIEWING THE PARTS ........................................................................ 5
 PRODUCT DIMENSIONS ................................................................... 7
 PIM SYSTEM ARCHITECTURE ......................................................... 8
 INSTALLING THE PIM ..................................................................... 9
 SETTING THE PIM ........................................................................... 16
 PIM MENU DESCRIPTION ............................................................. 17
MIM-B16_PIM_IM_E 32320-1.indd 3 2010-05-20 ｿﾀﾈﾄ 7:18:42

E-4
Installation
manual Cable tie
1 1
Adapter Power cable M4x16 Screw
1 1 6
Make sure you have each item. Supplied items may vary depending on your
country or service provider.
Accessories
 The PIM must be installed by a trained installer.
 Ensure the main power is turned off before installing
the PIM.
 Be sure to use adapter and power cable we provide.
 The power cable and the communication cable must
be installed according to the national electrical wiring
regulations.
(Use 2C x 0.75mm2 communication cable.)
Item PIM
Quantity 1
Shape
MIM-B16_PIM_IM_E 32320-1.indd 4 2010-05-20 ｿﾀﾈﾄ 7:18:43

E-5
PIM Exterior
LCD Display
Shows current time and power
consumption by channel.
Various menus will be displayed
depending on button input.
LCD Operation button
There are 4 buttons [Menu, ▼(Down), ▲(Up),
Set] and you can access, move and
check the menu.
LED Indicator
Checks the status using 14 LEDs such as Power,
COM1 TX/RX, Signal, COM2 TX/RX and Check.
PIM Bottom cover
Unfasten 2 screws on the bottom and
separate the bottom cover from PIM.
Then check cable connection part.
Item Name Status
Power Power indicator Turns blue when the
power is supplied.
COM1 TX/RX Data transmission/reception with DMS indicator
Blinks in orange during
the normal transmission/
reception.
Signal (1)~(8) Power consumption pulse input indicator
Blinks in orange when
the normal pulse is input
from the watt-hour meter.
COM2 TX/RX Reserved Reserved
Check Error indicator
Blinks in orange when the
error occurs. (It will be off
when the error is cleared.)
LED Indicator
Viewing the Parts
Main Parts
MIM-B16_PIM_IM_E 32320-1.indd 5 2010-05-20 ｿﾀﾈﾄ 7:18:43

E-6
Name Description
Pulse input
terminal
(CH1~CH8)
Terminal that the pulse from watt-hour meter is inputted
(Channel1~Channel8)
Power terminal
Terminal to connect PIM adapter
Reset button Button used to reset PIM
RS485
Communication
terminal
(COM1)
Connection terminal for RS485 communication with DMS or DMS2
 COM2: Reserved
Cable tie groove Groove for arranging cables
Viewing the Parts (Continued)
PIM Cable Connection Part
Cable tie groove
Power terminal
Reset button
Pulse input terminal
(Channel 1~4)
RS485 communication terminal
(COM1, COM2)
Pulse input terminal
(Channel 5~8)
Main Parts
MIM-B16_PIM_IM_E 32320-1.indd 6 2010-05-20 ｿﾀﾈﾄ 7:18:43

E-7
Viewing the Parts (Continued)
240
255
64.80 (Unit : mm)
Display board
40-pin cable
20-pin cable
Main board
Sub board
PIM Interior
Product Dimensions
MIM-B16_PIM_IM_E 32320-1.indd 7 2010-05-20 ｿﾀﾈﾄ 7:18:45

E-8
PIM System Architecture
Maximum 8 PIM units can be connected to DMS or DMS2.
Maximum 8 watt-hour meters can be connected to PIM.
R2 R1 R2 R1
R1 R2
R2 R1 R2 R1
R1 R2
R2 R1 R2 R1
R1 R2
R2 R1 R2 R1
R1 R2
DMS or DMS2
Centralized
controller
PIM
Watt-hour
meter
Watt-hour meter
(max. 8 units)
Interface
module
ROOM 0 ROOM 1 ROOM 2
Outdoor Unit
Pulse input
MIM-B16_PIM_IM_E 32320-1.indd 8 2010-05-20 ｿﾀﾈﾄ 7:18:46

E-9
Installing the PIM
Installation
plate
Assistant hole
Wiring groove
1
Separate the installation plate on the rear side of PIM.
2Fix the installation plate on the wall using 4 screws.
3
Hang the PIM on the groove which is on the top of the
installation plate.
4Open the bottom cover and fix the installation plate and
PIM using 2 screws.
 Depending on the installation environment, open the top
cover and fix PIM using assistant holes.
( Screws for assistant hole are not provided.)
5
If you install PIM inside of the wall or wiring from the rear
side is needed, use wiring groove on the bottom of PIM.
Installing the PIM on the Wall
To prevent breakdown and damage of PIM and for safe usage,
it is recommended to install PIM on the wall.
MIM-B16_PIM_IM_E 32320-1.indd 9 2010-05-20 ｿﾀﾈﾄ 7:18:47

E-10
Installing the PIM (Continued)
1
Unfasten the 2 screws on the bottom of the PIM front
cover. Hold the bottom 2 sides of the PIM and push
downwards to slide open the cover.
2Connect the adapter to the power terminal.
 Arrange the adapter as shown in the figure.
3
Connect PIM and watt-hour meter as many as you want.
In this step, use communication cable and 8 terminal
blocks which are attached to the pulse input terminal
of PIM.
 For the communication cable connection instruction of
watt-hour meter or additional setting instruction, refer
to the installation manual of watt-hour meter.
 Connect the communication cable considering the
polarity. [Left:(+), Right:(-)]
 Maximum 8 watt-hour meters can be connected to 1 PIM.
 Use 2Cx0.75mm2 communication cable.
Adapter
Connecting Watt-Hour meter and PIM
Connecting Watt-hour meter, PIM and DMS
Connect
communication
cable
Watt-hour meter
(+) (-)
MIM-B16_PIM_IM_E 32320-1.indd 10 2010-05-20 ｿﾀﾈﾄ 7:18:48

E-11
Installing the PIM (Continued)
Connectable Watt-hour meter with PIM
Watt-hour meter without Separate External Output
If the pulse constant(Wh/Pulse) value which is converted from the value of Pulse/Wh is
an integer, connection is possible.
e.g. Pulses per kWh : 1,000 converted to  1Wh/Pulse, Connection is possible!
e.g. Pulses per kWh : 10,000 converted to  0.1Wh/Pulse, Connection is not possible!
Watt-hour meter with Separate External Output
Connect according to the pulse output specification.
Watt-hour meter whose Pulse Output Error is less than 5%
e.g. When the pulse width is 100ms, you can use the watt-hour meter whose pulse width is
within 95~105ms.
Watt-hour meter must have more than 3ms Delay Between the First Pulse Input and
the Next Pulse
Open
More than 3ms
(Mandatory)
Open
Short Short Short
Limit of Connectable Watt-hour meter
 Wh/Pulse range: 1Wh/Pulse~10,000Wh/Pusle.
 Pulse width range: 20~400ms.
MIM-B16_PIM_IM_E 32320-1.indd 11 2010-05-20 ｿﾀﾈﾄ 7:18:49

E-12
Installing the PIM (Continued)
1
Connect ‘COM1’ terminal of PIM and DMS or DMS 2 terminal block with
communication cable.
 Pay special attention about the polarity when connecting RS485 communication.
(A of PIM of DMS, B of PIM B of DMS)
2
Close the bottom cover and fix it using 2 screws.
Connecting PIM to DMS or DMS2
Connect
communication
cable
Connect
communication
cable
Connect
communication
cable
PIM DMS DMS2
A/B A/B A/B
MIM-B16_PIM_IM_E 32320-1.indd 12 2010-05-20 ｿﾀﾈﾄ 7:18:49

E-13
Installing the PIM (Continued)

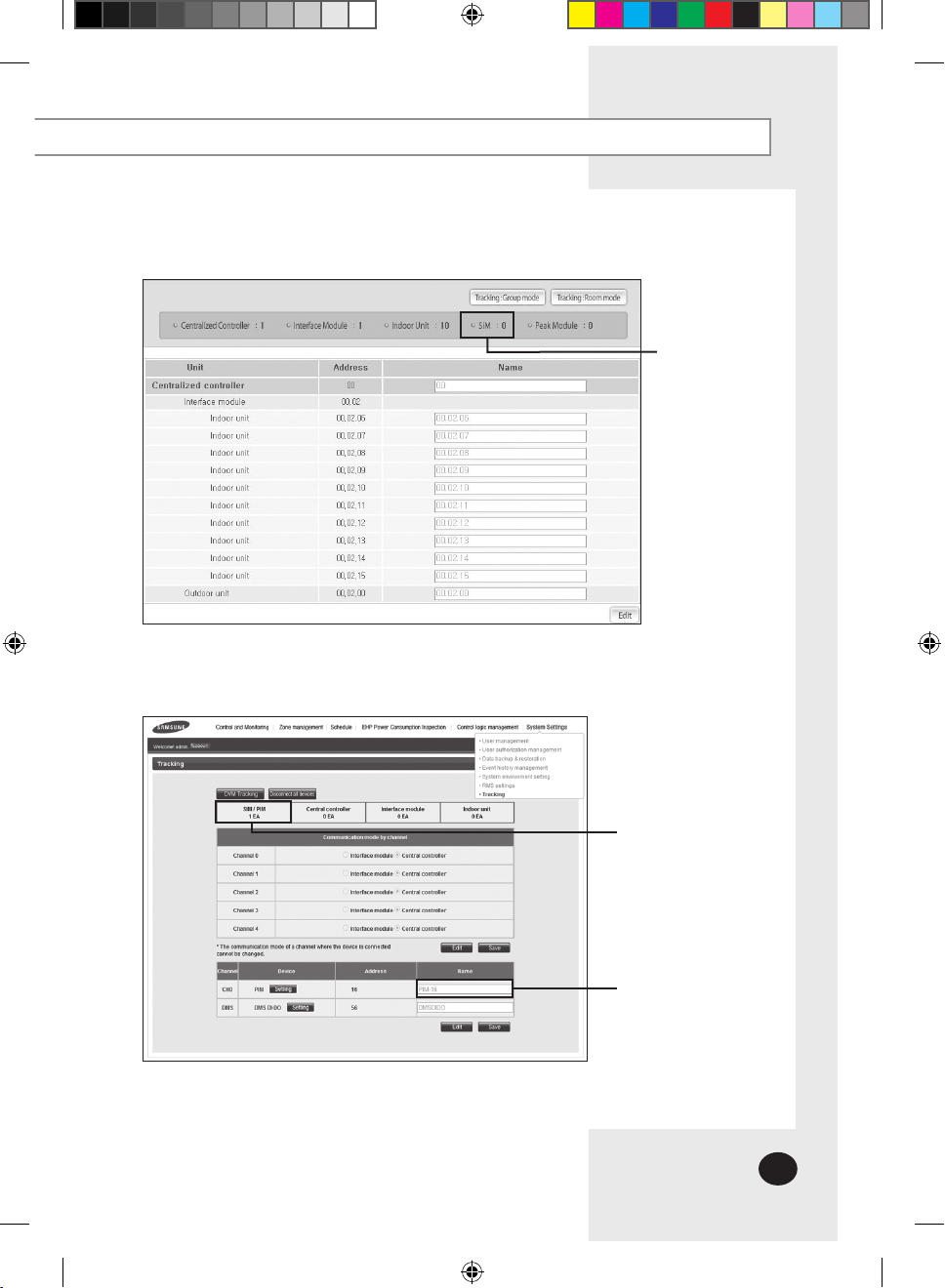

When execute tracking with PIM which connected to DMS and
DMS2(ver 2.1.1 or previous version)
 For the further information about tracking, refer to the DMS user manual(page 30).
When execute tracking with PIM which connected to DMS2(ver 2.1.2 or later version)
 For the further information about tracking, refer to the DMS2 user manual(page 121).
Displays the number
of SIM which included
the number of
connected PIM
Displays the number
of SIM or PIM
A name of a PIM
MIM-B16_PIM_IM_E 32320-1.indd 13 2010-05-20 ｿﾀﾈﾄ 7:18:50

E-14
Installing the PIM (Continued)

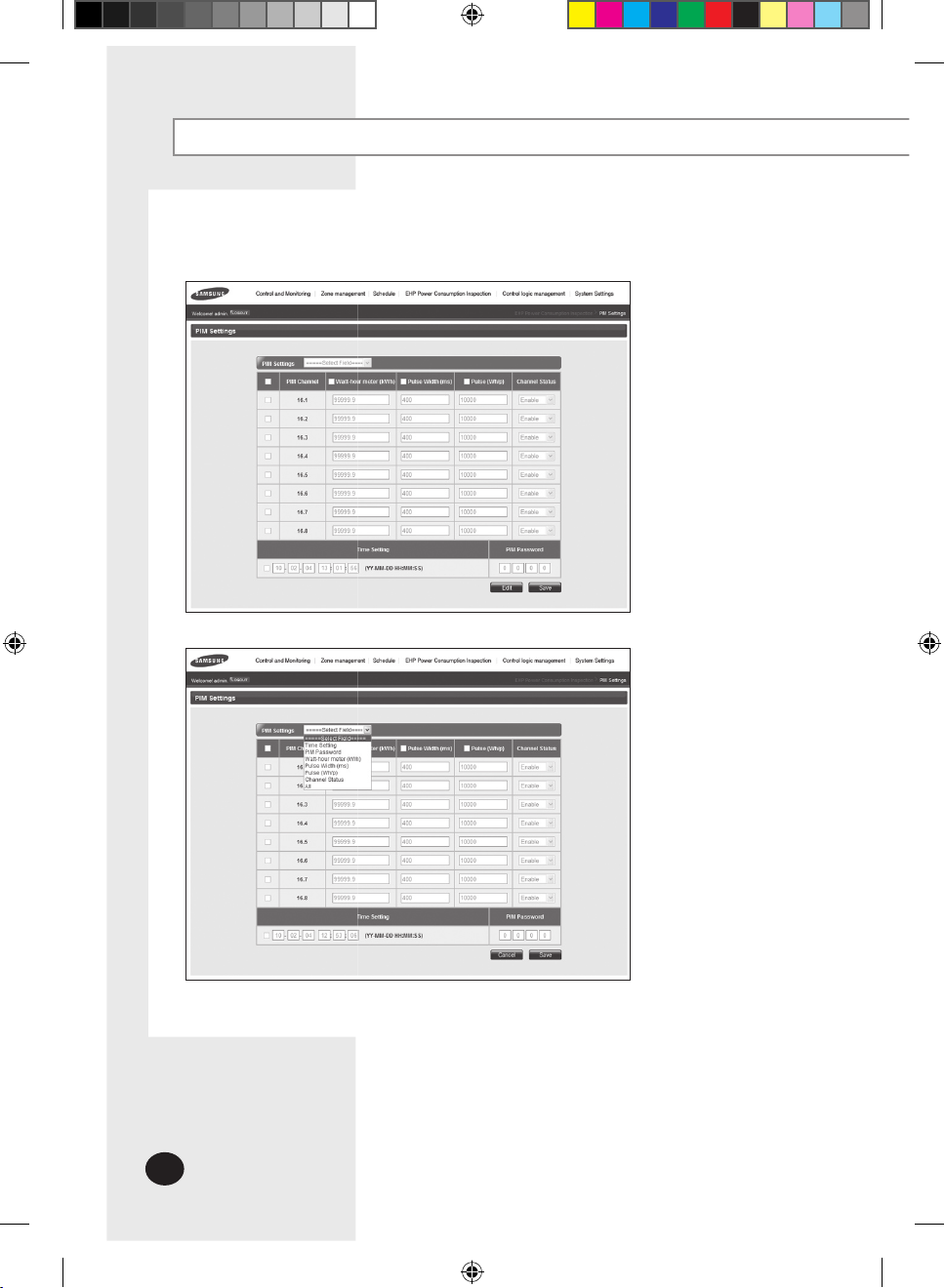

If PIM is connected to DMS2(ver 2.1.2 or later version), PIM setting through DMS2 web
is possible.
MIM-B16_PIM_IM_E 32320-1.indd 14 2010-05-20 ｿﾀﾈﾄ 7:18:50

E-15
1
Unfasten the 2 screws on the top of the PIM. Hold the top
2 sides of the PIM and pull it the cover upwards to open
the cover.
2Set the PIM address using rotary switch of main PCB.
(Default setting: 10H)
 Switch 1: Not used
 Switch 2
Switch setting Address
0 10H
1 11H
2 12H
3 13H
4 14H
5 15H
6 16H
7 17H
8~F Not used
3
Close the top PIM cover and fix it using 2 screws.
Installing the PIM (Continued)
Installing more than 2 PIM Units to 1 DMS
Error Codes
Display Explanation
E613 DMS  PIM communication error if communication
is not working over 3 minutes
E632
- Error occurs when improper pulses which are not
in the range of limitation are input over 15 times
continuously.
- Error occurs when High pulses are input for over
3 minutes.
E654 FRAM Read/Write error
MIM-B16_PIM_IM_E 32320-1.indd 15 2010-05-20 ｿﾀﾈﾄ 7:18:50

E-16
Setting the PIM
Setting the PIM(Mandatory)
2.1Password
Password Set
Set your P/W
: : : :
It is mandatory when you connect watt-hour meter and PIM.
Setting the Password
Main menu 2. Configuration 2.1 Password.
 Default : 0000
 For the further information, refer to page 20.
Set Current Date
2010.01.05
Set Current Time
11:25:09(PM)
Setting the Date/Time
Main menu 2. Configuration 2.4 PIM Time
 For the further information, refer to page 24~25.
 The display above is an example.
2.Configuration
2.2 Wh/Pulse
Set CH1 Wh/P
CH1:00001Wh/P
Setting for the Connected Watt-hour meter
Setting the pulse constant of watt-hour meter
Main menu 2. Configuration 2.2 Wh/Pulse
 For the further information, refer to page 22.
2.Configuration
2.3 Pulse Width
Set CH1 P/Width
CH1: 20ms
Setting the pulse width of watt-hour meter
Main menu 2. Configuration 2.3 Pulse Width
 For the further information, refer to page 23.
MIM-B16_PIM_IM_E 32320-1.indd 16 2010-05-20 ｿﾀﾈﾄ 7:18:52

E-17
PIM Menu Description
Menu Configuration
Current Time
1. Monitoring 1.1 PIM Address
1.2 Option SW
3. Check
2. Configuration 2.1 Password
2.2 Wh/Pulse
2.3 Pulse Width
2.4 PIM Time
2.5 Channel
2.6 KWh Set
2.7 KWh Clear
3.1 Pulse Input
3.2 COM’ Check
3.3 Pulse Width
CH1: 00000.0kWh
CH2: 00000.0kWh
.
.
.
CH8: 00000.0kWh
Normal Display
Displayed
repeatedly
MIM-B16_PIM_IM_E 32320-1.indd 17 2010-05-20 ｿﾀﾈﾄ 7:18:52

E-18
PIM Address:10H
Ver:DB91-01128A
CH1:00000.0kWh
CH2:00000.0kWh
Normal Display
1
When the power is connected, current PIM address and software version will
be displayed.
 Example display: PIM address 10H
Software version DB91-01128A
 “Address:10H” is an example. It is subject to change according to the setting.
2
Power consumption of pulse input CH1~CH8 will be displayed in order.
3
Current time will be displayed after the power consumption of CH8.
It displays CH1~CH8 and current time repeatedly.
 You can make the display stop moving with using [Set] button for easy view.
 You can find which channel you want to see with using the [  ] , [ ] buttons.
PIM Menu Description (Continued)
MIM-B16_PIM_IM_E 32320-1.indd 18 2010-05-20 ｿﾀﾈﾄ 7:18:53

PIM Menu Description (Continued)
Monitoring Menu
Main Menu
1.Monitoring
1
Access to main menu by pressing the [Menu] button from the normal display.
Then select ‘1.Monitoring’ by pressing the [Set] button.
1.Monitoring
1.1 PIM Address
1.1 PIM Address
Address:10H
2
To check the PIM address, press the [Set] button when ‘1.1PIM Address’ appears.
Note  “Address:10H”is an example. It is subject to change according to the setting.
- Make sure to reset the PIM after changing the rotary switch.
3
After checking, press the [Menu] button to move to upper menu or cancel the setting.
 All menus will return to the normal display if there is no input for 1 minute.
PIM Address
1.Monitoring
1.2 Option S/W
1.2 Option S/W
12345X78
1
Access to main menu by pressing the [Menu] button from the normal display.
Then select ‘1.Monitoring’ by pressing the [Set] button.
2
Move to ‘1.2 Option S/W’ menu by pressing the [  ] , [ ]  buttons,
then select it by pressing the [Set] button.
Note Example display : 12345X78
- Option switch 1, 2, 3, 4, 5, 7, 8 : On
- Option switch 6 : Off
3
After the checking, press the [Menu] button to move to upper menu or
cancel the setting.
 All menus will return to the normal display if there is no input for 1 minute.
Option Switch
E-19
MIM-B16_PIM_IM_E 32320-1.indd 19 2010-05-20 ｿﾀﾈﾄ 7:18:54

PIM Menu Description (Continued)
Configuration menu
Main Menu
2.Configuration
1
Access to main menu by pressing the [Menu] button from the normal display.
Then select ‘2.Configuration’ by pressing the [], [] buttons,
and press the [Set] button.
Enter your P/W
0:0:0:0
2
Enter the password using the [], [] buttons and press the [Set] button.
 The default password is ‘0000’.
You should enter the password to use Configuration menu.
Setting the Password
2.Configuration
2.1 Password
3
Select ‘2.1 Password’ by pressing the [Set] button.
2.1 Password
Password Set
4
Select ‘Password Set’ by pressing the [Set] button to set the new password.
Set your P/W
■ : ■ : ■ : ■
5
Set the new password using the [], [] buttons and press the [Set] button.
Save Settings
0:0:0:0
6
Press the [Set] button to save the setting.
7
After the setting, press the [Menu] button to move to upper menu or cancel the setting.
 All menus will return to the normal display if there is no input for 1 minute.
Password Set
E-20
MIM-B16_PIM_IM_E 32320-1.indd 20 2010-05-20 ｿﾀﾈﾄ 7:18:55
