DIGITAL PRESENTER
USER'S MANUAL
SDP-860
Before attempting to operate this product. Please read the
instruction carefully.
www.samsungpresenter.com

2
This high-resolution projection system projects images on display devices
such as PC monitors and projection screens.
This user manual is for the SDP-860 product. Please read this manual and
any supplementary document(s) thoroughly before attempting to install
and/or operate the product.
This manual and the software and hardware explained here are protected
by copyright law. All copy, reprint and translation to other languages of a
part of or all of the contents of this instruction manual without permission of
Samsung Techwin Co., Ltd. are expressly prohibited except for fair use
within the scope of copyrightlaw.
The specifications of this product are subject to change and upgrade
without prior notice.

3
Product Warranty and Limitations
The manufacturer of this product is not responsible for the sale of the
product, nor does the manufacturer delegate such responsibility to a third
party. The product warranty does not cover accidents, negligence, abuse,
or improper use of the item in whole or in any part. Additionally, the
manufacturer does not provide warranty for any additional part or piece that
was not supplied by the manufacturer.
The product warranty period is for two years from the purchase date.
However, the warranty does not cover any of the following problems, and a
nominal service fee will be charged if:
Malfunction due to user's negligence
Dismantling or replacement by the user
Product has been connected to power source that differs from that specified
Malfunction due to natural disasters (fire, flood, tsunami, etc.)
To replace expendable components.
This warranty covers only the product supplied with the warranty.
After the warranty period (two years) has expired, a service fee will be
charged for any inspection and/or repair for the product. During the
warranty period, a service fee will be charged for repair and/or inspection
for the product for any problems that are not covered by the warranty.
This product is not an anti-theft or fire-prevention device; the manufacturer
is not responsible for any damage to property or personnel that may occur
during its use.
This product must be installed by skilled and experienced personnel; self-
installation by the user is prohibited. Self-installation by the user may result
in fire, electrocution, and/or product malfunctions. Please contact your local
dealer for assistance with the installation of the product.

4
1300K-Pixel High-resolution & High-Definition Image
Projects a real-time video at 30 frames per second and at 1,300k pixels high-
resolution for live presentations
.
2D/3D dual Noise Reduction Technology
Equipped with our proprietary ISP chipset and 2D/3D dual noise reduction
technology, this projection system depicts vivid colors even in the darkest places.
Ultra-Macro Capacity
With 6x optical and 8x digital zooms , this system achieves a maximum of a 48x
combined zoom for an excellent magnification power equal to a microscope.
When equipped with an adapter lens, it also delivers ultra-close-up shots
.
Convenient Multimedia Options
The SDP-860 not only saves and plays still images and videos (VGA/30 fps) but
also supports audio mixing for more versatile multimedia capabilities.
Many Output Device Choices
The SDP-860 supports from XGA lo UXGA for VGA/DVI outputs, offering various
choices of output devices.

5
Table of Contents
Safety Pre cautions
--------------------------
Warning 6
Caution 7
Product Information
Package Contents 8
Part Names & Functions (Main Frame) 8
Front 10
Back (Rear Connection Terminals) 11
Side (Side Connection Terminals) 12
Part Names & Functions(Main Frame Control Board Remote Controller) 13
Preparing Set 15
Settings Menus & Default Values 18
Installation
Connecting In/Output Devices.... 20
Connecting Output Devices 20
Connecting Peripheral Devices 22
Connecting Computer for External Input 23
Watching Video from External Devices 24
Operation
Basic Operation (Functions) 25
Output Resolution Setup (DVI/VGA output Mode) 25
Enlarging/Minimizing 26
Adjusting Focus 27
Adjusting Brightness 28
Adjusting the Image .. 28
Preset Setting 31
Basic Operation(Operation) 32
Capturing Image & Videos 33
Freeze Mode Setting & Operation 42
Microscope Mode 43
System Reset 44
Checking System Version Information(VER. INFO) 45
Miscellaneous (Appendix)
Troubleshooting 46
Replacing Remote Controller Batteries 47
Product Specifications 55

6
•
Safety Precautions
To prevent possible user injury or damage to property, please read and
follow all information below.
Warning/Caution/Special Mark Messages
Warning
•Donotconnectmultiplepowercordstoasingleoutlet.
oItisoftenthecauseofshort-circuitsthatmaycausefire.
•Donotplacevesselscontainingwaterontheproduct.
•Water leakage can cause serious malfunctions in the product.
•Donot forciblybendthepowercordorplaceaheavyobject onthe
cord.
oItmayresultinfire.
•Donotcleantheproductwithwater,paintthinner,orotherorganic
solvent.
oToavoidproductmalfunctionsand/orelectricshock,wipewithadrycloth.
•Avoidinstallingtheproductinplaceswithhighhumidity.
oItmayresultinelectricshockand/orfire.
•Donotpullthepowercordforciblyofftheoutlet.
oAbrokencordmayleadtofireand/or electricshock.
•Donotdisassemble,attempttofix,oraltertheproductyourself.
oThereisariskof malfunction,shock,andother dangers.
•Donottouchthepowerplugwithmoistureonyourhands.
oYou may receive an electric shock injury
.

7
Caution
•Do not insert the power plug to a loose socket.
•It may result in electric shock and/or fire .
•Avoid installing the product in places that are vulnerable to
impact.
•Avoid installing the product in places that are exposed to
powerful magnetic fields or vibrations.
•Do not move the product while it is in operation.
•It may damage the product.
•Do not insert or allow foreign objects to enter the product.
•It may damage the product.
•Do not place heavy objects on the product.
•It may damage the product.
•Allow good air circulation around the product.
•Keep the back panel at least 10cm off from a wall and the front
panel 5cm away from other devices.
•Avoid installing the product in places that are exposed to
direct sunlight or heat sources.
•Install on a flat, stable platform.
•Failure to do so may result in product malfunctions.
•Keep the power plug off when the product is not in use for
an extended period of time, or during electrical storms.
•When detecting a strange noise or smell from the product,
unplug the power cord immediately and contact our service
center for assistance.
CAUTION:
Random replacement of built-in battery by other types of batteries
may cause explosion. The battery shall be replaced by the same
battery. The used batteries shall be disposed carefully because they
can cause environment pollutions.
The picture of the contents may differ from actual products, and
certain contents may change if deemed necessary.

8
Part Names and Functions(Main Frame)

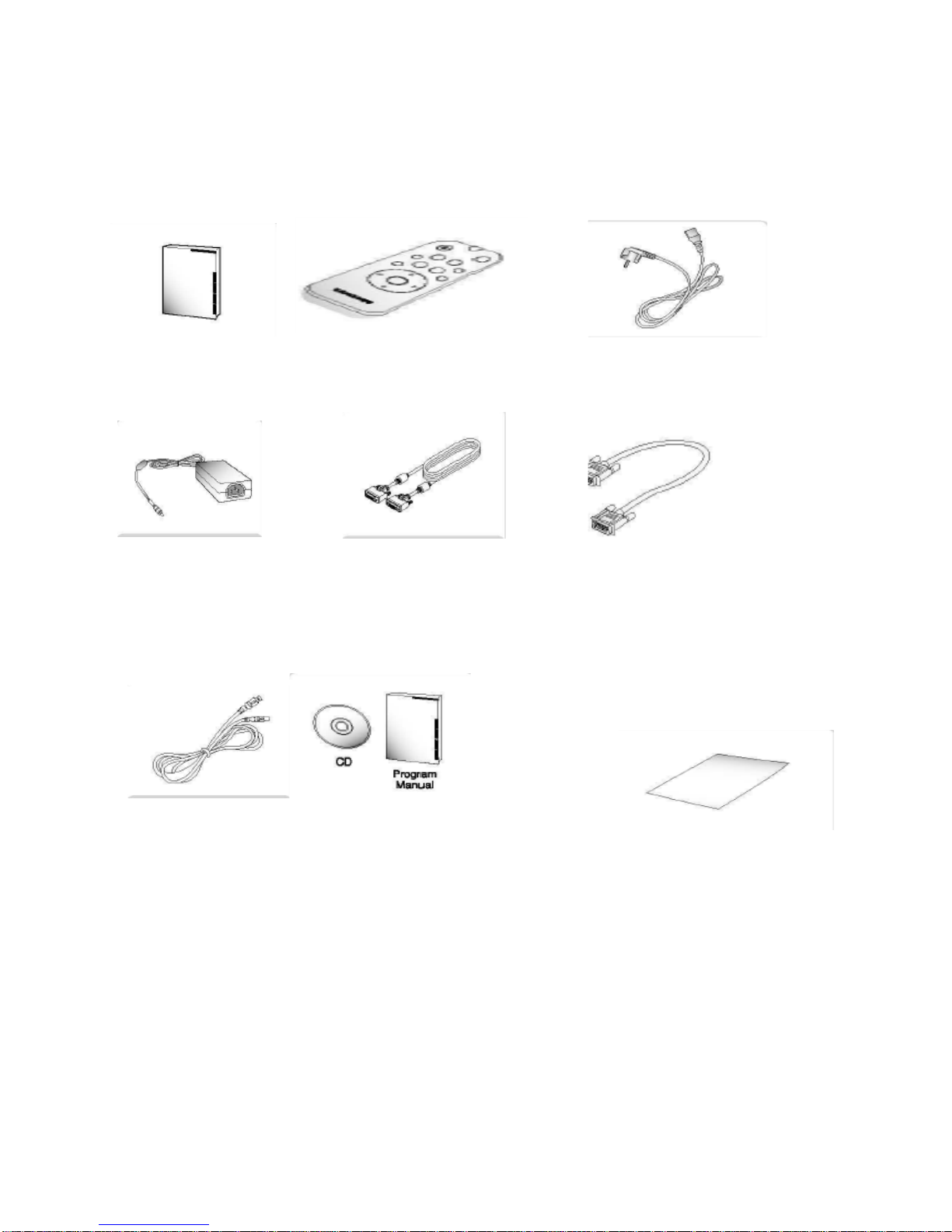

Default Contents
User’s Manual Remote Controller Power Cable
Power Adapter DVI Cable VGA Cable
USB Cable USB Program &CD & Manual Diffuser Sheet
(290x190)

9
Accessories
RS232C Cable SD CardAdapter Lens
RS232C cables and adapter lenses from other brands may not be
compatible with this product.
Samsung Techwin cares for the environment
at all product manufacturing stages to
preserve the environment, and is taking a
number of steps to provide customers with
more environmentally friendly products.
The Eco mark represents Samsung
Techwin's will to create environmentally friendly products, and
indicates that the product satisfies the EU RoHS Directive.

10
-.

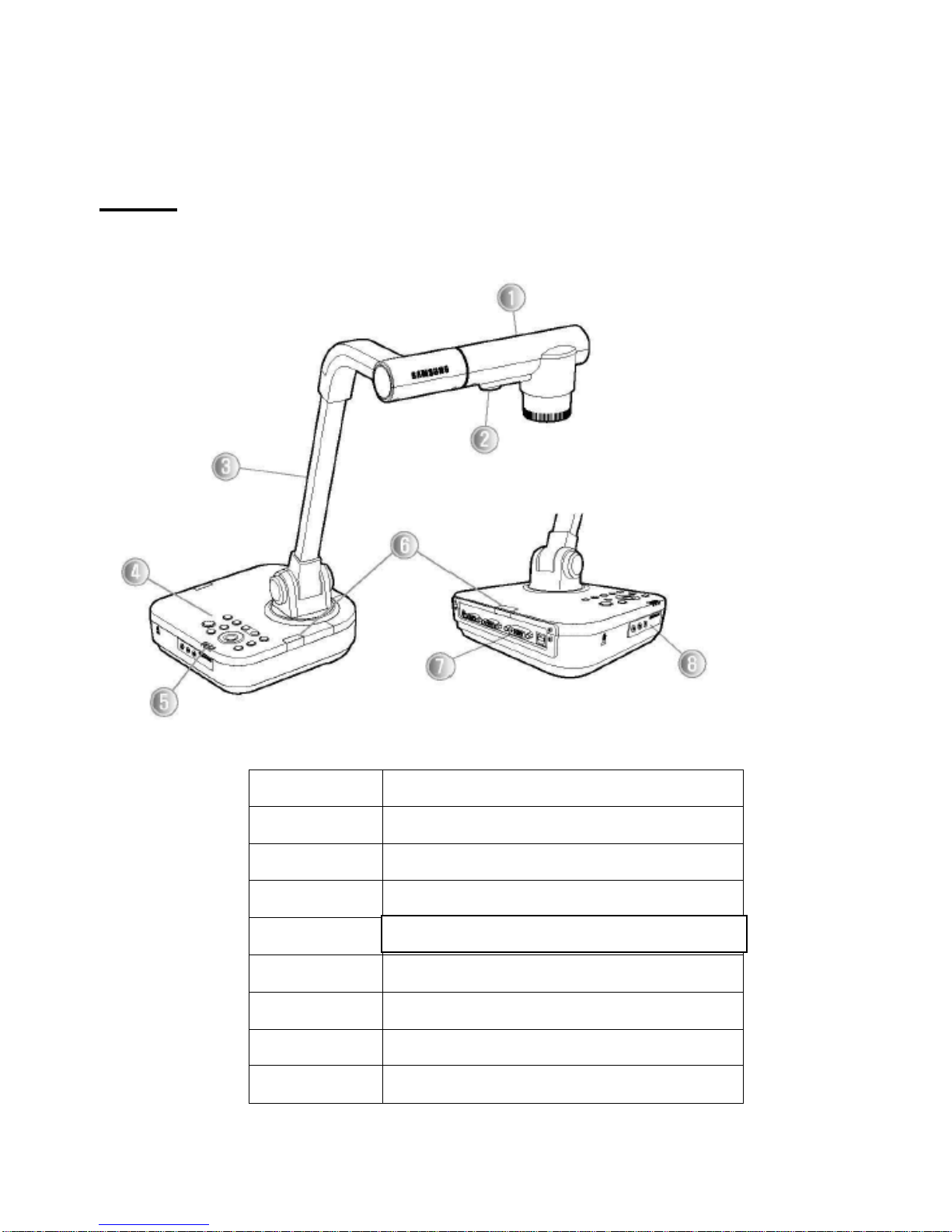

Front
No. Name
1
Lens
2
LED Light
3
Main Support
4
5
Status LED
6
Remote Control Signal Receiver
7
Rear Connection Terminal (P. 11 )
8
Side Connection Terminal (P.12)
Mainframe control Board (P. 13)

11

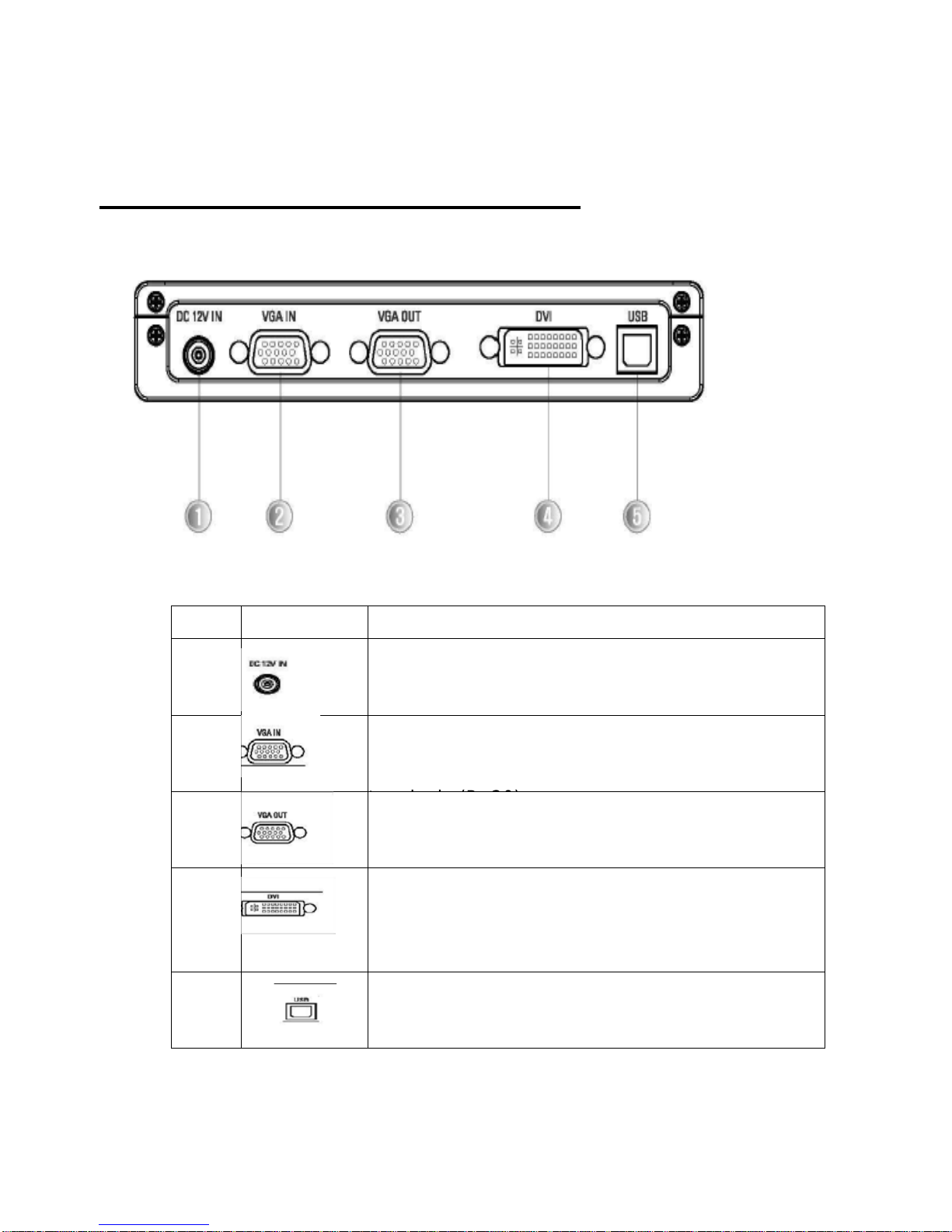

Back (Rear Connection Terminals)
No.
Terminal
Function
1
Connect the power adapter cable.
2
Connect the video output terminal of a VGA
output device.
When External Input is selected,
video is
displayed via this VGA video output
t il(P 20)
3
Connect the RGS video output terminal of a PC
monitor or
a projector.P. 20)
4
Connect an LCD monitor or projector that
supports
DVI
DV
II.(P.20)
5
Use this to connect to USS cable when
transmitting image to a PC by USS
port (Page
21)

12

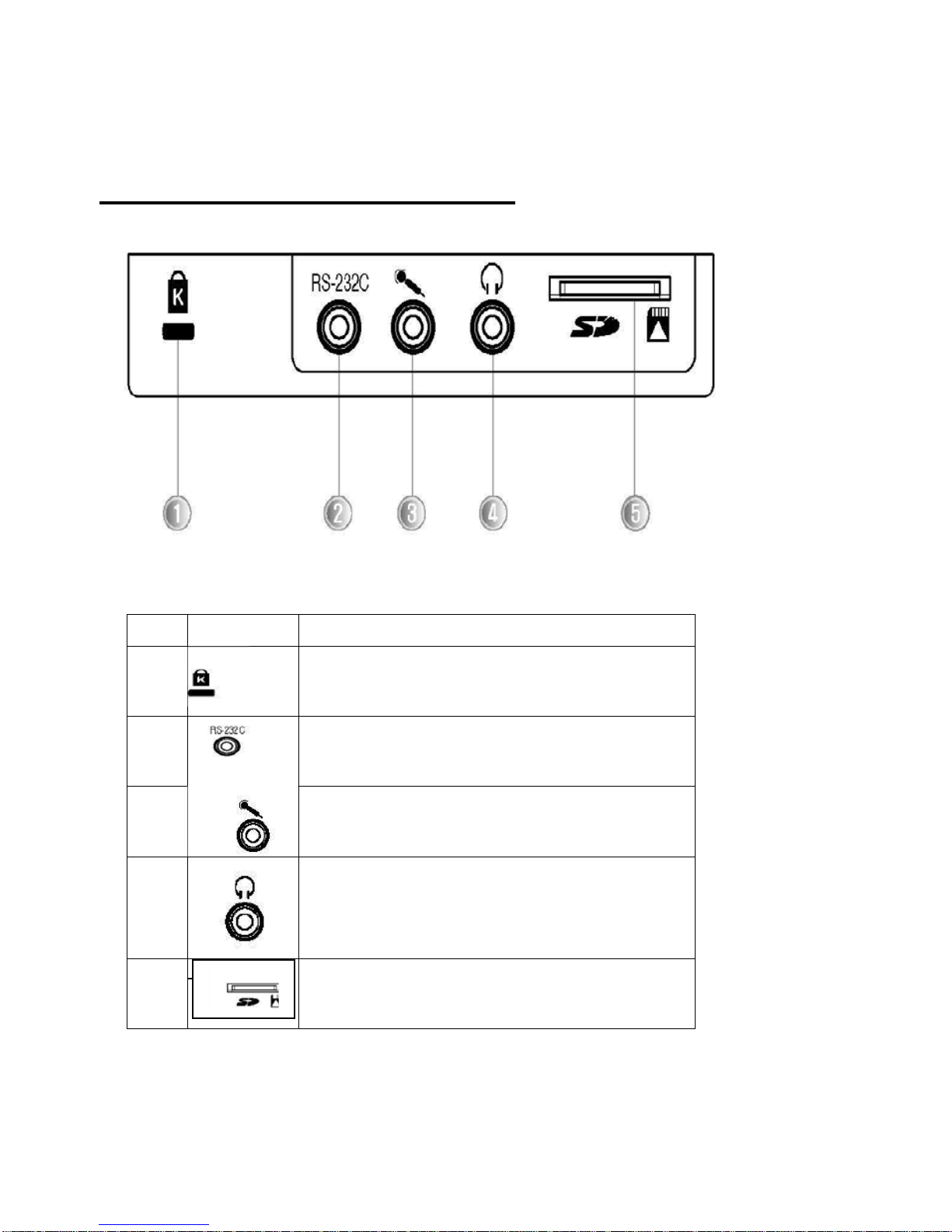

Side (Side Connection Terminals)
No.
Terminal
Function
1
Connect Kensington Security Slot
2
Connect a speaker or earphones for audio
output signals.
3
Connect an audio mixing mic for saving
videos.
.....
4
Connect an RS-232C cable. .....
5
Connect an SD/SDHC card for saving or
importing videos and pictures.

13

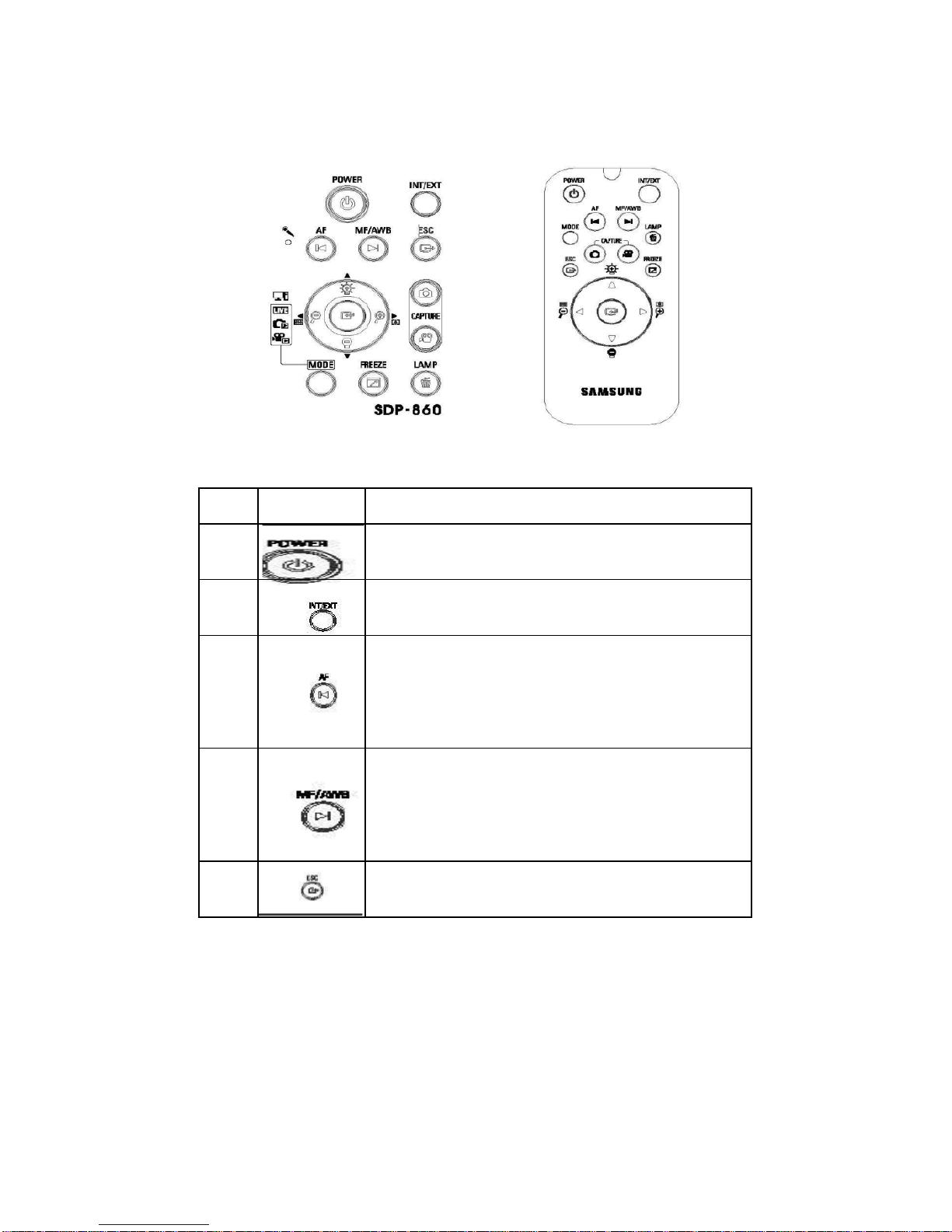

No.
Button
Function
1
Turn On/Off Power
2
Select Internal/External Video .
3
( LIVE Mode) Auto Focus
(While Playing Video)
Play Previous File
(Capture/LIST Mode) Page DOWN
4
(LIVE Mode) MF/Auto Color Adjustment
(While Playing Video) Play Next File
Capture/LIST Mode) Page UP
5
Cancel Command

14
C:
-
No.
Button
Function
6
( LIVE Mode) Brighten/Darken Screen
(While Playing Video) Adjust Volume
-..
(Capture/LIST Mode) Move Up/Down
7
( LIVE Mode) Enlarge/Minimize Screen
(While Playing Video) Rewind/Fast Forward.
(Capture/LIST Mode) Move Left/Right. Page
26
8
( LIVE Mode) Open Menu
(Capture/LIST Mode) Execute Selected Menu
(While Playing Video) Play/Stop
9
File (SD Card Required)-.
( LIVE Mode) Capture Screen as Picture/I
Video. Page 32
10
Switch to LIVE, Picture , or Video Mode
(Picture and Video Modes Require SD Card
)
11
( LIVE Mode) Pause Screen
(While Playing Video) Switch to Full Screen.
Page 39
12
( LIVE Mode) Tum On/Off Light
(Capture / LIST Mode) Delete Picture &
Video
13
In LIVE Mode, Blue LED
In Still Image Mode, Blue LED
In Video Mode, Blue LED
In External Mode, Blue LED

15

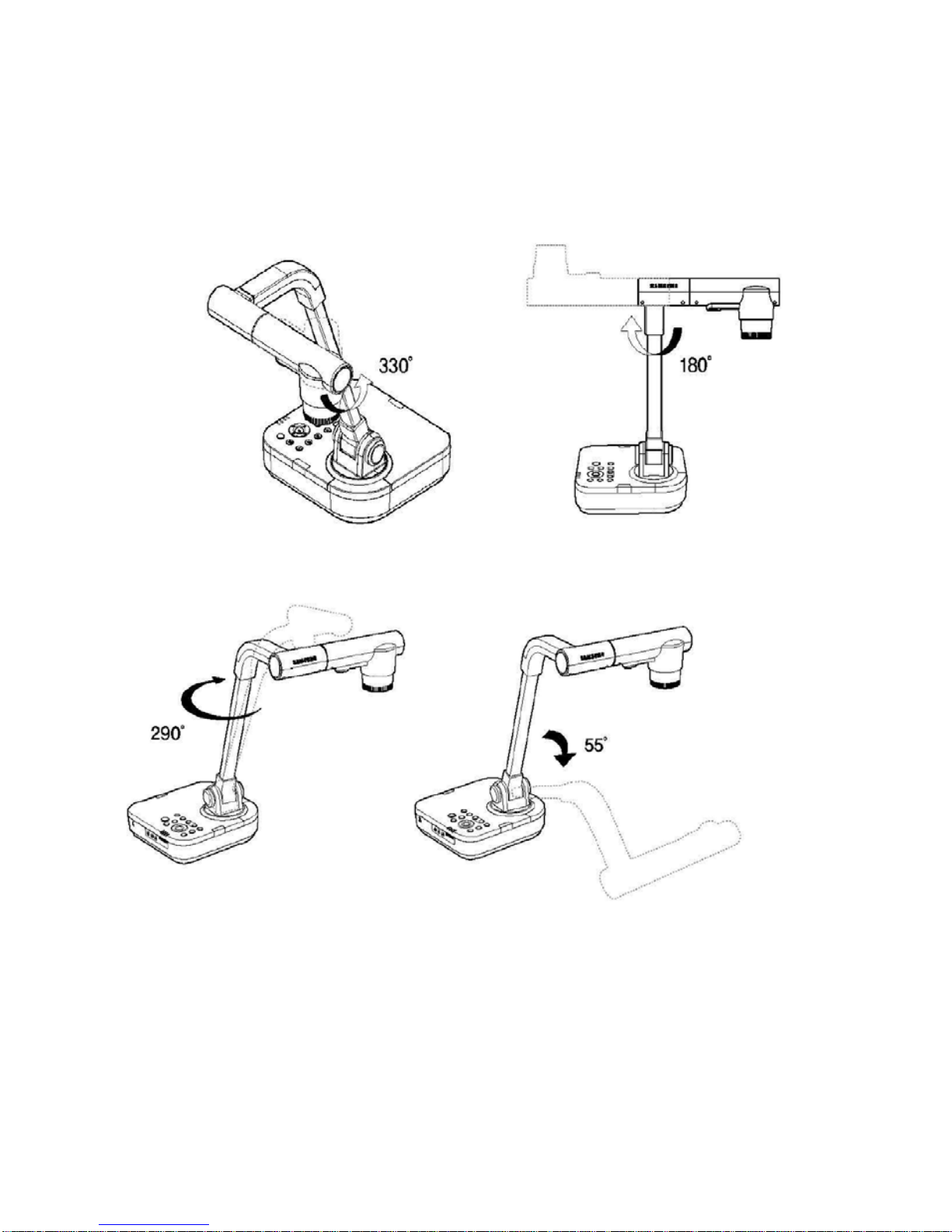

1. Face the lens straight down
2. Adjust the main support to face the lens toward a document

16

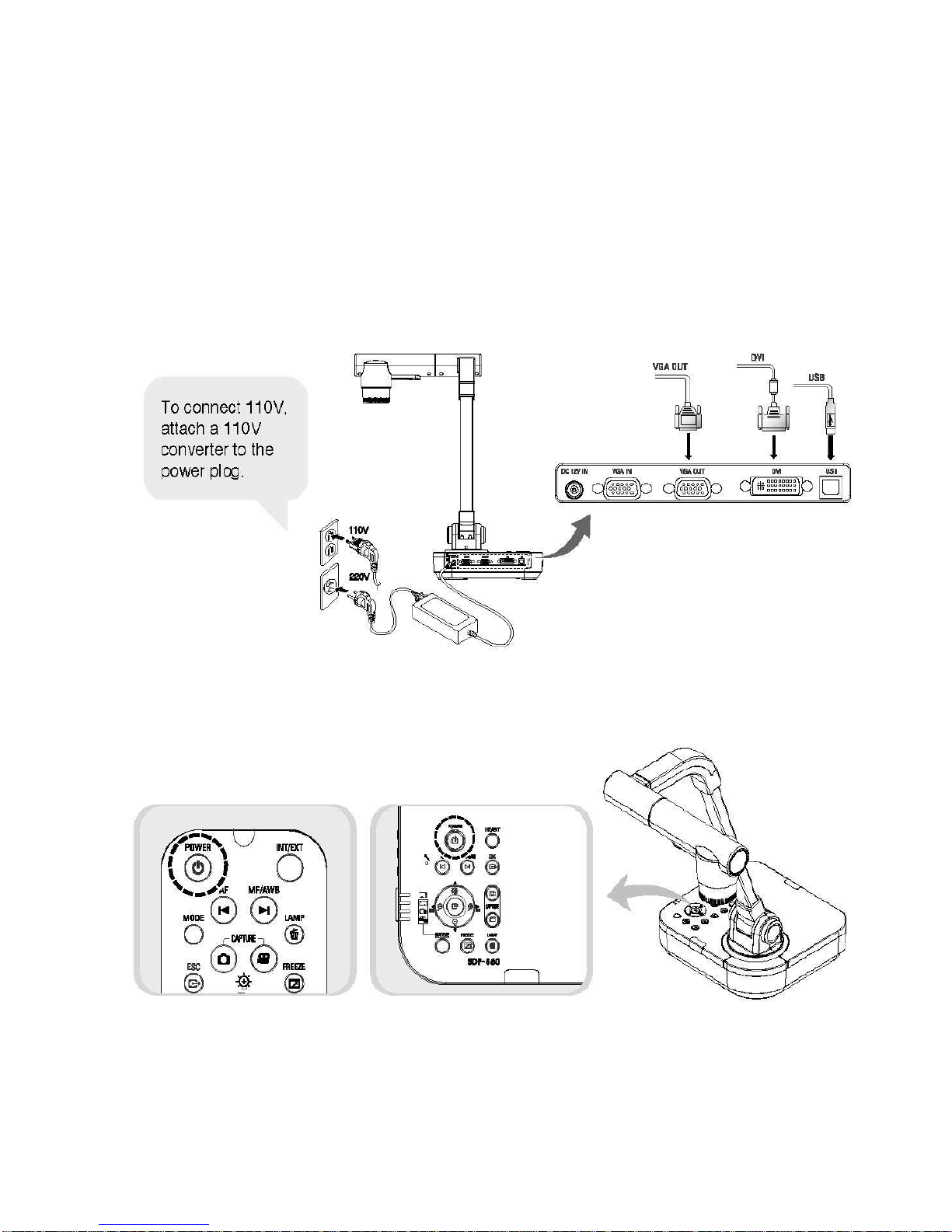

3. Connect aVGAOUT,DVI, orUSBcableandthepowercord.
(P.20)
........... ····
4. Toturnonthepowerof thedigitalpresenter,pressthePower
buttononthedigital presenter'scontrolboardorremotecontroller.

17

Pressing the Power button turns on the LIVE power LED light
around the button and set status LED in blue.
Initial Screen
Displays the current digital presenter settings.
•Displays the current screen-capture settings.
•Displays the operational status of an SD card and the system.
•SD (SDHC) CARD DETECTED: An SD card is inserted.
•SD (SDHC) CARD DOES NOT EXIST: No SD card is inserted.
•CAMERA SYSTEM INITIALIZING In the process of initializing
the system
•SYSTEM FIRMWARE FILE EXISTS System update files are
available in an inserted SD card.
•PLEASE WAIT FOR UPDATE PROCESS: In the process of
updating the system
•UPDATE PROCESS DONE!: The system is updated.

18
I
II
III
IV
Defaul
t
Values
/
States
Output
resolution
settings
SXGA 1280X1024 43
UXGA 1600X1200 4:3 Up-Scaled
XGA 1024x768 4:3 Down-Scaled SXGA
720p 1280x720 16:9 Window Cut-out
1080p 1920x1080 16:9 Window Cut-out
720p 1280x720 16:9 Stretched
1080p 1920x1080 16:9 Stretched
WB Mode
ATW (tracking)/AWB (One Push)/
Manual
ATW
DNR
OFF/AUTO(DYNAMIC
SCENE)/MAX(STATIC SCENE)
AUTO
ROTATIO
N
0/180
0
ADJUSTEMEN
T (Image
Adjustment)
IMG Mode
TEXT
CUSTO
M
Tone – Very
LOW/LOW/Normal/
HIGH/ Very HIGH
COLOR –
LOW/MIDDLE/HIGH/B
W
SHARPNESS –
LOW/MIDDLE/HIGH
TEXT

19
SETUP MENU
II III IV
DEFAULT
VALUE/S
TATE
Enlarge/Mi
nimize
(ZOOM/F
OCUS)
Manual Focus
MACRO Mode
MICROSCOPE Mode
-
D-Zoom
Off/4X/8X
8X
Screen
Capture
(CAPTUR
E
SETTING
S)
MAX
PIC
Format
JPG
Quality
MOV
Quality
JPEG/BMP
FINE/NORMA
L/BEST
STANDARD/B
EST
JPEG
NORMAL
STANDA
RD
Mic Mute
Time
Elapse
Reset File
Number
Preset
EXE
ON/OFF
OFF/5min/10
min/15min/20
min/30min/45
min/1h
--
PRESENT1/P
RESENT2/PR
ESENT3/PRE
SENT4
OFF
OFF
-
-
Preset
Settings
(PRESET
SETTING
S)
Preset
SAV
BOOT
Preset
Freeze
PRESENT1/P
RESENT2/PR
ESENT3/PRE
SENT4
OFF/
PRESENT1/P
RESENT2/PR
ESENT3/PRE
SENT4
DVI,VGA/ONL
Y DISPLAY
-
OFF
DVINGA

20
Connecting Input and Output Devices
Connecting Output Devices
To use a normal or DVI monitor, you must connect the monitor to the digital
presenter using a monitor or DVI cable.
Connection
* Depending on the specifications of the SDP-860 D/A converter and the
monitor A/D converter, the color of RGB and DVI outputs may vary.
