English
1
Contents
Getting started
Your headset overview ......................................................................... 3
Button functions.................................................................................... 4
Charging the headset ........................................................................... 4
Wearing the headset ............................................................................ 8
Using your headset
Turning the headset on or off................................................................ 9
Pairing and connecting the headset ................................................... 10
Using call functions............................................................................. 12
Appendix
Frequently asked questions................................................................ 14
Certication and Safety approvals...................................................... 16
UL certied travel adapter .................................................................. 17
Warranty and parts replacement ........................................................ 18
Specications ..................................................................................... 19
English

2
Take the time to read through this user manual before using WEP570 Bluetooth
Headset.
Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—
Bluetooth QD ID: B015914
More information about Bluetooth is available at www.bluetooth.com.
Safety precautions
Never disassemble or modify your headset for any reason. Doing this may
cause the headset to malfunction or become combustible. Bring the headset to
an authorized service center to repair it or replace the battery.
When using your headset while driving, follow local regulations in the country or
region you are in.
Avoid storage at high temperatures (above 50 °C/122 °F), such as in a hot
vehicle or in direct sunlight, as this can damage performance and reduce
battery life.
Do not expose the headset or any of its supplied parts to rain or other liquids.
At very high volumes, prolonged listening to the headset can damage your hearing.
•
•
•
•

English
3
Getting started
This section explains the proper use of your Bluetooth headset.

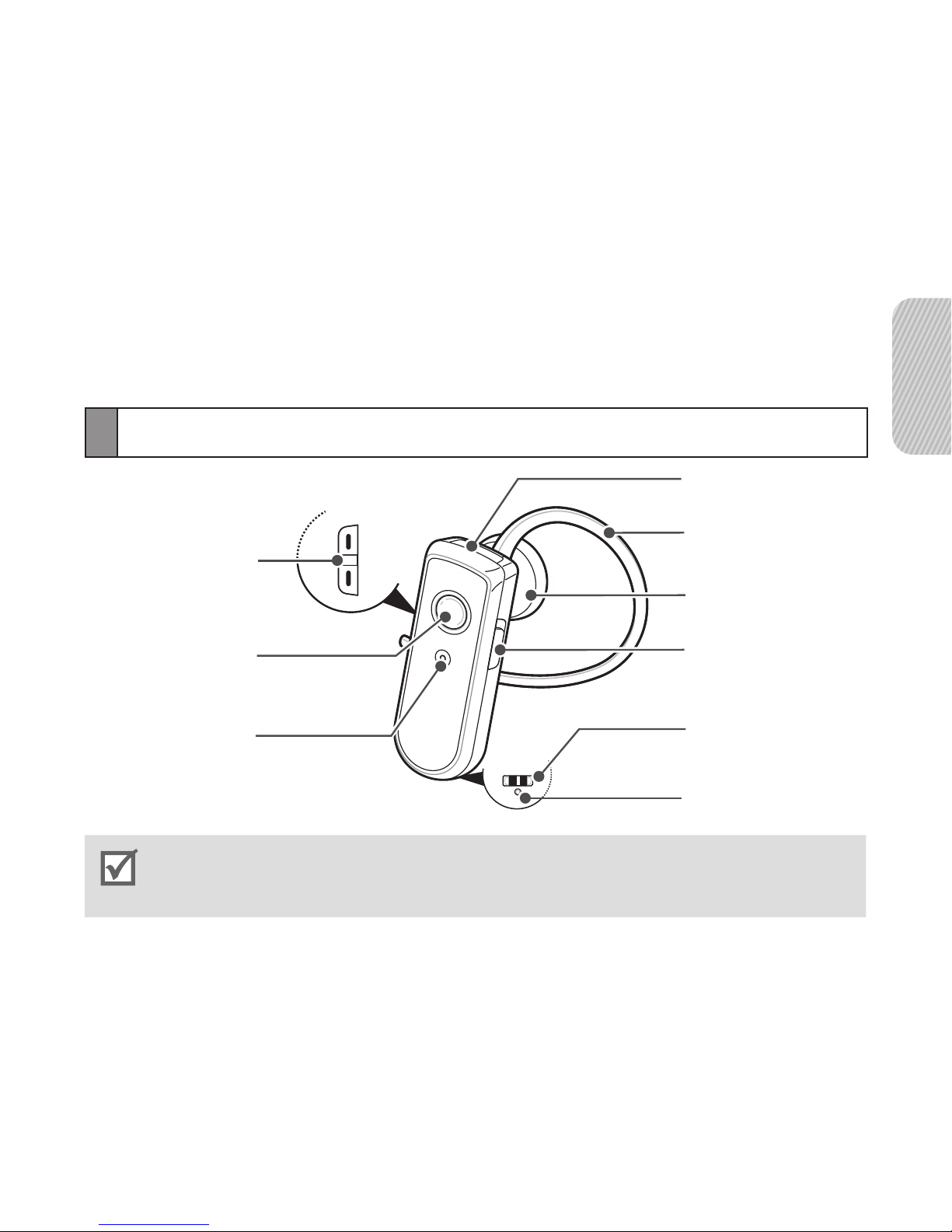

Your headset overview
Power switch
Volume button
Indicator light
Ear hook
Charging contact
Talk button
Charger jack
Earpiece
Microphone
Make sure you have the following items with your headset:
Travel adapter, Car cradle, User manual, Earpiece cover, Ear hook.
The items supplied with your headset may vary depending on your region.

4
Button functions
Button Function
Power Slide the switch to turn the headset on or off.
Talk
Press to make or answer a call.
Press to end a call.
Press and hold to enter Pairing mode.
•
•
•
Volume Press to adjust the volume.
During a call, press and hold to mute the microphone.
•
•
Charging the headset
This headset has a rechargeable internal battery which is non-removable. Ensure
that you fully charge the battery before using the headset for the rst time.

English
5
The battery will gradually wear out while charging or discharging because it is a
consumable part.
The headset is not able to operate while charging. Try connecting after charging is
completed.
When charging the headset in very hot temperatures, the red indicator light ashes
and charging will stop. This is a normal event to protect the headset from damage.
Unplug the travel adapter from the headset. You can charge the headset normally
below 50°C/122°F (±5°C/9°F)
•
•
•
Charging the headset using the travel adapter
1Plug the small end of the travel adapter into the charger jack.

6
2Plug the large end of the travel adapter into a power outlet.
During charging, the indicator light will turn red. If charging does not begin,
unplug the travel adapter and plug it in again.
3 When the headset is fully charged, the indicator light changes to blue. Unplug
the travel adapter from the power outlet and the headset.
Use only a Samsung-approved travel adapter. Unauthorized travel adapters may
cause an explosion or damage to the headset.
Charging the headset using the car cradle
1Plug the headset into the car cradle.
Make sure the direction of the headset is as shown in the gure when plugging
the headset into the cradle. If inserted in the incorrect direction, your headset
will not be charged and may be damaged.
To the car cigarette
lighter socket

English
7
2Plug the car cradle’s cigar jack into your car’s cigarette lighter socket.
During charging, the indicator light will turn red. If charging does not begin,
unplug the car cradle and the headset and plug them in again.
3 When the headset is fully charged, the indicator light changes to blue. Unplug the
car cradle from the lighter socket and unplug the headset from the car cradle.
You can also charge other devices using the car cradle. Connect the device to the
USB port on the car cradle with a USB cable.
If you connect a device that does not comply with the USB standard, charging may
not work properly.
•
•
Checking the battery level
At the same time, press and hold the Volume down button and the Talk button.
Depending on the battery level, the indicator light ashes 5 times in one of the
following colors:
Battery level Indicator light color
Above 80% Blue
80 ~ 20% Violet
Below 20% Red

8
When the battery power is low
The headset beeps and the indicator light ashes red. Recharge the battery. If the
headset powers off during a call, the call will be automatically transferred to the
phone.
Wearing the headset
Place the headset on your ear.

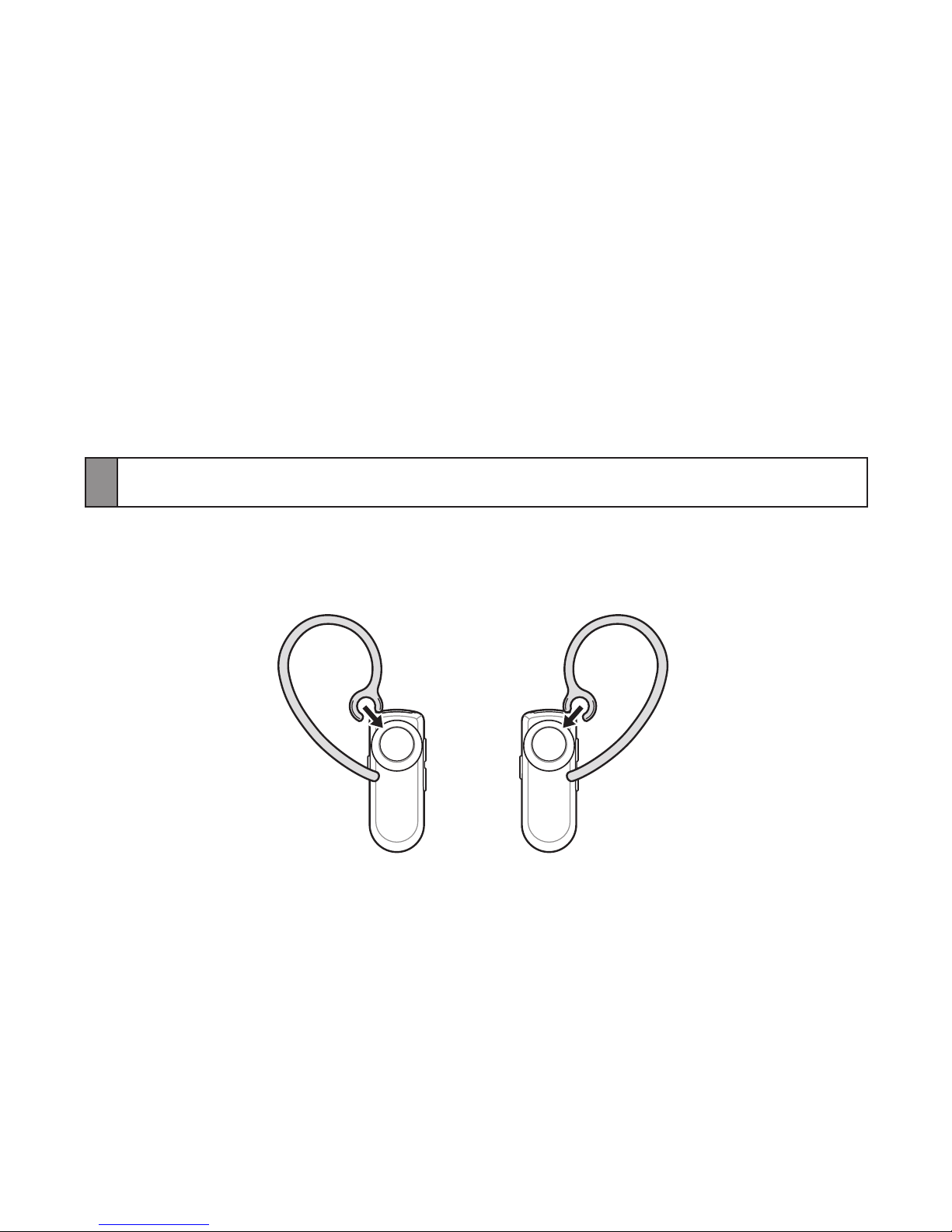

Depending on what ear you are going to wear the headset, simply adjust the ear
hook accordingly.
Left Right

English
9
Using your headset
This section explains how to turn the headset on, pair and connect to the phone,
and use various functions.
Activated functions and features may differ depending on the types of your phone.
Some devices, especially those that are not tested or approved by Bluetooth SIG,
may be incompatible with your headset.
•
•
Turning the headset on or off
Slide the power switch to turn the headset on. The blue indicator light
ashes 4 times.
Slide the power switch to turn the headset off. Both blue and red indicator
lights ash.
•
•

10
Pairing and connecting the headset
Pairing will create a unique and encrypted wireless link between two Bluetooth-
enabled devices, such as a Bluetooth phone and your Bluetooth headset.
To use the headset with other Bluetooth devices, the devices must be paired. When
trying to pair the two devices, keep the headset and the phone reasonably close
together. After pairing, you can connect the two devices.
Pairing and connecting the headset with a phone
1Enter Pairing mode.
With the headset turned on, press and hold the Talk button until the indicator
light stays lit.
When you turn on the headset for the rst time, it automatically enters
Pairing mode.
2Activate the Bluetooth feature on your phone and search for the headset (see
your phone’s user manual).
•
•

English
11
3 Select the headset (WEP570) from the list of devices found by your phone.
4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your
phone.
Your headset supports the Simple Pairing feature which allows the headset to be
paired with a phone without requesting a PIN. This feature is available for phones
that are compliant with Bluetooth version 2.1 or higher.
Disconnecting the headset
To disconnect the headset from your phone,
Turn off the headset.
Use the Bluetooth menu on your phone.
Reconnecting the headset
When the headset is paired with a phone, it will attempt to automatically reconnect
each time you turn it on.
If the headset does not automatically attempt to reconnect,
Press the Talk button.
Use the Bluetooth menu on your phone.
•
•
•
•

12
Using call functions
Making a call
Redialing the last number
Press and hold the Talk button to redial the last number dialed.
For some phones, pressing the Talk button opens the call log list. Press the Talk
button again to dial the selected number.
Dialing a number by voice
Press the Talk button, and then say a name to dial a number by voice.
Answering a call
When you hear incoming call tones, press the Talk button to answer a call.
Ending a call
Press the Talk button to end a call.
Rejecting a call
When a call comes in, press and hold the Talk button to reject a call.

English
13
Using options during a call
You can use the following functions to control your call:
Muting the microphone
Press and hold the Volume up or down button to turn the microphone off so that
the person with whom you are speaking cannot hear you. When the microphone is
turned off, the headset beeps at regular intervals. Press and hold the Volume up or
down button again to turn the microphone back on.
Transferring a call from the phone to the headset
Press the Talk button to transfer a call from the phone to the headset.
Placing a call on hold
Press and hold the Talk button to place the current call on hold.
Answering a second call
When you hear call waiting tones, press the Talk button to end the rst call and
answer a second call.
When you hear waiting tones, press and hold the Talk button to place the rst
call on hold and answer a second call.
To switch between the current call and a held call, press and hold the Talk
button.
•
•
•

14
Appendix
Frequently asked questions
Will my headset work with
laptops, PCs, and PDAs?
Your headset will work with devices that support
the same Bluetooth version and proles. For
specications, see page 19.
Why do I hear static or
interference while on a
call?
Appliances such as cordless phones and wireless
networking equipment may cause interference,
which usually sounds like static. To reduce any
interference, keep the headset away from other
devices that use or produce radio waves.
Will my headset interfere
with my
car’s electronics, radio, or
computer?
Your headset emits signals that are in compliance
with the international Bluetooth standard.
Therefore, you should not expect any interference
with standard, consumer-grade electronic
equipment.

English
15
Can other Bluetooth
phone users hear my
conversation?
When you pair your headset to your Bluetooth
phone, you are creating a private link between
only these two Bluetooth devices. The wireless
Bluetooth technology used in your headset is
not easily monitored by third parties because
Bluetooth wireless signals are signicantly lower
in radio frequency power than those produced by
a typical mobile phone.
Why do I hear an echo
while on a call?
Adjust the headset volume, or move to another
area and try again.
How do I clean my
headset?
Wipe it with a soft dry cloth.
The headset does not fully
charge.
The headset and the travel adapter may not have
been connected properly.
Separate the headset from the travel adapter,
reconnect, and charge the headset.

16
Certication and Safety approvals
FCC
FCC ID: A3LWEP570
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
The device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
Users are not permitted to make changes or modify the device in any way.
Changes or modications not expressly approved by Samsung will void the user's
authority to operate the equipment.
Industry Canada
IC ID: 649E-WEP570
Operation is subject to the following two conditions: (1) This device may not
cause interference and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.

English
17
The term “IC:” before the certication/registration number only signies that
registration was performed based on a Declaration of Conformity indicating that
Industry Canada technical specications were met. It does not imply that Industry
Canada approved the equipment.
UL certied travel adapter
The travel adapter for this headset has met applicable UL safety requirements.
Please adhere to the following safety instructions per UL guidelines.
FAILURE TO FOLLOW THE INSTRUCTIONS OUTLINED MAY LEAD TO
SERIOUS PERSONAL INJURY AND POSSIBLE PROPERTY DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS.
DANGER - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
FOR CONNECTION TO A SUPPLY NOT IN NORTH AMERICA, USE AN
ATTACHMENT PLUG ADAPTOR OF THE PROPER CONFIGURATION FOR THE
POWER OUTLET.
THIS POWER UNIT IS INTENDED TO BE CORRECTLY ORIENTATED IN A
VERTICAL OR HORIZONTAL OR FLOOR MOUNT POSITION.
