Samsung EO-BG930 User manual

www.samsung.com
User Manual
EO-BG930
English (EU). 07/2016. Rev.1.0

2
Table of Contents
Read me first
Getting started
4 Package contents
5 Device layout
6 Indicator light
7 Charging the battery
8 Checking the remaining battery power
8 Turning the headset on and off
9 Preparing and wearing the headset
Connecting via Bluetooth
13 Bluetooth
14 Connecting to a mobile device
15 Connecting additional mobile devices
16 Reconnecting or disconnecting the
devices
Using the headset
17 Using the headset
Appendix
20 Troubleshooting
23 Removing the battery

3
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Images may differ in appearance from the actual product. Content is subject to change
without prior notice.
•
Before using the headset, make sure the mobile device you want to connect to is
compatible with this headset.
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information

4
Getting started
Package contents
Check the product box for the following items:
•
Headset
•
Earbud tip (3 sets, S/M/L)
•
Wingtip (2 sets, S/L)
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.

Getting started
5
Device layout
Power button
Right earbud
Earbud tip
Volume (+) button
Multifunction/Talk
button
Ear hook
Left earbud
Charger port
Microphone
Indicator light
Volume (-) button
Cable holder
Charger port cover
Cable holder
Left Right
Buttons and functions
Name Function
Power button
•
Press and hold for one second to turn the headset on.
•
Press and hold for approximately four seconds to turn the headset
off.
•
Press to check the remaining battery power.

Getting started
6
Name Function
Multifunction/
Talk button
•
Press to answer or end calls.
•
Press to play or pause multimedia files.
•
When the Bluetooth connection ends, press to reconnect the
devices.
•
During a call, press and hold for one second to turn the
microphone on or off.
•
Press and hold for one second to reject a call or launch the S Voice
app.
•
Press and hold for approximately three seconds to enter Bluetooth
pairing mode.
•
Press twice to skip to the next file during media playback.
Volume buttons
•
Press to adjust the volume during a call or media playback.
•
Press and hold the Volume (-) button for one second to skip to the
next file during media playback.
•
Press and hold the Volume (+) button for one second to skip to the
previous file during media playback.
Indicator light
The indicator light alerts you to the headset’s status.
Colour Status
Flashes blue three times
•
Power on
Flashes red three times
•
Power off
Flashes red and blue
•
Bluetooth pairing mode
Quickly flashes blue three
times
•
Connected to mobile devices via Bluetooth
Flashes blue
•
Incoming call
Red
•
Charging
Blue
•
Fully charged
Off
•
During use or in sleep mode

Getting started
7
Charging the battery
Charge the battery before using the headset for the first time or when the headset has been
unused for extended periods.
Use only Samsung-approved chargers. Unapproved chargers can cause the battery to
explode or damage the headset.
•
You can charge the headset using the charger (sold separately).
•
Using a power source other than the charger, such as a computer, may result in a
slower charging speed due to a lower electric current.
•
The headset can be used while it is charging, but it may take longer to fully charge
the battery.
•
While charging, the headset may heat up. This is normal and should not affect the
headset’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the headset is not charging properly, take the headset and the charger to a
Samsung Service Centre.
1 Open the charger port cover and connect the headset to a charger.
12
•
Do not pull the charger port cover excessively. This can damage the charger port
cover.
•
Connecting the charger improperly may cause serious damage to the headset. Any
damage caused by misuse is not covered by the warranty.

Getting started
8
2 After fully charging, disconnect the headset from the charger.
•
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
•
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Checking the remaining battery power
Press the Power button. The indicator lights will alert you to the remaining battery power.
Colour Battery power
Flashes red three times
•
Less than 30 %
Flashes violet three times
•
30-60 %
Flashes blue three times
•
60-100 %
Turning the headset on and off
To turn the headset on, press and hold the Power button for one second. The indicator light
will flash blue three times.
To turn the headset off, press and hold the Power button for approximately four seconds. The
indicator light will flash red three times.
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.

Getting started
9
Preparing and wearing the headset
Attaching an earbud tip to the earbud
1 Select the earbud tip that fits your ear.
2 Cover the latch at the bottom of the earbud with the earbud tip.
•
Do not put the earbuds in your ears without earbud tips. Doing so may hurt your
ears.
•
Do not pull the earbud tip excessively. The earbud tip may tear.
3 Follow the same procedure for the other earbud.

Getting started
10
Replacing the ear hooks with wingtips
Ear hooks are attached to the earbuds by default. You can replace them with wingtips.
1 Remove the ear hook by holding the hook as shown in the image below, slightly pulling
it upwards, and then pulling it towards the earbud tip.
•
Do not pull the ear hook in the wrong direction. This can damage the ear hook.
•
Do not pull the ear hook excessively. This can damage the ear hook.
2 Select the wingtip that fits your ear.
The left wingtip has microphone holes in it.
3 Cover the earbud with the wingtip. Then, adjust the left wingtip so that the microphone
holes are not blocked.
•
Do not put the wingtip in the wrong direction. This can damage the wingtip.
•
Do not put the earbuds in your ears without wingtips. Doing so may hurt your ears.
•
Do not pull the wingtip excessively. The wingtip may tear.

Getting started
11
Wearing the headset
•
Do not bend or twist the headset excessively.
•
Do not apply excessive pressure to the headset.
•
Do not pull on any part of the headset excessively.
Wear the headset as shown in the image below by placing each ear hook over your ears.
Adjusting the cable’s length and managing the cable
You can adjust the headset’s cable length using the cable holders and keep the cable neat.
Do not pull on any part of the headset excessively while using cable holders. This may
damage the headset.
Insert the headset cable into the cable holders as shown in the image below. Then, hold the
cable holder and gently pull the cable to adjust its length.
Cable holders

Getting started
12

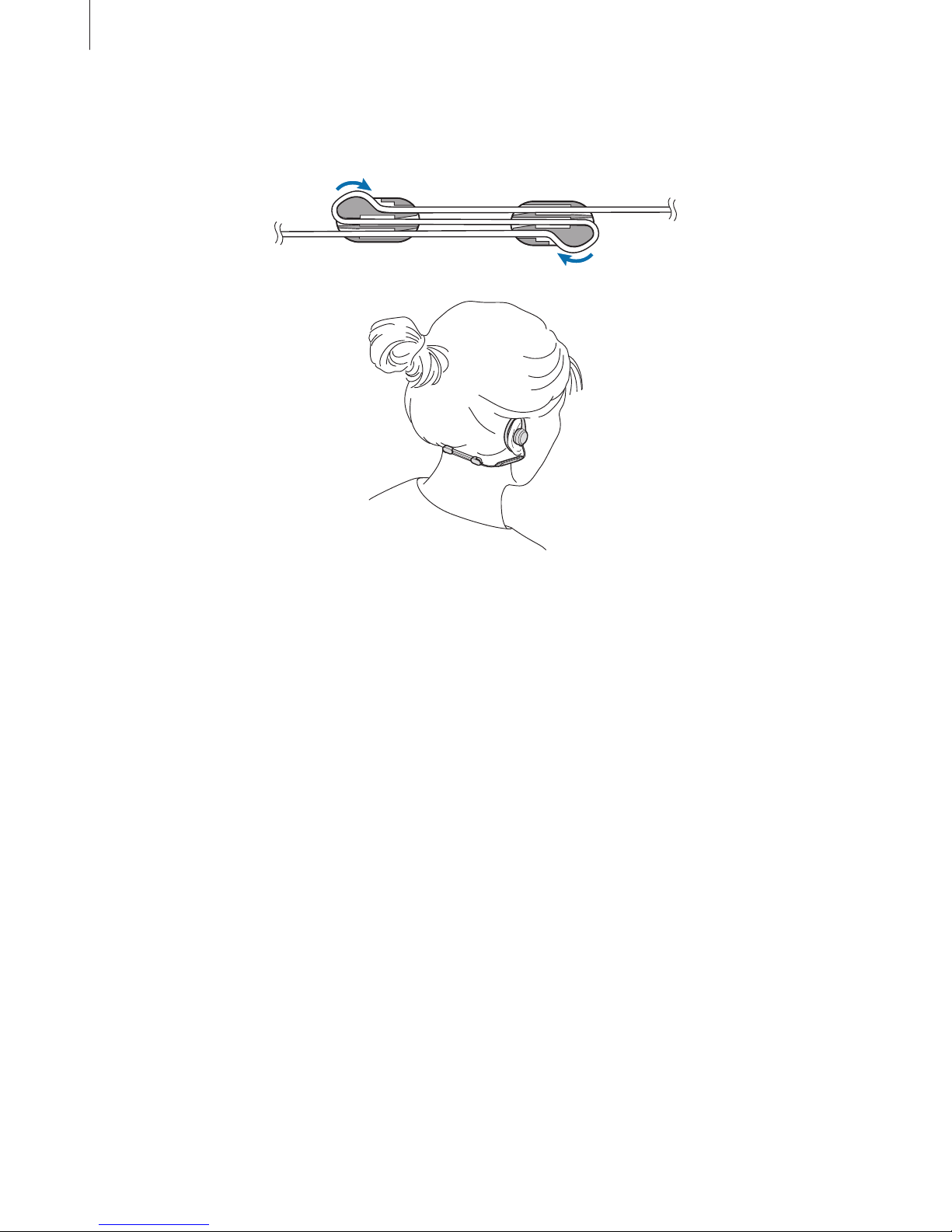

When you finish adjusting the cable length, insert the headset cable into the holders as
shown in the image below to keep the cable neat.

13
Connecting via Bluetooth
Bluetooth
About Bluetooth
Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to
various devices over short distances. It can connect and exchange data with other Bluetooth
enabled devices, such as mobile devices, computers, printers, and other digital home
appliances, without connecting via cables.
Notices for using Bluetooth
•
To avoid problems when connecting your headset to another device, place the devices
close to each other.
•
Ensure that your headset and the other Bluetooth device are within the Bluetooth
connection range (10 m). The distance may vary depending on the environment the
devices are used in.
•
Ensure that there are no obstacles between the headset and a connected device,
including human bodies, walls, corners, or fences.
•
Do not touch the Bluetooth antenna of a connected device.
•
Bluetooth uses the same frequency as some industrial, scientific, medical, and low power
products and interference may occur when making connections near these types of
products.
•
Some devices, especially those that are not tested or approved by the Bluetooth SIG, may
be incompatible with the headset.
•
Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files
or illegally tapping communications for commercial purposes).

Connecting via Bluetooth
14
Connecting to a mobile device
To use the headset, pair it with a mobile device. When the devices are paired, the headset will
try to connect to the mobile device whenever you turn it on.
1 Headset Press and hold the Multifunction/Talk button for approximately three seconds
to enter Bluetooth pairing mode.
The indicator light will flash red and blue.
When you turn on the headset for the first time, it automatically enters Bluetooth
pairing mode.
2 Mobile device Activate the Bluetooth feature and search for Bluetooth devices.
For more information, refer to the mobile device’s user manual.
3 Mobile device Tap
Samsung Level Active (0000) from the list.
•
The PIN for the headset is the four-digit number in parenthesis displayed on the
mobile device’s Bluetooth settings screen. The number differs depending on the
headset.
•
If the Bluetooth connection fails or the mobile device cannot locate the headset,
remove the device’s information from the mobile device’s list. Then, try to connect
again.
•
If the headset does not work properly, restart it or try to pair the devices again.
•
The Bluetooth connection range and sound quality may vary depending on the
connected devices.

Connecting via Bluetooth
15
Connecting additional mobile devices
The headset can connect to up to two mobile devices at the same time. When you connect
the headset to two devices, the last device you connect is recognised as the primary device.
1 Connect the headset to a mobile device via Bluetooth.
2 Press and hold the Multifunction/Talk button for approximately three seconds to enter
Bluetooth pairing mode.
The first mobile device will be disconnected.
3 Connect the headset to a second mobile device.
4 Reconnect the headset to the first mobile device.
This feature may not be supported on some devices.

Connecting via Bluetooth
16
Reconnecting or disconnecting the devices
Reconnecting the devices
If the Bluetooth connection ends due to the distance between the devices, bring the devices
closer together within a certain period of time. The devices will automatically reconnect.
If the Bluetooth connection ends because of the connected mobile device, access the
Bluetooth menu on the mobile device to pair the devices again.
Disconnecting the devices
Press and hold the Multifunction/Talk button for approximately three seconds. Then, the
connection ends and the headset enters Bluetooth pairing mode.
You can also end the connection by turning off the headset. When you turn on the headset
again and the devices are in range, the headset automatically connects with the most
recently paired device.
Noise may occur if the Bluetooth connection is disconnected improperly.

17
Using the headset
Using the headset
Various features are available when the headset is connected to another device.
The following descriptions are based on a Samsung mobile device running Android
6.0. Some features may not be available depending on the connected device.
Calling features
Answering a call
When a call comes in while you are wearing the headset, the headset will beep. Press the Talk
button to answer the call.
•
When the headset is connected to two devices and both devices receive calls
simultaneously, you can only answer the primary device’s call.
•
When you play a multimedia file from one device, you can still answer calls from
the other device.
Rejecting a call
Press and hold the Talk button for one second.
Adjusting the volume
Press the Volume button.
Turning off the microphone
To turn off the microphone so that the other party cannot hear you, press and hold the Talk
button for one second. The headset will emit a sound when turning the microphone on or off.

Using the headset
18
Switching sound output
Use the connected device’s call features to switch call audio between the headset and the
device.
Ending a call
Press the Talk button.
Playing multimedia files
Control media playback, such as music and videos, using the Multifunction button.
Playing and pausing a multimedia file
Press the Multifunction button. The most recently-played music file will play automatically in
the default music app installed on the connected device.
During playback, press the Multifunction button to pause playback. To resume playback,
press the Multifunction button again.
When two connected devices are simultaneously playing multimedia files, the
headset will stream from the device that started playing a file first. When you pause
the currently-playing file, the file playing on the other device will play automatically.
Skipping to the next multimedia file
Press and hold the Volume (-) button for one second to skip to the next file during playback.
Alternatively, press the Multifunction button twice.
Skipping to the previous multimedia file
Press and hold the Volume (+) button for one second to skip to the previous file during
playback.
Adjusting the volume
Press the Volume button.

Using the headset
19
Using Samsung Level
On the connected device, download the Samsung Level app from Google Play Store or Galaxy
Apps. With the app, you can check the remaining battery power and adjust the volume.
For more information, refer to the app’s help menu.
The Samsung Level app is compatible with Samsung mobile devices running Android
operating system 4.2.2 or later. Some features may differ or may not work on your
headset depending on the connected device or the operating system.

20
Appendix
Troubleshooting
Before contacting a Samsung Service Centre, please attempt the following solutions.
Your headset does not turn on
When the battery is completely discharged, your headset will not turn on. Fully charge the
battery before turning on the headset.
Your headset freezes
If the headset’s audio experiences any problems, such as freezing or distorting, try to resolve
it by turning off the headset and then turning it on again.
If the headset is still unresponsive, end the Bluetooth connection and reconnect it. To do
this, press and hold the Multifunction/Talk button for approximately three seconds to enter
Bluetooth pairing mode. When the headset enters Bluetooth pairing mode, connect the
devices again, and then check the operation of the headset.
If the problem is still not resolved, contact a Samsung Service Centre.
The battery does not charge properly (For Samsung-approved
chargers)
Ensure that the charger is connected properly.
If the problem is still not resolved, contact a Samsung Service Centre.
