Samsung Electronics 1-1
1. Precautions
1. Some semiconductor (“solid state”)devices are easily damaged by static electricity.
Such components are called Electrostatically Sensitive Devices(ESDs); Examples included
integrated circuits and Some filed-effect transistors. The following techniques will reduce
the occurrence of component damage caused by static electricity.
2. Immediately before handling any semiconductor components or assemblies, drain the electrostatic change
from your body by touching a known earth ground.
Alternatively, wear a discharging wrist-strap device. (Be sure to remove it prior to applring
Power-this is an electric shock precaution.)
3. After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum
foil to prevent accumulation of electrostatic charge.
4. Do not use freon-propelled chemicals. These can generage electrical charges that damage ESDs.
5. Use only a grounded-tip soldering iron when soldering ESDs.
6. Use only anti-static solder removal device. Many solder removal devices are not rated as
“anti-static”; these can accumulate sufficient electrical charge to damage ESDs.
7. Do not remove a replacement ESDs from its protective package until you are ready to install it.
Most replacement ESDs are packaged with leads that are electrically shorted together by conductive materials.
8. Immediately before removing the protective material from the leads of a replacement ESDs,
touch the protective material to the chassis or circuit or assembly into which the device will
be installed.
9. Minimize body motions when handling unpackaged replacement ESDs. Motions such as
brusing clothes togetherer or lifting a foot from a carpeted floor can generate enough static
electricity to damage an ESDs.

Precautions
1-2 Samsung Electronics
MEMO

Samsung Electronics 2-1
2. Specifications
YP-NDU
12MHz, 16bit CISC
Built-in Memory 32MB/64MB
3V
Two AAA-Size/8-hr or longer playing time (with alkaline batteries)
70x88x21mm(2.75”x3.46”x0.83”)/76g(2.68 Oz; without batteries)
Plastic /Aluminum
Up to 1.5Mbps
SmartMedia Card Socket
90dB(with A filter)
7mW
20Hz-20KHz
Model
Processor
Memory Capacity
Power
Battery
Dimensions (W x H x D)
Case
File Transmission Speed
Memory Socket
Noise Ratio
Earphone Output Power
Output Frequency Range

Specifications
2-2 Samsung Electronics
MEMO

Samsung Electronics 3-1
3. Location of Contols
3-1 Front Panel
3-2 Rear Panel
Stop/Power Off button
Volume control button
3D button
LCD
Voice Recorder button
Repeat button
Erase button
Mode/Section repeat
button
FF button
Equalizer button
REW button
Microphone
Connection cable
terminal
Power On
/Play
/Pause button
SmartMedia
Card Slot
Push open
button
Earphone jack
Eject
Hold switch
Battery case

Location of Controls
3-2 Samsung Electronics
3-3 Remote Controller
Volume control button
Power ON/Play/Pause
Stop/Power Off
button
Reverse
button
Forward
button EQ/REP button
Section repeat
button (A
Headphone/
Earphone port
B)
Hold
Switch
LCD
Panel

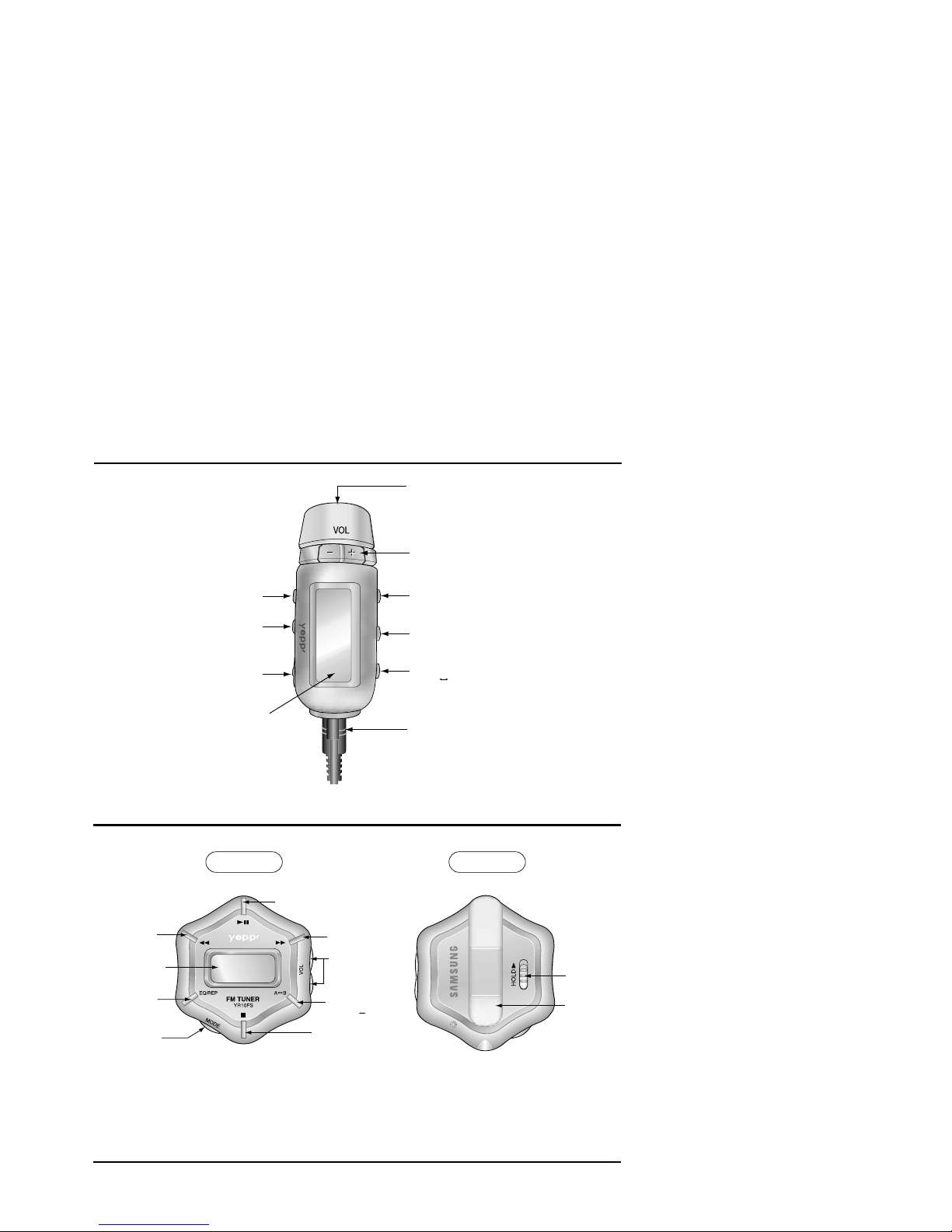

3-4 FM Remote Controller
Power ON/Play/Pause button
Hold switch
Belt Clip
Volume control button
FF button
Stop/Power OFF button
Mode button
EQ/REP button
LCD panel
REW button
Section repeat
button (A B)
Front Rear

Samsung Electronics 4-1
4. Troubleshooting
Symptoms Possible Causes Check Point Action
No LCD
No Recording
Faulty recognition
of memory
Faulty switch
operation
Faulty down load
Faulty switch
operation
Faulty remote
control button
No Power Replace Main &
Sub board
Replace LCD
Replace Z1
Check Vcc5
Check TP4 (High)
Replace (U14)
Replace Main & Sub
Soldering
Replace Flash Memory
Soldering
Replace Switch
Replace main board
Soldering
Soldering
Replace Switch
Replace remote control
Faulty LCD
Faulty Z1, U15, U14
- Open or Short PCB
- Faulty Flash Memory
- L3(3V)
- U1 Pin 3,13,35,80(3V)
- J1 PIn 1 (3V)
- U1 Pin 98 (Signal)
- C66 (Signal)
- U15 PIn 5(3V)
- U14 Pin 11,12,13 & TP3(Signal)
- Ports between U2 and memory
chip (smart media card socket)
- Mechanical parts
- Check TP1, TP2
- Open/Short test of switch
- Mechanical parts
- Check between U1 and U17
- Cold soldering on J6
- U14 Pin 6,16(3V)
- Cold soldering on switch
- Open PCB pattern
- Open or Short on switch
- Open PCB pattern - Open / Short test of switch - Mechanical parts
- U1 Pin 17
- Faulty Remote control
- Cold soldering
- Open or Short on switch
- Faulty J6

Troubleshooting
4-2 Samsung Electronics
Check
Vcc3, Vcc4, Vcc5
>2.8V
Check TP4>2.8V
if TP4<2.8V
Replace Main
Board
Check C66
Analog Signal Cold Soldering Z1
or
Replace Z1
Check TP6
Analog Signal Replace U15
NO
YES
NO
NO
NO NO
YES
YES
Check TP3, 3MHz Check U16 -9
6MHz
YES
YES
YES
Replace
Sub Board
Replace
U16
Check
U14 -11,12,13
Digital Signal Replace
Mainboard
U14
REC
No Recording

Troubleshooting
Samsung Electronics 4-3
Check D3-1
>2.8V
Check
Y1(12MHz)
YES
NO
NO
NO
YES
YES
Check
Power On Check LCD
Check KEY S1
Replace
Main Board
Check
between con7 and
U1-96,97,98,99
No LCD Display

Troubleshooting
4-4 Samsung Electronics
Check Y3
6MHz
Check
Signals on between
U1- and U17
NO
NO
NO
YES
YES
YES
YES
Check USB Cable
(Connect message)
Replace Main
Board(Y3)
Replace
Main Board(U17)
NO Replace
Main Board
Check
Cable &
Connector
U17 -15,16
<0.5V
Download
No USB controller when
USB cable connected

Troubleshooting
Samsung Electronics 4-5
Check U5-23,24,25
Digital Signal
Check U5 37, 41
Signal Signal
(1KHz)
Check
Phone Jack
Play
NO (Replace U5)
NO
(Replace U5)
NO(Replace Y2)
NO
YES
YES YES
YES
YES
Check
Y2, 14.725
NO
Replace Y2
Check Y2 and 14.725
Replace
Sub Board
Replace
Sub Board
Replace
Sub Board
Play check
(Play 1KHz 128Kbps)

Troubleshooting
4-6 Samsung Electronics
NO
NO
YES
YES
Check
U1 & J7 between
U1-51~58 and
J7-2~9 Replace
Main Board
Check
J9 & U9,U10
between J9,2~9
and U9,10-29~32,
41~44
Replace
Sub Board
Check
Cold soldering
J9, U9, U10
Display Invalid FLS

Samsung Electronics 5-1

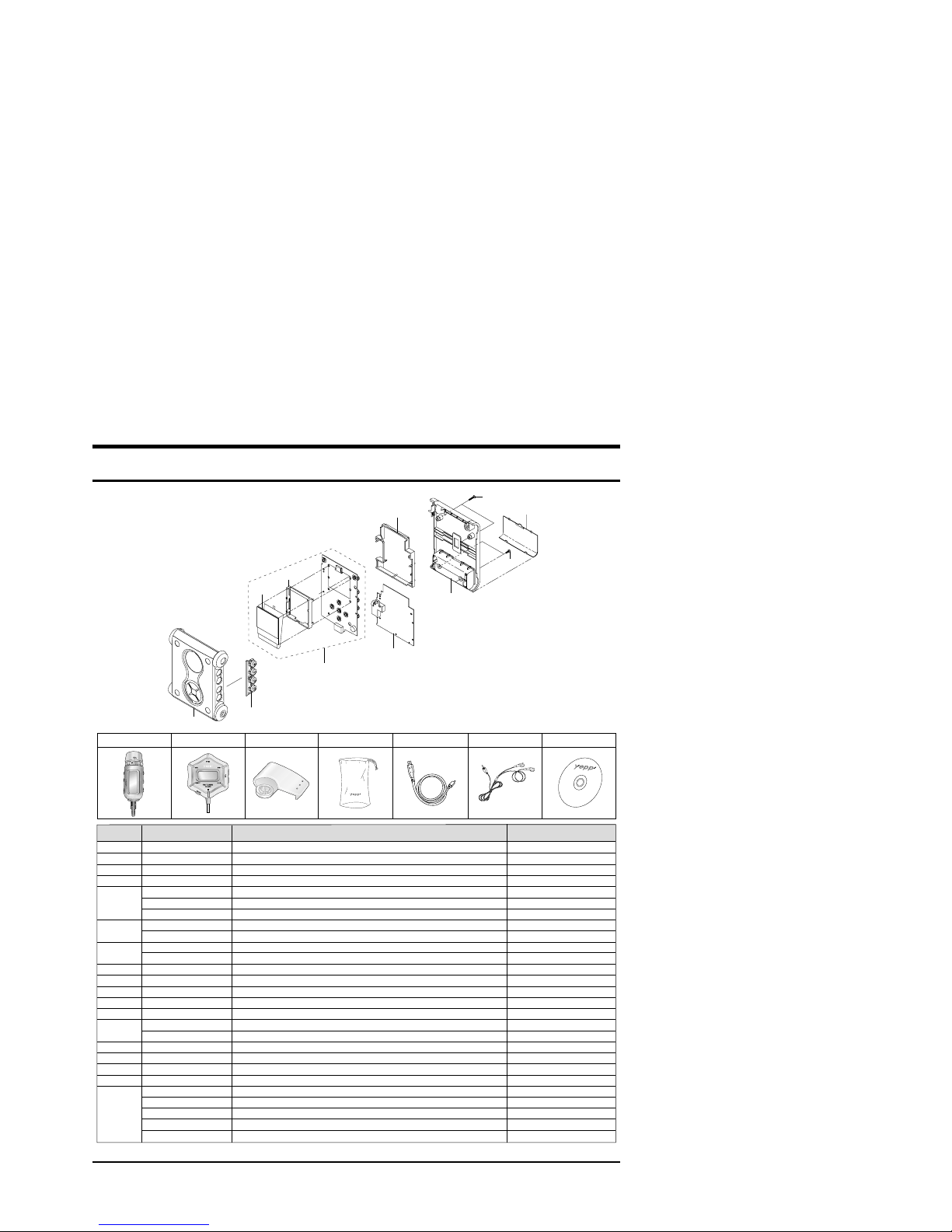

5. Exploded View and Parts List
Œ
Ò ˜¯ ÚÆ ı
´
ˆ
”
Ø
’
˝
∏
ˇ
Ô
¨
Loca. No. Parts No. Description ; Specification Remark
ŒAH97-00477B ASSY-TOP;-,YP-NDU,USB
´AH72-00038A KNOB-4;YP-ND,ABS,-,-,-,1,-,Cr-PLATING
ˇAH97-00476B ASSY-BOTTOM;ASSY,YP-NDU,USB
¨AH72-00029A COVER-BATTERY;YP-ND,ABS,SILVER,-,-,1,-,C
ˆAH92-01010A ASSY PCB-MICOM;YP-NDU(EUROPE2.0), MIC(ENG2.0) EUROPE ONLY
AH92-00888A ASSY PCB-MICOM(CHA);YP-NDU(FM), MIC(CHA)
CHINA/TAIPEI/HONG KONG ONLY
AH92-00884A ASSY PCB-MICOM;YP-NDU(FM), MIC(ENG) OTHERS AREA
ØAH82-00079A A/S MATERIAL ASS'Y;YP-NDP/U,Samsung,24 Pa OTHERS AREA
AH07-00045A LCD;DCM-08B3FT-09,YP-MF64,-,30x60
CHINA/TAIPEI/HONG KONG ONLY
∏AH72-00044A HOLDER-LCD B;YP-ND,ABS,GRY,-,-,1,-,ENG OTHERS AREA
AH72-00045A HOLDER-LCD B;YP-ND,ABS,GRY,-,-,1,-,KOR
CHINA/TAIPEI/HONG KONG ONLY
”AH92-00882A ASSY PCB-SMC;YP-NDU(FM),SMC(64MB)
’AH72-00046A CHASSIS-FRAME;YP-ND,ABS,GRY,-,-,1,-,FRAM
˝6003-001174 SCREW-TAPTITE;PH,+,B,M1.7,L13,NI PLT,SWR
Ô6003-001173 SCREW-TAPTITE;PH,+,S,M1.7,L6,NI PLT,SWCH
AH59-00065A REMOCON;YP-NE/ND/MF,SAMSUNG,56*24*24mm
ÒAH59-00100A REMOCON;YR-10FS,SAMSUNG,FM Tuner,uPD75 EUROPE ONLY
AH59-00073A REMOCON-FM;YR-10FS,SAMSUNG,55mm,V850e,9e OTHERS AREA
ÚAH97-00645A ASSY-BELT CLIP;ASSY,YP-NDU,-
ÆAH69-00296A BAG ACCESSORY;YP-ND Series,PANDA SUEDE,3
ıAH39-00208A CABLE FORM;C17-004-6436E,YP-NDU,4P,1300m
˜AH59-00066A SPEAKER SYSTEM;YP-ND/NE,SB-900X,0.22V,0.
AH80-00003A INSTALL;YP-ND,Export,CD,Pa EUROPE ONLY
AH80-00011A INSTALL-CD EUROPE;YP-NDU,-,CD MASTER,EUR
FM REMOTE ONLY (Except U.S.A.)
¯AH80-00019A INSTALL-CD EUROPE;YP-NDU,-,CD MASTER,EUR (INSERT MAC VER.) FM REMOTE ONLY (Except U.S.A.)
AH80-00016A INSTALL-CD USA(128KBPS);YP-NDU,USA FULL U.S.A. ONLY
AH80-00010A INSTALL-CD JAPAN;YP-NDU,-,CD MASTER, JAPAN JAPAN ONLY

Exploded View and Parts List
5-2 Samsung Electronics
MEMO

Samsung Electronics 6-1
6. Block Diagram
REMOCON
LCD
Micom Controller (OKI MSM66Q573L) -12C control - Parallel & USB communication - Power control - Memory R/W - AD Key Control
MP3 decoder (MAS3507D) - MP3 decoding - digital volume control - DC/DC Converter
13-Key Including Button
PC USB
Interface
Clock
Generation
OSC
Power 1.5 x 2 (AAA) Battery
A/D Converter
UDA1360
Clock
Generation
OSC
D/A Converter (DAC 3550A) Earphone
Flash Memory Internal 16M/32M/64M (External : 16M/32M/ 64M Smart Card)
mic
I C
Key Interrupt Information
U17
Y1
U1
U6
Y2
U5
U14
U9, U10
2

Block Diagram
6-2 Samsung Electronics
MEMO

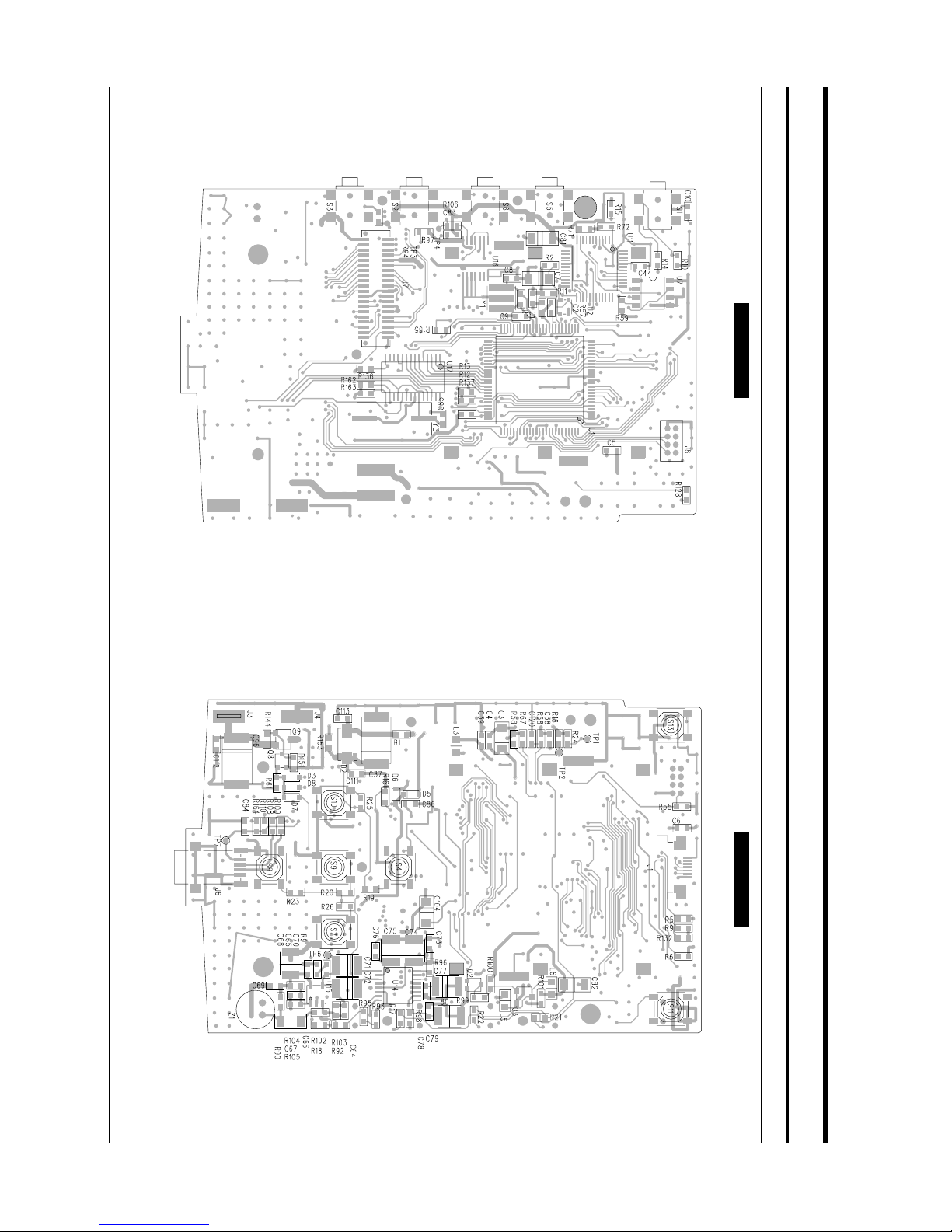

Samsung Electronics 7-1 7. PCB Diagrams 7-1 Micom
COMPONENT SIDE SOLDER SIDE

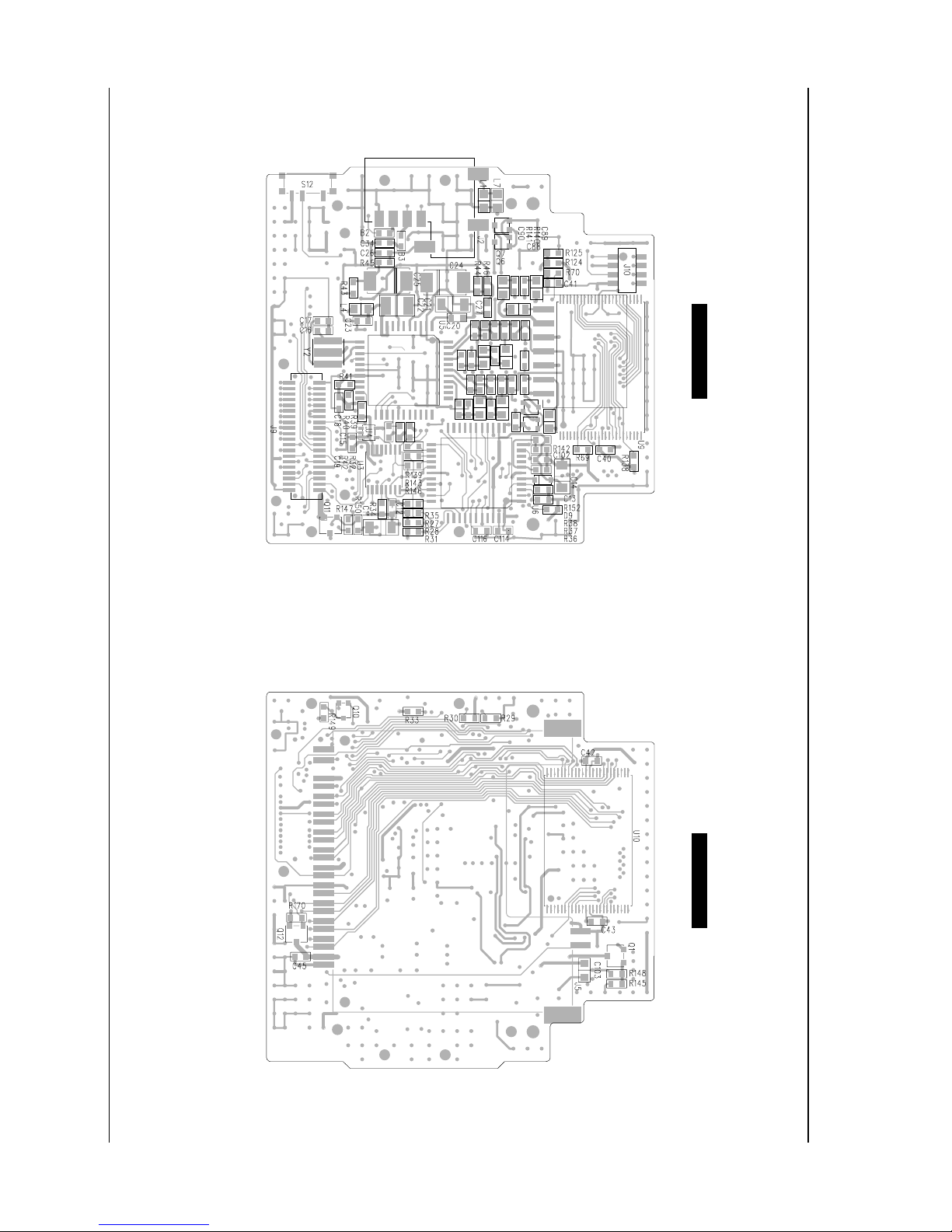

PCB Diagrams 7-2 Samsung Electronics 7-2 SMC
COMPONENT SIDE SOLDER SIDE

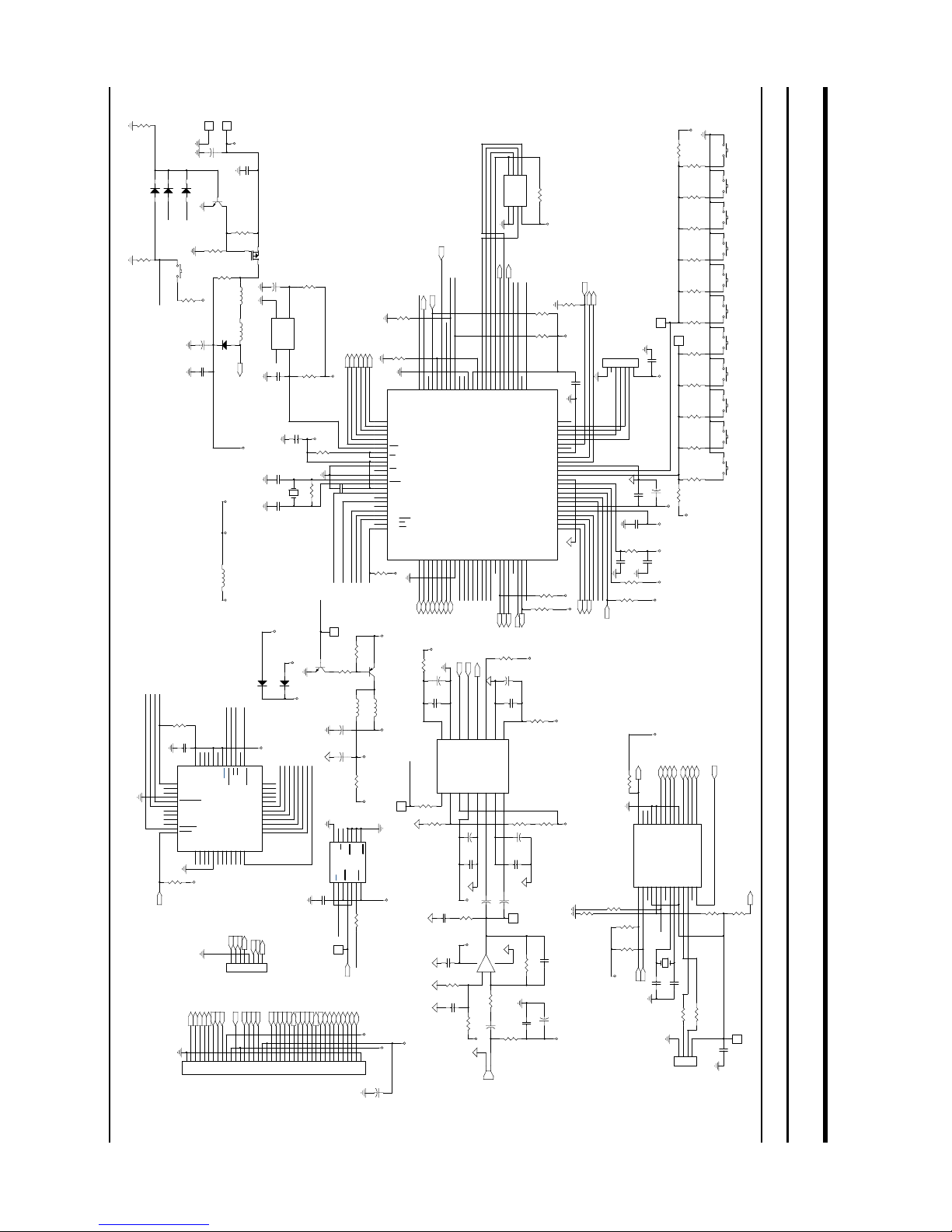

Samsung Electronics 8-1 8. Schematic Diagrams
LCD
USB
EMULATOR USE ONLY
