Network Video Recorder
User Manual

English _3
● OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit.
Follow all the safety instructions listed below.
Keep these operating instructions handy for future reference.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. if the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Standards Approvals
M
` This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
overview

4_ overview
overview
BEFORE START
This user manual provides Information for using the NVR such as brief introduction, part names, functions, connection
to other equipment, menu setup, etc.
You have to keep in mind the following notices :
• SAMSUNG retains the copyright on this manual.
• This manual cannot be copied without SAMSUNG's prior written approval.
• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of
instructions mentioned in this manual.
• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be
removed from the unit.
• Before installing an additional HDD or connecting an external storage device (USB memory or USB HDD) to this
NVR, check the compatibility. Consult your provider for the compatibility list.
Warning
❖Battery
It is essential that when changing the battery in the unit, the replacement battery must be of the same type
otherwise there may be a possibility of an explosion.
The following are the specifications of the battery you are using now.
• Normal voltage : 3V
• Normal capacity : 170mAh
• Continuous standard load : 0.2mA
• Operating temperature : -20°C ~ +85°C
(-4°F ~ +185°F)
Caution
• Connect the power cord into a grounded outlet.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the
Instructions.
❖System Shutdown
Turning off the power while the product is in operation, or undertaking improper actions may cause damage or
malfunction to the hard drive or the product.
Please turn off the power using the Power button on the front of your NVR.
After selecting <OK> in the pop-up menu, you can pull off the power cord.
You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected
power stoppage. (Any questions concerning UPS, consult your UPS retailer.)
❖Operating Temperature
The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F).
This product may not work properly if you run right after a long period of storage at a temperature below the
guaranteed one.
Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at
room temperature for a period.
Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F).
Likewise, the hard drive may not work at a temperature below the guaranteed one.
❖Ethernet Port
This equipment is in door use and all the communication wirings are limited to inside of the building.
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California USA.
"Perchlorate Material - special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate."

English _5
● OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
4Before Start
7Features
10 Part Names and Functions (Front)
11 Part Names and Functions (Rear)
12 Remote Control
INSTALLATION
13
13 Checking the installation environment
14 Rack Installation
14 HDD Addition
CONNECTING WITH OTHER DEVICE
19
19 Connecting to an external device
20 Connecting the USB
20 Connecting External
eSATA HDD
21 Connecting the Alarm Input/Output
23 Connecting the Network
LIVE
25
25 Getting Started
27 Live Screen Configuration
32 Live Screen Mode
35 Zoom
36 Audio ON/OFF
36 Freeze
37 Event Monitoring
38 PTZ control
MENU SETUP
41
41 System Setup
52 Setting the Device
61 Setting the Recording
65 Setting the Event
67 Backup
68 Network Configuration

6_ overview
overview
SEARCH & PLAY
76
76 Search
79 Playback
WEB VIEWER
81
81 Introducing Web Viewer
82 Connecting Web Viewer
83 Using Live Viewer
89 Using Search Viewer
94 Viewer Setup
104 About
BACKUP VIEWER
105
105 SEC Backup Viewer
APPENDIX
108
108 Product Specification
110 Product Overview
112 Default Setting
115 Troubleshooting
118 Open Source License Report on the Product

English _7
● OVERVIEW
FEATURES
With this NVR, you can record and play the video and audio signal from a network camera.
Furthermore, you can transfer video and audio to an external device, which can be monitored by a remote PC.
• User-friendly UI
• VGA, 4CIF, record in a max of 2048x1536 (3M pixel) supported
• Record and play video
• Record and play audio
• Standard RTP/RTSP protocols supported
• Play high-definition video using the HDMI cable
• Display the HDD operation status by HDD SMART
• HDD overwrite enabled
• Mass-storage HDD supported using eSATA
• Backup using USB 2.0 protocols and external HDD
• Backup using the internal CD/DVD writer
• Simultaneous play of 4 channels
• Various Search Modes (Search by Time, Event and Backup)
• Various Recording Modes (Normal, Event, Scheduled Recording)
• Alarm Input / Output
• Remote Monitoring function by Windows Network Viewer
• Live monitoring of the network camera

8_ overview
overview

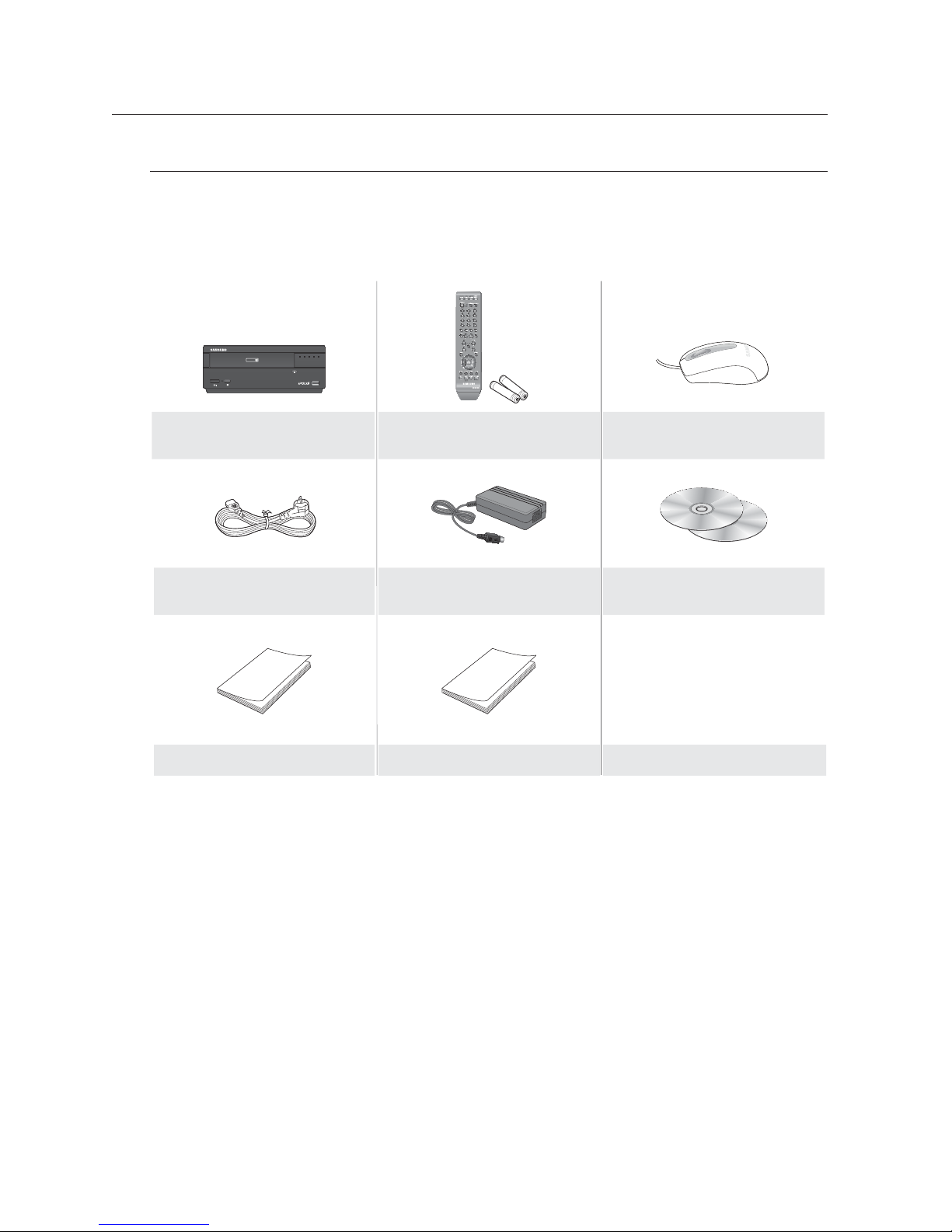

Package Contents
Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.
SRN-470D
NETWORKVIDEO RECORDER SRN-470D
ALARM HDD NETWORK BACKUP REC
DVD RECORDER
DVD-
R
USB
NVR Remote Control /
Remote Control Battery (AAA) Mouse
Power Cable Adaptor Network Viewer Software /
User Manual CD
User Manual Quick Guide
M
`For a model with no built-in HDD, one SATA cable and 4 screws for fixing the HDD will be added by default.
❖Power Adaptor
• Input : AC100~240V, 50/60Hz, 1.2A
• Output : DC12V - 4 A

English _9
● OVERVIEW

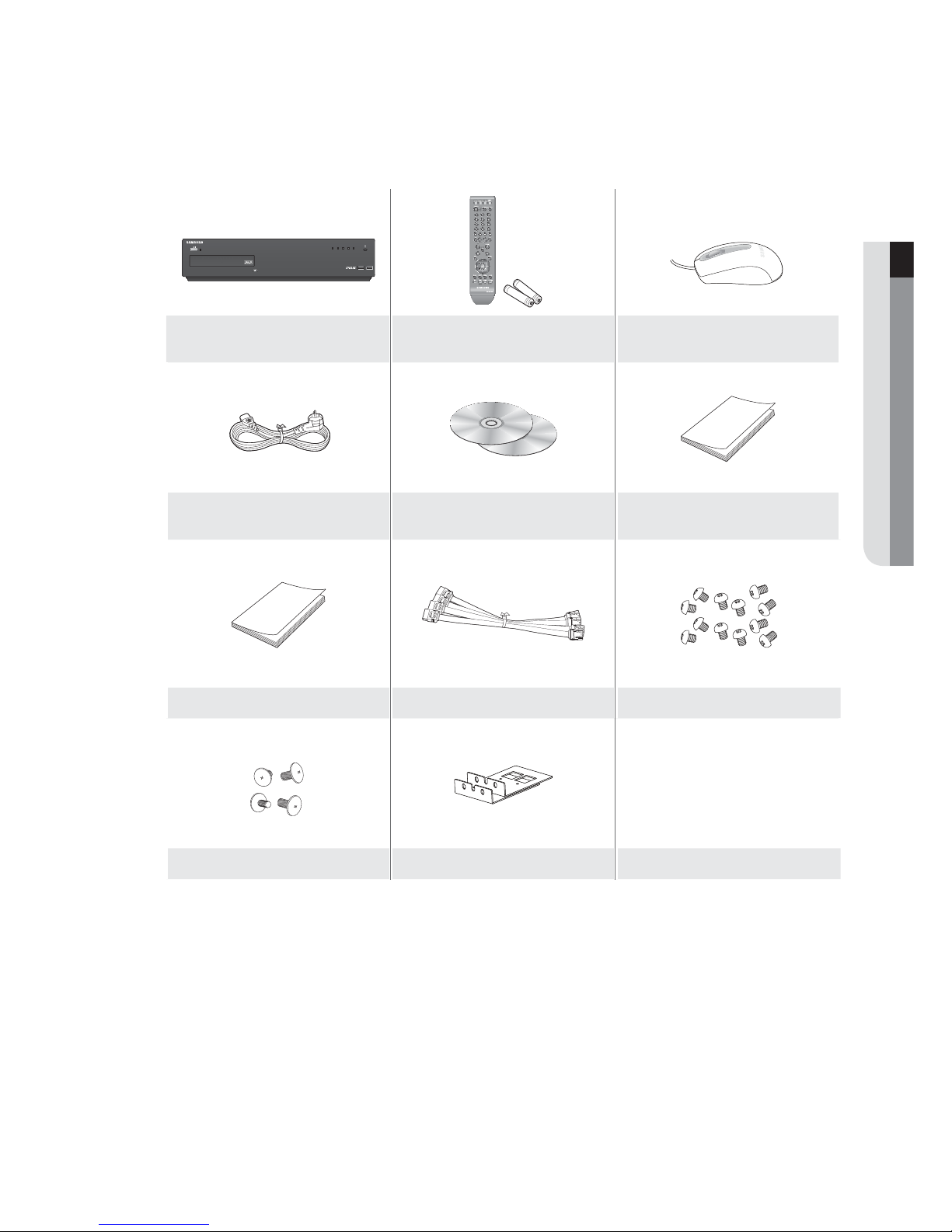

SRN-1670D
ALARM
OPEN/CLOSE
HDD NETWORK BACKUP REC
USB
SRN- 1670D
DVD RECORDER
NETWORKVIDEO RECORDER
ALARM
OPEN/CLOSE
DVDRECORDER
HDD NETWORK BACKUP REC
USB
NETWORKVIDEO RECORDER SRN-1670D
NVR Remote Control /
Remote Control Battery (AAA) Mouse
Power Cable Network Viewer Software /
User Manual CD User Manual
Quick Guide SATA Cable HDD Fixing Screw
Bracket Fixing Screw Bracket Rack
M
`For a model with no built-in HDD, one SATA cable and 3 screws for fixing the HDD will be added by default.

10_ overview
overview
PART NAMES AND FUNCTIONS (FRONT)
SRN-470D
SRN-1670D
Part Names Functions

LED Indicator
ALARM : Lights on when an event occurs.
HDD : Displays the normal access to HDD.
Upon access to HDD, LED repeats on and off.
NETWORK : Displays both network connection and data transfer status.
BACKUP : Displays when Backup is in progress.
REC : Lights on when recording is in progress.
b
USB Connects the USB devices.
c
OPEN/CLOSE
Used to open and close the DVD-RW disc tray.

Power Power LED : Displays the power ON/OFF status.
Power Button : Used to turn the NVR ON/OFF.

Remote Reception
System Receive the signal from the remote control.
ALARM
OPEN/CLOSE
HDD NETWORK BACKUP REC
USB
SRN - 1670D
DVD RECORDER
NETWORK VIDEO RECORDER
ALARM
OPEN/CLOSE
DVD RECORDER
HDD NETWORK BACKUP REC
USB
NETWORK VIDEO RECORDER SRN-1670D
 
b c
NETWORK VIDEO RECORDER SRN-470D
ALARM HDD NETWORK BACKUP REC
DVD RECORDER
DVD-
R
USB

bc 

English _11
● OVERVIEW
PART NAMES AND FUNCTIONS (REAR)
SRN-470D
SRN-1670D
Part Names Functions

AUDIO OUT Audio Signal Output Port (RCA jack).
b
VGA VGA Video Signal Output Port.
c
HDMI HDMI connector port.

eSATA 1/2 Ports used for external storage device connections.

NETWORK 1/2 NETWORK connector port.

USB USB connector port.

ALARM
- ALARM IN : Alarm input ports.
SRN-470D : 1~4 CH
SRN-1670D : 1~16 CH
- ALARM RESET : Alarm Reset port
`This is applicable only to SRN-1670D.
- ALARM OUT : Alarm output ports.
SRN-470D : 1~2 CH
SRN-1670D : 1~4 CH
 Power Power connection port.
b   c  
b   c

12_ overview
overview
REMOTE CONTROL
Using the numeric buttons
CHANNEL 10 Press the [+10] button first, then press the 0 button again within 3 seconds.
CHANNEL 11–16 Press the [+10] button first, then press any number between 1 to 6 within 3 seconds.
Changing the Remote Control ID
1. Press the [ID] button of the remote control and check the ID displayed on the NVR screen.
The factory default ID of the remote control is 00.
2. Enter 2 digits of your selection in order, while pressing the system [ID] button.
3. When ID input is done, press the system [ID] button again to check the setting.
M
`If you want to change the remote control ID to 08: Press and hold the system [ID] button and press the numbers [0] and [8]
in sequence.
Remote control's ID and NVR's ID should be matched for proper operation. Refer to "Remote Devices". (Page 58)
SEARCH
Displays the search menu.
POWER
Displays the Exit pop up screen.
NUMBER [0~+10]
Used as the numeric input keys, or displays a single
channel.
Skip Backward (by unit time), Slow Rewind,
Slow Forward, Skip Forward (by unit time)
T/W
Zooms in or out.
BACKUP
Displays the Backup Menu.
MODE
Changes the screen mode.
MENU
Goes to the menu screen.
Up/Down/Left/Right(▲▼◄►)/ENTER
Moves the cursor up/down/left/right, and runs the Select
Menu.
FREEZE
Freezes the screen temporarily.
ZOOM
Runs the digital zoom (x2) function.
VIEW
Runs the View function in the PTZ mode.
OPEN/CLOSE
Opens or closes the CD tray.
ID
Sets the ID of the system.
Select 2 digits from 0 ~ 9 while pressing the ID Key.
PTZ
Displays or ends PTZ.
SCROLL ,.
Moves the menu scroll.
RETURN
Returns to the previous screen.
AUDIO
Turns Audio on/off.
ALARM
Cancels the Alarm.
REC LOCK
Selects the recording lock function.
PRESET
Displays the Preset Setup.
REC
Starts or ends the live recording.
Move Frame
While paused, moves to the previous/next frame.
FR, STOP, PLAY/PAUSE, FF
DVR/NVR
Activates the NVR function.

English _13
● INSTALLATION
installation
Please take note of the followings before using this product.
• Do not use the product outdoor.
• Do not spill water or liquid in the connection part of the product.
• Do not impose the system to excessive shock or force.
• Do not pull out the power plug forcefully.
• Do not disassemble the product on your own.
• Do not exceed the rated input/output range.
• Use a certified power cord only.
• For the product with an input ground, use a grounded power plug.
CHECKING THE INSTALLATION ENVIRONMENT
This NVR is a top-notch security device that is equipped with a
high-capacity HDD and other key circuit boards.
Note that an excessive internal temperature of the product may
cause a system failure or a shortened product life (see the right
figure). Keep in mind the following instructions before installing
the product.

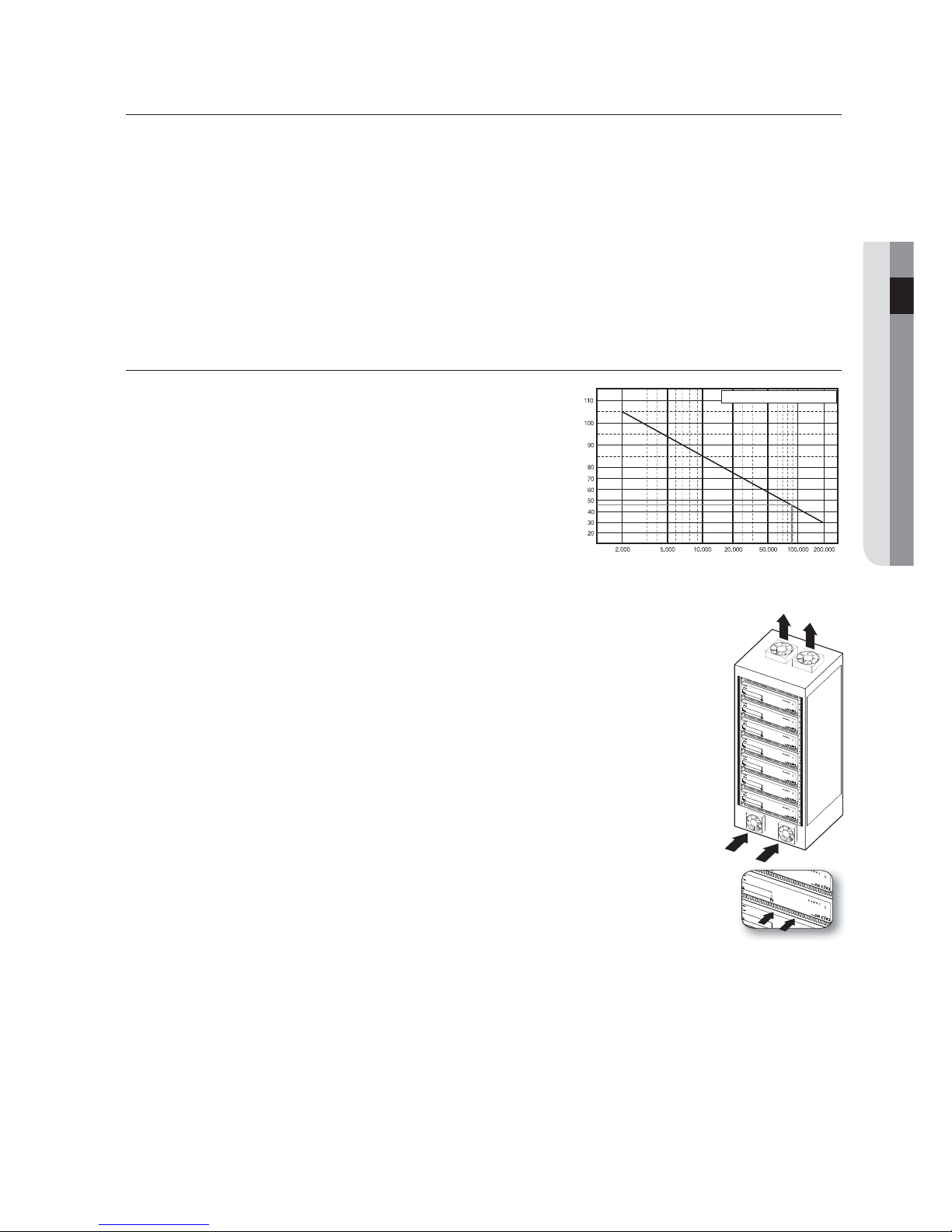

The followings are the recommendations when Samsung NVR is installed on a rack.
1. Please ensure that the rack inside is not sealed.
2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.
3. If the NVR or other devices on a rack is to be stacked as in the picture, provide a suitable
space or install a ventilating opening for air circulation.
4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.
5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air
circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)
6. Please maintain the temperature inside the rack or surrounding areas between 0°C ~ 40°C
(32°F ~ 104°F) as shown in the figure 1.
Rack Mount Instructions - The following or similar rack-mount instructions are included
with the installation instructions :
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room
ambient. Therefore, consideration should be given to installing the equipment in an
environment compatible with the maximum ambient temperature (Tma) specified by the
manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required
for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is
not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit
and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should
be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
One Year: 24HR X 365 DAY =8,760 HR
Temperature
Unit: ºC
Life (Unit: HOURS)
[Figure 1]
[Figure 2]
[Fi 2]

14_ installation
installation
RACK INSTALLATION
Install the Bracket-Rack as shown in the figure, and then fasten the
screws on both sides (2 screws on each side).
`Fix the screws not to be loosened by vibrations.
HDD ADDITION
Make sure to unplug the power cord from the wall outlet to prevent possible electric shock, injury or product damage.
Please consult your provider for further information on HDD installation since improper installation or settings may
damage the product.
`Number of HDDs supported : SRN-470D : Up to 1
SRN-1670D : Up to 5 HDDs supported
`Make sure to unplug the power cord from the wall outlet before proceeding with the installation.
`By default, a HDD-equipped model has one HDD built-in as master.
J `Cautions for data loss (HDD care)
Please pay attention so that the data inside the HDD is not damaged.
Before adding a HDD, please check the compatibility with this NVR product.
HDD is vulnerable to malfunction due to its sensitive nature especially against shock when operating.
Please ensure that the HDD is free from such shock.
We are not liable for any damage to the HDD incurred by user's carelessness or miss use..
`Cases might cause damage to HDD or recorded data
To minimize the risk of data loss from a damaged HDD, please backup data as often as possible.
Data may be lost due to external impacts during disassembly or installation of the NVR.
HDD may be damaged if the NVR is suddenly stopped by a power cut or power off during operation.
HDD or files stored inside may be damaged if the main body is moved or impacted during the HDD operation.
Cautions when installing a HDD
1. When adding a HDD, ensure that the cable does not get caught or the insulation does not come off.
2. Pay attention so as not to lose the disassembly screws or accessories.
`If the screws or accessories are not put together correctly, the product may breakdown or not operate properly.
3. Please check the HDD compatibility before adding a HDD.
`Please contact your nearest dealer to obtain the list of compatible devices.
NETWORKVIDEORECORDER SRN-1670D

English _15
● INSTALLATION

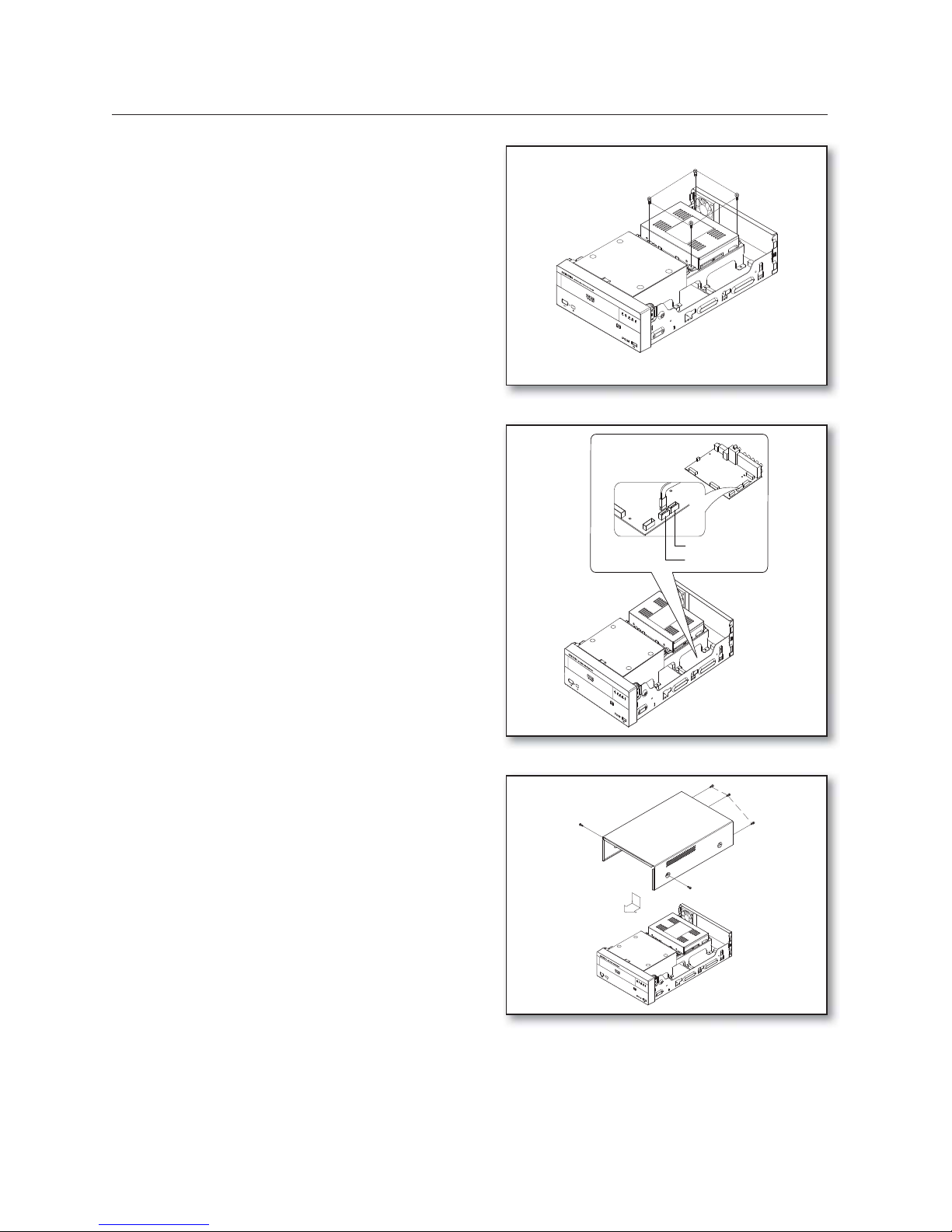

If installing HDD to SRN-470D
1. First, loosen the screws on both sides and remove
the cover.
2. Loosen the left and right screws on the lower hard
disk bracket to remove it.
3. Insert the additional hard disk into the bracket and fix
it using the provided screws.
Hard disk
bracket
Master hard
disk

16_ installation
installation
4. Insert the bracket where the additional hard disk is
inserted into the lower bracket and fix it using the
provided screws.
5. When done, connect the power cable and connect
the signal cable (SATA cable) to the connector for the
main board.
6. Check if the connectors are properly connected and
there is no problem with wiring, and close the cover
and fix it with screws.
SATA2
SATA1

English _17
● INSTALLATION
If installing HDDs to SRN-1670D
1. First, loosen the screws on both sides and remove the
cover.
2. Loosen the screws (x4) in the left/right and upper
sides and remove the upper brackets.
3. Install HDDs (x2) on the lower bracket and fix them
with screws.
4.
Install HDDs (x3) on the upper bracket and fix them
with screws.
Upper Bracket
Lower Bracket
Upper
Bracket
Lower
Bracket
NETWORKVIDEO RECORDER SRN-1670D
Cover

18_ installation
installation
5. When the installation of additional HDDs is done,
insert the lower and upper brackets into the NVR and
fix them with the provided screws.
6. When adding a HDD is completed, plug the power
cable and connect the SATA cable (for transferring
the HDD signal) to the connector ~ of the
main board.
`Note that the order the HDD data cable is connected will not
affect the operation. The only consideration is the length of
each cable.
7. Check if the connectors are properly connected and
there is no problem with wiring, and close the cover
and fix it with screws.
NETWORKVIDEO RECORDER SRN-1670D
Cover

English _19
● CONNECTING WITH OTHER DEVICE
CONNECTING TO AN EXTERNAL DEVICE
SRN-470D
SRN-1670D
J `Unrated or improper power source may cause damage to the system. Ensure that you use only the rated power source
before pressing the POWER button.
connecting with other device
Power
VIDEO OUT
(VGA)
AUDIO OUT
HDMI OUT
Mouse
eSATA HDD
Power
VIDEO OUT
(VGA)
AUDIO OUT
HDMI OUT
Mouse
eSATA HDD

20_ connecting with other device
connecting with other device
CONNECTING THE USB
1. By factory default, a USB port is provided for external connection.
2. You can connect a USB HDD, USB CD/DVD player, USB memory or mouse to the USB port.
3. If a USB HDD is connected to the system, recognition and settings are available in "Menu Setup > Device >
Storage Device". (Page 56)
4. This product supports hot-plugging, which connects/removes the USB device during the system operation.
J `If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the NVR.
CONNECTING EXTERNAL eSATA HDD
1. Two external eSATA ports are provided on the rear panel by factory default.
2. If connected to the system, the external eSATA HDD can be recognized and configured in " Menu Setup > Device >
Storage Device ".
3. The NVR supports Hot Plug function to allow connection and disconnection of eSATA HDD devices while the
system is in use.
J `Only one eSATA HDD can be connected to an external eSATA port.
`Use a cable shorter than 1 m for the external eSATA HDD connections.
`The power for an external eSATA storage will be supplied separately.
`The external eSATA port is recommanded with only Samsung Techwin-manufactured external HDD (SVS-5R).
