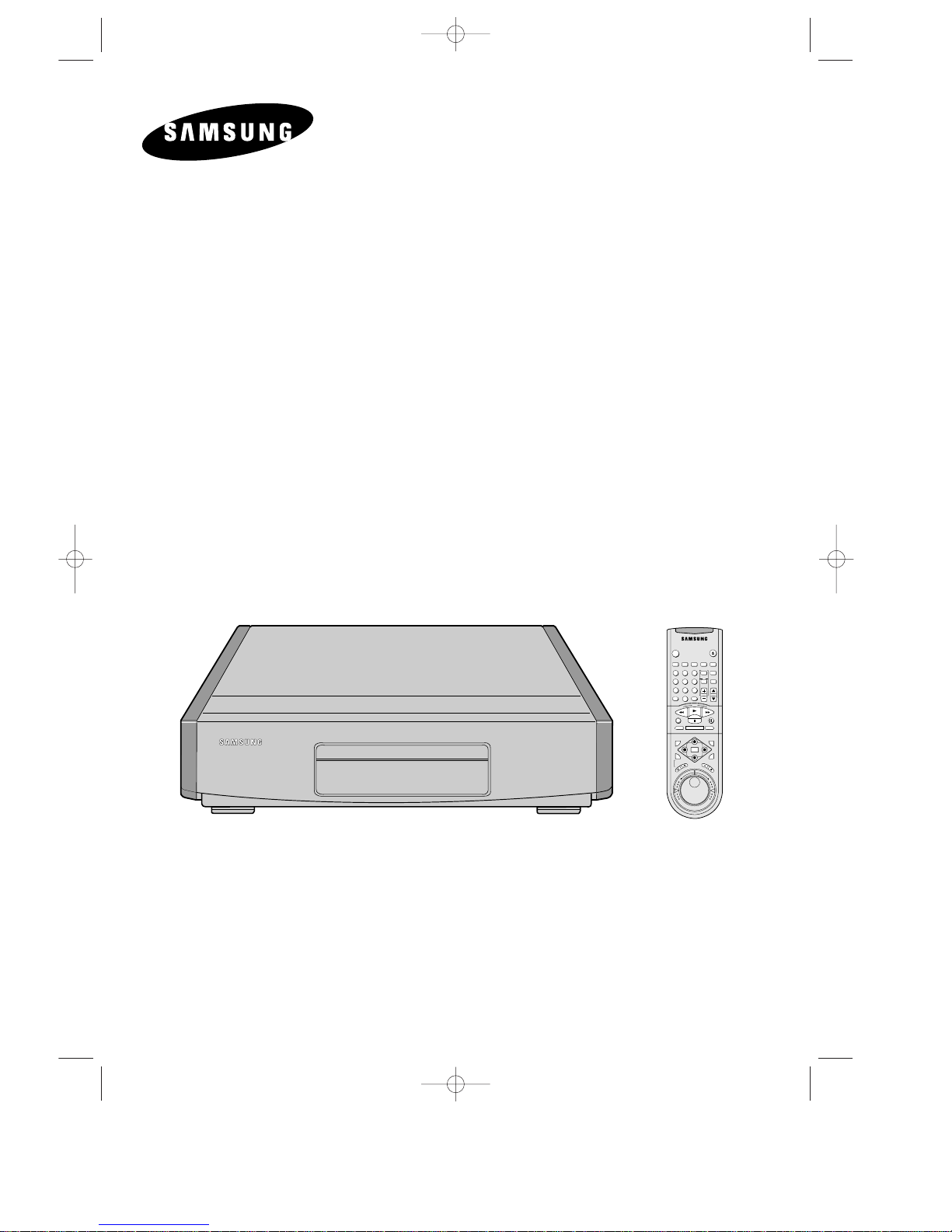

Samsung SV-7000W User manual

VIDEO
CASSETTE RECORDER
SV-7000W
Owner’s Instructions
VCR
POWER EJECT
INDEX REC.SPEED CLK/COUNT PICTURE TIMER
ART INPUT
123
456
789
0CLR/RST
100
CH
R
E
W
P
L
A
Y
F
.
F
DISPLAY MONITOR A.DUB
REC P/STILL
INPUT
SYSTEM OUTPUT SYSTEM
AUTO MENU
REV
FWD
STOP
STROBE AUDIO
OK
T
R
A
C
K
I
N
G
S
L
O
W
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 1

2
GB
Contents
◆FOREWORD
■Safety Instructions......................................................................................... 4
■Getting Started .............................................................................................. 5
◆CONNECTING YOUR VIDEO CASSETTE RECORDER
■Background to the Worldwide VCR............................................................... 6
■Worldwide TV Color System.......................................................................... 6
■Multi-System VCR vs Worldwide VCR.......................................................... 7
■System Conversion with the Worldwide VCR................................................ 8
■Tape Conversion with the Worldwide VCR ................................................... 9
■Deciding How to Connect Up Your VCR....................................................... 11
■Connecting Your VCR to the TV.................................................................... 12
◆SETTING UPYOUR VIDEO CASSETTE RECORDER
■Inserting the Batteries in the Remote Control................................................ 13
■Plug and Initial Setting................................................................................... 13
■Setting the Date and Time............................................................................. 14
■User SET1 Setting......................................................................................... 15
■User SET2 Setting......................................................................................... 15
■Displaying/Hiding On-Screen Information ..................................................... 16
■Tuning System............................................................................................... 16
■Setting the VCR RF out System.................................................................... 17
■Setting the RF OUT CHANNEL..................................................................... 18
■Presetting the Stations Automatically............................................................ 19
■Presetting the Stations Manually................................................................... 20
■Clearing a Preset Station............................................................................... 21
■Changing the Preset Station Table................................................................ 22
◆RECORDING TELEVISION BROADCASTS
■Selecting the Cassette Type.......................................................................... 23
■Selecting the Recording Speed..................................................................... 23
■Protecting a Recorded Cassette.................................................................... 23
■Recording a Programme Immediately........................................................... 24
■Stopping a Recording Temporarily................................................................ 24
■Recording a Programme with Automatic Stop............................................... 25
■Using the Timer Programming Feature......................................................... 26
■Using the VIDEOPLUS+/SHOWVIEW Feature............................................. 27
■Modifying VIDEOPLUS+/SHOWVIEW programming.................................... 28
■NICAM........................................................................................................... 29
■Checking a Preset Recording........................................................................ 30
■Cancelling a Preset Recording...................................................................... 30
◆PLAYING BACK
■Playing a Cassette......................................................................................... 31
■Selecting the PLAY SYSTEM Mode.............................................................. 31
■SQPB (Super VHS Quasi Playback)............................................................. 32
■Adjusting Picture Alignment Manually........................................................... 32
■Adjusting Picture Sharpness ......................................................................... 33
■Selecting the Audio Output Mode.................................................................. 33
◆REWINDING AND FAST-FORWARDING
■Rewinding and Fast-forwarding a Cassette................................................... 34
■Playing a Cassette in Slow Motion................................................................ 34
■Playing a Sequence Frame by Frame........................................................... 35
■Playing a Sequence at Variable Speeds....................................................... 35
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 2

3
GB
◆SPECIAL FUNCTION
■STROBE........................................................................................................ 36
■ART ............................................................................................................... 36
■MONITOR...................................................................................................... 36
◆SEARCHING FOR A SEQUENCE
■Searching for a Specific Sequence ............................................................... 37
■Using the Tape Counter ................................................................................ 38
◆ADVANCED RECORDING FEATURES
■Using the Assemble Edit Function................................................................. 39
■Connecting Other Equipment to Your VCR................................................... 40
■Connecting an RCA Audio/Video Input Cable............................................... 41
■Recording from Another VCR or Camcorder................................................. 42
■TV System Conversion.................................................................................. 43
■Playback Conversion..................................................................................... 43
■Convert Recording......................................................................................... 44
■Hi-Fi Audio System........................................................................................ 45
■Audio Dubbing a Pre-recorded Cassette....................................................... 46
■Recording an FM Simulcast Programme....................................................... 47
◆OTHER FUNCTIONS AND USEFUL RECOMMENDATIONS
■Locking Your VCR......................................................................................... 48
■Resetting Your VCR...................................................................................... 48
■Technical Specifications................................................................................ 49
◆SOLVING PROBLEMS
■Problems and Solutions................................................................................. 50
◆VCR OVERVIEWS
■Front View of the VCR................................................................................... 51
■Rear View of the VCR ................................................................................... 51
■Display Indicators.......................................................................................... 52
■Infrared Remote Control................................................................................ 52
◆WORLD BROADCAST SYSTEMS 53
◆INTERNATIONAL SERVICE NETWORK 54
☛
➢
NoteImportantHold downPress/push
Symbols
Contents (cont.)
11
1
= Step number
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 3

4
GB
The following illustrations represent the precautions to be taken when using this video cassette
recorder.
The lightning flash with arrowhead in the triangle is a warning sign alerting you to
dangerous voltage inside the product.
DO NOT OPEN THE VCR.
H H
5°C
40°C
10% 75%
THIS DEVICE IS NOT FOR USE IN INDUSTRIAL
ENVIRONMENTS.
Safety Instructions
Do NOT expose the VCR to
extreme temperature condi-
tions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).
Do NOT expose the VCR to
direct sunlight. Do NOT expose the VCR to any liquids.
Do NOT place any objects on
the VCR or remote control. During a storm and/or light- ning, unplug the VCR from the
mains socket and aerial.
If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 4

5
GB
Getting Started
You have just purchased a SAMSUNG Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.
Your Owner’s Instructions contain much valuable information on setting up and using your VCR.
Please take the time to read them as they will help you take full advantage of the VCR’s features.
The booklet is organized as follows:
◆ The simple describing of Worldwide VCR.
◆ A series of step-by-step procedures for each function available forms the main body of the
booklet.
◆ At the end of the booklet, you will find illustrations of the VCR (front and rear), the display and
the remote control unit to help you find the buttons and understand the symbols displayed (see
pages 51 and 52).
Preparing Your Video Cassette Recorder
Before being able to play and record video cassettes, you must prepare and connect your VCR.
◆ Insert batteries in the remote control.
◆ Connect your VCR to the television.
◆ Set the date and time used to display information on the television screen.
◆ Preset the stations.
All these operations are essential so you must follow the step-by-step instructions carefully.
REMOTE CONTROL
& BATTERIES “AAA”
OWNER’S
INSTRUCTIONS
& POWER ADAPTER
COAXIAL CABLE COAXIAL CABLE
& RF ADAPTERS A/V RCA CABLES
VCR
POWER
EJECT
INDEX REC.SPEED CLK/COUNT PICTURE TIMER
ART INPUT
123
456
789
0
CLR/RST
100
CH
R
E
W
P
L
A
Y
F
.
F
DISPLAY MONITOR A.DUB
REC P/STILL
INPUT
SYSTEM OUTPUT
SYSTEM
AUTO MENU
REV
FWD
STOP
STROBE AUDIO
OK
T
R
A
C
K
I
N
G
S
L
O
W
(OPTION)
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 5

6
Background to the Worldwide VCR
GB
Worldwide TV Color System
Many countries have different TV signal formats, with no exchangeability between them. This makes it
impossible to play back or record tapes with different signal formats. This worldwide common VCR
overcomes this problem by converting the signal format of any tape into the format you desire.
Comparison of TV color systems
☛ Classification of TV color systems by country
➢◆ NTSC : Korea, U.S., Canada, Japan, Taiwan, and Philippines
◆ PAL : United Kingdom, Germany, Western Europe, China, and Singapore
◆ SECAM : France, Eastern Europe, and CIS
◆ PAL-M : Brazil
◆ PAL-N : Argentina (The tape is the same as that of PAL)
◆ NTSC4.43 : Pseudo NTSC signal which is made to use the NTSC tape in the Middle East
(The tape is the same as that of NTSC3.58)
◆ MESECAM : The name of a tape which uses the method of recording the SECAM signal.
The output signal during playback is SECAM signal.
➢ Worldwide Broadcasting system is B/G, I, D/K, M, N, L.
Number of
scanning lines
Field
frequency
Line frequency
Color signal
modulation
system
Color signal
frequency
Burst signal
NTSC NTSC4.43 PAL-M PAL PAL-N SECAM MESECAM
525 625
3.579545
MHz
Fixed phase Inverted by 1 H DR.DB alternation
FM modulation
4.433619
MHz 3.575611 MHz 4.433619 MHz 3.582056 MHz DB 4.25MHz
DR 4.40625MHz
60Hz 50Hz
15.734KHz 15.625KHz
Sub carrier suppression quadrature modulation
“Worldwide Communication through VCR”
Today the Video Recorder is a major media and communication tool, used for both business and home
entertainment. Furthermore, the emergence of the camcorder has extended the versatility of the video
with home video making.
Video communication is increasingly becoming a global medium, but the different TV broadcasting
systems around the world hinder the worldwide exchange of video tapes.
The Samsung SV-7000W overcomes the incompatibility of different TV broadcasting systems through
sophisticated digital technology, allowing any standard VHS tapes to be played on any TV, any where in
the world (with free voltage).
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 6

7
GB
Multi-System VCR vs Worldwide VCR
The Worldwide VCR is similar to the Multi-System VCR in that it will play back tapes recorded in any
TV Broadcasting System. However, there are a few key differences:
NTSC
PAL
SECAM
NTSC PAL SECAM
NTSC PAL SECAM
SV-7000W Worldwide VCR
Multi-System VCR
With a Multi-System VCR:
The TV must correspond to the system of the tape being
played, otherwise, a Multi-System TV is also required;
Tape duplication with system conversion (eg NTSC to PAL) is
not possible.
With the Worldwide VCR:
Tapes can be played on any TV monitor;
Recordings can be made in any TV Broadcasting System,
even if the tape is of a different system;
Tape duplication with system conversion is possible.
ANY TV
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 7

8
System Conversion with the Worldwide VCR
GB
System conversion is the most complex digital process undertaken by the Worldwide VCR, converting
the “input” into a different “output”, eg from NTSC to PAL, or from PAL to SECAM.
INPUT OUTPUT
NTSC (3.58)
NTSC 4.43
PAL
PAL-M
PAL-N
SECAM
NTSC (3.58)
NTSC 4.43
PAL
PAL-M
PAL-N
SECAM
MESECAM (TAPE ONLY)
NTSC PAL PAL-M SECAM MESECAM
NTSC PAL PAL-M SECAM MESECAM
I
INPUT SELECTION
II
OUTPUT SELECTION
III
SYSTEM CONVERSION
VCR automatically selects the
correct TV broadcast system of
the input signal:
VCR digitally converts scanning
lines, frequency fields and color
signal into the desired system as
selected in step ll.
A. When RECORDING
The ‘input’ is the extemal TV
signal or the output from a
second VCR or LDP
B. During PLAYBACK
The ‘input’ comes from the
tape loaded for playback
The broadcast system of the
tape - on which the recording is
to be made - is to be selected
on the VCR ‘output’ panel
Recording in the desired
TV system
The broadcast system of the
TV - on which playback is to
be viewed - is to be selected
on the VCR ‘output’ panel
Playback can be viewed
on any monitor
A. TV RECORDING
B. PLAYBACK
ANY
TAPE
ANY
TAPE
Output:
Input signal converted to the
system of the tape loaded
Input Output
LINE IN
Input signal to be
recorded
ANY TV
EJECT
TRACKING SPEED AUDIO OUT
RESET
NORMAL(VHS) SQPBONLY
VIDEO
LINE 1 IN
AUDIO
L R
PLAY
STOP
F.F REW
REC PAUSE/STILL
THROUGH
NTSC
NTSC4.43
MESECAM
PAL-M
SECAM
PAL-N
AUTO
SECAM
PAL-M
PAL-N
POWER
PAL
NTSC
PAL
CHANNEL
INPUT
OUTPUT
PLAY
STOP
F.F REW
“input”
select panel “output”
select panel
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 8

9
GB
Tape Conversion with the Worldwide VCR
One of the most useful functions of the Worldwide VCR is the combination of tape duplication and
system conversion, more simply known as “Tape Conversion”. This allows the user to copy, for
example, a SECAM tape and simultaneously convert it to PAL or NTSC. This is particularly useful for
duplicating home video camcorder recordings and sending them to friends or relatives abroad.
NTSC
PAL
PAL-M
SECAM
MESECAM
NTSC
PAL
PAL-M
SECAM
MESECAM
NTSC
PAL
PAL-M
SECAM
MESECAM
NTSC
PAL
PAL-M
SECAM
MESECAM
NTSC
PAL
PAL-M
PAL-N
SECAM
MESECAM
NTSC
NT4.43
PAL
PAL-N
PAL-M
SECAM
Any VHS Tape Any VHS Tape
SV-7000W
AS A PLAYBACK VCR
SAMSUNG
Worldwide VCR
2nd VCR
AS A RECORDING VCR
Any VCR
SV-7000W
AS A RECORDING VCR
SAMSUNG
Worldwide VCR
2nd VCR
AS A PLAYBACK VCR
Corresponding VCR
VHS Tape
Corresponding
Any VHS Tape
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 9

10
GB
NTSC
PAL
PAL-M
SECAM
MESECAM
NTSC
PAL
PAL-M
SECAM
MESECAM
PUSH
S-VIDEO
MIC
LOCK
STANDBY
PUSH
S-VIDEO
MIC
LOCK
STANDBY
V HS-C
Any 8mm Tape
8mm CAMCORDER
AS A PLAYBACK VCR
Corresponding
Camcorder
Any VHS Tape
SV-7000W
AS A RECORDING VCR
SAMSUNG Worldwide VCR
SV-7000W
AS A RECORDING VCR
SAMSUNG
Worldwide VCR
Any VHS-C
Tape
VHS-C Tape
Adapter
2nd VCR
AS A PLAYBACK VCR
Corresponding VCR
Any VHS Tape
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 10

11
GB
Deciding How to Connect Up Your VCR
You must take into account various factors when deciding how to connect up your various audio
and/or video systems.
◆ Types of connectors available on your systems.
◆ Systems connected permanently to the VCR (satellite receiver for example) or from time to
time (camcorder for example).
Your VCR is equipped with the following connectors.
Connector Location Type Direction Recommended Use
AV Rear SCART In/Out ◆Television
LINE Rear Audio/Video RCA Out ◆Television
◆Other VCR
LINE 1 Front Audio/Video RCA In ◆Audio system
◆Camcorder
◆Other VCR
LINE 2 Rear Audio/Video RCA In ◆Audio system
◆Camcorder
◆Satellite receiver
◆Other VCR
OUT TO TV Rear 75 ΩOut ◆Television
coaxial
IN FROM ANT. Rear 75 ΩIn ◆Aerial
coaxial ◆Cable television network
☛Whenever you connect an audio or video system to your VCR, ensure that all units are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions
and associated safety precautions.
TV
EURO AV
VIDEO
OUT 2
R
L
AUDIO
OUT 1
R - A
VIDEO
LINE 1 IN
AUDIO
L R
R - AUDIO - L VIDEO
LINE 2 IN
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 11

12
GB
Connecting Your VCR to the TV
To receive television programmes from an air or cable television
network, a signal must be received from one of the following sources.
◆ An outdoor aerial.
◆ An indoor aerial.
◆ A cable television network.
☛Make sure that both the television and the VCR are
switched off before connecting the cables.
1Remove the aerial or network input cable from the television.
2Connect this cable to the 75Ωcoaxial socket marked on the
rear of your VCR.
3Plug the coaxial cable supplied into the socket on your VCR.
4Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5Connect one end of the RCA cable supplied to the output socket
(OUTPUT1 or OUTPUT2) on the rear of the VCR, if your television
is equipped with this type of connection.
➢Respect the colour coding of the Audio and Video In/Out
cable.
6Connect one end of the SCART cable to the EURO AV socket on
the rear of the VCR, if your television is equipped with this type of
connection.
7Plug the other end (of the RCA cable or SCART cable) into the
appropriate connector on the television.
◆Regardless of the type of connection chosen, you must
always connect the coaxial cable supplied. Otherwise, no
picture will be visible on the screen when the VCR is
switched off.
◆Make sure that both the television and the VCR are
switched off before connecting the cables.
* NOTICE:
You can select the coaxial cable using the RF Adapter
according to your Antenna socket.
[NTSC/PAL-M Region]
TV
TV
2
TV
TV
VIDEO
OUT 2
R
L
AUDIO
OUT 1
R - AUDIO - L VIDEO
LINE 2 IN
EURO AV
TV
3
6
VIDEO
OUT 2
R
L
AUDIO
OUT 1
R - AUDIO - L VIDEO
LINE 2 IN
EURO AV
5
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 12

13
GB
You must insert or replace the batteries in the remote control when
you:
◆ purchase the video cassette recorder ; or
◆ find that the remote control is no longer working
correctly.
1Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2Insert two AAA or equivalent batteries (supplied), taking care to
respect the polarities.
◆+ on the battery with + on the remote control.
◆– on the battery with – on the remote control.
3Replace the cover by aligning it with the base of the remote
control and pushing it back into place.
The VCR automatically display initial setting MENU when the VCR
is plugged into the AC outlet first time.
1Plug the VCR into the AC outlet.
Result: The LANGUAGE SET is displayed.
2Press the , and OK button to select your favorite language.
Result: The COUNTRY SET is displayed.
3Press the , , button to select your country.
Result: The country list is displayed.
4Press the , , and OK button to select your country.
Result: The option selected flashes.
5Press the or buttons to increase or decrease the value.
Result: The initial setting is finished.
➢If your country dose not exist in the country list, then select
the other.
Inserting the Batteries in the Remote Control
Plug and Initial Setting
1
** LANGUAGE SET **
¨ ENGLISH
DEUTSCH
FRANÇAIS
ITALIANO
JAPAN
¹ MEMORY:(OK)
** COUNTRY SET **
¨ EUROPE
AMERICA
EASIA/OCEANIA
MIDDLE EAST/AFRICA
¹ ¨ END:(MENU)
** EUROPE **
¨ U.K. GERMANY
ITALY SPAIN
SWEDEN SWISS
AUSTRIA RUSSIA
NETHERLANDS FRANCE
OTHERS L/G/I/K:G
¹ ¨ MEMORY:(OK)
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 13

Setting the Date and Time
Your VCR contains a 24-hour clock and calendar used to:
◆ preset your VCR to record a programme automatically.
You must set the date and time when:
◆ you purchase the video cassette recorder.
◆ the power supply remains off for more than 60 minutes.
☛◆The date and time are set automatically from the
broadcast signal, but this function will not operate if
there is no PDC or Teletext signal.
◆Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the or buttons, until the cursor is placed in front of the
CLOCK SET option.
3Press the button to select this option.
Result: The CLOCK SET menu is displayed.
4Press or to select the hour, minutes, day, month and year.
Result: The option selected flashes.
5Press the or buttons to increase or decrease the value.
Result: The day of the week is displayed automatically.
➢You can hold the or buttons down to scroll more
quickly through the values.
6On completion, press MENU twice to exit the menu.
GB
14
INPUT
SYSTEM OUTPUT SYSTEM
AUTO MENU
OK
G
** M E N U **
TIMER PROGRAMMING
USER SET
INSTALLATION
LANGUAGE SET
¨ CLOCK SET
¹ ¨ END:(MENU)
AUTO MENU
EV
FW
OK
T
R
A
C
K
I
N
G
S
L
O
W
1
** CLOCK SET **
12:00 1/JAN/1999
FRI
AUTO CLOCK : ON
è ¹ END:(MENU)
3
2
2
00408A SV-7000W-GB1 9/7/99 1:43 AM Page 14

The user set is initially setted in factory. If you want any change
about USER SET, must check the below explanation.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the , , button to select user set.
Result: The USER SET1 is displayed.
3Press the , , to select the USER SET1 item.
4Check the below, and change the item.
* USER SET1
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the , , button to select user set.
Result: The USER SET1 is displayed.
3Press the , , to select the USER SET2.
4Press the , , to select the USER SET2 menu item.
5Check the below, and change the item.
* USER SET2
GB
USER SET1 Setting
USER SET2 Setting
15
ITEM USAGE COMMENT
TAPE tape length select Select the recording tape type for
SELECT remain time.
CLOCK 12H/24H mode Select your favorite clock type.
TYPE
PLAY play tape system The VCR automatically select play
SYSTEM selection system. If the auto detection error is
occurred, then select the play
system manually.
OSD OSD display on/off Initial setting is on.
USER SET2 USER SET2 select Select to go to USER SET2 page.
ITEM USAGE COMMENT
NICAM NICAM on/off Initial is on(NICAM stereo mode).
(EUROPE only) If the NICAM stereo sound is
distorted, then select off mode for
mono sound receiving.
COLOUR COLOUR or B/W Initial is on. Colour off mode is B/W.
select If colour distortion is occurred in
play or conversion mode, then
select colour off mode.
BLUE BLUE SCREEN Initial is blue screen on.
SCREEN on/off If any problem is occurred by blue
screen, then select blue screen off.
SQPB S-VHS Playback See page 32.
USER SET1 USER SET1 select Select to go to USER SET1 page.
** M E N U **
TIMER PROGRAMMING
¨ USER SET
INSTALLATION
LANGUAGE SET
CLOCK SET
¹ ¨ END:(MENU)
** M E N U **
TIMER PROGRAMMING
¨ USER SET
INSTALLATION
LANGUAGE SET
CLOCK SET
¹ ¨ END:(MENU)
** USER SET1 **
¨ TAPE SELECT :E180/
T120
CLOCK TYPE :24H
PLAYSYSTEM :AUTO
OSD :ON
USER SET2
¹ ¨ END:(MENU)
** USER SET1 **
TAPE SELECT :E180/
T120
CLOCK TYPE :24H
PLAYSYSTEM :AUTO
OSD :ON
¨ USER SET2
¹ ¨ END:(MENU)
** USER SET2 **
¨ NICAM :ON
COLOUR :ON
BLUE SCREEN :ON
SQPB :OFF
USER SET1 :ON
¹ ¨ END:(MENU)
00408A SV-7000W-GB1 9/7/99 1:44 AM Page 15

16
GB
Your VCR displays most information both on the VCR and television.
You can choose to display or hide this information on the television
screen (except for the Index, Timer Programming function, which
cannot be hidden).
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding or buttons, until the cursor is
placed in front of the USER SET option.
3Press the button to select this option.
Result: The USER SET1 menu is displayed.
4Press the corresponding or buttons, until the cursor is
placed in front of the OSD option.
5To: Press or , until:
display on-screen information ON is displayed.
hide on-screen information OFF is displayed.
6On completion, press MENU twice to exit the menu.
Displaying/Hiding On-Screen Information
Tuning System
You can select the Tuning System if you live in the U.K.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding or buttons, until the cursor is placed
in front of the INSTALLATION option.
3Press the button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding or buttons, until the cursor is placed
in front of the COUNTRY option.
5Press the button to select the EUROPE option.
6Press the button to select the EUROPE and U.K. option.
7On completion, press OK to memory.
** INSTALLATION **
¨ COUNTRY
AUTO SET UP
MANUAL SET UP
¹ ¨ END:(MENU)
** EUROPE **
¨ U.K. GERMANY
ITALY SPAIN
SWEDEN SWISS
AUSTRIA RUSSIA
NETHERLANDS FRANCE
OTHERS L/G/I/K:G
¹ ¨ MEMORY:(OK)
** M E N U **
TIMER PROGRAMMING
¨ USER SET
INSTALLATION
LANGUAGE SET
CLOCK SET
¹ ¨ END:(MENU)
** USER SET1 **
TAPE SELECT :E180/
T120
CLOCK TYPE :24H
PLAYSYSTEM :AUTO
¨ OSD :ON
USER SET2
¹ ¨ END:(MENU)
00408A SV-7000W-GB1 9/7/99 1:44 AM Page 16
