Sony PFV-D10 User manual

DIGITAL INTERFACE UNIT
PFV-D10
INSTALLATION MANUAL
1st Edition
Serial No. 10001 and Higher

!WARNING
This manual is intended for qualified service personnel only.
To reduce the risk of electric shock, fire or injury, do not perform any servicing other than that
contained in the operating instructions unless you are qualified to do so. Refer all servicing to
qualified service personnel.
!WARNUNG
Die Anleitung ist nur für qualifiziertes Fachpersonal bestimmt.
Alle Wartungsarbeiten dürfen nur von qualifiziertem Fachpersonal ausgeführt werden. Um die
Gefahr eines elektrischen Schlages, Feuergefahr und Verletzungen zu vermeiden, sind bei
Wartungsarbeiten strikt die Angaben in der Anleitung zu befolgen. Andere als die angegeben
Wartungsarbeiten dürfen nur von Personen ausgeführt werden, die eine spezielle Befähigung
dazu besitzen.
!AVERTISSEMENT
Ce manual est destiné uniquement aux personnes compétentes en charge de l’entretien. Afin
de réduire les risques de décharge électrique, d’incendie ou de blessure n’effectuer que les
réparations indiquées dans le mode d’emploi à moins d’être qualifié pour en effectuer d’autres.
Pour toute réparation faire appel à une personne compétente uniquement.
For the U.S.A
Attention-when the product is installed in Rack:
1. Prevention against overloading of branch circuit
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
make sure that the rack does not overload the supply
circuit.
2. Providing protective earth
When this product is installed in a rack and is
supplied power from an outlet on the rack, please
confirm that the outlet is provided with a suitable
protective earth connection.
3. Internal air ambient temperature of the rack
When this product is installed in a rack, please make
sure that the internal air ambient temperature of the
rack is within the specified limit of this product.
4. Prevention against achieving hazardous
condition due to uneven mechanical loading
When this product is installed in a rack, please make
sure that the rack does not achieve hazardous
condition due to uneven mechanical loading.

1(E)
PFV-D10
Table of Contents
Manual Structure
Purpose of this manual ......................................................................................... 3(E)
Contents ................................................................................................................ 3(E)
Related manuals.................................................................................................... 4(E)
1. Installation
1-1. Installation Procedure ............................................................................. 1-1(E)
1-2. Operating Environment .......................................................................... 1-1(E)
1-3. Power Supply ......................................................................................... 1-1(E)
1-3-1. Power Supply Specifications ................................................. 1-1(E)
1-3-2. Recommended Power Cord ................................................... 1-1(E)
1-4. Installation Space ................................................................................... 1-2(E)
1-5. Installing Optional Board .......................................................................1-3(E)
1-6. Rack Mounting ....................................................................................... 1-5(E)
1-7. Optional Accessories .............................................................................. 1-6(E)

3(E)
PFV-D10
Purpose of this manual
This manual is the installation manual of Digital Interface Unit PFV-D10.
This manual is intended for use by trained system and service engineers, and
describes the information for installation of the unit.
Contents
This manual is organized by following sections.
Section 1 Installation
1-1. Installation Procedure
Explains the installation procedure with a flowchart.
1-2. Operating Environment
Describes the operating environment such as operating temperature/humidity,
and mass of the unit.
1-3. Power Supply
Describes the power supply, recommended power cord, and the notes for power
supply.
1-4. Installation Space
Describes the dimensions of the unit.
1-5. Installing Optional Board
Explains the installation procedure of the optional board.
1-6. Rack Mounting
Explains the rack mounting procedure of the unit in the 19-inch standard rack.
1-7. Optional Accessories
Describes the optional boards and rack mounting kit.
Manual Structure

4(E) PFV-D10
Related manuals
The following manuals are prepared for the PFV-D10.
• Operation Manual (Supplied with PFV-D10)
This manual describes the notes on operating, the locations and functions of parts,
and controls of the PFV-D10.
• Maintenance Manual (Available on request)
This manual describes the information for periodic maintenance and detailed
service.
For obtaining the maintenance manual, please contact to your local Sony’s sales
representative or service center.

1-1(E)
PFV-D10
Section 1
Installation
End
Start
Determining the Location of Installation
1-2. Operating Environment
1-3. Power Supply
1-4. Installation Space
Installing the Optional Board
1-5. Installing Optional Board
1-6. Rack Mounting
Connection
Rack Mounting
AC Inlet
(Main unit)
1
AC Inlet
(Main unit)
2
1-3. Power Supply
1-3-1. Power Supply Specifications
Power voltage AC 100 V to 240 V
Power frequency 50/60 Hz
Power consumption AC 100 to 120 V : Max. 0.8 A
AC 220 to 240 V : Max. 0.4 A
(With the optional board installed.)
Rush current AC 120 V IN : 28.8 A
AC 240 V IN : 61.6 A
1-3-2. Recommended Power Cord
For customers in the U.S.A. and Canada
Required Part
1Power cord, 125 V 10 A (2.4 m) : 1-557-377-11
For customers in the United Kingdom
Required Part
2Power cord, 250 V 10 A (2.5 m) : 1-590-910-11
n
For the customers outside of the area as shown above,
please consult with local Sony’s sales representative or
service center.
w
.Use the specified power cord only.
Be sure to use the recommended power cord to avoid fire
and/or an electric shock.
.Ground the unit for your safety.
Be sure to attach a ground wire to avoid an electric
shock.
1-1. Installation Procedure
The installation procedure of the PFV-D10 is shown in the
following flowchart.
Refer to the each item in this manual for details.
1-2. Operating Environment
Operating temperature +5 dC to +40 dC
Performance temperature +5 dC to +40 dC
Humidity 10 to 90 % (No condensation)
Mass Approx. 6 kg
(Not including the optional board.)
To prevent overheating of the PFV-D10 ensure that there is
good air circulation around the unit.

1-2(E) PFV-D10
43.6(1U)
31.8
482
465
424
425.5 11.
2
73
123.8
263.5
21.5
Unit : mm
1-4. Installation Space
n
Do not block the ventilation holes of the unit.
Place the unit at least 20 cm away from the walls for ventilation and maintenance.
The outer dimensions of the PFV-D10 are as shown in the figure below.
1-4. Installation Space

1-3(E)
PFV-D10

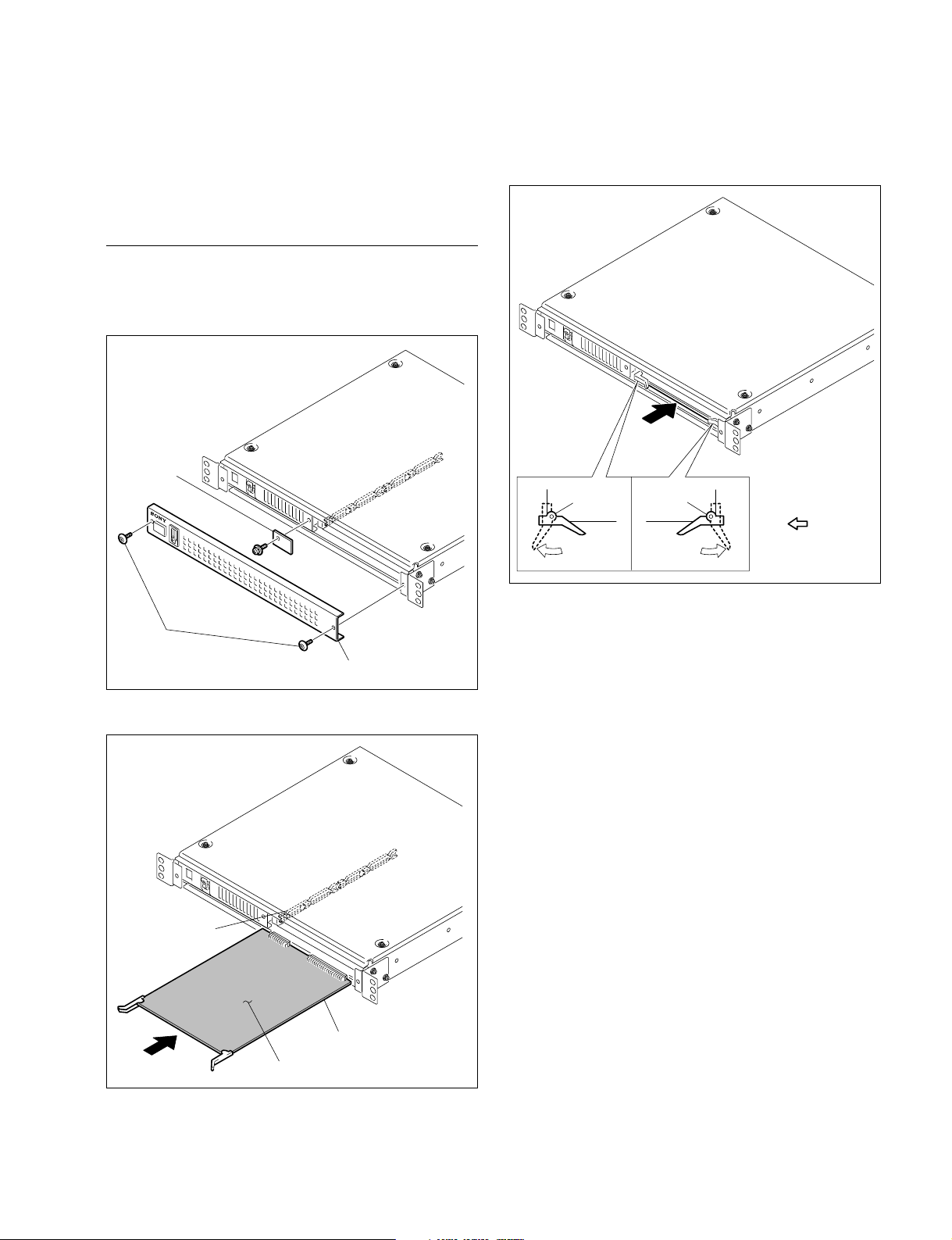

1-5. Installing Optional Board
n
Turn off the power and unplug the power plug from the
outlet before installing or removing the board.
Front side
1. Remove the two screws, then remove the front panel.
2. Remove the screw, then remove the board retainer.
3. Insert the optional board along the board guide rails.
4. Push the optional board with the board levers turned in
the direction of the arrow 1until it connects to a
motherboard of the unit securely.
5. Install the board retainer.
6. Install the front panel.
n
When removing the optional board, turn the board levers in
the direction of the arrow 2, then pull out the board
toward you.
Board retainer
PSW
3x6
Screws
Front panel
Optional board
Board guide rail
Component side
1
11
2
22
Insert
Remove
Board lever Board lever
1-5. Installing Optional Board

1-4(E) PFV-D10
Connector cover
B 3x6
B 3x6
Connector panel
B 3x6
B 3x6
Rear side
1. Remove the two screws, then remove the connector
cover on the rear side.
2. Insert the optional connector panel.
3. Secure the connector panel with the two screws
securing the connector cover.
n
Attach the connector cover to a dead solt. Opening the slot
may cause an electric shock and cannot realize an air-
cooled effect of the unit.
1-5. Installing Optional Board

1-5(E)
PFV-D10

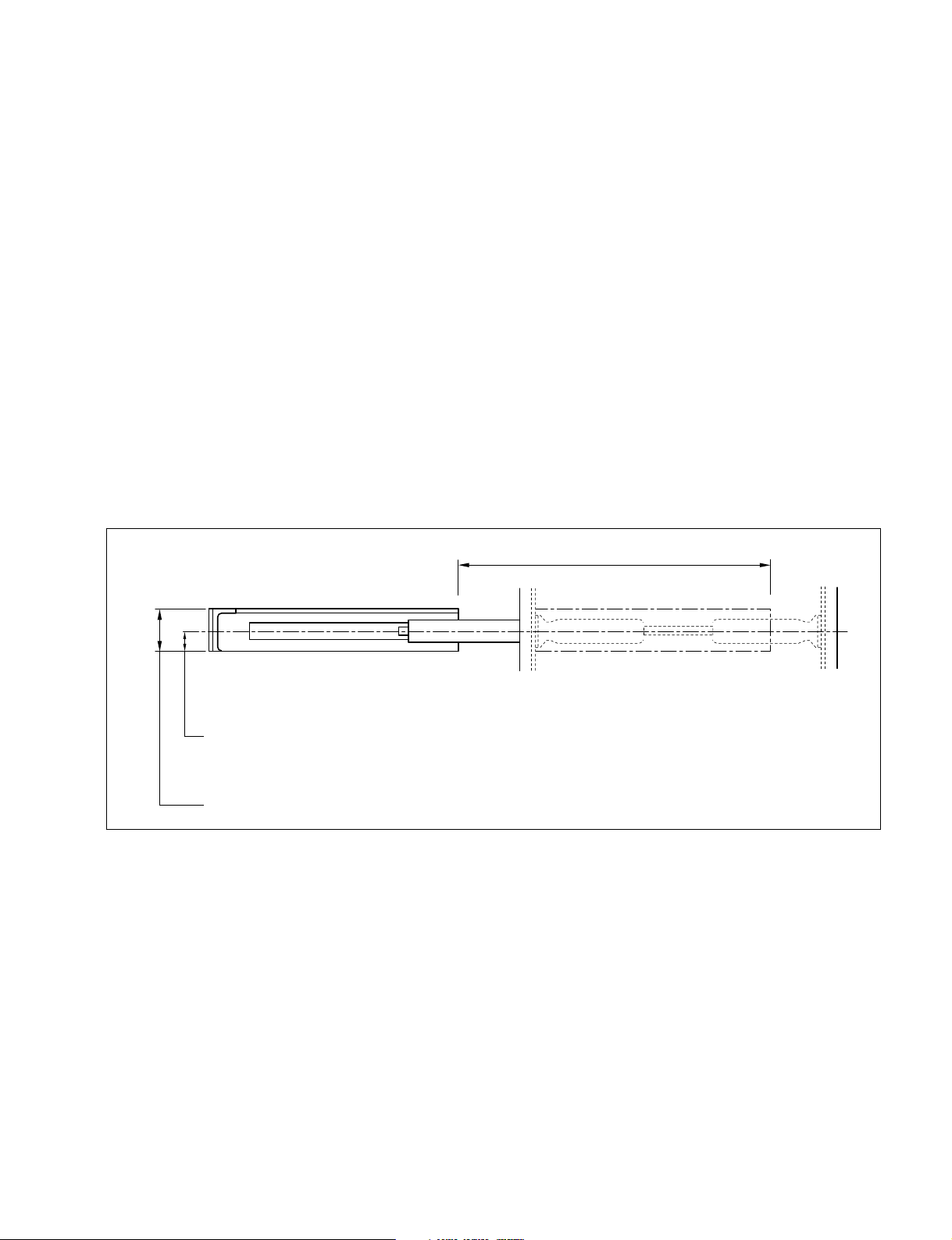

43.6
21.5
Maximum traveling stroke 581
Height to the center of the slide rail
Height of the unit when it is mounted on the rack
Unit : mm
1-6. Rack Mounting
The PFV-D10 can be mounted in a 19-inch standard rack.
c
Be sure to use the following rack mount rail.
.Sony Rack Mount Rail
RMM-30 (Optional accessory) 1 set
n
Refer to the installation manual supplied with the rack mount rail RMM-30 to attach the rail to the PFV-
D10.
The following components are required for rack mounting.
.Screw (RK 5x16) x2
.Ornamental washer x2
The maximum traveling stroke of the PFV-D10 when mounted on a rack is as follows.
1-6. Rack Mounting

1-6(E) PFV-D10
1-7. Optional Accessories
1-7. Optional Accessories
The optional accessories of the PFV-D10 are as follows:
..
..
.Optional Board
BKPF series
(For the details, refer to the supplied operation manual with the PFV-D10.)
n
The optional board BKPF-L series can not install in the PFV-D10.
..
..
.Rack Mount Rail
RMM-30
..
..
.Extension Board
EX-331 Board : J-6185-960-A
