Samsung SVD-4120AW User manual

SAMSUNG CCTV CAMERA
SVD-4120A/AW
Vandal-Proof Color Dome Camera
INSTRUCTION MANUAL
About this manual
Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for later reference.
P/No. : 6806-0458-01B
VAN 04. 10
•SAMSUNG TECHWIN CO., LTD.
Optics & Digital Imaging Division 145-3, Sangdaewon 1-Dong,
Jungwon-Gu,Sungnam,Kyungki-Do,Korea462-703
TEL:[phone]~41 FAX:[phone]
•SAMSUNG OPTO-ELECTRONICS AMERICA, INC. (SOA)
Closed Circuit Division 40 Seaview Drive, Secaucus NJ 07094,
U.S.A
TEL: [phone] FAX:[phone]
•SAMSUNG OPTO-ELECTRONICS UK LTD (SOUK)
Samsung House, 1000 Hillswood Drive Hillswood Business
ParkChertseySurreyKT16OPS
TEL:[phone] FAX:[phone]
•
TIANJINSAMSUNGOPTO-ELECTRONICSCO.,LTD(TSOE)
7PingchangRd,NankaiDist, Tianjin, P.R China
PostCode:300190
TEL: [phone] FAX: [phone]
SALES NETWORK
www.samsungtechwin.com
www.samsungcctv.com

This installation should be made by a qualified service person and
should conform to all local codes.
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
INFORMATION-This equipment has been tested and found to comply with limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
WARNING -Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
Thank you for purchasing a SAMSUNG CCTV CAMERA.
Before operating the camera, confirm the camera model and
proper input power voltage. In order that you can understand
this manual thoroughly, we'll introduce our model description.
SVD-4120A Series (410,000 pixels)
• NTSC models • PAL models
SVD-4120AN SVD-4120AP
SVD-4120AWN SVD-4120AWP
Model Description
SVD-4120A X X
• Lens Type
Blank 2.5X, f=3.8~9.5 Vari-Focal Lens
W 2.4X, f=2.5~6.0 Vari-Focal Lens
• Signal System
N NTSC Model
P PAL Model
Lens Type
Signal system

Features Warning
Fine Picture Condition Under Very
Low Illumination (SENSE UP)
1/3 high density CCD and digital
processor permit high quality pictures to
be captured in very low light condition.
High Resolution
The horizontal resolution of 500TV lines
can be achieved by using a high density
CCD having Double Speed 410,000 pixels
SONY CCD, which provides clean,
noiseless and reliable pictures.
Wide Range ATW
The White Balance can be automatically
adjusted in response to light condition so
that you can observe in an appropriate
color balance.
IP66 Approved / Dust and Rain
Resistant
With dust and rain resistant design, the
camera can be installed outside under
building eaves or places that are exposed
to the dust and rain.
SSNR(Samsung Super Noise
Reduction) CHIP
SVD-4120A/AW has an assistant DSP
chip that can remove image noise
efficiently and it shows clean and obvious
image in low luminance
Electronic DAY/NIGHT
In normal or high luminance, camera
maintains color mode. On the contrary, it
get changed into B/W mode in low
luminance.
Auto Iris Vari-Focal Lens Built In
The focal length of lens is 3.8 to 9.5 mm,
equivalent to 2.5x zoom.(2.5 to 6.0mm,
equivalent to 2.4x zoom/SVD-4120AW)
The built-in lens allows the camera to
have a Wider Dynamic Range, therefore
you can use in various applications.
The camera needs periodic inspection.
Contact an authorized technician for inspection.
Stop using your camera when you find a malfunction.
If you use your camera around smoke or unusual heat for a long time, a fire may
be caused.
Do not Install the camera on a surface that can not support it.
Unless the surface is suitable, it could cause falling or other hazards.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not disassemble the camera.
It may result in fire, electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in fire or other hazards.

Contents
Connecting to Monitor
Connecting to Power
Configuration of The Menu
8
15
15
16
17
20
21
22
25
26
27
28
28
30
32
10
11
13
13
14
Operating Your Camera
Setting Up The Menu
• CAMERA ID
• BACKLIGHT
• WHITE BALANCE
• MOTION DETECTION
• IRIS LEVEL CONTROL
• SHUTTER SPEED CONTROL
• SESE UP
• GAIN
• SSNR
• SPECIAL
Troubleshooting
34

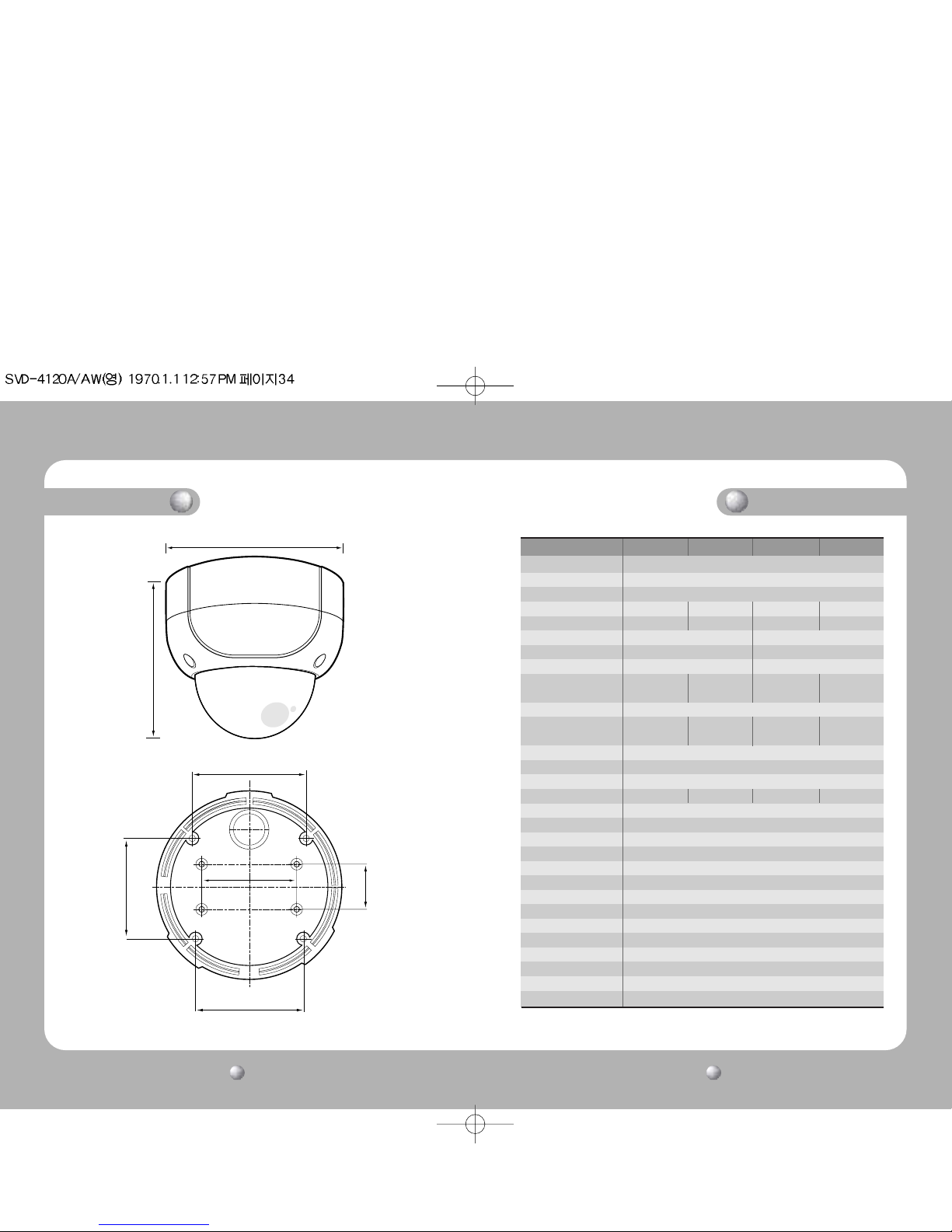

Dimention
35
Specifications
Connection
Precautions
Composition
Name and Function of Each Section

COLORDOME CAMERACOLORDOME CAMERA User’s ManualUser’s Manual
98
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between -10˚C
and +50˚C. Be especially careful to provide
ventilation when operating under high
temperatures.
Do not install or use the camera in an
environment where the humidity is high.
It can cause the image quality to be poor.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can cause
the camera to work improperly.
Do not touch the front lens of
the camera.
It is one of the most important parts of
the camera. Be careful not to be stained
by fingerprint.
Do not drop the camera or
subject them to physical shocks.
It can cause malfunctions to occur.
Never keep the camera face to
strong light directly.
• If the camera is exposed to spotlight or object reflecting strong light, smear or
blooming may occur.
• Please check that the power satisfies the normal specification before connecting
the camera.
Notes
It can damage the CCD.
Do not expose the camera to
radioactivity.
If it is exposed to radioactivity, For
heated CCD, it will be out of order.

Composition
Name and Function of Each Section
COLORDOME CAMERA User’s Manual
11
COLORDOME CAMERA User’s Manual
10

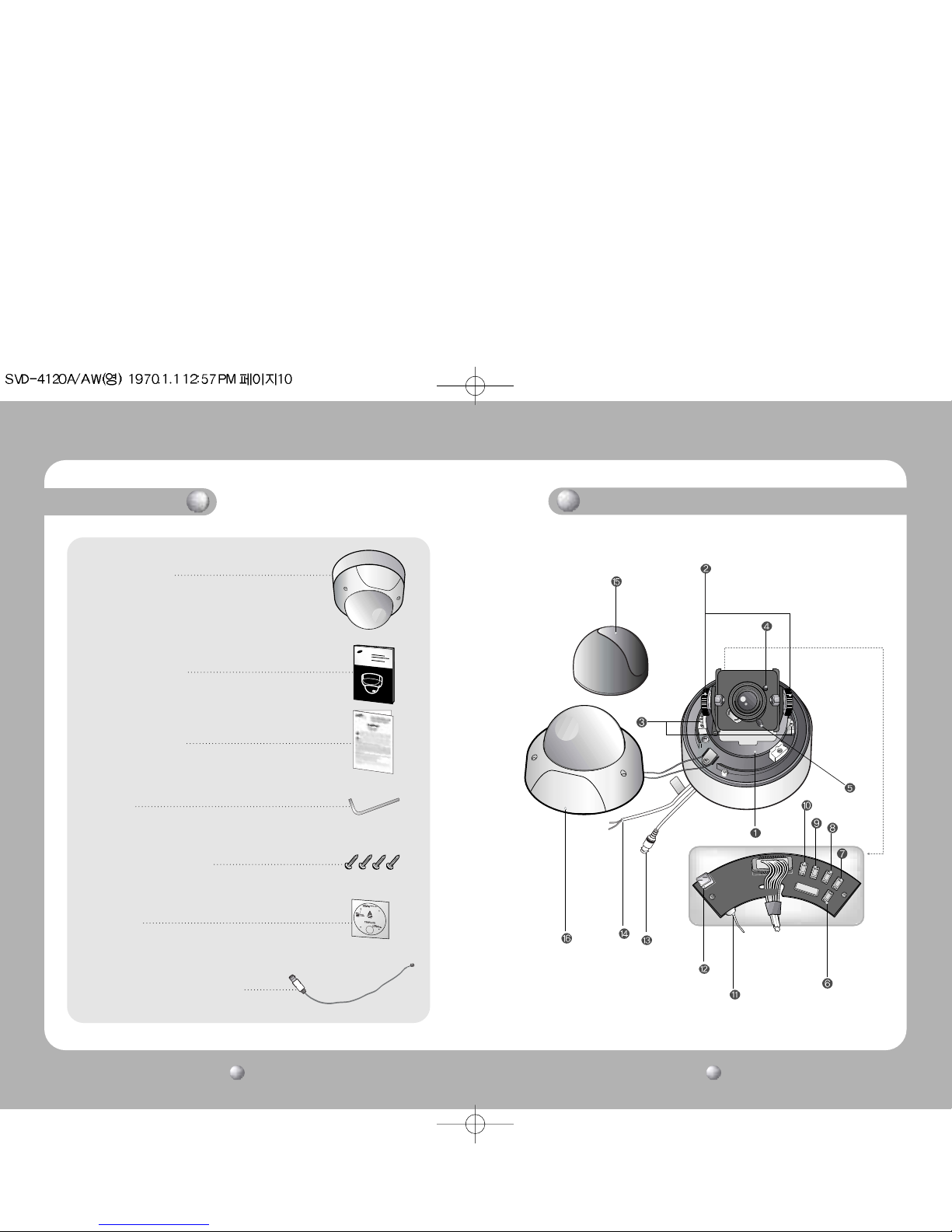

1. SVD-4120A/AW
2. Instruction Manual
3. Quick Install Guide
5. Ø5 Tapping Screws 4EA
6. Template
4. Wrench
7. Video Output Cable for installer

Name and Function of Each Section
COLORDOME CAMERA User’s Manual
13
COLORDOME CAMERA User’s Manual
12
Pan Base
control panning angle of camera
Tilt Base Holding Serews
fix tilted position.
Pan Base Holding Screws (Color : Silver)
fix panned position
Zoom Handle
adjust zoom between WIDE and TELE
Focus Handle
afteradjusting zoom, adjustfocus
SET Button
confirm the status of the selected feature
RIGHT Button
move cursor to the right, change the status of the selected feature
DOWN Button
movecursor to thedown, select thedesired feature item
UP Button
movecursor to theup, select thedesired feature item
LEFT Button
move cursor to the left, change the status of the selected feature
Video Output Terminal
Video Output Terminal to Monitor
Video Output Jack
Power Input Jack
Shield Case
Dome Cover
Connection

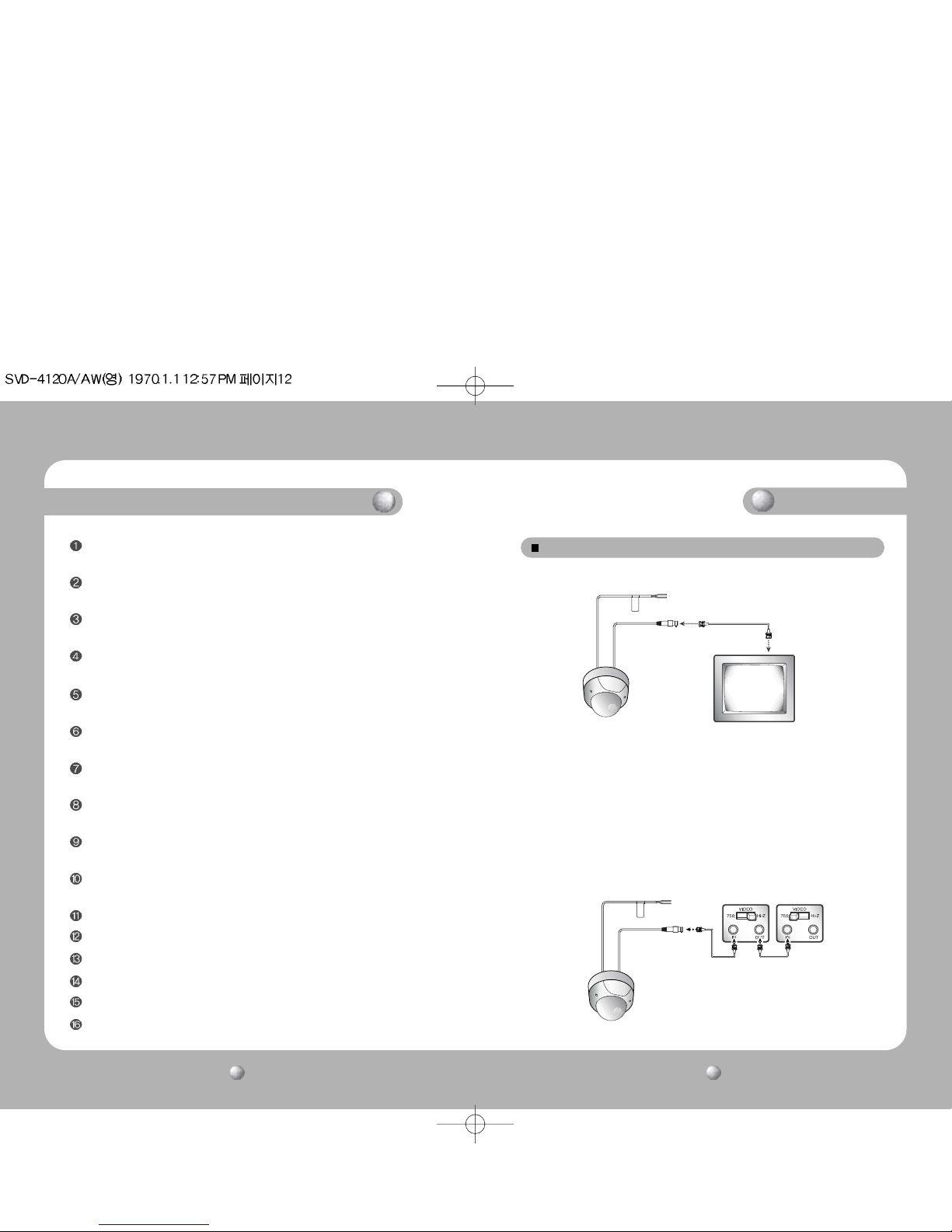

Connecting to Monitor
Connect the VIDEO-OUT jack to the VIDEO-IN jack of monitor.
• As the connecting method varies with the instruments, refer to the manual
supplied with the instrument.
• If necessary, you can connect the monitor to the REMOTE jack on the back of
your camera.
• Only connect the cable when the power is turned off.
• Set the 75Ω/ Hi-Z selection switch as shown below if you have an intermediate
device.
CCTV Camera Monitor
CCTV Camera
Intermediate End monitor

COLORDOME CAMERA User’s Manual
15
COLORDOME CAMERA User’s Manual
14
Operating Your Camera
Connection

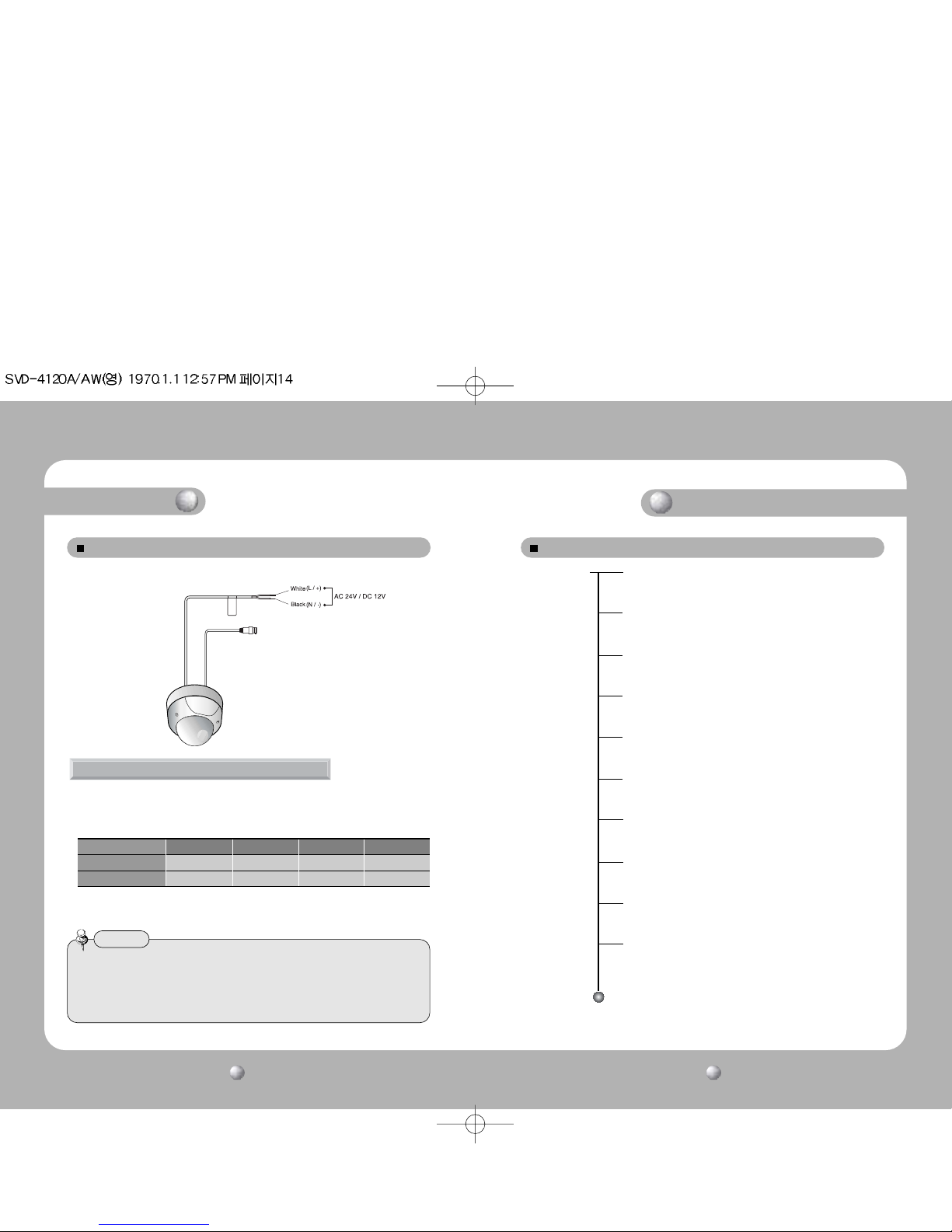

Connecting to Power
• Use AC 24V / 300mA or DC 12V / 500mA power source.
•For DC power as the voltage drop according to the length of the cable in the
abovetable, a cameramay malfunction ifthere is anexcessively long cablerun.
Resistance of copper wire [at 20C˚ (68˚F)]
* Voltage for camera operation: 12V DC ±10%
* Voltage drops in the above table are variable according to types of cable manufacturer.
For DC Power Type
Copper wire size (AWG)
#24(0.22mm2)#22(0.33mm2)#20(0.52mm2)#18(0.83mm2)
Resistance ( Ω/ m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
• Be sure to connect power only after all the installation is complete.
• Note that AC or DC adaptor is not supplied with camera.
• Use the UL listed, class 2 power transformer of AC 24V adaptor.
• Ground should be connected to the GND terminal.
Notes
Configuration of The Menu
SETUP MENU CAMERA ID (see page 17)
• OFF • ON

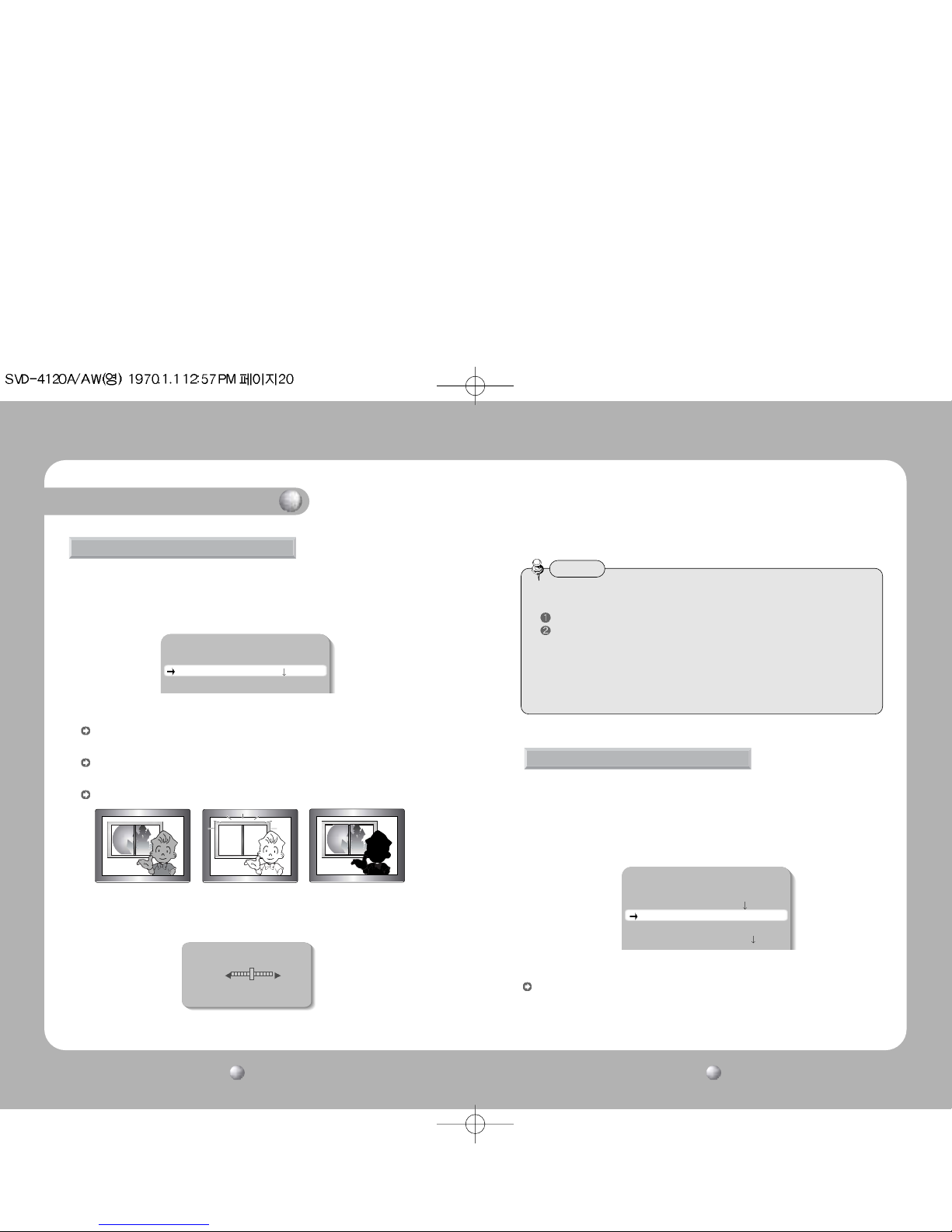

BACKLIGHT (see page 20)
• WDR • BLC • OFF
WHITE BAL. (see page 21)
• W-ATW • S-ATW • AWC • MANUAL

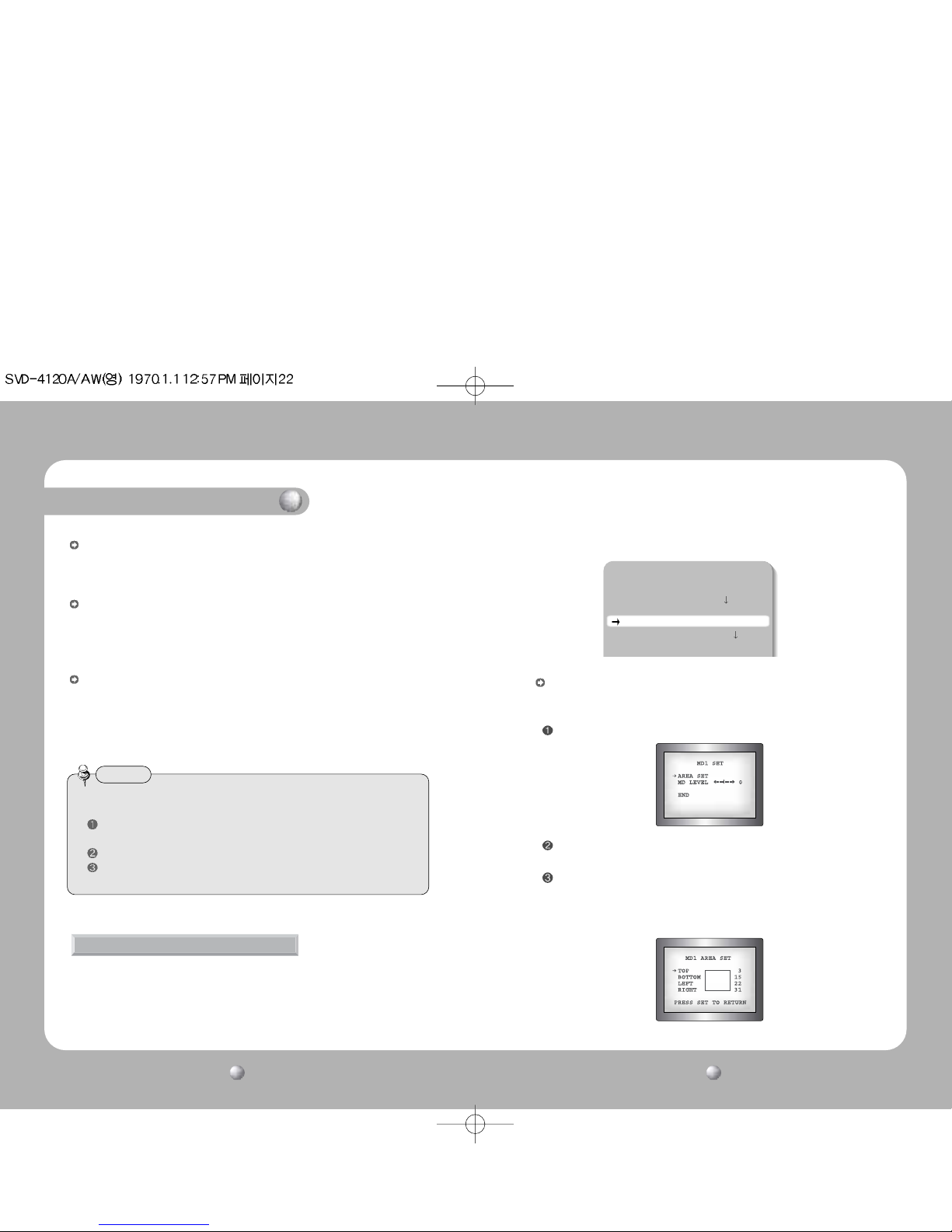

MOTION DET. (see page 22)
• OFF • MD1 • MD2
IRIS LEVEL CONTROL (see page 25)
• LEVEL
SHUTTER (see page 26)
• OFF • 1/100 (1/120) • MANUAL
SENSE UP (see page 27)
• Auto • OFF
GAIN (see page 28)
• OFF • AGC-L •AGC-H
SSNR (see page 28)
• OFF • LOW • MIDDLE •HIGH
SPECIAL (see page 30)
• COLOR • SYNC • PRIVACY • RESET
• END • EXIT
EXIT

COLORDOME CAMERA User’s Manual
17
COLORDOME CAMERA User’s Manual
16
Setting Up The Menu
Operating Your Camera

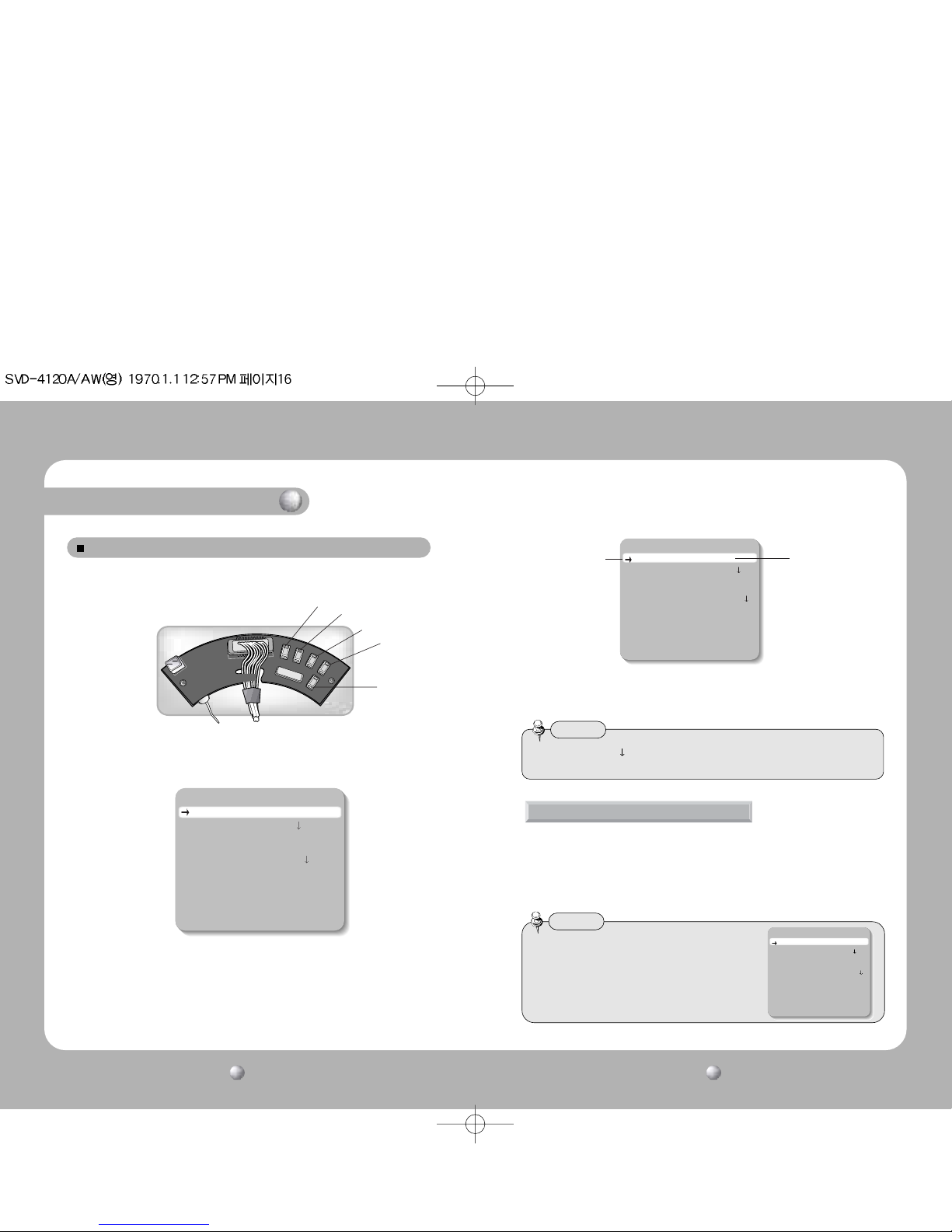

1. Pressthe SET buttonto access theSETUP mode.
•SETUP menu isdisplayed on themonitor screen.
2. Selectthe desired featureusing the UPor DOWN button.
•Each time you press the UP or DOWN button, the arrow indicator moves up
ordown.
•Move the arrowindicator to thedesired feature item.
Usethe five SETUPMENU buttons onback of thecamera.
RIGHT button
UP button
LEFT button
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT
SET button
DOWN button
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT
Change the status using
the LEFT or RIGHT button.
Select the function using
the UP or DOWN button.
3. Changethe status ofthe selected featureusing the LEFTor RIGHT button.
4. Whencompleted, move thearrow indicator to'EXIT' and pressthe SET button.
Ifyou enter aCAMERA ID, thename will bedisplayed in thescreen monitor.

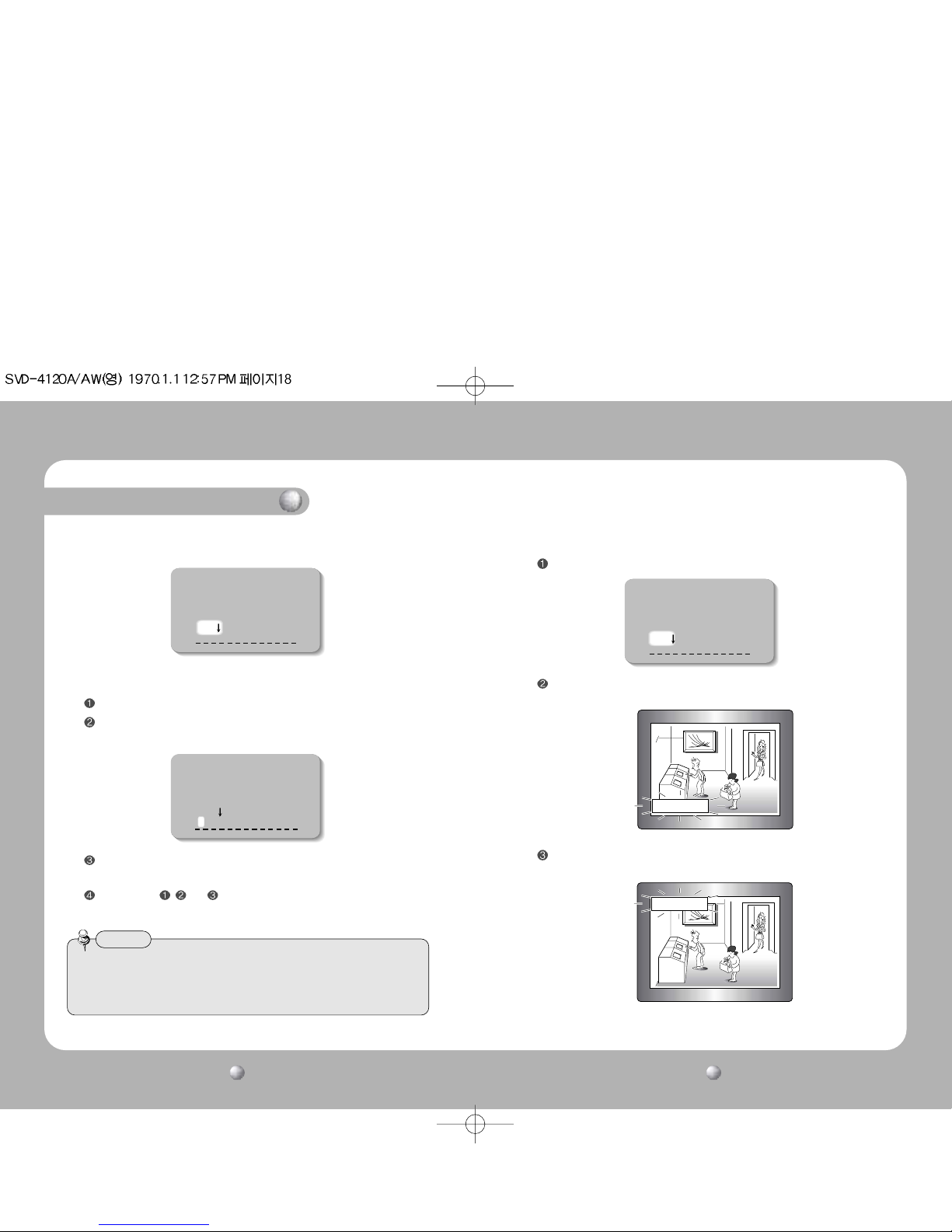

1. Press the SET button to display the SETUP menu and move the arrow
indicatorto 'CAMERA ID'using the UPor DOWN button.
2. Set'CAMERA ID' to'ON' using theLEFT or RIGHTbutton.
CAMERA ID
• If the CAMERA ID feature is set to 'OFF', the name
will not displayed in the monitor.
Notes
• For the mode with you can access submenu.
• You can access submenu using SET button.
Notes
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT

Operating Your Camera
COLORDOME CAMERA User’s Manual
19
COLORDOME CAMERA User’s Manual
18
3. PressSET button.
4. Youcan enter upto 16 characters.
Movethecursortocharacter-enterlocationbyusingtheLEFTorRIGHTbutton.
Selectthe desired characterby using UPor DOWN button.
•Thefactory defualt charactersare A, B,···, a, b,···, ., -,··· 0, 1···,8, 9
Pressthe SET buttonto confirm theblinking character. Thefirst character is
savedandthe cursor inthebottomof the screenmovestothe nextposition.
Repeatssteps , and untilyou create thefull name youwant.
• If you make a mistake while entering name
Move the cursor to ‘CLR’, press ‘SET’ button.
After erasing the character from right to left, correct the character again.
Notes
CANERA ID
POS CLR RESET END
CAMERA ID
POS CLR RESET END
5. Selectthe position atwhich the CAMERAID will belocated on thescreen.
Movethe cursor to'POS' and pressSET button.
TheCAMERA ID isdisplayed on thebottom-left of themonitor screen.
(Defaultposition)
Selectthe position byusing the 4-directionalbuttons, then pressthe SET
buttonto confirm theposition.
6. Whencompleted, move thecursor to 'END'and press SETbutton.
FRONT DOOR
FRONT DOOR
CAMERA ID
POS CLR RESET END

Operating Your Camera
COLORDOME CAMERA User’s Manual
21
COLORDOME CAMERA User’s Manual
20
SV-IIDSP chip built-inprovides intelligent lightlevel control toovercome the
severeBacklight conditions.
1.Press the SETbutton to displaythe SETUP menuand move thearrow
indicatorto ‘BACKLIGHT’ usingthe UP orDOWN button.
2.SET ‘BACKLIGHT’ tothe desired modeusing the LEFTor RIGHT button.
WDR:Incase thatbright anddark partsexist on thescreen atthe sametime,
yourcamera allows youto see bothparts clearly
BLC:When the image is in front of strong background lighting, your camera
allowsyou to getthe clear image
OFF:Deactivation
3.Press the ‘SET’button.
•When ‘WDR’ ischosen, you canadjust the level.
BACKLIGHT
Youcanselect thelevel from -4to 4. WDRsensitivity is increasedor decreased.
WDR BLC OFF
WDR SET
LEVEL 0
PRESS SET TO RETURN
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
• If you select WDR mode, the following phenomenon may appear by lighting
condition. In these cases do not select WDR mode.
Unnaturalcolor change or unnatural phenomenon on the screen
Noiseof bright part on the screen
• According to the area of bright part on the screen there may be the difference of
WDR performance so be sure to adjust the degrees of the visual angle when
installing your camera.
• If you increase WDR level, unnatural phenomenon may appear.
Notes
WHITE BALANCE CONTROL
4.When completed, pressthe SET button.
Your camera provides 4 ‘WHITE BAL.’ control modes. You can select the most
suitableone. You canadjust the whitebalance.
1. Press the SET button to display the SETUP menu and move the arrow indicator
to'WHITE BALANCE' usingthe UP orDOWN button.
2. Set‘WHITE BAL.’ tothe desired modeusing LEFT orRIGHT button.
Thesix WHITE BALANCEcontrol modes areas follows :
W-ATW(Wide Auto Tracking White balance):
Whencolor temperature is2400~12000K, select thismode. (EX. afluorescent
lamp,outdoor)
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL

Operating Your Camera
COLORDOME CAMERA User’s Manual
23
COLORDOME CAMERA User’s Manual
22
S-ATW(Special Auto Tracking White balance): When color temperature is
1800~6000K, specially in sodium lamp, select this mode. (EX. sodium lamp,
insidethe tunnel)
AWC(Auto White balance Control): The white balance is automatically
adjustedina specificenvironment.In order toobtainthe best result,pressthe SET
buttonwhilethe camerafocuseson white paper.Ifthe environment includingthe
lightsourceischanged,you have to adjustthewhitebalanceagain.
MANUAL : To fine adjust, select the Manual mode. You can increase or
decrease the red or blue factor while monitoring the difference on the screen.
Set to 'MANUAL' mode and press the SET button. Increase or decrease the
value for RED(R-Gain) and BLUE(B-Gain), watching the color of the picture, and
pressthe SET buttonwhen you obtainthe best color.
• Proper White Balance may not be obtained under the following conditions, in these
casesselect the AWC mode.
When the scene contains mostly high color temperature object, such as a blue
skyor sunset.
Whenthe scene is dim.
If your camera faces fluorescent lamp directly or is installed in the place of the
changingillumination.
Notes
MOTION DETECTION
Whenever your camera detects motion of object displaying ‘MOTION DETECTED’
withthenumber counted uponthescreen.
1.Press the SETbutton to displaythe SETUP menuand move thearrow
indicatorto 'MOTION DET.'using the UPor DOWN button.
MD1:Your camera detects the object’s motion by outline or difference of a
color tone, so this mode is very useful for the daytime or observing
smallmoving object.
PressSET button.
Movethe arrow indicatorto ‘AREA SET’using UP andDOWN button, and
thenpress the SETbutton.
Setthe areas youwant to observe.
·You can adjust the top, bottom, left and right base lines by 13 steps from top to
bottom,18 steps fromleft to rightwith an incrementof 1.
2.Set ‘MOTION DET.’to the desiredmode using LEFTor RIGHT button.
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF

Operating Your Camera
COLORDOME CAMERA User’s Manual
25
COLORDOME CAMERA User’s Manual
24
·Whencompleted, press SETbutton.
MD2:Your camera detects object’s motion by the variation of brightness, so
this mode is very useful for night or observing large moving object.
AlsoMD2 enables youto set seperatedareas.
PressSET button.
Movethe arrow indicatorto ‘AREA SET’like MD1.
Setthe areas youwant to observeof the 48areas.
·Movethe cursor tothe area youwant to observe,and then pressthe SET button.
·After setting, move the cursor to edge in any direction and then press the button
justone more, let‘END’ blink.
·Pressthe SET button.
• If you set some areas of 48 areas, your camera detects the object’s motion within
the areas you set.
Notes
·Movethe arrowindicator to 'TOP'using theUPor DOWNbutton andincreaseor
decrease the value using the LEFT or RIGHT button. Repeat the procedure for
bottom,left and right.
Maximum
18
13
Minimum
6
5
Tips on Using the Motion Detection Feature
• As you increase or decrease MD LEVEL, the areas’ sensitivity is increased or
decreased for object.
•After selecting zone and sensitivity, perform a test operation to make sure it
works properly.
• If the lighting flickers, the motion detection feature might not work properly.
•The object should occupy 10% or more of its zone. The bigger the object, the
higher sensitivity.
•If the brightness of an object changes rapidly by sudden lighting change, the
camera may detect it as a motion.
•Your camera can count up to 999. If you reset your camera with selecting
‘RESET’ in SPECIAL menu or turn it off and on, your camera’ll count up from 0.
•When this feature isactivated, another algorithm may takemore time to beoperated.
•This system does not guarantee prevention of fires or thefts. The manufacturer
is not responsible for any accident or damage.
IRIS LEVEL CONTROL
Youcan control thebrightness of thescreen.
1. Press the SET button to display the setup menu and move the arrow indicator
to'IRIS' using theUP or DOWNbutton and pressSET button.
2. Set‘LEVEL’ to thedesired brightness usingLEFT or RIGHTbutton.
3.When completed movethe arrow indicatorto ‘END’ andpress the SETbutton.
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF

Operating Your Camera
COLORDOME CAMERA User’s Manual
27
COLORDOME CAMERA User’s Manual
26
Youcan control brightnessof the screenby the shutterspeed.
1. Press the SET button to display the setup menu and move the arrow indicator
to‘SHUTTER’ using theUP or DOWNbutton.
2. Set‘SHUTTER’ to thedesired mode usingthe LEFT orRIGHT button.
OFF:Deactivation
1/100(1/120: PAL Models):Flickerless mode(When WDR ison, the image
canflicker a little)
MANUAL: Whensetting shutter speedmanually
3. Ifyou choose ‘MANUAL’,select the optimalshutter speed.
•You can select speed from ‘1/60’ to ‘1/200,000’sec (NTSC Models), ‘1/50’ to
‘1/200,000’sec(PAL Models).
•When the shutter speed is increased or decreased using the LEFT or RIGHT
button, you can find the difference by monitoring the brightness of the
screen.
SHUTTER SPEED CONTROL
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
4. When completed, press the SET button.
MANUAL SET
VALUE : 1/60
PRESS SET TO RETURN
NTSC Models
MANUAL SET
VALUE : 1/50
PRESS SET TO RETURN
PAL Models
• For effective 1/100(1/120) mode set WDR mode in BACKLIGHT menu to OFF.
1/100(1/120) mode is not effective with WDR mode.
• If you choose MANUAL mode, you can’t use WDR mode in ‘BACKLIGHT’ menu.
• If you select MANUAL mode, SENSE UP is not operated.
Notes
You can always get the clear image with this function under night or low-
lighting level.
1.Press the SET button to display the setup menu and move the arrow
indicatorto 'SENSE UP'using the UPor DOWN button.
2.Set ‘SENSE UP’to the desiredmode using theLEFT or RIGHTbutton.
AUTO:When your camera is under night or low-lighting level, select this
mode.
OFF: Deactivation
SENSE UP
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT

Operating Your Camera
COLORDOME CAMERA User’s Manual
29
COLORDOME CAMERA User’s Manual
28
GAIN
SSNR(Samsung Super Noise Reduction)
Toget brighter picture.
1.Press the SETbutton to displaythe setup menuand move thearrow indicator
to‘GAIN’ using theUP or DOWNbutton.
2.Set ‘gain’ todesired mode usingthe LEFT orRIGHT mode.
AGC-H: Gainis increased ordecreased from 0to 30dB automaticallyas
followingthe illumination.
AGC-L:Gainis increasedordecreased from0to 27dBautomaticallyas
followingthe illumination.
OFF: Deactivation
Toreduce the noiseon the screen.
1.Press the SETbutton to displaythe setup menuand move thearrow indicator
to‘SSNR’ using theUP or DOWNbutton.
2.Set ‘SSNR’ todesired mode usingthe LEFT orRIGHT mode.
LOW: lowreduction of thenoise
MIDDLE: middlereduction of thenoise
HIGH: highreduction of thenoise
OFF: Deactivation
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT
SETUP
CAMERA ID OFF
BACKLIGHT WDR
WHITE BAL. W-ATW
MOTION DET. OFF
IRIS LEVEL
SHUTTER OFF
SENSE UP OFF
GAIN AGC-L
SSNR MIDDLE
SPECIAL
EXIT
•If you change the ‘GAIN’ menu from AGC-L to AGC-H, sensitivity is increased as well
as noise on the screen.
• Afterimage may appear with SSNR.
Notes

Operating Your Camera
COLORDOME CAMERA User’s Manual
31
COLORDOME CAMERA User’s Manual
30
SPECIAL
1.Pressthe SETbutton todisplay the setup menu and move the arrow indicator to
‘SPECIAL’using the UPor DOWN button.
2.Press the SETbutton.
COLOR : choose colororB/W mode
-ON : colormode
-OFF : B/Wmode
-AUTO1 : generallycolor mode, B/Wmode in lowluminance.
-AUTO2 : AUTO2isidentical with AUTO1underSENSEUP :AUTOcondition.
SYNC : Two SYNCHRONIZATION modes are available INTERNAL and
EXTERNAL LINE-LOCK. In LINE-LOCK mode, it synchronizes the
video signal between cameras without a synchronous generator.
The line-lock synchronization is only used in the areas of 60Hz
(NTSCModels) / 50Hz(PAL Models).
-INT : Internalsynchronization
-OFF : Externalline-lock synchronization
·Ifyou choose ‘L/L’,you can adjustthe desired phase. Pressthe SET button.
-Youcan adjust thedesired phase from0 to 270.
PRIVACY: Tomask area whichyou want tomask
-OFF: Deactivation
-ON:Privacy modeactivated
·Press the SETbutton.
·Move the arrowindicator to areayou want tomask.
·Set ‘ON’ usingLEFT or RIGHTbutton.
·Pressthe SET buttonand then setthe area’s boundswith the methodlike
MD1Set. (see page23)
· Whencompleted, press theSET button.
RESET: Toreset your camerato factory defaultcondition
END: Tomove Top-menu
EXIT: Tofinish setting menu
• When the power frequency is 50Hz, you can not use line-lock mode(NTSC Models).
• Whenthe power frequency is 60Hz, you can not usethe line-lock mode(PAL Models).
• ‘Sync.’ mode is fixed to ‘INT’ in DC 12V input power.
Notes
LINE LOCK
PHASE : 225
PRESS SET TO RETURN

Troubleshooting
COLORDOME CAMERA User’s Manual
33
COLORDOME CAMERA User’s Manual
32
If you have trouble operating your camera, refer to the following table. If the
guidelines do not enable you to solve the problem, contact an authorized
technician.
Problem
Nothing appears on
the screen.
The image on the
screen is dim.
The image on the
screen is dark.
The camera is not
working properly, and
the surface of the
camera is hot.
MOTION DETECTION
function is not active.
Solution
•Check that the power cord and line connection
between the camera and monitor are fixed properly.
•Check that you have properly connected VIDEO
cable to the camera VIDEO output jack.
•Is lens stained with dirt? Clean your lens with soft,
clean cloth.
•Set the monitor to proper condition.
•If the camera is exposed to too strong light, change
the camera position.
•Adjust the lens’focus properly.
•Adjust the contrast feature of the monitor.
•If you have an intermediate device, set the 75Ω/ Hi-z
properly. (refer to page 13)
•Check that you have properly connected the camera
to an appropriate power source.
•Have you set ‘MOTION DET.’menu to OFF?
•Have you set ‘MD LEVEL’to too low?
•Have you set ‘MD AREA’properly?
Problem
The color of the picture
is not matched.
The image on the screen
flickers.
L/L mode isn’t able to
be selected.
Solution
•Check that you have properly set the ‘WHITE BAL.’
menu. (refer to page 21)
•Is the camera facing to direct sunlight or fluoresent
lighting? Change the camera position.
•Have you connected your camera to DC power
source? Connect it to AC power source.

Dimension
SVD-4120AN SVD-4120AP SVD-4120AWN SVD-4120AWP
* Design and specifications are subject to change without notice
Power Source
Power Consumption
Image Sensor
Total Pixels
Effective Pixels
LENS TYPE
Maximum Aperature Ratio
Angle of View
Scanning System
Synchronization
Video Output
Resolution
Wide Dynamic Range
Gain Control
Electric Shutter Speed
SENSE UP
IRIS MODE
WHITE BALANCE
Min. Illumination
S/N(Y signal)
Motion Detection
O.S.D
SSNR
PRIVACY Function
Operating Temperature
Operating Humidity
Dimension(mm)
Weight(W/O Lens & Power Cord)
Angle
Item
DC 12V / AC 24V compatible
280mA(DC) / 3.8W(AC)
1/3”, Vertical double density interline CCD
811(H)x508(V), 1/3”CCD 759(H)x596(V), 1/3”CCD 811(H)x508(V), 1/3”CCD 759(H)x596(V), 1/3”CCD
768(H)x494(V), 1/3”CCD 752(H)x582(V), 1/3”CCD 768(H)x494(V), 1/3”CCD 752(H)x582(V), 1/3”CCD
2.5X Vari-Focal,f=3.8~9.5 2.4X Vari-Focal,f=2.5~6.0
1:1.3~2.0 1:1.3~1.9
H: 74.2˚~30.0˚, V: 54.0˚~22.4˚, D: 96.8˚~37.4˚ H: 108.2˚~47.6˚, V: 80.4˚~35.6˚, D:136.6˚~59.4˚
Internal / Line Lock selectable
500TV Lines
ON / OFF / AUTO
AGC-L, AGC-H, OFF selectable
1/60~1/200,000sec 1/50~1/200,000sec 1/60~1/200,000sec 1/50~1/200,000sec
Built-in(selectable limit~X128)
DC Drive
W-ATW / S-ATW / AWC / MANUAL
0.003Lux(Sense Up) / 0.3Lux(F1.3)
50dB (Weight ON)
MD1 / MD2 / OFF
Built-in
LOW / MIDDLE / HIGH /OFF
ON / OFF(4 Programmable Zone)
-10˚C ~ +50˚C (14˚F ~ 122˚F)
30% ~ 90% RH
f150(W) x 130(H)
1.4kg
Panning : 340˚ , Tilt : 70˚
COLORDOME CAMERA User’s Manual
35
COLORDOME CAMERA User’s Manual
34
Specifications
Ø148mm
126mm
83.5mm
46mm
85mm
85mm
85mm
1.0V[p-p]NTSC composite,
75W/BNC Connector
1.0V[p-p]PAL composite,
75W/BNC Connector
1.0V[p-p]NTSC composite,
75W/BNC Connector
1.0V[p-p]PAL composite,
75W/BNC Connector
2:1 Interlaced 525
Lines/60Fields/30Frames
2:1 Interlaced 625
Lines/50Fields/25Frames
2:1 Interlaced 525
Lines/60Fields/30Frames
2:1 Interlaced 625
Lines/50Fields/25Frames

MEMO
DECLARATION OF CONFORMITY
Application of Council Directive(s) 89 / 336 / EEC
Manufacturer's Name SAMSUNG TECHWIN CO., LTD
Manufacturer's Address SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-120
European Representative Name
European Representative Address
Equipment Type/Environment CCTV Camera
Model Name SVD-4120A/AW
Beginning Serial NO. S4100002
Year of Manufacture 2004. 1. 2
Conformance to EN 50081-1 : 1992
EMC-Directive 89/336 EEC and 92/31/EEC
EN 50130-4 : 1996
We, the undersigned, here by declare that the equipment specified above conforms
tothe above Directive(s).
Manufacturer SAMSUNGTECHWIN CO., LTD
LegalRepresentative in Europe
Signature Signature
FullName YOUNGTAEK SON FullName
Position QUALITYCONTROL MANAGER Position
Place CHANGWON,KOREA Place
Date 2004.1. 2 Date

MEMO MEMO
