Samsung SPE-400 User manual

NETWORK VIDEO ENCODER
User Manual SPE-400

Copyright
©2014 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The initial administrator ID is “admin” and the password should be set when logging in for the first time.
Please change your password every three months to safely protect personal information and to prevent
the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by
mismanaging a password.
Network Video Encoder
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety, If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. This product is intended to be supplied by a Listed power supply unit marked “Class 2”
and rated from 12 V dc, min 1.5A.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CALIFORNIA USA ONLY
This Perchlorate warning applies only to primary CR (Manganese Dioxide)
Lithium coin cells in the product sold or distributed ONLY in California
USA.“Perchlorate Material - special handling may apply, See www.dtsc.
ca.gov/hazardouswaste/perchlorate.”
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one encoder and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not Place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book how to use the products
The meaning of the using sign in the book is following
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recommended PC Specifications
10 Recommended SD/SDHC
Memory Card Specifications
10 What’s Included
11 At a Glance
INSTALLATION &
CONNECTION
14
14 Inserting/Removing a SD Memory
Card
15 Memory Card Information
(Not Included)
16 Connecting with other Device
NETWORK CONNECTION
AND SETUP
21
21 Connecting the Network video
encoder Directly to Local Area
Networking
22 Connecting the Network video
encoder Directly to a DHCP
Based DSL/Cable Modem
23 Connecting the Network Video
Encoder Directly to a PPPoE
Modem
24 Connecting the Network video
encoder to a broadband router
with the PPPoE/Cable Modem
25 Buttons used in IP Installer
26 Static IP Setup
29 Dynamic IP Setup
30 Port Range Forward (Port
Mapping) Setup
33 Connecting to the Network
Device from a Shared Local PC
33 Connecting to the Network video
encoder from a Remote PC via
the Internet

overview
8_ overview
SETUP SCREEN
52
52 Setup
52 Video & Audio Setup
59 Network Setup
68 Event Setup
79 System Setup
APPENDIX
87
87 Specification
89 Product Overview
90 Troubleshooting
92 Open Source License Notification
On The Product
WEB VIEWER
34
34 Connecting to the Network video
encoder
36 Password setting
36 Login
37 Installing Silverlight Runtime
41 Installing STW WebViewer Plugin
43 Using the Live Screen
46 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
Multi-Streaming
This network video encoder can display videos in different resolutions and qualities
simultaneously using different CODECs.
MHowever, MPEG-4 video can not be played on a web page. Use CMS software if you want to play
the video on a web page.
Support various communication protocols
Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
Alarm
If an event occurs, the event-related video will be transferred to the FTP/email specified by
the user or saved to the SD memory, or the event signal will be sent to the ALARM OUT
port.
ONVIF Compliance
This product supports ONVIF.
For more information, refer to www.onvif.org.
RECOMMENDED PC SPECIFICATIONS
CPU : Intel Core 2 Duo 2.4 GHz or higher
Web Plug-in is optimized to SSE 4.1 Instruction Set.
Operating System : Windows XP, VISTA, 7, Mac OS X 10.7 or higher
Resolution : 1280X1024 pixels or higher (32 bit color)
RAM : 2GB or higher
Web Browser : Internet Explorer 7.0 or higher, Firefox 9.0 or higher, Chrome 15.0 or higher,
*Safari 5.1 or higher
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
For IPv6 connection, Window 7 or higher is recommended.
For Mac OS X, only the Safari browser is supported.
Video Memory : 256MB or higher
JIf the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.

overview
10_ overview
RECOMMENDED SD/SDHC MEMORY CARD
SPECIFICATIONS
4GB ~ 32GB
For your network video encoder, we recommend you use a memory card from the
following manufacturers : SD/SDHC Memory Card : Sandisk, Transcend
It is recommended you use a memory card that supports at least Class 6.
WHAT’S INCLUDED
Please check if your network video encoder and accessories are all included in the product package.
Appearance Item Name Quantity Description
NETWORK
RESET
VIDEO IN
AUDIO IN AUDIO OUT
CH1
CH1 CH2
CH3 CH4
CH1
CH2 CH3 CH4
Network Video Encoder 1
Instruction book,
Installation CD 1User manual, Quick Guide,
IP Installer S/W Program
CMS S/W DVD 1 NET-i viewer S/W Program
Quick Guide
(Optional) 1
Warranty card
(Optional) 1
ASSY-Tapping Screw 4 Used for installation on the wall or ceiling

English _11
●OVERVIEW
AT A GLANCE

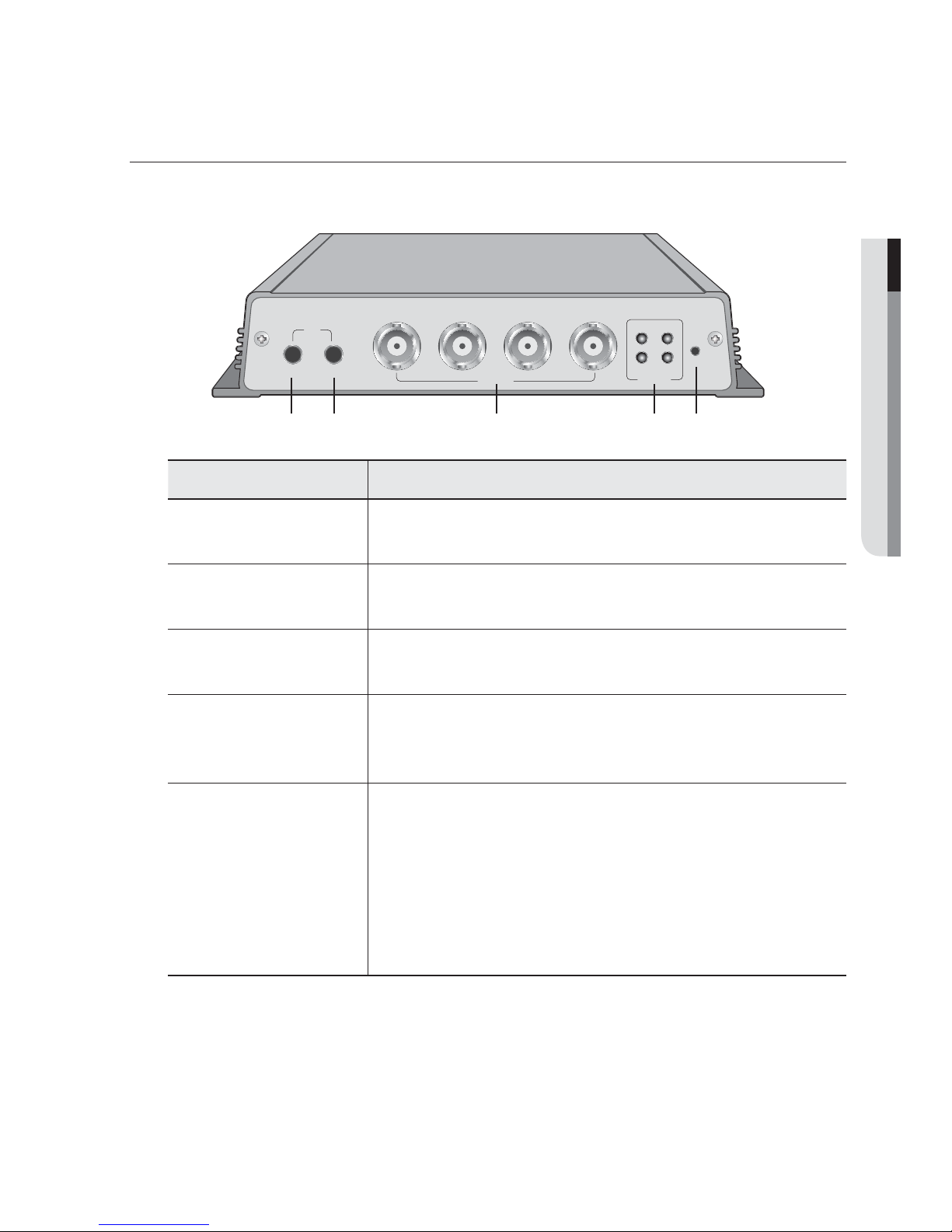

Front Side
Item Description

AUDIO IN Audio input terminal which brings sound to the network video encoder.
Used to connect the microphone.
b
AUDIO OUT Audio output terminal which outputs sound from the network video encoder.
Used to connect the speaker.
c
VIDEO IN
(CH 1~CH 4) Used to connect the BNC video input signal.

Network connection
indicator
(CH 1~CH 4)
Display the network connection status for each channel.

Reset Button
Hold it down for 5 seconds to return all your settings to the factory default.
JIf you reset the network video encoder, the network settings will be
adjusted so that DHCP can be enabled. If there is no DHCP server in
the network, you must run the IP Installer program to change the basic
network settings such as IP address, Subnet mask, Gateway, etc.,
before you can connect to the network.
 For more information on IP settings, refer to “Network Setup”. (page 59)
M Audio I/O can be performed only in channel 1.
NETWORK
RESET
VIDEO IN
AUDIO IN AUDIO OUT
CH1
CH1 CH2
CH3 CH4
CH1
CH2 CH3 CH4
 b c  

overview
12_ overview

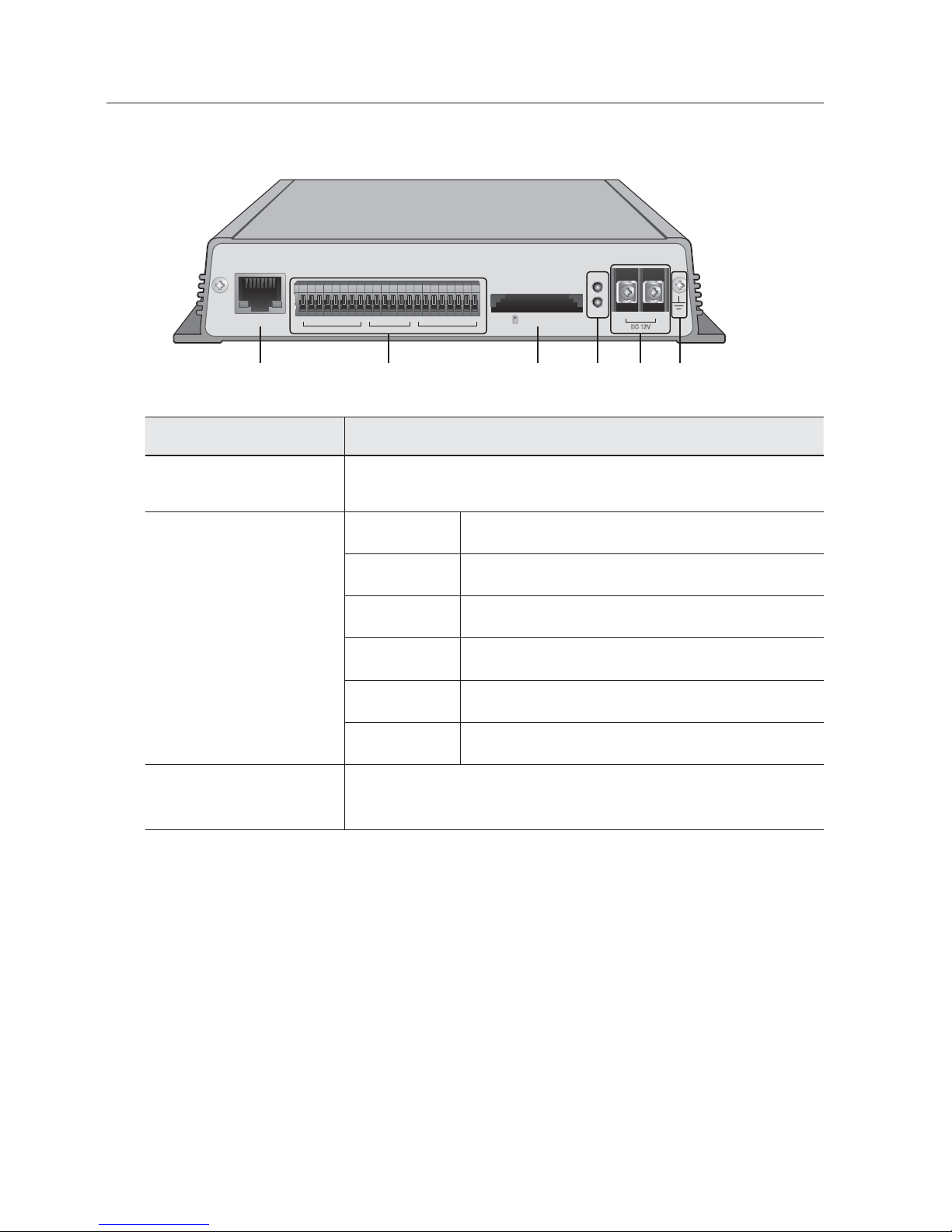

Rear Side
Item Description

Network Port Used to connect a Ethernet cable.
b

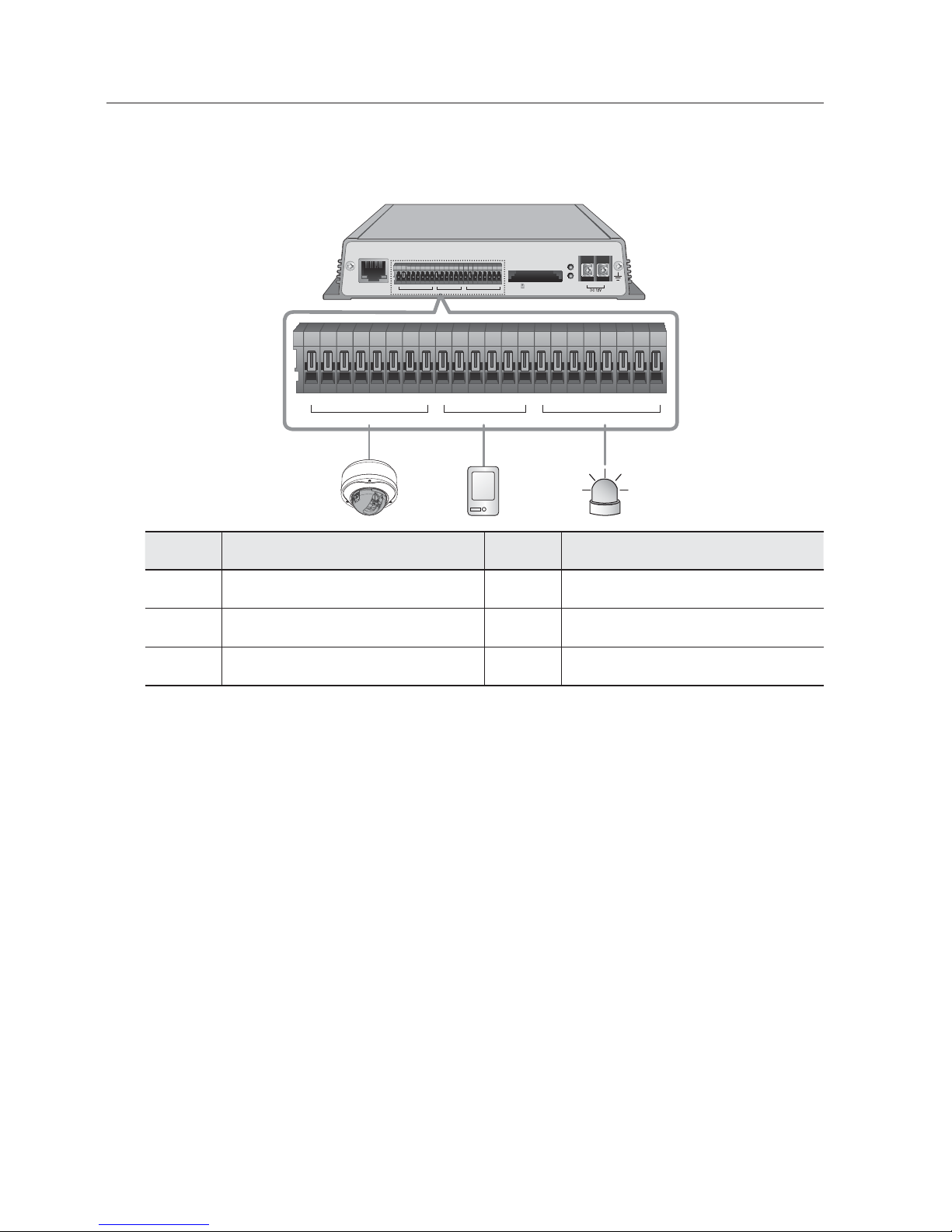

I/O Port
D+ (1~4) RS-485 Data Line
D- (1~4) RS-485 Data Line
S1~S4 Alarm In
G GND
R1~R4 Alarm Relay Output
CM1~CM4 Alarm Out (Common)
c
SD Memory Card
Compartment Compartment for the SD memory card.
SD
POWER
DC 12V
-
+
ETHERNET
D1+ D1- D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4
SD CARD (CH1)
RS-485 SENSOR RELAY OUT
 cb  

English _13
●OVERVIEW
Item Description

SD,
Power Indicators
SD
ON : A memory card is inserted and operates normally.
Flashing : Failed to record, insufficient space, or inserted
abnormally.
OFF :
Network video encoder is off, network video encoder
is restarting, or memory card is not in place,
When record is off.
POWER ON : While the power is on.
OFF : If the power is off.

Power Port Used to connect the specified power source.

GND Used for earth-grounding.
M The SD memory can be performed only in channel 1.
Channel I/O port table
RS-485 SENSOR RELAY OUT RS-485 SENSOR RELAY OUT
CH 1 D1+, D1- S1, G R1, CM1 CH 3 D3+, D3- S3, G R3, CM3
CH 2 D2+, D2- S2, G R2, CM2 CH 4 D4+, D4- S4, G R4, CM4

14_ installation & connection
installation & connection
INSERTING/REMOVING A SD MEMORY CARD
Inserting a SD Memory Card
Push the SD memory card in the direction of the arrow shown in the diagram.
J Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the
SD memory card.
Removing a SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
J Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from
the slot when released.
To pull out the SD memory card, turn off the encoder power or set the device to <Off> of
<Storage> and press the [Apply ( )] button. (page 69)
If you turn off the encoder or remove the SD memory card that contains data from the product,
the data may be lost or damaged.
If the SD memory is inserted and when record is on, the SD LED indicator on the rear of the
network video encoder will turn on.
If there occurs a problem in the SD memory, the SD LED indicator will blink.
G
R1 CM1 R2 CM2 R3 CM3 R4 CM4
RELAY OUT
SD CARD (CH1)
SD
POWER
ETHERNET
D1+ D1- D2+D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G
R1 CM1 R2 CM2 R3 CM3 R4 CM4
RS-485 SENSOR RELAY OUT
SD CARD (CH1)
SD
POWER
DC 12V
G
R1 CM1 R2 CM2 R3 CM3 R4 CM4
RELAY OUT
SD CARD (CH1)
SD
POWER
ETHERNET
D1+ D1- D2+D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G
R1 CM1 R2 CM2 R3 CM3 R4 CM4
RS-485 SENSOR RELAY OUT
SD CARD (CH1)
SD
POWER
DC 12V

English _15
●INSTALLATION & CONNECTION
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your network video encoder supports SD/SDHC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
For your network video encoder, we recommend you use a memory card from the
following manufacturers : SD/SDHC Memory Card : Sandisk, Transcend
It is recommended you use a memory card that supports at least Class 6.
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
Memory Card Use
SD and SDHC memory cards feature a switch that disables writing data on to the media.
Having this switch to the Lock position will prevent accidental deletion of data stored in the
memory card but at the same time will also prevent you from writing data on to the media.
Memory Card Components
SD/SDHC
Lock Switch
Contacts

installation & connection
16_ installation & connection
CONNECTING WITH OTHER DEVICE
Connecting the camera
Connect the [VIDEO IN] port of the network video encoder to the video output port of the
camera.
Ethernet Connection
Connect the Ethernet cable to the local network or to the Internet.
NETWORK
RESET
VIDEO IN
AUDIO IN AUDIO OUT
CH1
CH1 CH2
CH3 CH4
CH1
CH2 CH3 CH4
Camera Camera
Camera Camera
SD
POWER
DC 12V
-
+
ETHERNET
D1+ D1- D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4
SD CARD (CH1)
RS-485 SENSOR RELAY OUT
Ethernet Power
Grounding
Cable

English _17
●INSTALLATION & CONNECTION
Power Supply
Use the screwdriver to connect each line +, – of the power cable to the corresponding
power port of the network video encoder.
J Be careful not to reverse the polarity when you connect the power cable.
If you want to connect an external device, you must turn off the external device before proceeding.
Electrical Resistance of Copper Wire at [20°C (68°F)]
Copper Wire Gauge (AWG) #24(0.22mm
2
) #22(0.33mm
2
) #20(0.52mm
2
) #18(0.83mm
2
)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Drop Voltage (V/m) 0.028 0.018 0.011 0.006
Recommended Distance (m) Less than 20 Less than 30 Less than 30 Less than 30
As shown in the table above, you may encounter a voltage-sag depending on the wire length.
If you use an excessively long wire for network video encoder connection, the network video encoder may
not work properly.
-Network Video Encoder Operating Voltage : DC 12V±10%
-Voltage drop measurements on the chart above may vary depending on the type and manufacture of
the copper cable.
Grounding the Product
Use screwdriver to connect grounding cable to the FG screw right next to the power inlet.
J Grounding protects the product from a surge or lightning.
When grounding, make sure to turn the product’s power off.
Recommended Grounding Cable
Length : Less than 3M
Gauge : 18 AWG or bigger
Ex) UL1007 AWG 18/16, UL1015 AWG18/16/14/12, UL2468 AWG18/16/14

installation & connection
18_ installation & connection

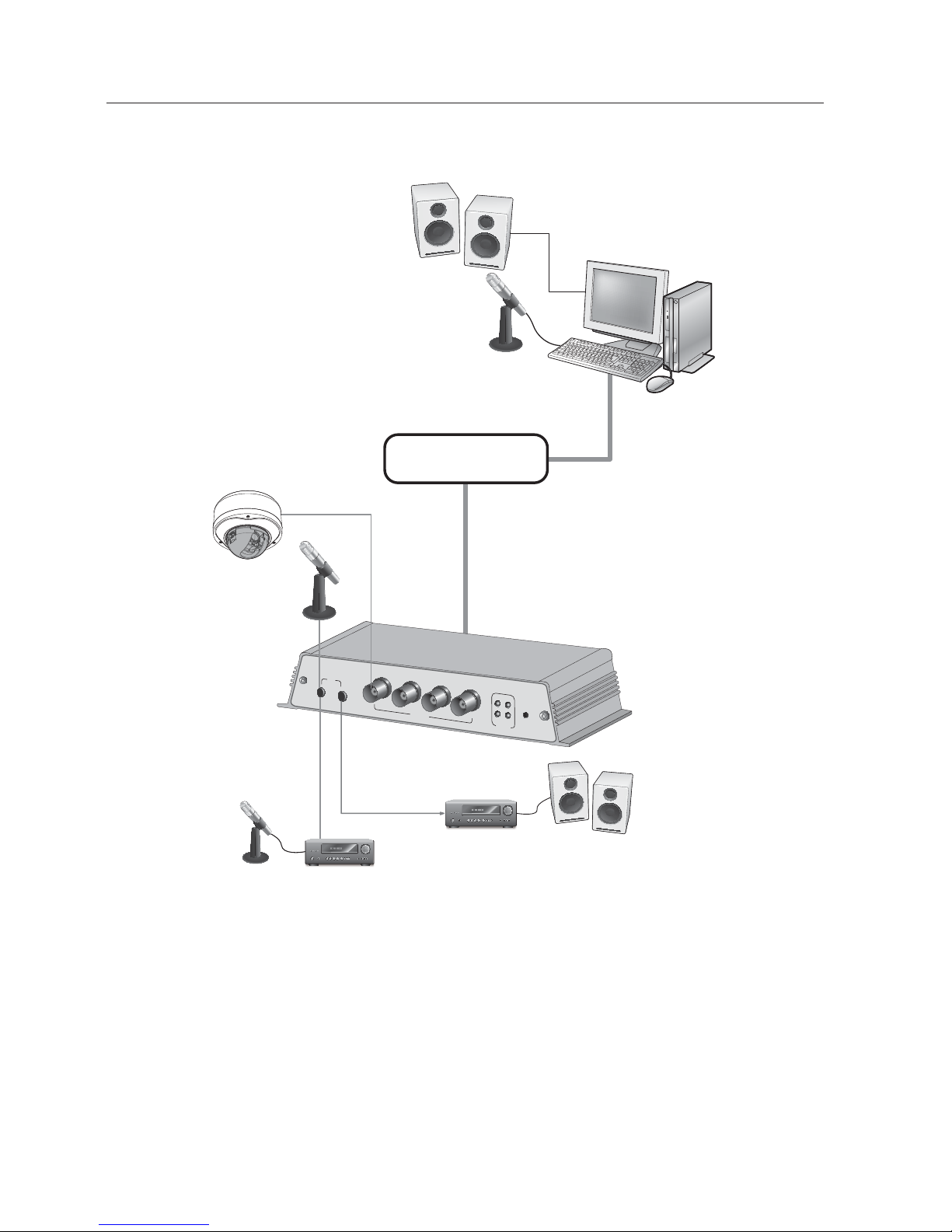

Connecting to Audio Input/Output
1. Connect the AUDIO IN port of the network video encoder with the microphone
directly or LINE OUT port of the amplifier that the microphone is connected to.
2. Connect the AUDIO OUT port of the network video encoder with the speaker or
LINE IN port of the amplifier that the speaker is connected to.
3. Check the specifications for audio input.
M Audio I/O can be performed only in channel 1.
AUDIO IN AUDIO OUT
NETWORK
RESET
CH1 CH2
CH3 CH4
VIDEO IN
CH1
CH1
CH2 CH3 CH4
Camera
Microphone
Microphone
Speaker
Microphone
Network
Amp
Amp Speaker
PC

English _19
●INSTALLATION & CONNECTION
Audio Codec
G.711 PCM. μ-law 64kbps 8kHz sampling
Full duplex Audio
Audio in
Used for mono signal line input (Max.2.4 Vpp)
Audio out
Used for mono signal line output (Max.2.4 Vpp)
Line out impedance
600
Alarm I/O Wiring Diagram
J For controlling the power with electrical contacts, a separate circuit is required.
GND 













ALARM IN S1
ALARM IN S2
ALARM IN S3
ALARM IN S4
GND
ALARM OUT R1
(NO)
ALARM COM1
ALARM OUT R2
(NO)
ALARM OUT R3
(NO)
ALARM OUT R4
(NO)
ALARM COM2
ALARM COM3
ALARM COM4
(24VDC 1A,
125VAC 0.5A MAX)
(24VDC 1A,
125VAC 0.5A MAX)
(24VDC 1A,
125VAC 0.5A MAX)
(24VDC 1A,
125VAC 0.5A MAX)
(12mA sink)
(12mA sink)
(12mA sink)
(12mA sink)

installation & connection
20_ installation & connection
Connecting to the I/O port box
Connect the Alarm I/O signal to the corresponding port of the rear port box.
Port Description Port Description
D+(1~4) RS-485 Data Line R1~R4 Alarm Relay Output
D-(1~4) RS-485 Data Line CM1~CM4 Alarm Out (Common)
S1~S4 Alarm In GGND
Connecting to the RS-485 device
Connect the external device to the [RS-485 D+, D-] ports.
You can connect and control PTZ camera that supports RS-485 communication.
Depending on camera’s type, connection polarity can be different.
For further information, refer to the corresponding PTZ Camera’s documentation.
Connecting to the Alarm Input
Connect one signal cable (out of 2) of applicable sensor to the [S1] port, and the other to
the [G] port.
Connecting the Alarm Output
Connect one signal cable (out of 2) of applicable external device to the [RELAY OUT], and
the other to the [CM] port.
M You must use the specific RS-485 alarm I/O ports for each channel.
SD
POWER
DC 12V
-
+
ETHERNET
D1+ D1- D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4
SD CARD (CH1)
RS-485 SENSOR RELAY OUT
D1+ D1- D2+ D2- D3+ D3- D4+ D4- G S1 S2 S3 S4 G R1 CM1 R2 CM2 R3 CM3 R4 CM4
RS-485 SENSOR RELAY OUT
