Samsung SmartThings ADT Smoke Alarm User manual

ADT Smoke Alarm
Setup Guide
PRINTER’S INSTRUCTIONS:
MANUAL,QUICK START,NOVA,SMOKE - NORTEK P/N: 10015711B- INK: BLACK PLUS PMS 286C - MATERIAL: 105G COATED PAPER - SIZE: 105MM X 105MM -
SCALE: 1-1 - BINDING: TRIM, FOLD AND SADDLE STITCHED - PAGE 1 OF 34

Take the ADT Smoke Alarm to where you intend
to mount it after setup.
1. 2.
Setup
A
• Make sure that your ADT Security Hub is disarmed
before connecting a new device.
• Make sure you are within 350 feet from the
ADT Security Hub. (Exact range depends on
your home’s construction, the environment, the
position of the ADT Security Hub, and the position
and number of other connected devices.)
• Make sure that you only setup one new device
at a time.
3.
• Do not remove the battery tab until you are ready
to set up the detector.

Take the ADT Smoke Alarm to where you intend
to mount it after setup.
2. Use the SmartThings app on your smartphone to
select the “My Home” tab. Select "Things", and then
“Add a Thing".
Setup Setup
• Make sure that your ADT Security Hub is disarmed
before connecting a new device.
• Make sure you are within 350 feet from the
ADT Security Hub. (Exact range depends on
your home’s construction, the environment, the
position of the ADT Security Hub, and the position
and number of other connected devices.)
• Make sure that you only setup one new device
at a time.
3. Use the SmartThings app to scan the QR code on
the front of the alarm and then follow the on-screen
instructions to complete setup.
Smoke Alarm (Front)
QR Code
• Do not remove the battery tab until you are ready
to set up the detector.

B
Install the ADT Smoke Alarm in a place where the alarm
can be heard easily. Ideally, per the National Fire Alarm
Code (NFPA Standard 72), a smoke alarm should be
installed:
• In all sleeping rooms and guest rooms.
• Outside of each separate dwelling unit sleeping
area within 21 feet of any door to a sleeping room,
the distance measured along a path of travel.
• On every level of a dwelling unit, including
basements.
Setup
5. Remove the QR code from the front of the alarm and
attach it inside the ADT Security Hub User Guide for
future reference.
4. Remove the tab on the smoke alarm marked “Pull
This Tab”. The yellow LED will blink once followed by
a single blink of the red LED.
Battery Tab Smoke Alarm (Back)

Placement
B
Install the ADT Smoke Alarm in a place where the alarm
can be heard easily. Ideally, per the National Fire Alarm
Code (NFPA Standard 72), a smoke alarm should be
installed:
• In all sleeping rooms and guest rooms.
• Outside of each separate dwelling unit sleeping
area within 21 feet of any door to a sleeping room,
the distance measured along a path of travel.
• On every level of a dwelling unit, including
basements.
Remove the QR code from the front of the alarm and
attach it inside the ADT Security Hub User Guide for
future reference.
Remove the tab on the smoke alarm marked “Pull
This Tab”. The yellow LED will blink once followed by
a single blink of the red LED.
Smoke Alarm (Back)

(Reprinted with permission from NFPA 72®, National Fire Alarm Code
Copyright © 2007 National Fire Protection Association, Quincy, MA 02269.
This reprinted material is not the complete and ofcial position of the
National Fire Protection Association, on the referenced subject which is
represented only by the standard in its entirety.)
*
THIS EQUIPMENT SHOULD BE INSTALLED IN
ACCORDANCE WITH THE NATIONAL FIRE PROTECTION
ASSOCIATION’S STANDARD 72.**
• In the living area(s) of a guest suite.
• In the living area(s) of a residential board and care
occupancy (small facility).*
• On every level of a residential board and care
occupancy (small facility), including basements and
excluding crawl spaces and unnished attics.
The required number of smoke alarms might not
provide reliable early warning protection for those
areas separated by a door from the areas protected
by the required smoke alarms.
The installation of smoke alarms in kitchens, attics
(nished or unnished), or garages is not normally
recommended, as these locations occasionally
experience conditions that can result in improper
operation, or false alarms.
For this reason, it is recommended that the householder
consider the use of additional smoke alarms for those
areas for increased protection. The additional areas
include the basement, bedrooms, dining room, furnace
room, utility room, and hallways not protected by the
required smoke alarms.
(National Fire Alarm Code® and NFPA 72® are registered trademarks of the
National Fire Protection Association, Inc., Quincy, MA 02269.)
**
Placement

(Reprinted with permission from NFPA 72®, National Fire Alarm Code
Copyright © 2007 National Fire Protection Association, Quincy, MA 02269.
This reprinted material is not the complete and ofcial position of the
National Fire Protection Association, on the referenced subject which is
represented only by the standard in its entirety.)
THIS EQUIPMENT SHOULD BE INSTALLED IN
ACCORDANCE WITH THE NATIONAL FIRE PROTECTION
ASSOCIATION’S STANDARD 72.**
• In the living area(s) of a guest suite.
• In the living area(s) of a residential board and care
occupancy (small facility).*
• On every level of a residential board and care
occupancy (small facility), including basements and
excluding crawl spaces and unnished attics.
The required number of smoke alarms might not
provide reliable early warning protection for those
areas separated by a door from the areas protected
by the required smoke alarms.
The installation of smoke alarms in kitchens, attics
(nished or unnished), or garages is not normally
recommended, as these locations occasionally
experience conditions that can result in improper
operation, or false alarms.
For this reason, it is recommended that the householder
consider the use of additional smoke alarms for those
areas for increased protection. The additional areas
include the basement, bedrooms, dining room, furnace
room, utility room, and hallways not protected by the
required smoke alarms.
(National Fire Alarm Code® and NFPA 72® are registered trademarks of the
National Fire Protection Association, Inc., Quincy, MA 02269.)
Placement

Important: Specic requirements for smoke alarm
installation vary from state to state and from region to
region. Check with your local Fire Department for current
requirements in your area.
be placed nearby). Your rst smoke alarm should be
located between the sleeping area and the most likely
sources of re, e.g. living room, but it should not be more
than 21 feet from the door to any room where a re may
start and block your escape from the house.
Single-Story Dwellings: If the premises is one story, you
should put your rst smoke alarm in a corridor or hallway
between the sleeping and living areas. Place it as near to
the living area as possible, but make sure that it can be
heard loudly enough in the bedroom to wake someone.
In houses with more than one sleeping area, smoke
alarms should be placed between each sleeping area
and the living area.
Sufcient smoke must enter your smoke alarm before it
will respond. Your smoke alarm needs to be within 21 feet
of the re to respond quickly. Smoke alarms also need to
be in positions where they can be heard throughout the
property, so they can wake you and your family in time for
everyone to escape.
A single smoke alarm will give some protection if it is
properly installed, but most homes will require two or
more to ensure that a reliable early warning is given. For
recommended protection you should put individual smoke
alarms in all rooms where re is most likely to break out
(apart from the kitchen and bathroom, where they should
Placement

Important: Specic requirements for smoke alarm
installation vary from state to state and from region to
region. Check with your local Fire Department for current
requirements in your area.
be placed nearby). Your rst smoke alarm should be
located between the sleeping area and the most likely
sources of re, e.g. living room, but it should not be more
than 21 feet from the door to any room where a re may
start and block your escape from the house.
Single-Story Dwellings: If the premises is one story, you
should put your rst smoke alarm in a corridor or hallway
between the sleeping and living areas. Place it as near to
the living area as possible, but make sure that it can be
heard loudly enough in the bedroom to wake someone.
In houses with more than one sleeping area, smoke
alarms should be placed between each sleeping area
and the living area.
Sufcient smoke must enter your smoke alarm before it
will respond. Your smoke alarm needs to be within 21 feet
of the re to respond quickly. Smoke alarms also need to
be in positions where they can be heard throughout the
property, so they can wake you and your family in time for
everyone to escape.
A single smoke alarm will give some protection if it is
properly installed, but most homes will require two or
more to ensure that a reliable early warning is given. For
recommended protection you should put individual smoke
alarms in all rooms where re is most likely to break out
(apart from the kitchen and bathroom, where they should
Placement

Recommended Protection: Fire authorities recommend
you put individual smoke alarms in or near all rooms
where re is most likely to break out (apart from the
locations to avoid, e.g. bathrooms).
The living room is the most likely place for a re to start at
night, followed by the kitchen, and then the dining room.
Consideration should be given to installing smoke alarms
in any bedrooms where res might occur, for instance,
where there is an electrical appliance, such as an electric
blanket or heater, or where the occupant is a smoker.
In addition, consideration should be also given to install-
ing smoke alarms in any rooms where the occupant is
unable to respond very well to a re starting in that room,
such as an elderly or sick person or a very young child.
This device shall not be used with a detector guard.
Placement

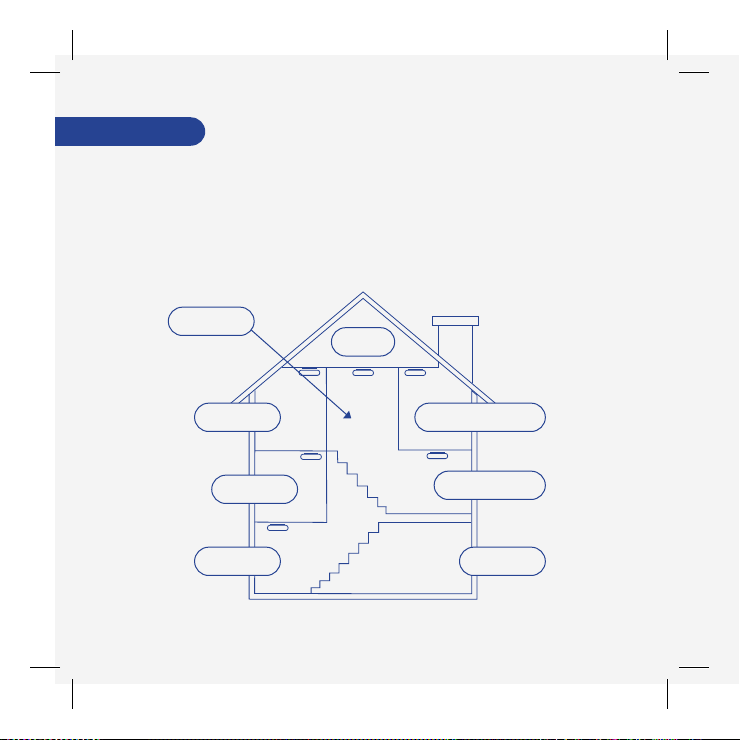

Multiple-Story Dwellings: If your home has more than
one oor, at least one smoke alarm should be tted on
each level. Suggested locations shown below:
Attic
Bedroom
Kitchen
Basement Garage
Master Bedroom
Family Room
Hallway

Recommended Protection: Fire authorities recommend
you put individual smoke alarms in or near all rooms
where re is most likely to break out (apart from the
locations to avoid, e.g. bathrooms).
The living room is the most likely place for a re to start at
night, followed by the kitchen, and then the dining room.
Consideration should be given to installing smoke alarms
in any bedrooms where res might occur, for instance,
where there is an electrical appliance, such as an electric
blanket or heater, or where the occupant is a smoker.
In addition, consideration should be also given to install-
ing smoke alarms in any rooms where the occupant is
unable to respond very well to a re starting in that room,
such as an elderly or sick person or a very young child.
This device shall not be used with a detector guard.
Placement
Multiple-Story Dwellings: If your home has more than
one oor, at least one smoke alarm should be tted on
each level. Suggested locations shown below:

ForWall Mounting:
If ceiling mounting is impractical, smoke alarms may
be mounted on a wall (if local ordinances permit),
provided that:
Wall mounting should only be considered where close
spaced beams or similar obstructions may preclude
ceiling mounting. It is considered to be the responsibility
of the installer or homeowner to determine if the
presence of asbestos in the ceiling material would make
ceiling mounting impractical.
• The top of the detection element is between 6 inches
and 12 inches below the ceiling.
• The bottom of the detection element is above the
level of any door openings.
Placement
For Ceiling Mounting:
Hot smoke rises and spreads out, so a central ceiling
position is the recommended location. The air is “dead”
and does not move in corners, therefore smoke alarms
must be mounted away from corners. Keep at least 12
inches from walls and corners. Additionally, mount the
unit at least 12 inches from any light tting or decorative
object which might prevent smoke entering the smoke
alarm. Do not attach the detector to removable ceiling
panels.
4 Inches (10cm)
3 Feet
(0.9m)
3 Feet
(0.9m)
Not this area
Anywhere in this area

ForWall Mounting:
If ceiling mounting is impractical, smoke alarms may
be mounted on a wall (if local ordinances permit),
provided that:
Wall mounting should only be considered where close
spaced beams or similar obstructions may preclude
ceiling mounting. It is considered to be the responsibility
of the installer or homeowner to determine if the
presence of asbestos in the ceiling material would make
ceiling mounting impractical.
• The top of the detection element is between 6 inches
and 12 inches below the ceiling.
• The bottom of the detection element is above the
level of any door openings.
Placement
For Ceiling Mounting:
Hot smoke rises and spreads out, so a central ceiling
position is the recommended location. The air is “dead”
and does not move in corners, therefore smoke alarms
must be mounted away from corners. Keep at least 12
inches from walls and corners. Additionally, mount the
unit at least 12 inches from any light tting or decorative
object which might prevent smoke entering the smoke
alarm. Do not attach the detector to removable ceiling
panels.

1.
C

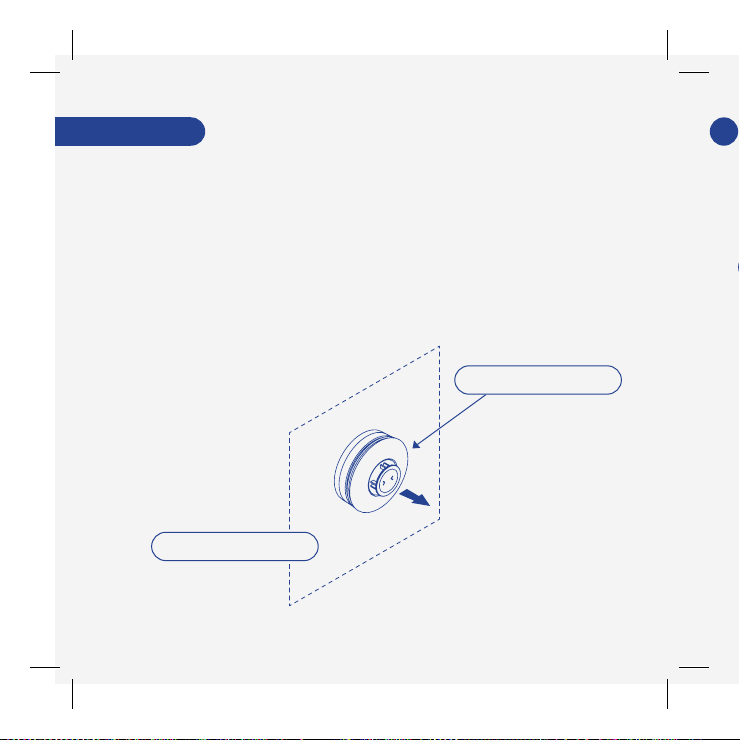

Smoke Alarms should face out in this position:

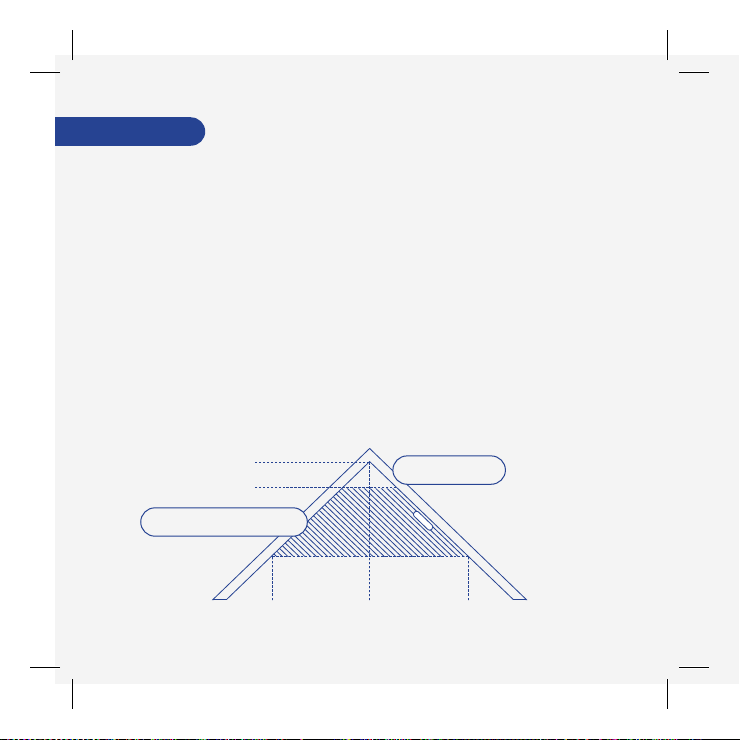

On a sloping or peaked ceiling, install a smoke alarm
within 24 inches of the peak (measured vertically). If this
height is less than 24 inches the ceiling is regarded as
being at.
Placement
Smoke Alarm (front)
Wall behind alarm

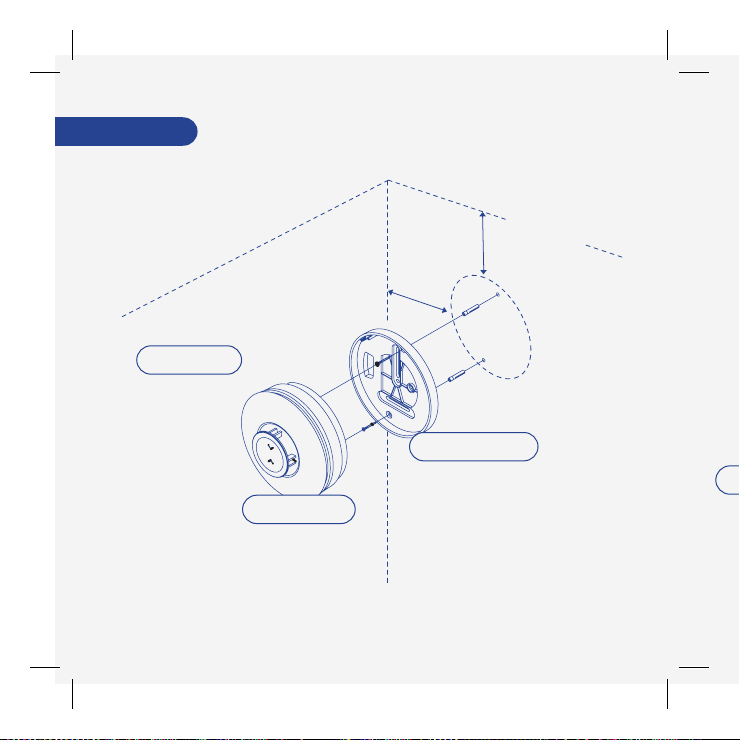

Install the mounting base using the two screws and
anchors provided.
1.
CMounting
Mounting Plate
Smoke Alarm
12 inches
from wall
12 inches
from wall
Smoke Alarms should face out in this position:
On a sloping or peaked ceiling, install a smoke alarm
within 24 inches of the peak (measured vertically). If this
height is less than 24 inches the ceiling is regarded as
being at.
Smoke Alarm (front)
Ceiling Mount

2.
3.
Push Up And Turn Clockwise
Mounting
Wall Mount
12 inches
from ceiling
12 inches
from wall
Smoke Alarm
Mounting Plate

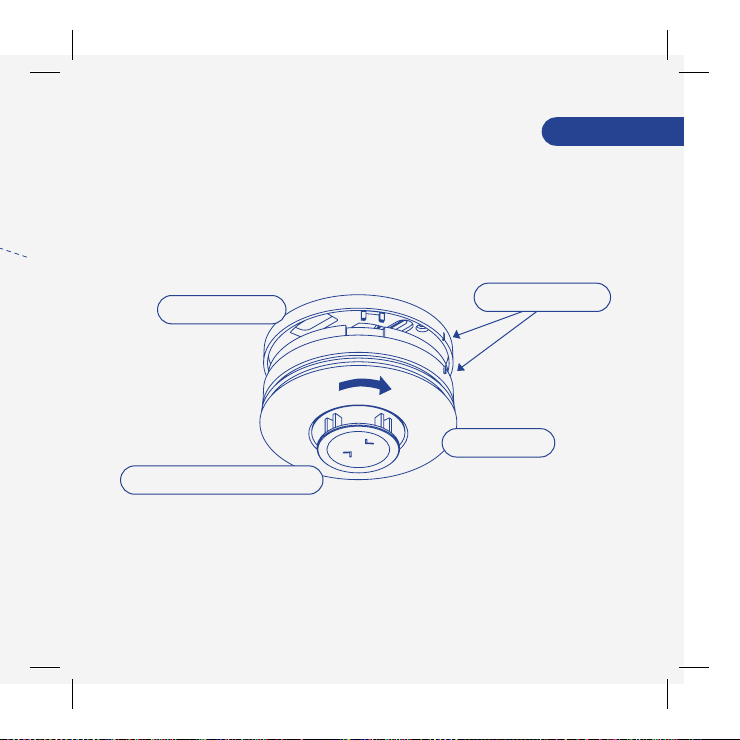

Fit the alarm inside the base by aligning it over the
base, then turn the alarm in a clockwise direction until
it clicks into place.
2.
Test the alarm after completing the installation
(see following section for details).
3.
Mounting Plate Alignment Marks
Push Up And Turn Clockwise
Smoke Alarm
Mounting

• NFPA 72 states: Fire-warning equipment for
residential occupancies are capable of protecting
about half of the occupants in potentially fatal res.
Victims are often intimate with the re, too old or
too young, or physically or mentally impaired such
that they cannot escape even when warned early
enough that escape should be possible. For these
people, other strategies such as protection-in-place
or assisted escape or rescue would be necessary.
WARNING: please read carefully and thoroughly.
• Although smoke alarms can help save lives by
providing an early warning of a re, they are not a
substitute for an insurance policy. Homeowners and
renters should have adequate insurance to protect
their properties.
• Smoke alarms cannot provide an audible alarm if
smoke does not reach the detector. Therefore, smoke
alarms may not sense res starting in chimneys,
walls, on roofs, on the other side of a closed door or
on a different oor.
• A battery powered alarm must have a battery of
the specied type, in good condition and installed
properly.
• Studies have shown that smoke and heat alarms may
not awaken all sleeping individuals, and that it is the
responsibility of individuals in the household that are
capable of assisting others to provide assistance to
those who may not be awakened by the alarm sound
or those who may be incapable of safely evacuating
the area unassisted.
Mounting

• NFPA 72 states: Fire-warning equipment for
residential occupancies are capable of protecting
about half of the occupants in potentially fatal res.
Victims are often intimate with the re, too old or
too young, or physically or mentally impaired such
that they cannot escape even when warned early
enough that escape should be possible. For these
people, other strategies such as protection-in-place
or assisted escape or rescue would be necessary.
WARNING: please read carefully and thoroughly.
• Although smoke alarms can help save lives by
providing an early warning of a re, they are not a
substitute for an insurance policy. Homeowners and
renters should have adequate insurance to protect
their properties.
• Smoke alarms cannot provide an audible alarm if
smoke does not reach the detector. Therefore, smoke
alarms may not sense res starting in chimneys,
walls, on roofs, on the other side of a closed door or
on a different oor.
• A battery powered alarm must have a battery of
the specied type, in good condition and installed
properly.
• Studies have shown that smoke and heat alarms may
not awaken all sleeping individuals, and that it is the
responsibility of individuals in the household that are
capable of assisting others to provide assistance to
those who may not be awakened by the alarm sound
or those who may be incapable of safely evacuating
the area unassisted.
Mounting

• Family Escape Plan: According to National Fire
Protection Association (NFPA) there often is very
little time between the detection of a re and the
time it becomes deadly. This interval can be as
little as one or two minutes. Planning and practicing
for re conditions with a focus on rapid exit from
the residence are important. Drills should be held
so that all family members know the action to be
taken.
• The use of alcohol or drugs may also impair one's
ability to hear the smoke alarm. For maximum
protection, a smoke alarm should be installed in
each sleeping area on every level of a home.
• Smoke alarms must be tested regularly to make
sure the batteries and the alarm circuit are in good
operating condition. • Make a home escape plan. Draw a map of your home
showing all doors and windows. Discuss the plan with
everyone in your home.
• Know at least two ways out of every room, if possible.
Make sure all doors and windows leading outside
open easily.
• Practice using different ways out.
Safety Tips:
• If the alarm is located outside the sleeping room or on
a different oor, it may not wake up a sound sleeper.
• Practice your home re drill at night and during the
day with everyone in your home, twice a year.
Mounting
