IMPORTANT SERVICE GUIDE
◆MODE SWITCH (PROGRAM SWITCH) ASSEMBLY POINT
1) When installing the ass’y full deck on the Main PCB, be sure to align the assembly point of mode switch.
ASSEMBLY POINT
Fig. 1
◆HOW TO EJECT THE CASSETTE TAPE
(If the unit does not operate on condition that tape is inserted into housing ass’y)
1) Remove the Holder Worm Œand the gear worm ´. (See Fig. 2)
2) Turn the Gear Worm Wheel ˇcounterclockwise in the direction of arrow with screw driver. (See Fig. 2)
3) When Slider S, T are approached in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the
hole of frame’s bottom in order to wind the unwounded tape. (Refer to Fig. 3)
(If you rotate Gear Worm Wheel continuously when tape is in state of unwinding, you may cause a tape contamination by grease and
tape damage. Be sure to wind the unwounded tape in the state of set horizontally.)
4) Rotate Gear Worm Wheel ˇcounterclockwise using screw driver again up to the state of eject mode and then pick out the tape.
(Refer to Fig. 2)
Fig. 2 Fig. 3
ΠHOLDER WORM
´ GEAR WORM
SCREW DRIVER
ˇ GEAR WORM WHEEL
FRAME

Samsung Electronics 1-1
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all protective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known earth
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. X-ray Limits :
The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protection,
replace the picture tube only with one that is the
same type as the original.
Fig. 1-1 AC Leakage Test
7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflection
or high voltage circuits.
Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.
9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
10. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD

Precautions
1-2 Samsung Electronics
11. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the
specified limits, check each of the special
components.
12. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
13. Hot Chassis Warning :
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only if
the AC power plug is inserted so that the chassis
is connected to the ground side of the AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the reading
is greater than 1.0V, remove the AC power plug,
reverse its polarity and reinsert. Re-measure the
voltage between the chassis and ground.
14. Some TV chassis are designed to operate with 85
volts AC between chassis and ground, regardless
of the AC plug polarity. These units can be safely
serviced only if an isolation transformer inserted
between the receiver and the power source.
15. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
16. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, out-
of-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure that
the replacement picture tube is the same as the
original.
19. Do not remove, install or handle the picture tube
without first putting on shatterproof goggles
equipped with side shields. Never handle the
picture tube by its neck. Some “in-line” picture
tubes are equipped with a permanently attached
deflection yoke; do not try to remove such
“permanently attached” yokes from the picture
tube.
20. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.

Samsung Electronics 2-1
2. Alignment and Adjustment
2-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the Micom (IC601) and NVRAM (IC603 ; EEPROM) be sure to adjust the “Head switching adjustment” and
“NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) Among Samsung VCR remote control used for adjustment as a accessory, only the remote control that has figures buttons (0 ~ 9) is
available for all adjustment regardless of chassis.
5) How to adjustment.
- Intermittently short-circuit the test point on Main PCB with pincets to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- If the adjustment is completed, be sure to turn the power off.
2-1-1 Location of adjustment button of remote control
Fig. 2-1
SHUTTLE
V-LOCK
REPLAY F.ADV/SKIP
AUDIO SEARCH/EXIT CLEAR
R
E
C
R
E
C
.
S
P
E
E
D
D
I
S
P
L
A
Y
POWER EJECT
CH/TRK
TV/VCR
LINE IN
PREV.CH
A.TRK
MENU
SLOW
100
X-Point (Tracking Center)
Adjustment
Head Switching Adjustment
NVRAM Option Setting
<This type of remote control can adjust.>
Remote Control for adjustment is not supplied as a Service Jig.

2-2 Samsung Electronics
Alignment and Adjustment
2-1-2 Test point location for adjustment mode setting
Fig. 2-2 Main PCB (Bottom View)
Short-Circuit

Alignment and Adjustment
Samsung Electronics 2-3
2-2 Mechanical Adjustment
Note : Refer to the Mechanical Manual “DX-9R (AC68-00001A)” for the adjustment and confirmation of
ass’y full deck.
2-2-1 The number and position of test point
Test point : TP601 (Control Pulse)
TP602 (H’D S/W -Trigger)
TP301 (Envelope)
TP302 (Audio output)
TP303 (Video output)
Fig. 2-3 Location of Test point (Main PCB-Top View)
AUDIO OUTPUT
HEAD SWITCHING
ENVELOPE
2-2-2 ACE Head Position (X-Point) Adjustment
(See the 2-2-1(d) ACE Head Position (X-Point) Adjustment
on page 2-2 of the Mechanical Manual)
1) Playback the alignment tape (Color bar).
2) Intermittently short-circuit the two test points on
Main PCB to set the adjustment mode.
(See Fig. 2-2)
3) Press the “5” button of remote control then adjust-
ment is operated automatically. (See Fig. 2-1)
4) Connect the CH-1 probe to TP301 (Envelope) the
CH-2 probe to TP602 (H’D switching pulse) and
then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment
hole and adjust it so that envelope waveform is
maximum.
6) Turn the Power off.

2-4 Samsung Electronics
Alignment and Adjustment
2-3 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Intermittently short-circuit the two test points on Main PCB to set the adjustment mode. (See Fig. 2-2)
3) Press the “REC.SPEED” button of remote control then adjustment is operated automatically. (See Fig. 2-1)
4) Turn the Power off.
2-4 NVRAM Option Setting
1) Intermittently short-circuit the two test points on Main PCB to set the adjustment mode. (See Fig. 2-2)
2) Press the “MENU” button on the remote control about 5 seconds then option setting display is appeared.
(See Fig. 2-4)
3) Select the option number (See Table 2-1) of corresponding model with “FF” and “REW” button on the remote
control.
4) If selecting the option number is completed, press the “STOP” button of remote control.
(If “STOP” button is pressed, the selected number is changes reversed color. ; See Fig. 2-4)
5) Press the “MENU” button of remote control again to store the option number.
(“save” is displayed for a second as shown Fig. 2-5 and this setting is completed.)
6) Turn the Power off.
1) NVRAM Option is adjusted at production line basically.
2) In case Micom (IC601) and NVRAM (IC603 ; EEPROM) is replaced, be sure to set the corresponding option number of the repaired
model. (If the option is not set, the unit is not operated.)
MOVE :
SAVE : MENU
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
Fig. 2-4
MOVE : save
SAVE : MENU
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
Fig. 2-5
MODEL OPTION NUMBER
VR3040 1, 6, 7, 12, 20, 30, 36, 38
<Table 2-1>

Samsung Electronics 3-1
3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-2 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-3 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Page
3-2
3-4
3-6

Exploded View and Parts List
3-2 Samsung Electronics

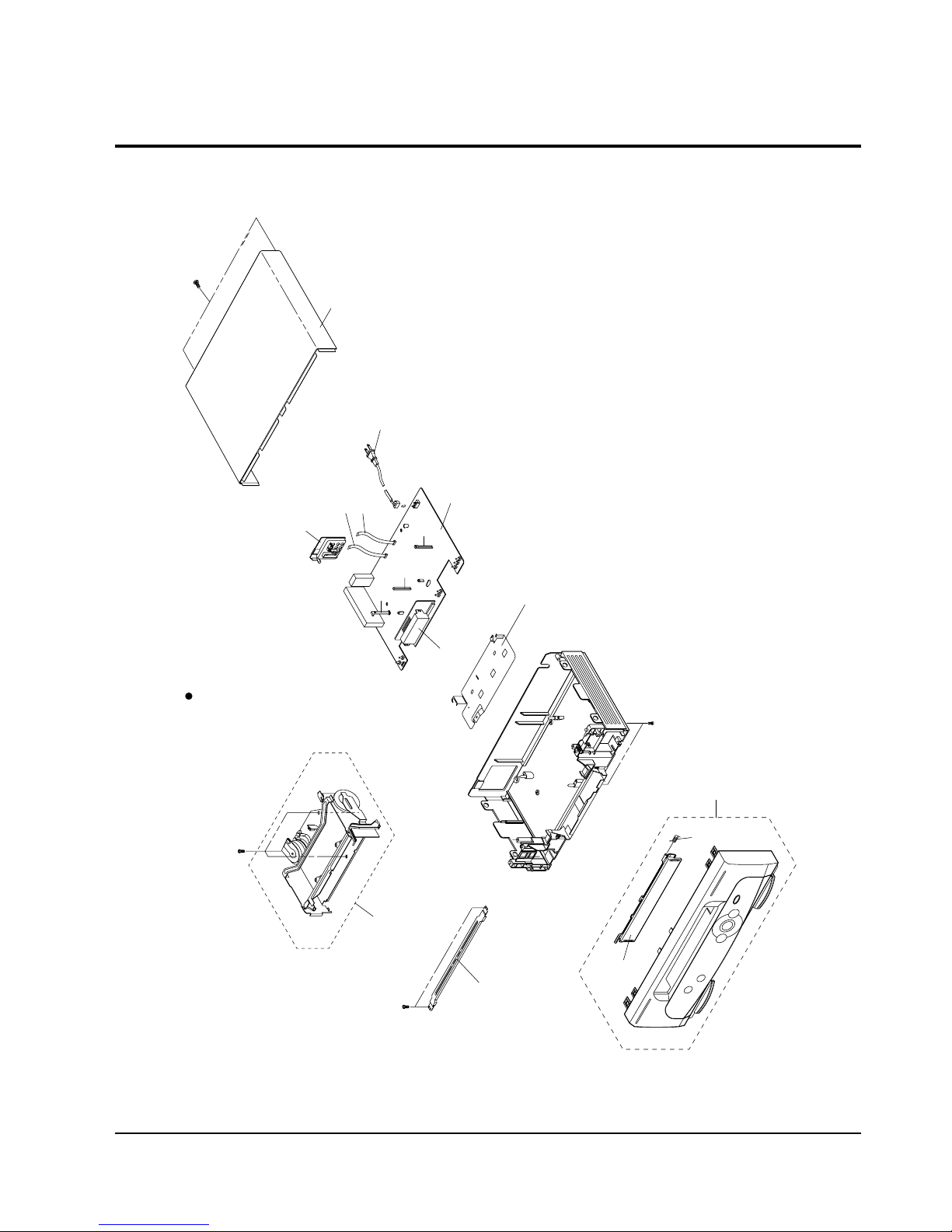

3-1 Cabinet Assembly
S.N.A. : Service Not Available
157
153
FULL DECK (S.N.A.)
BOTTOM-COVER (S.N.A.)
TM401B
200
MAIN PCB (S.N.A.)
157
BRACKET-FRAME
(S.N.A.)
S601A
LD601A S602A
LED PCB (S.N.A.)
CN605B
CN303B
101
155
1
21
22

Exploded View and Parts List
Samsung Electronics 3-3
Loc. No Parts No. Description ; Specification Remark
1 AC97-01076A ASSY-PANEL FRONT;HIPS94V2,VR3040/XAA,D/G
21 AC64-00291C DOOR-CASSETTE;-,ABS94HB ,-,-,-,D/GRAY,-,
22 AC61-62032A SPRING-MASK;X-9,-,SUS,-,4.4,-,SV-C130
101 AC64-30891A CABINET-TOP;SP-A12T,SECC,PCM,0.625,320*2
153 AC60-12126A SCREW-BH;-,BH,-,4*12,FE,FZY,-,-,-
155 AC60-12134A SCREW-TAP BH;-,BH,-,2-4X16,-,FE
157 AC60-10063A SCREW-TAPTITE;BH,+,-,M3,L12,ZPC3,SWRCH18
200 AC39-10200N POWER-CORD;EP2,SPT-2,AWG#18,1.8MT,WAFER,
CN303B 3809-001110 CABLE-FLAT;30V,80C,150mm,7P,1.25mm,UL289
CN605B 3809-001112 CABLE-FLAT;30V,80C,130mm,5P,1.25mm,UL289
LD601A AC61-21009A HOLDER-LED;-,POM(M90-44),-,BLK,-,X-9
S601A AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
S602A AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
TM401B AC61-00050A CONNECTOR-BOARD;-,HIPS,-,2,61,-,BLK,-,-,

Exploded View and Parts List
3-4 Samsung Electronics
3-2 Mechanical Parts (Top Side)
G001
K250 K248
K110
K502
K350 K330
K182 K140
K490
K530
K240
G532 G420
G450 K546
G510
B410
B440 B444 B446
B448 B452
G527
G520
G480
G680
S.N.A. S.N.A.
S.N.A.
S.N.A.
S.N.A.
G530
K340
B473
K188
G555
G546
S.N.A. : Service Not Available
S.N.A.

Exploded View and Parts List
Samsung Electronics 3-5
Loc. No Parts No. Description ; Specification Remark
B410 AC31-12016A MOTOR-LOADING ASSY;-,-,X-9
B440 AC60-10515A SCREW-MACHINE;-,PH,+,-,M3,L3,ZPC,-,YEL
B444 AC66-20571A GEAR-WORM;-,POM SW-01,0.5,2,-,4.5,X-9
B446 AC61-21005A HOLDER-WORM;-,POM M90-44,-,-,-,X-9
B448 AC66-20573A GEAR-WORM WHEEL;-,POM SW-01,0.6,11,-,6.6
B452 AC66-20575A GEAR-FL CAM;-,POM SW-01,M0.6,Z88,-,PCD58
B473 AC61-60559A SPRING-PINCH DRIVE;-,TS,SUS304,PI0.5,OD4
G001 AC97-00738A ASSY-CYLINDER;CX-9TA,NTSC,2HD, ALPS
G420 AC66-80142A SLIDER-SUPPLY ASSY;-,X-9(TS),-,-,-,X-9
G450 AC66-80141A SLIDER-TAKE UP ASSY;-,X-9(TS),-,-,-,X-9
G480 AC33-10217H HEAD-ACE ASSY;-,-,-,-,X-9
G510 AC60-10518A SCREW-TAP TITE;-,PH,+,SW+ZW,M2.6,L5.6,ZP
G520 AC66-30539A LEVER-#9 GUIDE ASSY;-,X-9(TS),-,-,-,X-9
G527 AC61-60553A SPRING-#9 GUIDE;-,ES,SUS304-WPB,OD3.1,0.
G530 AC33-10217G HEAD-FE;VAA00000275,-,-,-,X-9
G532 AC60-10519A SCREW-TAP TITE;-,PH,+,-,M2.6,L8,ZPC
G546 AC66-30535A LEVER-FL DOOR;-,POM M90-44,-,-,BLK,X-9
G555 AC59-90403A UNIT-PINCH ASSY;X-9,-
G680 AC66-30557A LEVER-H/CLEANER ASSY;-,POM+URETHANE,-,- (OPTIONAL)
K110 AC66-10267A REEL-DISK S;-,POM M90-44,-,-,X-9
K140 AC66-10268A REEL-DISK T;-,POM M90-44,-,-,X-9
K182 AC66-30524A LEVER-IDLER;-,POM9044,-,-,-,-
K188 AC66-20577A GEAR-IDLER;-,PEBAX 7033,-,-,-,-,X-9
K240 AC66-30538A LEVER-TENSION ASSY;-,X-9(TS),-,-,-,X-9
K248 AC61-60554A SPRING-TENSION LEVER;-,ES,SUS304-WPB,OD3
K250 AC63-12029A BAND-BRAKE ASSY;-,X-9(TS),-,-,-,X-9
K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K350 AC61-60564A SPRING-BRAKE;-,TENSION,SWP-A,0.25,3,-,X-
K490 AC61-21010B HOLDER-CASS ASSY;-,SECC+POM+SUS,-,-,SEIN
K502 AC61-60561A SPRING-FL.LEVER-LR;-,ES,SUS304 WPB,PI2.7
K530 AC66-30546A LEVER-FL.ARM ASS’Y;-,SECC+POM+SUS,-,-,-,
K546 AC61-50658A GUIDE-CASS. DOOR;-,POM M90-44,-,-,NTR,-,

Exploded View and Parts List
3-6 Samsung Electronics
3-3 Mechanical Parts (Bottom Side)
G542 B560
B484
B458
B500
B488
B462
(OPTIONAL)
S.N.A.
S.N.A.
S.N.A.
S.N.A.
B456
K222 K200 K225 K221
B570
B238
S.N.A. : Service Not Available

Exploded View and Parts List
Samsung Electronics 3-7
Loc. No Parts No. Description ; Specification Remark
B238 AC61-50660A SLEEVE-TENSION;-,POM M90-44,-,-,ID3,-,-,
B456 AC66-20576A GEAR-JOINT 1;-,POM SW-01,M1.0,Z22,-,PCD2
B458 AC66-20574A GEAR-JOINT 2;-,POM SW-01,M1.0,Z14,-,PCD1
B462 AC60-10517A SCREW-TAP TITE;-,PH,+,-,M2.6,L5,ZPC,-,YE
B484 AC66-20580A GEAR-LOADING DRIVE;-,POM SW-01,M1.0,Z32,
B488 AC66-30543A LEVER-S LOAD ASSY;-,-,-,-,-,X-9
B500 AC66-30542A LEVER-T LOAD ASSY;-,-,-,-,-,X-9
B560 AC31-12017A MOTOR-CAPSTAN;DMVCMC07C,-,X-9
B570 AC60-10514A SCREW-CAPSTAN;-,PH,+,M2.6,L6,-
G542 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
K200 AC61-21012A HOLDER-CLUTCH ASSY;-,-,-,-,-,X-9
K221 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
K222 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
K225 AC66-30547A LEVER-UP DOWN ASSY;-,POM+SUS,-,-,-,X-9

Exploded View and Parts List
3-8 Samsung Electronics
MEMO

Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Samsung Electronics 4-1
- - ASSY PCB-MAIN;SV-D21A/XAA,X-9,2HD,120V S.N.A.
S.M.P.S. PARTS
BD1SF2 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SS1 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
C1SD11 2401-001681 C-AL;82uF,20%,200V,GP,TP,16x26,7.5m
C1SD12 2201-000930 C-CERAMIC,DISC;0.22nF,10%,500V,Y5P,TP,5.
C1SR11 2401-001235 C-AL;4.7uF,20%,250V,WT,TP,10x12.5,5
C1SR12 2401-000905 C-AL;22uF,20%,16V,BP,-,6x11,2.5mm
C1SR13 2301-000176 C-FILM,PEF;18nF,5%,100V,TP,10X9X4.3X5,5m
C1SR14 2301-000417 C-FILM,PEF;24nF,5%,50V,TP,6.5x10.5x4mm,5
C1SR15 2301-000423 C-FILM,PEF;3.3NF,5%,100V,TP,7X10X4.5MM,5
C1SR16 2201-000930 C-CERAMIC,DISC;0.22nF,10%,500V,Y5P,TP,5.
C1SS01 2201-000795 C-CERAMIC,DISC;10nF,10%,400V,Y5P,TP,15x1
C1SS02 2201-000828 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x
C1SS03 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SS04 2201-000916 C-CERAMIC,DISC;100pF,10%,400V,Y5U,TP,10x
C1SS31 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C1SS32 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C1SS33 2401-002162 C-AL;1000uF,20%,25V,WT,TP,10x20,5mm
C1SS34 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C1SS35 2401-003059 C-AL;1000UF,20%,16V,WT,TP,10X16,5
C1SS36 2401-001479 C-AL;470uF,20%,10V,GP,TP,-,-
C1SS39 2301-000129 C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
CN1SS1 3711-000178 CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
D1SD11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SD31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SR11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SS01 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS02 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS03 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS04 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS11 0402-000276 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
D1SS31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SS32 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
D1SS33 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
F1SD01 3601-001122 FUSE-CARTRIDGE;250V,1.6A,FAST-ACTING,GLA
IC1SS1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC1SS2 AC14-12006D IC;KA431Z,TO-92,TAPING
L1SS01 AC29-30050C FILTER-LINE NOISE;-,25MH,0.35A,AC250V,BS
L1SS31 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
L1SS32 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
PT1S1 AC26-20120L TRANS-SWITCHING;DP,230V,UL/CSA/DEMKO,EE2
Q1SR11 0502-001123 TR-POWER;KTC4419,NPN,30W,TO-220,ST,10-4
Q1SR12 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
R1SD11 2003-002117 R-METAL OXIDE(S);330Kohm,5%,1W,AA,TP,3.3
R1SD12 2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD31 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD32 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SR01 2002-000320 R-COMPOSITION;1.8Mohm,10%,1/2W,AA,TP,3.5
R1SR11 2003-000119 R-METAL OXIDE;0.68ohm,5%,2W,AE,TP,6x16mm
R1SR12 2003-000314 R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R1SR13 2003-000314 R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R1SR14 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R1SR15 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1SS11 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SS12 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SS13 2003-000148 R-METAL OXIDE;100OHM,5%,2W,AE,TP,6X16MM
R1SS32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SS33 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R1SS34 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VA1SS1 1405-001026 VARISTOR;470V,600A,9x7mm,TP
ZD1SR1 0403-000571 DIODE-ZENER;UZP43B,43V,40-46V,1W,DO-41,T
POWER DRIVE PARTS
C1P101 2401-001730 C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C1P102 2401-001479 C-AL;470uF,20%,10V,GP,TP,-,-
C1P103 2401-001915 C-AL;1uF,20%,50V,GP,TP,3x5,5
C1P104 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P105 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P106 2401-001915 C-AL;1uF,20%,50V,GP,TP,3x5,5
C1P107 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P108 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C1P109 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C1P110 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
D1P101 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P102 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P103 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P105 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P106 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P107 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
L1P101 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L1P102 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
Q1P101 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P102 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P103 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P104 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q1P105 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
Q1P106 0504-000116 TR-DIGITAL;KSR1001,NPN,300MW,4.7K/4.7K,T
Q1P107 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
Q1P108 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q1P109 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
R1P101 2001-000855 R-CARBON;560OHM,5%,1/4W,AA,TP,2.4X6.4MM
R1P102 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1P103 2001-000034 R-CARBON;220OHM,5%,1/4W,AA,TP,2.4X6.4MM
R1P104 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1P105 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1P106 2001-000611 R-CARBON;3.9KOHM,5%,1/4W,AA,TP,2.4X6.4M
R1P107 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1P108 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1P111 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1P112 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
ZD1P01 0403-000390 DIODE-ZENER;UZP33B,33V,31.4-34.6V,1W,DO-
ZD1P02 0403-000717 DIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
ZD1P03 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
ZD1P04 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
LOGIC PARTS
C601 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C602 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C603 2203-000716 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C604 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C605 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5
C606 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5
C607 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C608 2203-001579 C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
C609 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C610 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C611 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5
C612 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C613 2203-000429 C-CERAMIC,CHIP;0.018nF,5%,50V,NP0,TP,201
C614 2203-000925 C-CERAMIC,CHIP;470NF,+80-20%,50V,Y5V,TP,
C615 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C616 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
4. Electrical Parts List

Loc.No Part No Description ; Specification RemarkLoc.No Part No Description ; Specification Remark
4-2 Samsung Electronics
Electrical Parts List
C617 2202-000216 C-CERAMIC,MLC-AXIAL;.027NF,5%,50V,SL,TP,
C618 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C619 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C620 2203-000389 C-CERAMIC,CHIP;0.015nF,5%,50V,NP0,TP,201
C621 2203-000389 C-CERAMIC,CHIP;0.015nF,5%,50V,NP0,TP,201
C622 2203-000389 C-CERAMIC,CHIP;0.015nF,5%,50V,NP0,TP,201
C623 2203-000389 C-CERAMIC,CHIP;0.015nF,5%,50V,NP0,TP,201
C624 2203-000389 C-CERAMIC,CHIP;0.015nF,5%,50V,NP0,TP,201
C625 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C626 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C627 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C628 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C629 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C632 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C634 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C636 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C637 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C638 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C640 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C641 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C647 2203-000727 C-CERAMIC,CHIP;3.9nF,10%,50V,X7R,TP,2012
C648 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C650 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C651 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C655 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C656 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C657 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C658 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C663 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C668 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C673 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
C675 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C696 2203-000818 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,201
C6B01 2401-000199 C-AL;1000uF,20%,6.3V,GP,TP,10x12.5,
CN601 AC39-20817S LEAD CONNECTOR-ASSY;DP,SMH200-02,YBH200-
CN604 3711-003749 CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,
CN605 3708-001163 CONNECTOR-FPC/FC/PIC;5P,1.25mm,STRAIGHT,
D602 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D603 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D604 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D605 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D606 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D6B01 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
IC601 AC09-00133A IC-MICOM;GMS3977RBB02F,GMS3977RBB02F,10
IC602 1003-001162 IC-MOTOR DRIVER;KA3082,SIP,10PIN,25MIL,D
IC603 1103-001148 IC-EEPROM;24C021,2KBIT,DIP,8P,300MIL,10M
IC6B1 AC14-12006C IC;KA7533,DIP,-
L601 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L602 2701-000131 INDUCTOR-AXIAL;15uH,5%,2.5x3.4mm
L603 2701-000145 INDUCTOR-AXIAL;1uH,5%,2.4x3.4mm
LD601 0601-000517 LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
PT601 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
PT602 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
Q601 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R601 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R604 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R605 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R606 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R608 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R609 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R6100 2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R611 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R6111 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R612 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R613 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R614 2007-000380 R-CHIP;13KOHM,5%,1/10W,DA,TP,2012
R6141 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R615 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R616 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R618 2001-000325 R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R619 2001-000325 R-CARBON;120OHM,5%,1/8W,AA,TP,1.8X3.2MM
R620 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R621 2007-001201 R-CHIP;820OHM,5%,1/10W,DA,TP,2012
R622 2007-001149 R-CHIP;750KOHM,5%,1/10W,DA,TP,2012
R623 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R624 2001-000773 R-CARBON;470KOHM,5%,1/8W,AA,TP,1.8X3.2M
R625 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R626 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R627 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R628 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R629 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R630 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R631 2001-000435 R-CARBON;1MOHM,5%,1/8W,AA,TP,1.8X3.2MM
R632 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R633 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R635 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R636 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R641 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012
R643 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R660 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R661 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R663 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R664 2007-000738 R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R666 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R667 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R669 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R671 2001-000812 R-CARBON;5.6KOHM,5%,1/8W,AA,TP,1.8X3.2M
R672 2003-000259 R-METAL OXIDE;3.9OHM,5%,2W,AE,TP,6X16MM
R673 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R674 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R675 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R676 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R677 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R680 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R681 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R682 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R684 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R685 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R686 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R687 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R688 2007-000798 R-CHIP;360OHM,5%,1/10W,DA,TP,2012
R689 2007-000798 R-CHIP;360OHM,5%,1/10W,DA,TP,2012
R694 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R697 2007-000546 R-CHIP;20KOHM,5%,1/10W,DA,TP,2012
R6B01 2001-000458 R-CARBON;2.2OHM,5%,1/8W,AA,TP,1.8X3.2MM
R6B06 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R6B07 2007-000498 R-CHIP;2.2MOHM,5%,1/10W,DA,TP,2012
S601 0603-001011 PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
S602 0603-001011 PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
SW602 AC34-20100B SWITCH-REC;-,-,X-9,-
SW603 AC34-20100A SWITCH-MODE;-,-,X-9,-
W086 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
XT601 2801-001384 CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
XT602 2801-003318 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAP,12.5
XT603 2801-003293 CRYSTAL-UNIT;10MHz,50ppm,28-AAA,16pF,50o
AUDIO/VIDEO PARTS
C301 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C302 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C303 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C304 2203-001721 C-CERAMIC,CHIP;360pF,5%,50V,NPO,TP,2012,
C305 2401-001250 C-AL;4.7uF,20%,35V,GP,TP,4x5,5

Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Electrical Parts List
Samsung Electronics 4-3
C306 2203-000408 C-CERAMIC,CHIP;0.18nF,5%,50V,NP0,TP,2012
C307 2203-000818 C-CERAMIC,CHIP;0.033nF,5%,50V,NP0,TP,201
C308 2203-001579 C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
C309 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5
C310 2401-000407 C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5
C311 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C312 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C313 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C314 2401-000407 C-AL;10uF,20%,16V,GP,TP,3.5x5,2.5
C315 2401-001915 C-AL;1uF,20%,50V,GP,TP,3x5,5
C316 2401-001915 C-AL;1uF,20%,50V,GP,TP,3x5,5
C317 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C318 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C319 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C320 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C321 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C322 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C323 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C324 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C325 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C326 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C327 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C329 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C330 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C331 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C332 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C333 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C334 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C335 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C336 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C337 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C338 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5
C339 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5
C340 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C341 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C342 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C343 2203-001724 C-CERAMIC,CHIP;4700NF,+80-20%,16V,Y5V,TP
C344 2203-001214 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C345 2301-001014 C-FILM,PEF;6.8nF,5%,50V,TP,7x3x6,5mm
C346 2203-001105 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,2012
C347 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
C348 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C349 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C350 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C351 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C352 2301-000253 C-FILM,PEF;39NF,5%,100V,TP,7.5X4.5X12.5M
C353 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C356 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C357 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5
C358 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C359 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
C360 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C361 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C362 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C364 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C365 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C366 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C370 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C371 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C570 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
CN301 3708-000395 CONNECTOR-FPC/FC/PIC;8P,1.25MM,STRAIGHT,
CN302 3711-002445 CONNECTOR-HEADER;BOX,2P,2R,1.5MM,STRAIGH
CN303 3708-001302 CONNECTOR-FPC/FC/PIC;7P,1.25mm,STRAIGHT,
D301 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D302 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D307 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
FL301 AC27-80100C COIL-OSC;7mm,2.4mH,-
IC301 1204-001644 IC-VIDEO PROCESS;LA71069M,QFP,100P,-,PLA
L301 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L302 2702-000108 INDUCTOR-RADIAL;100uH,5%,6x6.4mm
L303 2702-000108 INDUCTOR-RADIAL;100uH,5%,6x6.4mm
L304 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L305 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L306 2702-000120 INDUCTOR-RADIAL;15mH,5%,6.2x7.4mm
L307 2702-000108 INDUCTOR-RADIAL;100uH,5%,6x6.4mm
Q301 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q302 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q303 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q304 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q305 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
Q306 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q307 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
Q308 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
Q3201 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TO-
R301 2007-000671 R-CHIP;2KOHM,5%,1/10W,DA,TP,2012
R302 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R303 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R304 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012
R305 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R306 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R307 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP,1.8X3.2M
R309 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R310 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
R313 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R314 2007-001195 R-CHIP;820KOHM,5%,1/10W,DA,TP,2012
R315 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R316 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R317 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
R318 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
R320 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R326 2001-000454 R-CARBON;2.2MOHM,5%,1/8W,AA,TP,1.8X3.2M
R327 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
R329 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R330 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R331 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R332 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R333 2007-001092 R-CHIP;620OHM,5%,1/10W,DA,TP,2012
R334 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R335 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R336 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R337 2007-000502 R-CHIP;2.2OHM,5%,1/10W,DA,TP,2012
R338 2001-000405 R-CARBON;180OHM,5%,1/8W,AA,TP,1.8X3.2MM
R339 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R340 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R341 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R342 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R344 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R345 2007-000449 R-CHIP;180OHM,5%,1/10W,DA,TP,2012
R346 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012
R347 2007-000024 R-CHIP;1.3KOHM,5%,1/10W,DA,TP,2012
R348 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
R349 2007-001001 R-CHIP;510OHM,5%,1/10W,DA,TP,2012
R351 2007-000844 R-CHIP;3KOHM,5%,1/10W,DA,TP,2012
R352 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R353 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R354 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012
R356 2007-000565 R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R357 2007-000565 R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R358 2001-000008 R-CARBON;15KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R359 2007-000738 R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R360 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R361 2007-000964 R-CHIP;5.1KOHM,5%,1/10W,DA,TP,2012

R362 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R367 2007-000689 R-CHIP;3.3MOHM,5%,1/10W,DA,TP,2012
R397 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R399 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
XT301 2801-003610 CRYSTAL-UNIT;3.579545MHz,8ppm,28-AAA,S,1
TM-BLOCK
C401 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C405 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C406 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C407 2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V
C409 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C410 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
R401 2007-001201 R-CHIP;820OHM,5%,1/10W,DA,TP,2012
R402 2007-001201 R-CHIP;820OHM,5%,1/10W,DA,TP,2012
SW401 3408-001042 SWITCH-SLIDE;DC 12V,100mA,-,OFF-ON,-
TM401 AC40-00007A TM-BLOCK;115VD025AP,NTSC-M,115VD025AP,Y
INPUT-OUTPUT PARTS
C801 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C802 2401-001479 C-AL;470uF,20%,10V,GP,TP,-,-
C803 2401-002042 C-AL;220uF,20%,10V,GP,TP,6.3x11,5
C804 2203-000274 C-CERAMIC,CHIP;0.01nF,0.25pF,50V,NP0,TP,
C805 2401-001730 C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C8L1 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C8M2 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012
JK801 AC37-20001H JACK-RCA;DPAM-,4P,MONO,PI3.3
L801 2701-000168 INDUCTOR-AXIAL;3.3uH,5%,2.5x3.4mm
L802 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
Q801 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q8L1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R801 2001-000969 R-CARBON;75OHM,5%,1/8W,AA,TP,1.8X3.2MM
R802 2001-000025 R-CARBON;75OHM,5%,1/4W,AA,TP,2.4X6.4MM
R803 2007-001239 R-CHIP;910OHM,5%,1/10W,DA,TP,2012
R804 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R8L1 2007-000395 R-CHIP;150KOHM,5%,1/10W,DA,TP,2012
R8L2 2007-000395 R-CHIP;150KOHM,5%,1/10W,DA,TP,2012
R8L3 2007-000511 R-CHIP;2.4KOHM,5%,1/10W,DA,TP,2012
R8L4 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R8L5 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R8M1 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R8M2 2001-001015 R-CARBON;9.1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R8M3 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R8M6 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
FUNCTION MATRIX PARTS
D701 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D702 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D703 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D704 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D705 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D706 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D740 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
R741 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R744 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
SW703 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW704 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW706 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW707 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW709 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW710 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
LED PCB
C7L01 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C7L02 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C7L03 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,1
CN7L01 3711-004012 CONNECTOR-HEADER;NOWALL,16P,1R,2.5MM,ANG
D7L01 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
LD7L01 0601-001203 LED;ROUND,RED,3.3mm,700nm
LD7L02 0601-000497 LED;ROUND,GRN,3.1mm,565nm
LD7L03 0601-000497 LED;ROUND,GRN,3.1mm,565nm
LD7L04 0601-000497 LED;ROUND,GRN,3.1mm,565nm
LD7L05 0601-000497 LED;ROUND,GRN,3.1mm,565nm
LD7L06 0601-000497 LED;ROUND,GRN,3.1mm,565nm
LD7L07 0601-001203 LED;ROUND,RED,3.3mm,700nm
Q7L01 0501-000290 TR-SMALL SIGNAL;KSA643-Y,PNP,500mW,TO-92
Q7L02 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q7L03 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q7L04 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q7L05 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q7L06 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q7L07 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R7L01 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L02 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L03 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L04 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L05 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L06 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L07 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L08 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L09 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L10 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L11 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L12 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L13 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L14 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R7L15 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
RM701 AC59-60060A MODULE-REMOCON;GP1U281R,SHARP,38KHZ,-,-,
- AC59-10420H REMOCON-ASSY;-,PR4914,-,14KEY,VR5409/XAA
Loc.No Part No Description ; Specification Remark
4-4 Samsung Electronics
Electrical Parts List
Loc.No Part No Description ; Specification Remark
