Samsung SM-R735T User manual

SM-R735T
User Manual

i
Legal
Legal Information
Important legal information can be accessed at samsung.com
READ THIS INFORMATION BEFORE USING YOUR MOBILE DEVICE.
Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty INCLUDING ITS
DISPUTE RESOLUTION PROCEDURE and your right to opt out of arbitration within 30 calendar days of the first consumer
purchase. You may opt out by either sending an email to [email protected].com with the subject line“Arbitration
Opt Out” or by calling 1-800-SAMSUNG (726-7864). For more detailed procedures, please refer to the“Dispute Resolution
Procedures and Arbitration and Opt-Out” section of the Limited Warranty.
End User License Agreement for Software (EULA)
The End User License Agreement (EULA) for this device is found in the Gear Manager application, which is required for operation
of your device. You may also access this EULA at: samsung.com/us/Legal/SamsungLegal-EULAGEAR
TMO_R735T_EN_UM_TN_PB4_020617_FINAL

ii
Intellectual Property
All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers
relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating thereto (the“Phone System”), is
proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes,
but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and
related documentation and other works of authorship.
You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and
will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create
source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the
Intellectual Property shall remain with SAMSUNG and its suppliers.
Open Source Software
Some software components of this product, including but not limited to‘PowerTOP’ and ‘e2fsprogs’, incorporate source code covered
under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open
source licenses. To obtain the source code covered under the open source licenses, please visit: opensource.samsung.com

iii
Disclaimer of Warranties; Exclusion of Liability
The information below explains that a user accepts this device as sold, including the hardware and software components as
created and packaged for sale. If the user changes these parameters through a unique modification, Samsung will not be held
responsible for damages or issues that result from these end-user changes.
Except as set forth in the express warranty contained on the warranty page enclosed with the product, the purchaser takes
the product “as is”, and Samsung makes no express or implied warranty of any kind whatsoever with respect to the product,
including but not limited to the:
• merchantability of the product or its fitness for any particular purpose or use;
• design, condition or quality of the product;
• performance of the product;
• workmanship of the product or the components contained therein; or
• compliance of the product with the requirements of any law, rule, specification or contract pertaining thereto.
Nothing contained in the instruction manual shall be construed to create an express or implied warranty of any kind whatsoever
with respect to the product. In addition, Samsung shall not be liable for any damages of any kind resulting from the purchase or
use of the product or arising from the breach of the express warranty, including incidental, special or consequential damages, or
loss of anticipated profits or benefits.

iv
Modification of Software
Samsung is not liable for performance issues or incompatibilities caused by your editing of registry settings, or your
modification of Operating System (OS) software.
Using custom OS software may cause your device and applications to work improperly. Your carrier may not permit users to
download certain software, such as custom OS.
Samsung Knox
Samsung Knox is Samsung’s security platform and is a mark for a Samsung device tested for security with enterprise use in mind.
Additional licensing fee may be required. For more information about Knox, please refer to: samsung.com/us/knox

v
Maintaining Water and DustResistance
This device is rated IP68 using the Ingress Protection rating system.
Your device has been tested in a controlled environment and shown to be water and dust resistant in certain circumstances
(meets requirements of classification IP68 as described by the international standard IEC 60529 – Degrees of Protection provided
by Enclosures [IP Code]; test conditions: 15-35°C, 86-106 kPa, 5.0 feet, for 30 minutes). Despite this classification, your device is not
impervious to water damage in any situation. It is important that all compartments are closed tightly.
If any liquid is found to have entered your device components or an internally sealed system, this condition will void
your device warranty.
Follow these tips carefully to prevent damage to the device.
• Any device which uses accessible compartments or ports that can be opened, should have these sealed or closed tightly to
prevent liquid from entering the system.
• Whenever your device gets wet, dry it thoroughly with a clean, soft cloth. If your device has gotten wet, you should dry the inside
of the charging port before inserting a power connector to charge your device. If the charging port is not fully dry, your device may
operate abnormally. For example, it may charge more slowly or overheat.

vi
• Do not expose the device to salt water or ionized water, or to water over 5.0 feet deep for more than 30 minutes. If your device is
exposed to fresh water, dry it thoroughly with a clean, soft cloth. If the device is exposed to any liquid other than fresh water, rinse
the device with fresh water immediately and dry it thoroughly with a clean, soft cloth. Failure to rinse the device in fresh water and
dry it as instructed may cause the device to suffer from operability or cosmetic issues.
• Do not expose the device to water at high pressure.
• If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged.
• To maintain the water-resistant and dust-resistant features of your device, if an S Pen is available for use, verify it is securely inserted
prior to any exposure to liquids.
• The touchscreen and other features may not work properly if the device is used in water or in other liquids. [110116]

vii
Restricting Children’s Access to YourMobile Device
Your device is not a toy. Do not allow children to play with it because they could hurt themselves and others, damage the device, or
make calls that increase your device bill. Keep the device and all its parts and accessories out of the reach of small children.
Samsung Electronics America (SEA), Inc.
Address:
85 Challenger Road
Ridgefield Park,
New Jersey 07660
Phone: 1-800-SAMSUNG (726-7864)
Internet: samsung.com
©2017 Samsung Electronics America, Inc. Samsung, Samsung Galaxy, Samsung Milk Music, Samsung Gear, S Voice, and SHealth are all
trademarks of SamsungElectronics Co., Ltd.
Other marks are the property of their respective owners.
Some multimedia (audio/video) files contain Digital Rights Management (DRM) technology to verify you have the right to use the files.
Preloaded apps on your device may not be compatible with DRM-protected files.

viii
Screen images are simulated. Appearance of device may vary.
The actual available capacity of the internal memory is less than the specified capacity because the operating system and default
applications occupy part of the memory. The available capacity may change when you upgrade the device.

ix
24 Touchscreen
28 Navigating the screen
30 Home screen
38 Status panel
45 Setting the screen lock
46 Entering text
51 Screen capture
52 Updating the Gear
Basics
2 Device layout
6 Battery
11 Wearing the Gear
13 Replacing the strap
16 Connecting the Gear to a Smartphone
19 Activating the device
20 Remote connection
20 Turning the screen on and off
21 Using the bezel
Table of Contents

x
Applications
53 Messages
55 Phone
58 S Health
74 Nike+ Running
76 Schedule
77 S Voice
80 Weather
81 Alarm
82 Timer
83 Stopwatch
84 World Clock
85 Bloomberg
86 CNN
86 ESPN
87 News Briefing
87 Music Player
90 Samsung Milk Music
91 Gallery
95 Buddy
96 Email

xi
97 Find My Phone
98 Maps
99 Voice Memo
Settings
102 Introduction
103 Display
104 Sound
106 Device
107 Call
108 Messages
109 Connections
116 Screen lock
117 Accessibility
118 Input
121 Power saving
122 Gear info
Samsung Gear App
123 Introduction
125 Watch faces
126 Notifications

xii
127 Apps layout
128 Send content to Gear
129 Settings
136 Find My Gear
138 Samsung Gear Apps

1
Basics
Instructional icons
Warning: Situations that could cause injury to yourself or others.
Caution: Situations that could cause damage to your device or other equipment.
Notice: Notes, usage tips, or additional information.

Basics
2
Device layout
Front
Home/Power button
Back button
Bezel
Light sensor
Touchscreen
Microphone (behind)

Basics
3
Back
Heart rate sensor
Speaker

Basics
4
Buttons
Button Function
Home/Power
•Press and hold to turn the Gear on or off.
•Press to turn on the screen.
•Press and hold for more than 7 seconds to restart the Gear.
•Press to open the Apps screen when you are on the Watch screen.
•Press to open the Watch screen when you are on any other screen.
Back •Press to return to the previous screen.
Make sure the Gear’s microphone is not obstructed when you are speaking into it while charging.
Do not disassemble, modify, or repair your device. Placing objects, such as magnetic stripe cards, including credit cards,
phone cards, passbooks, and boarding passes, next to the device or charger may cause damage from the charger or device’s
magnetic field.

Basics
5
Wireless charger dock
USB charger
port
LED indicator
Wireless
charging
surface
Make sure the Gear’s microphone is not obstructed when you are speaking into it while charging.

Basics
6
Battery
Charging the battery
Charge the battery before using it for the first time or when it sits unused for extended periods.
Use only charging devices and batteries that are approved by Samsung. Samsung accessories are designed for your device to
maximize battery life. Using other accessories may void your warranty and may cause damage.

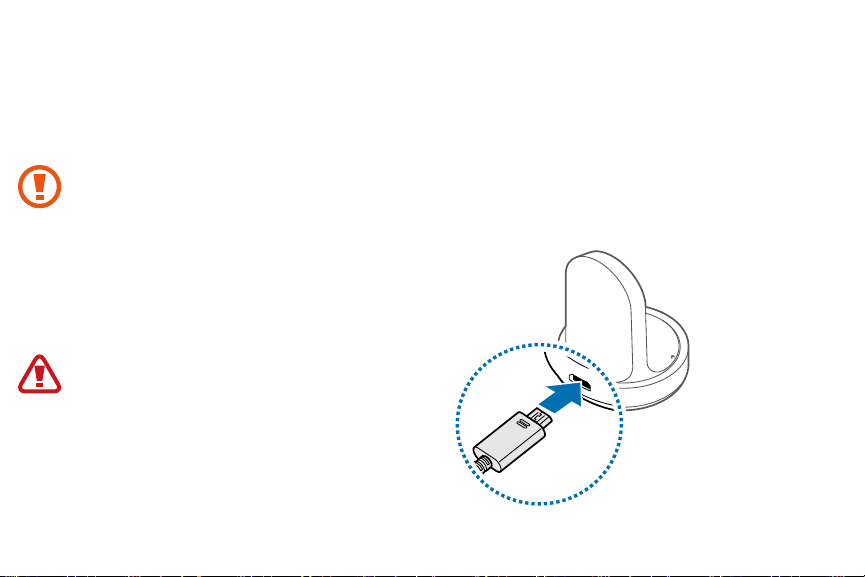

1 Connect the USB cable to the USB charger head.
Then, connect the other end of the USB cable to the
wireless charger dock.
Prevent the USB charger port and the small
end of the charger from coming into contact
with conductive materials, such as liquids,
dust, metal powders, and pencil leads.

Basics
7
2 Plug the USB charger head into an electric socket.
3 Place the Gear into the wireless charger dock.
4 After fully charging your Gear, disconnect it from the wireless charger dock. Unplug the charger from the wireless charger dock,
and then unplug the charger from the electric socket.
