San Telequip SC10E4M K User manual

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
User Manual for 4 Port Modbus RTU/ASCII to Modbus TCP Gateway, SC10E4M K &SC10E4IM K
Introduction
SC10E4M K 4-Ports Modbus RTU/ASCII To Modbus TCP Gateway providing new ways of connecting
serial devices to a Wireless LAN (Wi-Fi 802.11 b/g/n ). This Gateway is designed to operate 4 serial
ports through wireless (Wi-Fi 802.11 b/g/n) over 10/100Mbps Ethernet network. As the data is
transmitted via TCP/IP protocol, data acquisition and controlling is available to go through Intranet and
Internet. 4 Serial ports operate in common RS-232, RS-422 and RS-485 auto selection modes
configuration.
SC10E4M K is embedded with MT7688AN MIPS chipset makes it become the ideal device for
transmitting the data from your RS-232 or RS-422/485 Serial interface devices, such as PLCs, various
Meters and/or Sensors to an IP-based Wi-Fi LAN, and making it possible for your software to access
Serial interface devices anywhere and anytime.
SC10E4IM K provides Modbus TCP Server and Modbus TCP Client Mode for selection. It supports
manual configuration via web browser and support various protocols including TCP, IP, HTTP, DHCP,
ICMP and ARP. These are the best solution to coordinate your Serial interface devices.
Product Specifications
System
 CPU : MT7688AN MIPS CPU, 580 MHz
 RAM : 128M Bytes DDR2 RAM
 ROM : 32M Bytes Flash ROM
 OS : Open Wrt Linux OS
 Support 8 TCP Master each 32 simultaneous request or 8 TCP Slave on each RTU port.
Ethernet
 Port Type : RJ-45 Connector
 Speed : 10 /100 M bps (Auto Detecting)
 Protocol : ARP, IP, ICMP, UDP, TCP, HTTP, DHCP
 Protocol : NTP, FTP
 Mode : Modbus TCP Server and Client, Modbus RTU Master and Slave
 Setup : HTTP Browser Setup (IE & Netscape), Console
 Security : Setup Password
 Protection : Built-in 1.5KV Magnetic Isolation
WiFi port
 Standard : 2.4G IEEE 802.11b/g/n
 Data Rate : 11/54/72.2 Mbps @ 20Mhz Band Width
 Modulation : DSSS; OFDM
 Frequency : 2.4GHz
 Tx Power 11b : Max. 22dBm
 Tx Power 11g/n : Max. 19dBm
 Rx Sensitivity : -76dBm @ 54Mbps, -89.5dBm @ 11Mbps
 Tx Rate : Max. 54Mbps with auto fallback
 Tx Distance : Up to 100m
 Security : WEP 64-bit / 128-bit data encryption, WPA / WPA2 personal
 Antenna : 2 dBi, RP-SMA connector
 Network Mode : Infrastructure; Soft AP (for Setup)
 Mode : TCP Server / TCP Client / Serial Master / Serial Slave
 Setup : HTTP Browser Setup (IE, Chrome, Firefox)
 Security : Login Password

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Serial Ports * 4
 Port : RS232/422/485 * 4 Port (RS-232 - RX/TX only)
 Port : RS422 / 485 (Surge Protect)
 Speed : 300 bps ~ 230.4Kbps
 Parity : None, Odd, Even, Mark, Space
 Data Bit : 5, 6, 7, 8
 Stop Bit : 1, 2
 RS-232 Pins : Rx, Tx, GND
 RS-422 : Rx+, Rx-, Tx+, Tx- (Surge Protect)
 RS-485 : Data+, Data- (Surge Protect)
 15KV ESD for all signals
 3000V DC Isolation (option)
Software : TCP to RTU Slave, RTU Master to TCP Slave
TCP to ASCII Slave, ASCII Master to TCP Slave
Utility : Built-in Web server Setup, Easy Operation
Watch Dog Function
Power : DC 9~24V, 200mA@12V, support DC Jack & Terminal Input
Led Lamp : SYS, PWR, Wi-Fi, RX, TX, LAN
Environment : Operating Temperature: -20⁰C to 70⁰C
Storage Temperature : -25⁰C to 80⁰C
Dimensions : 195 * 120 * 35 mm (W * D * H), W+16mm x2 for din rail extension.
Weight : 660 gm
WARRANTY : 1 year
Product Panel Views
Antenna Connector
The connector for antenna is a standard reverse SMA jack. Simply connect it to a 2.0dBi dipole
antenna (Standard Rubber Duck) and it is 50 Ohms impedance and can support 2.4GHz frequency.
Ethernet Port
The connector for network is the usual RJ45. Simply connect it to your network switch or Hub. When
the connection is made, the green color LED of Ethernet port will light on. When data traffic (Rx/Tx)
occurs on the network, yellow color LED will blink during data transferring.
Serial Port of RS232/RS422/RS485
Connect the serial data cable between the SC10E4M K Gateway and the Serial interface device.
Follow the web page parameter setup procedures to configure the Gateway.
DC-IN Power Outlet
The Serial to Ethernet +Wi-Fi Gateway is powered by a single 12V DC (Inner positive, outer negative)
power supply and 1.0mA of current. Connect the power adaptor to the AC power socket and put the
DC Jack plug into the outlet of device. The “SYS” green color LED will be ON when power is properly

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
supplied. Terminal Block 2 wires power supply is an option.
DC Power outlet
Reset Button(Wi-Fi)
If any chance you forgot the login password, or have incorrect settings making Gateway inoperable.
When the power is on and the “SYS” LED light on, use a point tip to press this button and hold it and
wait for more than 25 seconds. All the parameters will be reset to the factory default.
LED Indicators
PWR (Red) : After power on, this LED is always On.
SYS (Green) : After power on and system working, this LED start blinking
Wi-Fi (Red) : LED is ON after power on, then off a while. It starts blinking after Wi-Fi module is
ONTX TX/ RX (Green/Green): Upon data sending or receiving indicator, the LED will blink.
Wiring Architecture
RS232 Wiring
RS-422 Wiring

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
RS485 Wiring
When you finish the steps mentioned above and the LED indicators are as shown, the Gateway is
installed correctly. You can check the Software Setup in CD or Our Web site www.santelequip.com/
download to find Utility to setup the IP Address.
To proceed with the parameters setup, please use a web browser (IE or Chrome) to continue
Configuration
When setting up your Gateway for the first time, the first thing you should do is to configure the IP
address.
IP Search Utility Setup
1. Copy “SC10E4IMK Utility” from CD ROM or our Web site to your host
computer.
2. “SC10E4IMK” is a self-extract-install program. Double click it to install this Wi-Fi IP Searching
tool into host computer.
SC10E4IMK Finder will pop up on the screen after installation or you may double click the icon on
desk top of host computer to open this tool.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Click on “Find” button. It will scan the network and show up the IP of Gateway.
Ethernet IP Address :192.168.1.100
Wi-Fi IP Address :10.0.0.1

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Click “Setup” button will pop up a window. You may change Name, Description, IP & Netmask of
device. Click “Setup” to save setup. The device’s IP must be same subnet with host PC/NB enable to
use web browser open configuration page.
Click “Goto” button will open a web page of configuration. (default ID: admin; password: admin).

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Now you have successfully connected to the Gateway.
Configuration
There are 4 setup pages as “System”, “Network”, “Serial” and “Gateway”.
System Setup
System: where you can change Password, set up Auto Reset time and modify Device Name,
Description of device.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Appearance of Wireless & Ethernet setup.
NTP: Enable / Disable NTP function; Set up NTP server and Time Zone.
Firmware update: Click “Browse” to open file manager

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Click to select the file with specified version and click “Confirm” button.
When the selected file name appears on the input column, click “Update” button
Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Network setup
Wireless section
Type: to select “INFRASTRUCTURE” or “ACCESS POINT”
When selected “INFRASTRUCTURE” go to SSID, click “Scan” will get list of available SSID, select
one to link.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Input password and select mode DHCP or STATIC
In LAPTOP / PC choose same SSID to link.
When selected “ACCESS POINT”, Gateway acts as an Access Point which is allowed to be
connected by PC /NB /Smart Phone/ PAD. It supports DHCP server function. Soft AP broadcasts its
SSID “SANXX_XX_XX_XX_XX_XX”. PC /NB /Smart Phone/PAD should connect to this SSID and
then open web browser with default IP for Gateway setup.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Password: Key in selected AP log in password
Encrypt
Mode: “STATIC”: To input assigned IP address, Subnet Mask.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .

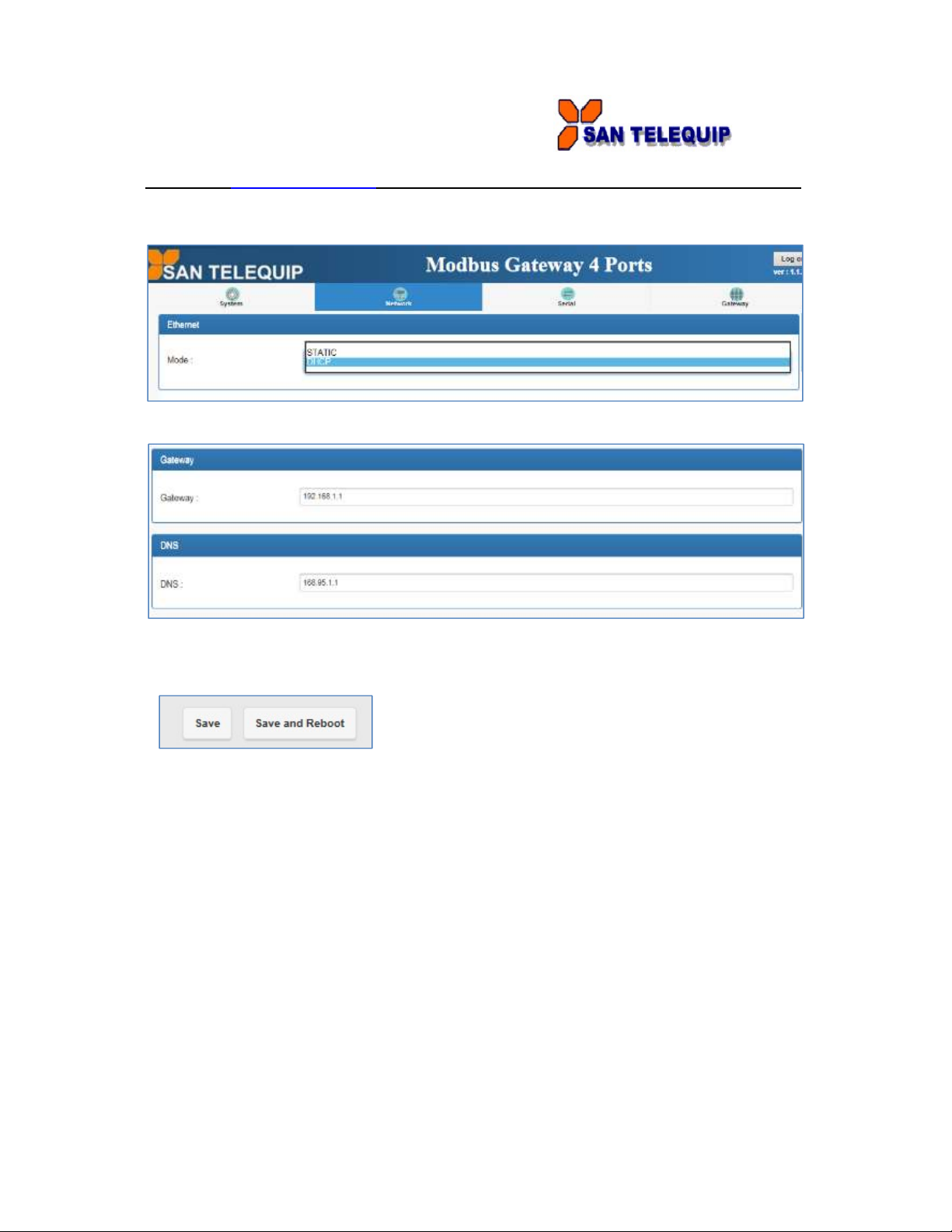

Ethernet: select STATIC or DHCP to assign IP address.
Gateway and DNS: To check with MIS for right IP address.
Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .

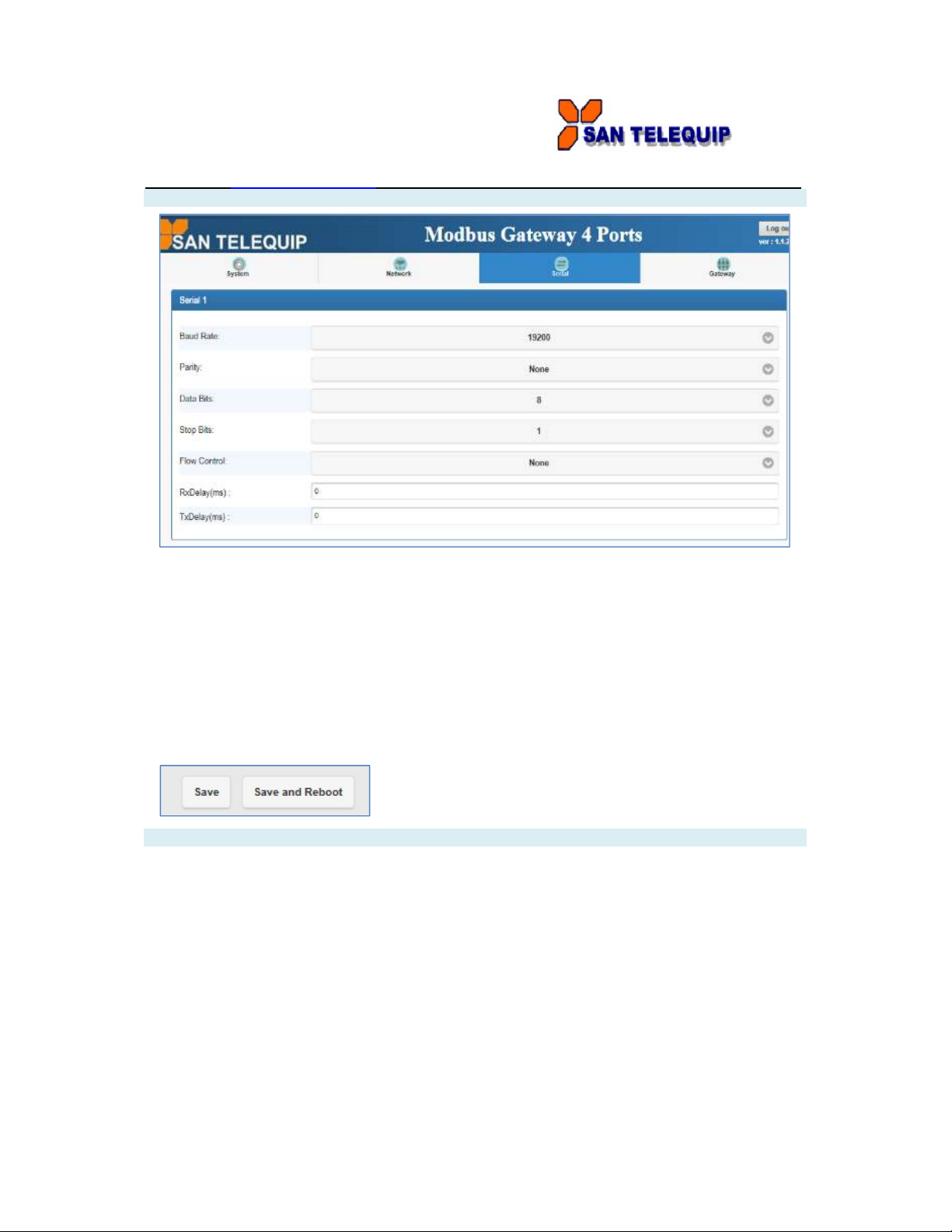

Serial Port 1 to 4 Setting
Please clearly set each parameters from Serial 1 to Serial 4 (default 19200, n, 8, 1)
Baud Rate : 300 bps to 921.6K bps
Parity : None, Even, Odd
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 2
Flow Control : None, XON/XOFF
RxDelay(ms) : 0
TxDelay(ms) : 0
Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.
Gateway Setup
There are “Modbus Gateway” 1,2, 3, 4

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Four Modes are selectable. Please select Gateway type as per your setup.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .

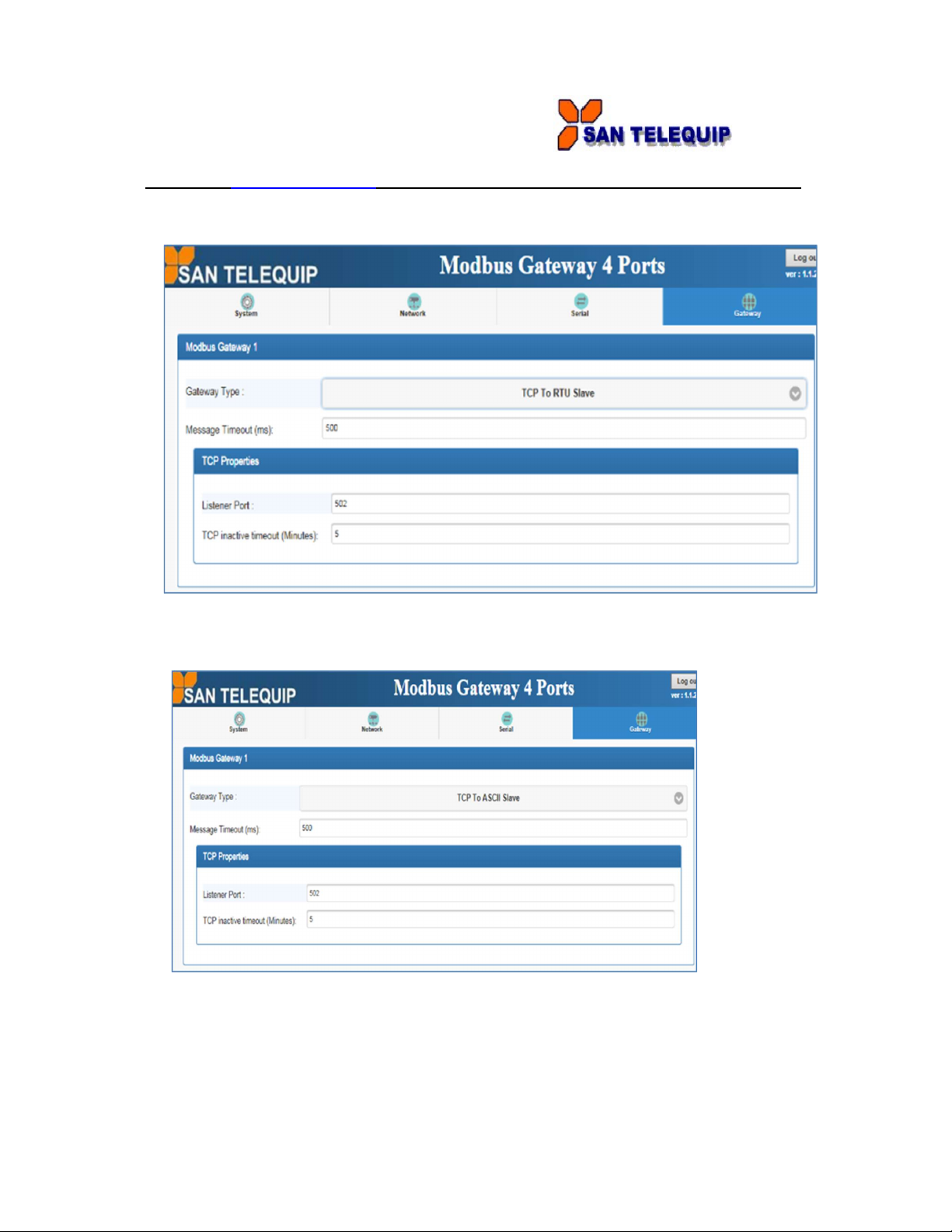

1. TCP to RTU Slave: TCP Master Device (e.g. Modscan / SCADA system) sends query to RTU
Slave device then RTU Slave device response back to TCP Master’s requirement. Inside the
Modbus gateway, there are TCP Slave & RTU Master counterparts respectively
2. TCP to ASCII Slave: TCP Master Device (ex. Modscan / SCADA system) sends query to ASCII
Slave device then ASCII Slave device response back to TCP Master’s requirement. Inside the
Modbus gateway, there are TCP Slave & ASCII Master counterparts respectively

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .

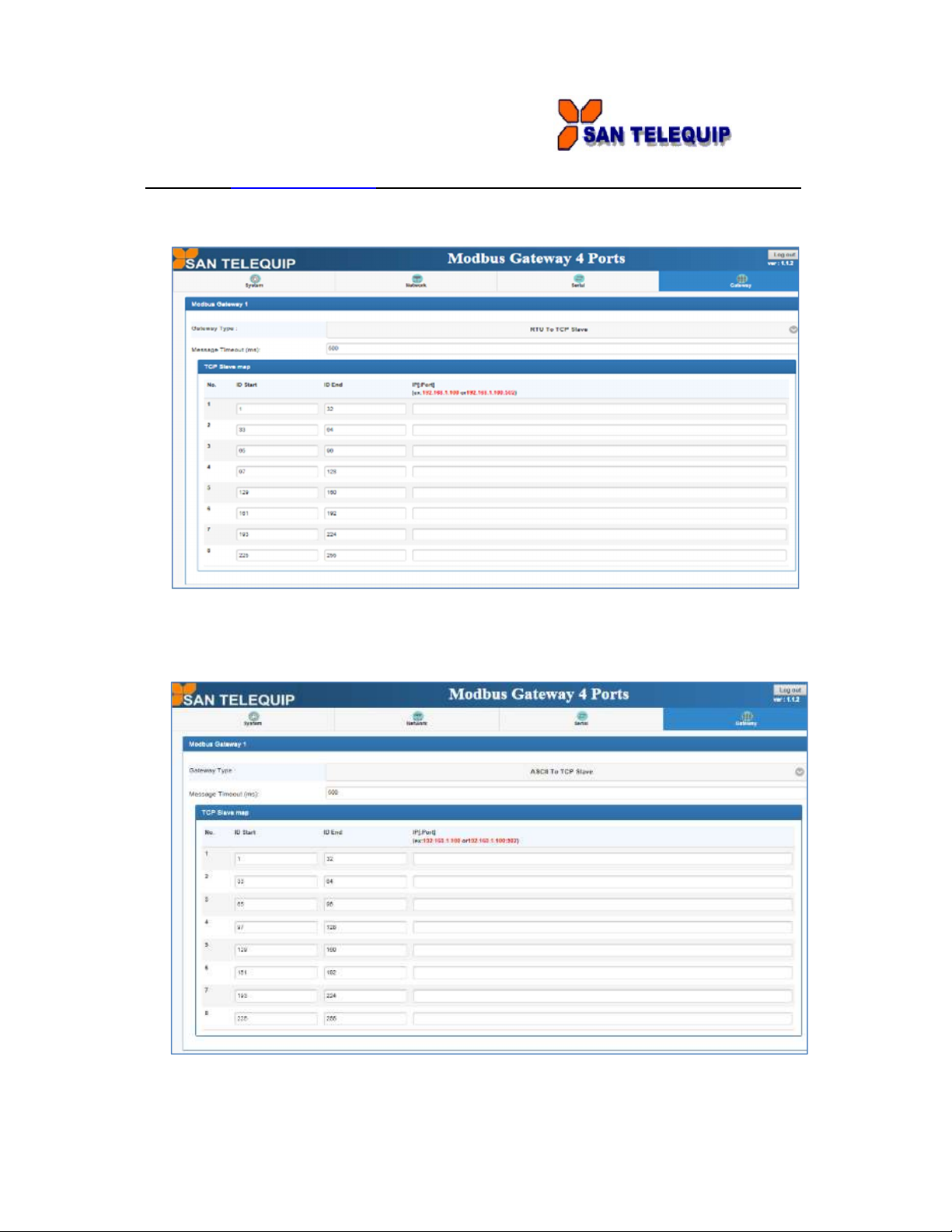

3. RTU to TCP Slave: RTU Master Device (ex. PLC / Modscan) sends query to TCP Slave device;
then TCP Slave device response back to RTU Master’s requirement. Inside the Modbus gateway,
there are TCP Master & RTU Slave counterparts respectively. Set up to 8 slaves on each port
4. ASCII to TCP Slave: ASCII Master Device (ex. PLC / Modscan) sends query to TCP Slave
device; then TCP Slave device response back to ASCII Master’s requirement. Inside the Modbus
gateway, there are TCP Master & ASCII Slave counterparts respectively Set up to 8 slaves on
each port.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
Now Setup is successfully configured. Please click “Save” and go to other pages for configuration or
click “Save and Restart” to run new configuration.
After configued all parameters, click “Save and Restart” to reboot system.
Support 8 TCP Master
Reset button (if needed)
Ensure power is on, press “Reset” button for over 20 seconds then release. SC10E4IM K will set
configuration back to default.

San Telequip (P) Ltd.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail] .
