San Telequip SC10E4IK User manual

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
User Manual for 4 Ports Serial to Ethernet Converter,Model Number SC10E4IK
Introduction SC10E4IK 4-Ports Serial to Ethernet Converter providing new
ways of connecting serial devices to a Wireless LAN (Wi-Fi
802.11 b/g/n ). This converter is designed to operate 4 serial
ports through wireless (Wi-Fi 802.11 b/g/n) over 10/100Mbps
Ethernet network.. 4 Serial ports operate in common RS-232,
RS-422 and RS-485 auto selection modes configuration.
SC10E4IM K provides TCP Server Mode, TCP Client Mode, and
UDP Mode for selection. It supports manual configuration via
web browser and support various protocols including TCP, IP, UDP, HTTP, DHCP, ICMP, and ARP. These
are the best solution to coordinate your Serial interface devices.
Product Specifications
System
CPU : MT7688AN MIPS CPU, 580 MHz
RAM : 128M Bytes DDR2 RAM
ROM : 32M Bytes Flash ROM
OS : Open Wrt Linux OS
Ethernet
Port Type : RJ-45 Connector
Speed : 10 /100 M bps (Auto Detecting)
Protocol : ARP, IP, ICMP, TCP, HTTP, DHCP,DNS,NTP
Mode : TCP Server / TCP Client / UDP
Setup : HTTP Browser Setup (IE & Netscape), Console
Security : Setup Password
Protection : Built-in 1.5KV Magnetic Isolation
WiFi port
Standard : 2.4G IEEE 802.11b/g/n
Data Rate : 11/54/72.2 Mbps @ 20Mhz Band Width
Modulation : DSSS; OFDM
Frequency : 2.4GHz
Tx Power 11b : Max. 22dBm
Tx Power 11g/n : Max. 19dBm
Rx Sensitivity : -76dBm @ 54Mbps, -89.5dBm @ 11Mbps
Tx Rate : Max. 54Mbps with auto fallback
Tx Distance : Up to 100m
Security : WEP 64-bit / 128-bit data encryption, WPA/ WPA2 personal
Antenna : 2 dBi, RP-SMA connector
Network Mode : Infrastructure; Soft AP (for Setup)
Setup : HTTP Browser Setup (IE, Chrome, Firefox)
Security : Login Password
Serial Ports * 4
Port : RS232/422/485 * 4 Port (RS-232 - RX/TX only)
Port : RS422 / 485 (Surge Protect)
Speed : 300 bps ~ 230.4Kbps
Parity : None, Odd, Even, Mark, Space
Data Bit : 5, 6, 7, 8
Stop Bit : 1, 2
RS-232 Pins : Rx, Tx, GND
RS-422 : Rx+, Rx-, Tx+, Tx- (Surge Protect)

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
RS-485 : Data+, Data- (Surge Protect)
15KV ESD for all signals
3000V DC Isolation (option)
Utility : Built-in Web server Setup, Easy Operation
Watch Dog Function
Power : DC 9~24V, 200mA@12V, support DC Jack & Terminal Input
Led Lamp : SYS (PWR), Wi-Fi, RX, TX, LAN
Environment : Operating Temperature: -20⁰C to 70⁰C
Storage Temperature: -25⁰C to 80⁰C
Dimensions : 195 * 120 * 35 mm (W * D * H), W+16mm x2 for din rail extension.
Weight : 660 gm
WARRANTY : 1 year

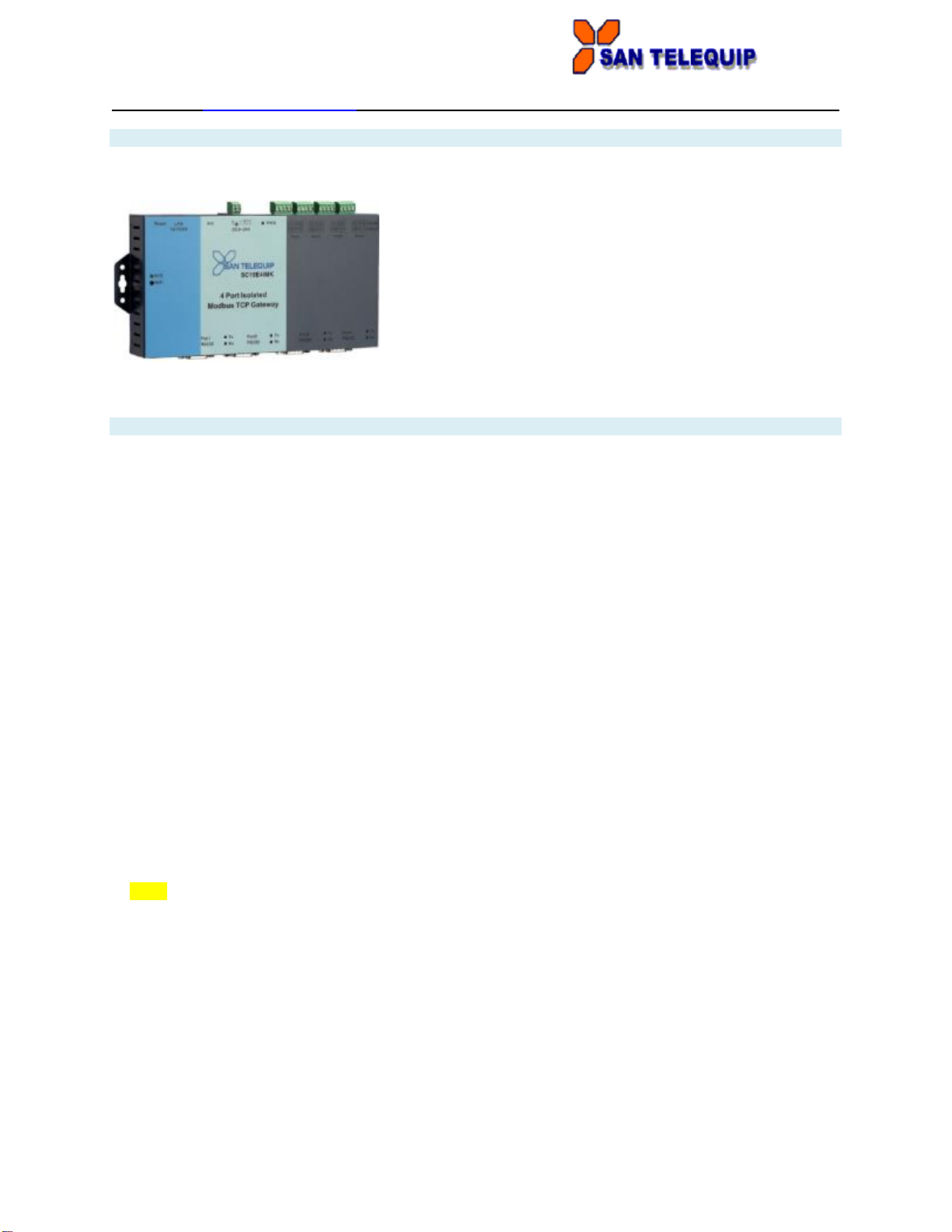

Product Panel Views
Antenna Connector
The connector for antenna is a standard reverse SMA jack. Simply connect it to a 2.0dBi dipole antenna
(Standard Rubber Duck) and it is 50 Ohms impedance and can support 2.4GHz frequency.

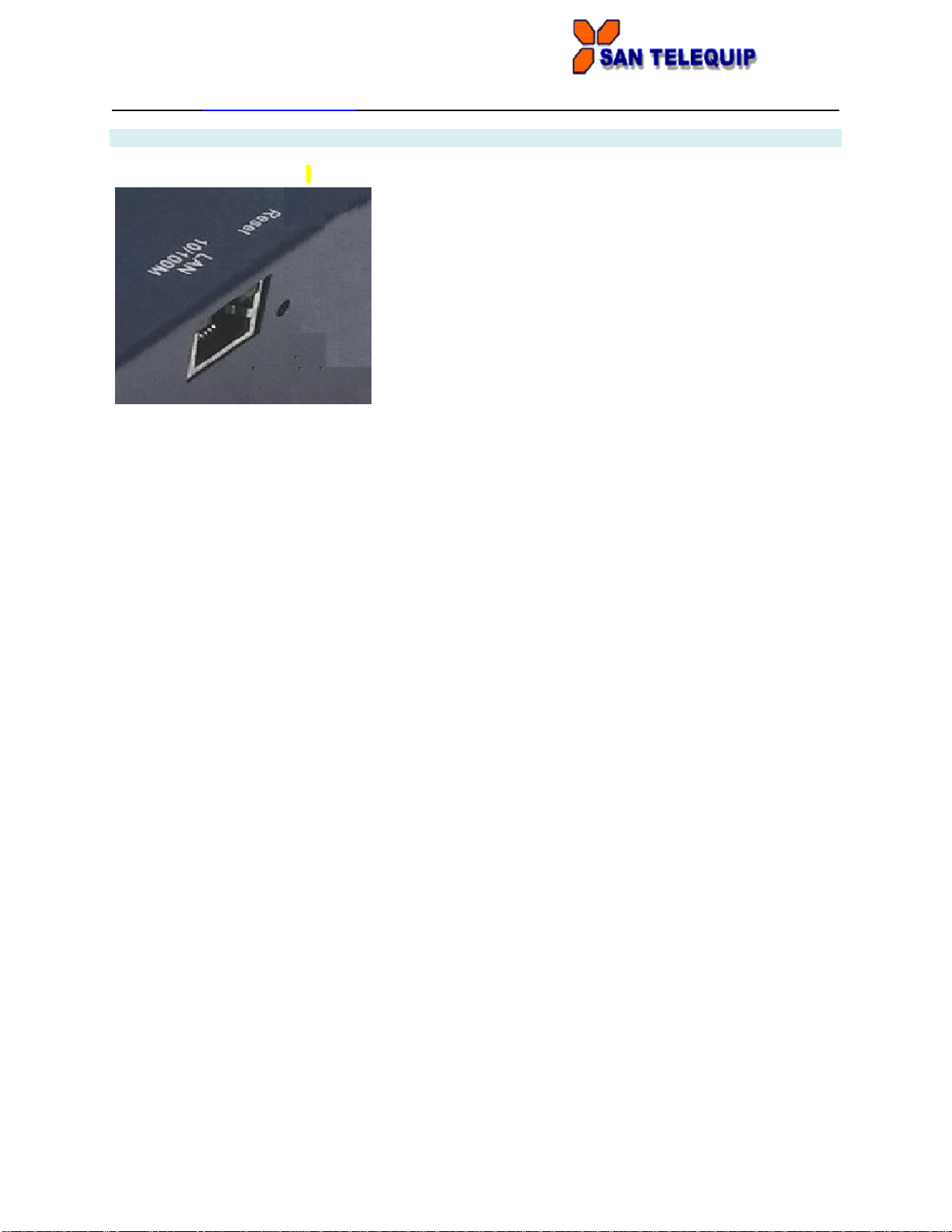

Ethernet Port
The connector for network is the usual RJ45. Simply connect it to your network switch or Hub. When the
connection is made, the green color LED of Ethernet port will light on. When data traffic (Rx/Tx) occurs on
the network, yellow color LED will blink during data transferring.
Serial Port of RS232/RS422/RS485
Connect the serial data cable between the SC10E4IK Converter and the Serial interface device. Follow
the web page parameter setup procedures to configure the Converter.
DC-IN Power Outlet
The Serial to Ethernet +Wi-Fi Converter is powered by a single 12V DC (Inner positive, outer negative)
power supply and 1.0mA of current. Connect the power adaptor to the AC power socket and put the DC
Jack plug into the outlet of device. The “SYS” green color LED will be ON when power is properly
supplied. Terminal Block 2 wires power supply is an option.
DC Power outlet
Reset Button(Wi-Fi)

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
If any chance you forgot the login password, or have incorrect settings making Converter inoperable.
When the power is on and the “SYS” LED light on, use a point tip to press this button and hold it and wait
for more than 25 seconds. All the parameters will be reset to the factory default.
LED Indicators
PWR (Red) : After power on, this LED is always On.
SYS (Green) : After power on and system working, this LED start blinking
Wi-Fi (Red) : LED is ON after power on, then off a while. It starts blinking after Wi-Fi module is ONTX
TX/ RX (Green/Green): Upon data sending or receiving indicator, the LED will blink.
Wiring Architecture
RS232 Wiring
RS-422 Wiring
RS485 Wiring
When you finish the steps mentioned above and the LED indicators are as shown, the Converter is
installed correctly. You can check the Software Setup in CD or Our Web site www.santelequip.com/
download to find Utility to setup the IPAddress.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
To proceed with the parameters setup, please use a web browser (IE or Chrome) to continue
Configuration
When setting up your Converter for the first time, the first thing you should do is to configure the IP
address.
IP Search Utility Setup
1. Copy “SC10E4IK Utility” from CD ROM or our Web site to your host computer.
2. “SC10E4IK” is a self-extract-install program. Double click it to install this Wi-Fi IP Searching tool
into host computer.
SC10E4IK Finder will pop up on the screen after installation or you may double click the icon on desk top
of host computer to open this tool.
Click on “Find” button. It will scan the network and show up the IP of Converter.
Ethernet IP Address :192.168.1.100

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
Wi-Fi IP Address :10.0.0.1

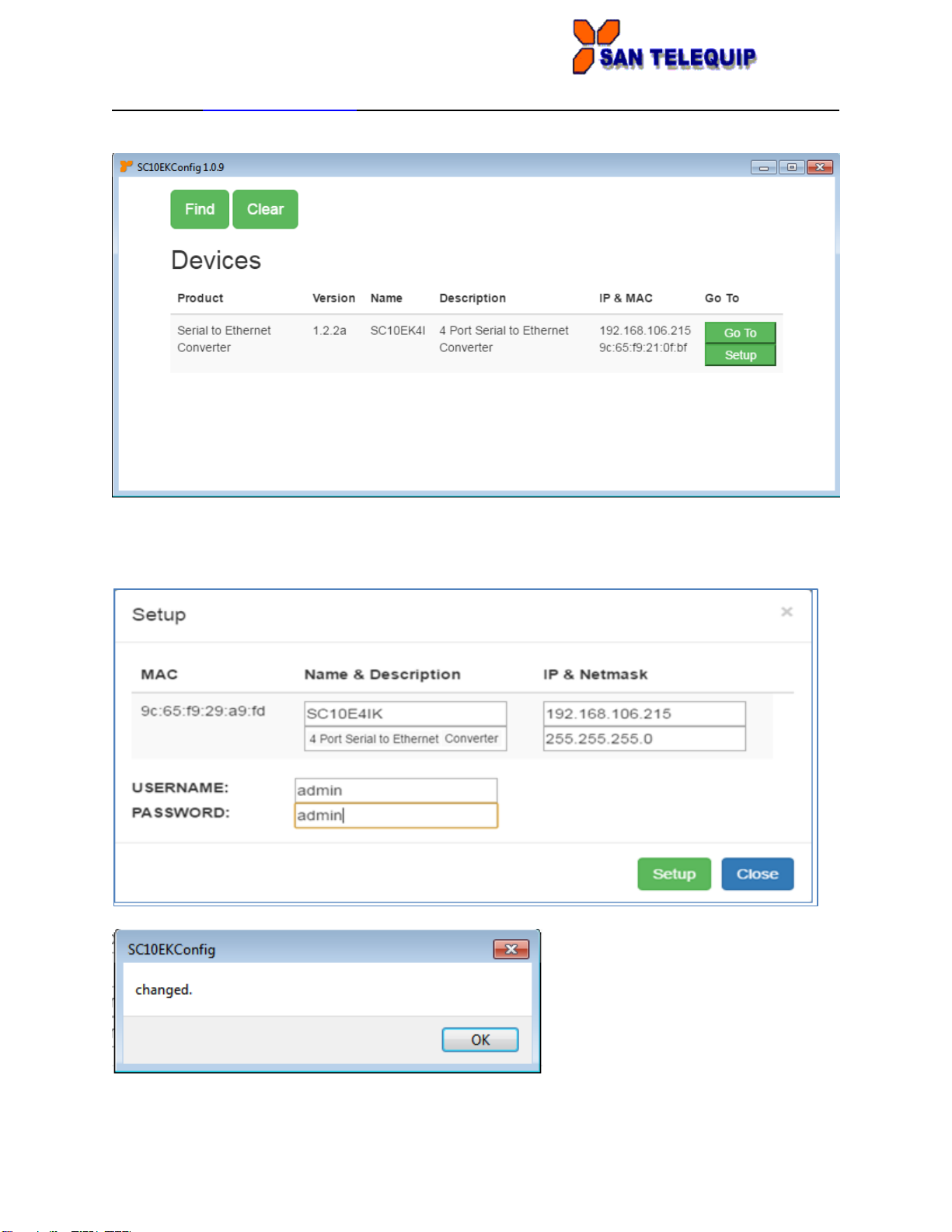

Click “Setup” button will pop up a window. You may change Name, Description, IP & Netmask of device.
Click “Setup” to save setup. The device’s IP must be same subnet with host PC/NB enable to use web
browser open configuration page.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]

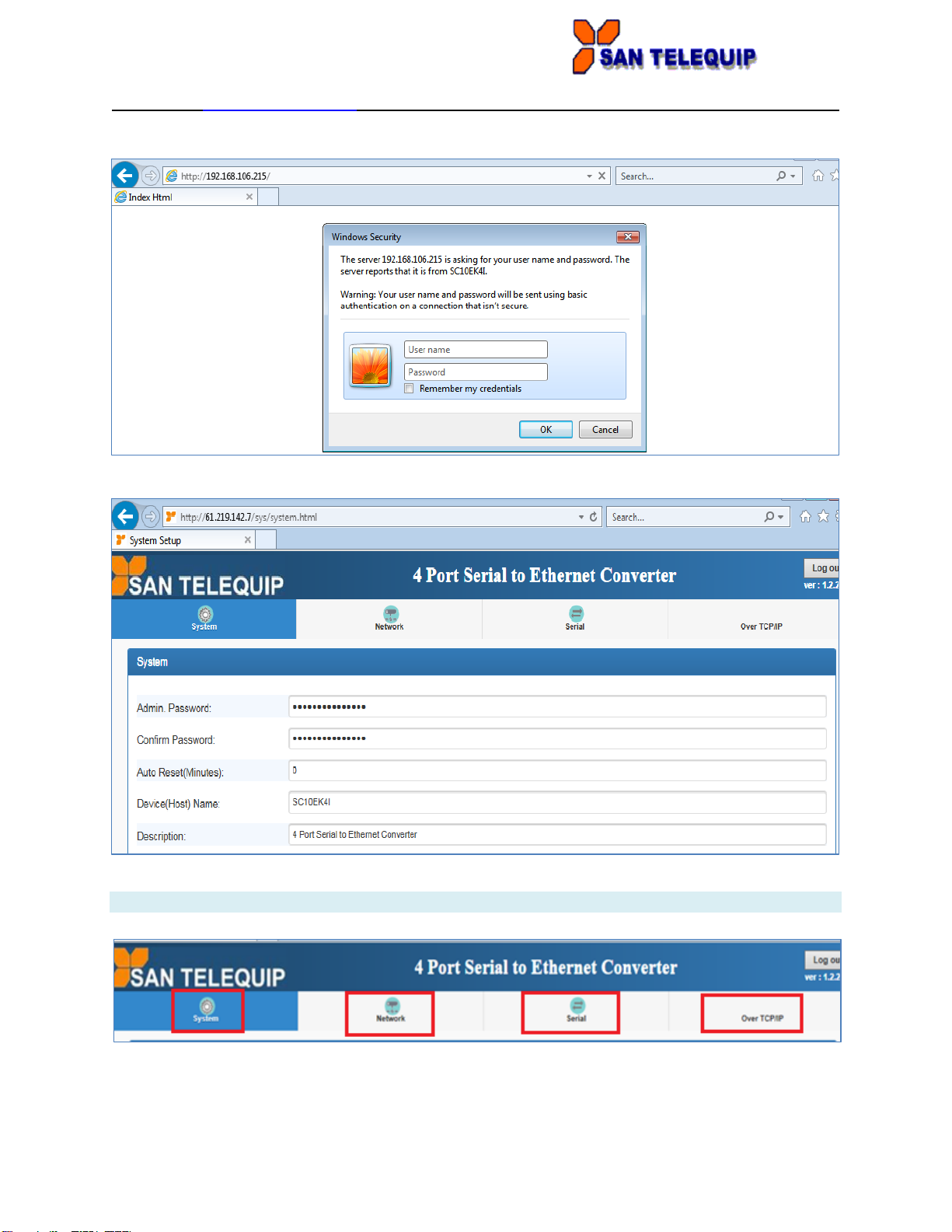

Click “Goto” button will open a web page of configuration. (default ID: admin; password: admin).
Now you have successfully connected to the Converter.
Configuration
There are 4 setup pages as “System”, “Network”, “Serial” and “Converter”.
System Setup

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]

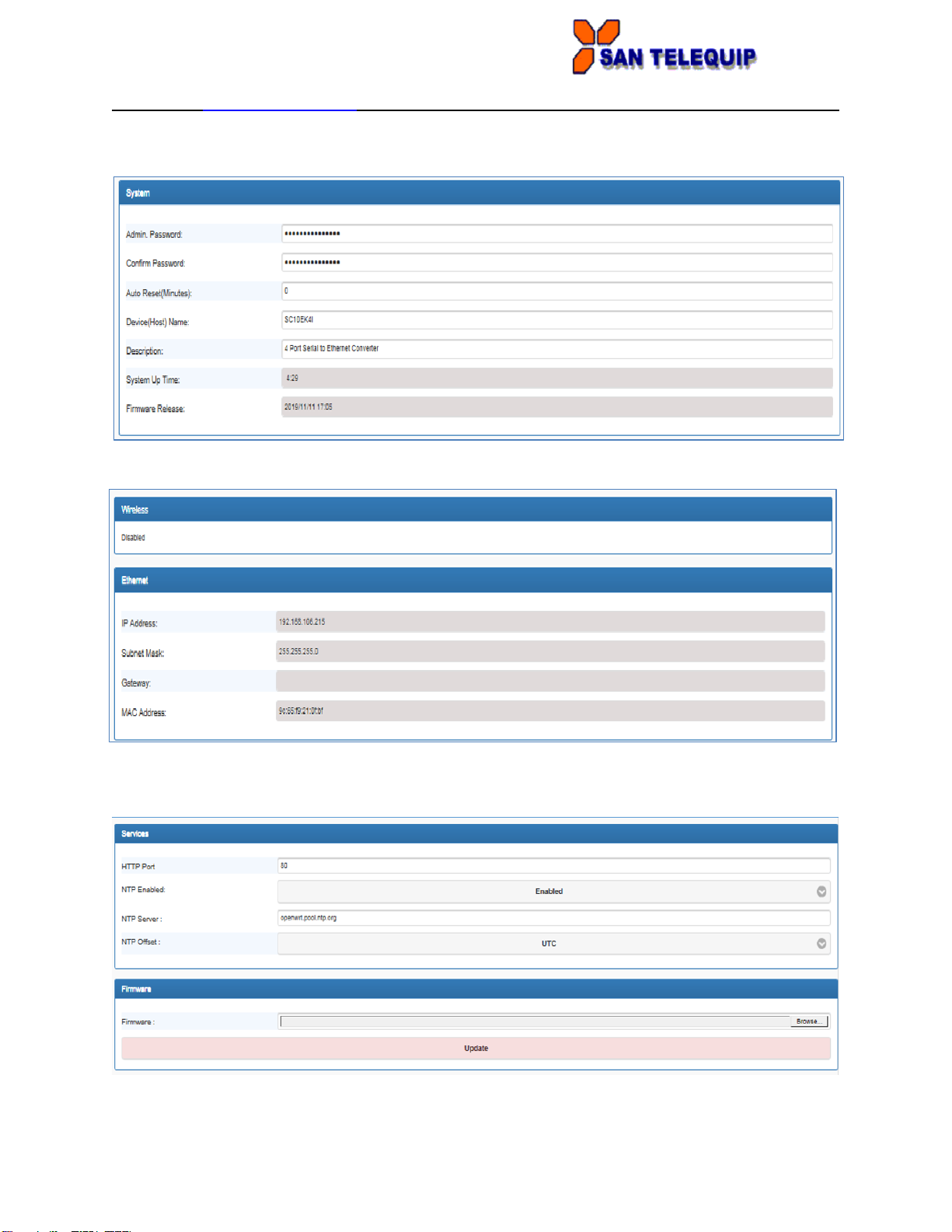

System: where you can change Password, set up Auto Reset time and modify Device Name, Description
of device.
Appearance of Wireless & Ethernet setup.
NTP: Enable / Disable NTP function; Set up NTP server and Time Zone.

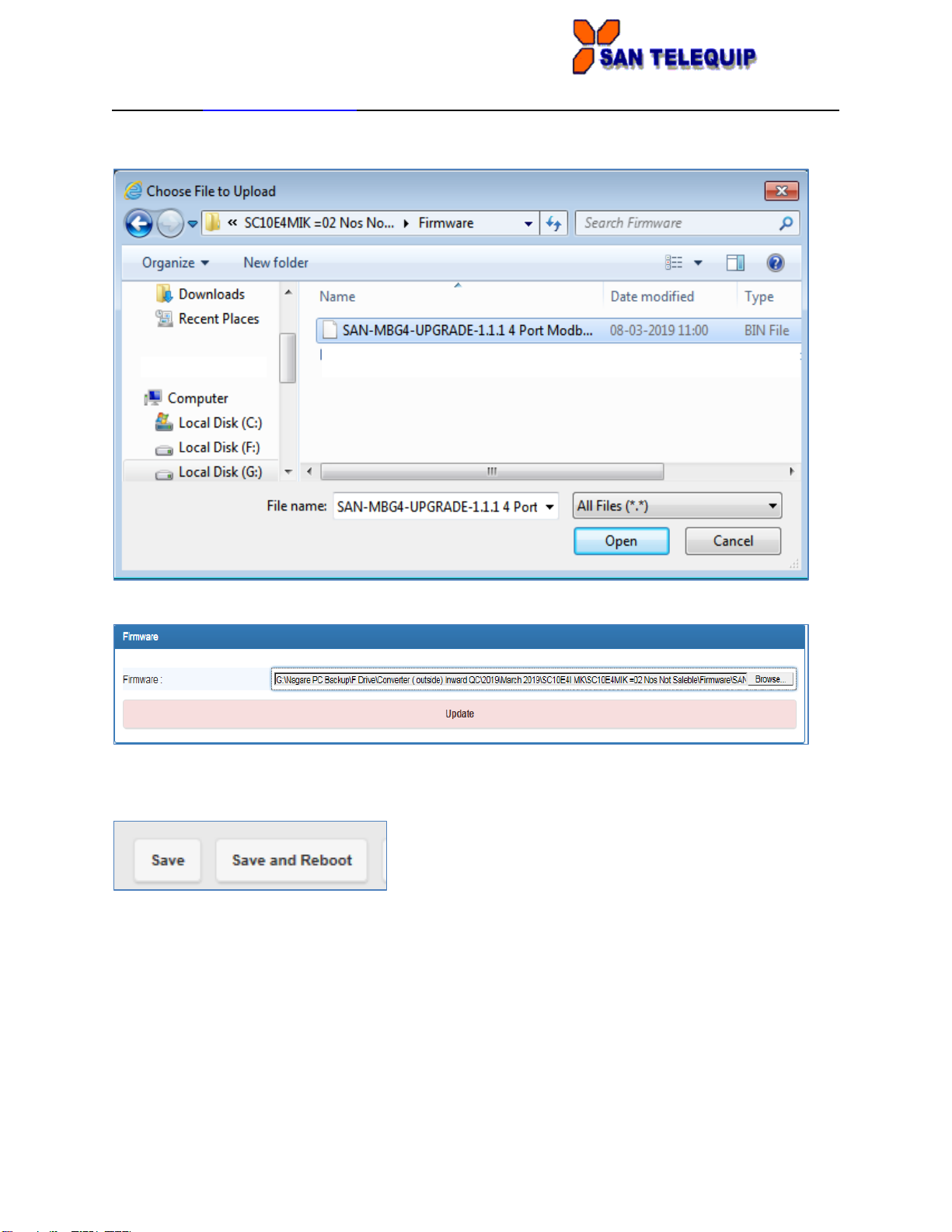

Firmware update: Click “Browse”to open file manager

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
Click to select the file with specified version and click “Confirm”button.
When the selected file name appears on the input column, click “Update”button
Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]

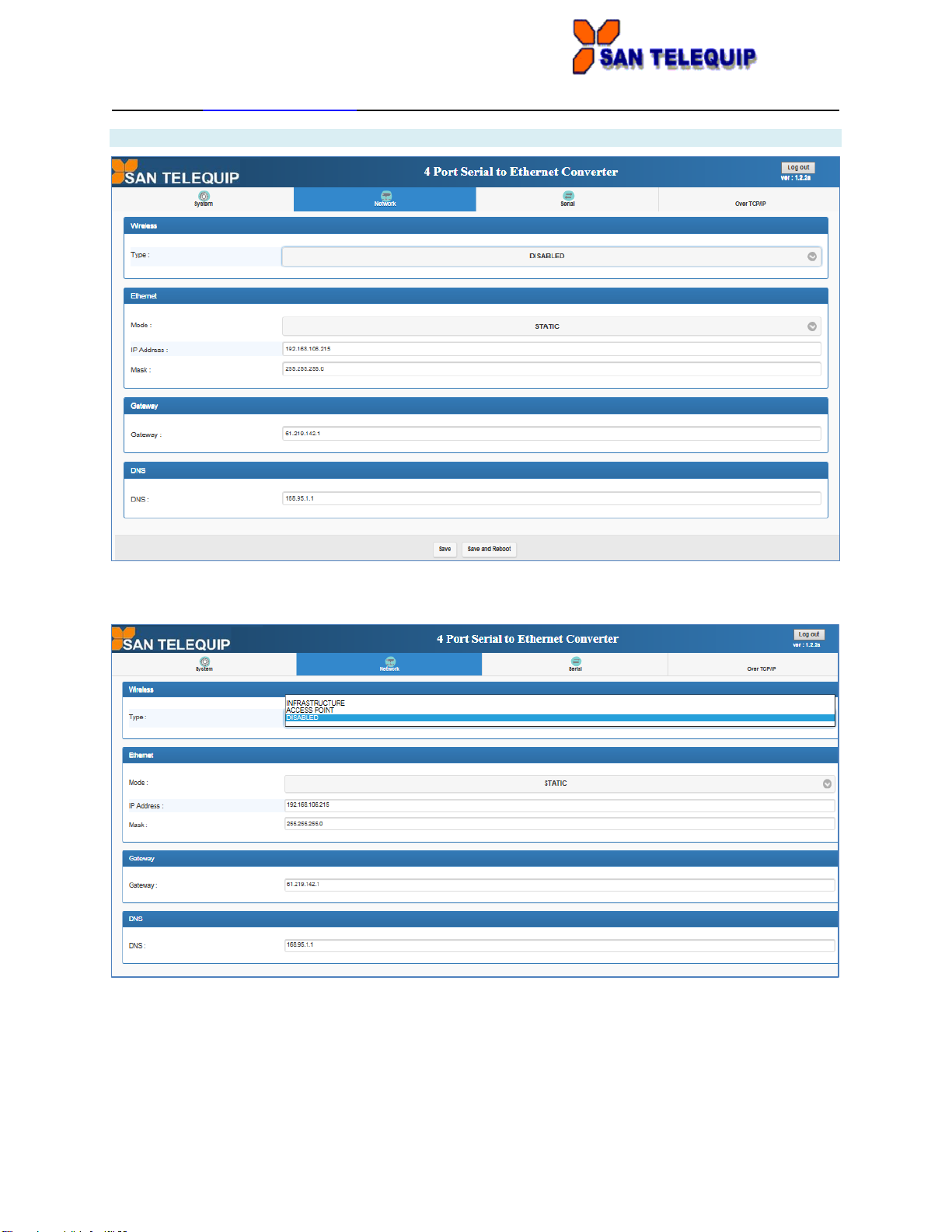

Network setup
Wireless section
Type: to select “INFRASTRUCTURE” or “ACCESS POINT”
Mode: “STATIC”: To input assigned IP address, Subnet Mask.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]

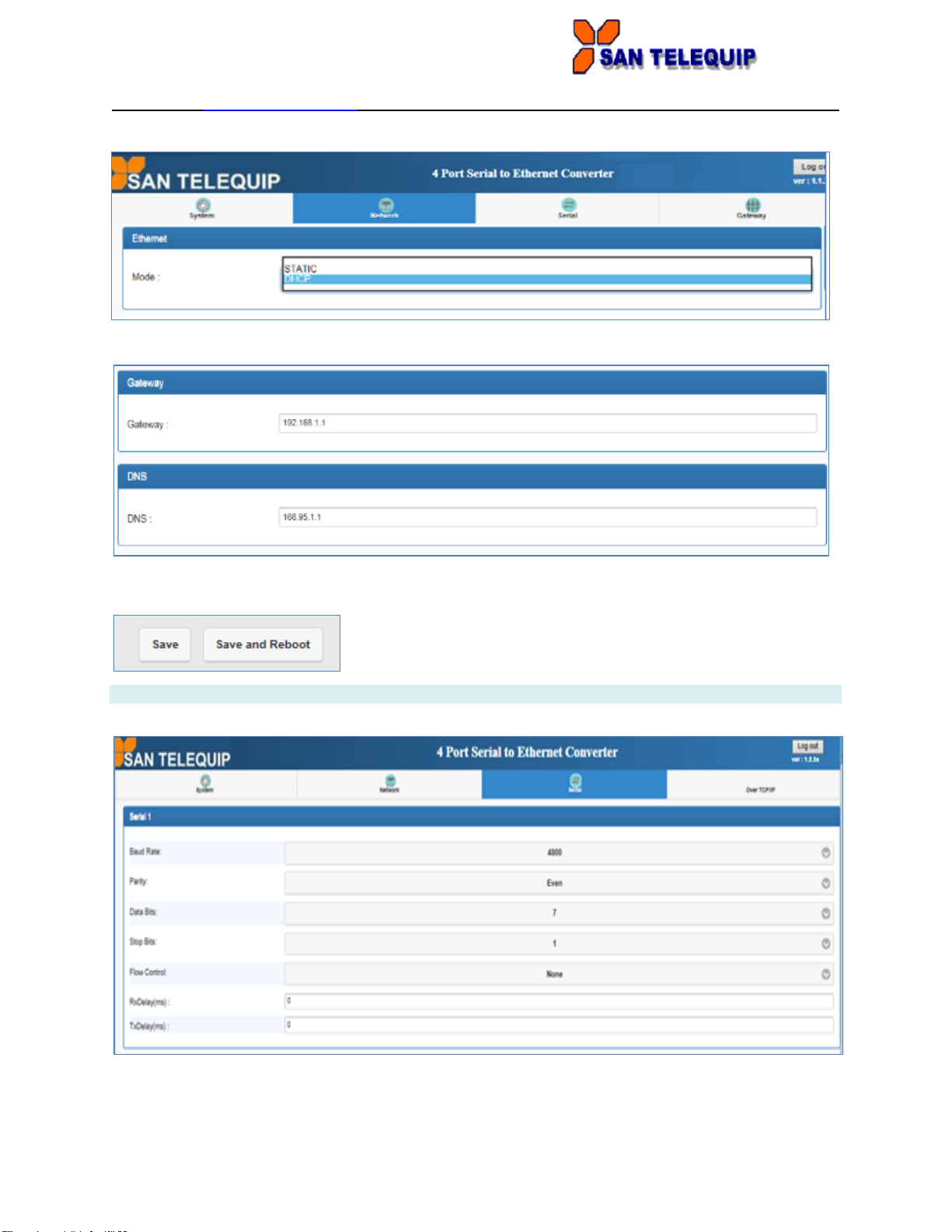

Ethernet: select STATIC or DHCP to assign IP address.
Converter and DNS: To check with MIS for right IP address.
Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.
Serial Port 1 to 4 Setting
Please clearly set each parameters from Serial 1 to Serial 4.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
Baud Rate : 300 bps to 921.6K bps
Parity : None, Even, Odd
Data Bits : 5, 6, 7, 8
Stop Bits : 1, 2
Flow Control : None, XON/XOFF
RxDelay(ms) : 0
TxDelay(ms) : 0
Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.

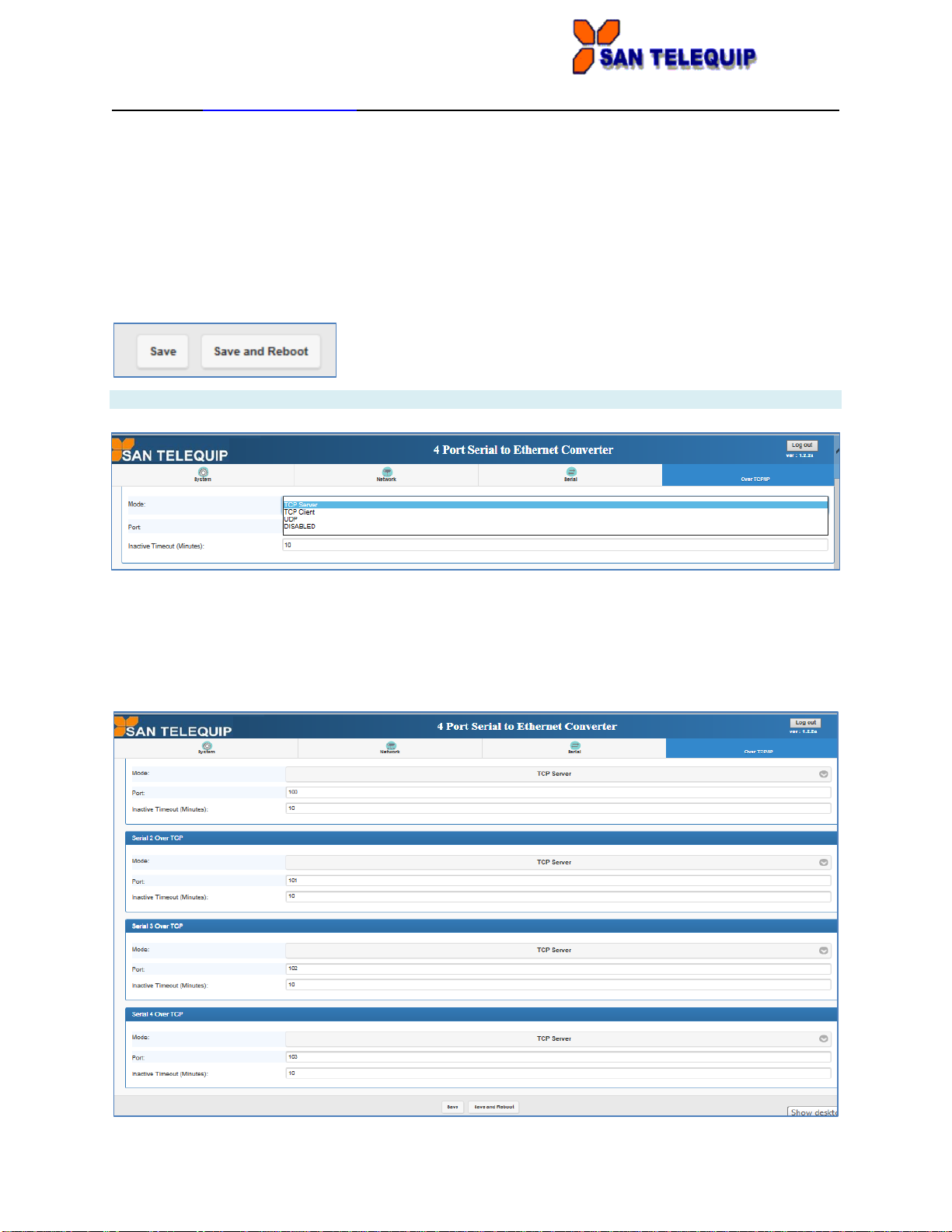

Converter Setup
Three Modes are selectable. Please select Converter type as per your setup
There are “Over TCP/IP” 1, 2, 3, 4
TCP Server: In TCP Server Mode, SC10E4IK is configured with a unique Port combination on a TCP/IP
network. In this case, SC10E4IK waits passively to be contacted by the device. After a connection is
established, it can then proceed with data transmission.
Port: Set the port number for data transmission.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
TCP Client:In TCP Client Mode, device can establish a TCP connection with serve.
Destination IP : Set the IP address of host.
Port: Set the port number of data port.
Now Setup is successfully configured. Please click “Save” and go to other pages for configuration or click
“Save and Restart” to run new configuration.
After configued all parameters, click “Save and Restart”to reboot system.

San Telequip Private Limited.,
504 & 505 Deron Heights, Baner Road
Pune 411045, India
Phone : [phone] Connecting. Converting. Leading!
email : [e-mail]
Reset button (if needed)
Ensure power is on, press “Reset” button for over 20 seconds then release. SC10E4IM K will set
configuration back to default.
