1. OVERVIEW
• We appreciate the trust you have placed in us by purchasing this device. You have pur-
chased a high-quality product that has been manufactured in strict compliance with recog-
nized technical regulations regarding safety, and in accordance with EC standards.
• Read this instruction booklet carefully, since it contains important information for your sa-
fety during the installation, use and maintenance of this product. Keep this booklet in case
you need to consult it in the future.
• We ask that you make sure the equipment is in perfect condition when you unpack it, since
any existing defect is covered by the S& warranty.
• Before start-up, remove carefully all packaging and check the integrity of the unit. If any
defect or damage is found, please do not install neither try to repair the unit, please contact
your dealer.
• Do not leave the packaging within the reach of children and proceed to recycling in com-
pliance with current regulations.
2. SAFETY STANDARDS AND “EC” MARKING
• S& engineers are fi rmly committed to research and development to achieve products with
improved effi ciency that complies with current safety standards.
• S& is in no way responsible for any damage or injury caused to persons or objects resul-
ting from failure to comply with safety standards, and any possible modifi cations to the pro-
duct. The EC seal and statement of conformity serve as proof of the product’s compliance
with applicable European Community standards.
3. SAFETY INSTRUCTIONS
CAUTION: Read carefully the safety warnings before starting to install the product in order to
reduce the risk of fi re, electric shock or dagames.
• Check that the power supply corresponds to the rating plate on the back of the unit.
• Do not use the purifi er close to baths or showers.
• Do not submerge the purifi er in water.
• Prevents falling water and any liquid inside the appliance.
• Do not unplug the fan by pulling on the cable.
• If the cable is damaged, it must be replaced by an original spare part supplied by S& .
• Do not touch the plug with wet hands.
• Before disconnecting the unit to the electrical supply, ensure that switch is switched OFF.
• Unplug the purifi er if not used or if there is any work to do on it (cleaning, maintenance,
etc.).
• This appliance can be used by children aged from 8 years and above and persons with re-
duced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
• Do not place the appliance close to a heat source or in direct sunlight.

7
• Do not insert any object through the air output grille.
• Cleaning and user maintenance shall not be made by children without supervision.
• Before carrying out any maintenance work, or during long periods without use make sure
that the purifi er has been disconnected from the mains.
• The purifi er is designed only for indoor use. It is recommended to close the windows when
in use.
• Use the appliance as described in this instruction and as air purifi er.
• Do not use the air purifi er in an area of fl ammable, combustible or explosive air.
• Do not use the appliance in areas with toxic vapors, fl ammable powders or oxygen tanks.
4. TECHNICAL CHARACTERISTICS
Model ower
(W)
Maximum
current
(A)
Electrical power
supply
R M Airfl ow
to clean
fi lter
(m3/h)
Airfl ow
to dirty
fi lter
(m3/h)
Surface
to be
treated*
(m2)
Sound
level
(dB)
PAP 850 H 4 80 ,2 F /230V, 50-60Hz 2900 850 600 60 - 80 50
PAP 650 CA H 4 78 , F /230V, 50-60Hz 2900 700 500 50 - 67 49
PAP 650 VOC H 4 78 , F /230V, 50-60Hz 2900 700 500 50 - 67 49
* Application in commercial premises and ofÞces with 3 meters of free ceiling height.
The technical characteristics are common to vertical and horizontal versions.
5. HANDLING
• The PAP purifi ers are supplied packed in a single cardboard box.
• When unit received, unpack and make sure the packaging is intact; any defect may indicate
damage to the unit. If any defect or damage is found, please do not install neither try to
repair the unit, please contact the dealer in case.
• The unit should be handled carefully.
• Manipulate the unit by hand. If using a forklift, place the unit on a pallet. Do not manipulate
the purifi er directly with the blades of the forklift.
6. RECE TION
Inside the box you will fi nd the following material:
• Purifi er PAP 850 or PAP 650.
• Cable with plug (2m. Long).
• Instructions manual.
• Numbered Certifi cate of absolute fi lter H 4, which confi rms that the fi lter has shown its
effi ciency of ≥99.995% in a laboratory test.
• Sticker that certifi es that your premises have an adequate air quality.
• Wrench necessary to remove the panel that gives access to the fi lters (for start-up and
maintenance).

8
7. DIMENSIONS
Horizontal version Vertical version
AB
C
AB
C
Model A
(mm)
B
(mm)
C
(mm)
Weight
(kg)
PAP 850 H 4 550 735 605 48
PAP 650 CA H 4 550 735 605 52
PAP 650 VOC H 4 550 735 605 52
PAP 850V H 4 550 550 790 48
PAP 650V CA H 4 550 550 790 52
PAP 650V VOC H 4 550 550 790 52
8. LOCATION
• Once out of the box, locate the purifi er in the premise or room where you need to purify
the air.
• The unit has 4 wheels that facilitate the movement of the unit. During the movement pay
attention to prevent the appliance from colliding with objects or parts of the building.
• The appliance can only be slid on smooth, completely dry surfaces. Do not move the
appliance on ramps or surfaces with signifi cant unevenness.
• Two of the wheels have a safety brake. Once the unit is placed in its fi nal location, activate
the wheel brake. To do this, apply pressure with your foot on the safety brake (Fig ).

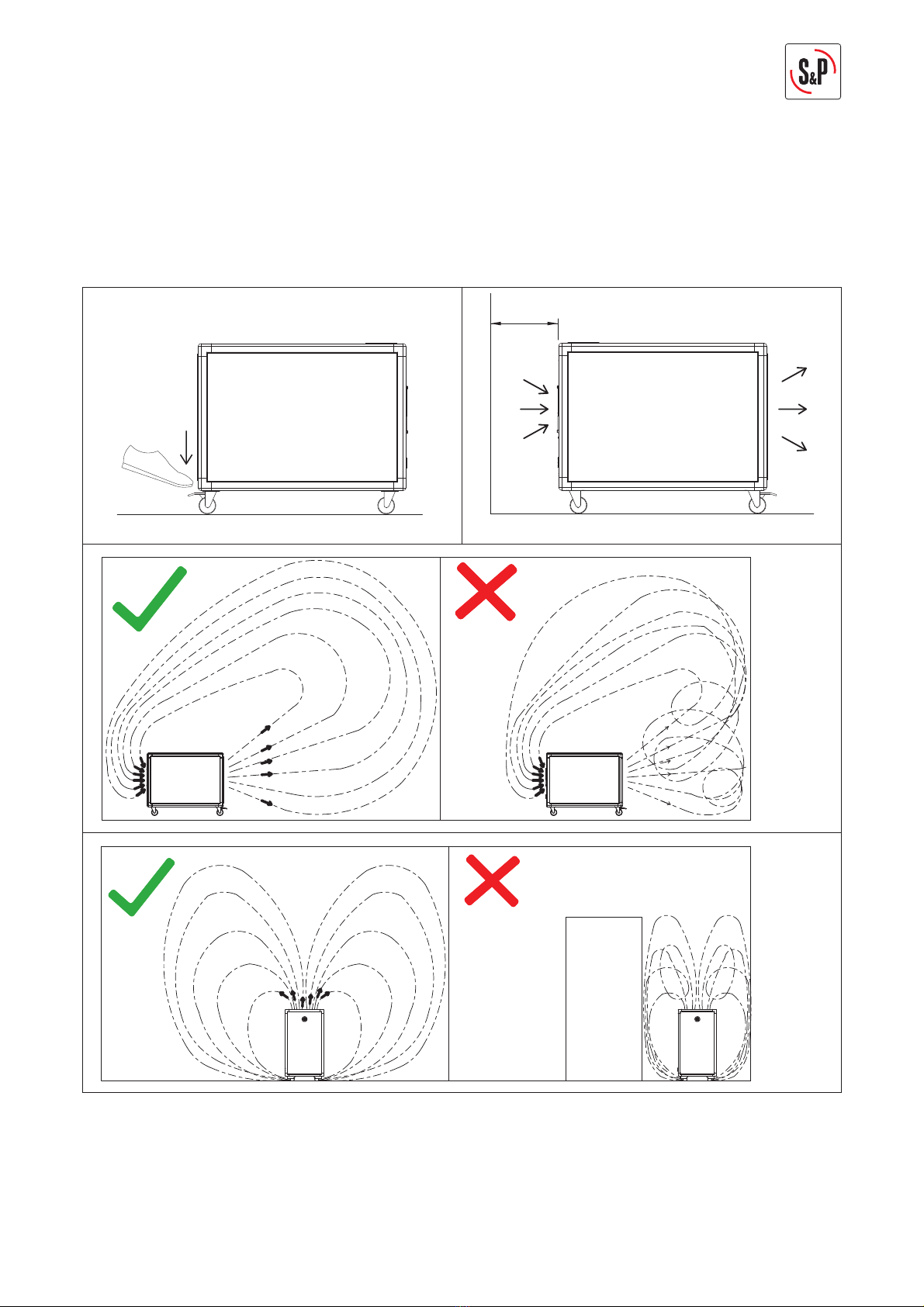

• When choosing the location, take into account the following recommendations:
− In the case of horizontal versions, facilitate the entrance of air to the intake grid to the
appliance, leaving a minimum of 0 cms. between the inlet protection guard and any
object or wall.
− Do not hinder the outlet of purifi ed air, keep as much distance as possible in order to
guarantee a good distribution of air throughout the room.
− In the case of horizontal versions, whenever possible, it is preferable to avoid locating
the purifi er at one end of the room to be ventilated, avoiding the location in the center of
the room (Fig. 3.).

9
− In the case of vertical versions, avoid locating the unit between walls or objects that may
disturb the correct air distribution of the diffuser (Fig. 4).
• PAP purifi ers are equipped with various fi lters, including an absolute fi lter with an effi cien-
cy of 99.99%. To ensure the proper functioning of the appliance and to enjoy good air quality
for a longer time, it is essential to locate the appliance in a dry and clean environment.
0 cm
Fig. Fig. 2
Fig. 3
Fig. 4

20
8.1. URIFIER COM ONENTS
The PAP puriÞer is made up of the following components:
Horizontal version
On-off switch and potentiometer
of speed adjustment
Cover of filter access
Air outlet diffuser Inlet protection guard
Rear wheels
Front wheels with safety brake
Vertical version
On-off switch and potentiometer
of speed adjustment
Cover of filter access
Air outlet diffuser
Inlet protection guard
Rear wheels
Front wheels
with safety brake
8.2. USE CONDITIONS
• PAP units are indicated for air purifi cation in commercial and clean sanitary environ-
ments. Do not use the unit in dusty environments as this would cause quickly satura-
tion of the fi lters or damage the motor.
• Respect the following environmental conditions:
− Model PAP-850 H 4: Maximum temperature: 50ºC, Maximum relative humidity 80%.
− Model PAP-650 CA/VOC H 4: Maximum temperature: 40ºC, Maximum relative humidity 60%.

2
8.3. COMMISSIONING
IM ORTANT!
A units include very high effi ciency fi lters. To avoid that the fi lters Absolute H14, activated
carbon and VOC (the last two only available in A 650 model), these fi lters are supplied in a
plastic bags. Before switching on the unit, it is necessary to remove these bags and reassem-
ble the fi lters, making sure that the air direction matches the one indicated in the fi lter frame.

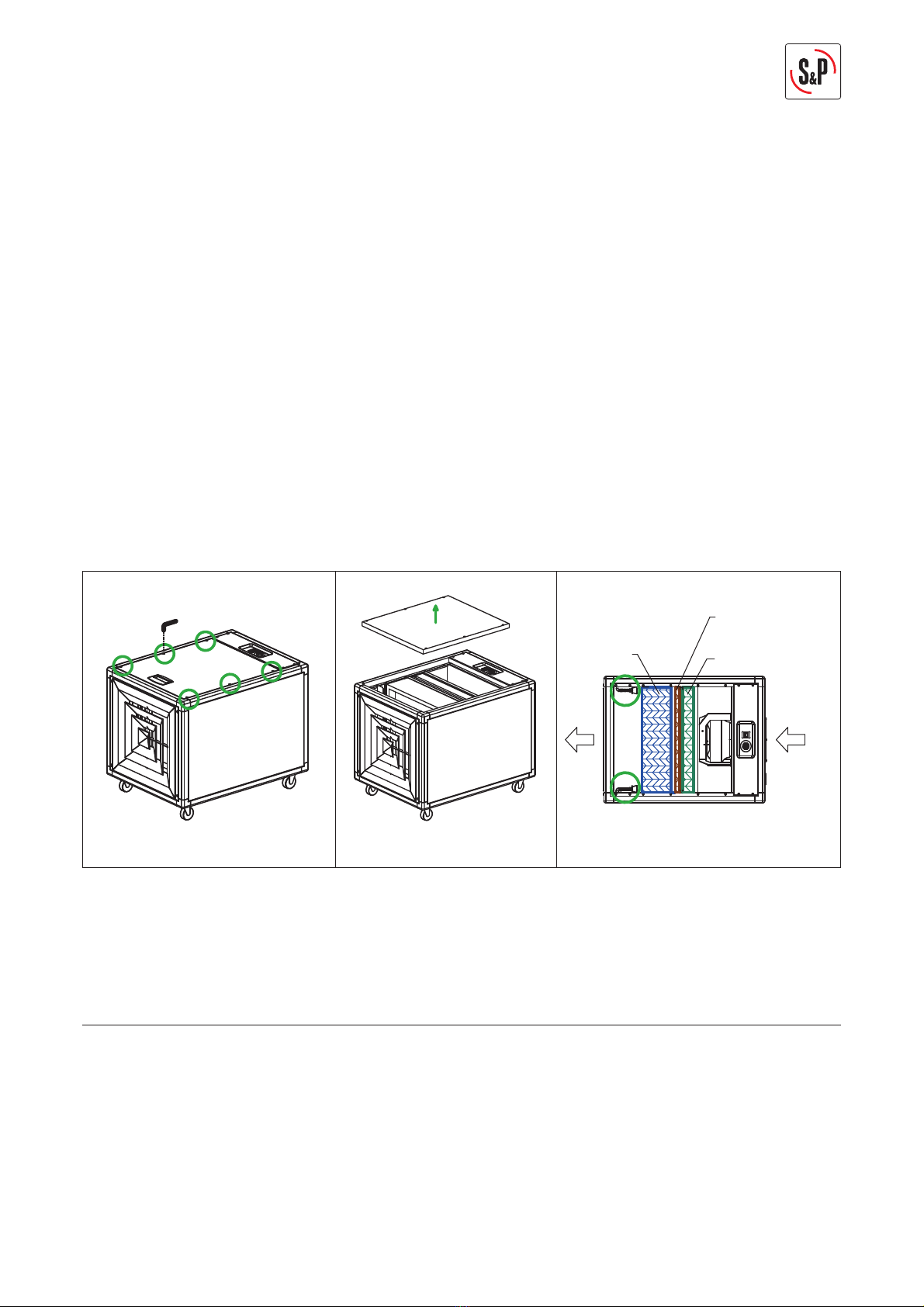

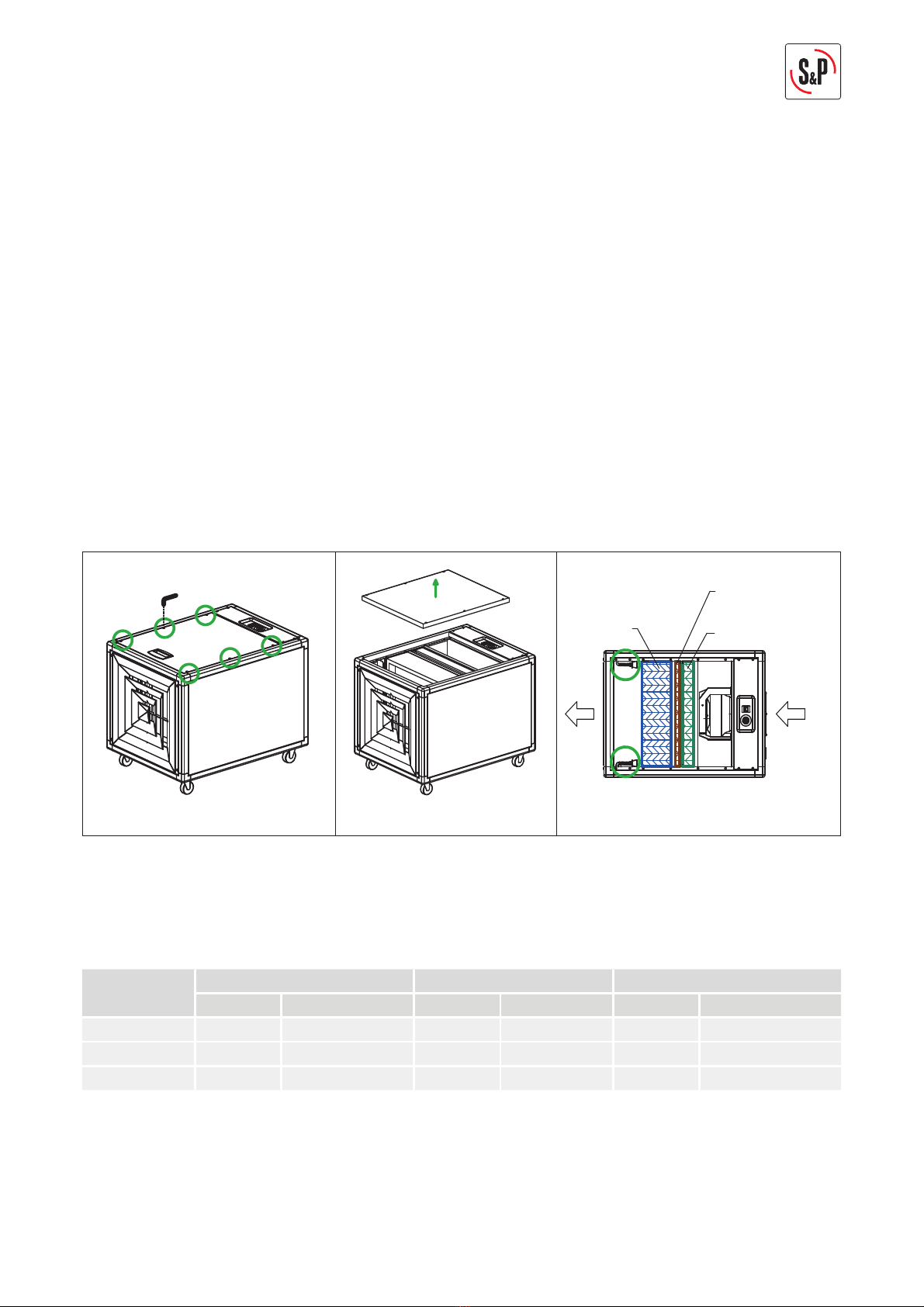

To remove the fi lter bags, follow the next procedure:
• Make sure that the unit is not connected to the electrical network.
• Use protective gloves when handling the appliance.
• Using the wrench supplied with the appliance, loosen and remove the screws that hold the
fi lter access cover (Fig. ).
• Remove the cover (Fig. 2).
• Release the absolute fi lter by loosening the four existing rotary knobs (Fig.3-A). Remove
the absolute fi lter, take it out of its bag and return it to its position (Fig. 3). Perform the
same operation with activated carbon and VOC fi lters in case your unit incorporates them.
• Close the cover again, fi xing it with the corresponding screws.
CA/VOC filter
according to version
F7 pre-filter
H 4 filter
A
A
AIRAIR
Fig. Fig. 2 Fig. 3
Once the fi lters have been disbursed the unit is ready to be started up.
Connect the power cable to the electrical supply and press the on/off switch. Then adjust the
airfl ow according to the needs of the room (see next point).
9. AIRFLOW ADJUSTMENT

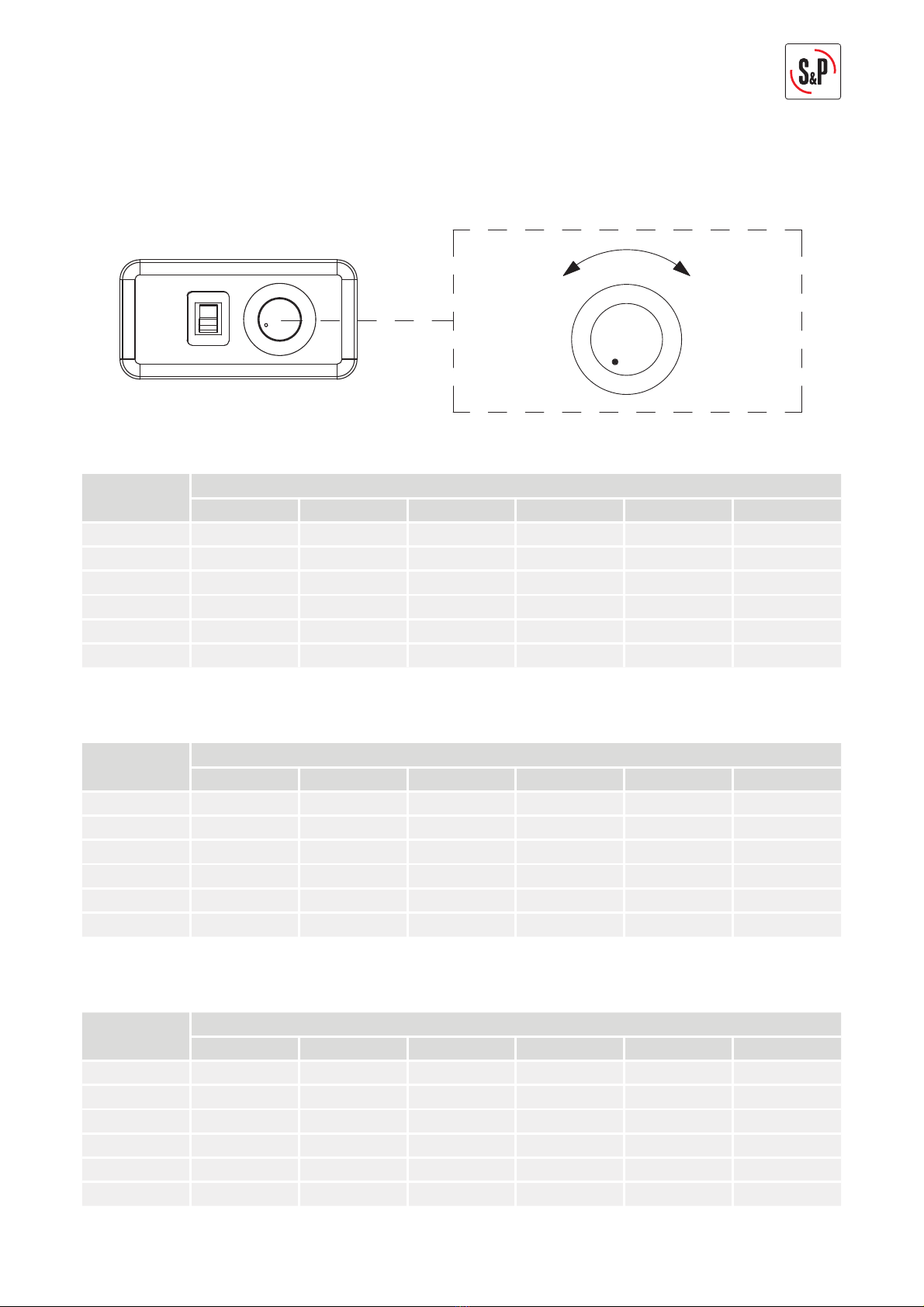

All models of the PAP range have a built-in potentiometer that allows the manual adjustment
of the fan speed.
The speed adjustment depends on various factors such as the room surface, height, the type
of use and its occupation.
Speed too low will cause the air quality in the room to be inadequate.
While speed too high will cause fouling of premature fi lters.
Below we show a series of tables with recommended speeds depending on the application
and the dimensions of the room.

22
9.1. A 850 H14 MODEL
Recommended speed setting depending on the application and room dimensions:
110
9
8
7
6
5
4
3
2
Reduce
speed
Increase
speed
Premises with little occupation (reception, hotel rooms, medical offi ces, dentists, offi ces):
Height
(m)
Surface (m2)
30 40 50 60 70 80 100
57 9 - - - - -
4,5 7 8 0 - - - -
46 7 9 0 - - -
3,5 5 7 8 9 0 - -
35 6 7 8 9 0 -
2,5 456789 0
Premises with medium occupation (offi ces, meeting rooms, commercial establishments,
classrooms):
Height
(m)
Surface (m2)
20 25 30 35 40 55 70
57 8 9 0 - - -
4,5 6 7 8 9 0 - -
457789--
3,5 5 6 7 7 8 0 -
3556779-
2,5 455678 0
Premises from the previous point with high occupancy (cafeterias, restaurants, waiting
rooms):
Height
(m)
Surface (m2)
20 25 30 35 40 45 55
58 9 0 - - - -
4,5 7 8 9 - - - -
47 8 9 0 - - -
3,5 6 7 8 9 0 0 -
3567899-
2,5 456788 0

23
9.2. A 650 CA H14 AND A 650 VOC H14 MODELS
Recommended speed setting depending on the application and room dimensions:
110
9
8
7
6
5
4
3
2
Reduce
speed
Increase
speed
Premises with little occupation (reception, hotel rooms, medical offi ces, dentists, offi ces):
Height
(m)
Surface (m2)
30 40 50 60 70 80
58 0 - - - -
4,5 8 9 - - - -
47 8 0 - - -
3,5 6 8 9 0 - -
36 7 8 9 0 -
2,5 56789 0
Premises with medium occupation (offi ces, meeting rooms, commercial establishments,
classrooms):
Height
(m)
Surface (m2)
20 25 30 35 40 55
58 9 0 - - -
4,5 7 8 9 0 - -
46 8 8 9 0 -
3,5 67889-
366788 0
2,5 566789
Premises from the previous point with high occupancy (cafeterias, restaurants, waiting
rooms):
Height
(m)
Surface (m2)
20 25 30 35 40 45
59 0 - - - -
4,5 8 9 0 - - -
48 9 0 - - -
3,5 7 8 9 0 - -
36 7 8 9 0 0
2,5 567899

24
10. REVENTIVE MAINTENANCE
Although maintenance operations are not usually complicated, we recommend that they
be carried out by qualifi ed personnel. At S&P we have an extensive network of Technical
Services that will be able to offer technical assistance for both equipment startup and fi lter
maintenance and interior cleaning of the unit. On our page www.solerpalau.com you will fi nd
information about the Technical Services that cover your region.
10.1. FILTERS
PAP purifi ers equip absolute fi lters with a fi ltration effi ciency of ≥99,995%. In order to enjoy
the purifi er’s performance for a long time, it is essential to properly maintain the fi lters.
Filter handling considerations
The PAP-850 units have two fi ltration stages of F7 + H 4. In the case of PAP-650 units, they
have a third specifi c stage for the elimination of odors, gases and VOC (depending on version).
Depending on the environment in which PAP purifi cator was used, the dirty fi lters could con-
tain a large number of particles and polluting substances and / or toxic.
In the case of odor, gas and VOC fi lters, the adsorbent material contained in the fi lters has
a high adsorption capacity for contaminating gases, while HEPA H 4 fi lters have a very high
effi ciency for the retention of viruses and bacteria.
When perform the manipulation of used fi lters, follow these recommendations:
• Protect yourself with a FFP-2 or FFP-3 mask and wear disposable gloves during the ma-
nipulation of the fi lter.
• Minimize contact time with fi lters.
• Once removed, deposit the fi lters in hermetic plastic bags and contact our technical service,
which you will fi nd at www.solerpalau.es, or contact a professional with a Waste Manager
qualifi cation to treat the fi lters according to the procedures established in your community.
Cleaning and replacing of fi lters
F7 pre-fi lter
It has the function of retaining the largest particles and at the same time protecting the rest
of the fi lters, extending their useful life. A visual check of the F7 fi lter should be carried out
periodically.
Cleaning of the pre-fi lter should be done gently to avoid damaging the fi lter material. With the
help of a dry or slightly damp cloth (never wet), remove the particles accumulated on the fi lter
surface, lint, dust accumulation and larger particles.
Do not blow with compressed air neither use vacuum cleaners, as in both cases the fi lter
element could be damaged, considerably reducing the effi ciency of the fi lter.
H 4 absolute fi lter and odor, gas and VOC fi lters
These fi lters do not need maintenance. Once the fi lters have been clogged, they must be
replaced.
The maintenance frequencies of the fi lters will depend on several factors such as the hours of
use, airfl ow of regulation, as well as the degree of cleanliness of the environment. Due to this
factor dependence, it is not possible to establish exact maintenance frequencies. As a guide,
the following guidelines can be followed:
• Visual check / pre-fi lter cleaning: Every 2 months.
• Pre-fi lter replacement: Between 6 months and year depending on use.

25
• CA / VOC fi lter replacement: Between 6 months and year depending on use.
• H 4 Absolute fi lter: Between year and 2 years depending on use.
rocess for the fi lter disassembly
Access to fi lters is done from the top of the appliance. To access these, follow the next pro-
cedure:
• Make sure the unit is not connected to the network.
• Wear protective gloves in the manipulation of the appliance.
• Using the wrench supplied with the appliance, loosen and remove the screws that hold the
fi lter access cover (Fig. ).
• Remove the cover (Fig. 2)
• The F7 pre-fi lter is mounted on a metal rail. To remove it, simply pull the fi lter out making
it slide along its guide.
• The H 4 absolute fi lter is fi xed by clamping system using rotating handles (Fig. 3(A)). To
remove the fi lter, it is necessary to loosen the handles until the fi lter is released.
• The PAP-650 models also have a specifi c fi lter for the retention of gases and odors (VOC/
CA). To remove this fi lter, just pull it up.
CA/VOC filter
according to version
F7 pre-filter
H 4 filter
A
A
AIRAIR
Fig. Fig. 2 Fig. 3
When installing the new fi lters make sure that the air direction of the fi lter label matches with
the airfl ow in the unit. Once the fi lters have been maintained / replaced, follow the previous
steps in reverse order before commissioning of the unit.
Filter parts table
urifi er model F7 pre-fi lter CA/VOC fi lter H14 absolute fi lter
Code Model Code Model Code Model
PAP 850 H 4 5800028 00 AFR F7 PAP 850/650 - - 5800028200 AFR H 4 PAP 850/650
PAP 650 CA H 4 5800028 00 AFR F7 PAP 850/650 5800028300 AFR CA PAP 650 5800028200 AFR H 4 PAP 850/650
PAP 650 VOC H 4 5800028 00 AFR F7 PAP 850/650 5800028400 AFR VOC PAP 650 5800028200 AFR H 4 PAP 850/650
10.2. FANS
• It is recommended to check the status of the fan every 6 months.
• In case that dust or dirt accumulation is detected on the impeller surfaces, fi rst clean it
with a damp cloth and then with some disinfectant product compatible with polyamide.

S& SISTEMAS DE VENTILACIÓN, S.L.U.
C. Llevant, 4
Polígono Industrial Llevant
08 50 Parets del Vallès
Barcelona - España
Tel. [phone]
Fax [phone]
www.solerpalau.com
Ref. 9023092300
