Sangamo CHPWIFI User manual

USER MANUAL
Fort Programmable Thermostat
with RF and WiFi
CHPWIFI

2
Contents
Features Page 2
Product Overview Page 3
Thermostat Functions Page 4
Thermostat Configuration Page 5
Thermostat Installation Page 6
Installation Plan A Page 7
Installation Plan B Page 8
Pairing the Thermostat and Receiver Page 9
Product Description, Preparation for use & Installation Instructions Page 10
How to intergrate the CHPWIFI into Alexa Page 11
How to intergrate the CHPWIFI into Google Home Page 12
Voice Commands Page 13
Notes Page 14

2
Features
Receiver Thermostat
• Large LED display
• Touch button
• Permanent user settings, and program settings during power loss
• One button “Holiday” mode
• Programming Periods;
• 7 Day individual, 5/2 split (Monday - Friday, Saturday & Sunday)
• 6 Separate time/temperature periods per day
• Key lock facility
• Low battery indication
• Frost protection
• Optional Intelligent function; Optimal Start
• Open window function
• Integrated with Clicksmart+ App

3
Product Overview
Thermostat
Receiver
ON/OFF Indicator
Power indicator: Red
Override output status:
Green
RF indicator: Yellow
WiFi Status Indicator
Network Pairing Mode:
The LED flashes fast or
slow Green
Network Connection
Successful: Blue
1. Wireless icon “ ” always on when
paired with the receiver, flashes when
connection is intermittent
2. Frost protection icon
3. Call for heat icon
4. Programming mode icon
5. Low battery alert
6. Confirm icon
7. Up button
8. ON/OFF button
9. Room temperature or setting temperature display
10. Down button
Output Indicator
Call for heat: Green
Control Button
(With power indicator)
* To manually call for heat, press and hold the control button, until the LED turns Green.
Default Programming Schedule
Note: The programming schedule can be configured within the ClickSmart+ app
Period 1 Period 2 Period 3 Period 4 Period 5 Period 6
Morning ON Morning OFF Afternoon ON Afternoon OFF Evening ON Evening OFF
06:00 20°C 08:00 16°C 11:00 20°C 14:00 16°C 18:00 20°C 22:00 16°C

4
Thermostat Functions
Switching between ON & Standby modes
Key Lock Function
Frost Protection
Open Window/Door Detection Function
Low Power Alert
Optimal Start
Fault
Operating Modes
Schedule Mode
Boost Mode
Manual Mode
Press ” ” to turn the Thermostat into the ON mode. Press and hold ” ” again to switch the thermostat
into standby mode. When in standby mode the Thermostat will display ” ”.
Note: When in standby mode, only frost protection is active on the thermostat.
In main display interface, press and hold ” ” ” ” at the same time to lock or unlock the keys. When
locked, the thermostat will display ” ”.
If the room temperature falls below 5°C, frost damage can occur. To protect your home, the Thermostat
once it detects the ambient temperature is below 5°C will send a Call for heat, until the temperature is
above 8°C, and will then end the Call for heat. This is indicated by a ” ” icon.
*This feature can be disabled in the configuration menu
If the room temperature drops 1.5°C in 3 minutes, this function will activate and display ” ”, then turn
down all heating. When the room temperature increases by 1.5°C or after 30 minutes, the thermostat
will return to normal operation. Press any button to cancel this function when it is active.
When the thermostat is critically low on power, it will alert the user by displaying ” ” to notify them
to change the batteries.
If there is damage to the internal sensor the user will be alerted by the display message ” ”.
The thermostat will run according to the set schedule, the screen will display a solid ” ” icon.
If optimal start is enabled, the thermostat will start the call for heat slightly before the schedule calls for
it. So that by the scheduled start time, the ambient temperature is already at the set temperature.
*This feature can be enabled in the configuration menu
The boost mode, will send a call for heat until the next program in the schedule and will continue to send
the call for heat until the set temperature is achieved.
When in schedule mode (indicated by a solid ” ” icon), press the ” ” or ” ” and set the desired
temperature, the Thermostats display will flash to indicate it is activating the boost mode.
When a boost is currently active it will display the ” ” icon flashing.
The “Manual” mode sets the thermostat to the desired temperature and will continue to do so until, the
user ends the Manual mode.
Pressing ” ” will toggle between Schedule mode & Manual Mode. The Thermostat will indicate it is in
Manual mode by not displaying the ” ” icon.
Functions

5
Thermostat Configuration
To configure the thermostat using its controls you will need to do the following:
(1) In standby mode indicated by the Thermostat displaying “ ”, long press “ ” to enter the
configuration menu.
(2) The first item will display “ ”, press “ ” to enter the configuration for the first item.
(3) You can adjust the setting by pressing “ ” or “ ”.
(4) “ ” will flash, and then press “ ” will save current settings, and exit to the configuration menu.
(5) Use the “ ” or “ ” to select the configuration menu, and then press “ ” to enter the next
configuration, and follow the steps 3 & 4.
(6) Finally once all menus have been configured, long press “ ” to save and exit the configuration menu.
Restore factory settings:
After entering the configuration menu, press and hold both the “ ” and “ ” buttons, to restore the
thermostat to factory settings, the thermostat will display “ ” and flash 3 times.
This will remove any custom configuration setting(s) and programming setting(s)
Step No. Displayed
(Factory Default) Press “ ” or “ ” to select Descriptions
1-4°C to +4°C Temperature calibration
2+20°C to +35°C Select maximum setting temperature range
3+5°C to +20°C Select minimum setting temperature range
40.5°C to 3°C
Start heating conditions:
When setting temperature -Room temperature ≥
0.5°C (0.5~3°C option), start heating.
Room temperature ≥ Setting temperature,
stop heating.
54 / 6 Number of programming periods per day;
2 ON & 2 OFFs / 3 ON & 3 OFFs
6Intelligent function (Optimal start)
7Frost Protection function
8Thermostat Relay Output
9
Thermostat LED Display option
ON: LEDs displays on Thermostat VIA app.
OFF: LEDs don’t display on Thermostat VIA app.
OFF: LED lights

6
Thermostat Installation
n
.
all mounted
Battery Installation
1. Take off cover 2. Install AA Batteries 3. Complete Installation
Note: Ensure the batteries are correctly installed, and the polarities are correctly aligned.
1. Desk mounted
1. Hang Thermostat on stand
1. Put the back board
on the installation box
2. Secure backplate to
installation box
using bolts
3. Secure
thermostat to
backplate
4. Complete
2. Complete
2. Wall mounted

7
Installation Plan A
Receiver’s
position
Router’s
position
Boiler
TH TH
Boiler
LS LR
Boiler
Wa
!
Our products are designed to comply with the recommended codes of practice and is to be installed
and serviced by competent persons in accordance with the relevant wiring regulations.
Warning: Before any installation or maintenance, ensure that the electrical supply is switched off at
the breaker.
The receiver needs to be installed in the boilers vicinity, and within the desired wireless networks signal area.
The Thermostat can be installed anywhere within range of the receiver.
Note: Distance between thermostat and receiver cannot be greater than 100m (open field).
1. Install receiver on the wall
1. Open backplate from the top 2. Install the backplate
onto the wall.
3. Clip the receiver
onto the backplate 4. Complete
2. Installation Plan A Wiring
Black & Grey
Control Cables
Black & Grey
Control Cables
Brown & Blue Power
Supply Cables
Brown & Blue Power
Supply Cables
1. Potential Free Relay
2. 230V Relay
Boiler type
selection;
The Thermostats
output between
N/C & N/O,
Typically N/O
Boiler type
selection;
This boiler type
can only be N/O

8
Installation Plan B
Receiver’s
position
Thermostat’s
position
Boiler
as shown, and then press down on the button
Clip
Caution:
potential of 230V
on connection.
Risk of electric
shock
N/C COM N/O
TH TH
Boiler
LS LR
N/C COM N/O
Boiler
!
Our products are designed to comply with the recommended codes of practice and is to be installed
and serviced by competent persons in accordance with the relevant wiring regulations.
Warning: Before any installation or maintenance, ensure that the electrical supply is switched off at
the breaker.
When installing the Thermostat directly to the boiler, ensure the receiver is within the WiFi coverage area.
Note: Distance between thermostat and receiver cannot be greater than 100m (open field).
When the Thermostat is connected directly to the boiler, item 8 of the configuration should be “ON” .[Page 5].
As default it is set to OFF
1. Install receiver as gateway with plug adapter
1. Install rear bulkhead 2. Press and rotate to clip in the adapter
The icon “ “ aligned with the button as
shown, and then press down the button
3. Complete
2. Installation Plan B Wiring
1. Remove the buckle with
a flat headed screwdriver
2. Take off safety cover
3. Wire into connections 4. Reinstall safety cover
1. Potential Free Relay
2. 230V Relay
Black & Grey
Control Cables
Black & Grey
Control Cables
If NC is required, terminate
into COM & NC

4. On the Thermostat:
Press the “ ” to enter pairing mode,
it will display “ ”, and the icon “ ”
will be flashing.
5. If pairing is successful, the
Thermostat will display “ ”, and the
“ ” icon will now constantly display,
and then will automatically go back into
the OFF interface.
2. On the Thermostat
when in “Standby”
mode, press and hold
“ ” for 3s.
1. Press “ ” to turn off the receiver,
when in the OFF condition, press and
hold the “ ” button for at least 3
seconds, the LED will now illuminate
yellow constantly.
3. The Thermostat will then show “ ”.
9
Pairing the Thermostat and Receiver
The LED will
stay illuminat-
ed yellow
As default, the Thermostat & Receiver are pre-paired

10
Product Description
Preparation for use
Installation Instructions
The WiFi Smart Thermostat (CHPWIFI) forms part of the ESP Fort range of smart products, and can also be
used in conjunction with Scolmores ClickSmart+ range of products.
Users are able to control the Smart Thermostat using the ClickSmart+ app, manually and using voice
controls (once correctly configured).
The CHPWIFI can be used to program your heating schedule, and the desired heating temperature.
To use the CHPWIFI you will need to download the ClickSmart+ app.
Ensure that you have a mobile device running iOS 8 or higher, or Android 4.1x or higher, and a sufficient WiFi
network connection.
It is important to know your Wi-Fi network and W-Fi network’s password before pairing the Thermostat to
the ClickSmart+ app.
1. On the ClickSmart+ app’s home page, click on the “+” symbol in the top right of the home screen.
2. Then click on “ESP” on the left handside.
3. And finally click on “Smart WiFi Thermostat with RF”
4. The app will then display on screen instructions for pairing the CHPWIFI onto the Wi-Fi network.
Download the ClickSmart+ App on your mobile device from the
App Store or Google Play.
You can scan the above QR code to directly download the app
Sign in or register following the instructions on the
ClickSmart+ App.

11
How to integrate the CHPWIFI into Alexa
1. Open the Alexa
app, and press
“More” on the
bottom task bar
5. Press “ENABLE
TO USE”
6. The Alexa app will then take you through the Account
Binding Process, you must use the ClickSmart+ Account you
used to pair your CHPWIFI
7. Alexa will start
searching for Alexa
Voice compatible
Click Smart +
products.
2. Press “Skills &
Games”
3. Press the
magnifying glass
4. Search for “Click Smart +”, and click on
“Click Smart +”
Once the CHPWIFI has been configured with the ClickSmart+ App, you can then control the thermostat using
voice commands.

12
How to integrate the CHPWIFI into Google Home
5.The Google Home app will then take you through the Account Binding Process,
you must use the ClickSmart+ Account you used to pair your CHPWIFI
6. Google Home
will now contain
all compatible Click
Smart + products.
1. Open the Google
Home app and
press “settings”
2. Press “Add
Device”
3. Press “Works
with Google”
4. Press on the magnifying glass, then
search for “Click Smart +”, and finally
click onto “Click Smart +”
Once the CHPWIFI has been configured with the ClickSmart+ App, you can then control the thermostat using
voice commands.

13
Voice Commands
After waking up the Alexa device or Google Home/Assistant Device, you can use the below voice commands:
Turn On <DEVICE NAME>
Turn Off <DEVICE NAME>
What is the temperature of <DEVICE NAME>
Make it warmer in <DEVICE NAME>
Make it cooler in <DEVICE NAME>
Set <DEVICE NAME> to <NUMBER VALUE>
Turn On <DEVICE NAME>
Turn Off <DEVICE NAME>
Set <DEVICE NAME> to <NUMBER VALUE>
Amazon Alexa
Google Home/Assistant

14
Notes

www.espuk.com
Elite Security Products
Unit 7, Target Park, Shawbank Rd
Lakeside, Redditch B98 8YN
Telephone: 01527 51 51 50
Fax: 01527 51 51 43
email: [email protected]
E&OE - Errors and Omissions
Excepted. K23
Table of contents
Other Sangamo Thermostat manuals

Sangamo

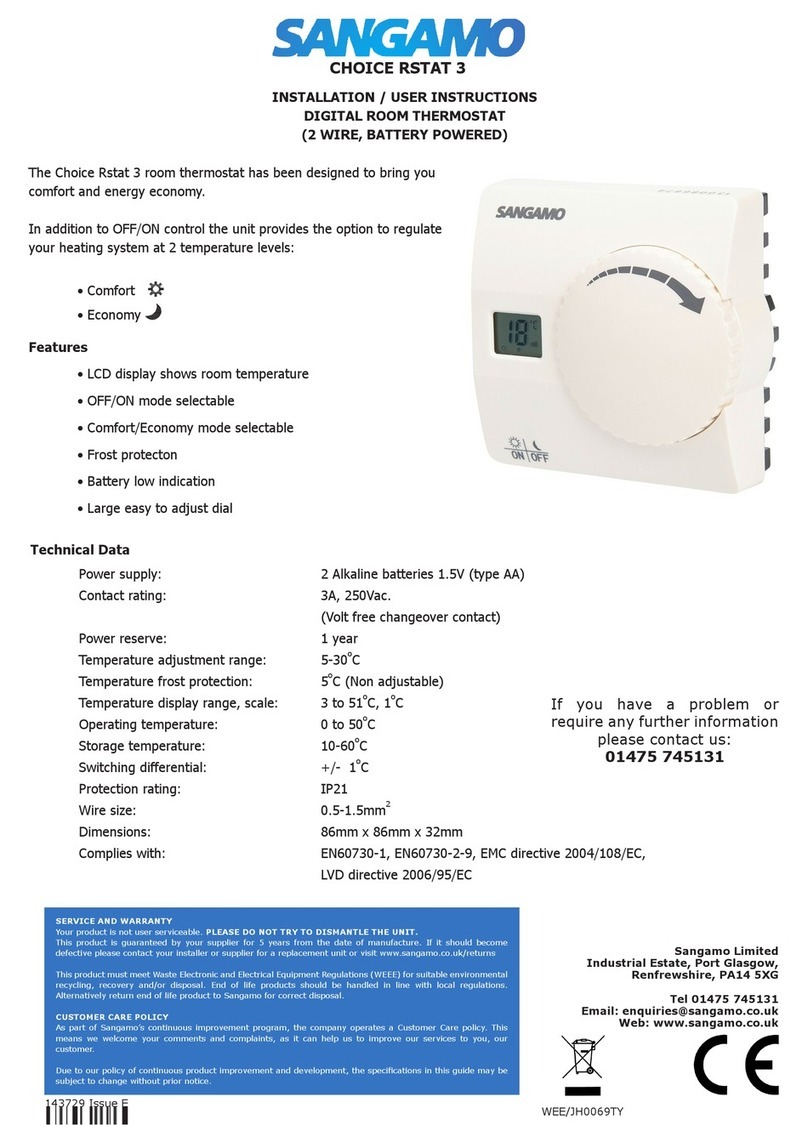

Sangamo Choice Rstat 3 Assembly Instructions

Sangamo
Sangamo RSTAT1 Guide

Sangamo

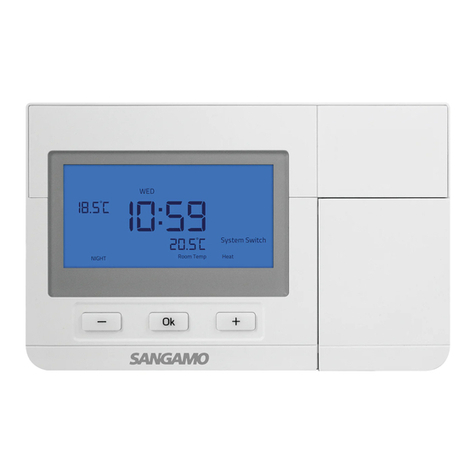

Sangamo CHPRSTATDP User manual

Sangamo
Sangamo Choice Rstat 7 Guide

Sangamo
Sangamo Rstat8 User manual

Sangamo
Sangamo choice pr 3 User manual

Sangamo

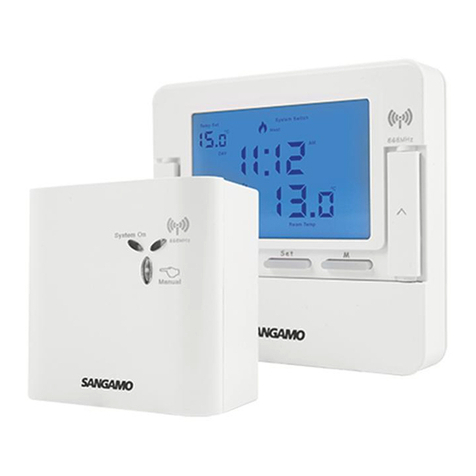

Sangamo Choice RSTAT5 RF User manual

Sangamo

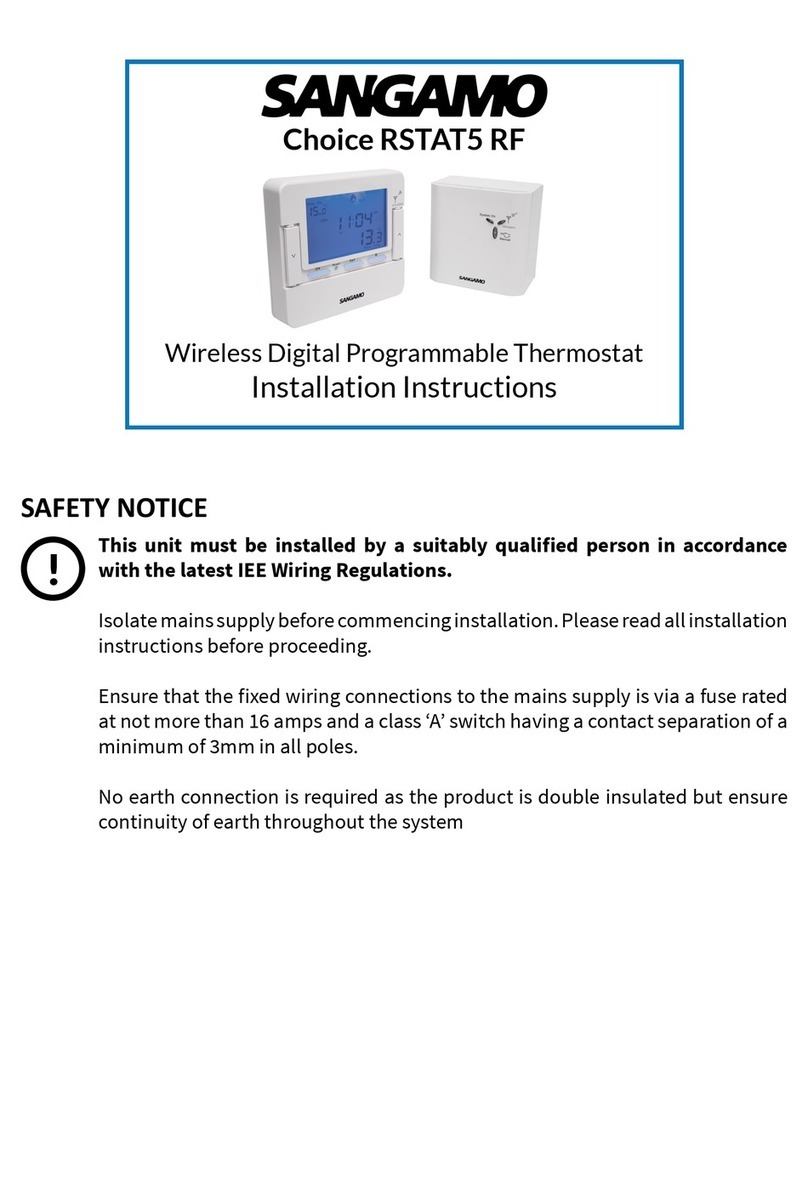

Sangamo Choice RSTAT5 RF User manual

Sangamo

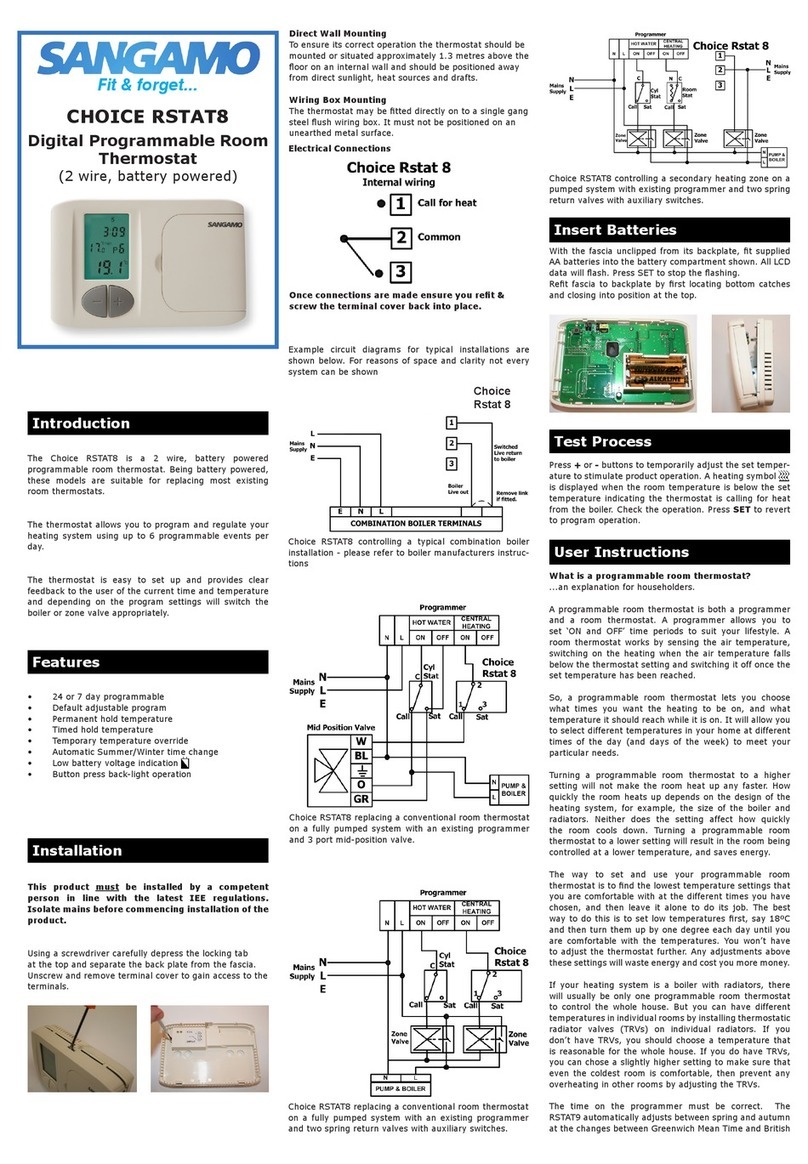

Sangamo CHOICE RSTAT8 User manual

Sangamo
Sangamo CHOICE RSTAT9 User manual
