Santon AL07/3 Guide

1
Installation and User Instructions
Aqualine Unvented Water Heaters
Models: AL07/3, AL10/3, AL15/3, AL15/4.5
Please read and understand these instructions before starting work.
Please leave this leaet with the user following installation
PACK CONTENTS
Heater, tundish, service valve, discharge pipe, grommet, xing screws and plugs,
installation and user instructions.
WARNING
This water heater must only be installed
by qualied persons
36005790 Issue 07

2
SECTION PAGE
1.0 INTRODUCTION 2
2.0 TECHNICAL SPECIFICATION 3
3.0 INSTALLATION 5
4.0 COMMISSIONING 9
5.0 USER DEMONSTRATION 10
6.0 MAINTENANCE 11
7.0 FAULT FINDING 13
8.0 SPARE PARTS 14
9.0 GUARANTEE 15
10.0 ENVIRONMENTAL INFORMATION 15
11.0 SPARES STOCKISTS 16
Thank you for purchasing a Santon Aqualine water heater. The unit is manufactured in
the UK to the highest standards and has been designed to meet all the latest relevant
safety specications.
IMPORTANT POINTS
The Santon Aqualine must be installed and commissioned by a competent person. Please
read and understand these instructions before installing the unit. Following installation
and commissioning, the operation of the unit should be explained to the user and these
instructions left with them for future reference.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
Children must be supervised to ensure they do not play with
the appliance.
CONTENTS
1.0 INTRODUCTION

3
Electrical rating ............................................................. 2.75/3kW @ 230/240V ~
......................................................................................... 4.1/4.5kW @ 230/240V ~
Capacities..................................................................... 7, 10 or 15 litres
Weight (full).................................................................. 7 litre - 13.5 kg
........................................................................................ 10 litre - 17.5 kg
........................................................................................ 15 litre - 26.6 kg
Rated pressure.............................................................. 0.6 MPa (6 bar))
Minimum recommended supply pressure.................... 0.08 MPa (0.8 bar)
Maximum recommended supply pressure .................. 0.7 MPa (7 bar)
Temperature/Pressure Relief Valve.............................. 90ºC/7 bar
2.0 TECHNICAL SPECIFICATION
Name Aqualine
Model AL7/3 AL10/3 AL15/3 AL15/4.5
Volume Litres 7 10 15 15
V40 14 17 27 27
Load Prole XXS XXS XXS XXS
Energy Efciency Class C C C C
Energy Efciency % 30.0 29.9 29.8 29.8
Annual electricity consumption kWh 614 618 619 619
Daily fuel consumption kWh 3.000 3.030 3.030 3.030
Thermostat setting 60°C
Specic precautions that shall be taken when
the water heater is assembled, installed or
maintained and disposed of at end of life
See Section 2 to 7
Table: Technical parameters in accordance with European Commision
regulations 814/2013 and 812/2013

4
EPIPTELNIEPIPTELTUO
MODEL SHOWN: AQUALINE 10LITRE 3kW.
DISCHARGE PIPE
TEMPERATURE AND
PRESSURE RELIEF
VALVE
THERMOSTATIC
BLENDING VALVE
COMBINED THERMOSTAT
AND THERMAL CUT-OUT
FIGURE 01: INTERNAL CONTROLS
TUNDISH
The heater can be used to supply several hot water outlets via conventional taps. It is
not recommended for supplying a shower. Individual site demands should be considered
when choosing capacity and the number of outlets to be served.
G
I
K
J
H
B F A
C
D E
2 KEYHOLE
FIXING SLOTS
6mm WIDE
(ON BACK OF
UNIT).
DIMENSION 7 LITRE 10 LITRE 15 LITRE
A 456mm 542mm 517mm
B 346mm 432mm 407mm
C 336mm 422mm 397mm
D 449mm 535mm 510mm
E 506mm 592mm 567mm
F 79mm 79mm 124mm
G 240mm 240mm 330mm
H 100mm 100mm 100mm
I 120mm 120mm 170mm
J 240mm 240mm 330mm
K 57mm 57mm 102mm
FIGURE 02: DIMENSIONS
FIXING HOLE

5
3.1 LOCATION
3.1.1 National Wiring rules may contain restrictions concerning the installation of these
units in bathrooms.
3.1.2 The water heater should be vertically wall mounted using the screws and plugs
provided. Position the bottom two screws as shown in Figure 02 above with heads
3mm from the wall.
Hang the heater and secure with the top screw, alternatively the heater can be oor
mounted on its base with the water connections at the top.
3.1.3 Enough space should be left at the top above the unit for pipe connections and
access to the temperature and pressure relief valve. Refer to Figure 02 above and
the dimensions table to determine a suitable position for the heater.
3.1.4 NOTE: Ensure that the wall can support the full weight of the unit (see
TECHNICAL SPECIFICATIONS, p3) and that there are no hidden services
(electricity, gas, or water) below the surface of the wall.
3.1.5 DO NOT install the water heater where it may freeze.
3.2 PLUMBING
3.2.1 The Aqualine is an unvented water heater which can supply multiple outlets.
It is supplied with an internally tted TMV2 thermostatic blending valve and
temperature and pressure relief valve (see Figure 01 p3).
3.2.2 The temperature setting of the thermostat (6-66°C) must be above the set
temperature on the Thermostatic Blending Valve (35-60°C). Where possible the
thermostat setting should be at least 15°C above the thermostatic blending valve
setting; the higher the temperature of the stored water, the larger the volume of
‘useable water’ available at the required discharge temperature.3.2.3 T h e
temperature and pressure relief valve is tted to give the user a higher level of
safety. A discharge outlet pipe for the temperature and pressure relief valve and
tundish is supplied and must be connected as detailed below.
3.2.4 Refer to the section IMPORTANT INSTALLATION POINTS to determine which
valves and accessories are required. Plumb in the valves in the sequence shown
in the relevant diagrams (Figures 03 to 05, p6).
3.2.5 Both inlet and outlet pipes are clearly labelled. The pipes are 15mm copper tube
and are suitable for compression ttings.
The WRAS listed isolating valve (supplied) must be tted on the cold water supply
to the heater. Several hot outlets can be served.
3.2.6 Do not use solder joints as this will damage the heater and may prevent servicing
under warranty.
3.2.7 Plumbers Paste must not be used as it can impair the operation of the valves.
3.3 DISCHARGE
3.3.1 The Aqualine unvented water heater MUST be tted with a pressure (expansion)
relief valve. The factory tted temperature and pressure relief valve can full this
function.
3.0 INSTALLATION

6
FAILURE TO PROVIDE ADEQUATE PRESSURE RELIEF WILL
INVALIDATE ANY GUARANTEE AND LEAD TO A DANGEROUS
INSTALLATION
3.3.2 Expansion can take place within the cold water supply PROVIDED THAT
BOTH:
(a) Backow in the main is not prevented by any stop valve with loose jumper,
check valve, pressure reducing valve or similar, AND
(b) Hot water expansion does not enter a branch to a cold water outlet (see Figure
03, p6 for expansion pipe lengths).
N.b. Both the above conditions must be met. Additionally expansion within
the cold water supply will not be possible if the static supply pressure exceeds
4.1 bar (60p.s.i.).
3.3.3 If any of the conditions in 3.3.2 above cannot be met, expansion must be
accommodated using an expansion vessel. To ensure all expansion takes place
in the vessel, a non-return valve must also be tted together with a pressure
(expansion) relief valve (see Figure 04, p5). Use accessory pack ALK02
(94970009).
3.3.4 If the static supply pressure exceeds 4.1 bar (60p.s.i.) a pressure reducing valve
must be tted to the cold main supply. If a pressure reducing valve is used, an
expansion vessel must also be used (see Figure 05, p6). Use accessory pack ALK01
(94970008).
3.3.5 The installation must be carried out in accordance with the relevant requirements
of:
• The appropriate Building Regulations either The Building Regulations,
The Building Regulations (Scotland) or Building Regulations (Northern
Ireland).
• The Water Fittings Regulations or Water Byelaws in Scotland.

7
WARNING: IF WATER FLOWS FROM THE PRESSURE RELIEF VALVE OR
TEMPERATURE / PRESSURE RELIEF VALVE THE ELECTRICITY SUPPLY
MUST BE SWITCHED OFF IMMEDIATELY. CONTACT THE SANTON
SERVICE TEAM (TEL: [phone]) OR AN APPROVED INSTALLER.
HOT COLD
NEAREST COLD
DRAW OFF
SERVICE
VALVE COLD
WATER
MAINS
2.0 (7L), 2.8 (10L) OR 4.2 (15L) METRES IS
REQUIRED FOR EXPANSION IN PIPEWORK.
NOTE: IF PRESSURE REDUCING VALVE
IS USED EXPANSION DOWN THE MAINS
IS NOT POSSIBLE
FIGURE 03 : FOR INLET WATER PRESSURES UP TO 4.1 BAR (60 P.S.I.) - NO ADDITIONAL KITS USED.
COLD
EXPANSION
VESSEL
NON-RETURN
VALVE
NEAREST COLD
DRAW OFF
SERVICE
VALVE COLD
WATER
MAINS
FIGURE 04 : FOR INLET WATER PRESSURES UP TO 4.1 BAR (60 P.S.I.)
WHERE EXPANSION IN MAIN SUPPLY IS NOT POSSIBLE - USING KIT ALK02 (94970009)
COLD
EXPANSION
VESSEL
NEAREST COLD
DRAW OFF
PRESSURE
REDUCING
VALVE
SERVICE
VALVE COLD
WATER
MAINS
FIGURE 05 : FOR INLET WATER PRESSURES ABOVE 4.1 BAR (60 P.S.I.) - USING KIT ALK01 (94970008)
HOT
HOT
TO DRAIN
(WASTE)
PRESSURE
(EXPANSION)
RELIEF VALVE
TO DRAIN
(WASTE)
PRESSURE
(EXPANSION)
RELIEF VALVE
AL07/3
AL10/3
AL15/3
AL15/4.5
AL07/3
AL10/3
AL15/3
AL15/4.5
AL07/3
AL10/3
AL15/3
AL15/4.5
NON-RETURN
VALVE
T&P DISCHARGE
TO DRAIN (WASTE)
T&P DISCHARGE
TO DRAIN (WASTE)
T&P DISCHARGE
TO DRAIN (WASTE)

8
3.3.6 The discharge outlet from the temperature and pressure relief valve and the pressure
(expansion) relief valve (if tted) must be connected to a discharge pipe.
3.3.7 A discharge pipe is supplied to connect the internally tted temperature and
pressure relief valve to the tundish which is also supplied. The pipe should be tted
though the hole in the outer case and held in place with the two part grommet
supplied (see Figure 06 below).
3.3.8 From the tundish to the point of discharge the pipe should be 22mm o/dia minimum
and have a resistance to ow equivalent to no more than 9 metres of straight pipe.
Longer discharge pipe runs should have an increased internal diameter.
3.3.9 The discharge pipe must fall continuously in a downward direction from the valve
outlets and be unobstructed, and in a frost-free environment.
3.3.10 The pipe material should be capable of conveying water/steam at 100°C.
3.3.11 The nal discharge point should be in a safe, visible position.
3.4 ELECTRICAL
WARNING: This appliance must be earthed. It is suitable for a.c. supply only.
Disconnect the electrical supply before removing the terminal cover. Installation
must be in accordance with the current I.E.E. Wiring Regulations.
3.4.1 The unit is supplied tted with a 0.75m 3 core 1.5mm2 exible cable on the 3kW
model or a 0.75m 3 core 2.5mm2cable on the 4.5kW model. The electricity supply
should be fused 13 Amp for a 3 kW model and 20 Amp for a 4.5kW model and
be via a double pole isolating switch with a contact separation of at least 3mm in
both poles. Refer to the schematic wiring diagrams overleaf.
3.4.2 The wires are colour coded as follows:
Green and Yellow EARTH
Brown LIVE (L)
Blue NEUTRAL (N)
FIGURE 06 : FITTING OF DISCHARGE PIPE THROUGH OUTERCASE..
CONNECT TO TUNDISH
(15mm COMPRESSION FITTING)
DISCHARGE PIPE
GROMMET
BUSH
CONNECT TO T&P RELIEF VALVE
(15mm COMPRESSION FITTING)
EXIT HOLE
(THROUGH OUTER CASE)

9
4.0 COMMISSIONING
4.1 PLUMBING
4.1.1 Do not switch on the electrical supply until the unit has been lled with water and
checked for leaks.
4.1.2 Check that all installation, electrical and discharge pipe requirements have been
met.
4.1.3 Check that all water and electrical connections are tight.
4.1.4 Open a hot water tap, turn on mains water supply to the heater.
4.1.5 Allow unit to ll and leave hot tap running for a short while to purge any air and
ush out the pipework. Close the hot tap and check the system for leaks.
4.1.6 Manually test the operation of the temperature and pressure relief valve and, if
tted, the pressure (expansion) relief valve. Ensure water ows freely from the
valve(s) and through the discharge pipes.
ELEMENT
NEON
RESET BUTTON
EARTH
POST
(STAT/CUT-OUT PLUGS
DIRECTLY ONTO ELEMENT
TERMINATIONS).
DOUBLE POLE
ISOLATING SWITCH
BROWN
BLUE
GREEN/YELLOW
MAINS
SUPPLY
L
N
FIGURE 07 : 3kW WIRING DIAGRAM 'AC' ONLY.
FIGURE 08 : 4.5kW WIRING DIAGRAM 'AC' ONLY.
IMPORTANT: THE COMBINED THERMOSTAT/CUT-OUT MUST BE PUSHED FULLY
HOME TO ENSURE CORRECT OPERATION OF THE CUT-OUT
COMBINED
THERMOSTAT
& CUT-OUT
THERMOSTAT
POCKET
ELEMENT
TERMINALS
FLARED END OF
THERMOSTAT
POCKET
CORRECT INCORRECT
NEONELEMENT
EARTH
POST
DOUBLE POLE
ISOLATING SWITCH
BROWN
BLUE
GREEN/YELLOW
MAINS
SUPPLY
L
N
RESET
BUTTON
N
A
B
L

10
4.2 ELECTRICAL
4.2.1 Switch on the electrical supply. The indicator light will illuminate during heating.
When the set temperature is reached the indicator light will go out.
4.2.2 The set temperature can be adjusted by rotating the adjuster located on the combined
thermostat and thermal cut-out, anti-clockwise to increase the temperature.Access
to adjust the temperature is gained by removing the terminal cover.
4.2.3 To remove the terminal cover, use a large at-bladed screwdriver to relieve the
snaps located towards the front, at either side of the cover. Gripping the cover at
the front, pull upwards.
4.2.4 To t the cover, locate the hinge at the back. Slide the snaps into place and apply
pressure to the front of the cover, pushing back and down until it snaps securely
in place.
5.0 USER DEMONSTRATION
Following installation and commissioning of the water heater, the operation should be
fully explained to the user.
5.1 HOT WATER
5.1.1. Indicate the location of the water heater and identify the outlets to which it is
connected.
5.1.2. Explain that the temperature is set upon installation and conrm the temperature
at which the water heater is set at.
5.2 SYSTEM MALFUNCTION
5.2.1. Explain how to isolate electrical and water supplies in case of a fault.
5.2.2. Explain that a qualied plumber and/or electrician should be contacted if there is
a fault.
5.2.3. Explain how to identify/check basic faults.
5.3 SYSTEM MAINTENANCE
5.3.1. Explain the necessity to carry out regular maintenance of the water heater to en-
sure its continued safe and efcient operation.
5.4 LITERATURE
Hand over the installation and user instructions.
5.5.1 This Santon unvented water heater stores water at the temperature set on the
adjustable thermostat in the range of 6 to 66° C. The heater is tted with a TMV2
thermostatic blending valve which controls the temperature of water to the hot
tap(s). The thermostatic blending valve allows water in the heater to be stored
at a higher temperature and then blended with cold water to deliver at a pre-set
outlet temperature.
5.5.2 Where possible, the temperature setting of the thermostat should be at least 15°C
higher than the setting of the thermostatic blending valve.

11
5.5.3 To avoid any risk of freezing when the heater is not in use for long periods
during the winter months, ensure the electrical supply is not switched off and set
the thermostat to its minimum position. N. b, this will not protect other system
pipework.
5.5.4 The indicator light will be illuminated when the unit is heating.
5.5.5 IMPORTANT NOTES TO USER
Do not block or restrict the discharge from any safety valve tted.
Do not tamper with any safety valve tted.
If water discharges from any safety valve tted, switch off the electrical supply
to the unit immediately. Contact a qualied installer. Do not turn the electrical
supply on again until the unit has been checked by a qualied installer.
Warning: Disconnect from all electrical supplies before beginning any work on the
heater. Water contained within the heater may be very hot!
To ensure the continued safe and efcient operation of the heater, it should be regularly
maintained.
Maintenance should be carried out by a competent person and any replacement parts
used should be authorised Santon Aqualine spare parts.
It is recommended that maintenance is carried out annually and should include the
checks detailed in the sections below:
6.1 The temperature and pressure relief valve and, if tted, the pressure (expansion)
relief valve should be regularly checked. This is to remove limescale deposits
and to verify that is not blocked.
6.2 Manually operate the valves by either twisting the cap or lifting the lever. Ensure
water ows freely from the valve(s) and through the discharge pipes. Ensure the
valve(s) reseat correctly when released.
The expansion vessel, if tted, should have a precharge pressure of 4.1 bar (60 p.s.i.).
This can reduce over time and eventually require re-charging. To do this:
6.3 Turn off water supply to the unit; open a hot tap to relieve system pressure.
6.4 Remove dust cap from valve at top of the expansion vessel
6.5 Check pre-charge pressure using a tyre pressure gauge. If the pressure is lower
than 4.1 bar (60 p.s.i.) it should be recharged using a tyre pump (Schraeder Valve
type). DO NOT OVER CHARGE.
6.6 Re-check pressure and when correct, replace dust cap.
6.7 Turn on mains water supply and close hot tap.
6.0 MAINTENANCE

12
Little maintenance is required, however in hard water areas the unit will require periodic
descaling to ensure efcient operation. To descale the unit:
6.8 Switch off, and disconnect, the electrical supply. Turn off the water supply to the
unit.
6.9 Open a hot tap to relieve any system pressure. Disconnect the plumbing connections
to the unit and remove (note full weights of units, p3). Empty unit through the
outlet connection. In order to fully empty the unit, the element plate assembly
will need to be removed (see below).
6.10 Remove the terminal cover as described in Section 4.2, p9.
6.11 Disconnect the electrical terminations to the thermostat. Disconnect earth links
to the earthing stud.
6.12 Remove the element plate assembly by unscrewing the ve securing screws.
(tapped jacking points are provided). Remove any loose scale from the container.
Carefully clean off any scale from the element and thermostat pocket. DO NOT
clean scale from interior container walls.
6.13 Re-t the element plate assembly using a new sealing gasket. Note the correct
orientation of the element plate by reference to Figures 09 and 10 below. Rewire
the unit with reference to the wiring diagrams Figures 07 and 08, p8.
6.14 Re-commission the unit following the INSTALLATION and COMMISSIONING
instructions.

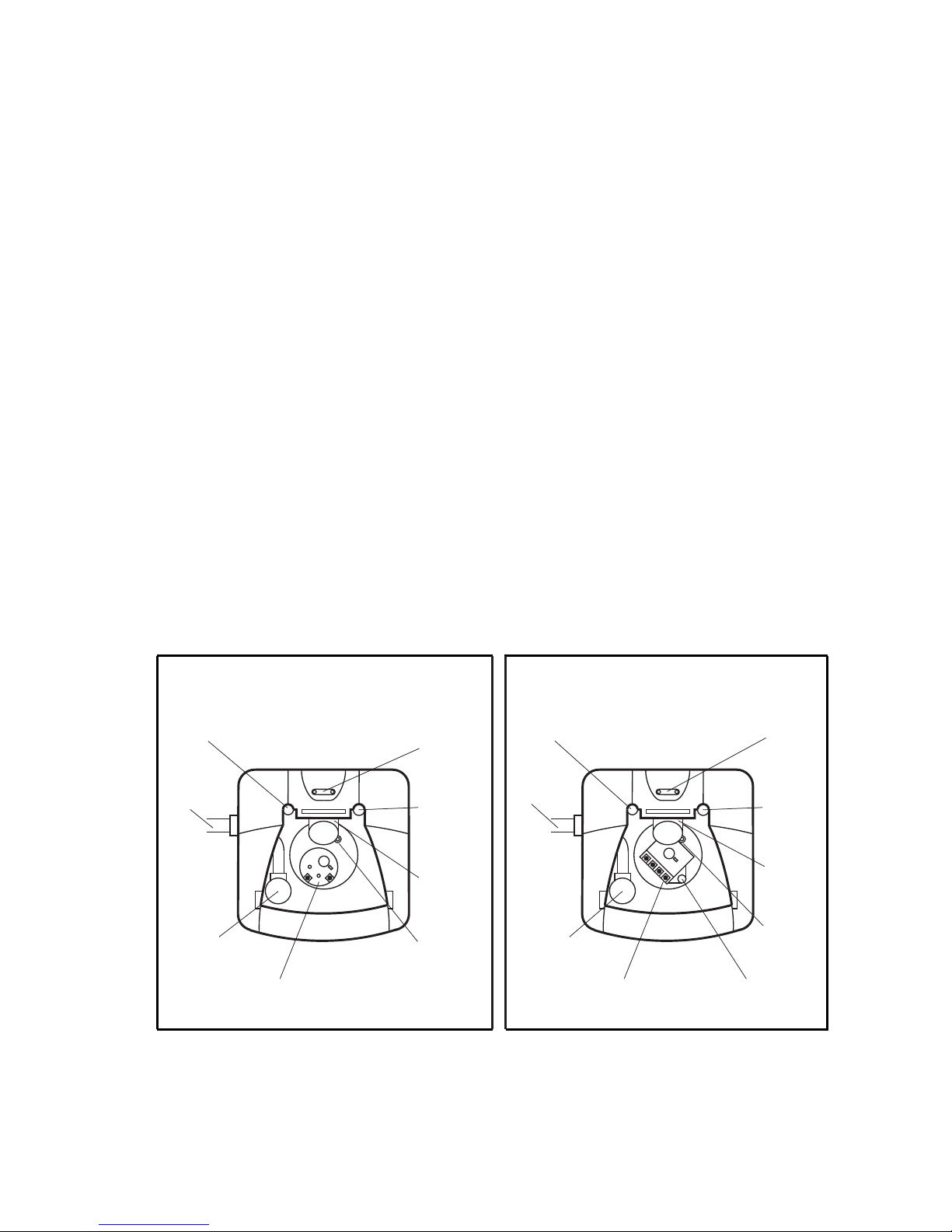

FIGURE 09 : CORRECT ORIENTATION
OF ELEMENT PLATE - 3kW MODELS
( VIEWED FROM TOP OF UNIT ).
FIGURE 10 : CORRECT ORIENTATION
OF ELEMENT PLATE - 4.5 kW MODELS
( VIEWED FROM TOP OF UNIT ).
INLET
OUTLET
DISCHARGE
T&P VALVE
CABLE
CLAMP
EARTH
POST
THERMOSTAT
SECURING POST
BLENDING
VALVE
COMBINED THERMOSTAT
AND THERMAL CUT-OUT
INLET
OUTLET
DISCHARGE
T&P VALVE
CABLE
CLAMP
EARTH
POST
BLENDING
VALVE
COMBINED THERMOSTAT
AND THERMAL CUT-OUT

13
7.0 FAULT FINDING
Warning: Disconnect from all electrical supplies before beginning any work on the
heater. Water contained within the heater may be very hot!
The Santon Aqualine should give trouble-free operation, however should a problem
occur, the table below should enable most faults to be identied with ease.
Fault nding should be carried out by a competent person and any replacement parts
used should be authorised Santon Aqualine spare parts.
ACTIONPOSSIBLE CAUSESFAULT
1. Check electrical supply1. Electrical supply faultWater not heating
2. Check cut-out, if operated reset and
check thermostat operation. If necessary
replace thermostat/thermal cut-out (see
wiring diagram, p8)
2. Thermal cut-out tripped
3. Check thermostat operation, replace if
necessary
3. Thermostat fault
Fit pressure reducing valve pack
ALK01 (94970008) see IMPORTANT
INSTALLATION POINTS
pressure
Excessive mains water
pressure
(continuously)
pressure relief valve
Discharge of water from
possible
(intermittently)
pressure relief valve
Discharge of water from 1. Fit pack ALK02 (94970009) see
IMPORTANT INSTALLATION
POINTS
2. Fit pack ALK01 (94970008) see
IMPORTANT INSTALLATION POINTS
3. Replace pressure relief valve.
4. Check and if necessary, re-charge
expansion vessel pre-charge pressure
(see Section 6.0)
1. Expansion in mains not
possible.
2. Mains pressure exceeds
4.1 bar (60 p.s.i.)
3. Pressure relief valve fault
4.Loss of pressure from
expansion vessel
Thermostat and
thermal cut-out fault
Replace thermostat and thermal cut-out
pressure relief valve
water/steam from
relief valve and or
temperature/pressure
Discharge of water from
1. Check all valves are correctly installed
in accordance with flow direction arrows
1. Inlet valves incorrectly
fitted
No water flow
2. Check mains water supply is on
2. Mains water supply not
turned on
3. Check for obstructions. Check strainer in
thermostatic blending valve and pack
ALK01 (94970008) if fitted.
3. Blockage in mains water
supply
Water from a pressurised system releases
oxygen bubbles when flowing. The
milkiness will disappear after a short
time.
Oxygenated water
"Milky" water

14
8.0 SPARE PARTS
The following comprehensive list of spare parts is available for your Santon water heater.
Please refer to the rating label on the side of your heater before ordering to ensure the
correct spare part is obtained.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY SANTON.
THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER THE
INSTALLATION DANGEROUS.
DESCRIPTION CODE NO.
Element plate assembly - 7 litre 3kW...................95 606 942
Element plate assembly - 10 litre 3kW.................95 606 921
Element plate assembly - 15 litre 3kW.................95 606 944
Element plate assembly - 15 litre 4.5kW..............95 606 945
Combined thermostat/thermal cut-out 3kW..........95 612 687
Combined thermostat/thermal cut-out 4.5kW.......95 612 634
Indicator light 3kW ..............................................95 607 992
Indicator light 4.5kW ...........................................95 607 993
Element plate gasket .............................................95 611 708
Pressure (Expansion) Relief Valve........................95 607 986
Temperature/Pressure Relief Valve.......................95 605 046
Thermostatic Blending Valve................................95 605 875
Top cover moulding (7&10 litre)..........................95 614 272
Top cover moulding (15 litre) ...............................95 614 276
Terminal cover (7&10 litre) .................................95 614 274
Terminal cover (15 litre) .......................................95 614 275

15
9.0 GUARANTEE
This product is guaranteed against faulty materials and manufacture for a period of 2
years from the date of purchase provided that:
1. The unit has been installed in accordance with the installation and user instructions
and all relevant codes of practice and regulations in force at the time of installation
and that all necessary controls and safety valves have been tted correctly.
2. Any valves and controls are of the Santon recommended type and specication.
3. The unit has not been modied or tampered with in any way, and has been regularly
maintained as detailed in the installation and user instructions.
4. The unit has been used only for heating potable water.
The unit is not guaranteed against damage by frost, and the immersion heater is not
guaranteed against excessive scale build-up.
This guarantee in no way affects the statutory rights of the consumer.
The policy of Santon is one of continuous product development and, as such, we reserve
the right to change specications without notice.
10.0 ENVIRONMENTAL INFORMATION
This product is manufactured from many recyclable materials.
At the end of its useful life, it should be disposed of at a Local Authority Recycling Centre
in order to realise the full environmental benets.
Insulation of the hot water cylinder is by means of an approved CFC/HCFC-free
polyurethane foam with an ozone depletion factor of zero and a Global Warming potential
(GWP) of 3.1.
The Santon Aqualine does not contain any substances harmful to health; it does not
contain any asbestos.

16
For the fast and efcient supply of spares, please contact the stockists listed below:
Electric Water Heating Co.
2 Horsecroft Place, Pinnacles
Harlow, Essex, CM19 5BT
Tel: [phone]
E-Mail: [email protected]
SPD
Units 9 & 10 Hexagon Business Centre
Springeld Road, Hayes
Middlesex, UB40 0TY
Tel: [phone]
Parts Center
Tel: [phone]
www.partscenter.co.uk
Newey & Eyre
Unit 3-5 Wassage Way
Hampton Lovett Ind. Estate
Droitwich, Worcestershire, WR9 0NX
Tel: [phone]
Fax: [phone]
UK Spares Ltd.
Unit 1155 Aztec West
Almondsbury, Bristol, BS32 4TF
Tel: [phone]
Alternatively contact your local supplying merchant
or wholesale branch or use our online stockist nder
at www.interpartspares.co.uk
Hurricane Way,
Norwich,
Norfolk, NR6 6EA
www.santon.co.uk
SPECIFICATION ADVICE HOTLINE
t| 01603 420220
e| speci[email protected]
AFTER SALE SERVICE
t| 0344 8711530
e| customer[email protected]
11.0 SPARES STOCKISTS
