SPEEDIBOIL
Installation and User Instructions
Models: SP2.5, SP5.0, SP7.5
Please read and understand these instructions before starting work.
Please leave this leaet with the user following installation.
WARNING
This boiling Water Heater must only be installed
by qualied persons.
36006034 Issue 4

2
Thank you for purchasing a Santon Speediboil . The boiling water heater is
manufactured to the highest standards and has been designed to meet all the
latest relevant safety specications.
This Speediboil water heater must be installed (Sections 1-5), commissioned
(Section 6) and maintained (Sections 7-8) by a competent person. Please
read and understand these instructions prior to installing your Speediboil water
heater. Following installation and commissioning the operation of the heater
should be explained to the user (Section 10) and these instructions left with
them for future reference.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
INTRODUCTION

3
3
COMPONENT CHECKLIST
Before commencing installation check that all the following components have
been supplied with your Speediboil.
• Wall mounting bracket
• No.12 x 2" screws (2 off)
• No.8 x 1" screw (1 off)
• No.12 x 2" wall plug (2 off)
• No.8 x 1" wall plug (1 off)
• 15mm x 15mm straight push-t connector (tted)
• 15mm x 15mm 90 ° elbow push t connector (tted)
CONNECTIONS
Inlet connection -15mm ext. diameter
Water entry point - bottom and rear
Cable entry point - bottom and rear
ELECTRICAL
Model numbers
2.5kW - Speediboil 2.5ltr - 94 200 001
2.5kW - Speediboil 5.0ltr - 94 200 002
2.5kW - Speediboil 7.5ltr - 94 200 003
Electrical rating 2.3/2.5kW@230/240V
Nominal capacities Model SP2.5 2.5 litres
Model SP5.0 5.0 litres
Model SP7.5 7.5 litres
Weight (full) Model SP2.5 8.4kg
Model SP5.0 11.8kg
Model SP7.5 15.4kg
Rated pressure
Minimum supply pressure 0.05MPa (0.5 bar)
Maximum supply pressure 1.0MPa (10 bar)
Enclosure rated IP X2
Nominal commissioning times (minutes) to temperature ready
Model SP2.5 16
Model SP5.0 24
Model SP7.5 32
STANDARDS AND APPROVALS
Complies with the requirement of EN 60335-2-15 (Nemko approved).
Complies with European Community Directives (CE).
Complies with UK water regulations, kiwa approved.
TECHNICAL SPECIFICATION

4
1.1 The Speediboil stores and dispenses water at or close to boiling point
at all times it is switched on. Due caution must be taken when choosing a
location for the product to minimise misuse. Locate the unit over a draining
board, NOT over the sink or basin.
1.2 Push t connectors DO NOT grip chromed or stainless pipe.
1.3 The Speediboil is a vented water heater. The vent pipe must never be
blocked or obstructed, it must be a minimum of 15mm outside
diameter pipe. Where the vent pipe length exceeds 3m, the
pipe diameter should be increased. The vent pipe must be laid to
a continuous fall and discharge in a safe and visible position; it
must discharge via a tundish or nish a minimum of 20mm above
a draining board. The vent pipe material must be capable
of conveying boiling water. The vent pipe must never be connected
directly to a soil pipe.
1.4 Wherever possible the Speediboil should be supplied directly
from a rising main. If fed from a cold water feed cistern, the cistern
must comply with the Water Regulations Guide (clause R27.2). It
should be noted that water quality may be reduced when supplied
from a cistern and additional forms of water pre-treatment may be
necessary.
1.5 In hard water areas, heated water will produce lime scale which will
be deposited within the heater. If this is not regularly removed, it will
impair the operation of the heater. Where rapid and excessive scale
build up is likely to occur, the use of a proprietary scale reducing
device may be benecial.
1.6 The installation must be carried out in accordance with the
relevant requirements of:
• The appropriate Building Regulations either The Building
Regulations (England & Wales), The Building Regulations (Scotland)
or Building Regulations (Northern Ireland).
• The Water Fittings Regulations or Water Byelaws in Scotland.
1.7 The Speediboil will adjust for ambient (room) temperatures of
between 1°C and 40°C.
1.8 When not in use, care must be taken to prevent the unit from freezing;
if thought to be frozen, it must not be switched on. It must be left to
thaw and must then be thoroughly inspected to ensure it is totally
thawed and undamaged.
1.9 The unit is not suitable for installation in an area where a water jet
could be used.
1.0 IMPORTANT INSTALLATION POINTS

5
5
2.1 The Speediboil must be vertically wall mounted using the bracket
supplied.
2.2 Fig.1, page 6 details the outside dimensions of the Speediboil. It is
recommended that the unit is positioned above the draining board. If this is not
possible, consideration should be given to any spillages that may occur under
the appliance. The heater should be positioned at a height to suit the items
being lled (asks, pans, cups etc.). This is likely to position the base of the unit
250mm above the work surface.
2.3 Sufcient room should be left around the heater for maintenance and
servicing access. The top should not be covered as this will reduce the
efciency of the Speediboil.
2.4 Ensure that the wall can support the full weight of the unit (see
TECHNICAL SPECIFICATION, page 3) and that there are no hidden services
(electricity, gas or water) below the surface of the wall.
2.5 Using the backplate mark the xing positions and water and vent entry
points. Drill and plug the xing positions. Fix the mounting bracket to the wall
using the two No. 12 x 2" screws provided (conrm suitability of all screws and
plugs for use with the wall. If unsuitable due to wall type, provide alternative
xings)
2.6 If rear entry services are to be used the necessary holes for these should
be prepared prior to hanging the unit onto its bracket.
2.7 Remove the front cover by unscrewing the top and bottom cover xing
screws. Hang the Speediboil onto the wall mounting bracket. Secure
anchor point to the wall with the No.8 x 1" screw (provided).
2.0 INSTALLATION - MOUNTING

6
30
C
G
F
E
D
B
A
250mm approx
Worktop
Figure 1
H
J
I
L
M
N
MODEL
A B C D E F G H
INLET VENT
INLET/
VENT
CABLE
ENTRY
SP2.5 445 290 190 85 115 101 49 46
SP5.0 510 335 200 103 133 101 49 69
SP7.5 510 335 262 103 133 101 49 69
DIMENSIONS (mm)
Fixing
Bracket
Fixing
Hole
INLET/
VENT
K
O

7
7
3.1 Select appropriate push t connector for chosen entry position:
Bottom entry water - 15mm x 15mm 90º elbow.
Rear entry water - 15mm x 15mm straight.
NOTE: Stainless or chromed pipes DO NOT provide secure connections with
push t ttings (use copper pipe at joints).
3.2 Push the connector fully home (28mm engagement) onto the solenoid
valve inlet spigot. To remove a push t connector the collar (collet) should be
pushed towards the body of the tting whilst pulling the connector off the pipe.
3.3 If the inlet pipe run is horizontal and beneath the unit ensure it does
not prevent access to the case screws.
3.4 Connect the inlet pipe to the push t connector ensuring it is fully
pushed home (28mm engagement). After connection DO NOT make soldered
joints in the pipe work close to the heater, as the heat may damage the
connector or the water heater itself.
3.5 A WRAS listed isolating valve should be tted to the cold supply to
facilitate servicing the heater.
3.6 Push t connectors are supplied to allow either bottom or rear entry of
services.
3.0 INSTALLATION - WATER SUPPLY
4.0 INSTALLATION - VENT PIPE
4.1 Select appropriate push t connector for chosen entry position:
Bottom entry vent - 15mm x 15mm straight
Rear entry vent - 15mm x 15mm 90º elbow
4.2 Push the connector fully home (28mm engagement) onto the vent pipe
connection.
4.3 Connect the vent pipe to the push t connector ensuring it is pushed
fully home (28mm engagement). Refer to the vent pipe requirement detailed in
IMPORTANT INSTALLATION POINTS. If a bottom entry vent pipe is used
the pipe must terminate below the unit, in a safe visible position. After
connection DO NOT make soldered joints in the pipe work close to the heater,
as the heat may damage the connector or the water heater itself.
FIXING
POINT
SP2.5
SP5.0
SP7.5
CABLE
ENTRY
FIXING
POINT
IJ
BRACKET BRACKET BRACKET OUTLET
KLMNO
59
61
61
96
117
117
50
67
67
342
401
401
52.5
84
84
169
217
217
152
163
225

8
5.0 INSTALLATION - ELECTRICAL REQUIREMENTS
WARNING:
5.1 This appliance must be earthed.
5.2 The installation, supply cable and circuit protection must conform
to the latest BS7671 ‘Requirements for electrical installations’ (IEE Wiring
Regulations).
5.3 The appliance must only be connected to a 230/240 V ac supply. A
double pole isolating switch, with a contact separation of at least 3mm in both
poles, must be incorporated in the electrical supply. The supply should be
fused 13Amp.
5.4 If the Speediboil is to be unused for signicant periods of time running
costs can be reduced by switching the unit off. It is recommended that this
is done automatically by incorporating a suitable timeswitch in the supply
to the unit. The use of an accessory No. 95 970 124 is recommended. The
timeswitch can then be set to switch the unit on for a suitable period to allow it
to heat up
ELECTRONIC CONTROL
L
Figure 2: Wiring Diagram (2.5kW)

9
9
6.1 The electronic control system of the Speediboil has a self
commissioning and calibration function. Once the heater is installed and
all services have been connected, the appliance should require no further
adjustment before use.
6.2 Check that all electrical, water and vent pipe connections have been
made and are secure.
6.3 Replace the cover and secure with the xing screws. Ensure the tank
discharge tube is centrally located in the outlet spout. Turn on water, then
electrical supply.
6.4 The READY indicator will ash to indicate the unit is in its ‘self
commissioning’ mode. The water in the unit will not be hot enough to use at
this stage (do not draw water off).
6.5 The READY indicator will continue to ash until the unit has reached
boiling and has ‘self-calibrated’. At this point the READY indicator will remain
illuminated. If for any reason the calibration procedure is interrupted it will
restart after a short delay but may result in the calibrated temperature being
too low. If this occurs switch the electrical supply OFF for several seconds and
then switch ON. The calibration sequence will reset. Wait for the READY
indicator to remain illuminated.
6.6 The unit is now ready to use, however, it is recommended that the rst
few lls be drawn off and discarded to ensure the freshness of the water.
6.7 The tap sealing washer pressure has been already set. If the tap drips
after commissioning adjust the spring tension so that the handle is just loose.
a) Remove the tap bezel after removing the two screws securing it. NOTE:
To remove the bezel, the handle will have to be operated. This will cause
water to discharge from the outlet (see page 13 item 10).
b) Tighten the tap headwork nut (turn clockwise) until the handle is just
loose. Replace bezel and securing screws. NOTE: Excessive adjustment will
dismantle the tap, if heated this would result in the uncontrollable release of
boiling water (see page 13 item 7).
6.8 Check for leaks.
6.9 IMPORTANT NOTE: Each time the unit is switched off then switched
on it will always go through the same cycle 6.4-6.5. Water should never be
drawn off the unit until commissioning is complete and the red neon light
remains solid.
6.0 COMMISSIONING

10
NOTE: Maintenance must be carried out by competent persons.
Competent - i.e. Trained, experienced, qualied.
Disconnect the electrical supply before removing the cover.
WARNING: Electronics control by switching ‘N’ (neutral), in some instances
neutral terminations will be at 230 volts with respect to earth.
7.1 The Speediboil incorporates an electronic scale conditioning function
which will reduce the rate of scale deposition in hard water areas. However,
some deposits may still occur in the storage tank; these should be periodically
removed.
7.2 The amount of usage of the unit will also determine the quantity
of scale build up. A regular inspection of the tank every 6 to 12 months will
provide longer life of the product and optimum performance (removal of the
steam plate assembly will give access to the storage tank) .
7.3 The front cover and spout will require a periodic wipe to clean any
marks/splashes from use.
7.0 MAINTENANCE

11
11
8.0 FAULT FINDING
Your Santon Speediboil should give trouble free operation, however, should
a fault occur, the table below should allow most faults to be identied. Fault
nding should only be carried out by a competent person.
For any faults that cannot be identied using the Fault Finding chart please contact
Santon After Sales Service, telephone [phone], fax [phone].
SYMPTOM POSSIBLE CAUSE ACTION
No indicator
lights
1. If no water or heat - no
power to unit
2. If hot water available
- no power to indicator
diodes
1. Check power supply is correctly
connected and switched on and the
primary cutout has not operated.
2. Check connections to indicators at 4
way plug
Water ows
from vent and
primary cutout
operates
1. Solenoid valve fault
2. Level sensor fault
3. Electronic control fault
4. Low water pressure
1. Check operation of solenoid valve.
Replace if necessary
2. Check level system
3. Check connections to electronic
control. Replace if necessary
4. Increase inlet pressure
Steam from
vent pipe and
primary cutout
operates
1. Control thermistor fault -
open circuit
2. Electronic control fault
3. Scale build up
1. Check continuity (5Kohms at 100°C)
2. Check connections to electronic
control. Replace if necessary
3. Descale unit
Drips from
outlet
1. Incorrect spring tension
2. Scale: Debris under tap
seal
3. Damaged tap seal
4 Scale on tap outlet spout
1. Ensure tap headwork nut correctly
adjusted
2. Remove and clean as necessary
3. Replace tap seal
4. Clean tap outlet
Water “runs
on” when tap
released
1. Scale on tap outlet spout
2. Scale debris under tap
seal
3. Damaged tap seal
1. Clean tap outlet
2. Replace and clean as necessary
3. Replace tap seal
Stale taste to
water
Unit left unused for several
days
Empty and allow to rell before use
Tap sticks
open
Dirt around handle pivot Clean with a stiff paint brush
Power light On steadily – normal operation continue to use
Flashing one pulse – time for a clean, remains operational continue to use
Flashing two pulses – no water available, unit shut down
Flashing three pulses – fault, call an engineer, unit shut down
Ready light Flashing – unit commissioning
On steadily – normal operation continue to use
Off – unit too cold
Power light indicator

12
9.0 SPARE PARTS
The following comprehensive list of spare parts is available for your Santon
Speediboil water heater. Please refer to the rating label on the right hand side
of your heater before ordering to ensure the correct spare parts are obtained.
DO NOT REPLACE WITH PARTS NOT RECOMMENDED BY SANTON -
THIS WILL INVALIDATE YOUR GUARANTEE AND MAY RENDER THE
INSTALLATION DANGEROUS.
1. Element assembly (incorporating start dry cutout).............................95 606 952
2. Element assembly sealing gasket......................................................95 611 816
3. Primary cutout (vent pipe)..................................................................95 612 001
4. Solenoid valve assembly....................................................................95 605 877
5. Level sensor assembly (2.5ltr Model).................................................95 606 971
Level sensor assembly (5.0/7.5ltr Model)...........................................95 606 972
6. Circuit board (All Models)...................................................................95 615 076
7. Outlet tap headwork (inc. handle).......................................................95 605 071
8. Outlet tap stem...................................................................................95 605 832
9. Outlet tap cup seal..............................................................................95 611 731
10. Bezel for tap & cover...........................................................................95 605 072
11. Cover assy & screws (2.5ltr Model)....................................................95 607 212
Cover assy & screws (5.0ltr Model)....................................................95 607 213
Cover assy & screws (7.5ltr Model)....................................................95 607 214
12. Steam condenser assy (2.5ltr Model).................................................95 607 015
Steam condenser assy (5.0ltr Model).................................................95 607 016
Steam condenser assy (7.5ltr Model).................................................95 607 018
13. Condenser sealing gasket (2.5ltr Model)............................................95 611 817
Condenser sealing gasket (5.0ltr Model)............................................95 611 819
Condenser sealing gasket (7.5ltr Model)............................................95 611 820
14.‘O’ ring kit......................................................................................95 611 002
15.Manifold assy 2.5ltr.......................................................................95 607 206
Manifold assy 5.0ltr.......................................................................95 607 207
Manifold assy 7.5ltr.......................................................................95 607 208
16.Outlet spout plastic - tank..............................................................95 604 668
17.Outlet spout - cover.......................................................................95 604 001
18.Push t connector 15x15 straight..................................................95 607 509
19.Push t connector 15x15 elbow....................................................95 607 510
20.Tank (2.5ltr Model)........................................................................95 608 926
Tank (5.0ltr Model)........................................................................95 608 927
Tank (7.5ltr Model)........................................................................95 608 928
21.Tank drain & seal..........................................................................95 608 929
22.Start dry cutout (element)..............................................................95 612 691
23.Solenoid valve coil........................................................................95 605 839
24.Fitting kit (2.5ltr Model)..................................................................95 607 024
25.Fitting kit (50./7.5ltr Model)............................................................95 607 025
26.Wiring harness 4-way....................................................................95 612 006
27.Wiring harness complete...............................................................95 607 209

13
13
12
3
4
5
6
1610
11
78 9
12 13
13
14
14
14
14
18 2015 21 22
23
17
19

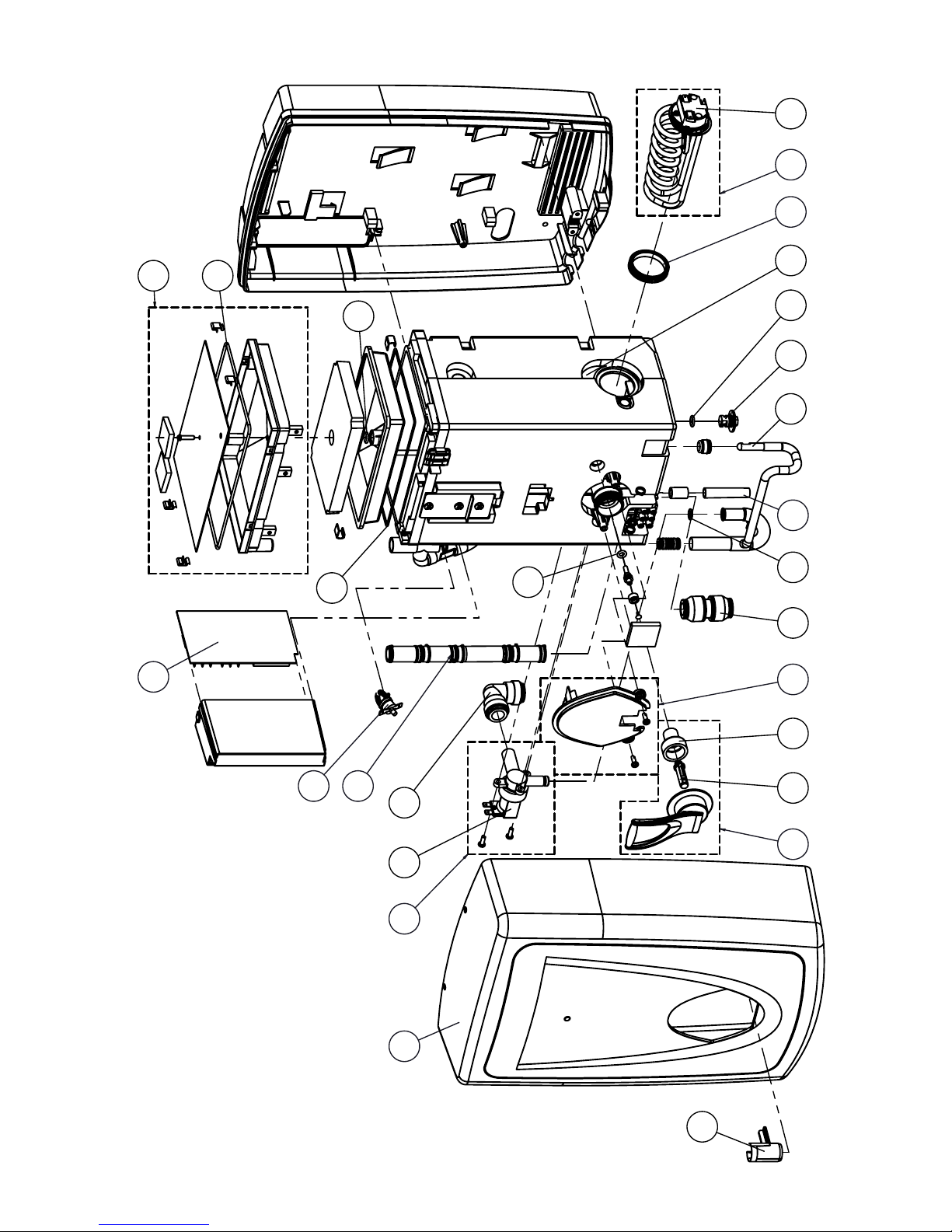

Figure 3: Spares

14
10.1 Once installed, the lling and the heating cycles of the Speediboil are
completely automatic.
10.2 To dispense water, place a suitable container under the outlet spout
and pull the tap handle down and towards (or push away from) the user. The
water dispensed will at all times be boiling or close to boiling point so due
caution must be taken when using the product.
10.3 The tap handle is spring loaded so that when released it will spring
back to the “off” position (no ow).
10.4 The Speediboil is tted with one neon indicator. When the neon is
ashing the unit is commissioning (DO NOT draw water off).
When the neon is on and stays as a solid light, the unit is ready to be used.
10.5 If the store of hot water is completely withdrawn, the ow rate from the
outlet tap will reduce to the lling rate of the heater (leave for 2 minutes before
drawing any more water off). This slow ow rate allows the incoming water to
be instantly reheated, it does not indicate a fault with the water heater.
10.6 If the Speediboil is not used for a few days, the water may become
‘stale’. In these instances, it is advisable to draw off the contents and discard
the water at least twice to remove the ‘stale’ water. This will ensure that
‘freshly’ boiled water is used to make your drinks etc.
10.7 Similarly, if left unused, it is possible that some scale residue will
collect in the outlet tap. This will cause the outlet water to appear ‘milky’ for a
short while. If this condition occurs it is recommended that the rst few cups
are drawn off and discarded.
10.0 USER INSTRUCTIONS

15
15
This product is guaranteed against faulty materials and manufacture for a
period of two years from the date of purchase provided that:
1. The unit has been installed by a competent person in accordance with the
installation and user instructions, all relevant Codes of Practice, Regulations
in force at the time of installation and that all necessary controls and safety
valves have been tted correctly.
2. Any valves and controls are of the Santon recommended type and
specication.
3. The appliance has not been modied or tampered with in any way, and has
been regularly maintained as detailed in the installation and user instructions.
4. The appliance has been used only for heating potable water.
The appliance is not guaranteed against damage by frost, and the inner
container with integral heating element is not guaranteed against excessive
scale build-up.
This guarantee in no way affects the statutory rights of the consumer.
The policy of Santon is one of continuous product development and, as such,
we reserve the right to change specications without notice.
Environmental Information
Santon products are manufactured from many recyclable materials.
At the end of their useful life, they should be disposed of at a Local Authority
Recycling Centre in order to realise the full environmental benets.
GUARANTEE

16
Hurricane Way, After Sales Tel: [phone]
Norwich, After Sales Fax: [phone]
Norfolk, NR6 6EA. ServiceEmail: santonservice@
www.santon.co.uk heateam.co.uk
Electric Water Heating Co.
2 Horsecroft Place, Pinnacles
Harlow, Essex, CM19 5BT
Tel: [phone]
E-Mail: [email protected]
SPD
Units 9 & 10 Hexagon Business Centre
Springeld Road, Hayes
Middlesex, UB4 0TY
Tel: [phone]
Parts Center
Tel: [phone]
www.partscenter.co.uk
Newey & Eyre
Unit 3/4/5 Wassage Way
Hampton Lovett Industrial Estate
Droitwich, Worcestershire WR9 0NX
Tel: [phone]
UK Spares Ltd.
Unit 1155 Aztec West
Almondsbury, Bristol, BS32 4TF
Tel: [phone]
Advanced Water Company Ltd.
Unit D5 Enterprise Way
Vale Park, Evesham
Worcestershire WR11 1GS
or contact your local supplying merchant or wholesale branch
© 2013
Spares Stockists
