Sanyo DWM-400 User manual

FILE NO.
Service Manual
CONTENTS
DVD Video Player DWM-400 (US)
PRODUCT CODE No.
137 123 00
REFERENCE No. SM5810540
DVD Mechanism Replacement ............................................. 1
Laser beam safety precaution ............................................... 1
Mechanism replacement ....................................................... 2
How to load software for main p.w.board .............................. 3
Exploded View (Cabinet & Chassis) ..................................... 4
Parts List ............................................................................... 5

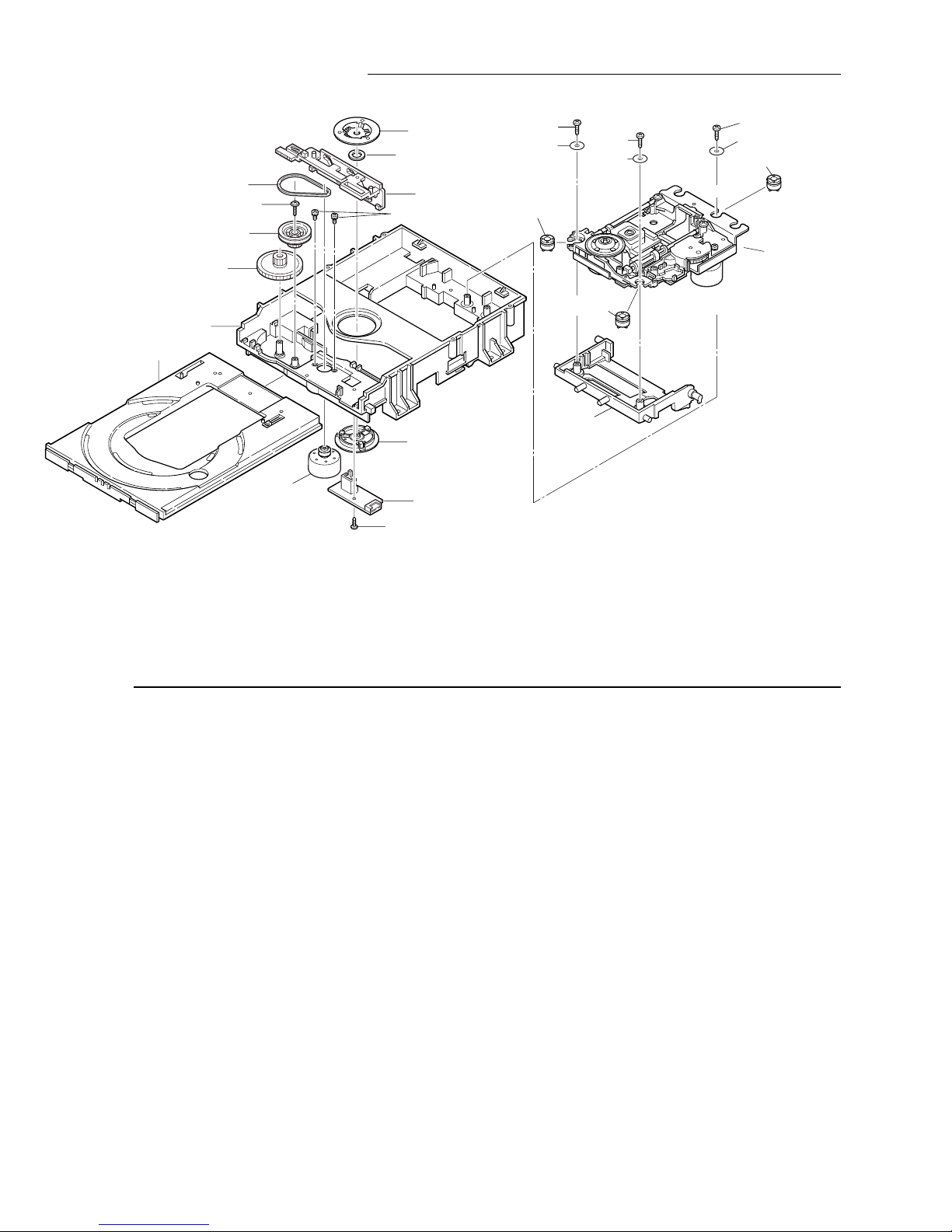

Exploded View (DVD Mechanism) ........................................ 9
Parts List ............................................................................... 9

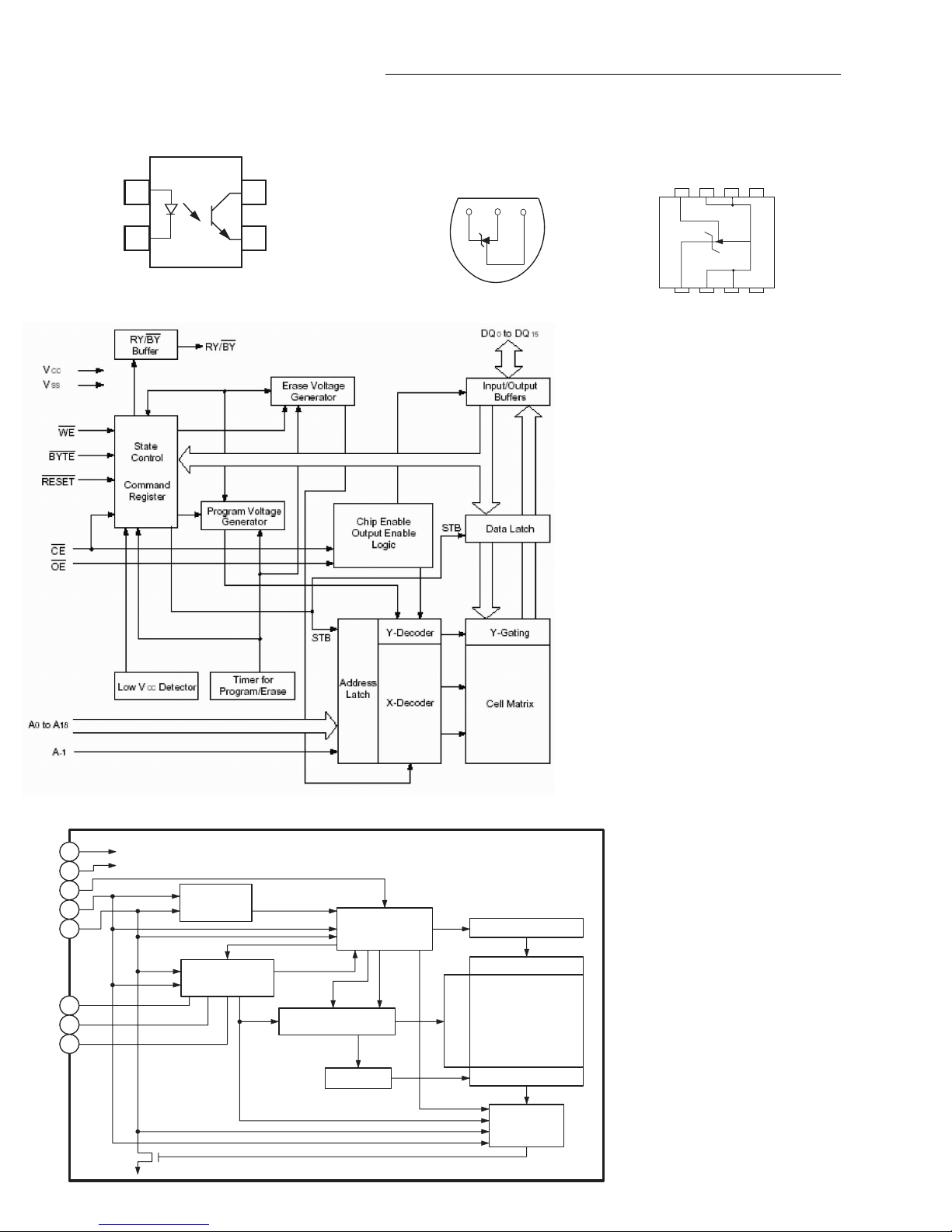

IC Block Diagram & Description ............................................ 10
Block Diagram ...................................................................... 14
Schematic Diagram ............................................................... 15
Wiring Diagram .................................................................... 28
wiring Connection ................................................................. rear
REMOTE CONTROLLER RB-SL40
/ON
NEXTPREV
SEARCH MODE
SLOW
PAUSE/ STEP
PLAY
REV FWD
PROGRAM
123
456
789
0
+10
OPEN/CLOSE
ENT
SETUPMENU
AUDIO
RETURN
ZOOM ANGLE
SUBTITLE
RANDOM
ON SCREEN
REPEAT
A-B REPEAT
TOP MEN U

- 1 -
1. Cautionary instructions in handling the assy
(Safety instructions)
Optical pickup
The laser beam used in the pickup is classified as "class 2".
Exposing your eyes or skin to the beam is harmful. Take care not
to do so.
(Caution against static electricity and leakage voltage)
Ground securely the work tables, tools, fixtures, soldering irons
(including those made of ceramic) and measuring instruments used
in the production lines and inspection departments that handle
loaders. The workers shall also be grounded.
(Cautionary instructions in handling)
Do not touch the object lens when handling a loader, or the lens
will be stained, resulting in inadequate playability.
There is no power supply protection circuit provided for this product
or adjustment/inspection device. Short-circuiting may lead to fire
or damage.
Take care so as to protect from exposure to water, the entry of
metallic pieces or dew condensation.
In particular, a strong magnet adjacent to the pickup will not only
get inoperative but can damage the pickup if a small metallic piece,
such as a screw or swarm, enters.
The loader edge can cause injury if inadvertently handled.
Do not touch a rotating disk, or injury may result.
This product is a precision device. Handle carefully.
A shock or dropping will cause misalignment or destruction. If it
should occur, refer to clause 2.
This product is so designed as to endure an initial shock equivalent
to a drop from a height of approx. 90 cm under the packed condition.
After the initial shock, the resistivity will still remain at a level of 50
to 60 G, but the mechanical robustness will weaken.
Do not place in a dusty location.
The entry and deposition of dirt into or on the pickup lens or moving
section will cause malfunction or degradation.
(Connectors)
DVD MECHANISM REPLACEMENT
Do not connect or disconnect while power is on.
Connecting or disconnecting signal wires or the main power cord
when the power is on may destruct the unit or fixture.
When connecting, push all the way in securely.
An insufficient insertion may cause a bad contact, leading to an
erroneous operation.
Do not connect or disconnect roughly by an excessively strong
force, or a broken wire or bad contact may result.
Semiconductors are connected. Do not touch connector terminals
directly.
If the worker is grounded, there is nothing to worry about static
electricity, but the rust on the connector terminal surface caused
by the touch may result in bad contact.
(Caution)
Before disconnecting FFC
cable, make it "SHORT" as
shown left.
After connecting FFC
cable,make it "OPEN" as
shownleft.
(Power source)
The power source need be good in quality (free from instantaneous
interruptions or noises).
A low quality power source may well cause malfunction.
(Storage)
Do not place or store in a dusty place or a place where dew
condensation is possible.
The entry and deposition of dirt or dust into or on the pickup lens or
moving section will cause malfunction or degradation.
Also, dew condensation causes rust; the rust penetrate into the
precision part of a pickup, causing malfunction, or degrading the
optical quality of the internal lens and reflector, which also leads to
malfunction.
(OPEN)(SHORT)
LASER BEAM SAFETY PRECAUTION
• Pick-up that emits a laser beam is used in this CD player section.
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE
LASER OUTPUT .......... 0.6 mW Max. (CW)
WAVELENGTH ............. 790 nm

- 2 -
4. Tray parts.
1
2
MECHANISM REPLACEMENT
2. How to remove the tray.
3. How to insert the tray.
1
1
2
1
2
1
1
1
2
Escutcheon
1. How to Remove DVD Mechanism
First, it is necessary to remove Escutcheon.
Move both the right and left 1 tray pins to the ends.
Remove the 2 tray.
Rotate the 1 gear.
Move forward the 2 tray.
Move the 1 slide to the left end.
Insert the 2 tray.
How to remove Escutcheon.
An eject button is pushed and a tray is taken out.
Please remove Escutcheon, as shown in the left figure 2 .
When an eject button 1 does not function. Above figure
Please insert a cylindrical thing with a diameter of 3mm or less
in the hole 3 in the side of a DVD mechanism.
A tray is pushed out.
3
Side of DVD mechanism
Front Rear
Cylindrical thing

- 3 -
G-SANKOL
G-SANKOL
5. Base mechanism mounting parts.
MECHANISM REPLACEMENT
: Clean the groove by alcohol well.
A
A
A
G-SANKOL
G-SANKOL
HOW TO LOAD SOFTWARE FOR MAIN P.W.BOARD
1. Power on, then open tray.
2. It take on CD-ROM (Part code is "0PRADC7123--A") for UPDATE software to the tray, and tray close.
3. It is displayed on a TV screen as "FLASH".
4. It is displayed on a TV screen as "dvdsl40.San" or "dvdsl40t.San"
5. It is displayed on a TV screen as "reading".
6. A TV screen becomes dark.
4. The display of a TV screen repeats "ERASE" and "WRITE"
5. It is displayed on a TV screen as "DONE" and Power off.

- 4 -
EXPLODED VIEW (CABINET & CHASSIS)
4
4C
4B 4A
3
3A
3B

- 5 -
PARTS LIST
CAUTION :Regular type resistors and capacitors are not listed. To know those values, refer to the schematic diagram.
Regular type resistors are less than 1/4 W carbon type and chip resistors.
Regular type capacitors are less than 50 V and less than 1000 µF type of Ceramic type and Electrical type.
PRODUCT SAFETY NOTICE
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING. COMPONENTS IDENTIFIED WITH THE IEC
SYMBOL !
!! IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATED COMPONENTS IN WHICH SAFETY AND
PERFORMANCE CAN BE OF SPECIAL SIGNIFICANCE. WHEN REPLACING A COMPONENT IDENTIFIED BY !
!! , USE ONLY THE
REPLACEMENT PARTS DESIGNATED, OR PARTS WITH THE SAME RATINGS OF RESISTANCE, WATTAGE OR VOLTAGE THAT ARE
DESIGNATED IN THE PARTS LIST IN THIS MANUAL. LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO
DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE
PRODUCT TO THE CUSTOMER.
PACKING & ACCESSORIES
REF.NO. PART NO. DESCRIPTION
645 067 9056 GIFT BOX
645 067 9544 INSTRUCTION MANUAL
645 067 9551 QUICK GUIDE
645 067 9728 POLYFOAM,BOTTOM RIGHT
645 067 9735 POLYFOAM,BOTTOM LEFT
645 067 9742 POLYFOAM,LEFT TOP FRONT
645 067 9759 POLYFOAM,LEFT TOP BACK
645 067 9766 POLYFOAM,RIGHT TOP BACK
645 067 9773 POLYFOAM,RIGHT TOP FRONT
645 065 7290 POLYBAG,AC LINE CORD
645 065 7290 POLYBAG,RCA CABLE
645 067 9780 POLYBAG,IB
645 067 9797 POLYBAG,MAIN UNIT
645 067 9803 SOFT BAG
!
!! 645 064 0612 AC LINE CORD
645 067 9469 REMOTE CONTROL,RB-SL40
645 064 0711 RCA CABLE
CABINET , CHASSIS and FIXING PARTS
REF.NO. PART NO. DESCRIPTION
1645 067 8998 BUTTON POWER
2645 067 9599 LED LENS
3645 067 9018 ASSY FRONT PANEL
3A 645 067 9575 FRONT PANEL
3B 645 067 9612 DISPLAY LENS
4645 067 9025 ASSY DVD DOOR
4A 645 067 9605 DOOR LENS
4B 645 064 0674 LOGO,SANYO
4C 645 067 9568 DVD DOOR
5645 067 9629 RING
8645 067 8981 BUTTON FUNCTION
9645 067 9582 BUTTON OPEN
10 645 067 9650 BUTTOM CABINET
13 645 067 9667 BACK PANEL
14 645 067 9681 TOP COVER
17 645 067 9711 SPACER,POWER PCB TO BOTTOM
18 645 067 9674 BRACKET
S1 645 064 0797 SCREW 3X6,TOP CAB TO BACK CAB
S2 645 060 6779 SCR 3X8,FRT PANEL TO CTRL PCB
S3 645 067 9698 SCREW 3X6,FRT PANEL BTM CAB
ELECTRICAL-PARTS
REF.NO. PART NO. DESCRIPTION
!
!! 645 067 9636 POWER TRANSFORMER
645 067 9384 5P CON CABLE AWG26UL,
DVD LOADER TO CN505
645 067 9353 24P FFC CABLE UL2069,
DVD PICK UP TO CN1
or 645 067 9360 24P FFC CABLE UL2079,
DVD PICK UPTO CN1
645 067 9339 6P FLAT CABLE UL2069,
DVD PICK UPTO CN506
or 645 067 9346 6P FLAT CABLE UL2079,
DVD PICK UPTO CN506
645 067 9001 AC LINE BUSHING,FOR AC CORD
YUV P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
12 614 330 3084 ASSY,PWB,YUV(Only Initial)
CN107 645 066 3758 4P J WIRE AWG28 UL25,
CN107 TO MAIN CN504
RCA02 645 064 0537 RCA JACK,RCA314C
ZD001 645 060 4904 ZENER DIODE 5.6V
ZD002 645 060 4904 ZENER DIODE 5.6V
ZD003 645 060 4904 ZENER DIODE 5.6V
REF.NO. PART NO. DESCRIPTION
MAIN P.W.BOARD ASSY(Rev. A)
* Rev.A , Rev.B and Rev.C by Main P.w.board assy is
common use.
REF.NO. PART NO. DESCRIPTION
15 614 330 1226 ASSY,PWB,MAIN(REV:A)(Only Initial)
CC097 403 135 4507 ELECT 1000U M 10V
CN001 645 064 0438 24P CONNECTOR
CN501 645 067 9230 11P CONNECTOR
CN504 645 063 2433 4P CONNECTOR
CN505 645 063 2440 5P CONNECTOR
CN506 645 064 0070 6P CONNECTOR
CN511 645 067 9230 11P CONNECTOR
D0001 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0002 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0003 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0004 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0005 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0006 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0007 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0008 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0009 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0010 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0011 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0012 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0013 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0015 645 067 9261 ZENER DIODE 4.2V
D0101 645 067 9285 ZENER DIODE 11V,MMSZ5241BT1
DD016 645 064 0056 DIODE CHIP 1N4148W,BAV16W
FB001 645 067 9223 INDUCTOR 1UH 10%
FB002 645 067 9223 INDUCTOR 1UH 10%
FB005 645 067 9223 INDUCTOR 1UH 10%
FB102 645 060 4812 CHOKE COIL 100UH
FB103 645 060 4812 CHOKE COIL 100UH
FB104 645 067 9223 INDUCTOR 1UH 10%
FB105 645 067 9223 INDUCTOR 1UH 10%
FB106 645 067 9223 INDUCTOR 1UH 10%
FB121 645 067 9223 INDUCTOR 1UH 10%
FB301 645 067 9223 INDUCTOR 1UH 10%
FB401 645 060 4812 CHOKE COIL 100UH
IC001 645 064 0087 IC IMP809SEUR-T,
MICRO CTL SUPPLY SUPER
IC002 645 067 9117 IC ES6628F,
VIBRATT0-II DVD PROCESSO

- 6 -
PARTS LIST
REF.NO. PART NO. DESCRIPTION
MAIN P.W.BOARD ASSY(Rev.B)
* Rev.A , Rev.B and Rev.C by Main P.w.board assy is
common use.
REF.NO. PART NO. DESCRIPTION
15 614 330 4555 ASSY,PWB,MAIN(REV:B)(Only Initial)
CC097 403 135 4507 ELECT 1000U M 10V
CN001 645 064 0438 24P CONNECTOR
CN501 645 067 9230 11P CONNECTOR
CN504 645 063 2433 4P CONNECTOR
CN505 645 063 2440 5P CONNECTOR
CN506 645 064 0070 6P CONNECTOR
CN511 645 067 9230 11P CONNECTOR
D0001 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0002 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0003 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0004 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0005 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0006 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0007 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0008 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0009 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0010 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0011 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0012 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0013 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0015 645 067 9261 ZENER DIODE 4.2V
D0101 645 067 9285 ZENER DIODE 11V,MMSZ5241BT1
DD016 645 064 0056 DIODE CHIP 1N4148W,BAV16W
FB001 645 067 9223 INDUCTOR 1UH 10%
FB002 645 067 9223 INDUCTOR 1UH 10%
FB005 645 067 9223 INDUCTOR 1UH 10%
FB102 645 060 4812 CHOKE COIL 100UH
FB103 645 060 4812 CHOKE COIL 100UH
FB104 645 067 9223 INDUCTOR 1UH 10%
FB105 645 067 9223 INDUCTOR 1UH 10%
FB106 645 067 9223 INDUCTOR 1UH 10%
FB121 645 067 9223 INDUCTOR 1UH 10%
FB301 645 067 9223 INDUCTOR 1UH 10%
FB401 645 060 4812 CHOKE COIL 100UH
IC001 645 064 0087 IC IMP809SEUR-T,
MICRO CTL SUPPLY SUPER
IC002 645 067 9117 IC ES6628F,
VIBRATT0-II DVD PROCESSO
IC003 645 067 9100 IC ES6603S,DVD SERVO AFE
IC004 645 064 0100 IC RC4558
IC005 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
IC103 645 067 9445 ASSY IC MBM29LV800BA-70TN,
IC+SOFTWARE(VER:031201A)
IC104 645 064 0155 IC AT24C02N-10SI-2.7,EEPROM
IC106 645 067 9131 IC SD41620HGT-6,
166MHZ 4MX16BITS SDRAM
or 645 067 9186 IC 4MX16Y3VTW
IC109 645 064 0131 IC WM8761ED,
24BIT 192KHZ STEREO ADC
IC110 645 067 9070 IC BA5954FP,
CD.CR-ROM DRIVER (4CH)
or 645 067 9087 IC D5954,CD.CR-ROM DRIVER (4CH)
IC111 645 067 9063 IC TL3472CDR,
SING-SUPPLY OPERATION
IC113 645 067 9094 IC BA6287FE2,MOTOR DRIVE
IC114 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
IC115 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
J0506 645 067 9476 RCA+DIN JACK AV-SW-,
VIDIEO OUT+S-VIDIED OUT
J0507 645 067 9483 RCA JACK RCA-413CD-,
COAXIAL+AUDIO OUT
L0001 645 067 9216 INDUCTOR 2.4UH 5%
L0002 645 067 9216 INDUCTOR 2.4UH 5%
L0003 645 067 9216 INDUCTOR 2.4UH 5%
L0004 645 067 9216 INDUCTOR 2.4UH 5%
L0005 645 067 9216 INDUCTOR 2.4UH 5%
L0006 645 067 9223 INDUCTOR 1UH 10%
L0007 645 067 9223 INDUCTOR 1UH 10%
L0008 645 060 4812 CHOKE COIL 100UH
L0009 645 067 9223 INDUCTOR 1UH 10%
L0010 645 060 4812 CHOKE COIL 100UH
L0011 645 067 9223 INDUCTOR 1UH 10%
Q0001 645 067 9247 TRANSISTOR 2SB1132QT,PNP
Q0002 645 067 9247 TRANSISTOR 2SB1132QT,PNP
Q0005 645 060 5468 TR 2SD882P,NPN
IC003 645 067 9100 IC ES6603S,DVD SERVO AFE
IC004 645 064 0100 IC RC4558
IC005 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
IC103 645 067 9445 ASSY IC MBM29LV800BA-70TN,
UNIT NO:N3 AA,IC+
SOFTWARE(VER:031201A)
IC104 645 064 0155 IC AT24C02N-10SI-2.7,EEPROM
IC106 645 067 9131 IC SD41620HGT-6,
166MHZ 4MX16BITS SDRAM
or 645 067 9186 IC 4MX16Y3VTW
IC109 645 064 0131 IC WM8761ED,
24BIT 192KHZ STEREO ADC
IC110 645 067 9070 IC BA5954FP,
CD.CR-ROM DRIVER (4CH)
or 645 067 9087 IC D5954,CD.CR-ROM DRIVER (4CH)
IC111 645 067 9063 IC TL3472CDR,
SING-SUPPLY OPERATION
IC113 645 067 9094 IC BA6287FE2,MOTOR DRIVE
IC114 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
IC115 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
J0506 645 067 9476 RCA+DIN JACK AV-SW-,
VIDIEO OUT+S-VIDIED OUT
J0507 645 067 9483 RCA JACK RCA-413CD-,
COAXIAL+AUDIO OUT
L0001 645 067 9216 INDUCTOR 2.4UH 5%
L0002 645 067 9216 INDUCTOR 2.4UH 5%
L0003 645 067 9216 INDUCTOR 2.4UH 5%
L0004 645 067 9216 INDUCTOR 2.4UH 5%
L0005 645 067 9216 INDUCTOR 2.4UH 5%
L0006 645 067 9223 INDUCTOR 1UH 10%
L0007 645 067 9223 INDUCTOR 1UH 10%
L0008 645 060 4812 CHOKE COIL 100UH
L0009 645 067 9223 INDUCTOR 1UH 10%
L0010 645 060 4812 CHOKE COIL 100UH
L0011 645 067 9223 INDUCTOR 1UH 10%
Q0001 645 067 9247 TRANSISTOR 2SB1132QT,PNP
Q0002 645 067 9247 TRANSISTOR 2SB1132QT,PNP
Q0005 645 060 5468 TR 2SD882P,NPN
Q0008 645 063 2457 TR 2SC1623,NPN
Q0009 645 063 2457 TR 2SC1623,NPN
Q0107 645 063 2488 TR 2SA733,PNP
Q0108 645 063 2488 TR 2SA733,PNP
Q0121 645 067 9209 TRANSISTOR MMS8050L,NPN
Q0507 645 063 2457 TR 2SC1623,NPN
QQ005 645 067 9193 TRANSISTOR 2SK3018,FET
QQ006 645 063 2457 TR 2SC1623,NPN
QQ007 645 067 9193 TRANSISTOR 2SK3018,FET
QQ008 645 063 2457 TR 2SC1623,NPN
R0055 645 067 9032 CHIP BEAD 60 OHM
RN001 645 067 9254 RESISTOR,RES ARRAY
RN002 645 067 9254 RESISTOR,RES ARRAY
RN003 645 067 9254 RESISTOR,RES ARRAY
RN004 645 067 9254 RESISTOR,RES ARRAY
RN005 645 067 9254 RESISTOR,RES ARRAY
RN006 645 064 0339 RESISTOR,RES ARRAY
RN007 645 064 0339 RESISTOR,RES ARRAY
Y0001 645 064 0698 CRYSTAL 27MHZ
REF.NO. PART NO. DESCRIPTION

- 7 -
Q0008 645 063 2457 TR 2SC1623,NPN
Q0009 645 063 2457 TR 2SC1623,NPN
Q0107 645 063 2488 TR 2SA733,PNP
Q0108 645 063 2488 TR 2SA733,PNP
Q0121 645 067 9209 TRANSISTOR MMS8050L,NPN
Q0507 645 063 2457 TR 2SC1623,NPN
QQ005 645 067 9193 TRANSISTOR 2SK3018,FET
QQ006 645 063 2457 TR 2SC1623,NPN
QQ007 645 067 9193 TRANSISTOR 2SK3018,FET
QQ008 645 063 2457 TR 2SC1623,NPN
R0055 645 067 9032 CHIP BEAD 60 OHM
RN001 645 067 9254 RESISTOR,RES ARRAY
RN002 645 067 9254 RESISTOR,RES ARRAY
RN003 645 067 9254 RESISTOR,RES ARRAY
RN004 645 067 9254 RESISTOR,RES ARRAY
RN005 645 067 9254 RESISTOR,RES ARRAY
RN006 645 064 0339 RESISTOR,RES ARRAY
RN007 645 064 0339 RESISTOR,RES ARRAY
Y0001 645 064 0698 CRYSTAL 27MHZ
POWER P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
16 614 330 3077 ASSY,PWB,POWER(Only Initial)
C0101 645 064 0988 CONDUCTOR SAFETY
C0102 645 067 9834 ELECT
C0107 645 064 0995 CONDUCTOR SAFETY
C0108 645 064 0995 CONDUCTOR SAFETY
C0109 645 064 0995 CONDUCTOR SAFETY
C0203 403 135 4903 ELECT 3300U M 10V
MAIN P.W.BOARD ASSY(Rev.C)
* Rev.A , Rev.B and Rev.C by Main P.w.board assy is
common use.
REF.NO. PART NO. DESCRIPTION
15 614 330 4562 ASSY,PWB,MAIN(REV:C)(Only Initial)
CC097 403 135 4507 ELECT 1000U M 10V
CN001 645 064 0438 24P CONNECTOR
CN501 645 067 9230 11P CONNECTOR
CN504 645 063 2433 4P CONNECTOR
CN505 645 063 2440 5P CONNECTOR
CN506 645 064 0070 6P CONNECTOR
CN511 645 067 9230 11P CONNECTOR
D0001 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0002 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0003 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0004 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0005 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0006 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0007 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0008 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0009 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0010 645 067 9278 ZENER DIODE 5.6V,MMSZ52532B
D0011 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0012 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0013 645 064 0056 DIODE CHIP 1N4148W,BAV16W
D0015 645 067 9261 ZENER DIODE 4.2V,4.2V 5% 0.5W
D0101 645 067 9285 ZENER DIODE 11V,MMSZ5241BT1
DD016 645 064 0056 DIODE CHIP 1N4148W,BAV16W
FB001 645 067 9223 INDUCTOR 1UH 10%
FB002 645 067 9223 INDUCTOR 1UH 10%
FB005 645 067 9223 INDUCTOR 1UH 10%
FB102 645 060 4812 CHOKE COIL 100UH
FB103 645 060 4812 CHOKE COIL 100UH
FB104 645 067 9223 INDUCTOR 1UH 10%
FB105 645 067 9223 INDUCTOR 1UH 10%
FB106 645 067 9223 INDUCTOR 1UH 10%
FB121 645 067 9223 INDUCTOR 1UH 10%
FB301 645 067 9223 INDUCTOR 1UH 10%
FB401 645 060 4812 CHOKE COIL 100UH
IC001 645 064 0087 IC IMP809SEUR-T,
MICRO CTL SUPPLY SUPER
IC002 645 067 9117 IC ES6628F,
VIBRATT0-II DVD PROCESSO
IC003 645 067 9100 IC ES6603S,DVD SERVO AFE
IC004 645 064 0100 IC RC4558
IC005 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
IC103 645 067 9445 ASSY IC MBM29LV800BA-70TN,
IC+SOFTWARE(VER:031201A)
or 645 067 9421 ASSY IC MBM29LV160BE-70TN,
IC+SOFTWARE(VER:031201A)
or 645 067 9438 ASSY IC MBM29LV160TE-70TN,
IC+SOFTWARE(VER:031201B)
or 645 067 9452 ASSY IC M29LV1600T-70,
IC+SOFTWARE(VER:031201B)
IC104 645 064 0155 IC AT24C02N-10SI-2.7,EEPROM
IC106 645 067 9131 IC SD41620HGT-6,
166MHZ 4MX16BITS SDRAM
or 645 067 9186 IC 4MX16Y3VTW
IC109 645 064 0131 IC WM8761ED,
24BIT 192KHZ STEREO ADC
IC110 645 067 9070 IC BA5954FP,
CD.CR-ROM DRIVER (4CH)
or 645 067 9087 IC D5954,CD.CR-ROM DRIVER (4CH)
IC111 645 067 9063 IC TL3472CDR,
SING-SUPPLY OPERATION
IC113 645 067 9094 IC BA6287FE2,MOTOR DRIVE
IC114 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
IC115 645 067 9124 IC B1117N-2.85,L.DROPOUT VOL REG
J0506 645 067 9476 RCA+DIN JACK AV-SW-,
VIDIEO OUT+S-VIDIED OUT
J0507 645 067 9483 RCA JACK RCA-413CD-,
COAXIAL+AUDIO OUT
L0001 645 067 9216 INDUCTOR 2.4UH 5%
L0002 645 067 9216 INDUCTOR 2.4UH 5%
L0003 645 067 9216 INDUCTOR 2.4UH 5%
L0004 645 067 9216 INDUCTOR 2.4UH 5%
L0005 645 067 9216 INDUCTOR 2.4UH 5%
L0006 645 067 9223 INDUCTOR 1UH 10%
L0007 645 067 9223 INDUCTOR 1UH 10%
L0008 645 060 4812 CHOKE COIL 100UH
L0009 645 067 9223 INDUCTOR 1UH 10%
L0010 645 060 4812 CHOKE COIL 100UH
L0011 645 067 9223 INDUCTOR 1UH 10%
Q0001 645 067 9247 TRANSISTOR 2SB1132QT,PNP
Q0002 645 067 9247 TRANSISTOR 2SB1132QT,PNP
Q0005 645 060 5468 TR 2SD882P,NPN
Q0008 645 063 2457 TR 2SC1623,NPN
Q0009 645 063 2457 TR 2SC1623,NPN
Q0107 645 063 2488 TR 2SA733,PNP
Q0108 645 063 2488 TR 2SA733,PNP
Q0121 645 067 9209 TRANSISTOR MMS8050L,NPN
Q0507 645 063 2457 TR 2SC1623,NPN
QQ005 645 067 9193 TRANSISTOR 2SK3018,FET
QQ006 645 063 2457 TR 2SC1623,NPN
QQ007 645 067 9193 TRANSISTOR 2SK3018,FET
QQ008 645 063 2457 TR 2SC1623,NPN
R0055 645 067 9032 CHIP BEAD 60 OHM
RN001 645 067 9254 RESISTOR,RES ARRAY
RN002 645 067 9254 RESISTOR,RES ARRAY
RN003 645 067 9254 RESISTOR,RES ARRAY
RN004 645 067 9254 RESISTOR,RES ARRAY
RN005 645 067 9254 RESISTOR,RES ARRAY
RN006 645 064 0339 RESISTOR,RES ARRAY
RN007 645 064 0339 RESISTOR,RES ARRAY
RR082 401 105 7909 MT-GLAZE 0.000 ZA 1/16W,
FOR IC RCI290800-000
Y0001 645 064 0698 CRYSTAL 27MHZ
REF.NO. PART NO. DESCRIPTION REF.NO. PART NO. DESCRIPTION
PARTS LIST

- 8 -
C0204 403 135 4507 ELECT 1000U M 10V
C0205 403 125 5507 ELECT 1000U M 16V
CN102 645 064 0315 4P CONNECTOR,CON102
CN201 645 067 9377 11P FLAT CABLE AWG26,
CON201 TO MAIN CN511
D0102 645 063 2228 DIODE 1N4007
D0103 645 063 2228 DIODE 1N4007
D0104 645 063 2228 DIODE 1N4007
D0105 645 063 9937 DIODE UF4007
D0107 645 063 9920 DIODE FR103
D0201 645 063 9920 DIODE FR103
D0202 645 064 0445 DIODE 1N5822
D0204 645 063 9944 RECITIFER 1N5819
D0205 645 063 9920 DIODE FR103
F0001 !
!! 645 064 0728 FUSE
IC101 645 064 0452 IC KA5M02659RN,POWRE SWITCH
IC102 645 067 9414 IC SFH615A-3,OPT SENSOR
IC201 645 067 9391 IC TL431 TO-92,VOLT. REGULATOR
L0202 645 064 0483 COIL 10UH
L0203 645 064 0483 COIL 10UH
L0204 645 064 0483 COIL 10UH
R0002 645 066 7725 RESISTOR 1 OHM 1/4W
T0101 645 064 0421 AC FILTER 25MH
645 064 0353 FUSE CLIP,FOR F1
CONTROL P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
19 614 330 3060 ASSY,PWB,CONTROL(Only Initial)
LD501 645 067 9292 LED,LED501
LD502 645 067 9308 LED,LED502
LD503 645 067 9315 LED,LED503
Q0501 645 060 4829 TR 2SC945P,NPN
Q0502 645 060 4829 TR 2SC945P,NPN
Q0503 645 060 4829 TR 2SC945P,NPN
Q57CE 401 105 7909 MT-GLAZE 0.000 ZA 1/16W,Q507 C-E
SN501 645 067 9407 REMOTE RECEIVER,IRT SENSOR
T507A 645 060 4874 SW TACT,TA507A OPEN. CLOSE
T508A 645 060 4874 SW TACT,TA508A POWER
T509A 645 060 4874 SW TACT,TA509A PLAY
TA501 645 060 4874 SW TACT,STOP
TA502 645 060 4874 SW TACT,SKIP UP
TA505 645 060 4874 SW TACT,SKIP DOWM
645 067 9841 EVA SPONGE
645 067 9537 LED HOLDER,FOR LED502 LED503
REF.NO. PART NO. DESCRIPTION
PARTS LIST

- 9 -
PARTS LIST
EXPLODED VIEW (DVD MECHANISM)
DM05
DM06
DM07
DM08
DM09
DM10
DM11
DM22
DM01 DM16
DM15
DM17
DM12
DM13
DM14
DM02
DM17
DM15
DM16 DM15
DM16
DM17
DM03
DM04
DM23
DVD DECK MECHANISM CHASSIS
REF.NO. PART NO. DESCRIPTION
11 645 066 3802 MECHANISM ASSY,
DVD LOADER,WVD100008-0002
DM01 614 325 0074 DISC,CHUCK DISC
DM02 645 051 4920 MAGNET(CHUCK),MAGNET CHUCK
or 645 054 0448 MAGNET(CHUCK),MAGNET CHUCK
DM03 614 325 4591 SLIDE,BASE UP/DOWN
DM04 411 184 1408 SCR PAN PCS+SW 1.7X4,
LOADING MOTOR FIX
DM05 614 325 6021 BELT,SQUARE,LOADING
DM06 412 065 3603 SPECIAL SCREW 2.0X8.0,PULLEY FIX
DM07 614 325 4584 PULLEY,LOADING RETARD PULLY
DM08 614 325 4492 GEAR,LOADING GEAR
DM09 614 325 4478 CHASSIS,LOADING CHASSIS
DM10 614 325 4614 TRAY,TRAY
DM11 645 057 4603 ASSY,MOTOR,LOADING,
LOADING MOTOR
or 645 057 4467 ASSY,MOTOR,LOADING,
SLED MOTOR
DM12 614 325 0081 HOLDER,CHUCK HOLDER
DM14 411 021 3008 SCR S-TPG BIN 2.6X8,
PWB MECHA SW FIX
DM15 411 185 0004 SCR S-TPG BIN 2X10,BASE FIX
DM16 411 185 0103 WASHER Z 2.1X9.5X0.5,BASE FIX
DM17 614 325 5369 SPACER,MECHA,
BASE MECHA FLOAT
DM22 614 325 4553 MOUNTING,BASE MECHA MOUNTING
DM23 614 327 5909 ASSY,MECHA,
KIT800BASE MAB,BASE MECHA
MECHA SW P.W.BOARD ASSY
REF.NO. PART NO. DESCRIPTION
DM13 614 326 1605 ASSY,PWB,MECHA SW,
MOTOR&SW PWB(Only initial)
CN001 614 310 2618 PLUG,5P,MOTOR&SW PWB CONNE
or 645 006 0922 PLUG,5P,MOTOR&SW PWB CONNE
S0001 645 057 1381 SWITCH,LEVER,MECHA SW

- 10 -
IC101 KA5M02659RN (Power Switch)
IC BLOCK DIAGRAM & DESCRIPTION
IC001 IMP809SEUR-T (3 pin Power supply Supervisor)
IC005 B1117N-2.85 (Regulator)
IC004 RC4558 (Ope. Amp.)
IMP809
(IMP810)
GND
(RESET) RESET
VCC
3
1
2
1
2
3
4
8
7
6
5
1OUT
1IN-
1IN+
VCC-
VCC+
2OUT
2IN-
2IN+
2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
ADJ
OUT
OUT N.C.
IN
NC 2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
IN
IN
2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
ADJ
OUT
OUT N.C.
IN
NC 2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
IN
IN
Front
TO-252
ADJ/GN V
IN
V
OUT
123
IN
OUTAdj/GND
TabV
OUT
Fr ont View
SOT - 223
IN
OUTAdj/GND
TabV
OUT
Fr ont View
SOT - 223
V
POWER
OUTPUT
1
2
3
4
5
V
CONTROL
ADJ/GND.
SENSE
TO-263-5 Package
V
POWER
V
POWER
OUTPUT
1
2
3
4
5
V
CONTROL
V
CONTROL
ADJ/GND.
SENSE
TO-263-5 Package
Ta b V
OUT
SOT -223
V
OUT
Front View
SOT -223-5
4
15
23
#1 Se nse
#2 Adj/GND
#3 OUT
#4 C ont rol
#5 VIN
V
OUT
SOT -223
V
OUT
Front View
SOT -223-5
4
15
23
#2 Adj/GND
#3 O
#5 VIN
uA
V
CC
32V
5
A
5V
2.5R
1R
1mA
0.1V
+
OVER VOLTAGE S/D
+
7.5V
27V
Thermal S/D
S
RQ
Power on reset
+
L.E.B
S
RQ
OSC
5V
Vref
Internal
bias
Good
logic
SFET
DRAIN
GND
FB
Soft Start
9V
IC113 BA6287FE2 (Moter Driver) IC114,115 B1117N-2.85 (Regulator)
2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
ADJ
OUT
OUT N.C.
IN
NC 2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
IN
IN
2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
ADJ
OUT
OUT N.C.
IN
NC 2
1
3
4
8
7
6
5
8-Pin Sur face M ount
Top View
IN
IN

- 11 -
IC BLOCK DIAGRAM & DESCRIPTION
IC103 MBM29LV800BA ( µcom)
IC102 SFH615A-3 (Opt. Sensor)
1
2
4
3
Anode Collector
Cathode Emitter
IC104 AT24C02N-10SI-2.7 (EEPROM)
1
5
6
7
2
3
4
8
Vcc
GND
WP
SCL
SDA
A
2
A 1
A 0
START
STOP
LOGIC
LOAD
DEVICE
ADDRESS
COMPARATOR
COMP
LOAD INC
EN
SERIAL
CONTROL
LOGIC
DATA W O R D
ADDR/COUNTER
Y DEC
H,V. PUMP/TIMING
E PROM
2
SERIAL MUX
DATA RECOVERY
X DEC
D OUT /ACK
LOGIC
D IN
D OUT
R/W
IC201 TL431 (Regulator)
(Top view)
SO8
(Top view)
Cathode Anode Reference
123
8765
1234
1- Cathode
2- Anode
3- Anode.
4- N.C.
5- N.C.
6- Anode
7- Anode.
8- Reference
2-

- 12 -
IC BLOCK DIAGRAM & DESCRIPTION
IC106 4MX16Y3VTW (SDRAM)
IC110 BA5954 (VD-ROM Driver)

- 13 -
IC BLOCK DIAGRAM & DESCRIPTION
IC109 WM8761ED (Stereo ADC)
DAC
DAC
87
5
VDD
14
MCLK
GND
CAP
9VOUTL
2
DIN
1
LRCIN
3
BCKIN
13 10 12
6VOUTR
LOW
PASS
FILTER
LOW
PASS
FILTER
SIGMA
DELTA
MODULATOR
SIGMA
DELTA
MODULATOR
DIGITAL FILTERS
MUTE
MUTE
AUDIO
INTERFACE
CONTROL
INTERFACE
FORMAT MUTE DEEMPH
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
NAME
LRCIN
DIN
BCKIN
NC
CAP
VOUTR
GND
VDD
VOUTL
MUTE
NC
DEEMPH
FORMAT
MCLK
TYPE
Digital input
Digital input
Digital input
No connect
Analogue output
Analogue output
Supply
Supply
Analogue outpur
Digital input
No connect
Digital input
Digital input
Digital input
Note:
1. Digital input pins have Schmitt trigger input buffers.
DESCRIPTION
Sample rate clock input
Serial audio data input
Bit clock input
No internal connection
Analogue internal reference
Right channel DAC output
Negative supply
Positive supply
Left channel DAC output
Soft mute control, Internal pull down
High Impedance = Automute
High = Mute ON
Low = Mute OFF
No internal connection
De-emphasis select, Internal pull up
High = de-emphasis ON
Low = de-emphasis OFF
Data input format select, Internal pull up
Low = 24-bit right justified or DSP ’late’
High = 16-24-bit I S or DSP ’early’
Master clock input
2

- 14 -
BLOCK DIAGRAM
WM8761
2CH DAC
VIDEO FILTER
PANNEL BOARD
LFP
LOADER
LED DISPLAY
RF IC
ES6603
MOTOR DRIVER
BA5954
SDRAM
SD41620HGT-6
FLASH
MBM29LV800BA-7
R
4558 X 1
COAXIAL/OPTICAL
L
R
L
LINE OUT
S-VI DEO
PR
CVBS
Y
PB
VDAC
YDAC
FDAC
CDAC
Y
C
SPDIF OUT
SWITCH POWER
BOARD
ESS
ES6628F
EEPROM
24C02
UDAC
MUTE
MUTE

- 15 -
This is a basic schematic diagram.
SCHEMATIC DIAGRAM (POWER)

- 17 -- 16 -
DB6
VCC 33V
MA 8
MA1
DB12
MA
2
MA 6
MA 5
MA 1 1
MA4
TR1
DB3
CS 0#
SBAD
MA0
FOCUS
DB14
DB10
DB5
MA7
DIN
DS CK
MA10
MA9
MA8
MIRRA
FE
DQM
DB15
DB13
DB9
MA 6
MA 2
CAS#
MA10
RAS1#
DB11
TRACK
RAS0#
DWE#
MA5
DOE#
DB8
MA 3
DB4
RAS2#
MA 4
DB
2
MA9
TE
CE
MA 7
MA 3
DB7
MA11
DIP
MIRRA
LA13
DSCK
WR LL#
LA4
DB15
DEFCT
LC S3#
G
N
D
SLDC
TR1
TBCK
LA0
LA3
LA6
LA10
LA11
LA17
DB 1 DB 3
SPDIF
DQM
TSD0 COMP
LD 1
LD 0
LC S2#
LA21
DB10 DB 6
TR2
UDA C1
VS33_PL2
LOE#
LA7
DB8
TR2
SVREF15
LA15
DB 12 DB 5
LA5
LA12
DB 11
TSD1 TWS GNDV RSET VREF
VD33_PL1
LD 3
TESTAD
LA14
DB14
D
CL
K
YDAC1
SPDON
LA2
LA18
LA19
DB1 3 DB 4
SVREF09
SVREF21
LD 5
LA8
DB 2
SVREF15
CDA C1
LA1
DB 9
X
O
U
MCLK VCC33V
LA9
LA16
DB 7
TSD2
LD 6
LD 2
XIN
SPINDLE
TW S
TBCK
RWS
RBCK
LD 7
LA20
SLEGN
RESET#
RESET#
LD 4
FDAC 1
VDAC 1
LA16
LA11
LA5
LD 1
LA4
LA1
LD 0
LA9
LA3
LA2
LD 7
LA14
LA8
LO E#
LD 6
LA17
LA18
LD3
LA13
WRLL#
LD 5
LA19
LC S3#
LA7
LA0
LD 4
LA12
LA6
LD 2
LA15
LA10
RESET #
KS1
KS2
LED1
DB 0
CS0 # CA S#
RAS 1#
RAS0#
DOE#
RA S2# DWE#
SCSJ
SCLK
SDATA
C19 0.1U
1 8 2 7 3 6 4 5
RN5 10x4
1 8 2 7 3 6 4 5
RN4 10x4
S0
1
S1
2
S2
3
GND
4SDA 5
SCL 6
WC 7
VCC 8
IC104
AT24C02N
VCC 1
VSSQ 6
DQ2
5
DQ3 7
VCCQ 3
DQ4 8
DQ5 10
VSSQ 12
DQ6 11
DQ7 13
VCCQ 9
DQML
15
WE
16
CAS
17
RAS
18
CS
19
A11
35 A10
22
A2
25
A3
26
VCC 14
VSS 28
A4
29
A5
30
A6
31
A7
32
A8
33
A9
34
NC
36
CKE
37
CLK
38
DQMH
39
NC
40
VCCQ 43
DQ8 42
DQ9 44
VSSQ 46
DQ10 45
DQ11 47
VCCQ 49
DQ12 48
DQ13 50
VSSQ 52
DQ14 51
DQ15 53
VSS 41
BA0
20
BA1
21
VCC 27
VSS 54
IC106
4Mx16 SDRAM (9ns)
R17 0
R31 0 OHM
R18
100K
R40 1K
R30 0 OHM
RST 1 VCC
3
G
2
IC1
IMB809SEUR-T
VD33
1
XIN
2
XOUT
3
DCLK
4
DMA0
5
DMA1
6
DMA2
7
DMA3
8
VS33
9
VD33
10
DMA4
11
DMA5
12
DMA6
13
DMA7
14
DMA8
15
DMA9
16
DMA10
17
VS33
18
VD33
19
DMA11
20
DCAS
21
DCS0
22
DCS1
23
DRAS0
24
DBANK0/ DRAS1
25
VSS
26
VDD
27
DBANK1/ DRAS2
28
DCKE/DOE/TDMTSC
29
DWE
30
DB0
31
DB1
32
DB2
33
VS33
34
VD33
35
DB3
36
DB4
37
DB5
38
DB6
39
DB7
40
DB15
41
DB14
42
VS33
43
VD33
44
DB13
45
DB12
46
DB11
47
DB10
48
DB9
49
DB8
50
DSCK
51
VS33
52
VD33 53
DQM 54
LA21 55
LA20 56
LA19 57
LA18 58
LA17 59
LA16 60
VS33 61
VD33 62
LA15 63
LA14 64
LA13 65
LA12 66
LA11 67
LA10 68
LA9 69
VSS 70
VDD 71
LA8 72
LA7 73
LA6 74
LA5 75
LA4 76
LA3 77
VS33 78
VD33 79
LA2 80
LA1 81
LA0 82
LCS0 83
LCS1 84
LCS2 85
VSS 86
VDD 87
LCS3 88
LWRLL 89
LOE 90
LD0 91
LD1 92
LD2 93
LD3 94
VS33 95
VD33 96
LD4 97
LD5 98
LD6 99
LD7 100
RSD/TDMDR 101
RBCK/TDMCLK 102
RWS/TDMFS 103
VD33_PLL 104
VS33_PL 105
YUV1/VREF 106
YUV3/COMP 107
YUV4/RSET 108
YUV7/FDAC 109
YUV6/VDAC 110
VD33_DA 111
VS33_DA 112
YUV5/YDAC 113 YUV2/CDAC 114 YUV0/UDAC 115
TWS/SEL_PLL2 116
TSD0/SEL_PLL0 117 TSD1/SEL_PLL1 118
VS33 119
TSD2 120 TSD3 121
MCLK 122
TBCK 123
SPDIF/SEL_PLL3 124
SPDIFIN 125
VD33 126
VS33 127
XSWBLCLK 128
XSWBL 129
XSLG 130
XSIP2 131 XSIP1 132
XSFLAG[0] 133 XSFLAG[1] 134 XSFLAG[2] 135 XSFLAG[3] 136
VSS 137
VDD 138
XSTEXI 139
XSTESTAD 140
XSSBAD 141
XSFEI 142
AVSS_AD 143
XSCEI 144
XSTEI 145
XSRFRP 146
AVDD3_AD 147
XSVREF[21] 148 XSVREF[09] 149 XSVREF[15] 150
XSIREF 151
AVDD3_DS 152
XSIPIN 153
XSRFIN 154
XSRFIP 155
XSDSSLV 156
AVSS_DS
AVSS_PL
XSPDOFTR1
XSFDO
XSFTROPI
AVDD3_PL
XSPLLFTR1
XSPLLFTR2
XSVREF0
XSAWRC
AVSS_DA
XSRFRPCTR
XSTRAY
AVDD3_DA
XSSPINDLE
XSFOCUS
XSSLEGP
XSSLEGN
XSTRACK
XSTESTDA
XSFGIN
XSPHOI
SXCSJ
XSDATA
XSCLK
XSDFCT
XSLDC
XSSPDON
VD33
VS33
XGPIO[9]
XGPIO[8]
XGPIO[7]
XGPIO[6]
XGPIO[5]
XGPIO[4]
EAUX43
EAUX42
EAUX41
EAUX40
VSS
VDD
AUX0
AUX1
AUX2/ HSYNC
AUX3/ VSYNC
AUX4
AUX5
AUX6
AUX7
RESET
VS33
IC2
ES6628F
R48 33R
R49 33R
8 7 6 5
R
N6 33x4
1 8 2 7 3 6 4 5
RN3 10x4
C14
0.1uF
R504.7K
FB2
FERB
1 8 2 7 3 6 4 5
RN1 10x4
1 8 2 7 3 6 4 5
RN2 10x4
L2 2.4UH
C9
470PF
R16
75 OHM
C11
470PF
R32 33K
C32
560pF
C127
0.1UF
C12
1U
L3 2.4UH
C3
1000pF
C44
33pF
C13
4700pF
C21
0.1uF
C17
100PF
68K R20
75 OHM
R15 10K
C33
0.1uF
C16
150pF
C36
0.1U
C26
OPEN
C37
0.015UF
R38 1K
C41
560P
C10 4.7U
2 1
D2
MMBZ5232ZB
C42
33pF
2 1
D4
MMBZ5232ZB
2 1
D6
MMBZ5232ZB
2 1
D8
MMBZ5232ZB
C31
0.1uF
2 1
D10
MMBZ5232ZB
L4 2.4UH
C28
OPEN
2 1
D3
MMBZ5232ZB
2 1
D5
MMBZ5232ZB
C72
470pF
R14 3.3K
2 1
D7
MMBZ5232ZB
R24
75 OHM
R27 1.2K
2 1
D1
MMBZ5232ZB
CC25
470pF
R25 OPEN
C8
4700pF
C20
0.1uF
20K
C1
1000pF
R5 3.3K
L5 2.4UH
R7 3.3K
C39
560P
C23
6800pF
C38
1U
R28 10K
R29 5.1K
C7
0.1uF
C27
470PF
R23 0 OHM
C40
0.015UF
C2
1000P
R26
75 OHM
R13 3.3K
C29
470PF
C35
0.1uF
C34
47P
C4
1000P
C30
0.047U
A15
1
A14
2
A13
3
A12
4
A11
5
A10
6
A9
7
A8
8
NC
9
NC
10
WE#
11
RESET#
12
NC
13
NC
14
RY/BY#
15
A18
16
A17
17
A7
18
A6
19
A5
20
A4
21
A3
22
A2
23
A1
24
A16 48
BYTE# 47
GND 46
DQ15/A- 1 45
DQ7 44
DQ14 43
DQ6 42
DQ13 41
DQ5 40
DQ12 39
DQ4 38
VCC 37
DQ11 36
DQ3 35
DQ10 34
DQ2 33
DQ9 32
DQ1 31
DQ8 30
DQ0 29
OE# 28
GND 27
CE# 26
A0 25
IC103
MBM29LV800BA-7
C15
1U
C22
0.1uF
C43
33pF
R6 5
33
R37 1K
R11
4.7K
R8
4.7K
R9
4.7K
R64
0(OPEN)
R10
4.7K
R63
1
0
0
R12
4.7K
L1
2.4UH
C5
470pF
C6
470pF
R1
OPEN
R35 4.
7k
R6
75 OHM
R3
OPEN
R2
OPEN
FB1
FERB
R4
OPEN
Y1
27M
C46
27PF
C47
1000PF(OPEN)
C128
0.1UF
R45 33R
R21 390
R47 33R
R39 1K
2 1
D9
MMBZ5232ZB
FB3
3.3UH(OPEN)
C18 0.1U
C45
27PF
18
27
36
45
RN7 33x4
RF33V
VCCV
VCCV
VCCV VCC
VCC20
VCC33V
RFGND
RFGND
VCC
RFGND
VCC20
VCC
RF33V
VCC33
VCC33
VCC33
VCCV
VCCV
VCC33
VCC33
VCC33VCC33VCC33 VCC33
TBCK
MCLK
TSD0
TWS
SD41620HGT-6
SERIALEEPROM
res e
rv e
d5
0
4. 25
114.75
121.5
by pass
1
4.25
0
PLL0
108
01
162
1
1
1
NA
0
135
S-CHIP
0
NA
3.75
PLL2
1
Frequenc y
0
4
148.5
4
1
121.5
0
101.25
reserved
127
by pass
0
6
DEFAULT
PLL1
5.5
DEFAULT
1
4. 75
4.5
0
1
MUL
TI
0
S-CHIP
114. 75
1
1
128. 25
108
3. 5
4.5
NA
94. 5
0
0
PLL3
0
CLK S OURCE
1
CRSTAL OSC
DCLK IN
PU
T
Vibr at t o -II
Vibr at t o-IIVibr at t o-II
Vibr at t o -II
YG
B
C
CVBS CVBS
YDAC
B
FDA C
U
S-VI DEO + RGB
Y
CVBS
CDAC
U
VD AC
C
Y
CVBS+ S-VI DEO
or CVBS+ YU V
!
CVBS
CVBS+ R GB
VIDEO OU TPUT TABLE
V
G
CVBS
RR
CVBS+
YU V
V
UDAC
CD_DVD_CT
LCS1#
R46 33R
RF50V
CDLDO
DVDLDO
SLED -
SLED
+
LOAD +
/
D
C
M
O
+
PUH-C
PUH-D
PUH-F
PUH-A
TRACK+
PUH-B
TRACK-
PUH-E
FOCUS+
FOCUS-
DCLOAD+
DCLOAD-
LOAD-/DCMO-
LOAD+/DCMO+
RFGND
RFGND
RFGND
CDLDO
CDLD
DVDMD1
CE
RF50V
DVDLD
FE
RF50V
RF50V
PUH-B
PUH-
C
TEPUH - D
PVC
SCSJ
SVREF15
MEVO
SCLK
RF50V
PUH-A
SDATA
TR
A
C
K
+
FOCUS- FOCUS+
SLED+
LOAD-/DCMO-
TRACK-
SLED-
TR
A
C
K
-
LOAD+/DCMO+
MVCC
2
13
Q2
2SB1132
C072
0.1U
C53
470P
C52
0.1uF
R91A 18O HM
C65 0.047U
C68 100P
C56 0.01U
R68 12K(1%)
C700.1uF
DVDFRP
1
DVDRFN
2
A2
3
B2
4
C2
5
D2
6
CP
7
CN
8
D
9
C
10
B
11
A
12
CD_D
13
CD_C
14
CD_B
15
CD_A
16
CD_F
17
CD_E
18
VPB
19
VC
20
DVDLD
21
CDLD
22
DVDPD
23
CDPD
24
VNB
25
LDON
26
MIRR
27
MP
28
MB
29
MLPF
30
MIN
31
MEVO
32
RFDC 64
RFSIN 63
ATOP 62
ATON 61
AIN 60
AIP 59
VPA 58
RFAC 57
BYP 56
DIN 55
DIP 54
FNP 53
FNN 52
VNA 51 MEV 50
RX 49
SDEN 48
SDATA 47
SCLK 46
V33 45
LCP 44
LCN 43
MNTR 42
CE 41
FE 40
TE 39
PI 38
V25 37
V125 36
TPH 35
DFT 34
LINK 33
IC3
ES6603
L7
C82
100U/ 16V
C50
0.1uF
C51
470P
L6
FB (0805)
C55 0.1uF
C81
100U / 16V
C62 680P
C78 160P
C64 680P
C61 680P
C79 33000P
R92A 18O HM
C67 680P
C80 0.01U
C83
1000P
C77 1000P
2
1 3
Q1
2SB1132
R76 12K
R69
1K
R71 33K R72
10K
R881(0805)
R901(0805)
R871(0805)
C66 100P
R891(0805)
VINFC
1
CFCERR1
2
CFCERR2
3
VINSL+
4
VINSL-
5
VOSL
6
VNFFC
7
VCC
8
PVCC1
9
PGND
10
VOSL-
11
VOSL+
12
VOFC-
13
14
STBY 28
BIAS 27
VINTK 26
CTKERR1 25
CTKERR2 24
VINLD 23
PREGND 22
PVCC2 21
VNFTK 20
PGND 19
VOLD- 18
VOLD+ 17
VOTK- 16
15
29 30
IC110
D5954FP
R77 47K
R74 33K
C69 100P
TP1
RFO
R73 47K
C48 0.1uF
C49 0.1uF
R99
1.5K
R100
22K
R97
4.7K
R94
1.5K R96
22K
R98
10K
+
-
3
2
1
84
IC111A
TL3472
R95 1M
R93
10K
11
22
33
44
55
CN505
2.0MM
C84
0.1uF
1
D11
IN4148
1
D12 IN4148
C58 0.1uF
1
D13
IN4148
C54
820PF
C59 0.1U
C57 4700P
C76
0.22U TP2
DEFCT
RF33V
RF50V
RF50V
MVCC
RF50V
MVCC
RFGND
MGND
RFGND
RFGND
MGND
MGND
RFGND
MGND
MGND
MGND
MGND
TRAYCONNECTOR
LD-GND 24
DVD-LD 23
NC 22
CD-LD 19
HFM-VCC 21
MPD 20
DVD-VR 18
CD-VR 17
E15
VCC 14
VC(Vref) 13
GND 12
F11
B10
A9
RF 8
CD/DVD SW 7
D6
C5
T- 4
T+ 3
F+ 2
F- 1
NC 16
CN1
SANYO-DV34
DVDRF
CD-DVD
PVC
VR-CD
VR-DVD
DVDLDO
CC76
0.1uF
CC62
0.1uF
TC4
100uF/16V
RF50V
RFGND
DVDMD1
1
2
6
CN506
MGND
RR80
4.7K
CC82
103
MGND
RR52
33
L11
INDUCTOR1
CC71
0.1uF
C71
47uF
MGND
MVCC
CC078
100uF/10V
MGND
M9V
RR55 3.3K
RR56
1K
CC73 4700P
CD_DV D_CT
OUT1 1
VM 2
VCC 3
FIN 4 RIN
5
VREF
6
OUT2
7
GND
8
IC113
BA6287FROHM
2
1 3
QQ6
2SC1623
CC80
0.1uF
RR40
18K
RR37
10K
2
1 3
QQ8
2SC1623
RR36
10K
RF50V
RF50V
RFGND
RFGND
RFGND
RFGND
MVCC
MVCC
MGND
MGND
MVCC
RFGND
RFGND
RF50V
RF50VRFGND
RFGND
RR39
100K
FOCUS-
FOCUS
RFGND
SVREF15 SLEGN
TRACK
SPINDLE
SLDC
DIP
DIN
DEFCT
RF50V
RF50V
DVDRF
RESET#
SPDON
HOMESW
HOMESW
INSW
INSW
OUTSW
OUTSW
CLOSE
CLOSE
OPEN
OPEN
MOCTL
MOCTL
AOUTR
LOUT
RO UT
1
R131 22K
R124
100K
R110
100K
2
1 3
Q9
2SC1623
C155
100UF
R126
10K
R128
10K
C153
0.1UF
C154
150pF
C152
560PF
1
R116
100K
1
R119
11K
C148
0.001uF
2
1 3
Q8
2SC1623
V+
V-
3
2
1
84
IC4A
RC4558
C147
150PF
1R121 22K
C156
0.001uF
C140
560PF
1R129 11K
1R112
1K
1
R127
100K
V+
V-
5
6
7
84
IC4B
RC4558
1
R130 3.3K
1
R120 3.3K
1
R125
1K
+9V
VCCM
LOUT
ROUT
COAXIAL_OUT
VIDEO 1
2
3
4
5
6
J507
RCACONN 6
COAXIAL_OU T
1
R135
100 OHM
1R132
10K
1
R134
220 OHM
VCC
SPDIF
1
1
2
2
3
3
4
4
55
6
6
J506
QUIET
2
13
Q107 2SA733
1
DD16
IN4148
1R52
4.7K
1
C149
100uF/16V
+12V
KS2
K1
K2
K3
+5V
GNDV
IR
LED
3
R53
220K
R104
10K
1
CC11
220uF/16V
2
13
Q108
2SA733
1
R54
22K
1R122
1K
1R58
1K
MGND
RFGND
POWER OFF
+9V
MGND
GNDA
GNDV
+S5V
GNDV
RFGND
1
2
3
4
5
6
7
8
9
10
11
CN511
VCC
C134
0.1uF
1 2
L9
1 UH
VD33D
RF33V
RFGND
2
13
Q5
2SD882P
2 1
D15
4.2V
R103
150
C96
0.1uF
VCC33V
R102
390
R105
270
CC97
1000UF/10V
C99
0.1uF(OPEN)
IN
3OUT 2
ADJ
1
IC5
BN1117 N
VCC VCC33 VCC20
C123
0.1uF
C124
0.1uF
C122
0.1uF
C121
0.1uF
C120
0.1uF
C135
470U/10V
1 2
L10
FB (0805)
C136
0.1uF
VCC
MVCC
MGND
C159
0.1uF
C116
0.1uF
C103
0.1uF
C101
0.1uF
C110
0.1uF
C113
0.1uF
C117
0.1uF
C106
0.1uF
C108
0.1uF
C107
0.1uF
C92
0.1uF
C114
0.1uF
C118
0.1uF
C87
0.1uF
C112
0.1uF
C104
0.1uF
C89
0.1uF
C102
0.1uF
C90
0.1uF
C88
0.1uF
C109
0.1UF
C105
0.1uF
C100
0.1uF
C115
0.1uF
VCC20
VCC33
VCC33
VCC
ES66x8
SDRAM
24C01
1
R145
100 OHM
12 L8
FB (0805)
C130
1U
RF50V
RFGND
C162
open
C161
100pF
C163
100pF
CC10
100pF
CC52
470UF
C202
0.1uF CC55
0.1uF
CC96
0.1uF
CC54
10UF
CC53
0.1uF
C85
470UF/10V
C97
104
C204
0.1uF
C86
100UF/16V
FDAC
VDAC
YDAC
CDAC
UDAC
CC94
0.1uF
1 2
FB102
FB (0805)
1 2
FB301
1 UH
1 2
FB104
FB (0805)
1 2
FB105
FB (0805)
1 2
FB106
1 UH
TESTAD
CC1
0.1uF
CC2
33pF
CC3
33pF
CC4
33pF
CC5
33pF
CC6
33pF
CC7
33pF
CC8
33pF
CC9
33pF
LED2
LED3
C174
33pF
C176
33pF
C175
33pF
12
FB05 1UH
VCC +5V
1
C119
100uF/16V
1
C11
10u
F
2
13
Q507
2SC1623
QQ7
2SK3018
QQ5
2SK3018
MCLK
WOLFSON 2-CHANNEL AUDIODAC
C167
0.1uF
+
C160
100uF/16V
R445
NC
R444
4.7K
+
C168
100uF/16V
R443
10K
C169
0.1uF
FB401
R446
NC
LRCK
1
DIN
2
BCLK
3
NC
4
CAP
5
VOUTR
6
GND
7VDD 8
VOUTL 9
MUTE 10
NC 11
DEEMPH 12
FORMAT 13
MCLK 14
IC109
WM8761
VCC
MCLK
FB103
FERB
M9V
C24
0.1uF
R51 4.7K
R44
OPEN
+5V
C145
33pF
TWS
TSD0
TBCK
C73
22PF
SOUCER
SOUCER
+
C181
10UF
+
C182
10UF
C507
47pF
C506
47pF
C505
47pF
+
C504
10UF
R146 0
R147 0
R148 5.1K
R149 6.8K
R150 6.8K
R151 6.8K
R152 6.8K
C177
0.015UF
C178
1UF
R154 0
R155 OPEN
OPEN
R153 OPEN
MVCC
R156
4.7K
R159
4.7K
MVCC
RR2 0
RR3 0
RR4 0
RR6 0
RR7 0
RR8 0
RR1 OPEN
RR5 OPEN
RFO
C
O
C
O
TP25
LINK
R157 0
R107 4.7k
R106 4.7k
VCC
R158 2.2OHM 1/2W
C125 22pF
C126
22PF
C183
22pF
C184
22pF
C60 0.1uF
R201
412 (1%)
R202
750 (1%)
C201
0.1uF
R203
412 (1%)
R204
750 (1%)
C203
0.1uF
+12V
+
C185
470uF/10V
C186
0.1uF
1
2
3
4
CN504
1
2
6
7
8
9
10
11
CN501
HEADER 11
C137
0.1uF
+12V
R123
1K
2 1
D101
11V
2
13
Q121
8050
FB121
+
C187
100uF/16V
C188
0.1uF
+
C138
10uF/16V
+
C151
10uF/16V
+
C139
100uF/16V
+C91
10uF/16V
+C93
10uF/16V
+C94
100uF/16V
+C98
100uF/16V
+
C133
100uF/16V
+
C95
100uF/16V
+C131
220uF/10V
+C25
100uF/16V
+ C129
100uF/16V
IN
3OUT 2
ADJ
1
IC114
RT9164 CG
IN
3OUT 2
ADJ
1
IC115
RT9164C G
C157
0.1uF
RFGND
C158
0.1uF
RFGND
18 OHMR91B
18 OHMR92B
C205 0.1 uF
R55
60 OHM100MHZ
R78
1K 1/4W
RR81
0 OHM
LA20
Option
RR82
0 OHM
LA20
Option
C212
CAP
Option
WRLL#
MBM29LV160TE-7
C192
0.1uF
MBM29LV160BE-7
M29LV1600T-70
0K
K
1
F
/
FF
16
V
RF
G
15
7
1
5
8
1
5
9
160
161
162
163
164
165
166
16
7
168
169
1
7
0
1
7
1
1
7
2
1
7
3
1
7
4
1
7
5
1
7
6
1
77
1
7
8
1
7
9
180
181
182
183
184
185
186
18
7
188
189
190
191
192
193
194
195
196
19
7
198
199
200
201
202
203
204
205
206
20
7
208
R1
9
R2
2
2
2
C1
7
9
7
7
OP
E
P
P
N
C1
8
0
8
8
OP
E
P
P
N
DB1
MA
2
MA
0
DB0
DB
MA
1
DQ
0
2
DQ
1
4
5
A0
23
A1
24
25
K
T
1
2
3
4
LED
1
L
E
D
2
LED
3
L
O
LL
A
O
O
D
A
A
-
/
DCMO
//
-
O
O
+
VO
F
C
+
VO
T
K
+
G
G
3
4
5
3
4
5
This is a basic schematic diagram.
SCHEMATIC DIAGRAM (MAIN)

- 19 -- 18 -
TR1
SBAD
FOCUS
DIN
MIRR A
FE
TRACK
TE
CE
DIP
DEFCT
G
N
D
SLDC
TR1
TR2
TR2
SPDON
SVREF15
SPINDLE
SLEGN
RESET#
RESET#
KS1
KS2
LED1
SCSJ
SCLK
SDATA
S0
1
S1
2
S2
3
GND
4SDA 5
SCL 6
WC 7
VCC 8
IC104
AT24C02N
R17 0
R18
100K
R40 1K
RST 1 VCC
3
G
2
IC1
IMB809SEUR-T
A
A
X
X
X
A
X
X
X
X
A
X
X
A
X
X
X
X
X
X
X
X
S
X
X
X
X
X
V
V
X
X
X
X
X
X
E
E
E
E
V
V
A
A
A
A
A
A
A
A
R
V
R48 33R
R49 33R
8 7 6 5
R
N6 33x4
C14
0.1uF
R504.7K
R32 33K
C32
560pF
C44
33pF
C
4
C21
0.1uF
C33
0.1uF
C36
0.1U
C26
OPEN
C37
0.015UF
R38 1K
C41
560P
C42
33pF
C31
0.1uF
C28
OPEN
R27 1.2K
R25 OPEN
C
4
C20
0.1uF
C39
560P
C
6
C38
1U
R28 10K
R29 5.1K
C40
0.015UF
C35
0.1uF
C34
47P
C30
0.047U
C22
0.1uF
C43
33pF
R37 1K
R45 33R
R47 33R
R39 1K
18
27
36
45
RN7 33x4
RF33V
RF
G
RFGND
VCC
RFGND
VCC
RF33V
VCC33
SERIALEEPRO M
CD_DVD_ CT
R46 33R
RF50V
CDLDO
DVDLDO
SLED -
SLED
+
LO AD +
/
D
C
M
O
+
PUH-C
PUH-D
PUH-F
PUH-A
TRACK+
PUH-B
TRACK-
PUH-E
FOCUS+
FOCUS-
RFGND
RFGND
RFGND
CDLDO
CDLD
DVDMD1
CE
RF50V
DVDLD
FE
RF50V
RF50V
PUH-B
PUH-
C
TEPU H - D
PVC
SCSJ
SVREF15
MEVO
SCLK
RF50V
PUH -A
SDATA
TR
A
C
K
+
SLED+
LOAD-/DCMO-
TRACK-
SLED-
TR
A
C
K
-
LOAD+/DCMO+
MV CC
2
13
Q2
2SB1132
C072
0.1U
C53
470P
C52
0.1uF
R91A 18 OHM
C65 0.047U
C68 100P
C56 0.01U
R68 12K(1%)
C70 0.1uF
DVDFRP
1
DVDRFN
2
A2
3
B2
4
C2
5
D2
6
CP
7
CN
8
D
9
C
10
B
11
A
12
CD_D
13
CD_C
14
CD_B
15
CD_A
16
CD_F
17
CD_E
18
VPB
19
VC
20
DVDLD
21
CDLD
22
DVDPD
23
CDPD
24
VNB
25
LDON
26
MIRR
27
MP
28
MB
29
ML PF
30
MIN
31
MEVO
32
RFDC 64
RFSIN 63
ATOP 62
ATON 61
AIN 60
AIP 59
VPA 58
RFAC 57
BYP 56
DIN 55
DIP 54
FNP 53
FNN 52
VNA 51 MEV 50
RX 49
SDEN 48
SDATA 47
SCLK 46
V33 45
LCP 44
LCN 43
MNT R 42
CE 41
FE 40
TE 39
PI 38
V25 37
V125 36
TPH 35
DFT 34
LI NK 33
IC3
ES6603
L7
C82
100U/ 16V
C50
0.1uF
C51
470P
L6
FB (0805)
C55 0.1uF
C81
100U / 16V
C62 680P
C78 160P
C64 680P
C61 680P
C79 33000P
R92A 18 OHM
C67 680P
C80 0.01U
C83
1000P
C77 1000P
2
1 3
Q1
2SB1132
R76 12K
R69
1K
R71 33K R72
10K
R881(0805)
R901(0805)
R871(0805)
C66 100P
R891(0805)
VI NFC
1
CFCERR1
2
CFCERR2
3
VI NSL+
4
VI NSL-
5
VOSL
6
VNFFC
7
VCC
8
PVCC1
9
PGND
10
VOSL-
11
VOSL+
12
VOFC-
13
14
STBY 28
BIAS 27
VI NTK 26
CTKERR1 25
CTKERR2 24
VI NLD 23
PREGND 22
PVCC2 21
VNFT K 20
PGND 19
VOLD- 18
VOLD+ 17
VOTK- 16
15
29 30
IC110
D5954FP
R77 47K
R74 33K
C69 100P
TP1
RFO
R73 47K
C48 0.1uF
C49 0.1uF
1
D11
IN4148
1
D12 IN4148
C58 0.1uF
1
D13
IN4148
C54
820PF
C59 0.1U
C57 4700P
C76
0.22U TP2
DEFCT
RF33V
RF50V
RF50V
RFGND
RFGND
RFGND
MGND
MGND
LD-GND 24
DVD-L D 23
NC 22
CD-LD 19
HFM-VC C 21
MPD 20
DVD-VR 18
CD-VR 17
E15
VCC 14
VC(Vref) 13
GND 12
F11
B10
A9
RF 8
CD/DVD SW 7
D6
C5
T- 4
T+ 3
F+ 2
F- 1
NC 16
CN1
SANYO-DV34
DVDRF
CD-DVD
PVC
VR-CD
VR-DVD
DVDLDO
CC76
0.1uF
CC62
0.1uF
TC4
100uF/16V
RF50V
RFGND
DVDMD1
1
2
6
CN506
RR80
4.7K
CC8 2
103
RR52
33
L11
INDUCTOR1
CC71
0.1uF
C71
47uF
MGND
MVCC
CC078
100uF/10V
MGND
M9V
RR55 3.3K
RR56
1K
CC73 4700P
CD_ DV D_CT
2
1 3
QQ6
2SC1623
RR40
18K
RR37
10K
2
1 3
QQ8
2SC1623
RR36
10K
RF50V
RF50V
RFGND
RFGND
RFGND
RFGND
MVCC
RFGND
RFGND
RF50V
RF50VRFGND
RFGND
RR39
100K
FOCUS-
FOCUS
RFGND
SVREF15 SLEGN
TRACK
SPINDLE
SLDC
DIP
DIN
DEFCT
RF50V
RF50V
DVDRF
RESET#
SPDON
HOMESW
HOMESW
INSW
OUTSW
CLOSE
OPEN
MOCT L
KS2
K1
+5V
GNDV
IR
LED
3
TESTAD
LED2
LED3
QQ7
2SK3018
QQ5
2SK3018
SOUCER
R146 0
R147 0
R148 5.1K
R149 6.8K
R150 6.8K
R151 6.8K
R152 6.8K
C177
0.015UF
R154 0
R155 OPEN
OPEN
R153 OPEN
MVCC
RR2 0
RR3 0
RR4 0
RR6 0
RR7 0
RR8 0
RR1 OPEN
RR5 OPEN
RFO
C
O
C
O
TP25
LIN K
R157 0
R107 4.7k
R106 4.7k
VCC
1
2
6
7
8
CN501
18 OHMR91B
18 OHMR9 2B
RF
G
15
7
1
5
8
1
5
9
160
161
162
163
164
165
166
16
7
168
169
1
7
0
1
7
1
1
7
2
1
7
3
1
7
4
1
7
5
1
7
6
1
77
1
7
8
1
7
9
180
181
182
183
184
185
186
18
7
188
189
190
191
192
193
194
195
196
19
7
198
199
200
201
202
203
204
205
206
20
7
208
R1
9
R2
2
2
2
C1
7
9
7
7
OP
E
P
P
N
C1
8
0
8
8
OP
E
P
P
N
1
2
3
4
LED
1
L
E
D
2
LED
3
L
O
LL
A
O
O
D
A
A
-
/
DCMO
/
/
-
O
O
+
VO
F
C
+
VO
T
K
+
G
G
3
4
5
3
4
5
SCHEMATIC DIAGRAM (MAIN Top left)

- 21 -- 20 -
R
N6
R63
1
0
0
Y1
27M
C46
27PF
C
4
100
0
F
B
3.
3
C45
27PF
VCC
SLED -
SLED
+
LO AD +
/
D
C
M
O
+
DCLOAD+
DCLOAD-
LOAD-/DCMO-
LOAD+/DCMO+
TR
A
C
K
+
FOCUS- FOCUS+
TR
A
C
K
-
C072
0.1U
R881(0805)
R901(0805)
R871(0805)
R891(0805)
VOFC-
13
14
VOTK -
16
15
29 30
R99
1.5K
R100
22K
R97
4.7K
R94
1.5K R96
22K
R98
10K
+
-
3
2
1
84
IC111A
TL3472
R95 1M
R93
10K
11
22
33
44
55
CN505
2.0MM
C84
0.1uF
MVCC
RF50V
MVCC
MGND
MGND
MGND
RFGND
MGND
MGND
MGND
TRAY CONNECTOR
1
2
6
MGND
CC8 2
103
MGND
OUT1 1
VM 2
VCC 3
FIN 4 RIN
5
VREF
6
OUT2
7
GND
8
IC113
BA6287FROH M
CC80
0.1uF
MVCC
MVCC
MGND
MGND
INSW
OUTSW
CLOSE
OPEN
MOCT L
KS2
K1
K2
K3
+5V
GNDV
IR
LED
3
MGND
RFGND
POWER OFF
+9V
MGND
GNDA
GNDV
+S5V
GNDV
RFGND
1
2
3
4
5
6
7
8
9
10
11
CN511
VCC
C134
0.1uF
1 2
L9
1 UH
VD33D
RF33V
RFGND
2
13
Q5
2SD882P
2 1
D15
4.2V
R103
150
C96
0.1uF
VCC33V
R102
390
R105
270
CC97
1000UF/10V
C99
0.1uF(OPEN)
IN
3OUT 2
ADJ
1
IC5
BN1117 N
VCC VCC33 VCC20
C123
0.1uF
C124
0.1uF
C122
0.1uF
C121
0.1uF
C120
0.1uF
C135
470U/10V
1 2
L10
FB (0805)
C136
0.1uF
VCC
MVCC
MGND
C159
0.1uF
C116
0.1uF
C103
0.1uF
C101
0.1uF
C110
0.1uF
C113
0.1uF
C117
0.1uF
C106
0.1uF
C108
0.1uF
C107
0.1uF
C92
0.1uF
C114
0.1uF
C118
0.1uF
C87
0.1uF
C112
0.1uF
C104
0.1uF
C89
0.1uF
C102
0.1uF
C90
0.1uF
C88
0.1uF
C109
0.1UF
C105
0.1uF
C100
0.1uF
C115
0.1uF
VCC20
VCC33
VCC33
VCC
ES66x8
SDRAM
24C01
12 L8
FB (0805)
C130
1U
RF50V
RFGND
CC52
470UF
C202
0.1uF CC55
0.1uF
CC96
0.1uF
CC54
10UF
CC53
0.1uF
C85
470UF/10V
C97
104
C204
0.1uF
C86
100UF/16V
CC94
0.1uF
1 2
FB102
FB (0805)
1 2
FB301
1 UH
1 2
FB104
FB (0805)
1 2
FB105
FB (0805)
1 2
FB106
1 UH
CC1
0.1uF
CC2
33pF
CC3
33pF
CC4
33pF
CC5
33pF
CC6
33pF
CC7
33pF
CC8
33pF
CC9
33pF
12
FB05 1UH
VCC +5V
1
C119
100uF/16V
1
C11
10u
F
FB103
FERB
M9V
C24
0.1uF
R51 4.7K
R44
OPEN
+5V
C145
33pF
SOUCER
R156
4.7K
R159
4.7K
MVCC
R158 2.2 OHM 1/2W
R201
412 (1%)
R202
750 (1%)
C201
0.1uF
R203
412 (1%)
R204
750 (1%)
C203
0.1uF
+12V
1
2
6
7
8
9
10
11
HEADER 11
+C91
10uF/16V
+C93
10uF/16V
+C94
100uF/16V
+C98
100uF/16V
+
C133
100uF/16V
+
C95
100uF/16V
+C131
220uF/10V
+C25
100uF/16V
+ C129
100uF/ 16V
IN
3OUT 2
ADJ
1
IC114
RT9164 CG
IN
3OUT 2
ADJ
1
IC115
RT9164 CG
R78
1K 1/4W
0K
K
1
F
/
FF
16
V
1
2
3
4
LED
1
L
E
D
2
LED
3
L
O
LL
A
O
O
D
A
A
-
/
DCMO
/
/
-
O
O
+
VO
F
C
+
VO
T
K
+
G
G
3
4
5
3
4
5
SCHEMATIC DIAGRAM (MAIN Bottom left)

- 23 -- 22 -
VC C 33V
MA
2
DB3MA 3
DB4
MA 4
DB
2
MIRRA
LA13
WR LL#
LA4
C
T
LC S3#
G
N
D
C
TBCK
LA0
LA3
LA6
LA10
LA11
LA17
SPDIF
DQ M
TSD0 COMP
LD 1
LD 0
LC S2#
LA21
UDA C1
VS33_PL2
LO E#
LA7
SVREF15
LA15
LA5
LA12
TSD1 TWS GNDV RSET VREF
VD33_PL1
LD 3
TESTAD
LA14
DC
L
K
YD AC1
O
N
LA2
LA18
LA19
SVREF09
SVREF21
LD 5
LA8
CDA C1
LA1
X
O
U
MCLK VCC33V
LA9
LA16
TSD2
LD 6
LD 2
XI N
TW S
TBCK
RW S
RB CK
LD 7
LA 20
LD 4
FDAC 1
VD AC 1
LA16
LA11
LA5
LD 1
LA4
LA1
LD 0
LA9
LA3
LA2
LD 7
LA14
LA8
LO E#
LD 6
LA17
LA18
LD 3
LA13
WRLL#
LD 5
LA19
LC S3#
LA7
LA0
LD 4
LA12
LA6
LD 2
LA15
LA10
RESET #
C19 0.1U
DQ2
5
DQ3 7
DQ4 8
A2
25
A3
26
A4
29
IC106
R31 0 OHM
R30 0 OHM
VD33
1
XIN
2
XOUT
3
DCLK
4
DMA0
5
DMA1
6
DMA2
7
DMA3
8
VS33
9
VD33
10
DMA4
11
DMA5
12
DMA6
13
DMA7
14
DMA8
15
DMA9
16
DMA10
17
VS33
18
VD33
19
DMA11
20
DCAS
21
DCS0
22
DCS1
23
DRAS0
24
DBANK0/ DRAS1
25
VSS
26
VDD
27
DBANK1/ DRAS2
28
DCKE/DOE/TDM TSC
29
DWE
30
DB0
31
DB1
32
DB2
33
VS33
34
VD33
35
DB3
36
DB4
37
DB5
38
DB6
39
DB7
40
DB15
41
DB14
42
VS33
43
VD33
44
DB13
45
DB12
46
DB11
47
DB10
48
DB9
49
DB8
50
DSCK
51
VS33
52
VD33 53
DQM 54
LA21 55
LA20 56
LA19 57
LA18 58
LA17 59
LA16 60
VS33 61
VD33 62
LA15 63
LA14 64
LA13 65
LA12 66
LA11 67
LA10 68
LA9 69
VSS 70
VDD 71
LA8 72
LA7 73
LA6 74
LA5 75
LA4 76
LA3 77
VS33 78
VD33 79
LA2 80
LA1 81
LA0 82
LCS0 83
LCS1 84
LCS2 85
VSS 86
VDD 87
LCS3 88
LWRL L 89
LOE 90
LD0 91
LD1 92
LD2 93
LD3 94
VS33 95
VD33 96
LD4 97
LD5 98
LD6 99
LD7 100
RSD/TDMDR 101
RBCK/TDMCLK 102
RWS/TDMFS 103
VD33_PLL 104
VS33_PL 105
YUV1/VREF 106
YUV3/COMP 107
YUV4/RSET 108
YUV7/FDAC 109
YUV6/VDAC 110
VD33_DA 111
VS33_DA 112
YUV5/YDAC 113 YUV2/CDAC 114 YUV0/UDAC 115
TWS/SEL_PLL2 116
TSD0/SEL_PLL0 117 TSD1/SEL_PLL1 118
VS33 119
TSD2 120 TSD3 121
MCLK 122
TBCK 123
SPDIF/SEL_PLL3 124
SPDIFIN 125
VD33 126
VS33 127
XSWBLCLK 128
XSWBL 129
XSLG 130
XSIP2 131 XSIP1 132
XSFLAG[0] 133 XSFLAG[1] 134 XSFLAG[2] 135 XSFLAG[3] 136
VSS 137
VDD 138
XSTEXI 139
XSTESTAD 140
XSSBAD 141
XSFEI 142
AVSS_AD 143
XSCEI 144
XSTEI 145
XSRFRP 146
AVDD3_AD 147
XSVREF[21] 148 XSVREF[09] 149 XSVREF[15] 150
XSIREF 151
AVDD3_DS 152
XSIPIN 153
XSRFIN 154
XSRFIP 155
XSDSSLV 156
AVSS_DS
AVSS_PL
XSPDOFTR1
XSFDO
XSFTROPI
AVDD3_PL
XSPLLF T R1
XSPLLF T R2
XSVREF0
XSAWRC
AVSS_DA
XSRFRPCTR
XSTRAY
AVDD3_DA
XSSPINDLE
XSFOCUS
XSSLEGP
XSSLEGN
XSTRAC K
XSTESTDA
XSFGIN
XSPHOI
SXCSJ
XSDATA
XSCLK
XSDFCT
XSLDC
XSSPDON
VD33
VS33
XGPIO[ 9]
XGPIO[ 8]
XGPIO[ 7]
XGPIO[ 6]
XGPIO[ 5]
XGPIO[ 4]
EAUX43
EAUX42
EAUX41
EAUX40
VSS
VDD
AUX0
AUX1
AUX2/ HSYNC
AUX3/ VSYNC
AUX4
AUX5
AUX6
AUX7
RESET
VS33
IC2
ES6628F
R
R
FB2
FERB
L2 2.4UH
C9
470PF
R16
75 OHM
C11
470PF
C127
0.1UF
C12
1U
L3 2.4UH
C3
1000pF
C13
4700pF
C17
100PF
68K R20
75 OHM
R15 10K
C16
150pF
C10 4.7U
2 1
D2
MMBZ5232ZB
2 1
D4
MMBZ5232ZB
2 1
D6
MMBZ5232ZB
2 1
D8
MMBZ5232ZB
u
F
2 1
D10
MMBZ5232ZB
L4 2.4UH
2 1
D3
MMB Z5232ZB
2 1
D5
MMB Z5232ZB
C72
470pF
R14 3.3K
2 1
D7
MMBZ5232ZB
R24
75 OHM
2 1
D1
MMBZ5232ZB
CC25
470pF
C8
4700pF
20K
C1
1000pF
R5 3.3K
L5 2.4UH
R7 3.3K
C23
6800pF
C7
0.1uF
C27
470PF
R23 0 OHM
C2
1000P
R26
75 OHM
R13 3.3K
C29
470PF
C4
1000P
A15
1
A14
2
A13
3
A12
4
A11
5
A10
6
A9
7
A8
8
NC
9
NC
10
WE#
11
RESET#
12
NC
13
NC
14
RY/BY#
15
A18
16
A17
17
A7
18
A6
19
A5
20
A4
21
A3
22
A2
23
A1
24
A16 48
BYTE# 47
GND 46
DQ15/A -1 45
DQ7 44
DQ14 43
DQ6 42
DQ13 41
DQ5 40
DQ12 39
DQ4 38
VCC 37
DQ11 36
DQ3 35
DQ10 34
DQ2 33
DQ9 32
DQ1 31
DQ8 30
DQ0 29
OE# 28
GND 27
CE# 26
A0 25
IC103
MBM29LV800BA-7
C15
1U
R11
4.7K
R8
4.7K
R9
4.7K
R10
4.7K
R12
4.7K
L1
2.4UH
C5
470pF
C6
470pF
R1
OPEN
R35 4.
7k
R6
75 OHM
R3
OPEN
R2
OPEN
FB1
FERB
R4
OPEN
C128
0.1UF
R21 390
2 1
D9
MMBZ5232ZB
C18 0.1U
F
33V
VCCV
VCCV
VCCV VCC
VCC20
VCC33V
RFGND
VCC20
VCC33
VCC33
VCCV
VCCV
VCC33
VCC33
VCC33VCC33VCC33 VCC33
TBCK
MCL K
TSD0
TWS
re s e
rv e
d5
0
4. 25
114.75
121. 5
by pas s
1
4. 25
0
PLL0
108
01
162
1
1
1
NA
0
135
S-CHIP
0
NA
3. 75
PLL2
1
Frequenc y
0
4
148. 5
4
1
121. 5
0
101.25
reserve d
127
by pas s
0
6
DEFAULT
PLL1
5. 5
DEFAULT
1
4. 75
4. 5
0
1
MUL
TI
0
S-CHIP
114. 75
1
1
128. 25
108
3. 5
4.5
NA
94. 5
0
0
PLL3
0
CL K SOURCE
1
CRST AL OSC
DCL K IN
PU
T
Vibr at t o-II
Vibr at t o-IIVibr at t o-II
Vibr at t o-II
YG
B
C
CVBS CVBS
YD AC
B
FDA C
U
S- VI DEO+ RGB
Y
CVBS
CDA C
U
VD AC
C
Y
CVBS + S- VI DEO
or CVBS + YUV
!
CVBS
CVBS + R GB
VIDEO OUTPUT TABLE
V
G
CVBS
RR
CVBS +
YU V
V
UDAC
LCS1#
COAXI AL_OUT
1
R135
100 OHM
1R132
10K
1
R134
220 OHM
VCC
SPDIF
1
1
2
2
3
3
4
4
55
6
6
J506
1
R145
100 OHM
FDAC
VDAC
YDAC
CDAC
UDAC
2
13
Q507
2SC1623
C73
22PF
C507
47pF
C506
47pF
C505
47pF
+
C504
10UF
.
1K
.
8K
.
8K
.
8K
.
8K
C178
1UF
C
O
C
O
C125 22pF
C126
22PF
C183
22pF
C184
22pF
C60 0.1uF
C205 0.1 uF
RR81
0 OH M
LA20
Option
RR82
0 OHM
LA 20
Option
C212
CAP
Option
WRLL#
MBM29LV160TE-7
MBM29LV160BE-7
M29LV1600T-70
RF
G
15
7
1
5
8
1
5
9
160
161
162
163
164
165
166
16
7
168
169
1
7
0
1
7
1
1
7
2
1
7
3
1
7
4
1
7
5
1
7
6
1
77
1
7
8
1
7
9
180
181
182
183
184
185
186
18
7
188
189
190
191
192
193
194
195
196
19
7
198
199
200
201
202
203
204
205
206
20
7
208
R1
9
R2
2
2
2
C1
7
9
7
7
OP
E
P
P
N
C1
8
0
8
8
OP
E
P
P
N
DB1
MA
2
MA
0
DB0
DB
MA
1
DQ
0
2
DQ
1
4
5
A0
23
A1
24
25
K
T
SCHEMATIC DIAGRAM (MAIN Top right)
