Sanyo HECSR1000K - Stiffness Sensor - Multi Roller Massage... User manual

CN201
CN203
CN202
CN503
CN501
CN502
CN301
CN11
CN5
CN12
CN2
CN3
CN4
CN19
CN20
CN18
CN601
CN604
CN
A 601
CNA801
CNA701
CNA702
CN602
CN603
CN402
CN401
CN403
CN404
CN252
CN1
CN9
CN10
CN6
CN8
CN13
CN14
CN7
CN15
CN253
CN251
CN951
Motor
Switch
Switch
Motor
Reactor
Shape Sensor
Limit Switch
Reactor
Reactor(Leg Roller)
Switch
Switch
Motor
(Leg Roller)
Motor
Switch
Transfomer
Transfomer
Fuse (250V 4A)
Motor
Printed board
(
UP/DOW Pulse)
Printed board
(Foot Rest)
Motor
(Elevation)
Printed board
(Sensor A)
Printed board
(Sensor B)
Printed board
(Indication)
Reclining Motor(Back Rest)
Reclining Motor(Leg Rest)
Printed board(Main)
Printed board
(Pulse)
Printed board
(Relay)
Sensor B
Printed board
(Control)
Printed board
(Shape)
Condenser
(16 F)
15
12

- 1 -
FILE No.
PARTS LIST
Specifications
Wiring Diagram
Massage Lounger
HEC-SR1000K (U.S.A.)
PRODUCT CODE NO.
1 - 383 206 70 ( WK )
REFERENCE NO. PL6510463-00
Power source : AC 120 V 60 Hz
Power consumption
: 190 W
Speed : 3 Notch
Timer : 15 minutes
Rating Time : 30 minutes
Dimensions : 1,030 X 670 X 1,120 mm
L X W X H
Net weight : 61 Kg

19
9
2
1
3
6
5
4
7
8
3
10
11
12 13
12 14
15
16
17
18
20
22
22
23
21
24
24
25
27
28
29
30 31 32
35
34
36
38
37
43
44
45
25
33
21
39
40
41
42
23
19
20
12 13
12
14
10
11
22
22
15
7
6
5
4
26 23
46
- 2 -

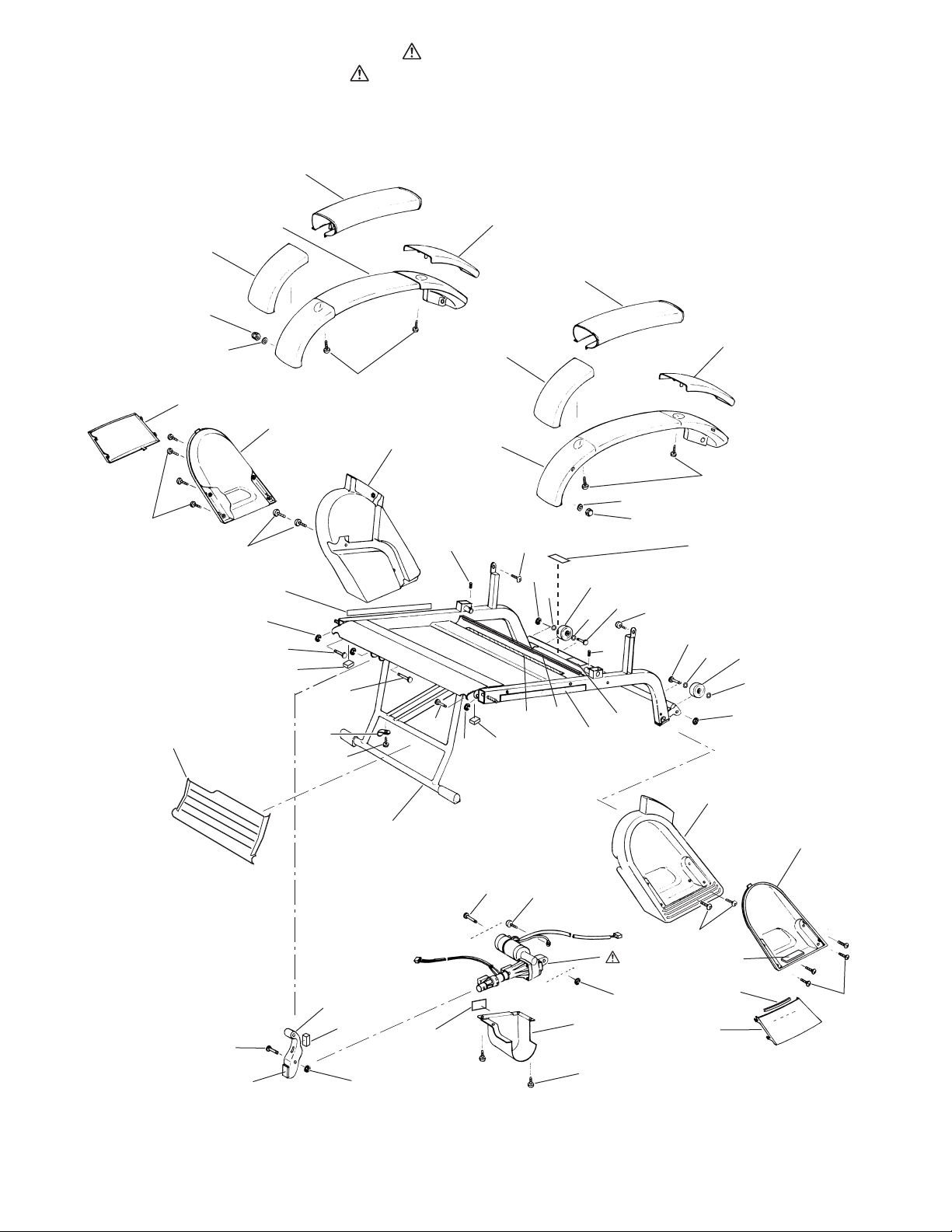

Exploded View
(Seat frame) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 148 6288 ARM COVER RIGHT (BLACK) 1
2 616 145 6229 ARM REST ASSEMBLY (RIGHT)(N1-230) 1
3 616 145 6236 COVER (ARM REST) FRONT 2
4 616 145 6243 NUT 2
5 411 182 9505 WASHER Z 8.2X20X2 2
6 411 006 8301 SCR TPG PAN 4X20 4
7 616 145 6250 COVER (ARM REST) REAR 2
8 616 148 6295 ARM COVER LEFT (BLACK) 1
9 616 145 6267 ARM REST ASSEMBLY (LEFT)(N1-230) 1
10 411 182 7204 SCR TRS 8X25 2
11 411 001 0003 RING E 4 2
12 616 145 6564 WASHER 6.2X14X1.2 4
13 616 145 6274 CASTER ASSEMBLY 2
14 616 145 6281 PIN (CASTER) 2
15 616 132 3392 SCREW 6X8 2
16 616 150 5873 ARM REST (BASE) RIGHT (N1-256) 1
17 616 145 6304 COVER (ARM REST) RIGHT (N1-197) 1
18 616 153 7119 COVER (POCKET) RIGHT (N1-256) 1
19 411 104 7602 SCR BIN 4X10 8
20 411 178 4606 SCR TPG TRS 5X14 4
21 616 145 6328 FASTENER (20X340) 2
22 411 001 0409 RING E 6 5
23 616 127 9286 JOINT PIN (A) 3
24 616 145 6335 CUSHION (FOOT PIPE R) 2
25 616 127 9088 PIN (FIXING OTTOMAN) 2
26 616 145 7554 CORD HOLDER 1
27 616 145 6342 SCREW 4X8 1
28 616 145 6359 COVER (FRONT) 1
29 616 148 3065 FRAME ASSEMBLY (SEAT) 1
30 616 145 6366 FASTENER (25X420) 1
31 616 148 3072 COVER (EDGE PROTECTOR) 1
32 616 148 6301 COUTION LAVEL (SEAT PIPE) 1
33 616 150 5880 ARM REST (BASE) LEFT (N1-256) 1
34 616 145 6403 COVER (ARM REST) LEFT (N1-197) 1
35 616 145 6410 CUSHION A (POCKET) 1
36 616 145 6427 CUSHION B (POCKET) 1
37 616 145 6434 COVER (POCKET) LEFT (N1-256) 1
38 411 112 0503 SCR TPG TRS 4X8 2
39 616 150 6193 COVER (LINEAR ACTUATOR) 1
40 616 148 3102 LINEAR ACTUATOR ASSEMBLY (LEG) 1
41 616 138 3020 SCREW (TORXSCREW) 1
42 616 148 6318 COUTION (LINK A) 1
43 616 145 6489 LINK A (LEG) 1
44 616 145 7578 CUSHION (LINK A) 1
45 616 145 6496 CUSHION (LEG) (32X22X3) 1
46 616 154 8450 LABLE (PAT) 1
- 3 -
Parts List
(Seat frame) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

6
54
264
4
3
2
8
7
7
9
10
13
38
12
41
14
11
36
32
31
5
40
44
39
29
16
30
35
34 22
34
17
18
37
19
20
27 23
24
21
28
25
4
26
26
33
43
46
48
49
42
47
15
6
1
4
8
9
9
9
11
13
12
16
20
20
20
15
24
25
27
37
41
44 43
42
45
- 4 -
Exploded View
(Foot rest) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 145 6519 HOLDER (RIVET) 4
2 616 148 3126 FOOT REST COVER (BLACK) 1
3 616 148 3133 FRAME ASSEMBLY (FOOT REST) 1
4 411 006 8004 SCR TPG PAN 4X14 11
5 616 145 6557 PLATE (JOINT) 2
6 411 004 6804 NUT HEX 6 4
7 616 145 6564 WASHER 6.2X14X1.2 2
8 411 010 3408 WASHER Z 9.2X15X0.35 2
9 616 145 6571 WASHER 6
10 616 146 4118 FOOT REST COVER R-OUT (NN-B) 1
11 616 145 6595 STEEL BALL 2
12 616 145 6601 HELICAL SPRING 2
13 616 145 6618 HOLDER (JOINT) 2
14 616 145 6625 TUBE (7X10) 2
15 616 145 6632 SPASER (JOINT) 2
16 616 145 6649 SCREW (JOINT) 2
17 616 146 4125 FOOT REST COVER R-IN (NN-B) 1
18 616 146 4132 FOOT REST COVER L-IN (NN-B) 1
19 616 146 4149 FOOT REST COVER L-OUT (NN-B) 1
20 616 145 6687 FASTENER (25X30) 4
21 616 148 3140 COUTION LABEL (FOOT REST) 1
22 616 148 6325 CAUTION LABEL (FOOT REST) 1
23 616 145 6700 CASE LEFT-UP 1
24 616 145 6717 FASTENER (25X70) 2
25 411 006 8400 SCR TPG PAN 4X25 4
26 411 001 4209 SCR S-TPG BIN 4X8 6
27 616 145 6724 CUSHION (FOOT REST) 2
28 616 145 6731 CASE (CENTER UPPER) 1
29 616 145 6748 CASE RIGHT-UP 1
30 616 145 6755 CUSHION (MOTOR) 1
31 616 145 6762 C RING 1
32 616 145 6779 STAY ASSEMBLY (BEARING) 1
33 616 145 6786 MOTOR GEAR BOX ASSEMBLY (REG ROLLER) 1
34 616 145 6793 SPRING PIN (3X26) 2
35 616 145 7592 CONNECTOR ASSEMBLY (REG ROLLER) 1
36 616 145 6809 ROLLER STAY ASSEMBLY (RIGHT) 1
37 616 145 6816 BEARING ASSEMBLY 2
38 616 145 6823 ROLLER STAY ASSEMBLY (LEFT) 1
39 616 145 6830 FRAME ASSEMBLY (ROLLER) 1
40 616 145 6847 CASE (CENTER LOWER) 1
41 411 006 7601 SCR TPG PAN 4X12 4
42 616 145 6854 COVER (CASTER) 2
43 616 145 6861 PIN (ROLLER) 2
44 616 145 7646 ROLLER ASSEMBLY (CASTER) 2
45 616 145 6878 CASE LEFT-LOW 1
46 616 145 7639 CASE RIGHT-LOW 1
47 616 146 4286 FOOT REST COVER A (BLACK) 1
48 616 145 7486 FOOT REST COVER B 1
49 616 145 6885 BELT (FOOT REST COVER) 2
- 5 -
Parts List
(Foot rest) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

1
26
7
6
9
5
10
4
3
2
11
8
13
12
16 15
17
14
33
35
34
1
1
1
25 25
1
1
18
18
18
21
21
20
22
23
30
30
32
32
27
24
23
28
1
1
31
1
29
1
18
19
- 6 -
Exploded View
(Back rest) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 411 001 4209 SCR S-TPG BIN 4X8 18
A2 616 145 6953 CONNECTOR ASSEMBLY 1
3 616 138 4171 SHAFT ASSEMBLY INCL/4 1
4 616 139 8598 NUT (PLASTIC NUT) 1
5 616 139 8604 CUSHION (NUT) 1
6 616 138 4188 BALL BEARING 1
7 616 138 4195 CUSHION (BEARING) 1
8 616 138 4201 HOLDER (ROLLING SHAFT UP) 1
9 616 147 2564 PLATE 1
10 616 147 2571 SLEEVE 2
A11 616 143 5514 AC MOTOR (AC 100 V) 1
12 616 138 4225 PULLEY (SM) 1
13 411 149 8008 SCR SET HEX-SCT 5X8 1
14 411 177 7707 SCR PAN+SW+W 6X40 1
15 616 145 6960 FRAME (UPPER-B CROSSPIPE) 1
16 616 132 3439 PLATE (MICRO SW) 1
17 411 029 8203 SCR S-TPG TRS 4X8 1
18 616 138 4232 SCREW 6X20 4
19 616 145 6977 FRAME ASSEMBLY (BACK FRAME) 1
20 616 139 8871 STOPPER (PRINTED BOARD) 4
21 616 127 9286 JOINT PIN (A) 2
22 616 145 6502 SHAFT (RECLINING) 2
23 411 008 0501 WASHER OUT TW 4 1
24 616 138 4270 BELT (ROLLING) 1
25 616 146 4170 WASHER 4.5X12X1.0 3
26 616 138 4287 PULLEY (S) 1
27 411 010 2609 WASHER Z 8.3X18X1.6 1
28 616 132 7239 NUT M8 1
A29 616 148 3218 LINEAR ACTUATOR ASSEMBLY 1
30 411 001 0409 RING E 6 2
31 616 138 3020 SCREW (TORXSCREW) 1
32 616 145 6984 CUSHION (BACK FRAME) 2
A33 616 142 6628 CONDENSER ASSEMBLY (16 F 180V) 1
A34 616 145 6991
PRINTED BOAD ASSEMBLY (UP/DOW PULSE) 1
35 616 145 7004 COVER (PRINTED BOARD) 1
- 7 -
Parts List
(Back rest) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

6
1
23
4
8
12
7
5
23
14
13
15
6
6
9
10
11
2
3
2
3
4
27
31
29
28
21
18
22
24
23
25
26
19
6
11
14
16
30
33
34
35
36
37
38
6
1
1
6
8
7
9
1
16
6
20
32
17
17
- 8 -

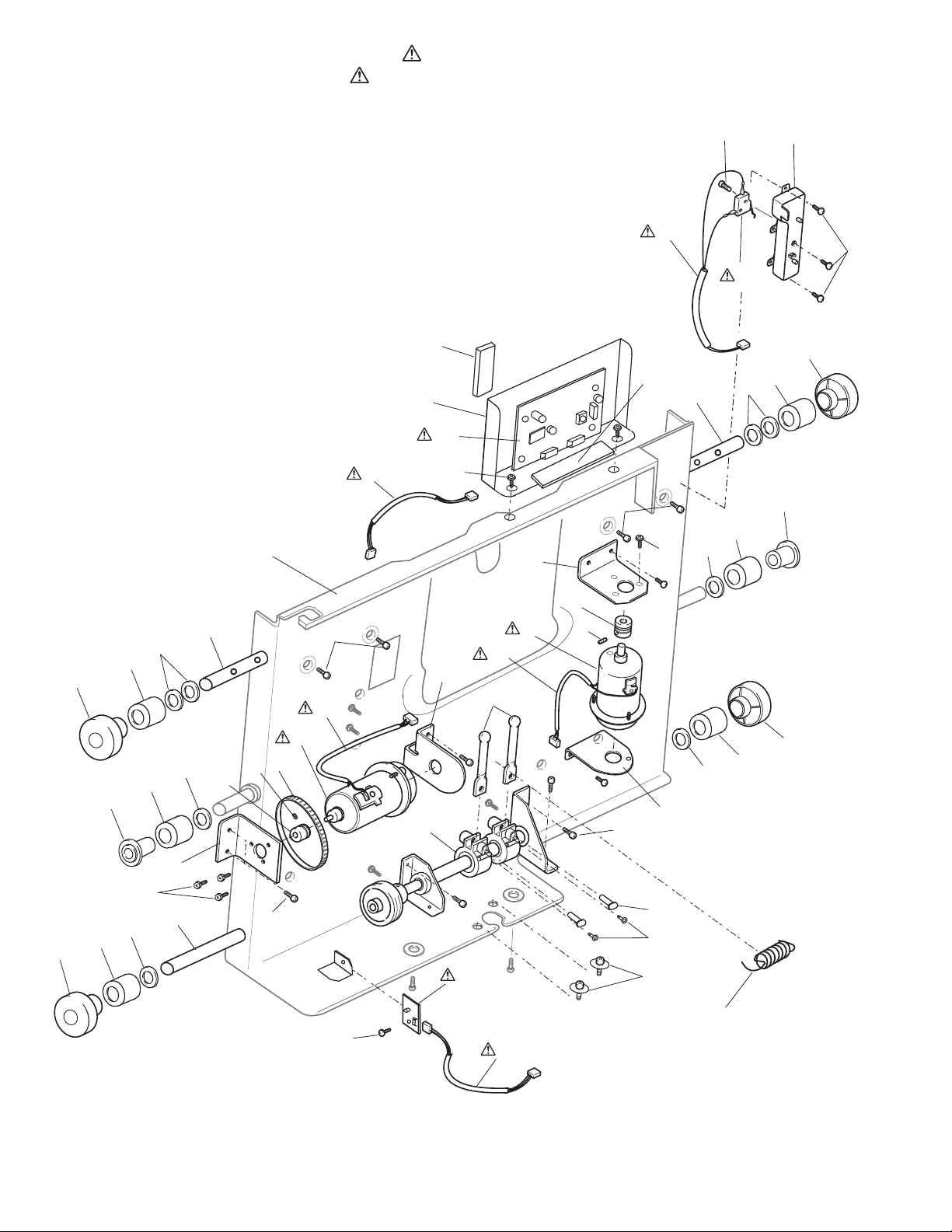

Exploded View
(Massage unit) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 132 4122 DRIVE WHEEL (GUIDE ROLLER) 4
2 616 139 8673 SLEEVE (GUIDE ROLLER) 4
3 616 139 8680 WASHER 13.9X24X0.5 6
4 616 138 3648 SHAFT (ROLLER SHAFT S) 2
5 616 139 8697 FRAME ASSEMBLY (UNIT) 1
6 411 001 4209 SCR S-TPG BIN 4X8 34
7 616 139 8703 DRIVE WHEEL (GUIDE ROLLER) 2
8 616 139 8710 SLEEVE (CENTER ROLLER) 2
9 616 139 8727 WASHER 2
10 616 138 3655 STAY A (MOTOR T) 1
11 411 169 9801 SCR S-TPG HEX+FLG 5X10 6
12 616 138 3709 SHAFT (ROLLER SHAFT) 1
13 616 138 3662 PULLEY (TM) 1
14 411 149 8008 SCR SET HEX-SCT 5X8 2
15 616 138 3679 BELT (TATAKI) (95H6) 1
16 616 143 5545 MOTOR COMP. (DC 100V) INCL/17 2
17 616 143 1912 MOTOR BRUSH ASSEMBLY 2
18 616 138 3693 STAY B (MOTOR T) 1
19 616 138 3785 LINK S 2
20 616 150 2858 SHAFT ASSEMBLY (TATAKI) 1
21 616 145 7042 PRINTED BOAD ASSEMBLY (PULSE) 1
22 616 139 8918 CONNECTOR ASSEMBLY 1
23 616 139 8642 HELICAL SPRING (LINK S) 1
24 616 138 3747 SCREW 4X20 2
25 616 030 2114 SCREW 4X12 2
26 616 139 8765 PIN (LINK S) 2
27 616 138 3969 STAY B (MOTOR M) 1
28 616 138 3952 PULLEY (MM) 1
29 616 138 3945 STAY A (MOTOR M) 1
30 616 145 7059 CONNECTOR ASSEMBLY 1
31 616 145 7066 PRINTED BOAD ASSEMBLY (SHAPE) 1
32 616 145 7073 SHEET (SHAPE SENSOR BOAD) 1
33 616 145 7080 CUSHION(SHAPE SENSOR BOAD) 1
34 616 145 7097 CUSHION (UNIT FRAME) 1
35 616 139 8796 SWITCH HOLDER (MICRO SWITCH) 1
36 411 006 6307 SCR TPG PAN 3X20 1
37 616 142 6574 SWITCH ASSEMBLY (LIMIT SW) INCL/38 1
38 616 139 8789 MICRO SWITCH 1
- 9 -
Parts List
(Massage unit) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

37
16
17
5
15 16
17
18 19
5
6
6
123
4
8
9
14
13
11
10
12
7
22
21
20
23
27
24
31
36
35
25
28
30
29
26
32
6
2
6
6
33
26
34
38
46
45
44
43
18
19
41
42
21
23
39
40
29
28
26
27
25
32 31
34
35
36 38
37
- 10 -
Exploded View
(Massage unit) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 138 3853 STAY (HARNESS) 1
2 616 138 3860 MAGNET 2
3 616 138 3877 HOLDER (MAGNET WIDTH) 1
4 411 000 7409 RING C 13 1
5 411 006 8004 SCR TPG PAN 4X14 4
6 411 001 4209 SCR S-TPG BIN 4X8 12
7 616 145 7103 PRINTED BOAD ASSEMBLY (RELAY) 1
8 411 064 9906 SCR TPG BIN 4X12 2
9 616 138 3884 STAY (GEARCASE R) 1
10 616 138 3891 GEAR BOX ASSEMBLY 1
11 411 149 8008 SCR SET HEX-SCT 5X8 1
12 616 139 8802 PULLEY (M) 1
13 411 051 2101 SCR TRS 4X6 1
14 616 138 3921 BELT (MOMI) 1
15 616 138 3914 STAY (GEARCASE L) 1
16 616 138 3983 NUT M10 2
17 616 126 9607 WASHER 10X22X3.0 2
18 616 138 3976 HOLDER (ARM) 2
19 412 036 5308 SPECIAL NUT 2
20 616 138 3990 ARM ASSEMBLY LEFT 1
21 616 139 8819 CUSHION (ARM) 2
22 616 139 8826 SCREW 4X22 2
23 616 148 2860 HELICAL SPRING 2
24 411 009 3501 WASHER Z 5.2X12X1 4
25 411 003 6300 SCR PAN 5X25 4
26 411 112 8806 SCR TPG TRS 4X14 4
27 411 007 0700 SCR TPG TRS 4X16 2
28 412 007 9106 SPECIAL NUT 4
29 616 138 4010 HOLDER (BALL JOINT) 2
30 616 138 4027 ARM ASSEMBLY (BRACKET L) 1
31 411 177 6908 RING C 29 2
32 616 138 4034 BALL BEARING 2
33 616 138 4041 HOLDER (BEARING ML) 1
34 616 139 8840 BRACKET (SUPPORTER) S 2
35 616 139 8857 NUT M5 4
36 616 138 4058 SHAFT STAY 2
37 411 178 7607 PIN SPRING 4X35 2
38 411 003 1404 SCR PAN 4X22 4
39 411 001 0201 RING E 5 1
40 616 145 7110 SHAFT ASSEMBLY (SHAPE SENSOR) 1
41 411 028 8006 SCR S-TPG PAN 3X16 2
42 616 145 7127 COILBOBINN ASSEMBLY 1
43 616 138 4065 HOLDER (BEARING MR) 1
44 616 145 7134 ARM ASSEMBLY (BRACKET R) 1
45 616 138 4096 ARM ASSEMBLY RIGHT 1
46 616 139 8864 SAHFT M ASSEMBLY 1
- 11 -
Parts List
(Massage unit) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

6
7
5
4
3
3
9
7
8
12
37
11
10
10
44
41
40
15
39 43
38
1
2
31
13
16
17
18
36
30
29
21
32
33
34 35
42
14
2
27
18
26
25
18
28
20
21
23
22 24
24
19
- 12 -
Exploded View
(Control unit) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 148 2907 SHEET (FRAM ASSEMBLY)(SEAT) 1
2 616 145 6892 STAND PIECE FRONT (N1-230) 2
3 411 001 4209 SCR S-TPG BIN 4X8 2
4 616 145 7226 CUSHION (CASE SMALL) 1
5 616 145 6922 CUSHION (CROSS PIPE) 1
6 616 145 6939 CUSHION (SEAT SIDE) 1
7 616 145 6946 STAND PIECE REAR (N1-230) 2
8 411 006 8004 SCR TPG PAN 4X14 2
9 616 148 2914 SHEET (CYLINDER FRAM) 1
10 411 001 3707 SCR S-TPG BIN 4X5 8
11 616 145 7158 PRINTED BOAD ASSEMBLY (MAIN) 1
12 616 145 7165 CONNECTOR ASSEMBLY 1
13 616 139 8895 STOPPER 10
14 616 145 7172 CONNECTOR ASSEMBLY 1
15 616 145 7189 PRINTED BOAD ASSEMBLY (FOOT REST) 1
16 616 139 8871 STOPPER (PRINTED BOARD) 9
17 616 145 7196 HOLDER 1
18 411 027 4108 SCR S-TPG BIN 4X8 2
19 616 138 3006 CORD BUSHING 2
20 616 148 6356 TRANS FORMER ASSEMBLY 1
21 411 001 4209 SCR S-TPG BIN 4X8 3
22 616 138 3013 COVER (TRANS) 1
23 616 143 0151 LABEL (120V) 1
24 616 138 3020 SCREW (TORXSCREW) 3
25 616 145 7219 CUSHION (CASE LARGE) 1
26 616 148 6318 COUTION LAVEL (SEAT UNDER) 1
27 411 008 0501 WASHER OUT TW 4 1
28 616 138 3044 LABEL (EARTH) 1
29 616 132 3330 WASHER M4 1
30 616 146 4217 CASE COMP. (PRINTED BOAD) 1
31 616 145 7226 CUSHION (CASE SMALL) 2
32 616 148 3249 TRANS FORMER ASSEMBLY 1
33 616 143 1288 REACTOR 3
34 616 132 3828 SCREW 3X14 2
35 616 132 3811 SWITCH HOLDER (POWER SW) 1
36 616 148 6363 CONNECOTR ASSEMBLY INCL/37-39 1
37 423 028 2205 FUSE (250V 4A) 1
38 616 148 6370 LABEL (FUSE 4A) 1
39 616 128 8882 POWER SWITCH 1
40 616 132 3781 SCREW 3X12 1
41 616 148 6387 CASE (SWITCH BOX) 1
42 616 132 3774 LOCK 1
43 616 133 3179 CORD BUSHING 1
44 616 143 0168 POWER CORD (UL3) 1
- 13 -
Parts List
(Control unit) NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

5
9
3,4
7
8
6
10
11
12
15
14
13
16
10
10
18
20
11
22
23
26
27 26
25
24
21
19
1(2
- 27)
2
17
- 14 -

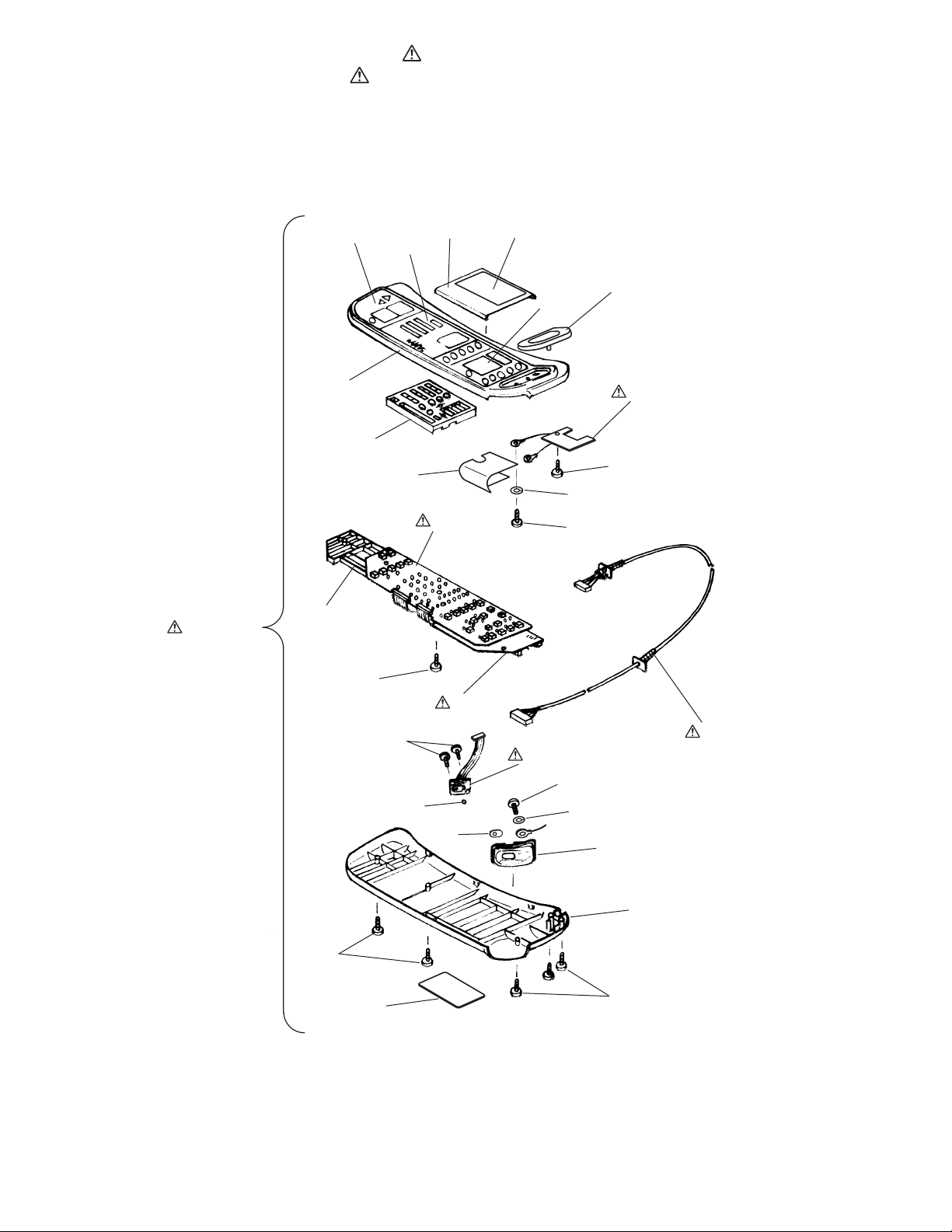

Exploded View
(
Remote control )NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No. Key No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 148 6394 REMOTE CONTROL COMP. KEYNO(2-27) 1
2 616 148 3287 ORNAMENT ASSEMBLY B 1
3 616 148 3294 LENS ASSEMBLY 1
4 616 145 7615 SHEET (DIFFUSION) 1
5 616 145 7271 SLIDE COVER 1
6 616 148 3300 CATION LABEL (SENSOR) 1
7 616 148 3317 ORNAMENT ASSEMBLY A 1
8 616 145 7301 CASE (SENSOR B) 1
9 616 145 7318 PRINTED BOAD ASSEMBLY (SENSOR B) 1
10 616 145 7325 SCREW 2.6X6 4
11 411 008 1300 WASHER SPR 3 2
12 411 006 5300 SCR TPG PAN 3X10 1
13 616 145 7349 CASE (UPPER) 1
14 616 145 7622 REFLECTOR 1
15 616 145 7332 INSULATOR (REMOTE CONTROL) 1
16 616 145 7356 PRINTED BOAD ASSEMBLY (INDICATION) 1
17 616 145 7363 SPASER 1
18 616 145 7370 PRINTED BOAD ASSEMBLY (CONTROR) 1
19 616 145 7417 CONNECTOR ASSEMBLY 1
20 616 145 7387 PRINTED BOAD ASSEMBLY (SENSOR A) 1
21 411 006 6802 SCR TPG PAN 3X8 1
22 616 145 7394 COVER (THERMISTOR) 1
23 616 145 7400 COVER (SENSOR A) 1
24 616 145 7424 CASE (SENSOR A) 1
25 616 145 7431 CASE (LOWER) 1
26 616 132 4047 SCREW 2.6X10 5
27 616 148 6400 COUTION LAVEL (REMOTE CONTROL) 1
- 15 -
Parts List
( Remote control )NOTE
: The parts marked with have special characteristics of safety,
if replace the mark parts,use only SANYO specified parts.
HEC-SR1000K (U.S.A.)

Key
No.
Key
No.
Parts No. Description Q'ty Parts No. Description Q'ty
1 616 148 6264 HED COVER (BLACK) 1
2 616 146 4309 BACK PAD (BLACK) 1
3 616 146 4316 BACK REST ASSEMBLY (BLACK) 1
4 616 145 7011 COVER (BACK COVER) 1
5 616 150 5897 COUTION LAVEL(BACK COVER) 1
6 411 178 4606 SCR TPG TRS 5X14 4
7 616 154 8467 NAME PLATE 1
8 616 148 3348 SEAT COVER A (BLACK) 1
9 616 148 6271 SEAT COVER B (BLACK) 1
10 616 145 6519 HOLDER (RIVET) 4
11 616 145 7547 CUSHION 1
616 154 8474 INSTRUCTION MANUAL 1
8
9
1
4
11
10
2
3
5
6
7
6
- 16 -
For Parts or Service Contact
SANYO FISHER SERVICE CORPORATION.
21605 Plummer Street,
Chatsworth, CA 91311
Exploded View
(Cover)
Parts List
HEC-SR1000K (U.S.A.)
Dec./2004 Printed in Japan
