Sanyo DC-E200/AU User manual

DC-E200/AU
Service Manual
REFERENCE No. SM0928002
Mini Component Sound
System
FILE NO.
PRODUCT CODE No.
112974000
General
Power supply :AC 240V,50 Hz
Powert consumption :10W*2/ch
Speakers :6 ohms
Output power :10W*2/ch
Tuner
FM :87.5 - 108 MHz
AM :522 - 1620 KHz
FM ANT :Wire Type
MW ANT :Loop Type
Specications
3CD Changer
Converter :1 bit D/A
Laser output :108uW~114uW
Laser wavelength :790nm
Tape
Synchro Recording .
Automatic Level Control.
Magnetic Erasing.
Specications subject to change without notice
(Australia. New Zealand)

TABLE OF CONTENTS
Exploded View (Packing & Accessories ).......................................................................................................... 2
Exploded Vies(Cabinet & Chassis)............................................................................................................ 3
Exploded Vies(3CD Disc Mechanism).........................................................................................4
Parts list ........................................................................................................................... 5-24
Schematic Diagram ......................................................................................................................... 25-32
- 1 -

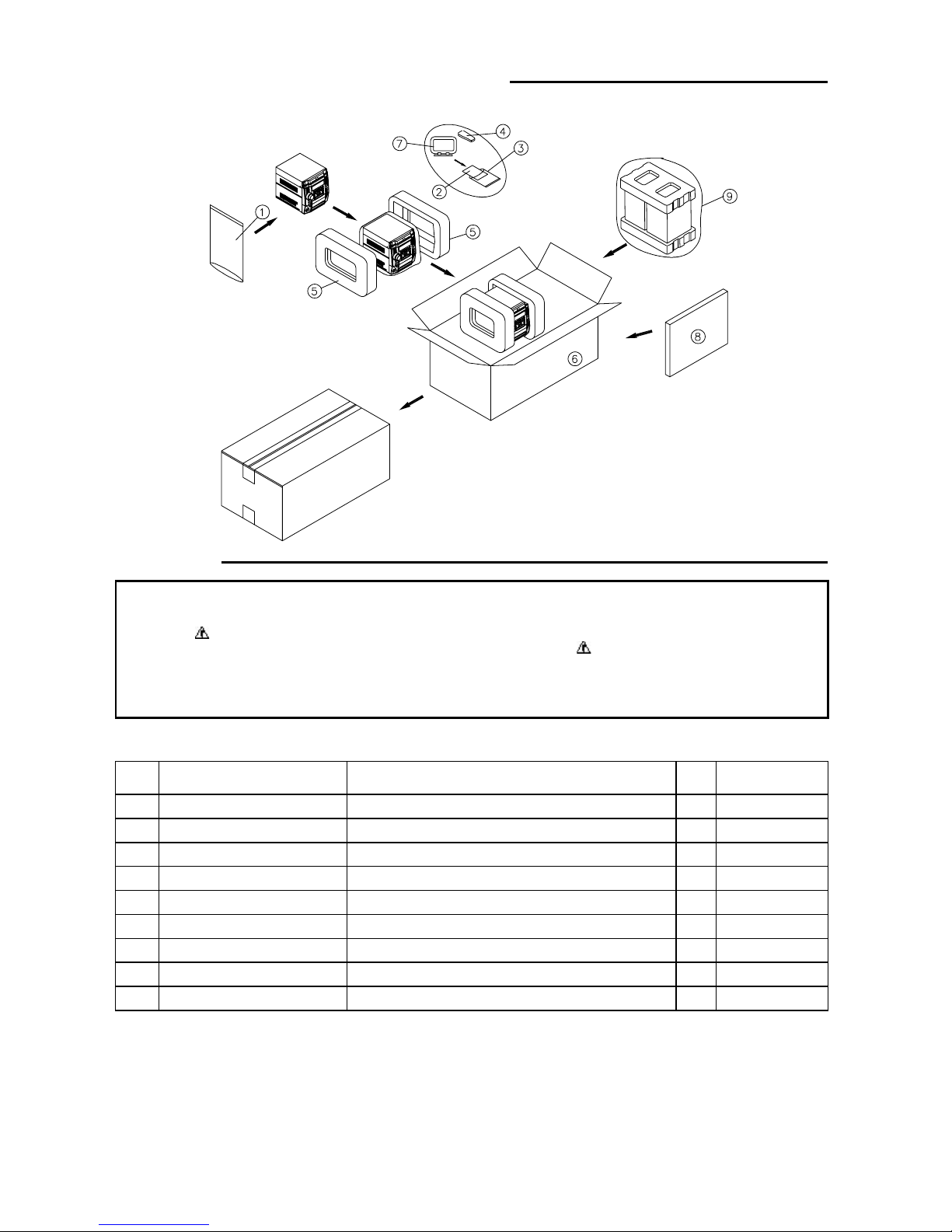

EXPLODED VIEW(PACKING & ACCESSORIES)
PARTS LIST
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING.COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY CAN BE
OF SPECIAL SIGNIFICANCE.WHEN REPLACING A COMPONENT IDENTIFIED BY ,USE ONLY THE REPLACEMENT PARTS
DESIGNATED,OR PARTS WITH THE SAME RATINGS OF RESISTANCE,WATTAGE OR VOLTAGE THAT ARE DESIGNATED IN
THE PARTS LIST IN THIS MANUAL.LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE
THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT
TO THE CUSTOMR.
PRODUCT SAFETY NOTICE
PACKING & ACCESSORY
- 2 -
REF
NO. PART NO. DESCRIPTION QTY REMARK
1 DAT9CD48033001 POLY BAG 1 FOR UNIT
2 DAT9CD9534506 MANUAL INSTRUCTION 1
3 DAT97348105003 POLY BAG 1 FOR IB
4 DAT9CDM060208 REMOCON 1
5 DAT9CD4913400 PAD SNOW L/R 1
6 DAT9CD5042405 GIFT BOX 1
7 DATF736800001 AM LOOP ANT 1
8 DAT9CD4908016 PAD BOARD 1
9 DAT97CGP28276S SPEAKER BOX 1 1 SET

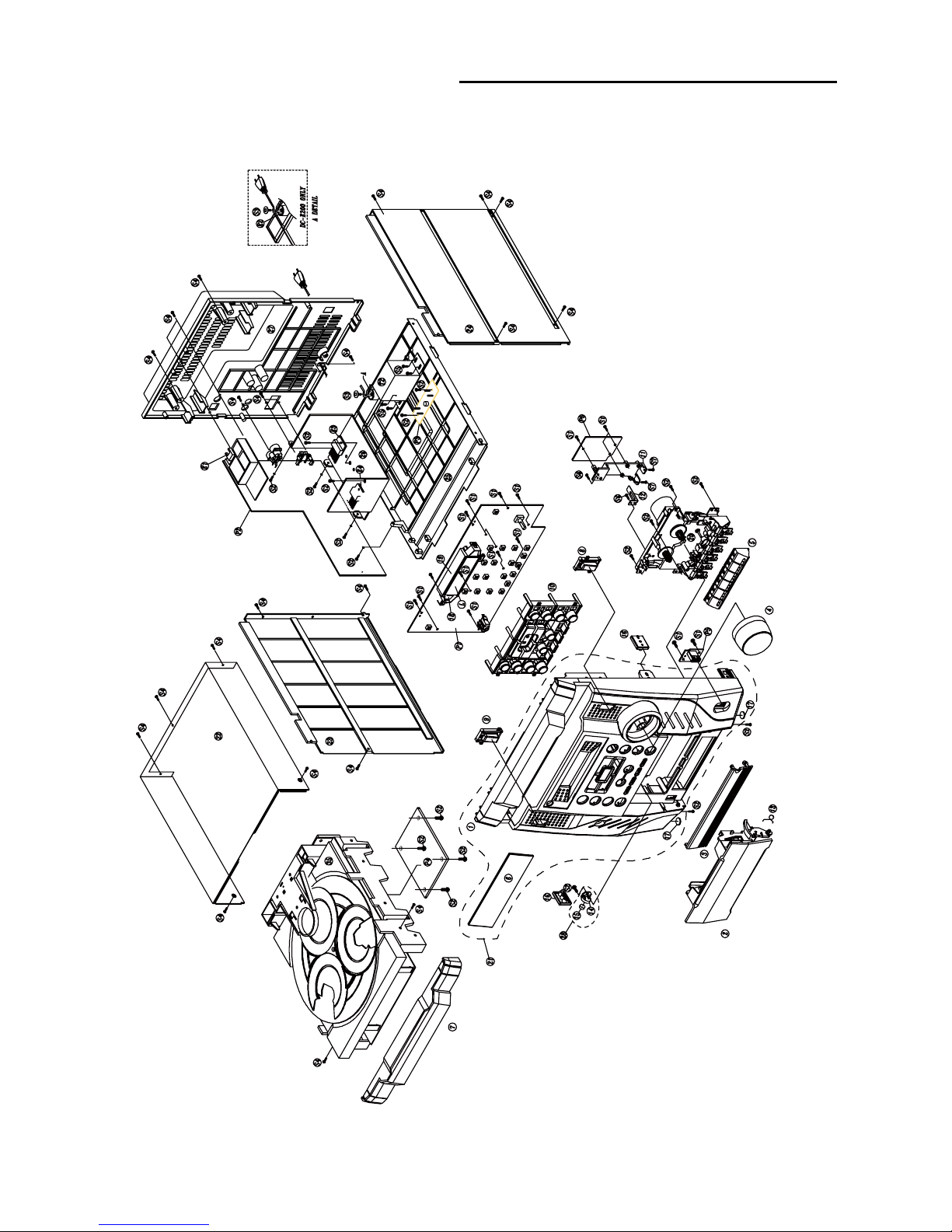

EXPLODED VIEW(CABINET & CHASSIS)
- 3 -

EXPLODED VIEW(3CD DISC MECHANISM)
- 4 -

PARTS LIST
EACH PRECAUTION IN THIS MANUAL SHOULD BE FOLLOWED DURING SERVICING.COMPONENTS IDENTIFIED WITH THE
IEC SYMBOL IN THE PARTS LIST AND THE SCHEMATIC DIAGRAM DESIGNATE COMPONENTS IN WHICH SAFETY CAN BE
OF SPECIAL SIGNIFICANCE.WHEN REPLACING A COMPONENT IDENTIFIED BY ,USE ONLY THE REPLACEMENT PARTS
DESIGNATED,OR PARTS WITH THE SAME RATINGS OF RESISTANCE,WATTAGE OR VOLTAGE THAT ARE DESIGNATED IN
THE PARTS LIST IN THIS MANUAL.LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS MUST BE MADE TO DETERMINE
THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE PRODUCT
TO THE CUSTOMR.
PRODUCT SAFETY NOTICE
CABINET & CHASSIS
- 5 -
REF
NO. PART NO. DESCRIPTION QTY REMARK
S1 DAT7173261011 SCREW T BIN 2.6X10 MFZN 16
S2 DAT7173301011 SCREW T BIN 3X10 MFZN 19
S3 DAT9CD3102400 SCREW T BIN 3.0X10 MFZN 1
S4 DAT7173301012 SCREW T BIN 3X12 MFZN BK 23
S5 DAT7173401011 SCREW T BIN 4X10 MFZN 4
S6 DAT71712035121 SCREW T PAN 2*3.5 BK 2
S7 DAT7173200612 SCREW T BIN 2.0*10 MFZN 2
1 DAT9CD03167020 PANEL FRONT HIPS 1
2 DAT9CD18170001 DOOR CASS MIPS 1
3 DAT9CD04202001 COVER KNOB DECK HIPS 1
4 DAT9CD13597001 KNOB VOLUME HIPS 1
5 DAT9CD13595001 KNOB DECK HIPS 1
6 DAT9CD16249004 WINDOW FLT ACRYL 1
7 DAT9CD18171001 DOOR CD HIPS 1
8 DAT9CD13598001 KNOB OPEN HIPS 1
9 DAT9CD13599001 KNOB POWER HIPS 1
10 DAT9CD13596017 KNOB CONTROL HIPS 1
11 DAT9CD2419401 BRACKET PCB TAPE HIPS 1
12 DAT9CD2508300 GUIDE RECORD STS T0.6 1
13 DAT9CD3004500 SPRING DOOR EJECT PW-1 1
14 DAT9CD2603300 DAMPER BASE B ABS 1
15 DAT9CD2603200 DAMPER GEAR B ACETAL 1
16 DAT9CD2412900 BRKT SIDE ABS 2
17 DAT9CD4207700 CUSHION FOOT URETHANE D10*4.0T 2
18 DAT9CD1621600 WINDOW REFLECTOR ACRYL 1
19 DAT9CD2305401 HOLDER LCD 1
20 DAT9CD6013F02 DECK CASS CS-21SC-190 1
21 DATCAB97400010 ASSY FRONT CABINET 1
22 DAT9CD04096009 COVER TOP 1
23 DAT9CD04105014 COVER SIDE L 1
24 DAT9CD04106024 COVER SIDE R 1
25 DAT9CD0608002 CHASSIS BOTTOM 1
26 DAT9CD4404503 HEAT SINK 1
27 DAT9CD04185072 COVER BACK 1
28 DATCDG97400010 ASSY CASS DOOR GEAR 1

- 6 -
28 DATCDG97400010 ASSY CASS DOOR GEAR 1
29 DATF737600820 TUNER MODULE KST-MU000MV0-60P 1
30 DAT97369072001 CORD AC 1
31 DAT1L4959 IC L4959 1
32 DAT1CD7269ACZ IC CD7269ACZ 1
33 DAT5TP8066F39 TRANS POWER 1
34 DATDFEQ06029C LCD FEQ06029C 1
3CD DISC MECHANISM
REF
NO. PART NO. DESCRIPTION QTY REMARK
35 DAT9CD6014300 ASSY 3CD DISC MECHANISM 1
36 DAT97L0603000 CHASSIS MAIN 1
37 DAT9CD0915700 PLATE CLAMP 1
38 DAT97L5400200 MAGNET CLAMP 1
39 DAT97L2301410 HOLDER CLAMP 1
40 DAT97L6502300B PCB COMBINATION 1
41 DAT97L88005001 CONN. AS 12H-12H 250mm 1
42 DAT97L6201000 WAFER 5P 1
43 DAT97L6201100 WAFER 5P (FFC) 1
44 DAT97L0S00040 S/W OPEN 1
45 DAT97L8101110 MOTOR LOAD 1
46 DAT97L3700700 PULLEY MOTOR 1
47 DAT97L6200500 CONN. MOTOR 1
48 DAT97L0S00030 S/W LIMIT SSCF21R 1
49 DAT7174260611 SCREW T 2.6X6 1
50 DAT97L5200400 SLIDER (L) 1
51 DAT97L5200500 SLIDER (R) 1
52 DAT97L0603100 BASE DRIVE 1
53 DAT97L3103600 SCREW WASHER T2 WAS 2.6X8+D10 4
54 DAT97L4202300 RUBBER DAMPER GREEN 2
55 DAT97L4202301 RUBBER DAMPER RED 2
56 DAT9CD6014200 DRIVE UNIT DA11VZ 1
57 DAT97L88006001 CONN AS 6H-6H 270MM 1
58 DAT97L2601600 LINK CAM 1
59 DAT97L2704500 GEAR CAM 1
60 DAT97L2703900 GEAR RELAY 1
61 DAT97L3701200 PULLEY GEAR 1
62 DAT97L2704000 GEAR MAIN 1
63 DAT97L2704100 GEAR IDLER 1
64 DAT97L3102400 SCREW WASHER T 2X8 2
65 DAT97L2704200 GEAR LOAD 1
66 DAT97L5500702 BELT MOTOR D 1.7*1.7*D38 1
67 DAT7173261011 SCREW T 2.6X10 1
68 DAT97L3004800 SPRING CAM 1
69 DAT7003263511 SCREW MACHINE 2.6x3.5 2

- 7 -
MAIN PWB ASSY
70 DAT9CD9351000 LABEL SERIAL 1
71 DAT9CD2415800 BRACKET CD 1
72 DAT97L0902700 TRAY R/L 1
73 DAT97L6502210 PCB SENSOR 1
74 DAT97L6200800 CONN. SENSOR FFC 5P 1
75 DAT97L6201200 WAFER 2P 1
76 DAT97L0S00010 S/W SENSOR 1
77 DAT97L6201300 WAFER 5P ANGLE 1
78 DAT7174260611 SCREW T 2.6x6 1
79 DAT97L2401600 BRKT WORM GUIDE 1
80 DAT97L2704300 GEAR WORM 1
81 DAT97L8101210 MOTOR R/L JP20-90K230 1
82 DAT97L6200600 CONN. MOTOR R 1
83 DAT97L2704400 G/WORM WHEEL 1
84 DAT97L0904100 ROULETTE DISC 1
85 DAT97L3102310 SCREW WASHER 3x15 1
REF
NO. PART NO. DESCRIPTION QTY REMARK
86 DATFCDC003732 ASSY PWB MAIN 1
DATFCD65006902 MAIN PCB 247X139X1.6T(1*1) 1
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE401
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE402
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE403
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE404
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE405
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE406
DATCEXD1H229BX C ELECTRO 50V RL (LK) 2.2MF (5X11) TP 1 CE407
DATCEXD1H229BX C ELECTRO 50V RL (LK) 2.2MF (5X11) TP 1 CE408
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE409
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE410
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE411
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE412
DATCEXD1H229BX C ELECTRO 50V RL (LK) 2.2MF (5X11) TP 1 CE413
DATCEXD1H229BX C ELECTRO 50V RL (LK) 2.2MF (5X11) TP 1 CE414
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE417
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE418
DATCEXF1H100VX C ELECTRO 50V RSS 10MF (5X11) TP 1 CE419
DATCEXF1C221VX C ELECTRO 16V RSS 220MF (6X12) TP 1 CE420
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE801
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE802
DATCEXF1H470VX C ELECTRO 50V RSS 47MF (6.3X11) TP 1 CE803
DATCEXF1H100VX C ELECTRO 50V RSS 10MF (5X11) TP 1 CE804
DATCEXF1C102VX C ELECTRO 16V RSS 1000MF (10X17) TP 1 CE805
DATCEXF1C102VX C ELECTRO 16V RSS 1000MF (10X17) TP 1 CE806

- 8 -
DATCEXF1H101VX C ELECTRO 50V RSS 100MF (6.3X11) TP 1 CE807
DATCEXF1C471VX C ELECTRO 16V RSS 470MF (9X13) TP 1 CE808
DATCEXF1E470VX C ELECTRO 25V RSS 47MF (5X11) TP 1 CE819
DATCEXF1E330VX C ELECTRO 25V RSS 33MF (5X11) TP 1 CE820
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE901
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE902
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE903
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE904
DATCEXF1V222V1 C ELECTRO 35V RSS 2200MF (13X32.5) 1 CE908
DATCEXF1H479VX C ELECTRO 50V RSS 4.7MF (5X11) TP 1CE909
DATCEXF1H222V C ELECTRO 50V RSS 2200MF (16X35) 1 CE911
DATCMXM2A473JX C MYLAR 100V 0.047MF J 1 CM801
DATCMXM2A473JX C MYLAR 100V 0.047MF J 1 CM802
DATCMXM2A223JX C MYLAR 100V 0.022MF J 1 CM901
DATCMXM2A223JX C MYLAR 100V 0.022MF J 1CM902
DATCMXM2A223JX C MYLAR 100V 0.022MF J 1 CM903
DATCMXM2A223JX C MYLAR 100V 0.022MF J 1 CM904
DATCMXM2A223JX C MYLAR 100V 0.022MF J 1 CM905
DATCMXM2A223JX C MYLAR 100V 0.022MF J 1 CM906
DAT2001WS08 WAFER 8P 2.0MM 1 CW400
DAT2001WS07 WAFER 7P 2.0MM 1 CW401
DAT2503WS07 WAFER 7P 2.5MM 1 CW509
DAT2001WS09 WAFER 9P 2.0MM 1 CW601
DAT2503WS07 WAFER 7P 2.5MM 1 CW802
DAT2503WS08 WAFER 8P 2.5MM 1 CW900
DATDIN4001 DIODE IN4001 1 D904
DATDIN4001 DIODE IN4001 1 D905
DATDRL202 DIODE RL202 1 D908
DATDRL202 DIODE RL202 1 D909
DATDRL202 DIODE RL202 1 D910
DATDRL202 DIODE RL202 1 D911
DATDIN4001 DIODE IN4001 1 D912
DATHCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1 HC401
DATHCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1 HC402
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC403
DATHCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1 HC404
DATHCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1 HC405
DATHCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608 1 HC406
DATHCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1 HC408
DATHCQK101JBA C CHIP CERA 50V CH 100PF J 1608 1 HC409
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC411
DATHCFK224MBA C CHIP CERA 50V Y5V 0.22MF M 1608 1 HC412
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC413
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC414
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC415

- 9 -
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC416
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC417
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC418
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC419
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC420
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC421
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC422
DATHCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 1 HC801
DATHCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 1 HC802
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1HC803
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC804
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC808
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC813
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC901
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1HC902
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC903
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC904
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC905
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC906
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC907
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC911
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC912
DATDZDS160 DIODE SW CHIP KDS160(KDS511) 1 HD401
DATDZDS160 DIODE SW CHIP KDS160(KDS511) 1 HD801
DATDZDS160 DIODE SW CHIP KDS160(KDS511) 1 HD802
DATDZDS160 DIODE SW CHIP KDS160(KDS511) 1 HD803
DATDZDS160 DIODE SW CHIP KDS160(KDS511) 1 HD804
DATDZDS160 DIODE SW CHIP KDS160(KDS511) 1 HD805
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HD901
DATTZTC3875S TR CHIP KTC3875Y 1 HQ804
DATTZRA107S TR CHIP KRA107S 1 HQ813
DATTZRA107S TR CHIP KRA107S 1 HQ814
DATTZTD1304 TR CHIP KTD1304 1 HQ815
DATTZTD1304 TR CHIP KTD1304 1 HQ816
DATHRFT392JBA R CHIP 1/10 3.9K OHM J 1608 1 HR401
DATHRFT392JBA R CHIP 1/10 3.9K OHM J 1608 1 HR402
DATHRFT393JBA R CHIP 1/10 39K OHM J 1608 1 HR403
DATHRFT393JBA R CHIP 1/10 39K OHM J 1608 1 HR404
DATHRFT822JBA R CHIP 1/10 8.2K OHM J 1608 1 HR405
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR406
DATHRFT822JBA R CHIP 1/10 8.2K OHM J 1608 1 HR407
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR408
DATHRFT272JBA R CHIP 1/10 2.7K OHM J 1608 1 HR409
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR410
DATHRFT272JBA R CHIP 1/10 2.7K OHM J 1608 1 HR411

DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR412
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR413
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR415
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1HR417
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR418
DATHRFT682JBA R CHIP 1/10 6.8K OHM J 1608 1 HR419
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR420
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR421
DATHRFT682JBA R CHIP 1/10 6.8K OHM J 1608 1HR422
DATHRFT184JBA R CHIP 1/10 180K OHM J 1608 1 HR423
DATHRFT184JBA R CHIP 1/10 180K OHM J 1608 1 HR424
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR425
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR426
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1HR427
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR428
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR429
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR430
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR431
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR432
DATHRFT561JBA R CHIP 1/10 560 OHM J 1608 1 HR433
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR435
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR437
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR438
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR439
DATHRFT393JBA R CHIP 1/10 39K OHM J 1608 1 HR805
DATHRFT393JBA R CHIP 1/10 39K OHM J 1608 1 HR806
DATHRFT911JBA R CHIP 1/10 910 OHM J 1608 1 HR807
DATHRFT911JBA R CHIP 1/10 910 OHM J 1608 1 HR808
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR809
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR810
DATHRF4471JEA R CHIP 1/4W 470 OHM J 3216 1 HR811
DATHRF4471JEA R CHIP 1/4W 470 OHM J 3216 1 HR812
DATHRF4471JEA R CHIP 1/4W 470 OHM J 3216 1 HR813
DATHRF4471JEA R CHIP 1/4W 470 OHM J 3216 1 HR814
DATHRFT563JBA R CHIP 1/10 56K OHM J 1608 1 HR815
DATHRFT225JBA R CHIP 1/10 2.2M OHM J 1608 1 HR816
DATHRFT681JBA R CHIP 1/10 680 OHM J 1608 1 HR821
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR823
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR825
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR860
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR861
DATHRFT223JBA R CHIP 1/10 22K OHM J 1608 1 HR862
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR879
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR880
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR883
- 10 -

DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR884
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR906
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR907
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR908
DATHRFT223JBA R CHIP 1/10 22K OHM J 1608 1 HR909
DATHRFT473JBA R CHIP 1/10 47K OHM J 1608 1 HR910
DATHRFT223JBA R CHIP 1/10 22K OHM J 1608 1 HR911
DATHRFT682JBA R CHIP 1/10 6.8K OHM J 1608 1 HR917
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR918
DATHRFT222JBA R CHIP 1/10 2.2K OHM J 1608 1HR919
DATDRLZ5R1B DIODE ZENER CHIP RLZ5.1B 1 HZ801
DAT1BD3883FS IC BD3883FS 1 IC401
DAT1CD7269ACZ IC CD7269ACZ 1 IC801
DAT1L4959 IC L4959 1 IC901
DAT9CD6313700 JACK RCA S-436P 1J401
DAT9736320500 JACK SPEAKER CJ-9007-040 1 J802
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW001
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW002
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW003
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW004
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW405
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW406
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW407
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW408
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW412
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW413
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW414
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW418
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW419
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW420
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW421
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW422
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW423
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW424
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW425
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW426
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW427
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW812
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW818
DATW581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 1 JW822
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW824
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW825
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW826
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW827
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW828
- 11 -

DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW829
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW830
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW831
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW832
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW833
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW835
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW836
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW837
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW838
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1JW901
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW902
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW912
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW913
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW914
DATW581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 1JW915
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW916
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW919
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW920
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW921
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW922
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW923
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW924
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW925
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW926
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW927
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW928
DATW581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 1 JW929
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW930
DATW581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 1 JW936
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW937
DATRD4Z479J R CARBON FILM 1/4 4.7 OHM J 1 R863
DATRD4Z479J R CARBON FILM 1/4 4.7 OHM J 1 R864
DATRF01F4780J2 R FUSIBLE 1W 0.47 OHM J (32 times) 1 RF901
DATRF01F4780J2 R FUSIBLE 1W 0.47 OHM J (32 times) 1 RF902
DATF737600820 TUNER MODULE KST-MU000MV1-60P 1 TU001
DATF728800045 FM ANTENNA FIA-201A 1
DAT7173301011 SCREW TAPPING TT2 BIN 3X10 MFZN 5
DAT9CD4404503 HEAT SINK 1 AL T2.0 1
- 12 -

FUSE PWB ASSY
REF
NO. PART NO. DESCRIPTION QTY REMARK
87 DATFCDC003751 ASSY PWB FUSE 1
DATFCD6500692 FUSE PCB 80X42X1.6T 1
DATCLYL2G472M C LINE ACROSS DE1307E 472M 1 CC980
DATFFSPR4012L FUSE MINIATURE MET T400mA L 250V 1 F980
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW980
DAT9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT 1 TP901
DAT9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT 1 TP902
DAT9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT 1 TP903
DAT9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT 1 TP904
TAPE PWB ASSY
REF
NO. PART NO. DESCRIPTION QTY REMARK
88 DATFCDC003770 ASSY TAPE PCB 1
DATFCD6500691 TAPE PCB 71X52X1.6T 1
DATCEXF1C101VX C ELECTRO 16V RSS 100MF (5X11) TP 1 CE601
DATCEXF1H109VX C ELECTRO 50V RSS 1MF (5X11) TP 1 CE602
DATCEXF1H109VX C ELECTRO 50V RSS 1MF (5X11) TP 1 CE603
DATCEXF1C470VX C ELECTRO 16V RSS 47MF(5X11) TP 1 CE604
DATCEXF1C331VX C ELECTRO 16V RSS 330MF(8X11.5) TP 1 CE605
DATCEXF1H109VX C ELECTRO 50V RSS 1MF (5X11) TP 1 CE606
DATCEXF1H109VX C ELECTRO 50V RSS 1MF (5X11) TP 1 CE607
DATCEXF1C101VX C ELECTRO 16V RSS 100MF (5X11) TP 1 CE608
DATCEXF1E470VX C ELECTRO 25V RSS 47MF (5X11) TP 1 CE609
DATCEXF1C470VX C ELECTRO 16V RSS 47MF(5X11) TP 1 CE611
DATCEXF1C470VX C ELECTRO 16V RSS 47MF(5X11) TP 1 CE612
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE613
DATCEXF1H229VX C ELECTRO 50V RSS 2.2MF (5X11) TP 1 CE614
DATCMXM2A152JX C MYLAR 100V 1500PF J 1 CM608
DATCMXM2A153JX C MYLAR 100V 0.015MF J 1 CM609
DATCMXM2A472JX C MYLAR 100V 4700PF J 1 CM610
DATF728800041 CONN UL2851#28 5P+UL1007#26 4P 180MM 1 CN601
DATF728800039 CONN AS UL2851#28 4P 130MM 1 CN602
DATF728800040 CONN AS UL1007#16 4P 130MM 1 CN603
DAT2001WS04 WAFER 4P 2.0MM 1 CW602
DAT2001WS04 WAFER 4P 2.0MM 1 CW603
DATHCBK273KBA C CHIP CERA 50V X7R 0.027MF M 1608 1 HC601
DATHCQK221JBA C CHIP CERA 50V CH 220PF J 1608 1 HC602
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC603
DATHCQK221JBA C CHIP CERA 50V CH 220PF J 1608 1 HC604
DATHCBK273KBA C CHIP CERA 50V X7R 0.027MF M 1608 1 HC605
DATHCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 1 HC606
DATHCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 1 HC607
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC608
- 13 -

DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC609
DATHCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 1 HC612
DATHCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 1 HC613
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC614
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR601
DATHRFT124JBA R CHIP 1/10 120K OHM J 1608 1 HR602
DATHRFT470JBA R CHIP 1/10 47 OHM J 1608 1 HR603
DATHRFT331JBA R CHIP 1/10 330 OHM J 1608 1 HR604
DATHRFT124JBA R CHIP 1/10 120K OHM J 1608 1 HR605
DATHRFT470JBA R CHIP 1/10 47 OHM J 1608 1 HR606
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1HR607
DATHRFT332JBA R CHIP 1/10 3.3K OHM J 1608 1 HR608
DATHRFT332JBA R CHIP 1/10 3.3K OHM J 1608 1 HR609
DATHRFT473JBA R CHIP 1/10 47K OHM J 1608 1 HR610
DATHRFT473JBA R CHIP 1/10 47K OHM J 1608 1 HR611
DATHRFT183JBA R CHIP 1/10 18K OHM J 1608 1HR612
DATHRFT183JBA R CHIP 1/10 18K OHM J 1608 1 HR613
DATHRFT333JBA R CHIP 1/10 33K OHM J 1608 1 HR615
DATHRFT479JBA R CHIP 1/10 4.7 OHM J 1608 1 HR616
DATHRFT105JBA R CHIP 1/10 1M OHM J 1608 1 HR617
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR618
DATHRFT331JBA R CHIP 1/10 330 OHM J 1608 1 HR619
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR620
DATHRFT392JBA R CHIP 1/10 3.9K OHM J 1608 1 HR621
DATHRFT122JBA R CHIP 1/10 1.2K OHM J 1608 1 HR622
DATHRFT392JBA R CHIP 1/10 3.9K OHM J 1608 1 HR623
DATHRFT122JBA R CHIP 1/10 1.2K OHM J 1608 1 HR624
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR625
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR626
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR633
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR634
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR635
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR636
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR637
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR638
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR642
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR643
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR693
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR694
DATDRLZ6R2B DIODE ZENER CHIP RLZ6.2B 1 HZ601
DATDRLZ6R2B DIODE ZENER CHIP RLZ6.2B 1 HZ602
DATTZTD1304 TR CHIP KTD1304 1 HQ602
DATTZTD1304 TR CHIP KTD1304 1 HQ606
DATTZTD1304 TR CHIP KTD1304 1 HQ607
DATTZTD1304 TR CHIP KTD1304 1 HQ609
- 14 -

DATTZTD1304 TR CHIP KTD1304 1 HQ610
DATTZTD1304 TR CHIP KTD1304 1 HQ611
DATTZTD1304 TR CHIP KTD1304 1 HQ612
DAT1BA3308H IC TAPE AMP BA3308 1 IC600
DAT5S30602A02 SW SILDE R-PS 6205C 1 SW600
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW601
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW602
DATW581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 1 JW603
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW605
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW606
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1JW608
DATW581GY1505 WIRE JUMPER AWG22 1/0.65 SN 15 1 JW609
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW610
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW611
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW612
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1JW613
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW614
DATW581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 1 JW615
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW616
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW617
DATW581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 1 JW618
DATTZTC3198Y TR KTC3198Y (2SC5343) AUTO 1 Q607
DAT5L00000500 COIL BIAS OSC 0500 10X10 BK 1 L600
DAT5CPZ101K02 COIL PEAKING 100 UH K (AXIAL 3.5 MM) 1 L601
MP3 CD PWB ASSY
REF
NO. PART NO. DESCRIPTION QTY REMARK
89 DATFCDC003790 ASSY PWB MP3 CD 1
DAT9CD65065003 MP3 CD PCB 188X94X1.6T(1*2) 1
DATCEXF1H100V C ELECTRO 50V RSS 10MF (5X11) 1 CE501
DATCEXF1H100V C ELECTRO 50V RSS 10MF (5X11) 1 CE502
DATCEXF0J221V C ELECTRO 6.3V RSS 220MF (5X11) 1 CE503
DATCEXF1H100V C ELECTRO 50V RSS 10MF (5X11) 1 CE504
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE505
DATCEXF1H109V C ELECTRO 50V RSS 1MF (5X11) 1 CE506
DATCEXF1C470V C ELECTRO 16V RSS 47MF (5X11) 1 CE507
DATCEXF1C102V C ELECTRO 16V RSS 1000MF (10X17) 1 CE508
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE509
DATCEXF1C101V C ELECTRO 16V RSS 100MF (5X11) 1 CE510
DATCEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) 1 CE511
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE512
DATCEXF1H100V C ELECTRO 50V RSS 10MF (5X11) 1 CE514
DATCEXF1H100V C ELECTRO 50V RSS 10MF (5X11) 1 CE515
DATCEXF1C101V C ELECTRO 16V RSS 100MF (5X11) 1 CE516
DATCEXF1C470V C ELECTRO 16V RSS 47MF (5X11) 1 CE517
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE522
- 15 -

DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE523
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE525
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE527
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE528
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE529
DATCEXF0J101V C ELECTRO 6.3V RSS 100MF(5X11) 1 CE530
DATCEXF1H100V C ELECTRO 50V RSS 10MF (5X11) 1 CE572
DATCEXF1H229V C ELECTRO 50V RSS 2.2MF(5X11) 1 CE573
DAT9738840800 CONN AS FFC 16P P1.0X250MM R 1 CN500
DATF728800049 CONN UL1007 #26 1P,2547 #26 SHIELD 3P,UL1007
#26 3P P=2.5 L=220mm 1 CN509
DAT9CD6259300 WAFER 52807-1610 1CW500
DAT2001WS06 WAFER 6P 2.0MM 1 CW501
DAT2001WS12 WAFER 12P 2.0MM 1 CW502
DAT9CD6276100 WAFER 12511HS-19A01 TOP ENTRY 1 CW503
DAT2001WS04 WAFER 4P 2.0MM 1 CW572
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1HC500
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC501
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC502
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC503
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC504
DATHCBK473KBA C CHIP CERA 50V X7R 0.047MF M 1608 1 HC505
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC506
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC507
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC508
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC509
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC510
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC511
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC512
DATHCBK223KBA C CHIP CERA 50V X7R 0.022MF M 1608 1 HC513
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC514
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC515
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC516
DATHCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 1 HC517
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC518
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC519
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC520
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC521
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC522
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC523
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC524
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC525
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC526
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC527
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC528
- 16 -

DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC529
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC530
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC531
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC532
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC533
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC534
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC535
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC536
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC537
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC538
DATHCQK680JBA C CHIP CERA 50V CH 68PF 1608 1HC539
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC540
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC541
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC542
DATHCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 1 HC543
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1HC544
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC546
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC547
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC548
DATHCBK103KBA C CHIP CERA 50V X7R 0.01MF M 1608 1 HC549
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC551
DATHCFK104MBA C CHIP CERA 50V Y5V 0.1MF M 1608 1 HC552
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC553
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC554
DATHCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 1 HC555
DATHCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 1 HC571
DATHCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 1 HC572
DATHCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 1 HC573
DATHCQK100JBA C CHIP CERA 50V CH 10PF J 1608 1 HC574
DATHCQK100JBA C CHIP CERA 50V CH 10PF J 1608 1 HC575
DATHCQK509DBA C CHIP CERA 50V CH 5PF D 1608 1 HC576
DATHCQK509DBA C CHIP CERA 50V CH 5PF D 1608 1 HC577
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC578
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC579
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC580
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC581
DATHCQK220JBA C CHIP CERA 50V CH 22PF J 1608 1 HC582
DATTZRC107S TR CHIP KRC107S 1 HQ501
DATTZTD1304 TR CHIP KTD1304 1 HQ503
DATTZTA1504S TR CHIP KTA1504S 1 HQ504
DATTZTA1504S TR CHIP KTA1504S 1 HQ505
DATTZTD1304 TR CHIP KTD1304 1 HQ506
DATTZRA107S TR CHIP KRA107S 1 HQ507
DATHRF2109JEA R CHIP 1/2W 1 OHM J 3216 1 HR500
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR501
- 17 -

DATHRFT121JBA R CHIP 1/10 120 OHM J 1608 1 HR502
DATHRFT121JBA R CHIP 1/10 120 OHM J 1608 1 HR503
DATHRF2109JEA R CHIP 1/2W 1 OHM J 3216 1 HR504
DATHRFT333JBA R CHIP 1/10 33K OHM J 1608 1 HR505
DATHRFT222JBA R CHIP 1/10 2.2K OHM J 1608 1 HR506
DATHRFT333JBA R CHIP 1/10 33K OHM J 1608 1 HR508
DATHRFT562JBA R CHIP 1/10 5.6K OHM J 1608 1 HR509
DATHRFT821JBA R CHIP 1/10 820 OHM J 1608 1 HR510
DATHRFT123JBA R CHIP 1/10 12K OHM J 1608 1 HR511
DATHRFT334JBA R CHIP 1/10 330K OHM J 1608 1HR512
DATHRFT473JBA R CHIP 1/10 47K OHM J 1608 1 HR513
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR514
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR515
DATHRFT221JBA R CHIP 1/10 220 OHM J 1608 1 HR516
DATHRFT470JBA R CHIP 1/10 47 OHM J 1608 1HR517
DATHRFT330JBA R CHIP 1/10 33 OHM J 1608 1 HR518
DATHRFT821JBA R CHIP 1/10 820 OHM J 1608 1 HR519
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR520
DATHRFT105JBA R CHIP 1/10 1M OHM J 1608 1 HR521
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR522
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR523
DATHRFT334JBA R CHIP 1/10 330K OHM J 1608 1 HR525
DATHRFT332JBA R CHIP 1/10 3.3K OHM J 1608 1 HR526
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR527
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR528
DATHRFT151JBA R CHIP 1/10 150 OHM J 1608 1 HR529
DATHRFT223JBA R CHIP 1/10 22K OHM J 1608 1 HR530
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR531
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR532
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR533
DATHRFT331JBA R CHIP 1/10 330 OHM J 1608 1 HR534
DATHRFT332JBA R CHIP 1/10 3.3K OHM J 1608 1 HR535
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR536
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR537
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR538
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR539
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR540
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR541
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR542
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR543
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR544
DATHRFT272JBA R CHIP 1/10 2.7K OHM J 1608 1 HR545
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR546
DATHRFT151JBA R CHIP 1/10 150 OHM J 1608 1 HR547
DATHRFT151JBA R CHIP 1/10 150 OHM J 1608 1 HR548
- 18 -

DATHRFT220JBA R CHIP 1/10 22 OHM J 1608 1 HR549
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR550
DATHRFT272JBA R CHIP 1/10 2.7K OHM J 1608 1 HR551
DATHRFT471JBA R CHIP 1/10 470 OHM J 1608 1HR552
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR553
DATHRFT104JBA R CHIP 1/10 100K OHM J 1608 1 HR554
DATHRFT333JBA R CHIP 1/10 33K OHM J 1608 1 HR555
DATHRFT682JBA R CHIP 1/10 6.8K OHM J 1608 1 HR556
DATHRFT822JBA R CHIP 1/10 8.2K OHM J 1608 1HR557
DATHRFT330JBA R CHIP 1/10 33 OHM J 1608 1 HR558
DATHRFT681JBA R CHIP 1/10 680 OHM J 1608 1 HR559
DATHRFT339JBA R CHIP 1/10 3.3 OHM J 1608 1 HR560
DATHRFT681JBA R CHIP 1/10 680 OHM J 1608 1 HR562
DATHRFT124JBA R CHIP 1/10 120K OHM J 1608 1HR563
DATHRFT102JBA R CHIP 1/10 1K OHM J 1608 1 HR564
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR565
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR567
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR570
DATHRFT330JBA R CHIP 1/10 33 OHM J 1608 1 HR571
DATHRFT330JBA R CHIP 1/10 33 OHM J 1608 1 HR572
DATHRFT153JBA R CHIP 1/10 15K OHM J 1608 1 HR573
DATHRFT153JBA R CHIP 1/10 15K OHM J 1608 1 HR574
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR579
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR580
DATHRFT332JBA R CHIP 1/10 3.3K OHM J 1608 1 HR581
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR582
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR583
DATHRFT332JBA R CHIP 1/10 3.3K OHM J 1608 1 HR584
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR585
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR586
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR587
DATHRFT101JBA R CHIP 1/10 100 OHM J 1608 1 HR589
DATHRFT820JBA R CHIP 1/10 82 OHM J 1608 1 HR591
DATHRFT682JBA R CHIP 1/10 6.8K OHM J 1608 1 HR592
DATHRFT682JBA R CHIP 1/10 6.8K OHM J 1608 1 HR593
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR594
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR595
DATHRFT103JBA R CHIP 1/10 10K OHM J 1608 1 HR596
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR597
DATHRFT472JBA R CHIP 1/10 4.7K OHM J 1608 1 HR598
DATHRFT822JBA R CHIP 1/10 8.2K OHM J 1608 1 HR599
DATHRFT683JBA R CHIP 1/10 68K OHM J 1608 1 HR600
DATHRFT223JBA R CHIP 1/10 22K OHM J 1608 1 HR601
DATHRFT105JBA R CHIP 1/10 1M OHM J 1608 1 HR602
DATHRFT000BA R CHIP 1/10 0 OHM J 1608 1 HR603
- 19 -
