Sanyo VHR-330 User manual

INSTRUCTION MANUAL
Video cassetterecorder
Si o
VHR=330

r

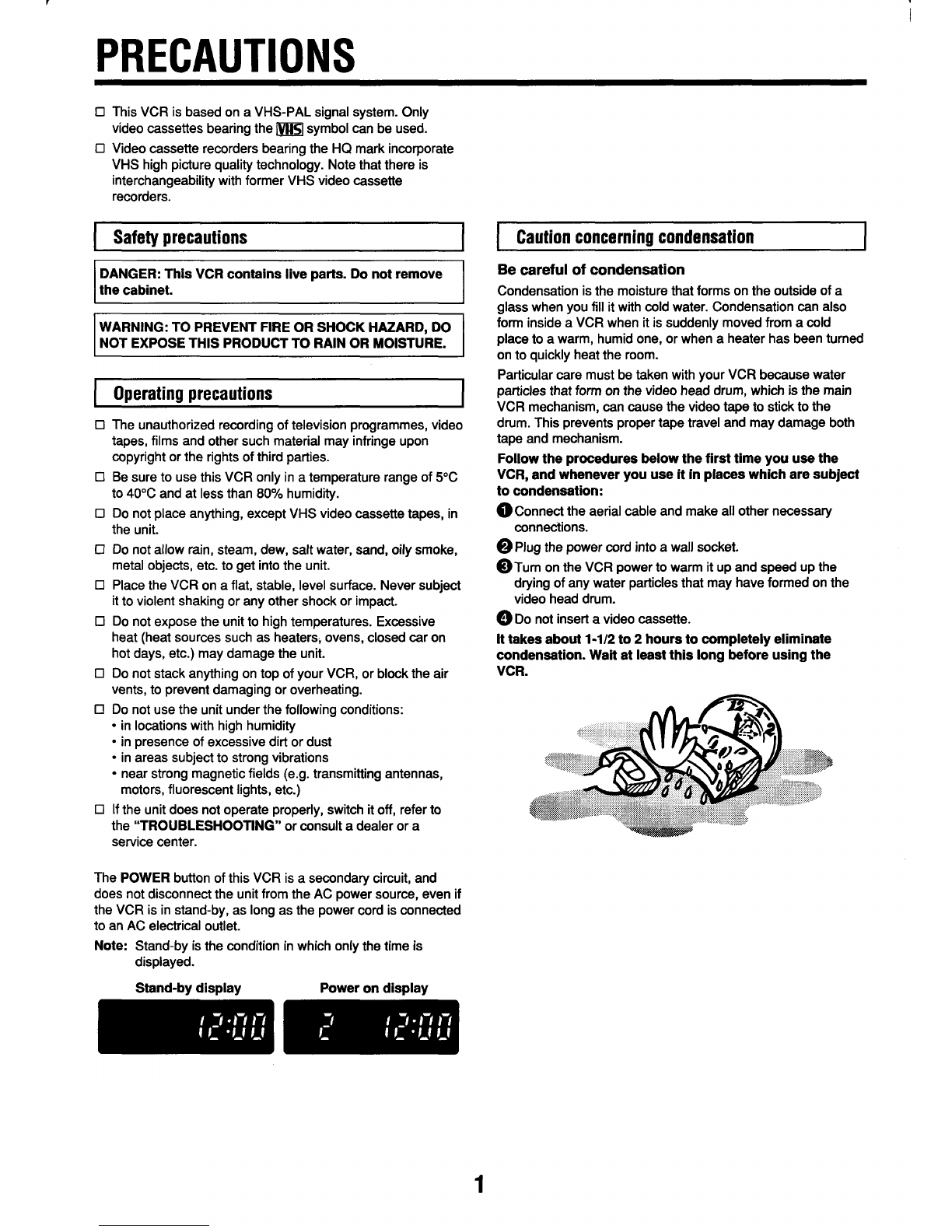

PRECAUTIONS
❑
❑
This VCR is based on aVHS-PAL signal system. Only
video cassettes bearing the ~symbol can be used.
Video cassette recorders bearina the HQ mark incorporate
VHS high picture quality technol~gy. Note that there-is
interchangeability with former VHS video cassette
recorders.
ISafety precautions IICaution concerning condensation I
DANGER: This VCR contains live parts. Do not remove
the cabinet.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Operating precautions I
•1
•1
•1
❑
❑
•1
❑
•1
❑
The unauthorized recording of television programmed, video
tapes, films and other such material may infringe upon
copyright or the rights of third parties.
Be sure to use this VCR only in atemperature range of 5°C
to 40°C and at less than 80% humidity.
Do not place anything, except VHS video cassette tapes, in
the unit.
Do not allow rain, steam, dew, salt water, sand, oily smoke,
metal objects, etc. to get into the unit.
Place the VCR on aflat, stable, level surface. Never subject
it to violent shaking or any other shock or impact.
Do not expose the unit to high temperatures. Excessive
heat (heat sources such as heaters, ovens, closed car on
hot days, etc.) may damage the unit.
Do not stack anything on top of your VCR, or block the air
vents, to prevent damaging or overheating.
Do not use the unit under the following conditions:
●in locations with high humidity
●in presence of excessive dirt or dust
●in areas subject to strong vibrations
●near strong magnetic fields (e.g. transmitting antennas,
motors, fluorescent lights, etc.)
If the unit does not oDerate moDerlv, switch it off. refer to
the “TROUBLESHO’OTING””o; co&ult adealer”or a
service center.
The POWER button of this VCR is asecondary circuit, and
does not disconnect the unit from the AC power source, even if
the VCR is in stand-by, as long as the power cord is connected
to an AC electrical outlet.
Note: Stand-by is the condition in which only the time is
displayed.
Stand-by display
mlBllllPower on display
Be careful of condensation
Condensation is the moisture that forms on the outside of a
glass when you fill it with cold water. Condensation can also
form inside aVCR when it is suddenly moved from acold
place to awarm, humid one, or when aheater has been turned
on to quickly heat the room.
Particular care must be taken with your VCR because water
particles that form on the video head drum, which is the main
VCR mechanism, can cause the video tape to stick to the
drum. This prevents proper tape travel and may damage both
tape and mechanism.
Follow the procedures below the first time you use the
VCR, and whenever you use it in places which are subject
to condensation:
@Connect the aerial cable and make all other necessary
connections.
@Plug the power cord into awall socket.
@Turn on the VCR power to warm it up and speed up the
drying of any water particles that may have formed on the
video head drum.
@Do not insert avideo cassette.
Ittakes about 1-1/2 to 2hours to completely eliminate
condensation. Wait at least this long before using the
VCR.
1

ii
CONTENTS
PRECAUTIONS ..................................................................................................................................... 1
CONNECTIONS .................................................................................................................................. 3
Aerial/RF connection .....................................................................................................................................3
AV connection ..............................................................................................................................................3
Remote control batteries insertion ...............................................................................................................3
CHANGING OR CORRECTING THE SETTINGS ...................................................................................7

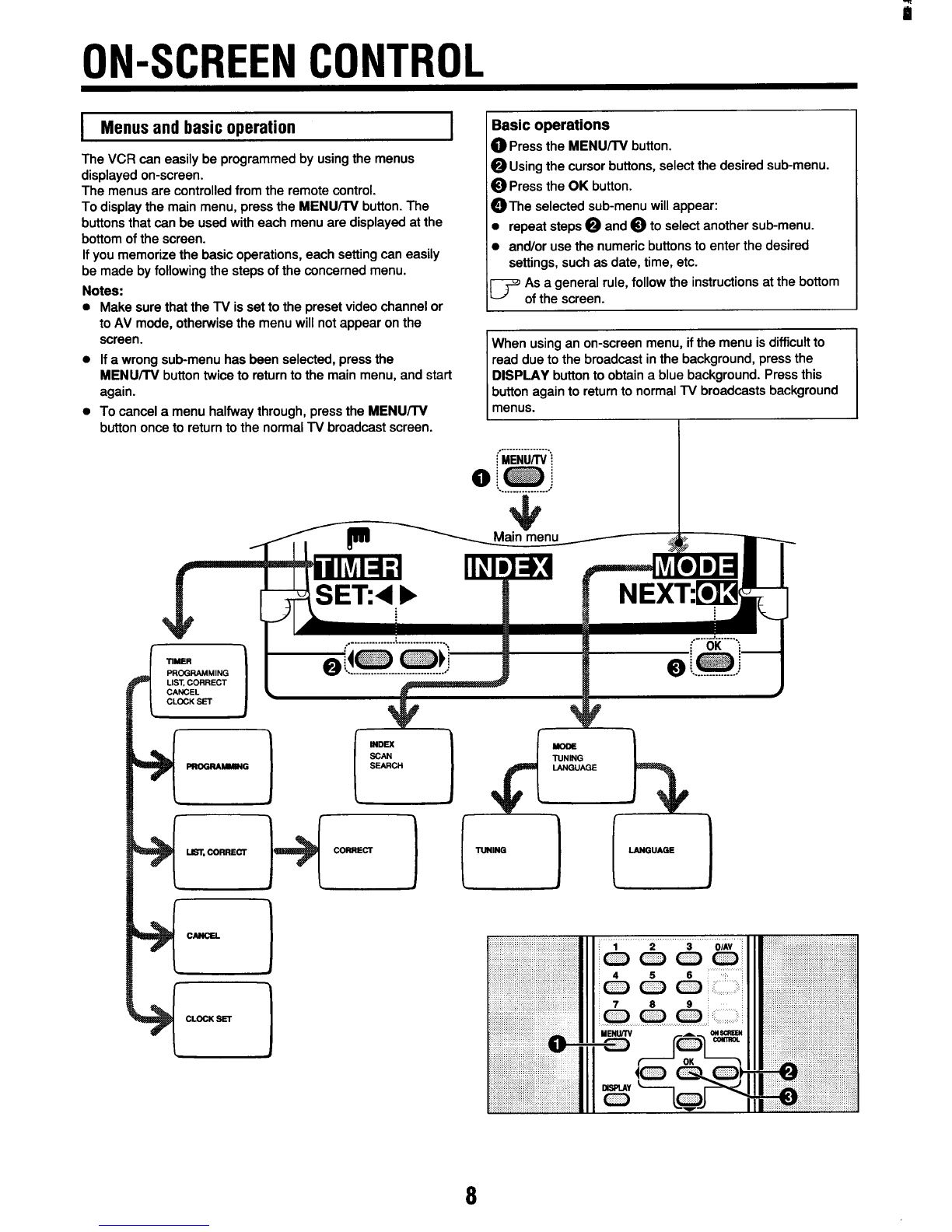

ON-SCREEN CONTROL
Menus and basic operation ...........................................................................................................................8

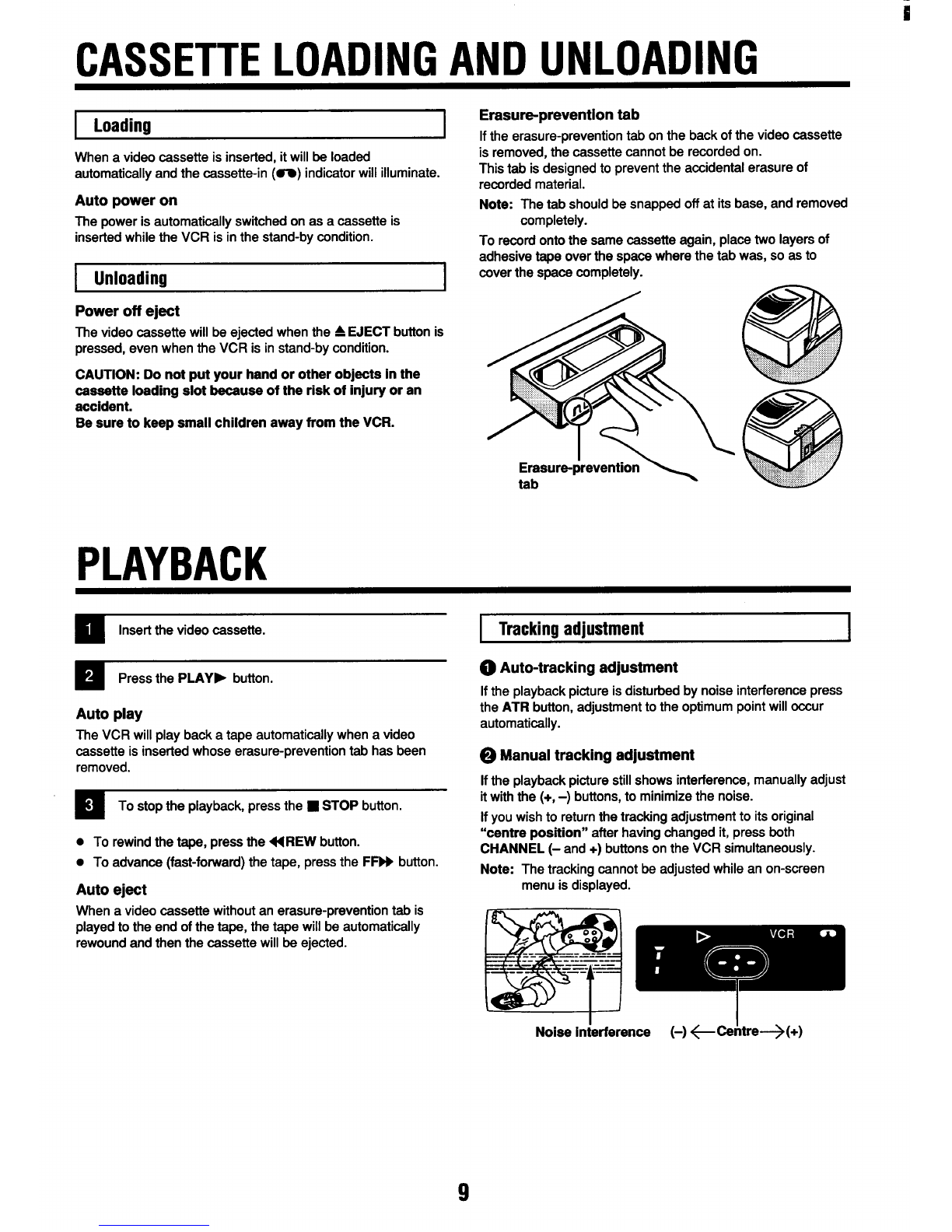

PLAYBACK CASSEllE LOADING AND UNLOADING ............................................................................................9
PLAYBACK......................................................................................................................................... 9
Tracking adjustment .....................................................................................................................................9
SPECIAL PLAYBACK........................................................................................................................10
Forward search, Reverse search, Still picture, Frame advance ...................................................................l O
COUNTER MEMORY ........................................................................................................................10
IMMEDIATE RECORDING
RECORDING TELEVISION BROADCASTS ........................................................................................11
Recording dumtion .....................................................................................................................................ll
Quick Start Recording (QSR) timer ............................................................................................................l 1
Other recording possibilities .......................................................................................................................l 1
TIMER RECORDING
TAPE SEARCH

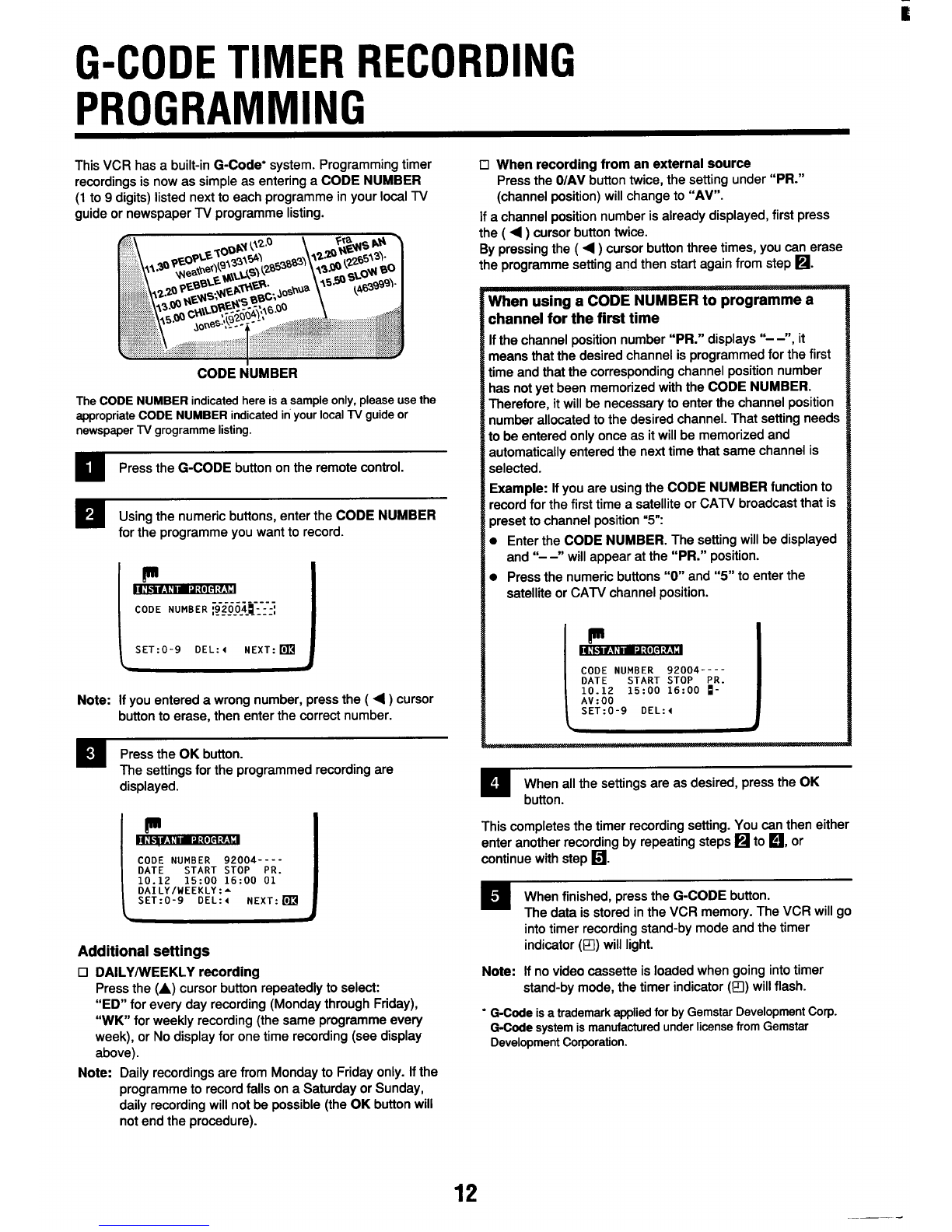

G-CODE TIMER RECORDING PROGRAMMING ...............................................................................12

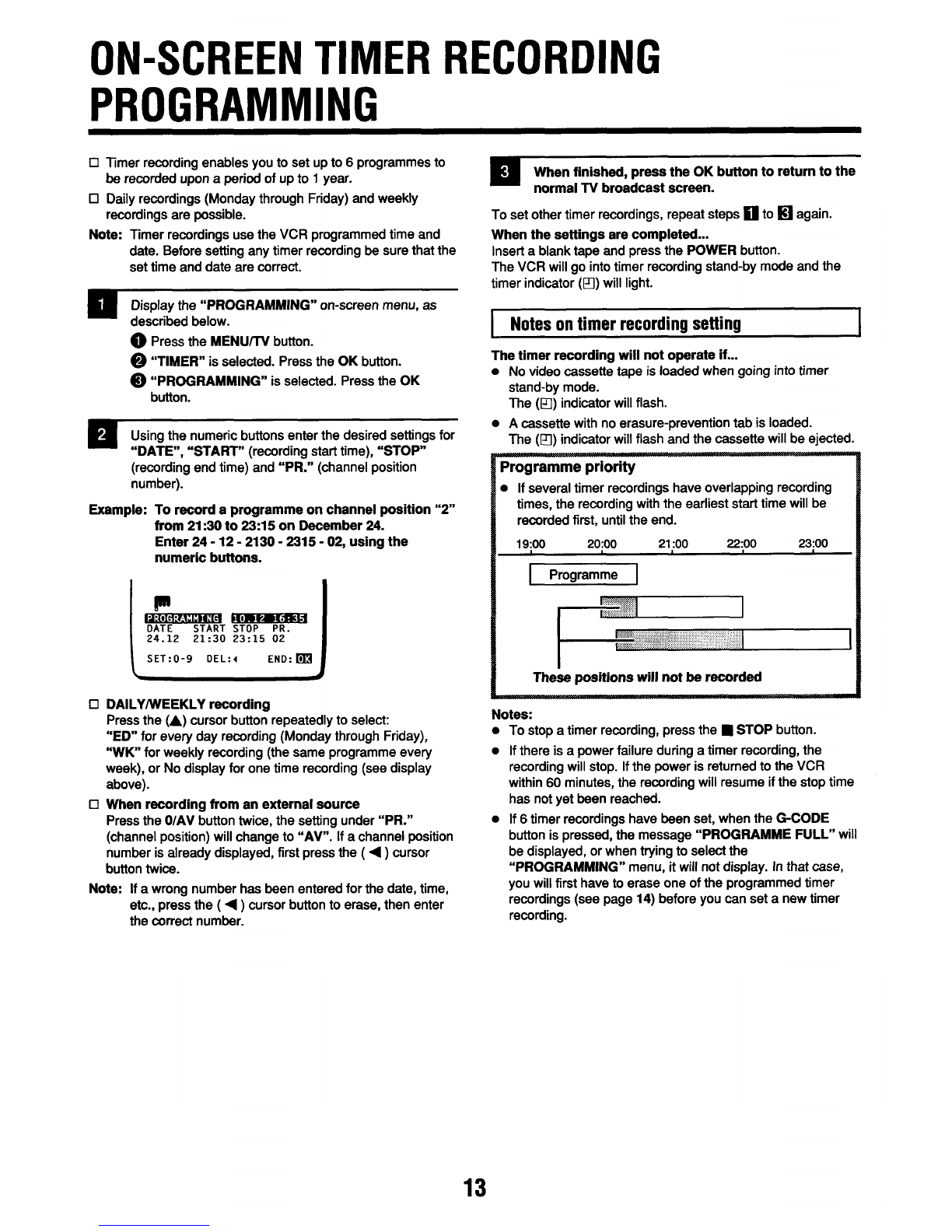

ON-SCREEN TIMER RECORDING PROGRAMMING ........................................................................13
Notes on timer recording setting ................................................................................................................l3
EDITING TIMER RECORDINGS SElllNGS ......................................................................................14
Displaying alist of timer recordings and revising timer recording settings ................................................l4
Erasing aprogrammed timer recording ......................................................................................................l4
FUNCTION
INDEX SEARCH FUNCTION .............................................................................................................15
Index scan search, Index search.................................................................................................................l5
COPYING ATAPE ............................................................................................................................
BUllONS AND DISPLAYS ...............................................................................................................#
TROUBLESHOOTING .......................................................................................................................18
SPECIFICATIONS ................................................................................................................Backpage
REPAIRS ..............................................................................................................................Backpage
2

ii
CONNECTIONS
Aerial/RF connection
@lJnplug the aerial cable from your TV receiver and
reconnect it to the terminal marked ANT IN on the VCR.
@Connect the aerial output cable supplied as an accessory
with the VCR to the ANT OUT terminal on the VCR.
@Connect the other end of this aerial output cable to the TV
receiver.
@Plug the power cord into the VCR power socket before
using the unit. Insert the plug straight and firmly.
~Insert the plug of the power cord into the wall socket.
Both video and audio (monaural) signals are fed to the TV
receiver and can be viewed by setting the TV receiver to your
preset video channel. (See page 4.)
AV connection
1Remote control batteries insertion
@Open the lid.
@Insert 2“AA (IEC R6)” 1.5 volts batteries according to the
@and@ signs.
@Replace the lid.
Notes:
●
●
●
●
Operate the remote control unit within arange of approx.
30” from the front of the VCR.
Operate the unit within approx. 6m(20 ft) from the front of
the VCR.
The battery life under normal operating conditions is about
six months. If the batteries become weak, the operating
distance will decrease; when this occurs, replace both
batteries.
If the remote control unit is not to be used for along period
of time, remove the batteries.
If your TV receiver has avideo/audio input terminals, the
following AV connections are also ~ossible. The AV cable is
sold separately.
●Connect the AUDIO/VIDEO OUT terminals on the VCR to
the video/audio terminals on the TV receiver.
●Both video and audio signals are fed to the TV receiver.
●The advantage of this connection is ahigher quality of
picture and sound during playback.
●If you play back atape, set to the TV receiver to the AV
mode.
Note: To switch the TV input mode, refer to the instruction
manual of the TV. 220-240V AC
i!lle-]
3

VCR PRESETTING
PAfter all connections have been made, insert
the remote control batteries then follow steps 1
0to 4to preset the VCR.
The 4presetting steps will be displayed in
sequence on your TV screen. The settings are
entered with the remote control.
●If you are not presetting the VCR for the first time, pIease
refer to page 7.
ITurn on the VCR and the TV. I
v
Press the TV/VCR button to display “VCR” on
the VCR digital display.
v
ITurn on the VCR and the TV. I
vThe following setting is only necessary when no AV connection
to the Nwas made.
If the VCR has been connected to the TV using the “AV
connection’” described in “CONNECTIONS”, simply set the
TV to the AV mode and the welcome screen will appear on
your screen.
IPress the TV/VCR button to display “VCR” on
the VCR diaital disolav. I
When using the “RF connection” described in
“CONNECTIONS”, the signals from the VCR are converted to
aradio frequency (RF) for viewing on an ordinary TV receiver.
OSet the TV receiver to channel 2or 3. (Choose the channel
that is not used for broadcasting in your area.)
@Then set the video channel select switch, on the rear of the
VCR, to the “CH 2“ or “CH 3“ position, corresponding to
the channel selected on the TV receiver.
oAdjust the channel tuning control on the TV (or fine tuning
control) so that the welcome screen is clear.
When using the VCR, set the TV receiver to this channel 2or 3.
This is your video channel.
To view atape playback or to watch aTV broadcast tuned on
the VCR tuner, set the TV to the video channel.
When the video channel has been preset, press the OK
button on the remote control.
v
-%
4
iP-1When steps 1to 4havo been completed, you are
readv to use the VCR. I
(r? ““”-
~,.................
~;:::,:.,~
‘;:y “y
‘~’ :,.....:,;;;’!.....!”..’
H~;“’””’””“:
..... ...

i

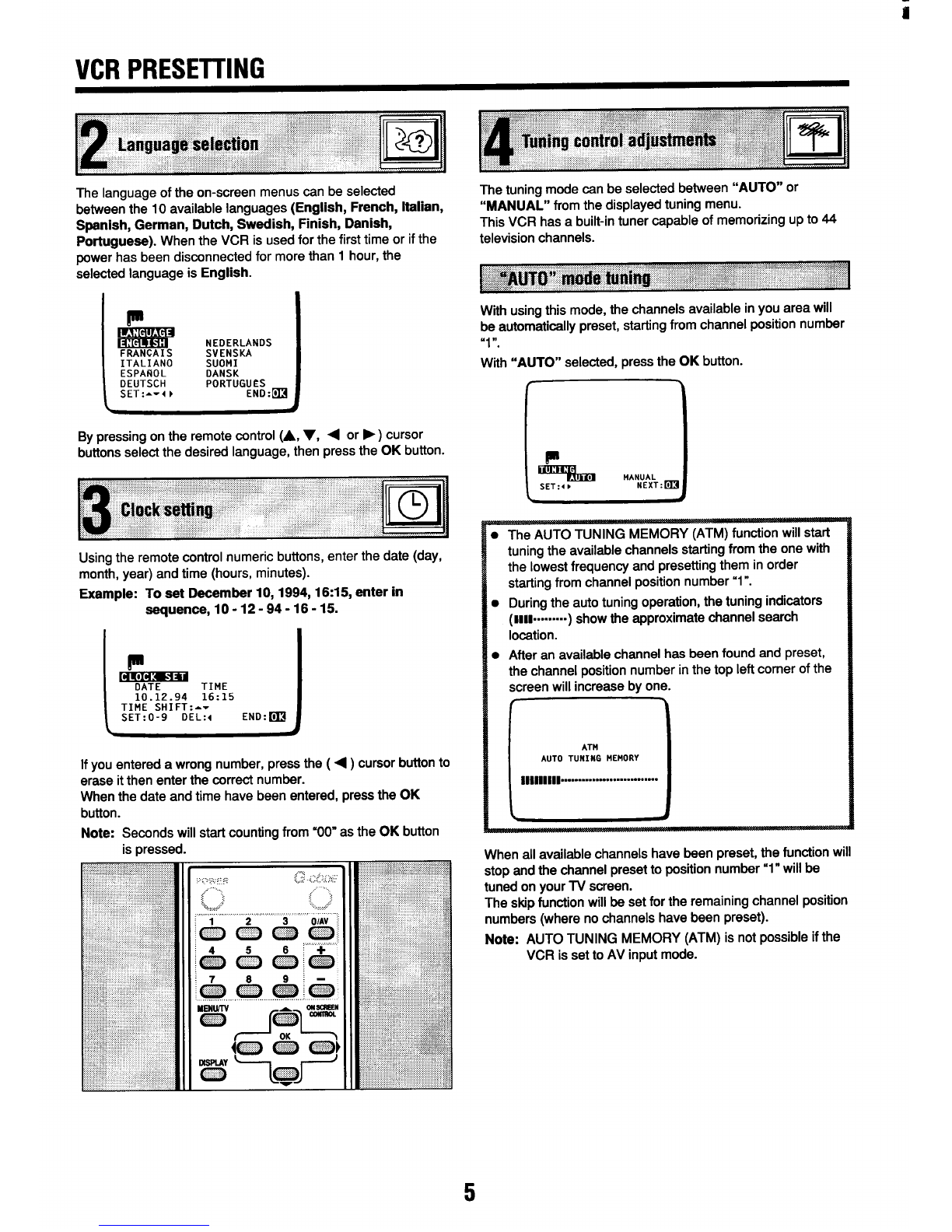

VCR PRESETTING
The language of the on-screen menus can be selected
between the 10 available languages (English, French, Italian,
Spanish, German, Dutch, Swedish, Finish, Danish,
Portuguese). When the VCR is used for the first time or if the
oower has been disconnected for more than 1hour, the
selected language is English.
Im
II!!w!E?
NED ERLANDS
FRANCAIS SVENSKA
ITALIANO SUOMI
ES PANOL DANSK
DEUTSCH PORTUGUES
SET: L-4 )ENO :m
BYpressing on the remote control (A, 7, 4or ➤)cursor
bu~ons sei&t the desired language, then press the OK button.
Using the remote control numeric buttons, enter the date (day,
month, year) and time (hours, minutes).
Example: To set December 10, 1994, 16:15, enter in
aequence,10 -12-94-16-15.
P
TIME
10.12.94 16:15
TIME SHIFT:A=
SET: O-9 DEL:4 END:~
If you entered awrong number, press the (<)cursor button to
erase it then enter the correct number.
When the date and time have been entered, press the OK
button.
Note: Seconds will start counting from “00” as the OK button
is pressed.
The tuning mode can be selected between “AUTO or
“MANUAL” from the displayed tuning menu.
This VCR has abuilt-in tuner capable of memorizing up to 44
television channels.
With using this mode, the channels available in you area will
be automatically preset, starting from channel position number
“1“.
With “AUTO” selected, press the OK button.
El
+MANUAL
NEXT:m
●The AUTO TUNING MEMORY (ATM) function will statt
tuning the available channels starting from the one with
the lowest frequency and presetting them in order
starting from channel position number”1”.
●During the auto tuning operation, the tuning indkators
(Ill ......... )show the approximate channel search
location.
●After an available channel has been found and preset,
the channel position number in the top left comer of the
screen will increase by one.
a.
ATM
AUTO TUNI N6 MEMORY
111111111 ............................
—.
When all available channels have been preset, the function will
stop and the channel preset to position number”1” will be
tuned on your TV screen.
The skip function will be set for the remaining channel position
numbers (where no channels have been preset).
Note: AUTO TUNING MEMORY (ATM) is not possible if the
VCR is set to AV input mode.
5

ii

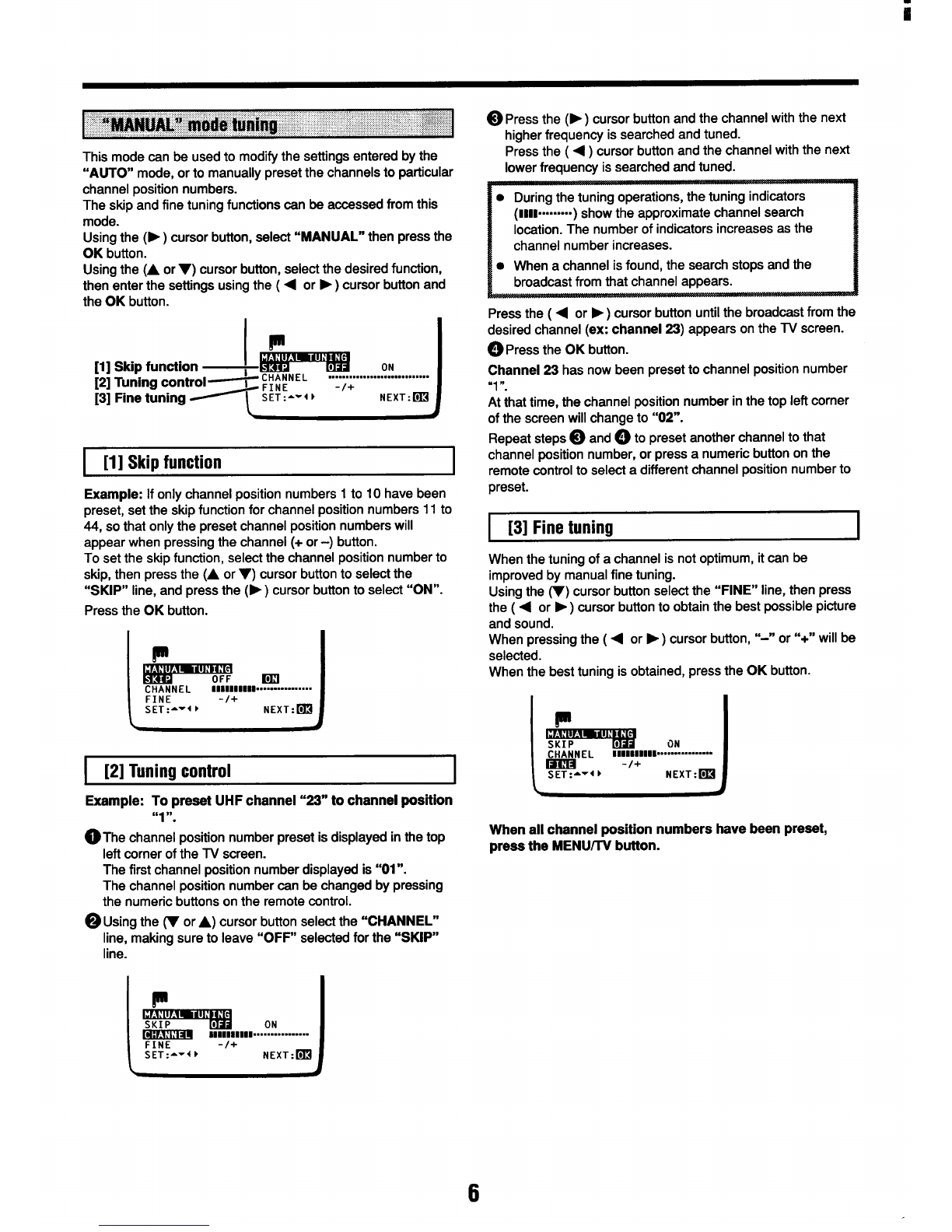

This mode can be used to modify the settings entered by the
“AUTO mode, or to manually preset the channels to patiicular
channel position numbers.
The skip and fine tuning functions can be accessed from this
mode.
Using the (~) cursor button, select “MANUAL” then press the
OK button.
Using the (A or Y) cursor button, select the desired function,
then enter the settings using the (<or ➤)cursor button and
the OK button.
,+ ON
[1] Skip function —
[2] Tuning control .............................
131~ne tuning< !l!~--< ~“+ NEXT:~ I
I[1] Skip function
Example: If only channel position numbers 1to 10 have been
preset, set the skip function for channel position numbers 11 to
44, so that only the preset channel position numbers will
appear when pressing the channel (+ or-) button.
To set the skip function, select the channel position number to
skip, then press the (A or V) cursor button to select the
“SKIP” line, and press the (~) cursor button to select “ON”.
Press the OK button.
l=+:xT:ml
Insmlmmmms................
I[2] Tuning control I
Example: To preset UHF channel “23” to channel position
.
OThe cha~~~l position number preset is displayed in the top
left corner of the TV screen.
The first channel position number displayed is “01”.
The channel position number can be changed by pressing
the numeric buttons on the remote cmntrol.
@Using the mor A) cursor button select the “CHANNEL”
line, making sure to leave “OFF” selected for the “SKIP
oPress the(P) cursor button and the channel with the next
higher frequency is searched and tuned.
Press the (+)cursor button and the channel with the next
lower frequenti is searched and tuned.
●During the tuning operations, the tuning indicators
(1111.....=.-.)show the approximate channel search
location. The number of indicators increases as the
channel number increases.
●When achannel is found, the search stops and the
broadcast from that channel appears.
Press the (<or E)cursor button until the broadcast from the
desired channel (ex: channel 23) appears on the TV screen.
@Press the OK button.
Channel 23 has now been preset to channel position number
1.
““
At that time, the channel position number in the top left corner
of the screen will change to “02”.
Repeat steps oand@ to preset another channel to that
channel position number, or press anumeric button on the
remote control to select adifferent channel position number to
preset.
[3] Fine tuning I
When the tuning of achannel is not optimum, it can be
improved by manual fine tuning.
Using the (7) cursor button select the “FINE” line, then press
the (<or E)cursor button to obtain the best possible picture
and sound.
When pressing the (<or ➤)cursor button, “-” or “+” will be
selected.
When the best tuning is obtained, press the OK button.
Ik~,
CHANNEL Dntmtolmll ................
-/+
SET:As4~ NEXT:~
When all channel position numbers have been preset,
press the MENWTV button.
line.
k
p,,:,=...!: .........
SET:A=4~ NEXT:~
6

ii
CHANGING OR CORRECTING THE SETTINGS
Note: If the digital display displays ”-: --”, the time, date
(and recording programmed) should be reset.
Press the MENWTV button, the main menu is displayed.
Press the (<or F)cursor button to select the desired menu
(TIMER, INDEX or MODE) then follow the steps below to
modify or correct asetting.
The input procedure is the same as for VCR PRESETTING
starting on page 4.
Note: The welcome screen is only displayed when the VCR is
connected for the first time or if the power to the VCR
has failed or has been disconnected for more than 1
hour.
Normally, once it has been set, the video channel does not
need to be changed.
If you change your TV receivers, or for any other reason, the
video channel can be set by playing back atape on the VCR
and adjusting the tuning on the TV receiver as described (see
page 4).
OPress the MENIJTV button.
@“TIMER” is selected.
oPress the OK button.
@Using the (7) cursor button, select “CLOCK SET”.
6Press the OK button.
For time shifting (TIME SHl~ adjustment (Summer/
Standard time), simply press the (A or 7) cursor
button.
OPress the MENWTV button.
@Using the (~) cursor button, select “MODE”.
oPress the OK button.
@Using the (Y) cursor button, select “LANGUAGE”.
@Press the OK button.
OPress the MENU/lV button.
@Using the (~) cursor button, select “MODE.
oPress the OK button.
O“TUNING” is selected.
@Press the OK button.
7

ON-SCREEN CONTROL
Menus and basic operation
The VCR can easily be programmed by using the menus
displayed on-screen.
The menus are controlled from the remote control.
To display the main menu, press the MENWTV button. The
buttons that can be used with each menu are displayed at the
bottom of the screen.
If you memorize the basic operations, each setting can easily
be made by following the steps of the concerned menu.
Notes:
●
●
●
Make sure that the TV is set to the preset video channel or
to AV mode, otherwise the menu will not appear on the
screen.
If awrong sub-menu has been selected, press the
MENWTV button twice to return to the main menu, and stati
again.
To cancel amenu halfway through, press the MENU/lV
button once to return to the normal TV broadcast screen.
Basic operations
@Press the MENU/lV button.
@Using the cursor buttons, select the desired sub-menu.
@Press the OK button.
@The selected sub-menu will appear:
●repeat steps @and @to select another sub-menu.
●and/or use the numeric buttons to enter the desired
settings, such as date, time, etc.
~As agen eral rule, follow the instructions at the bottom
of the screen.
When using an on-screen menu, if the menu is difficult to
read due to the broadcast in the background, press the
DISPLAY button to obtain ablue background. Press this
button again to return to normal TV broadcasts background
menus.
...................
Q[“&~j
II
/P Main menu ....
ITVF%
.............
........... .......... Hix .....
0:,W+(J, ;
PROGRAMMING
~~(m -))
.. ............................... Q!*!
LIST, CORRECT %.. ........
CANCEL
CLCZK SET I-J
INDEX
SCAN
SEARCH
a
CORRECT
IMDDEI
u
CANCEL
CLOCK SET
8

i
CASSETTE LOADING AND UNLOADING
Loading
When avideo cassette is inserted, it will be loaded
automatically and the cassette-in (-) indicator will illuminate.
Auto power on
The power is automatically switched on as a cassette is
inserted while the VCR is in the stand-by condition.
IUnloading I
Power off eject
The video cassette will be ejected when the AEJECT button is
pressed, even when the VCR is in stand-by condition.
CAUTION: Do not put your hand or other objects in the
cassette loading slot because of the risk of injury or an
accident.
Be sure to keep small children away from the VCR.
PLAYBACK
Erasureprevention tab
If the erasure-prevention tab on the back of the video cassette
is removed, the cassette cannot be recorded on.
This tab is designed to prevent the accidental erasure of
recorded material.
Note: The tab should be snapped off at its base, and removed
completely.
To record onto the same cassette again, place two layers of
adhesive tape over the space where the tab was, so as to
cover the space completely.
~o
,.,..
.,.,.:..
0
,,.,,,.
“?
‘“’’f.:,: ~
Erasura-~revention
tab
Insert the video cassette.
Press the PLAY* button.
Auto piay
The VCR will play back atape automatically when avideo
cassette is inserted whose erasure-prevention tab has been
removed.
To stop the playback, press the 9STOP button.
●TO rewind the tape, press the 4REW button.
●To advance (fast-forward) the tape, press the FFW button.
Auto eject
When avideo cassette without an erasure-prevention tab is
played to the end of the tape, the tape will be automatically
rewound and then the cassette will be ejected.
ITracking adjustment I
~Auto-tracking adjustment
If the playback picture is disturbed by noise interference press
the ATR button, adjustment to the optimum point will occur
automatically.
@Manuai tracking adjustment
if the playback picture still shows interference, manually adjust
it with the (+, -) buttons, to minimize the noise.
If you wish to return the tracking adjustment to its original
“centre position” after having changed it, press both
CHANNEL (- and+) buttons on the VCR simultaneously.
Note: The tracking cannot be adjusted while an on-screen
menu is displayed.
IlmpliB
Noise interference (-) ~CeJtre~(+)
9

SPECIAL PLAYBACK
IForward search
•1
•1
Press the FFEF button during playback or fast-forward
operation. The picture can be viewed while the tape is
advanced at afast speed.
Normal playback will resume as the PLAY> button is
pressed.
IReverse search I
❑Press the 44REW button during playback or rewind
operation. The picture can be viewed while the tape is
rewound at afast speed.
❑Normal playback will resume when the PLAY> button is
pressed.
Note: To search for aparticular scene you can switch from
fast forward to forward search and vice versa by simply
pressing the FFM button, or from rewind to reverse
search by simply pressing the 44 REW button.
Still picture
❑Press the II PAUSE/STILL button during playback. Astill
picture can be viewed.
❑Normal playback will resume when the PLAY- button is
pressed.
Stiii verticai iock adjustment
❑If the still picture moves up and down, press the (+, -)
buttons to adjust the still picture.
COUNTER MEMORY
Frame advance I
❑
El
Press the II PAUSESTILL button during still playback to
advance the picture frame by frame. Each press advances
one frame.
Normal playback will resume when the PLAY* button is
pressed.
Notes:
●If still picture playback is continued for about five minutes,
the VCR will automatically change to stop mode in order to
prevent the tape from being damaged.
●During special playback modes the picture may contain
some noise or vibration. But this is not amalfunction.
This convenient feature for finding the beginning of aspecific
recording etc., is made possible by the “Linear Time
Counter” that indicates the tape run time in hours, minutes
and seconds.
●Whenever you load acassette tape, the counter will be
reset to “0:00:00”.
●The counter operates using control signals which are
recorded on the tape, hence if you play back atape or
portion of tape which has nothing recorded on it, the counter
will not operate.
Notes:
●When rewinding further back from position “0:00:00”, the
counter shows figures beginning with “-”.
.The tape stops at the memorized position even when using
fast forward when the counter reading begins with “-”.
Press the RESET then the MEMORY button before
starting recording or playback. The zero point of the
counter is now memorized and the memory indicator
“~” will illuminate.
When the 44REW button is pressed at the end of
recording, or playback, the tape will be rewound
automatically to the memorized position and then stop.
10

RECORDING TELEVISION BROADCASTS
Insert avideo cassette.
❑Press the TV/VCR button to display “VCR” on the VCR
display.
Press the numeric buttons, or the (+ or -) button, to
select the channel to be recorded.
Example: Position number “2”
Press the ●REC buttons.
Video recording starts. This is the normal video
recording procedure.
Mis-arasure prevention eject
The cassette will automatically be ejected if recording is
attempted on avideo cassette without an erasure-prevention
tab.
To stop the recording, press the ■STOP button.
Auto rewind
The VCR automatically rewinds the tape when it reaches the
end. This function does not operate with timer recording or
QSR timer recording.
Quick Start Recording (QSR) timer
Timer recording is simpie.
You can start arecording and then programme when the VCR
is to stop recording and go to stand-by mode automatically.
~Presa the ●REC buttons to start recording.
@Press the ●REC buttons again and the “QSR --:- -“
indication will display on the TV screen. The timer indicator
(Q) will light after the recording end time is set.
Within 10 seconds, set the recording end time by using the
●RECand (+ or -) buttons.
❑Each press of the. REC buttons will advance the
recording end time by units of 30 minutes.
•l Each press of the +button will advance the recording
end time by units of 1minute.
•l Each press of the -button will retard the recording end
time by units of 1minute.
r)
QSR ..:. -I
~QSR 12:35
❑To stop the recording at any time, press the ■STOP
button.
Checking/Changing
When the ●REC buttons are pressed during QSR recording,
the recording end time will blink for 10 seconds.
The recording end time can be changed by pressing the
●REC and (+ or -) buttons during this 10-second period.
IOther recording possibilities I
)1
if you wish to avoid recording unwanted materiai
ODuring recording, press the II PAUSEA3TILL button.
The TV picture and sound will not be recorded.
@Press the II PAUS13STILL buttonor ●REC buttons,and
the recording will resume.
Note: If the record pause mode continues for about five
minutes, the VCR will automatically go into the stop
mode in order to prevent damage to the tape.
Recording one programme whiie watching another
@Start recording the desired TV programme selected on the
VCR.
@Press the TV/VCR button to erase “VCR” on the VCR
display.
@Select on the TV receiver the programme you want to
watch.
11

i
G-CODE TIMER RECORDING
PROGRAMMING
CODE NUMBER
The CODENUMBER indicatedhere isasampleonly,please usethe
appropriateCODE NUMBER indicatedinyourlocalTV guideor
newspaperTV grogrammelisting.
Press the G-CODE button on the remote control.
Using the numeric buttons, enter the CODE NUMBER
for the programme you want to record.
P
-----------
CODE NUMBER ;W_IJ)~-a~:::
SET: O-9 OEL:< NEXT: ~
\J
Note: If you entered awrong number, press the (<)cursor
button to erase, then enter the correct number.
Press the OK button.
The settings for the programmed recording are
displayed.
I---J
P... ..
I;~~~ NUMBER 92004 ----
START STOP PR.
10.12 15:00 16:00 01
OAILY/WEEKLY:A
SET: O-9 OEL:< NEXT: ~
Additional settings
❑DAILY/WEEKLYrecording
Press the (A) cursor button repeatedly to select:
“ED” for every day recording (Monday through Friday),
“WK” for weekly recording (the same programme every
week), or No display for one time recording (see display
above).
Note: Daily recordings are from Monday to Friday only. If the
programme to record falls on aSaturday or Sunday,
daily recording will not be possible (the OK button will
not end the procedure).
❑When recording from an external source
Press the O/AV button twice, the setting under “PR.”
(channel position) will change to “AV”.
If achannel position number is already displayed, first press
the (<)cursor button twice.
By pressing the (<)cursor button three times, you can erase
the programme setting and then start again from step ❑.
When using aCODE NUMBER to programme a
~hannel for the first time
Ifthe channel position number “PR.” displays “--”, it
neans that the desired channel is programmed for the first
ime and that the corresponding channel position number
las not yet been memorized with the CODE NUMBER.
Therefore, it will be necessary to enter the channel position
mmbar allocated to the desired channel. That setting needs
to be entered only once as it will be memorized and
automatically entered the next time that same channel is
selected.
Example: If you are using the CODE NUMBER function to
record for the first time asatellite or CATV broadcast that is
weset to channel position “5”:
●Enter the CODE NUMBER. The setting will be displayed
and “--” will appear at the “PR.” position.
●Press the numeric buttons “O” and “5” to enter the
satellite or CATV channel position.
&
j~~~ NUMBER 92004 ----
START STOP PR .
10.12 15:00 16:00 n-
AV:OO
SET: O-9 OEL:i
~
~
o
AWhen all the settings are as desired, press the OK
button.
This completes the timer recording setting. You can then either
enter another recording by repeating steps ❑to ❑,or
continue with step ❑.
When finished, press the G-CODE button.
The data is stored in the VCR memory. The VCR will go
into timer recording stand-by mode and the timer
indicator (IZi) will light.
Note: If no video cassette is loaded when going into timer
stand-by mode, the timer indicator (Q) will flash.
‘G-Code isatrademarkappliedforby Gemstar DevelopmentCorp.
G-(3xJe systemis manufacturedunderlicensefromGemstar
DevelopmentCorporation.
12
——. .

ON-SCREEN TIMER RECORDING
PROGRAMMING
❑Timer recording enables you to set up to 6programmed to
be recorded upon aperiod of up to 1year.
❑Daily recordings (Monday through Friday) and weekly
recordings are possible.
Note: Timer recordings use the VCR programmed time and
date. Before setting any timer recording be sure that the
set time and date are correct.
Display the “PROGRAMMING” on-screen menu, as
described below.
OPress the MENU/lV button.
@“TIMER” is selected. Press the OK button.
@“PROGRAMMING” is selected. Press the OK
button.
Using the numeric buttons enter the desired settings for
“DATE, “START” (recording start time), “STOP
(recording end time) and “PR.” (channel position
number).
Example: To record aprogramme on channel position “2”
from 21:30 to 23:15 on December 24.
Enter 24-12-2130-2315-02, using the
numeric buttons.
F
DATE
24.12 21:30 23:15 02
\SET: O-9 DEL:, END:m 1
•1
•1
DAILY/WEEKLY recording
Press the (A) cursor button repeatedly to select:
“ED for every day recording (Monday through Friday),
“WK for weekly recording (the same programme every
week), or No display for one time recording (see display
above).
When recording from an external source
Press the OIAV button twice, the setting under “PR.”
(channel position) will change to “AV”. If achannel position
number is already displayed, first press the (<)cursor
button twice.
Note: If awrong number has been entered for the date, time,
etc., press the (<)cursor button to erase, then enter
the correct number.
When finished, press the OK button to return to the
normal TV broadcast screen.
To set other timer recordings, repeat steps ❑to wagain.
When the settings are completed...
Insert ablank tape and press the POWER button.
The VCR will go into timer recording stand-by mode and the
timer indicator (Q) will light.
INotes on timer recording setting I
The timer recording will not operate if...
●FJo video cassette tape is loaded when going into timer
stand-by mode.
The (El) indicator will flash.
●Acassette with no erasure-prevention tab is loaded.
The (Q) indicator will flash and the cassette will be ejected.
Programme priority
●[f several timer recordings have overlapping recording
times, the recording with the earliest start time will be
recorded first, until the end.
19:00 20:00 21:00 22:00 23:00
Programme
r=
These positions will not be recorded
Notes:
●
●
●
To stop atimer recording, press the ■STOP button.
If there is apower failure during atimer recording, the
recording will stop. If the power is returned to the VCR
within 66 minutes, the re&rding will resume if the stop time
has not yet been reached.
If 6timer recordings have been set, when the G-CODE
button is pressed, the message “PROGRAMME FULL” will
be displayed, or when trying to select the
“PROGRAMMING” menu, it will not display. In that case,
you will first have to erase one of the programmed timer
recmdings (see page 14) before you can set anew timer
reaxding.
13

ii
EDITING TIMER RECORDINGS SETTINGS
Displaying alist of timer recordings and
revising timer recording settings
You can display the timer recordings, for confirmation or to
change some of the settings.
Confirmation
Display the “LIST, CORRECT” on-screen menu, as
described below.
oPress the MENWTV button.
o“TIMER” is selected. Press the OK button.
oUsing the ~) cursor button, select “LIST,
CORRECT”. Press the OK button.
The programmed timer recordings are listed.
P*,.
DATE START STOP PR.
25.12 12:0; 12:15 ;4
26.12 07:00 07:15 05
----- --:-- --:-- --
SET:-S NEXT: ~
~1
Press the MENU/lV button to return to the normal TV
broadcast screen.
Revising timer recording settings
With the programmed listed as described above, use
the (A or V) cursor button to select the programme to
mod”ify.Press the OK button.
F
DATE START STOP PR.
24.12 21:30 23:15 02
25.12 12:00 12:15 04
.I ~I
-- -- --:-. --:----
SE+:A~ NEXT: ~
Using the (<or ➤)cursor button, select the setting to
modify, using the numeric buttons enter the new
settings.
The DAILY/WEEKLY setting is modified with the (A)
cursor button.
IErasing aprogrammed timer recording I
Display the “CANCEL” on-screen menu, as described
below.
OPress the MENWTV button.
@“TIMER” is selected. Press the OK button.
@Using the (Y) cursor button, select “CANCEL”.
Press the OK button.
Using the (A or 7) cursor button, select the
programme to erase. Press the OK button.
P
WSTART STOP PR.
------- :---- :----
SET:-= CANCEL: ~
When finished, press the MENU/lV button to return to
the normal TV broadcast screen.
Note: If all the programmed timer recordings are erased, the
normal TV broadcast screen will automatically be
displayed.
When finished, press the OK button to return to the
normal TV broadcast screen.
14

iii
INDEX SEARCH FUNCTION
When arecording is made, an index signal is automatically
placed at the beginning of the recording. This index can be
used to search for the recording you wish to watch.
Index signals are not recorded after arecording pause.
Notes:
●Make sure that indexes are at least five minutes apart from
each other.
●If acassette tape is not loaded, the “INDEX” menu will not
be accessible.
IIndex scan search 1
As instructed, the VCR will go into rewind or fast forward mode,
look for an index signal, play back the first five seconds of the
corresponding recording then continue on to the next index
signal. It will do so until the beginning (or the end) of the tape.
101 l-l
IIndex search I
If the index relative to the search start location is known, it is
possible to instruct the VCR to go directly to the beginning of
that recording and start playback.
Display the “INDEX on-screen menu, as described
Display the “INDEX on-screen menu, as described
OPress the MENWTV button.
@Using the(>) cursor button, select “INDEX”. Press
the OK button.
OPress the MENWTV button.
@Using the(>) cursor button, select “INDEX”. Press
the OK button.
@Using the (V) cursor button, select “SEARCH”.
Using the (<or ➤)cursor button, select “W” to scan
toward the end of the tape, or “44” to scan toward the Using the (<or ➤)cursor button, select the desired
index number.
beginning of the tape.
lITmJm
pm” -54321 12345+
SET:AT<~ START :~
Press the OK button and the scan function will start.
During the scan operation “SCAN” will be displayed in
❑
•1
the top left mrner of the screen.
When the desired recording is found, press the PLAY>
button during that 5-second period to start normal playback
from that position.
To stop the scan function, press the ■STOP button.
Note: Do not forget that when looking toward the beginning of
the tape, index number”1” will only take you to the
beginning of the present recording.
Example: To search for the third recording after the search
start position, use the (E) cursor button to select
the index number”3 on the “+” side (right side).
P
Imi#
SCAN
SE= ‘54321 1z&5+
START: ~
Press the OK button and the search function will start.
During the search operation “SEARCH” will be
displ~yed in the top-left corner of the screen.
ISEARCH 3I
❑To stop the search function, press the ■STOP button.
15

i
COPYING ATAPE
Copying (dubbing) atape can be done using two video
recorders, aplayback VCR and arecording VCR.
Connect VCR A(or Camcorder) and VCR B.
VCR A
r---------------- ---- ..-,
1i
1m
1[
1
[ :.
@
a,,,,..::...., #
,,...
sI
1
1
1
1Y1
1m
‘---------”Y ,
220-240V Ac
Camcorder
r----------- --- .---------
m1
11
EI
11220-240V AC
Insert the pre-recorded tape into VCR A(playback
VCR).
Insert the blank video cassette into VCR B(recording
VCR).
Set the VCR Bto the “AV’” mode.
❑Press the OIAV button once to display “AW instead of a
channel position number or,
❑Press the CHANNEL (- or +) button to display “AW instead
of achannel position number.
Set VCR Bto reoord pause mode. (The record pause
mode is set by pressing the ●REC button then the
II PAUSE/STILL button.)
Start playback on VCR Aby pressing the PLAYb
button.
When the desired starting position is reached on VCR
A, starl recording on VCR Bby pressing the
II PAUSE/STILL button or the. REC button.
When the copy is completed, press the ■STOP button
on VCR Bthen on VCR A.
16

ii
BUTTONS AND DISPLAYS
The function of each button is described below.
The messages displayed on the VCR digital display, and on
the TV screen (for 2seconds) are also shown.
CHANNEL (-, +)
~EJECT
EEI/FFM
POWER
PLAYF
II PAUSE/STtLL
●REC
Cassette inserted -
Channel selection downlup 1-44 01-44
Tracking adjustment during playback T-:-
Vertical lock adjustment during still picture
Unload the cassette tape
Fast-fonvard ➤(Blinking) *
Forward search during playback b
Power on
Playback bb
Still picture during playback bII
Recording pause mII ●II
Immediate recording m●
If pressed during normal recording, easy programmed OFF--: -- QSR--:--
recording (QSR) is possible
44 REW@l Rewind <(Blinking) 44
IReverse search durina tdavback
■STOP Stop tape travel
On the remote control only
1...0 Numeric buttons for channel direct access
On-screen operation numbers input
A, vUp/down cursor control for on-screen operation
E, 4IRight/left cursor control for on-screen operation
ATR IAuto-trackirm adjustment
OIAV External input mode (AV mode) select button
DISPLAY To turn on/off the on-screen display of the clock. counter,
Ietc.
To display ablue background for on-screen menus
MENU/TV To disDlav/erase the on-screen operation main menu
MEMORY ICounter memorv
1-44 I 01-44
❑
OK To confirm entered data
RESET Counter reset o:m:oo
&CODE G-CODE timer recording set button
IVMCR To select VCR mode or TV mode VCR
17

TROUBLESHOOTING
This VCR is highly sophisticated. It is shipped from the factory after having been checked
and adjusted under the most rigid quality control and inspection system. Should problems
occur, check the following points.
The remote control
I
●The batteries are low.
unit doesn’t operate
No TV progrsmmes ●Are the connections between your VCR and TV correct?
received ●Was tuning correctly preset?
Off the air reception I●The video channel setting of the TV receiver does not
on the VCR is Door correspond to the video channel txesettina of the VCR.
Piaybsck picture doss .The video channel setting of the TV receiver does not
not appear correspond to the video channel presetting of the VCR.
interference in I●Adjust the tracking control.
piayback picture ●Dust or diti on video heads. Take the VCR to an Authorized
Service Station or dealer.
No recording ●The erasure-prevention tab on the cassette has been
Iremoved.
Timer recording is not ●The starting day and time have not been set correctly.
poesibie I . The clock time is not set correctly.
I●There has been apower interruption of more than 60
Iminutes.
The main menu does
not appear.
The G-CODE button
doss not function.
●The VCR has not been preset as described under “VCR
Presenting”.
●If the VCR displays “—:——”and the welcome screen
appears on the TV, because the VCR is connected for the
first time or because the power has failed or has been
disconnected for more than 1hour, first set the
“LANGUAGE and the “CLOCK”.
18

i
SPECIFICATIONS
General
Video format:
Television system:
Video heads:
Tape speed:
RF convertec
Converter output:
Timer indication:
Power failure backup:
Timer recording:
Power requirement:
Dimensions (W xHxD):
Weight:
Power consumption:
Electrical characteristics
Video input:
Video output:
Audio input:
Audio output:
Video SIN:
Horizontal resolution:
Accessories
VHS PAL
CCIR: 625 lines, PAL colour signals
2heads
23.39 mm/see
Built-in VHF converter
On channel 2or 3
24-hour indication
Approx. one hour
1year 6programmed with every day and weekly recording
function
220-240 VAC, 50 liz
360 x89x 290 mm
Approx. 4kg
22 w
0.5- 2.0 Vp-p, 75 *5ohms
1.010.2 Vp-p, 75*5 ohms
-8.0 dBs, more than 50 kohms
-8.0 dBs, less than 10 kohms
More than 43 dB
More than 240 lines
Instruction manual ......................................l
Power cord .................................................l
Aerial output cable .....................................1
Remote control unit ....................................l
“AA (IEC R6)” size, 1.5-volt battery ............2
Apperance and specifications are subject to change without notice.
Automatic head-cleaning system
This VCR is equipped with an automatic head-cleaning system which automatically cleans
the heads every time acassette is loaded or unloaded. However if during playback noise
appears in the picture, it is recommended to use commercially available head-cleaning
cassettes to completely clean the VCR heads.
REPAIRS
This VCR is aprecision instrument and, if treated with care, will provide years of
satisfactory performance. However, in the event of difficulty, the owner is advised not to
attempt to make repairs or open the cabinet. Servicing should always be referred to your
servicing dealer or Authorized Warranty Station.
S*O
IAC6PI Po222--
TP1/NZ (0793 MC-SYOI) SANYO Electric Co., Ltd.
Printed in Japan
