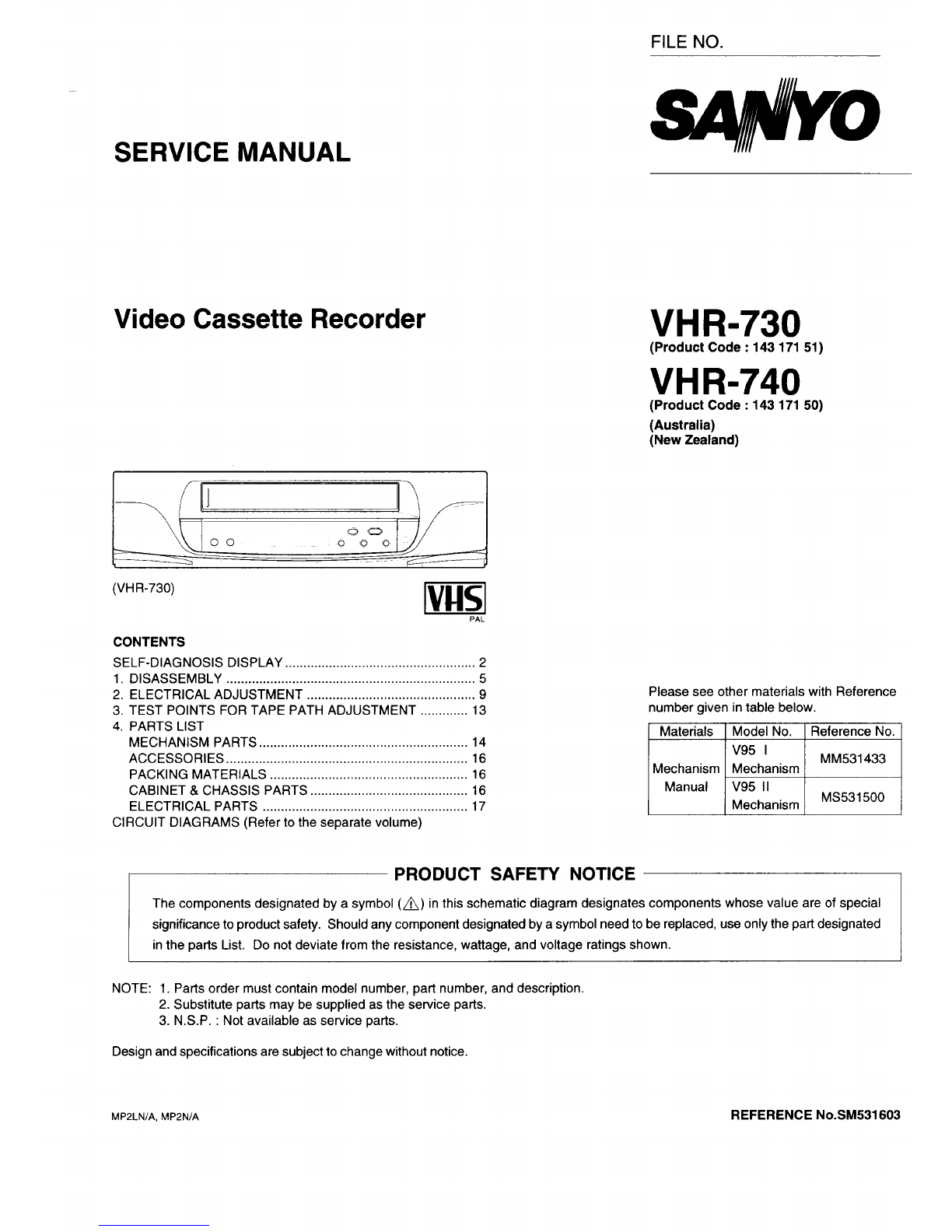

FILE NO.
SERVICE MANUAL
Video Cassette Recorder
*O
VHR-730
(Product Code :143171 51)
VHR-740
(Product Code :143171 50)
(Australia)
(New Zealand)
(VHR-730) mPAL
CONTENTS
SELF-DIAGNOSIS DISPLAY .................................................... 2
1. Disassembly ....................................................................5
2. Electrical ADJusTMENT ..............................................9 Please see other materials with Reference

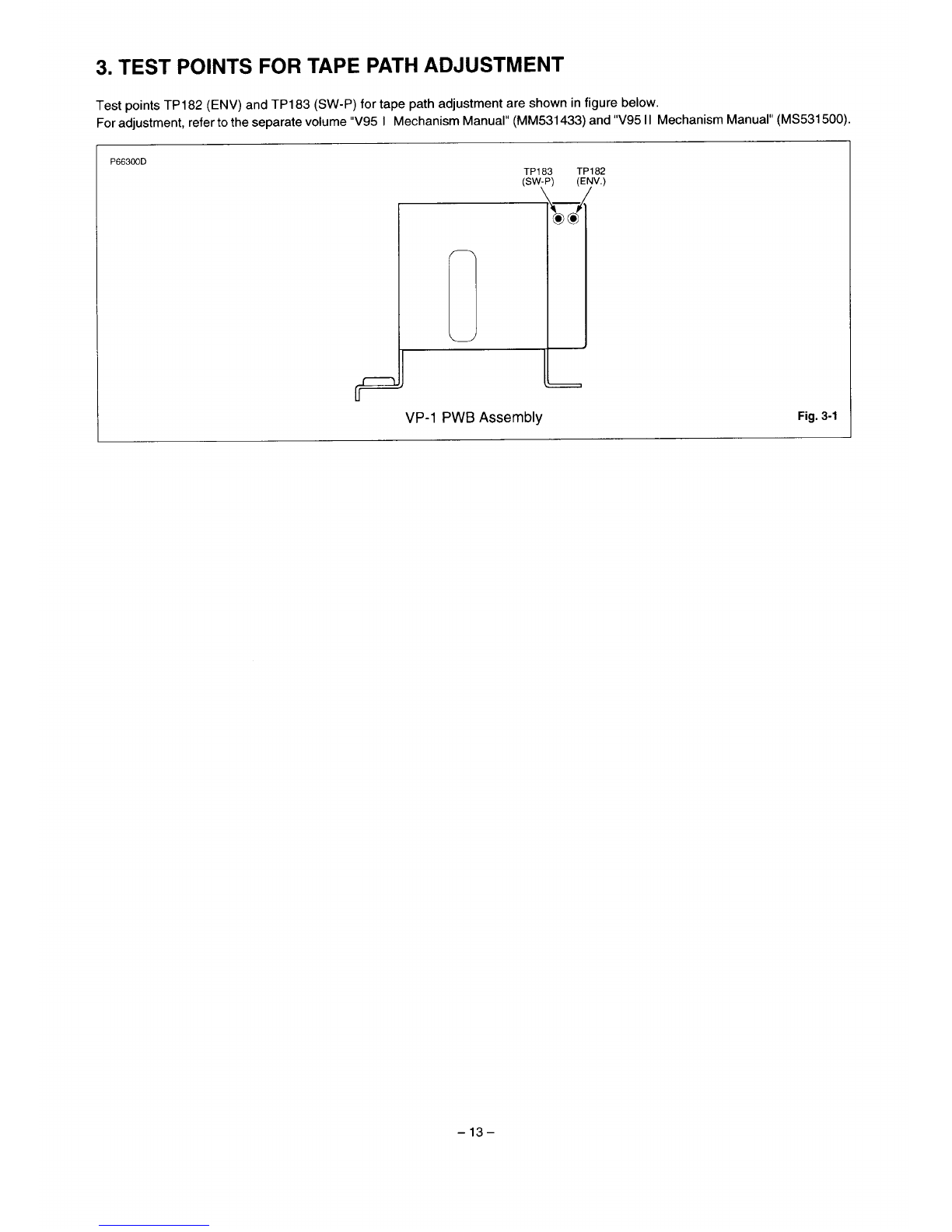

3. TEST POINTS FOR TAPE PATH ADJUSTMENT .............13 number given in table below.
4. PARTS LIST
F
Materials

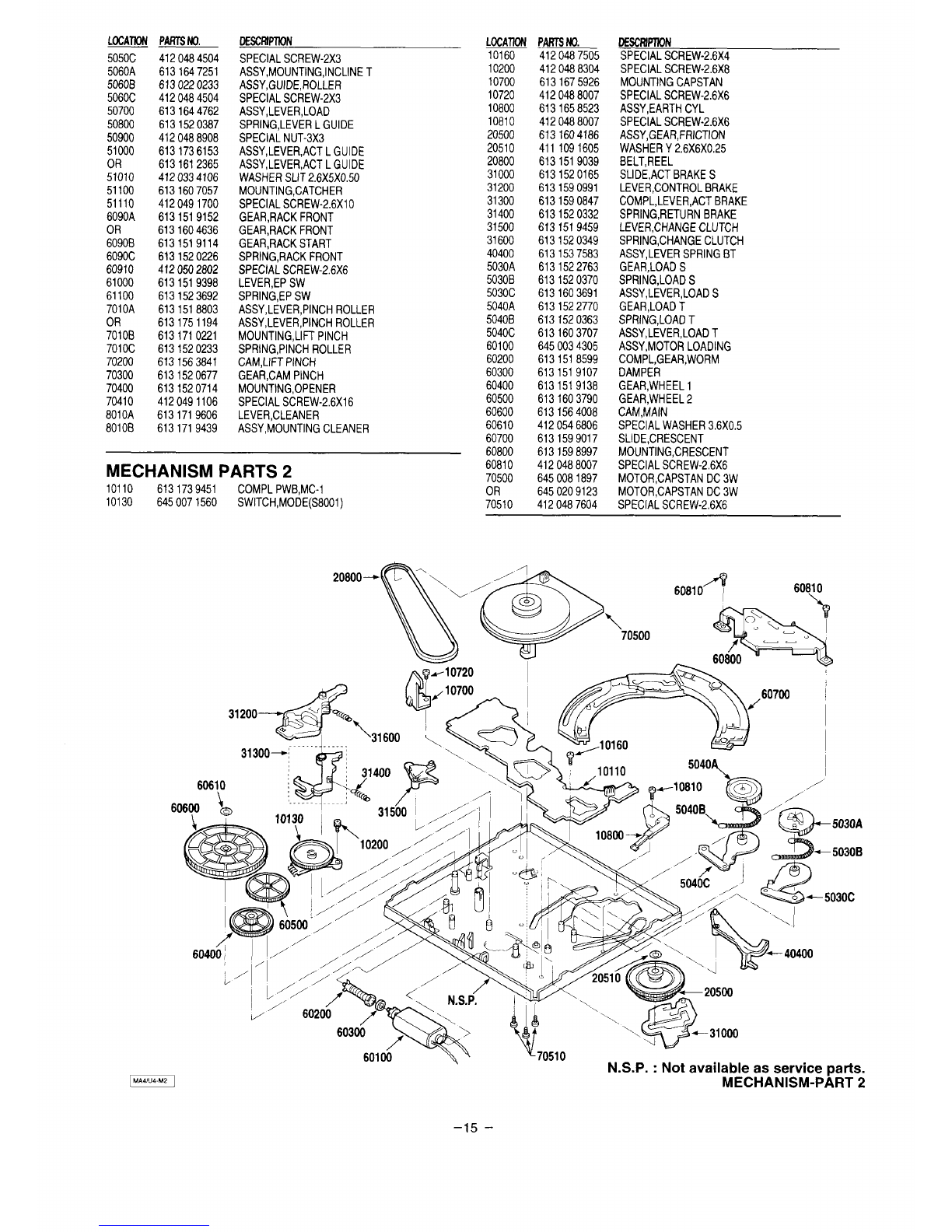

MECHANISM PARTS ......................................................... 14

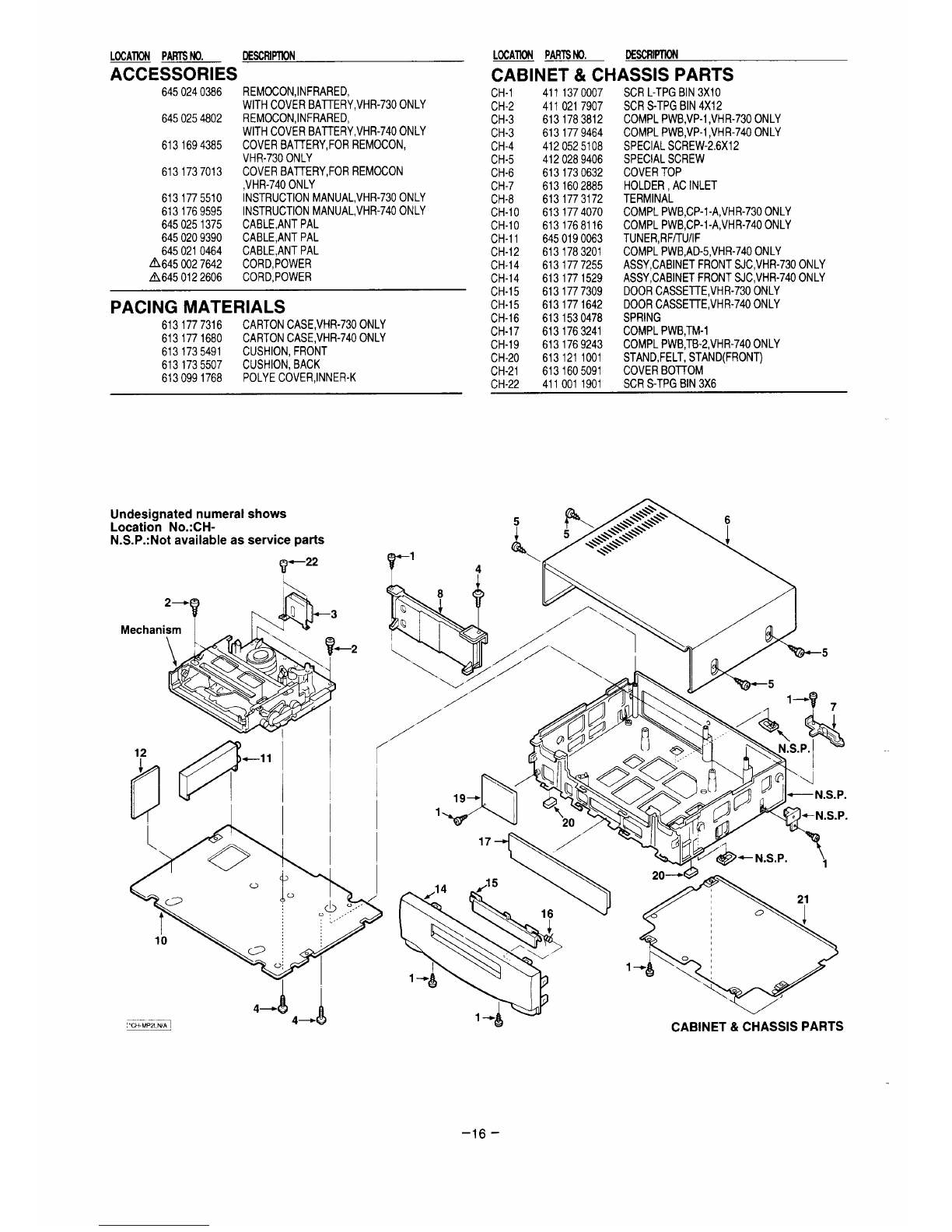

Accessories .................................................................. 16
PACKING MATERIALS ...................................................... 16 Mechanism
CABINET& CHASSIS PARTS ........................................... 16

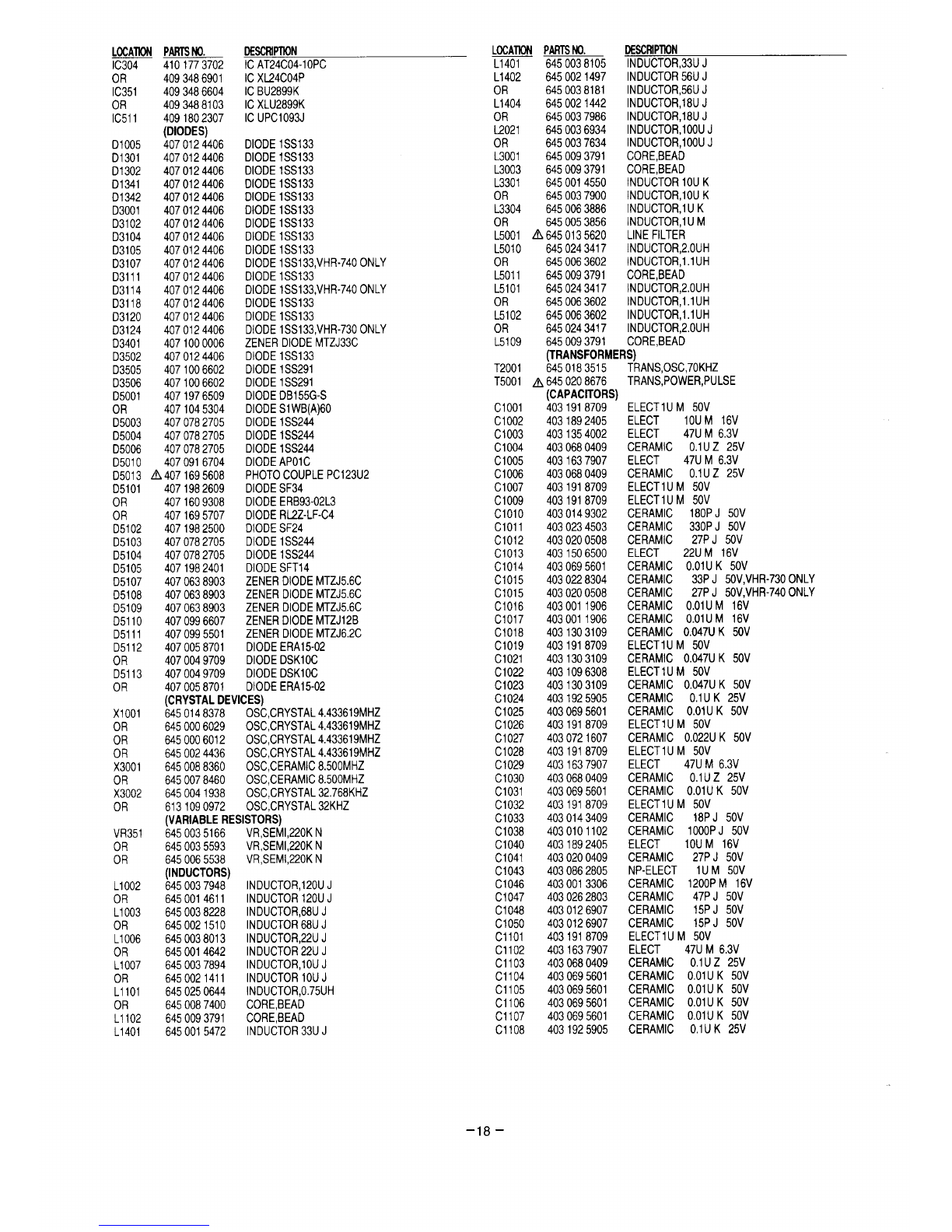

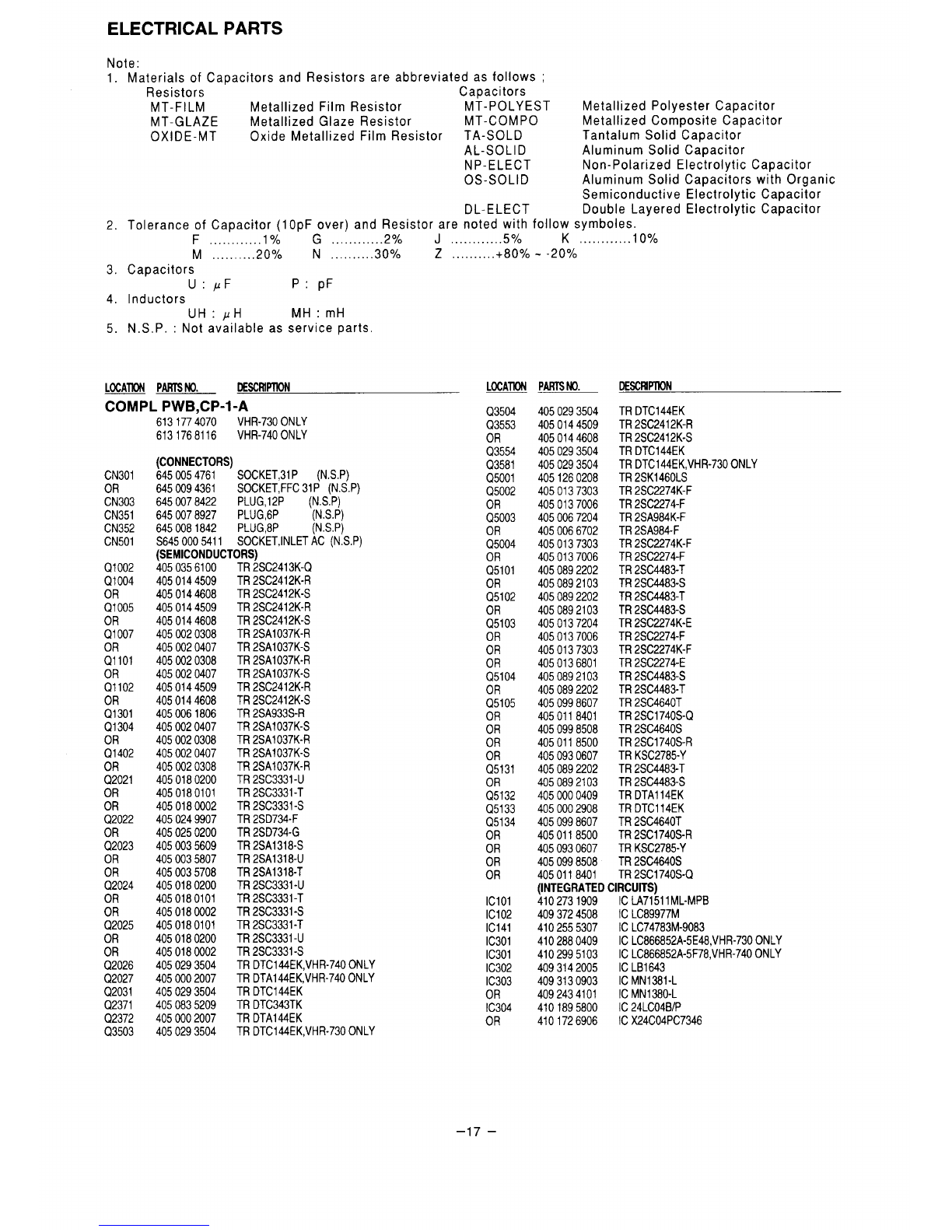

ELECTRICAL PARTS . . . . .. . . .. . . . . . . . . .. . . 17 r
Cl RCUIT DIAGRAMS (Refer to the separate volume)
Model No. ]Reference No. ]
V95 I
Mechanism MM531 433 I
PRODUCT SAFETY NOTICE
The components designated by asymbol (~) in this schematic diagram designates components whose value are of special
significance to product safety. Should any component designated by asymbol need to be replaced, use only the part designated
in the parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
NOTE: 1. Parts order must contain model number, part number, and description.
2. Substitute parts maybe supplied as the service parts.
3. N.S.P. :Not available as service parts.
Design and specifications are subject to change without notice.
MP2LN/A, MP2N/A REFERENCE N0.SM531 603

SELF-DIAGNOSIS DISPLAY
Mechanism Mode Display/ Head Output Drop Warning Display/ Cylinder Rotation Accumulated
Time Display
This unit displays the diagnosis contents of abnormalities and the mechanism, mode on its display panel in 2-digit numbers.
When the head playback output has dropped, the “L” sign will be blinked. Some models (listed later) will also display the cylinder
rotation accumulated time.
These display shows the outline of the problems. Use it as areference when servicing the unit.
1. Self-Diagnosis Contentes and Mechanism Mode Display
●
✎
●
●
When the STOP button on the remote control is pressed for about 10 seconds continuously, the self-diagnosis number will be
displayed on the reception channel display of the display panel and number indicating the failed mechanism mode (changed mode
when being shifted) on the tape counter “seconds” display for 10 seconds each.
During self-diagnosis display, displays other than the diagnosis number/mechanism mode number and the cylinder accumulated
rotation time display described later (some models only) will be turned off and when displays end, the normal display will be
returned automatically.
Refer to “Self-Diagnosis Contents” for the self-diagnosis numbers and the “Mechanism Mode Display Contents” for the
mechanism mode numbers.
When the “O” button on the remote control unit is pressed during display, and clearing the self-diagnosis display and mechanism
mode display.
f)
Display panel 171’ n J
u_l uI_
L---II--J
Self-Diagnosis number Mechanism mode number
(Reception channel display) (Tape counter “Seconds” display)
Self-Diagnosis Contents
No. Problem Main Possible Cause Mechanism Operations and
State After Occurrence
00 There is no abnormality in the mechanism.
The cylinder motor does not rotate. ●The cylinder motor is faulty. Shifts to the STOP mode.
01 ●The control of the cylinder motor is
faulty.
●The tape winds around the cylinder.
The take-up reel does not rotate. ●The take-up reel is caught.
02
Shifts to the STOP mode.
●The reel belt is faulty.
●The take-up torque has decreased.
The capstan motor does not rotate. ●The capstan motor is faulty.
03 Shifts to the STOP mode.
●The control of the capstan motor is
faulty.
The tape cannot be loaded with the ●Error in the operations of the tape Unloads, shifts to the INITIAL mode,
cassette inserted. loading mechanism. and the power goes off.
(But unloading can be performed.) ●Foreign parlicles in the tape load-
04 ing mechanism.
●The tape end sensor is faulty.
●The reel brake of the tape cassette
has not been released.
Tape loading and unloading cannot ●The tape guide is caught. The power is forcibly turned off with
05 be performed with the cassette in- ●The loading motor is faulty. the mechanism at its current position.
serted. ●The control of the loading motor is
faulty.
–2-

No. Problem Main Possible Cause Mechanism Operations and
State After Occurrence
Front unloading cannot be performed ●The cassette drive mechanism is Front loads and shifts to the STOP or
when ejecting the cassette. faulty. INITIAL mode.
(Front loading can be performed.) ●The front door is caught. ●When the power switch is turned on
before eject operations: Shifts to the
06 STOP mode.
●When the power switch is turned off
before eject operations: Shifts to the
INITIAL mode and the power goes
off.
Front loading and front unloading can- ●The tape cassette is caught in the The power is forcibly turned off with
not be performed when ejecting the cassette drive mechanism. the mechanism at its current position.
cassette. ●The main cam and front rack gear of
07 the front loading mechanism have
not engaged properly.
●The gears of the front loading drive
mechanism have not engaged prop-
erly.
The mechanism becomes 1(RE- ●The mechanism mode switch con- The power is forcibly turned off with
08 VIEW) while moving from 2(IDLER), tact is faulty. the mechanism at its current position.
3(STILL), 4(BRAKE), and to 5
(STOP).
The mechanism becomes 7(INITIAL) ●The mechanism mode switch con- Carries out tape take-up operations,
09 while moving from 1(REVIEW), 2tact is faulty. shifts to the INITIAL mode, and the
(IDLER), 3(STILL), 4(BRAKE), and power goes off.
to 5(STOP).
Note: For details of mechanism operations corresponding to the mechanism positions of the self-diagnosis numbers 08 and 09 above,
refer to the separate volume on the V95 1mechanism manual. These manual reference numbers are shown in the cover.
Mechanism Mode Display Contents
klode No.
00
01
02
03
04
05
06
07
Mechanism Mode
CASSETTE OUT
STANDBY
STOP
STILL
REC-PAUSE
AUDIO DUBBING-PAUSE
FRAME ADVANCE
SLOW
blode No.
08
09
10
11
12
13
14
15
Mechanism Mode
PLAY
REC
AUDIO DUBBING
X2 SPEED PLAY
CUE
REVIEW
FAST FORWARD
REWIND
Mode No.
16
17
18
19
99
Mechanism Mode
VIDEO INSERT
VIDEO INSERT-PAUSE
AUDIO/VIDEO INSERT
REVERSE X2 SPEED PLAY
OTHERS
2. Head Output Drop Warning Display
●When the STOP button on the remote control is pressed for 10 seconds continuously 10 seconds after play starts, “L” will be
displayed blinking at the first digit of the minutes position on the tape counter when the head output is lower than the specified
value to indicate an abnormality.
●The cause of the abnormality maybe due to drop in the playback output caused by drop in the efficiency of the cassette used or
head clogging. Refer to “Head Playback Output Voltage Check” as ameans to judge the abnormality.
--
Display panel Ill IIT J
LI 2I_ Ill
. .
1
Head output drop warning display
(Tape counter “lst digit ~Minutes.” position)
–3-

Head playback output voltage check
Warning
:assette Used Envelope Detection Output Voltage
Display Main Cause
Envelope detec- 4V -----------------------------------
Cassette tion output
(IC301 Pin 25 or
with normal R3032Markside:
playback –see Fig. 2-l-1) ov &*’’-””v Z2Z:
output Switching pulse
(TP183: see Fig. normal
CH-1 CH-2
2-l-2)
‘nve’ope ‘etec- 4V When the output voltage differ-
tion output
(IC301 Pin 25 or
R3032Markside:
I,L, blinking see Fig. 2-l-1) Ov ‘::;’an ~;:$jrn;;;;:
Switching pulse
(TP183: see Fig. CH-1 CH-2 ●One video head is clogged
Recorded 2-l-2) ●One video head has worn out
cassette
(with tabs) When the average output volt-
Envelope detec- 4V ..................................
tion output
(IC301 Pin 25 or
R3032Markside:
IIL,Iblinking see Fig. 2-l-1) ov ~,,,t’=m %;:;’::;
Switching pulse
(TP183: see Fig. CH-1 ●Both video heads are clogged
CH-2
2-l-2) ●Both video heads have worn
out
k!z~:$:han ::jg;d
:;:::putdetec- 4V ----------------”” -----------------
(IC301 Pin 25 or
“L” blinking R3032Markside:
Rental ‘ee %2-’-’ )Ov
Switching pulse
cassette (TP183: see Fig. CH-1 CH-2
(without tabs) ●One video head is clogged
2-l-2) ●One video head has worn out
●Some rental cassettes may have extremely low video playback outputs even when both video heads are normal.
As the average output voltage of the two heads maybe less than 0.5V for some, no warning displays will be
shown.
3. Cylinder rotation accumulated time display
●Press the STOP button on the remote control for approximately 10 seconds and the cylinder rotation accumulated time excluding
the cassette out and standby operation time will be displayed on the “Hours” display in units of 100 hours. (“33” will be displayed
for 10 seconds for 3,200 to 3,299 hours.)
●To erase the cylinder rotation accumulated time display, press the RESET button on the remote control during the accumulated
time display.
----
Display panel Ill II 17 J
L(:I :1:1 --
Ill
IAI
I
I
Cylinder rotation accumulated display (Tape counter “Hours” display)
–4-

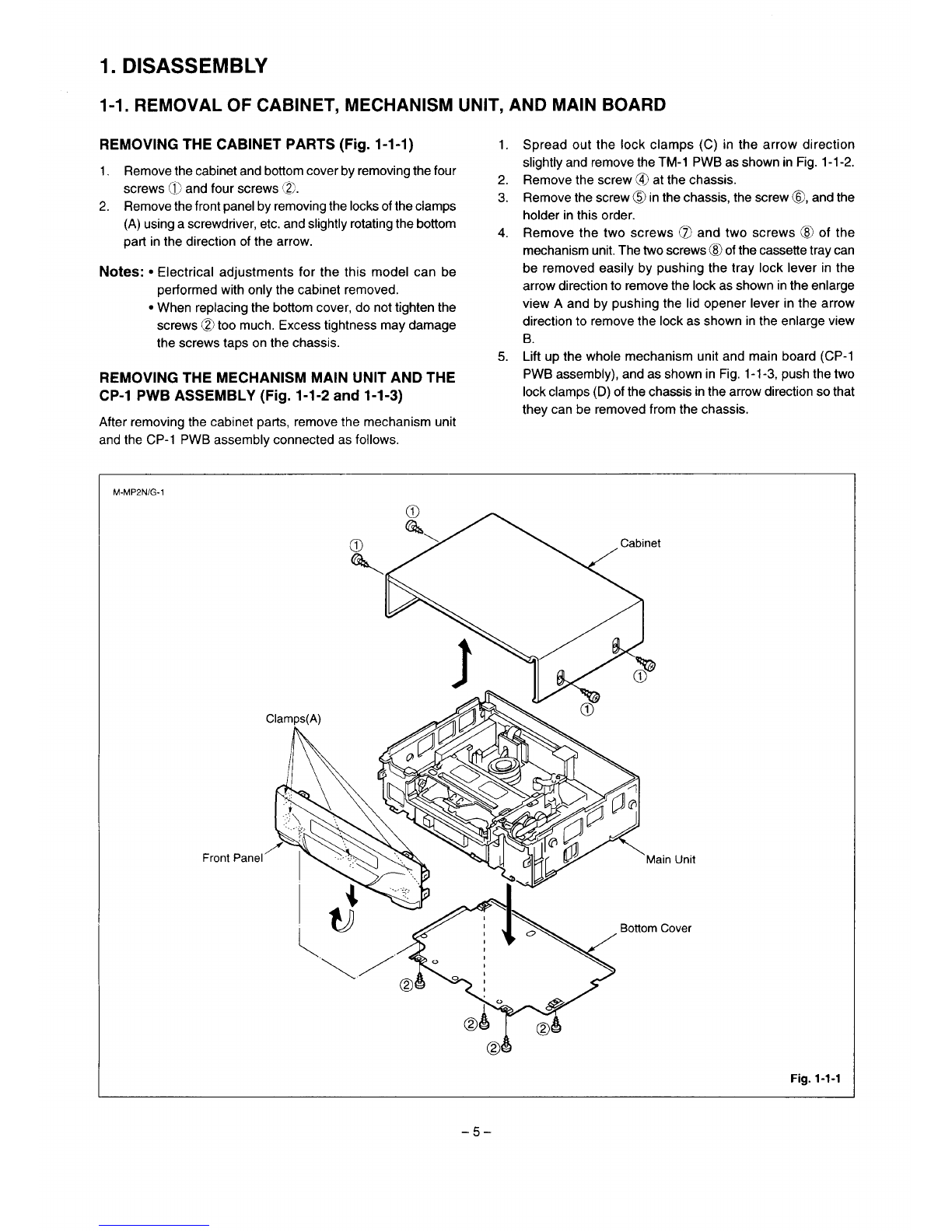

1. DISASSEMBLY
1-1.REMOVAL OF CABINET, MECHANISM UNIT, AND MAIN BOARD
REMOVING THE CABINET PARTS (Fig. 1-1-1 )1. Spread out the lock clamps (C) in the arrow direction
—
1. Remove the cabinet and bottom cover by removing the four slightly and remove the TM-1 PWB as shown in Fig. 1-1-2.
screws (j] and four screws Q?. 2. Remove the screw oat the chassis.
2. Remove the front panel by removing the locks of the clamps 3. Remove the screw@ in the chassis, the screw@, and the
(A) using ascrewdriver, etc. and slightly rotating the bottom holder in this order.
part in the direction of the arrow. 4. Remove the two screws @and two screws @of the
mechanism unit. The two screws (8I of the cassette tray can
Notes: ●Electrical adjustments for the this model can be be removed easily by pushing the tray lock lever in the
performed with only the cabinet removed. arrow direction to remove the lock as shown in the enlarge
●When replacing the bottom cover, do not tighten the view Aand by pushing the lid opener lever in the arrow
screws @too much. Excess tightness may damage direction to remove the lock as shown in the enlarge view
the screws taps on the chassis. B.
5. Lift up the whole mechanism unit and main board (CP-1
REMOVING THE MECHANISM MAIN UNIT AND THE PWB assembly), and as shown in Fig. 1-1-3, push the two
CP-1 PWB ASSEMBLY (Fig. 1-1-2 and l-l-3) lock clamps (D) of the chassis in the arrow direction so that
they can be removed from the chassis.
After removing the cabinet parts, remove the mechanism unit
and the CP-1 PWB assembly connected as follows.
M-MP2N/G-l
Front Panel
Fig. 1-1-1
–5–

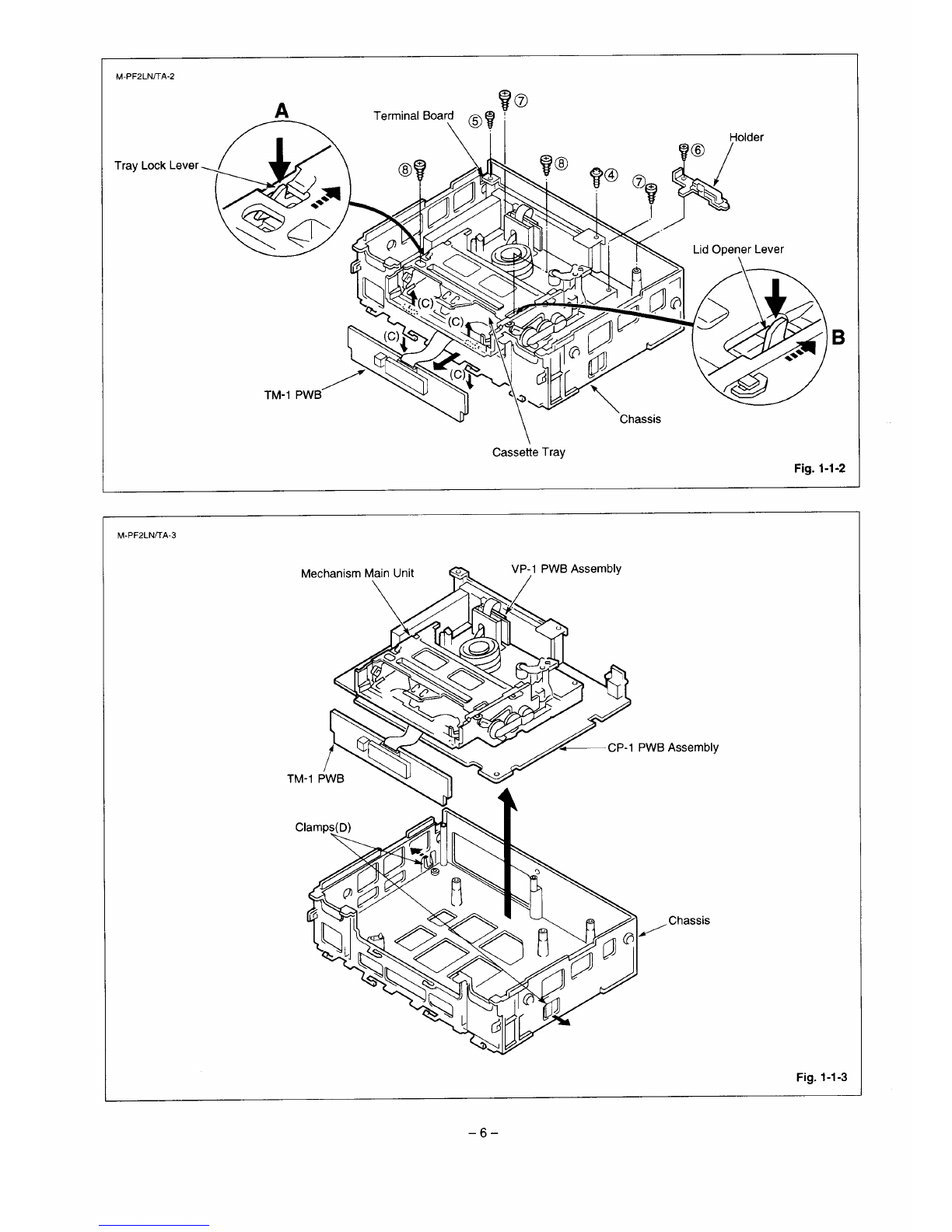

M-PF2LNfrA-2
Tray Lock Lever
B
Cassette Tray Fig. 1-1-2
l-PF2LN~A-3
PWB Assembly
T
Chassis
Fig. 1-1-3
–6–

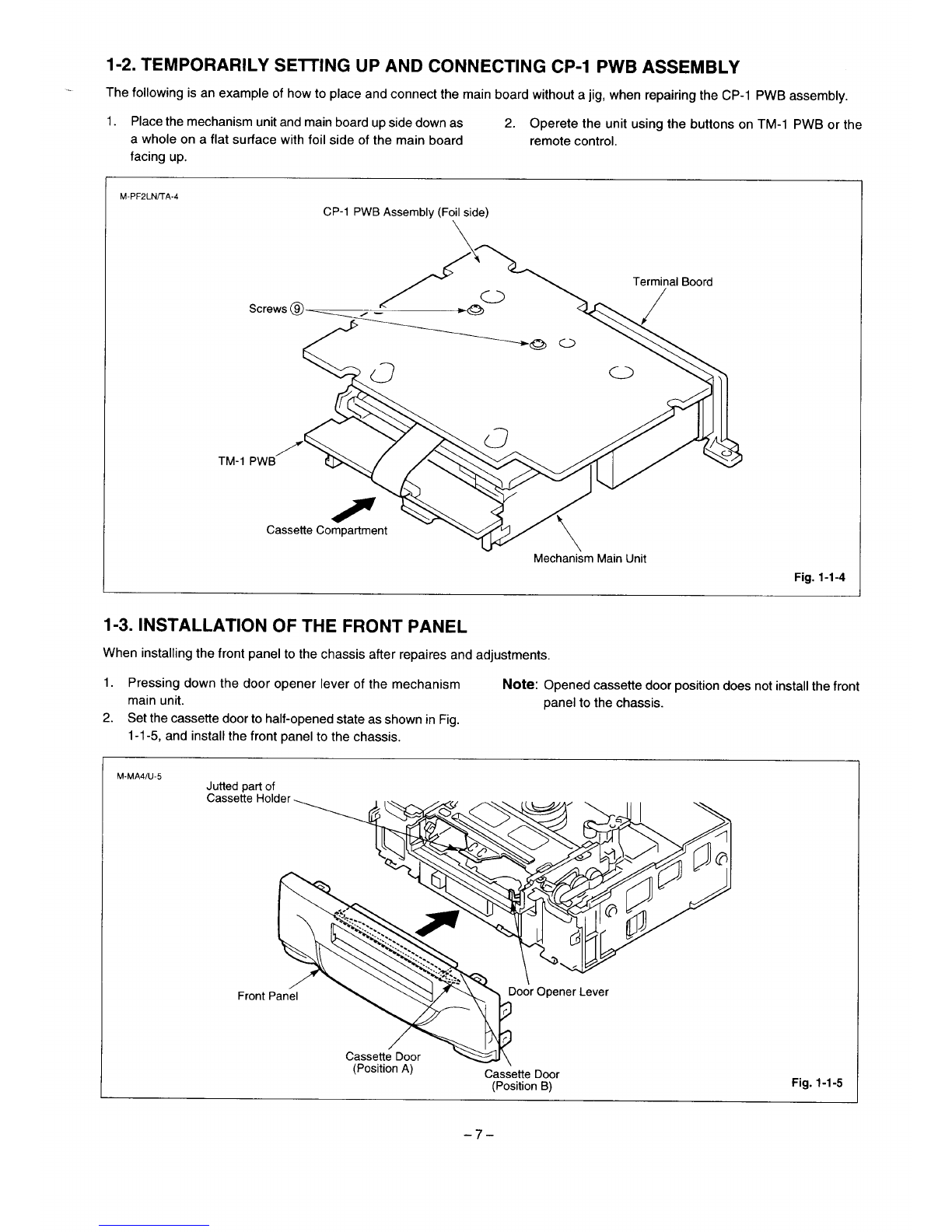

1-2. TEMPORARILY SEITING UP AND CONNECTING CP-I PWB ASSEMBLY
The following is an example of how to place and connect the main board without ajig, when repairing the CP-1 PWB assembly.
1. Place the mechanism unit and main board up side down as 2. Operete the unit usirm the buttons on TM-1 PWB or the
awhole on a flat surface with foil side of the main board remote control.
facing up.
M-PF2LNTA-4
TM-1
CP-1 PWB Assembly (Foil side)
\
/1 Twminai Rnnrrl
. .. .. . .
--”,-
Mechanism Main Unit
Fig. 1-1-4
1-3. INSTALLATION OF THE FRONT PANEL
When installing the front panel to the chassis after repaires and adjustments.
1. Pressing down the door opener lever of the mechanism Note: Opened cassette door position does not install the front
main unit. panel to the chassis.
2. Set the cassette door to half-opened state as shown in Fig.
1-1-5, and install the front panel to the chassis.
M-MA41U-5 Jutted Dart of
(Position B) Fig. 1-1-5
I
–7-

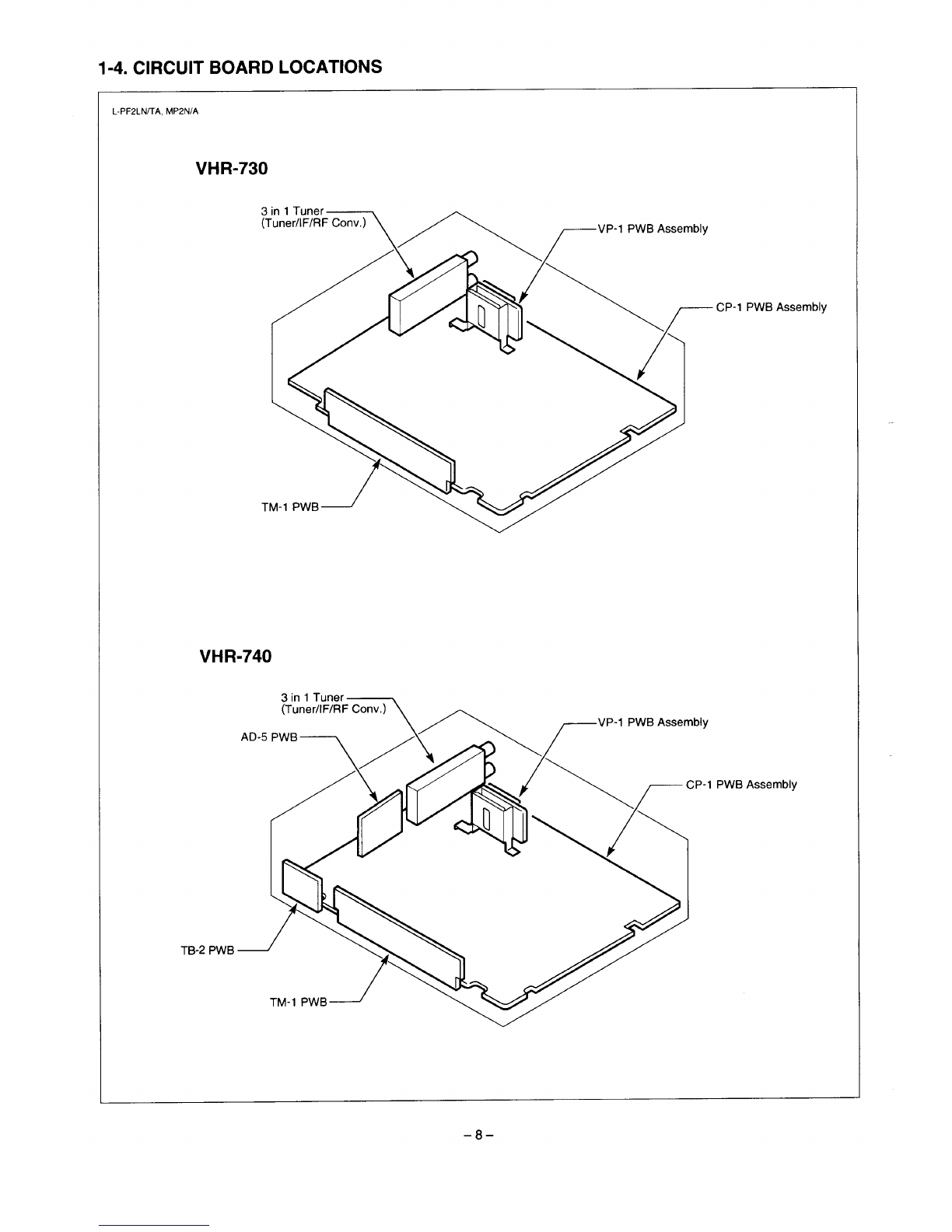

1-4. CIRCUIT BOARD LOCATIONS
L-PF2LN/TA, MP2N/A
VHR-730
CP-’ PWB Assembly
TB-2 PWB
AD-5 PWB
TM-1 PWB
PWB Assembly

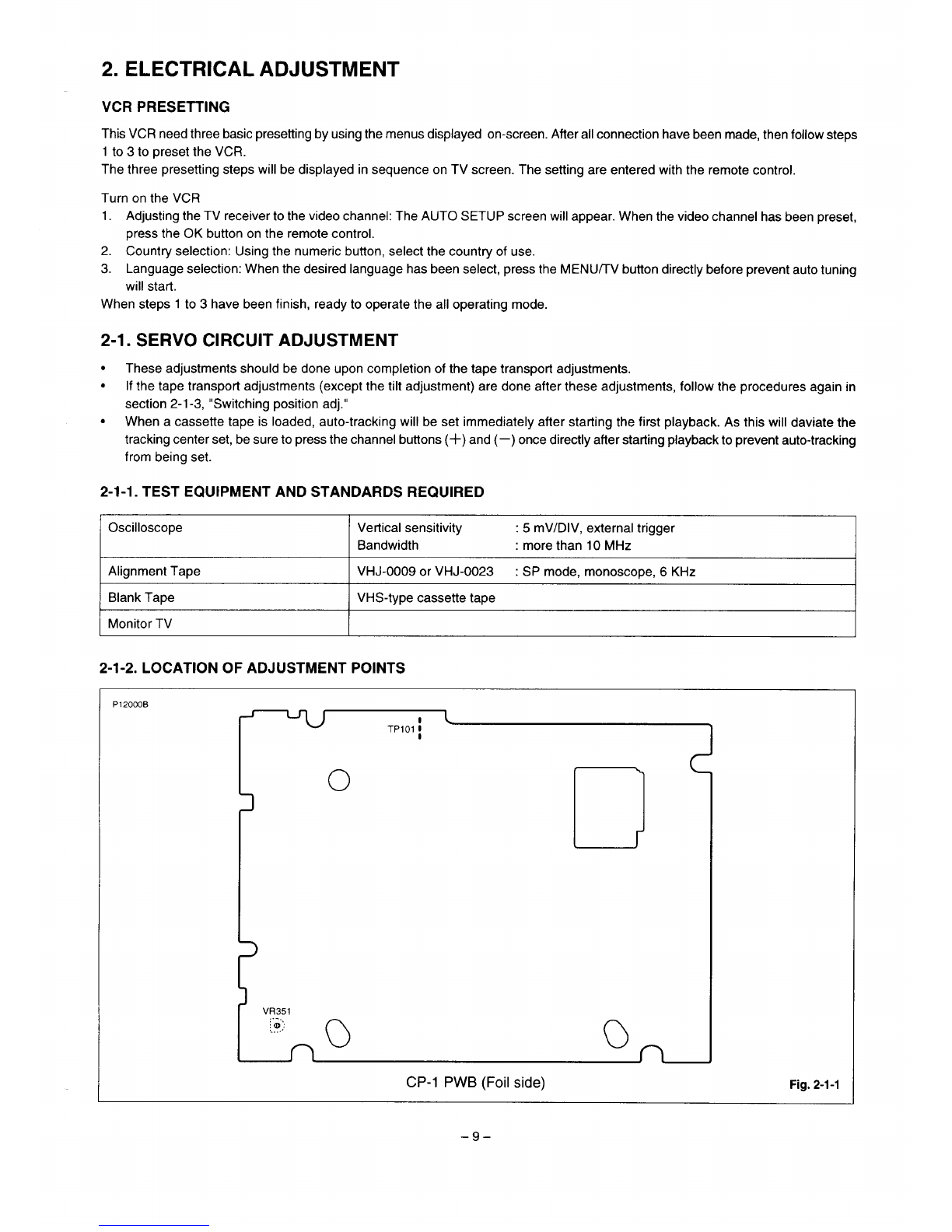

2. ELECTRICAL ADJUSTMENT
VCR PRESETTING
This VCR need three basic presetting by using the menus displayed on-screen. After all connection have been made, then follow steps
1to 3to preset the VCR.
The three presetting steps will be displayed in sequence on TV screen. The setting are entered with the remote control.
Turn on the VCR
1. Adjusting the TV receiver to the video channel: The AUTO SETUP screen will appear. When the video channel has been preset,
press the OK button on the remote control.
2. Country selection: Using the numeric button, select the country of use.
3. Language selection: When the desired language has been select, press the MENWTV button directly before prevent auto tuning
will start.
When steps 1to 3have been finish, ready to operate the all operating mode.
2-1. SERVO CIRCUIT ADJUSTMENT
●These adjustments should be done upon completion of the tape transport adjustments.
●If the tape transport adjustments (except the tilt adjustment) are done after these adjustments, follow the procedures again in

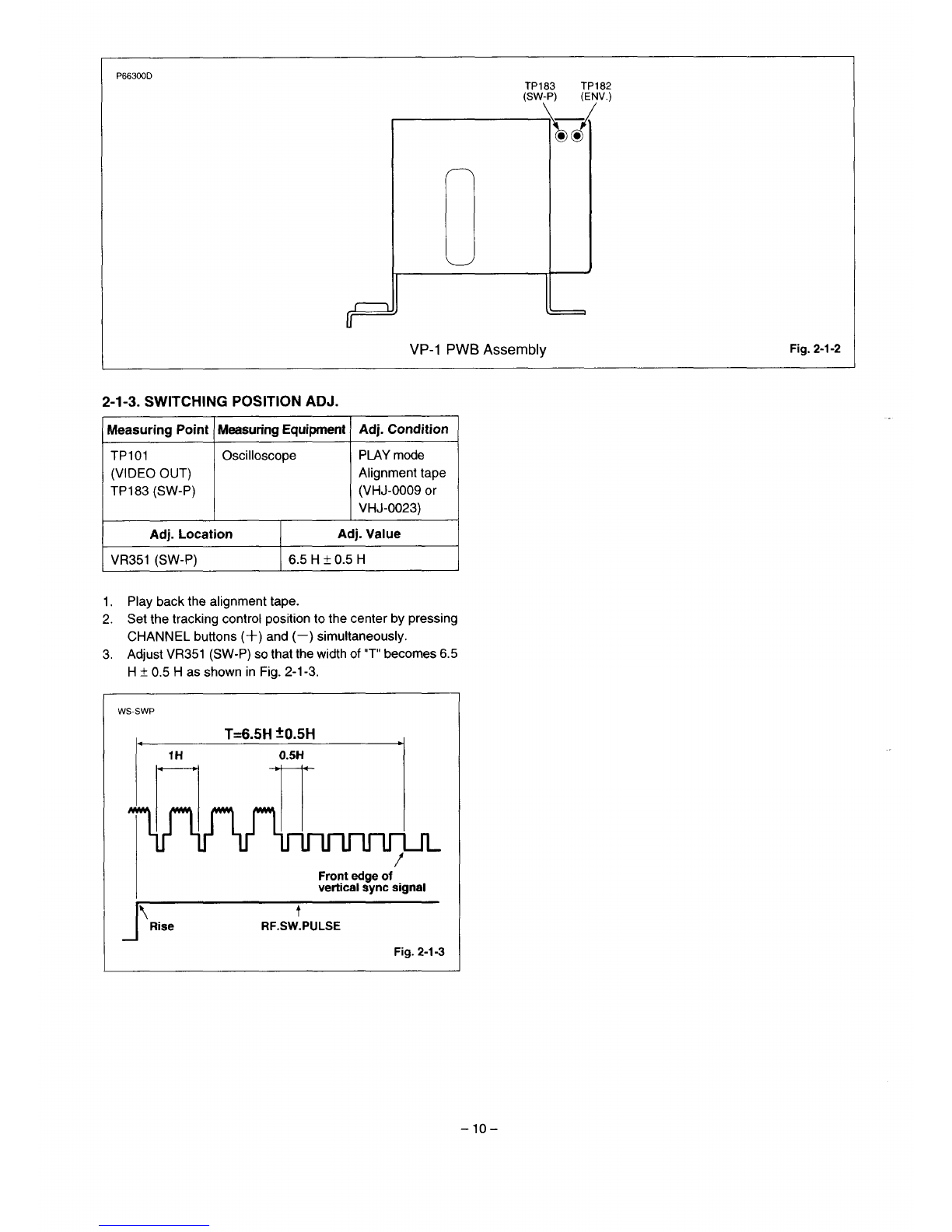

section 2-1-3, “Switching position adj. ”
●When acassette tape is loaded, auto-tracking will be set immediately after starting the first playback. As this will daviate the
tracking center set, be sure to press the channel buttons (-l-) and (–) once directly after starting playback to prevent auto-tracking
from being set.
2-1-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Oscilloscope Vertical sensitivity :5 mV/DIV, external trigger
Bandwidth :more than 10 MHz
IAlignment Tape IVHJ-OO09 or VHJ-0023 :SP mode, monoscope, 6KHz
Blank Tape VHS-type cassette tape
IMonitor TV
2-1-2. LOCATION OF ADJUSTMENT POINTS
P12000B
TP101 :L
I
o
L
1VR351
,....
:0:
no on
CP-1 PWB (Foil side) Fig. 2-1-1
–9–

P66300D TP183 TP182
(SW-P) (ENV.)
u@@
.1 _,
VP-1 PWB Assembly Fig. 2-1-2
2-1-3. SWITCHING POSITION ADJ.
Measuring Point Measuring Equipment Adj. Condition
TP1OI Oscilloscope PLAY mode
(VIDEO OUT) Alignment tape
TP183 (SW-P) (VHJ-0009 or
VHJ-0023)
Adj. Location Adj. Value
VR351 (SW-P) 6.5 Ht0.5 H
1. Play back the alignment tape.
2. Set the tracking control position to the center by pressing
CHANNEL buttons (--l-) and (–) simultaneously.
3. Adjust VR351 (SW-P) so that the width of “T” becomes 6.5
H~0.5 Has shown in Fig. 2-1-3.
WS-SWP
T=6.5H tO.5H
. .
0.5H
N,k~,,”, ,
}
Front edge of
vertical sync signal
ft
Rise RF.SW.PULSE
Fig. 2-1-3
–lo–

2-2. VIDEO CIRCUIT RELAY JIG
2-2-1. TEST EQUIPMENT AND STANDARDS REQUIRED
Color Bar Signal Generator
Oscilloscope
Oscilloscope Probe
Digital Voltmeter
Alignment Tape
Relay Jig
PAL Color bar signet with 100% white level (EBU color bar signel)
Vertical sensitivity :5 mV/DIV, external trigger
Bandwidth :more than 10 MHz
Input capacity :less than 25 pF (10:1)
less than 40 pF (1:1 )
Covering frequency :DC -40 MHz(IO:I)
DC -30 MHz(I:I)
DC range
VHJ-0008 or VHJ-O023 :SP mode, color bar, 1kHz
(Color bar signal waveform is described below. Refer to Fig. 2-2-1)
VHJ-0065 :5-wire flat cable for VP-1 PWB assembly
ALIGNMENT TAPE COLOR BAR SIGNAL
WPV-TCS
‘H.Sync Signal
Color bar signal waveform (VHJ-0008)
Fig. 2-2-1
WPV.TCP
lI!I!l
.=
;j~dgi
(75%)
vu 1Owo
White Black
Color bar pattern (VHJ-0008) on monitor TV
Fig. 2-2-2
RELAY JIG
Connect the flat cable end from the cylinder assembly to the
VP-1 PWB assembly using the relay jig to provide simple
repairing of the VP-1 PWB assembly, as shown in Fig.2-2-3.
Further, when adjusting the VP-1 PWB assembly, be sure to
make contact an end of shield case with bracket of the VP-1
PWB assembly to maintain the shield effect. If the VP-1 PWB
assembly does not contact, there is insufficient ground and no
proper play back image can be obtained.
RJ-MP41GSY
VP-l PWBAssernblv+K<
Relay Jig
VHJ-0065
Flat Cable~’~ /(?
/~
Cylinder c
Assemblv /!
Fig. 2-2-3
–11–

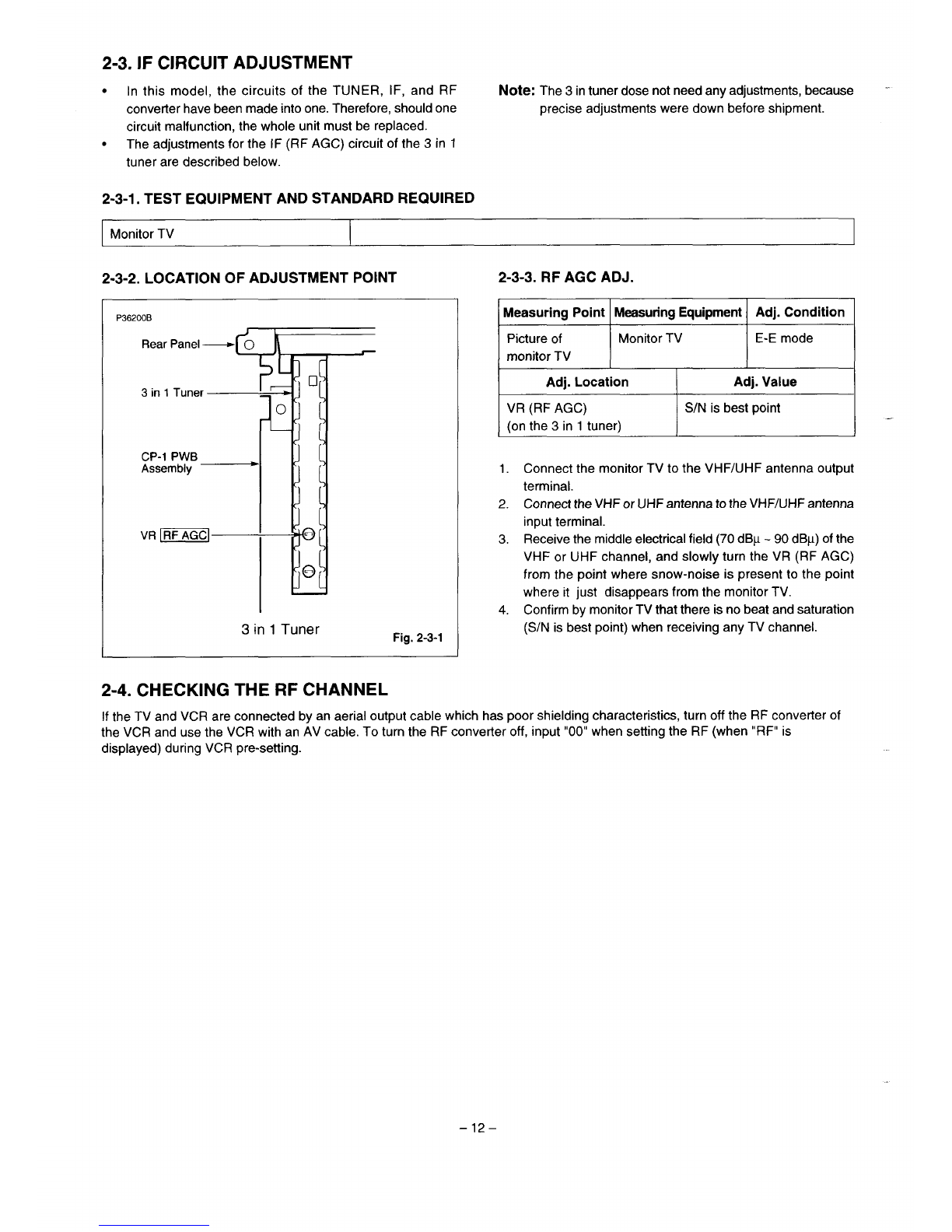

2-3. IF CIRCUIT ADJUSTMENT
●In this model, the circuits of the TUNER, IF, and RF Note: The 3in tuner dose not need any adjustments, because -
converter have been made into one. Therefore, should one precise adjustments were down before shipment.
circuit malfunction, the whole unit must be replaced.
●The adjustments for the IF (RF AGC) circuit of the 3in 1
tuner are described below.
2-3-1. TEST EQUIPMENT AND STANDARD REQUIRED
Monitor TV
2-3-2. LOCATION OF ADJUSTMENT POINT
3in 1Tuner Fig. 2-3-1
2-3-3. RF AGC ADJ.
Measuring Point Measuring Equipment Adj. Condition
Picture of Monitor TV E-E mode
monitor TV I
Adj. Location Adj. Value
VR (RF AGC) S/N is best point
(on the 3in 1tuner) .
1.
2.
3.
4.
Connect the monitor TV to the VHF/UHF antenna output
terminal.
Connect the VHF or UHF antenna to the VHF/UHF antenna
input terminal.
Receive the middle electrical field (70 dBL -90 dB~) of the
VHF or UHF channel, and slowly turn the VR (RF AGC)
from the point where snow-noise is present to the point
where it just disappears from the monitor TV.
Confirm by monitor TV that there is no beat and saturation
(SIN is best point) when receiving any TV channel
2-4. CHECKING THE RF CHANNEL
If the TV and VCR are connected by an aerial output cable which has poor shielding characteristics, turn off the RF converter of
the VCR and use the VCR with an AV cable. To turn the RF converter-off, input “OO;when setting the RF (when “RF” is
displayed) during VCR pre-setting.
–12–

3. TEST POINTS FOR TAPE PATH ADJUSTMENT
Test points TP 182 (ENV) andTP183 (SW-P) for tape path adjustment are shown in figure below.
For adjustment, refer to the separate volume “V95 IMechanism Manual” (MM531 433) and “V95 II Mechanism Manual” (MS531 500).
TP183 TP182
(SW(P) (E~V.)
VP-1 PWB Assembly Fig. 3-1
–13-

4. PARTS LIST
MECHANISM PARTS
LOCATION PARTSW. DESCFllPTiON
MECHANISM PARTS 1
11000
11000
21000
22000
30000
30000
40000
50000
0099
0100
0300
040B
040C
040D
0800
0900
1000
1100
6073
6102
6070
10120
10140
10400
10150
OR
20100
OR
6131640719
6131603400
6450157875
6450157868
6131070509
6130814036
4120365001
4120364905
6131520578
6131520738
6131520660
6131520417
6131520707
6131520424
6131522794
6131522800
6131519480
6131519299
4120488205
6131516618
4110217907
4071621102
4071628705
4120526204
4071658108
4070430101
6131605503
6131690974
ASSY,CYLINDER,2 N2S-V,VHR-740 ONLY
ASSY,CYLINDER,2 N2N-2,VHR-730 ONLY
MOTOR, ROTOR,CYL DC 2W
MOTOR, STATOR,CYL DC 2W
SPACER, MOTOR, VHR-730 ONLY
SPACER, MOTOR, VHR-740 ONLY
SPECIAL SCREW 2.3X6
SPECIAL SCREW 2.3XI0
COMPL,CASSEllE MECHANISM
STAND,L
FRAME, UNDER
SPRING, LID OPENER
LEVER, RELEASE
SPRING,TRAY LOCK
GEAR,LOCK
GEAR, PINION
LEVER,DOOR OPENER
HOLDER,GEAR
SPECIAL SCREW-2,6X6
PAD
SCR S-TPG BIN 4X12
LED LN59L(D8003)
PHOTO DIODE PN263L-(NC)
(D8001 ,D8002) S,T SENSOR
SPECIAL SCREW-2 .6X5,5
PHOTO COUPLE SG-I 05F (PC801)
PHOTO DIODE ON2170-R
ASSY,REEL SUPPLY
REEL, SUPPLY
~,. ,
xY&> 080(
j1000
LOCATIONPARTSNO.
20200
OR
20210
OR
OR
20300
OR
20310
20400
20410
20600
20700
30300
30400
30500
30600
30700
30800
30900
31100
31700
31800
40100
40200
40300
50100
50110
50200
50210
5050A
5050B
40200
n/
6131681514
6131604193
4120156504
4120215306
4120158900
6131750661
6131716896
4120487505
6131519701
4120454606
6131522749
6131522756
6131603356
6131520295
6131519411
6131520318
6131606166
6131592193
6131636996
6131520189
6131516490
6131520356
6131518759
6131605262
6131520271
6450176432
4120489707
6131768406
4120523500
6131647237
6130220233
a
DESCMPl!ON
ASSY,REELTAKE UP
ASSY,REEL TAKE UP
SPECIAL WASHER 3.IX6X0.5
SPECIAL WASHER 3.1X6X0.3
SPECIAL WASHER 3. IX6X0.4
COMPL,MOUNTING CLUTCH
COMPL,MOUNTING CLUTCH
SPECIAL SCREW-2.6X4
PULLEY,REEL
SPECIAL WASHER 2.4X6X0,25
GEAR,REEL S
GEAR, REELT
ASSY,BRAKE SOFTT
SPRING,SOFT T
LEVER,SOn S
SPRING,SOFT S
ASSY,BRAKE,S
ASSY,BRAKE T
SPRING, BRAKE
SLIDE, ACT BRAKE T
ASSY,BRAKE CAPSTAN
SPRING, BRAKE CAPSTAN
ASSY,LEVER,BT
ASSY,BRAKE,BAND
SPRING,BT
HEAD,ERASEFULL
SPECIALSCREW-2,6XI0
ASSY,HEADR/PACE
SPECIAL SCREW 2.6X12
ASSY,MOUNTING,INCLINE S
ASSY,GUIDE,ROLLER
.....
11000
G
a
!!$
\“ 30000
22000
50000+ b50000 B
21000+
A
\& //
/
40000 /6090A
:Not available as service parts.
MECHANISM-PART 1
10400-- N.S.P.
LP”A-4H/CA3 Ml
-14–

LOCAIDt/ PARTSM.
5050C 4120484504
5060A 6131647251
5060B 6130220233
5060C 4120484504
50700 6131644762
50800 6131520387
50900 4120488908
51000 6131736153
OR 6131612365
51010 4120334106
51100 6131607057
51110 4120491700
6090A 6131519152
OR 6131604636
6090B 6131519114
6090C 6131520226
60910 4120502802
61000 6131519398
61100 6131523692
7010A 6131518803
OR 6131751194
7010B 6131710221
701 Oc 6131520233
70200 6131563841
70300 6131520677
70400 6131520714
70410 4120491106
801 OA 6131719606
8010B 6131719439
OESC!WllON
SPECIAL SCREW-2X3
ASSY,MOUNTING,INCLINE T
ASSY,GUIDE,ROLLER
SPECIAL SCREW-2X3
ASSY,LEVER,LOAD
SPRING, LEVER LGUIDE
SPECIAL NUT-3X3
ASSY,LEVER,ACT LGUIDE
ASSY,LEVER,ACT LGUIDE
WASHER SLIT 2.6X5X0,50
MOUNTING,CATCHER
SPECIAL SCREW-2.6X1 O
GEAR,RACK FRONT
GEAR,RACK FRONT
GEAR,RACK START
SPRING,RACK FRONT
SPECIAL SCREW-2.6X6
LEVER.EP SW
SPRING,EP SW
ASSY,LEVER,PINCH ROLLER
ASSY,LEVER,PINCH ROLLER
MOUNTING,LIFT PINCH
SPRING, PINCH ROLLER
CAM,LIFT PINCH
GEAR, CAM PINCH
MOUNTING, OPENER
SPECIAL SCREW-2.6X1 6
LEVER, CLEANER
ASSY,MOUNTING CLEANER
MECHANISM PARTS 2
10110 6131739451 COMPL PWB,MC-I
10130 6450071560 SWITCH, MODE(S8001)
20800 --+
b
‘_’ \\
LOCATIONPARTStIO. oEscmPnoN
10160 4120487505 SPECIALSCREW-2,6X4
10200
10700
10720
10800
10810
20500
20510
20800
31000
31200
31300
31400
31500
31600
40400
5030A
5030B
5030C
5040A
5040B
5040C
60100
60200
60300
60400
60500
60600
60610
60700
60800
60810
70500
OR
70510
4120468304
6131675926
4120488007
6131658523
4120488007
6131604186
4111091605
6131519039
6131520165
6131590991
6131590847
6131520332
6131519459
6131520349
6131537583
6131522763
6131520370
6131603691
6131522770
6131520363
6131603707
6450034305
6131518599
6131519107
6131519138
6131603790
6131564008
4120546806
6131599017
6131598997
4120488007
6450081897
6450209123
4120487604
SPECIAL SCREW-2,6X8
MOUNTING CAPSTAN
SPECIAL SCREW-2,6X6
ASSY,EARTH CYL
SPECIAL SCREW-2.6X6
ASSY,GEAR,FRICTION
WASHER Y2,6X6X0,25
BELT,REEL
SLIDE,ACT BRAKES
LEVER,CONTROL BRAKE
COMPL,LEVER,ACT BRAKE
SPRING, RETURN BRAKE
LEVER,CHANGE CLUTCH
SPRING, CHANGE CLUTCH
ASSY,LEVER SPRING BT
GEAR,LOAD S
SPRING,LOAD S
ASSY,LEVER,LOAD S
GEAR,LOAD T
SPRING,LOAD T
ASSY,LEVER,LOAD T
ASSY,MOTOR LOADING
COMPL,GEAR,WORM
DAMPER
GEARWHEEL 1
GEARWHEEL 2
CAM,MAIN
SPECIAL WASHER 3,6X0.5
SLIDE,CRESCENT
MOUNTING, CRESCENT
SPECIAL SCREW-2.6X6
MOTOR, CAPSTAN DC 3W
MOTOR, CAPSTAN DC 3W
SPECIAL SCREW-2,6X6
601d \\ ~70510 N.S.P. :Not available as service parts.
MECHANISM-PART 2
–15 -

LOCATIONPARTSNO. DESCRIPRON
ACCESSORIES
6450240386 REMOCON,INFRARED,
WITH COVER BAllERY,VHR-730 ONLY
6450254802 REMOCON,INFRARED,
WITH COVER BATTERY,VHR-740 ONLY
6131694385 COVER BAllERY,FOR REMOCON,
VHR-730 ONLY
6131737013 COVER BATTERY, FOR REMOCON
,VHR-740 ONLY
6131775510 INSTRUCTION MANUAL,VHR-730 ONLY
6131769595 INSTRUCTION MANUAL,VHR-740 ONLY
6450251375 CABLE,ANTPAL
6450209390 CABLE,ANTPAL
6450210464 CABLE,ANTPAL
~645 0027642 CORD,POWER
A64501 22606 CORD,POWER
PACING MATERIALS
6131777316 CARTON CASE,VHR-730 ONLY
6131771680 CARTONCASE,VHR-740 ONLY
6131735491 CUSHION,FRONT
6131735507 CUSHION,BACK
6130991768 POLYECOVER,INNER-K
Undesignated numeral shows
Location No.:CH-
N.S.PiNot available as service parts
9+22
3
Mechani
12
i+-1 1
p!9
I
4-2
I
,/”
LOCAllONPARTSNO. 12ESCRlPT10N
CABINET &CHASSIS PARTS
CH-I 4111370007 SCR L-TPG BIN 3XI0
CH-2 4110217907 SCR S-TPG BIN 4X12
CH-3 6131783812 COMPL PWB,VP-I,VHR-730 ONLY
CH-3 6131779464 COMPL PWB,VP-I ,VHR-740 ONLY
CH-4 4120525108 SPECIAL SCREW-2.6X12
CH-5 4120289406 SPECIAL SCREW
CH-6 6131730632 COVER TOP
CH-7 6131602885 HOLDER ,AC INLET
CH-8 6131773172 TERMINAL
CH-10 6131774070 COMPL PWB,CP-1-A,VHR-730 ONLY
CH-10 6131768116 COMPL PWB,CP-I-A,VHR-740 ONLY
CH-11 6450190063 TUNER, RF/TU/lF
CH-12 6131783201 COMPL PWB,AD-5,VHR-740 ONLY
CH-14 6131777255 ASSY,CABINET FRONT SJC,VHR-730 ONLY
CH-14 6131771529 ASSY,CABINET FRONT SJC,VHR-740 ONLY
CH-15 6131777309 DOOR CASSEllE,VHR-730 ONLY
CH-15 6131771642 DOOR CASSEllE,VHR-740 ONLY
CH-16 6131530478 SPRING
CH-17 6131763241 COMPL PWB,TM-I
CH-19 6131769243 COMPL PWB,TB-2,VHR-740 ONLY
CH-20 6131211001 STAND, FELT, STAND(FRONT)
CH-21 6131605091 COVER BOllOM
CH-22 4110011901 SCR S-TPG BIN 3X6
-...——y
!,CH- MP2LNIA i
17+ /’
w-$-p. ‘1
\
./’-’
CABINET &CHASSIS PARTS
–16 -

ELECTRICAL PARTS
Note:
1. Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metal lized Film Resistor MT- POLYEST Metal lized Polyester Capacitor
MT-GLAZE Metal lized Glaze Resistor MT-COMPO Metal lized Composite Capacitor
OXIDE-MT Oxide Metallized Film Resistor TA-SOLD Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
2. Tolerance of Capacitor (1OPF over) and Resistor are noted with follow symbol es.
F,., . . . .. . . ..1Yo G............2% J............5% K,...........1OYO
M..........20% N,.........sr)~o Z..........+80Y0- -2070
3, Capacitors U:/.JF P:pF
4, Inductors UH:/JH MH :mH
5. N,S, P. :Not available as service parts.
LOCATIONPARTSW. DESCRIPTION
COMPL PWB.CP-1-A
CN301
OR
CN303
CN351
CN352
CN501
QI 002
QIO04
OR
Q1oO5
OR
QIO07
OR
Q1101
OR
Q1102
OR
Q1301
Q1304
8~402
OR
Q2021
OR
OR
Q2022
OR
Q2023
OR
OR
Q2024
OR
OR
Q2025
OR
OR
Q2026
Q2027
Q2031
Q2371
Q2372
6131774070 VHR-730 ONLY
6131768116 VHR-740 ONLY
(CONNECTORS)
6450054761 SOCKET,31 P(N.S.P)
6450094361 .SH~FFC 31 P(NS.P)
6450078422 (NS.P)
6450078927 PLUG:6P (N.S,P)
6450081842 PLUG,8P (N.S.P)
S645 0005411 SOCKET, INLET AC (N.S.P)
(SEMICONDUCTORS)
4050356100 TR 2SC2413K-Q
4050144509 TR 2SC2412K-R
4050144608 TR 2SC2412K-S
4050144509 TR2SC2412K-R
4050144608 TR 2SC2412K-S
4050020308 TR 2SA1037K-R
4050020407 TR 2SA1037K-S
4050020308 TR 2SAI037K-R
4050020407 TR 2SA1037K-S
4050144509 TR 2SC2412K-R
4050144608 TR 2SC2412K-S
4050061806 TR 2SA933S-R
4050020407 TR 2SA1037K-S
4050020308 TR 2SA1037K-R
4050020407 TR 2SAI037K-S
4050020308 TR 2SAI037K-R
4050180200 TR 2SC3331-U
4050180101 TR 2SC3331-T
4050180002 TR 2SC3331 -S
4050249907 TR 2SD734-F
4050250200 TR 2SD734-G
4050035609 TR 2SA1 318-S
4050035807 TR 2SA131 8-U
4050035708 TR 2SA1318-T
4050180200 TR 2SC3331-U
4050180101 TR 2SC3331-T
4050180002 TR 2SC3331-S
4050180101 TR 2SC3331-T
4050180200 TR 2SC3331 -U
4050180002 TR 2SC3331-S
4050293504 TR DTC144EK,VHR-740 ONLY
4050002007 TR DTAI 44EK,VHR-740 ONLY
4050293504 TR DTC144EK
4050835209 TR DTC343TK
4050002007 TRDTA144EK
Q3503 4050293504 TR DTC144EK,VHR-730 ONLY
LOCAT!ONPARTSMl. DESCW’TION
Q3504
Q3553
OR
Q3554
Q3581
Q5001
Q5002
OR
Q5003
OR
Q5004
OR
Q5101
OR
Q5102
OR
Q5103
:!
OR
Q5104
OR
Q5105
OR
OR
OR
OR
Q5131
OR
Q5132
Q5133
Q5134
OR
OR
OR
OR
Iclol
ICI02
IC141
IC301
IC301
IC302
IC303
OR
IC304
OR
4050293504 TR DTC144EK
4050144509 TR 2SC2412K-R
4050144608 TR 2SC2412K-S
4050293504 TR DTC144EK
4050293504 TR DTC144EK,VHR-730 ONLY
4051260208 TR 2SK1460LS
4050137303 TR 2SC2274K-F
4050137006 TR 2SC2274-F
4050067204 TR 2SA984K-F
4050066702 TR 2SA984-F
4050137303 TR 2SC2274K-F
4050137006 TR 2SC2274-F
4050892202 TR 2SC4483-T
4050892103 TR 2SC4483-S
4050892202 TR 2SC4483-T
4050892103 TR 2SC4483-S
4050137204 TR 2SC2274K-E
4050137006 TR 2SC2274-F
4050137303 TR 2SC2274K-F
4050136801 TR 2SC2274-E
4050892103 TR 2SC4483-S
4050892202 TR 2SC4483-T
4050998607 TR 2SC4640T
4050118401 TR 2SC1740S-Q
4050998508 TR 2SC4640S
4050118500 TR 2SC1740S-R
4050930607 TR KSC2785-Y
4050892202 TR 2SC4463-T
4050892103 TR 2SC4483-S
4050000409 TR DTAI 14EK
4050002908 TRDTC114EK
4050998607 TR 2SC4640T
4050118500 TR 2SC1740S-R
4050930607 TR KSC2785-Y
4050998508 TR 2SC4640S
4050118401 TR 2SC1740S-Q
(INTEGRATED CIRCUITS)
4102731909 ICIA71511 ML-MPB
4093724508 IC LC89977M
4102555307 IC LC74783M-9083
4102880409 IC LC866852A-5E48,VHR-730 ONLY
4102995103 IC LC866852A-5F78, VHR-740 ONLY
4093142005 IC LB1643
4093130903 IC MN1381-L
4092434101 IC MN1380-L
4101895800 IC 24LC04B/P
4101726906 IC X24C04PC7346
–17 –

LOCAllONPARTSNO.
IC304 4101773702
OR 4093486901
IC351 4093486604
OR 4093468103
IC511 4091802307
(DIODES)
DIO05 4070124406
D1301 4070124406
D1302 4070124406
D1341 4070124406
DI 342 4070124406
D3001 4070124406
D3102 4070124406
D3104 4070124406
D3105 4070124406
D3107 4070124406
D3111 4070124406
D3114 4070124406
D3118 4070124406
D3120 4070124406
D3124 4070124406
D3401 4071000006
D3502 4070124406
D3505 4071006602
D3506 4071006602
D5001 4071976509
OR 4071045304
D5003 4070782705
D5004 4070782705
D5006 4070782705
D501O 4070916704
D5013 ~4071695608
DESCRiPltON
IC AT24CO4-1OPC
Ic XL24C04P
IC BU2899K
IC XLU2899K
IC UPC1093J
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133,VHR-740 ONLY
DIODE 1SS133
DIODE 1SS133,VHR-740 ONLY
DIODE 1SS133
DIODE 1SS133
DIODE 1SS133,VHR-730 ONLY
ZENER DIODE MTZJ33C
DIODE 1SS133
DIODE 1SS291
DIODE 1SS291
DIODE DB155G-S
DIODE S1WB(A)60
DIODE 1SS244
DIODE 1SS244
DIODE 1SS244
DIODE APOIC
PHOTO COUPLE PC123U2
D5101
OR
OR
D5102
D5103
D5104
D5105
D5107
D5108
D5109
D511O
D5111
D5112
OR
D5113
OR
Xlool
OR
OR
OR
X3001
OR
X3002
OR
VR351
OR
OR
L1OO2
OR
LI 003
OR
L1006
OR
LIO07
OR
LIIO1
OR
L1102
L1401
4071982609 DIODE SF34
4071609308 DIODE ERB93-02L3
4071695707 DIODE RL2Z-LF-C4
4071982500 DIODE SF24
4070782705 DIODE 1SS244
4070782705 DIODE 1SS244
4071982401 DIODE SFT14
4070638903 ZENER DIODE MTZJ5.6C
4070638903 ZENER DIODE MTZJ5.6C
4070638903 ZENER DIODE MTZJ5.6C
4070996607 ZENER DIODE MTZJ12B
4070995501 ZENER DIODE MTZJ6.2C
4070058701 DIODE ERA1 5-02
4070049709 DIODE DSKIOC
4070049709 DIODE DSKIOC
4070058701 DIODE ERA15-02
(CRYSTALDEVICES)
6450148378 OSC,CRYSTAL4,433619MHZ
6450006029 OSC,CRYSTAL4.433619MHZ
6450006012 OSC,CRYSTAL4.433619MHZ
6450024436 OSC,CRYSTAL4.433619MHZ
6450088360 OSC,CERAMIC8.500MHZ
6450078460 OSC,CERAMIC8.500MHZ
6450041938 OSC,CRYSTAL32.768KHZ
6131090972 OSC,CRYSTAL32KHZ
(VARIABLERESISTORS)
6450035166 VR,SEMI,220KN
6450035593 VR,SEMI,220KN
6450065538 VR,SEMI,220KN
(INDUCTORS)
6450037948 INDUCTOR,120UJ
6450014611 INDUCTOR120UJ
6450038228 INDUCTOR,68UJ
6450021510 INDUCTOR68UJ
6450038013 INDUCTOR,22UJ
6450014642 INDUCTOR22UJ
6450037894 INDUCTOR,IOUJ
6450021411 INDUCTOR10UJ
6450250644 INDUCTOR,O.75UH
6450087400 CORE,BEAD
6450093791 CORE,BEAD
6450015472 INDUCTOR33UJ
LOCA170N PARTSMl. DESCRIPllON
L1401 6450038105 INDUCTOR,33U J
L1402 6450021497 INDUCTOR 56U J
OR 6450038181 INDUCTOR,56U J
L1404 6450021442 INDUCTOR,18U J
OR 6450037986 INDUCTOR,18U J
L2021 6450036934 INDUCTOR,IOOU J
OR 6450037634 INDUCTOR,1OOU J
L3001 6450093791 CORE,BEAD
L3003 6450093791 CORE,BEAD
L3301 6450014550 INDUCTOR 10U K
OR 6450037900 INDUCTOR,1OU K
L3304 6450063886 INDUCTOR,l U K
OR 6450053856 INDUCTOR,IUM
L5001 ~6450135620 LINE FILTER
L501 O6450243417 INDUCTOR,2,0UH
OR 6450063602 INDUCTOR,l.l UH
L5011 6450093791 CORE,BEAD
L5101 6450243417 INDUCTOR,2.OUH
OR 6450063602 INDUCTOR,l,l UH
L5102 6450063602 INDUCTOR,l.IUH
OR 6450243417 INDUCTOR,2,0UH
L5109 6450093791 CORE,BEAD
(TRANSFORMERS)
T2001 6450183515 TRANS,0SC,70KHZ
T5001 A6450208676 TRANS,POWER,PULSE
(CAPACITORS)
Clool 4031918709 ELECT 1UM50V
C1OO2 4031892405 ELECT 10UM 16V
CIO03 4031354002 ELECT 47U M6.3V
CIO04 4030680409 CERAMIC 0.1 UZ25V
cl 005 4031637907 ELECT 47U M6.3V
Cl 006 4030680409 CERAMIC 0.1 UZ25V
cl 007 4031918709 ELECT 1UM50V
cl 009 4031918709 ELECT 1UM50V
Clolo 4030149302 CERAMIC 180P J50V
Cloll 4030234503 CERAMIC 330P J50V
C1OI2 4030200508 CERAMIC 27P J50V
CIO13 4031506500 ELECT 22U M16V
C1OI4 4030695601 CERAMIC 0.01 U K 50V
CIO15 4030228304 CERAMIC 33P J50V,VHR-730 ONLY
C1015 4030200508 CERAMIC 27P J50V,VHR-740 ONLY
CIO16 4030011906 CERAMIC O.OIU M16V
C1OI7 4030011906 CERAMIC 0.01 UM16V
CIO18 4031303109 CERAMIC 0.047U K50V
CIO19 4031918709 ELECT IUM50V
C1021 4031303109 CERAMIC 0.047U K50V
C1022 4031096308 ELECT 1UM50V
Cl 023 4031303109 CERAMIC 0.047U K50V
Cl 024 4031925905 CERAMIC 0.1 U K 25V
Cl 025 4030695601 CERAMIC 0.01 U K 50V
C1026 4031918709 ELECT 1UM50V
C1027 4030721607 CERAMIC 0.022U K50V
C1028 4031918709 ELECT 1UM50V
Cl 029 4031637907 ELECT 47U M6.3V
cl 030 4030680409 CERAMIC 0.1 UZ25V
C103I 4030695601 CERAMIC 0.01 U K 50V
Cl 032 4031918709 ELECT 1UM50V
cl 033 4030143409 CERAMIC 18P J50V
Cl 038 4030101102 CERAMIC 1000P J50V
cl 040 4031892405 ELECT IOU M16V
CI041 4030200409 CERAMIC 27P J50V
cl 043 4030862805 NP-ELECT 1UM50V
Cl 046 4030013306 CERAMIC 1200P M16V
cl 047 4030262803 CERAMIC 47P J50V
CI046 4030126907 CERAMIC 15P J50V
CI050 4030126907 CERAMIC 15P J50V
Cllol 4031918709 ELECT 1UM50V
CI102 4031637907 ELECT 47U M6,3V
CII03 4030680409 CERAMIC 0.1 UZ25V
C1104 4030695601 CERAMIC 0.01 U K 50V
CII05 4030695601 CERAMIC 0.01 U K 50V
CI106 4030695601 CERAMIC 0.01 U K 50V
C1107 4030695601 CERAMIC 0.01 U K 50V
C1108 4031925905 CERAMIC 0.1 U K 25V
–18–

LOCATIONPARTSNO. OESCRIPllON
CI109 4030680409 CERAMIC 0.1UZ25V
C1301 4031354101 ELECT 470UM6,3V
C1303
C1352
C1353
C1401
C1403
C1404
C1405
Cl 406
cl 407
C1410
C1411
C1412
C1414
C2001
C2002
C2002
C2003
C2004
C2005
C2006
C2007
C2008
C2009
C2010
C2011
C2012
C2013
C2014
C2015
C2016
C2017
C2019
C2021
C2022
C2023
C2024
C2025
C2026
C2027
C2028
C2315
C2361
C2372
C3001
C3002
C3004
C3005
C3008
C3009
C3011
C3012
C3014
C3015
C3016
C3019
C3022
C3037
C3040
C3041
C3042
C3043
C3086
C3301
C3302
C3303
C3307
C3314
C3315
C3318
C3320
C3404
4030680409
4031918709
4031096308
4030228205
4031096308
4030699500
4031354002
4030180503
4030180503
4030095807
4030705508
4031096308
4030143508
4031918709
4030691702
4030695601
4030695601
4031892405
4031677002
4030680409
4031677002
4030680409
4031598109
4031676500
4031676500
4030680409
4031892405
4030680409
4030680409
4031638409
4030739107
4030680409
4030754603
4030705508
4030750706
4030750706
4031937809
4030813302
4030680409
4031892405
4030691702
4030690309
4030747607
4030180503
4030125900
4030695601
4030695601
4031506500
4030695601
4030680409
4030695601
4031354101
4030680409
4030695601
4030680409
4033054601
4030283402
4030095807
4030095607
4030095807
4030095807
4030011609
4031079905
4031079905
4030247206
4030680409
4031892405
4030683608
4030115000
4030307009
4031938905
CERAMIC 0.1 UZ25V
ELECT 1UM50V
ELECT 1UM50V,VHR-740 ONLY
CERAMIC 33P J50V
ELECT 1UM50V
CERAMIC O.OIU Z50V
ELECT 47U M6.3V
CERAMIC 22P J50V
CERAMIC 22P J50V
CERAMIC IOOP J50V
CERAMIC 1200P K50V
ELECT 1UM50V
CERAMIC 18P J50V
ELECT 1UM50V
CERAMIC 1000P K50V,VHR-730 ONLY
CERAMIC 0.01 U K 50V,VHR-740 ONLY
CERAMIC 0.01 U K 50V
ELECT 10UM 16V
ELECT 4,7U M50V
CERAMIC 0.1 UZ25V
ELECT 4,7U M50V
CERAMIC 0.1 UZ25V
ELECT 100U M6.3V
ELECT 33U M6.3V
ELECT 33U M6.3V
CERAMIC O.l UZ25V
ELECT IOU M16V
CERAMIC 0.1 UZ25V
CERAMIC 0.1 UZ25V,VHR-740 ONLY
ELECT 47U M16V
CERAMIC 4700P K50V
CERAMIC 0.1 UZ25V,VHR-740 ONLY
CERAMIC 820P K50V
CERAMIC 1200P K50V
CERAMIC 6800P K50V
CERAMIC 6800P K50V
ELECT IOOU M16V
POLYPRO 0.022U J100V
CERAMIC 0.1 UZ25V
ELECT 10U M16V,VHR-740 ONLY
CERAMIC 1000P K50V
CERAMIC 1000P J50V
CERAMIC 5600P K50V
CERAMIC 22P J50V
CERAMIC 15P J50V
CERAMIC O.OIU K50V
CERAMIC O.OIU K50V
ELECT 22UM 16V
CERAMIC 0.01 U K 50V
CERAMIC 0.1 UZ25V
CERAMIC 0.01 U K 50V
ELECT 470U M6.3V
CERAMIC O.lU Z25V
CERAMIC O.OIU K50V
CERAMIC O.l UZ25V
DL-ELECT 0.1 F Z 5.5V
CERAMIC 56P J50V
CERAMIC IOOP J50V,VHR-740 ONLY
CERAMIC 100P J50V,VHR-740 ONLY
CERAMIC 100P J50V,VHR-740 ONLY
CERAMIC 100P J50V,VHR-740 ONLY
CERAMIC 0.01 U K 16V
ELECT IOU M16V
ELECT 10UM 16V
CERAMIC 380P J50V
CERAMIC O.l UZ25V
ELECT IOUM 16V
CERAMIC 0.033U Z25V
CERAMIC 120P J50V
CERAMIC 68P J50V
ELECT 22U M50V
C3501 4030709803 CERAMIC 0.015U K50V
LCCATIONPARTSI@.
C3502 4030750706
C3503 4030709803
C3504 4032288207
C3505 4032288207
C3506 4030750706
C3507 4031506500
C3508 4031506500
C3509 4031637907
C3511 4030716504
C3512 4030569704
C3513 4031196701
C3514 4031849805
C3515 4030630206
C3516 4030718102
C3517 4030708806
C3522 4030691207
C3523 4031392707
C3524 4030695601
C3525 4031392608
C3526 4030637205
C3536 4031937601
C3540 4030095708
C3551 4031750903
C3551 4031686202
C3552 4030284102
C3553 4031918709
C3554 4030133004
C3555 4030695601
C3556 4030691702
C3558 4031676500
C3561 4030589306
C3562 4031385600
C3570 4030702606
C3571 4030702606
C3581 4031849805
C5001 A4040554905
C5002 A4040554805
C5005 A4040742104
C5007 A4040742104
C501O 4032490204
C5011 4033011101
C5012 4030762402
C5013 4032558409
C5015 4031925905
C5017 4030247107
C5020 4032558508
C5021 4030760507
C5025 4032558409
C51OI 4033140207
C5102 4031353302
C5103 4033140108
C5104 4031255507
C5105 4033049302
C5106 4033011309
C5107 4033011507
C5111 4031255606
C5112 4031892405
C5113 4031939001
C5114 4031079905
C5115 4031357805
C5116 4031079905
C5117 4031357805
C5118 4031892405
C5124 4031080000
C5134 4030762006
C5135 4030573107
(RESISTORS)
R1OOI 4010375400
R1002 4010386406
R1003 4010379200
RI004 4010376704
RI005 4010386307
R1006 4010386307
R1011 4010375400
DEscMPIK)N
CERAMIC 6800P K50V
CERAMIC 0.01 5U K50V
ELECT 22U M16V
ELECT 22U M16V
CERAMIC 6800P K50V
ELECT 22UM 16V
ELECT 22UM 16V
ELECT 47U M6.3V
CERAMIC 220P K50V
POLYESTER 0.01 UJ50V
CERAMIC 0.068U K16V
MT-POLYEST 0.22U J50V
POLYESTER 6800P K50V
CERAMIC 2200P K50V
CERAMIC 1500P K50V
CERAMIC 1000P K50V
ELECT1 UM50V
CERAMIC 0.01 U K 50V
ELECT 0,47U M50V
POLYESTER 0.082U J50V
ELECT 220U M6.3V
CERAMIC 100P J50V
MT-POLYEST 0.12U J50V,VHR-740 ONLY
MT-POLYEST 0.33U J50V,VHR-730 ONLY
CERAMIC 56P J50V
ELECT 1UM50V
CERAMIC 150P J50V
CERAMIC 0.01 U K 50V
CERAMIC 1000P K50V
ELECT 33U M6.3V
POLYESTER 0,018U J50V
POLYESTER 5600P J50V
CERAMIC 0.1 UZ50V
CERAMIC 0.1 UZ50V
MT-POLYEST 0.22U J50V,VHR-730 ONLY
MT-POLYEST 0.068U M250V
MT-POLYEST 0068U M250V
CERAMIC 10COP M250V
CERAMIC 1000P M250V
ELECT 47U M400V
ELECT 4,7U M50V
CERAMIC 3300P K500V
CERAMIC 39P J 1K
CERAMIC 0.1 U K 25V
CERAMIC 390P J50V
CERAMIC 47P J 1K
CERAMIC 2200P K500V
CERAMIC 39P J 1K
ELECT 1000UM 16V
ELECT 1000U M6.3V
ELECT 470U M16V
ELECT 1000U M16V
ELECT 47U M50V
ELECT 47U M35V
ELECT 220U M6.3V
ELECT IOOUM 16V
ELECT 10UM 16V
ELECT 3.3U M50V
ELECT 10UM 16V
ELECT 3.3U M50V
ELECT IOUM 16V
ELECT 3,3U M50V
ELECT IOUM 16V
ELECT 0.22U M50V
CERAMIC 330P K500V
POLYESTER 0,1 U K 50V
MT-GLAZE 1KJA l/10W
MT-GIAZE 4,7K JA l/10W
MT-GLAZE 1.8K JA l/10W
MT-GLAZE 1.2K JA l/10W
MT-GLAZE 470 JA l/10W
MT-GLAZE 470 JA l/10W
MT-GLAZE 1KJA l/10W
-19 -

LOCATIONPART3I@. DESCW710N
RIO12 ‘- 47KJAl/10W
RI014
RI015
R1OI6
R1OI7
RI 024
RI 025
RI 028
RI 032
RI 040
RI041
RI 042
R1045
RI 046
RI 047
RI 048
RI 049
RI1OI
R1102
R1104
R1301
RI 303
RI 304
R1312
R1313
R1352
RI 404
RI 405
R1410
R1412
R2001
R2002
R2003
R2003
R2004
R2005
R2006
R2007
R2008
R2009
R201O
R2011
R2012
R2013
R2014
R2015
R2016
R2017
R2018
R2021
R2022
R2023
R2024
R2025
R2026
R2027
R2028
R2029
R2030
R2031
R2031
R2033
R2307
R2331
R2361
R2379
R2380
R2381
R2395
4010386505
4010379200
4010390403
4010377909
4010164707
4010375400
4010375004
4010380701
4010375400
4010375004
4010380701
4010375004
4010377008
4010375004
4010375004
4010375004
4010375004
4010380701
4010380701
4010152605
4010190904
4010226702
4010375004
4010380602
4010382002
4010375004
4010383603
4010380602
4010380602
4010123308
4010386406
4010376803
4010376803
4010375400
4010383801
4010380602
4010389209
4010390403
4010387700
4010383900
4010383702
4010386406
4010385102
4010383702
4010383702
4010386406
4010375004
4010375608
4010387700
4010382200
4010379200
4010375400
4010386208
4010118809
4010380701
4010380701
4010379101
4010375608
4010380800
4010375004
4010898602
4010375608
4010375400
4010375004
4010211807
4010385102
4010375004
4010375400
4010389506
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
CARBON
MT-GLAZE
MT-GIAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GIAZ’E
MT-GLAZE
MT-GIAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
CARBON
CARBON
CARBON
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
CARBON
MT-GLAZE
MT-GLAZE
MT-GIAZE
MT-GLAZE
MT-GWE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GL4ZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GIAZE
MT-GMZE
MT-GLAZE
MT-GLAZE
CARBON
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLUE
MT-GLAZE
MT-GLAZE
MT-GL4Z’E
MT-GLAZE
CARBON
MT-GLAZE
MT-GLAZE
MT-GLAZE
MT-GLAZE
1.8K JA l/10W
8.2K JA l/10W
1.5K JA l/10W
22K JA I14W
lK JA l/10W
0,000 ZA l/10W
2.2K JA IHOW
lKJA1/10W
0,000 ZA l/low
2.2K JA l/10W
0.000 ZA l/low
1,2M JA l/10W
0,000 ZA l/low
0,000 ZA l/low
0,000 ZA l/low
0.000 ZA I/low
2,2K JA l/10W
2.2K JA l/10W
1.8K JA I14W
390 JA l/4W
75 JA l/4W
0.000 ZA I/low
220 JA l/10W
270 JA l/10W
0.000 ZA l/low
3.3K JA l/10W
220 JA l/10W
220 JA l/10W
IOJA l/4W
4.7K JA l/10W
12KJA1/low
12K JA l/10W,VHR-730 ONLY
1KJA l/10W,VHR-740 ONLY
330K JA l/10W
220 JA l/10W
6.8K JA l/10W
8.2K JA l/10W
5.6K JA l/10W
3.3M JA l/10W
33K JA l/10W
4,7K JA l/10W
3.9K JA l/10W
33K JA l/10W
33K JA lHOW,VHR-740 ONLY
4.7K JA IHOW,VHR-740 ONLY
0.000 ZA l/tOW,VHR-740 ONLY
10KJA l/10W
5.6K JA l/10W,VHR-740 ONLY
27K JA 1/1OW
1.8K JA l/10W
lKJA1/10W
47 JA l/10W
1JA l/4W
2.2K JA l/10W
2.2K JA l/10W
180JA I/low
10KJA1/10W
22K JA l/10W
O.OOOZA l/10W,VHR-730 ONLY
4,7M JA l/10W,VHR-740 ONLY
IOK JA l/10W,VHR-740 ONLY
lKJA1/10W
0,000 ZA l/low
560 JA 1/4W
3.9K JA l/10W
0.000 ZA I/low
lKJA1/10W
75 JA l/10W
R3001 A4020677402 FUSIBLE RES 3,3 JA l/2W
R3004 4010377909 MT-GLAZE 1.5K JA l/10W
R3008 4010201907 CARBON 4.7K JA l/4W
R3009 4010231607 CARBON 820 JA l/4W
R3011 4010202805 CARBON 47K JA l/4W
LOCATION
R3013
R3014
R3015
R3018
R3019
R3023
R3024
R3025
R3026
R3032
R3036
R3037
R3047
R3048
R3049
R3050
R3051
R3056
R3059
R3090
R3091
R3092
R3094
R3095
R31OI
R3102
R3103
R3104
R3301
R3302
R3305
R3306
R3309 /!?
R3310
R3311
R3501
R3502
R3503
R3504
R3505
R3506
R3507
R3508
R3508
R3516
R3517
R3518
R3519
R3520
R3521
R3525
R3526
R3527
R3528
R3529
R3533
R3537
R3546
R3547
R3549
R3550
R3556
R3557
R3558
R3560
R3581
R5001
R5002
R5003
R5004
R5005
R5006
R5007
PARTSNo.
4010386406
4010149001
4010149001
4010389209
4010379309
4010375400
4010375400
4010375400
4010375400
4010184804
4010163700
4010385300
4010379200
4010376704
4010382101
4010164707
4010164707
4010386505
4010126903
4010162505
4010162505
4010162505
4010135202
4010135202
4010126903
4010126903
4010126903
4010126903
4010385003
4010377909
4010383603
4010386406
i4020782908
4010383504
4010385003
4010128006
4010375707
4010383801
4010146000
4010145102
4010380909
401 0f46000
4010202805
4010172702
4010375608
4010386505
4010202805
4010383801
4010385409
4010375608
4010125609
4010380701
4010375400
4010207800
4010207800
4010144006
4010390403
4010201907
4010378005
4010375608
4010390403
4010375608
4010383801
4010386307
4010375400
4010214006
4020139108
4010379101
4010379200
4010383801
4010375004
4010375608
4010380800
DESCRIPTION
MT-GLAZE 4.7K JA l/10W
CARBON 16K JA l/4W
CARBON 16K JA l/4W
MT-GLAZE 6.8K JA l/10W
MT-GIAZE 18K JA l/10W
MT-GLAZE 1KJA l/10W
MT-GLAZE 1KJA l/10W
MT-GLAZE 1KJA l/10W
MT-GLAZE 1KJA l/10W
CARBON 33K JA l/4W
CARBON 2.2K JA l/4W
MT-GLAZE 39K JA l/10W
MT-GLAZE 1,8K JA l/10W
MT-GLAZE 1,2K JA l/10W
MT-GLAZE 2,7K JA l/10W
CARBON 22K JA l/4W
CARBON 22K JA I14W
MT-GLAZE 47K JA l/10W,VHR-740 ONLY
CARBON 10K JA l/4W
CARBON 220 JA l/4W
CARBON 220 JA l/4W
CARBON 220 JA l/4W
CARBON 1.2K JA l/4W
CARBON 1.2K JA l/4W
CARBON IOK JA l/4W
CARBON 10K JA l/4W
CARBON 10K JA l/4W
CARBON IOKJA l/4W
MT-GLAZE 390 JA l/10W
MT-GLAZE 1.5K JA l/10W
MT-GLAZE 3,3K JA l/10W
MT-GLAZE 4,7K JA l/10W
FUSIBLE RES 680 GA l/4W
MT-GLAZE 330 JA l/10W
MT-GLAZE 390 JA l/10W
CARBON lOOK JA l/4W
MT-GLAZE IOOK JA l/10W
MT-GLAZE 330K JA l/10W
CARBON 150K JA l/4W
CARBON 15K JA l/4W
MT-GLAZE 220K JA l/10W
CARBON 150K JA l/4W
CARBON 47K JA l/4W,VHR-730 ONLY
CARBON 27K JA l/4W,VHR-740 ONLY
MT-GLAZE 10K JA l/10W
MT-GLAZE 47K JA l/10W
CARBON 47K JA I14W
MT-GIAZE 330K JA l/10W
MT-GLAZE 390K JA l/10W
MT-GLAZE 10K JA l/10W
CARBON lKJA I14W
MT-GIAZE 2,2K JA l/10W
MT-GIAZE lKJA l/10W
CARBON 510 JA l/4W
CARBON 510 JA l/4W
CARBON 1.5K JA l/4W,VHR-730 ONLY
MT-GLAZE 8,2K JA l/10W
CARBON 4.7K JA l/4W
MT-GLAZE 15K JA l/10W
MT-GIJWE 10K JA l/10W
MT-GLAZE 8.2K JA l/10W
MT-GLAZE 10K JA l/10W
MT-GLAZE 330K JA l/10W
MT-GIAZE 470 JA l/10W
MT-GLAZE 1KJA l/10W
CARBON 56K JA l/4W,VHR-730 ONLY
SOLID 2.7M KB l/2W
MT-GLAZE 180 JA l/10W
MT.GLAZE 1.8K JA l/10W
MT-GLAZE 330K JA l/10W
MT-GLAZE O,O@)ZA l/10W
MT-GIAZE 10K JA l/10W
MT-GLAZE 22K JA l/10W
-20 –
