SAT-Kabel AMS-FS433 User manual

AMS-FS433
OPERATING INSTRUCTION
Radio set 433 MHz for AMS-SD

3
This operating instruction was produced to the best of knowledge. Errors excepted
as well as alterations and additions are subject to change.
Content
1. General
4. Measuring setup .........................................................................................
5.3 AMS-RX433 to AMS-TX433 teach
.......................................................................................................4
2. Scope of delivery ........................................................................................4
3. Functional requirements.............................................................................4
4
5. Operation....................................................................................................5
5.1 AMS-TX433 .................................................................................................5
5.2.1 Switching on and off ...................................................................................5
5.2.2 LED display .................................................................................................6
5.2.3 Display readout...........................................................................................6
5.2.4 Battery charge ............................................................................................7
Guarantee.................................................................................................10
5.2 AMS-RX433 .................................................................................................5
................................................................8
5.4 Troubleshooting ..........................................................................................8
6. Technical data ............................................................................................9
7. Cleaning and maintenance .........................................................................9

4
1. General

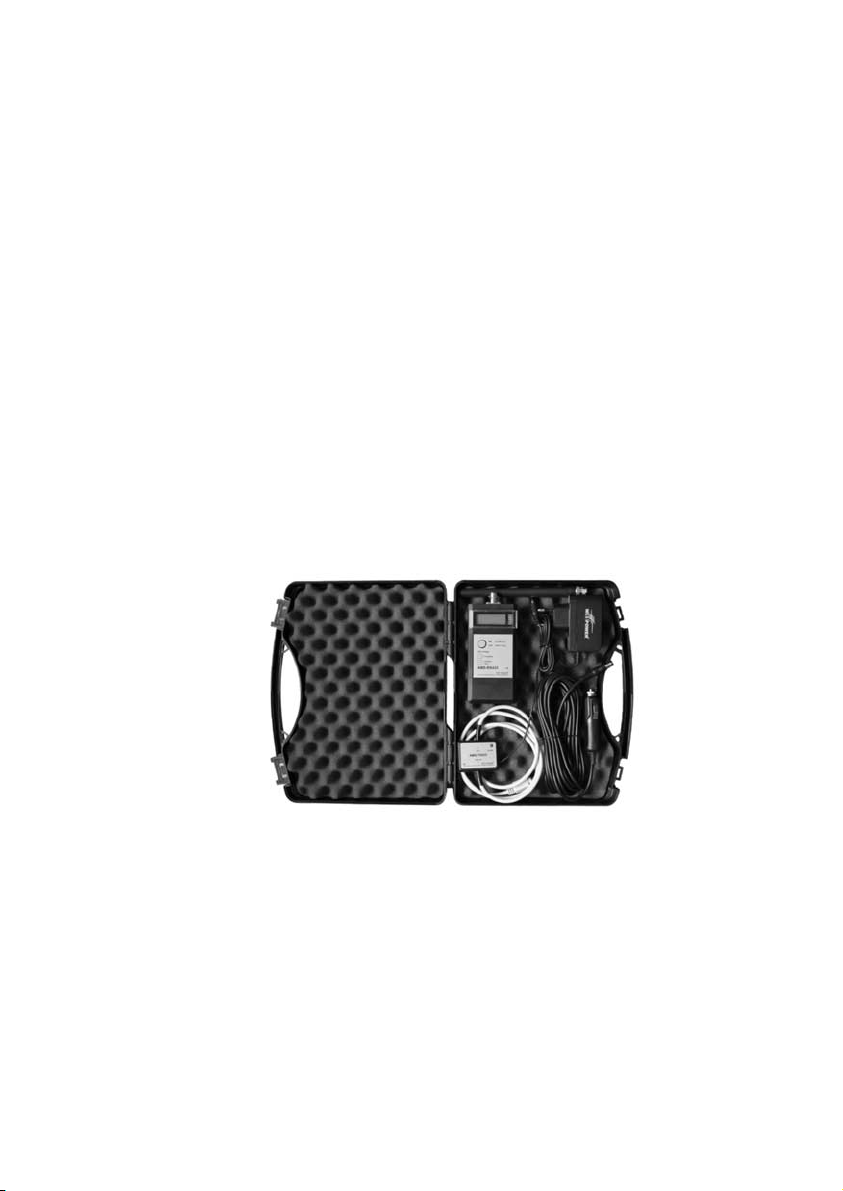

2. Scope of delivery
The radio set , consisting of (transmitter) and
(receiver with display), is an optional accessory for the . It serves the measured
value transmission from the in a vehicle to service employees for finding RF-
leakages in a cable CATV network. The advantage for the technician is the immediate
indication of any change in the coaxial home distribution network as field strength
readings.
AMS-FS433 AMS-TX433 AMS-RX433
AMS-SD
AMS-SD
Furthermore, the radio transmission of the field strength measurements
made possible by disconnecting coaxial cable locating the distinctive line (exclusion
method).
1× for connection to the
(receiver with display and battery)
Charging power supply
Car charging cable
BNC plug-on antenna
Transport case
This operating instruction
AMS-TX433 AMS-SD
AMS-RX4331×
1×
1×
1×
1×
The to be transferring data with the (radio set) always remain
switched on – even when parking the vehicle. Condition for the correct operation of the
is, that the measuring cycle in the is maximum 2 seconds. The best
setting for this is: » . No unnecessary measurements in the
can be stored while the vehicle is stopped.
Tip! The (receiver) can be used in the vehicle to determine the highest field
strength.
AMS-SD AMS-FS433
AMS-FS433 AMS-SD
speed-dependent« AMS-SD
AMS-RX433
3. Funktional requirements

5
5. Operating
5.1 AMS-TX433 (transmitter)
5.2 AMS-RX433 (receiver)
4. Measuring setup
twice briefly pushing of the button switches on the
receiver.
5.2.1 Switching on and off
Connect the with the PS/2 connector to the . To the PS/2 clutch of
the then can be connected GPS receiver or – see Fig. a.
AMS-TX433 AMS-SD
AMS-TX433 AMS-LCD
For safe operation, the throw antenna is as possible be positioned so that a line of
sight to the object to be measured (building) is given. The transmitter of the radio set
does not require further attention. As soon as the performs a measurement, the
data are automatically sent to the receiver.
AMS-SD
switch on
2×
briefly
AMS-TX433 (transmitter)
AMS-SD and
GPS receiver in the car
between
AMS-RX433
(receiver with display)
at service technician
Fig. a: Fig. b:
GPS-
receiver
AMS-TX433
AMS-SD
SD card
VT 87/301
AMS- SD
SAT- Kabel
car connecting cable
d
ANT-Duo Set
ual band antenna with magnetic foot

6
12.3 SAT
23.5 S87
12.3 SAT
--------
briefly
3s
By further pressing the button now, the display readout
will be changed over.
By a long press of the button (about 3 s) the device will
switch off at any time.
If 5 minutes no data are received, the device switches
off automatically.
switch off
display change over
automatically switch off
5.2.2 LED display
5.2.3 Display readout (shown schematically)
field strength LED (analogous to FST LED of the )
receiving LED (for data input)
AMS-SD
battery LED
field strength LED |
receiving LED |
battery LED |
It shines green when a detecting code is present and the mea-
sured field strength is below the limit (adjustable in the ). It blinks red when the
detecting code is available, but the measured field strength is over the limit.
The displayed field strength is measured by the and transmitted by radio to
the .The limits can be changed in the and act simultaneously on the
attached devices ( and also ).
Blinking briefly yellow, if new data are received.
Shines red if the battery is growing empty.
AMS-SD
AMS-SD
AMS-RX433 AMS-SD
AMS-RX433 AMS-LCD
Mode 1
Line 1: Measuring frequency 1 in dB(µ)/m + 3 letters of the
detecting code
Line 2: Measuring frequency 2 in dB(µ)/m + 3 letters of the
detecting code
Line 1: If only one frequency from the is measured and
transmitted
AMS-SD

7
F1: 12.3
SAT□□□□□
AMS-RX
13:58:24
□
kein
Empfang
□□□□
□
Spannung
zu klein
Spannung
zu hoch!
F2: 23.5
S87□□□□□
Line 1: measuring frequency 1, level in dB(µV)
Line 2: up to 8 letters of the detecting code
Line 2: displays the current time (transferred by the )AMS-SD
»«no reception
display, when three seconds no data are received
Line 1: measuring frequency 2, level in dB(µV)
Line 2: up to 8 letters of the detecting code
Mode 2
Mode 4
Other
Mode 3 (shown only if two measuring frequencies are measured)
»«voltage too small
Power supply voltage is not sufficient to charge the battery
»
Power supply voltage too high! IMMEDIATELY disconnect power
supply from the device to avoid damage!
voltage too high!«
5.2.4 Charging the battery
The can be loaded either with the included AC adapter (Input 230 V ,
output 12 V /450 mA) or with the included car charger into the port of the cigarette
lighter of a car.
AMS-RX433 AC
DC
After connecting the charging process starts automatically and displays an animation
on the display. About 20 seconds after the start of the charge the display backlight is
switched off. At a fully charged battery, the backlight turns on again and the five LEDs
are shining green.
If the input voltage is out of the allowable range, such as at use of inappropriate power
supplies, this will be shown on the display.

8
Sender
suchen
□
□
Sender
gefunden
□
Long
5.3 AMS RX433 teach to AMS-TX433
5.4 Troubleshooting
Each transmitter has its own signature to build a couple connection
between and . Thus, the operation of several AMS radio sets in
the surrounding area is possible.
To establish the connection, the must be taught once to the transmitter. It
is also possible to teach several receiver to an .
AMS-TX433
AMS-RX433 AMS-TX433
AMS-RX433
AMS-TX433
1| and ( ) must be switched off.AMS-RX433 TX433 AMS-SDAMS-
2|Press the button of the , and keep it pressed for
several seconds until the message » « (»
«) appears on the display. The receiving LED will blink
alternately red and green.
AMS-RX433
Sender suchen transmitter
search
3|Now connect the at the and switch on the
(start measurement). When the transmitter is supplied with
electricity, is sent once a registration message.
If this was received by the , the display shows the
message » « (» «). The
switches off a few seconds later and is now ready for use.
AMS-TX433 AMS-SD
AMS-SD
AMS-RX433
Sender gefunden transmitter found AMS-RX433
readout:
solution:
»Kein Empfang«
1. receiver out of reach of the
2. signal is superimposed by interference from the CATV
system
3. antenna detective
4. receiver was not educated to the transmitter
to 1. move closer to the until data are received.
to 2. move away from the disturbing source, or solve the problem
of the CATV system
to 3. Replace the existing antenna by a functional antenna for
433 MHz.
to 4. teach the to , as described in
point 5.3.
possible causes:
AMS-TX433
AMS-TX433
AMS-RX433 AMS-TX433

9
The surface of the housing can be cleaned with a dry, soft and lintfree cloth. Do not use
aggressive solvents for the cleaning.
7. Cleaning and maintenance
6. Technial data
transmitter
receiver
sending frequency 433.5 MHz
antenna throw antenna 17 cm
connection PS/2 plug and PS/2 socket
power supply over AMS-SD
receiving frequency 433.5 MHz
antenna 17 cm plug-on antenna with BNC
connector
NiMH accumulator 6 V, capacity 300 mAh
power consumption max. 60 mA
power supply

10
Guarantee
State July 2006
For this instrument will be granted a service life (in following called guarantee) to following
conditions:
• This guarantee is valid for new instruments purchased in Germany.
• New instruments and their components, which are defective because of production
faults and/or material faults, are repaired or are replaced from SAT-Kabel® against a
corresponding instrument.
• For wear parts, like accumulators, keyboards, housings, bags, connecting cables this
guarantee is valid for 6 month from the purchasing date.
• The guarantee claim expires at matings by the purchaser or third persons.
• At defects, caused by improper handling or operating, by wrong installation or store, by
improper connection or mounting, no guarantee is granted.
• For not justified demand of our service we charge for our service the usual payment for
material, working hours and forwarding costs.
• Repairs are only made with filled service covering.
(Forms for service coverings and further information are found in the standard form contracts
under: )www.sat-kabel.de
